Fiber Laser, CO2 Laser, UV Laser, MOPA Fiber, etc.
Fiber Laser Power
20w, 30w, 50w, 60w
Work Area
110*110mm, 200*200mm, 300*300mm, etc.
Table Type
2D table, 3D Table, Cutting Table, etc.
Option Part
Rotary, Auto Focus, Custom tooling, etc.
Cooling Type
Air Cooled (UV Laser need water cooled)
Fiber Laser Source Brand
MAX, IPG, Raycus, etc.
Technical Parameters
Parameter
Value
Output Central Wavelength
1064nm
Min. Line Width
0.02mm
Engraving Line Speed
≤7000mm/s
Repeat Accuracy
±0.001mm
Min. Character
0.15mm
Fiber Wire Length
5 Meter
Graphic Format Support
DXF, PLT, AI, AMP, JPG, etc.

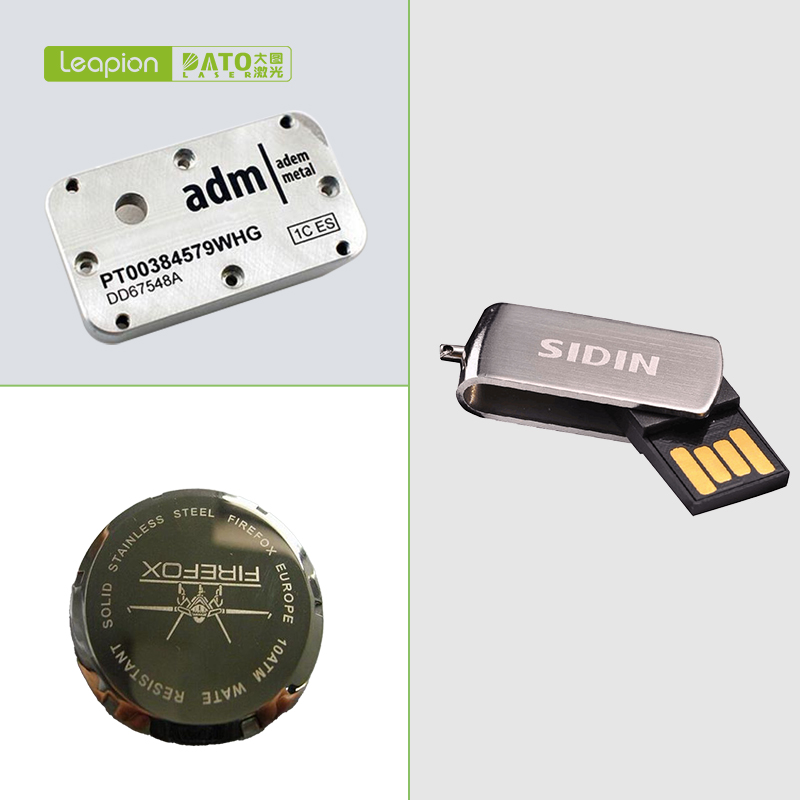

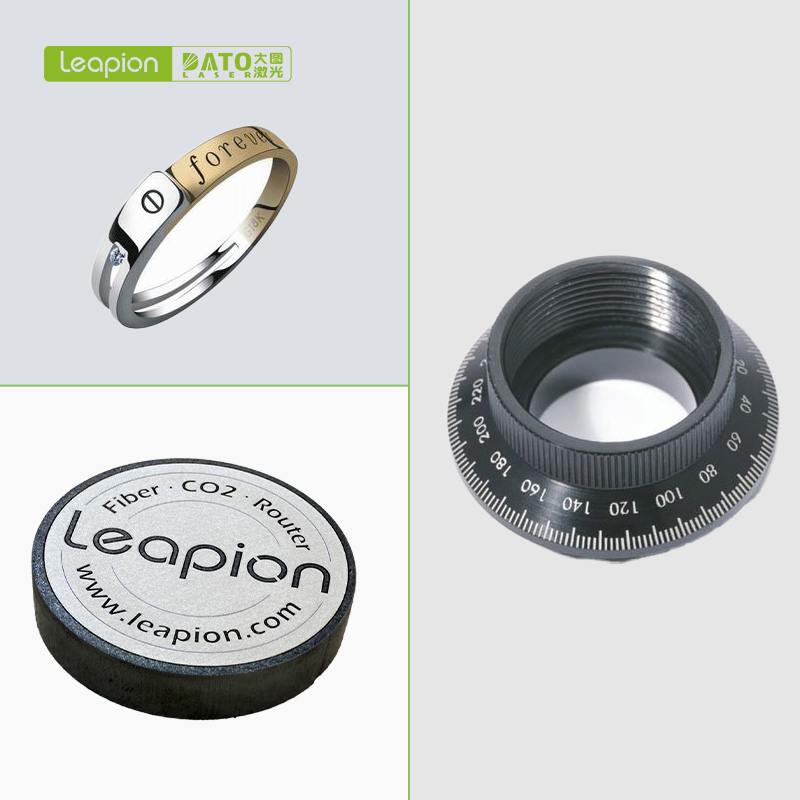

Sample & Application
Laser Type
Materials Application
Fiber Laser
All kinds of metal: Carbon Steel, Stainless Steel, Brass, Copper, Aluminum, Gold, Silver, kinds of Alloy, etc. Some hard Plastic.
CO2 Laser
All kinds of non-metal: Wood, Plywood, Bamboo, MDF, Leather, Fabric, Textile, Paper, Plastic, Acrylic, etc.
UV Laser
Metal and nonmetal for high accuracy marking.
MOPA Laser
Mark Color on Stainless Steel.
Green Laser
Make 3D Marking on Crystal.
Our Certifications
Our Services
Super Factory
FAQ
What customized services do you provide?
We are a true manufacturer with our own factory. Therefore, we can supply full OEM and ODM services to fit your requirements.
What payment methods do you accept?
We support Trade Assurance Orders. Via this method, you can pay by T/T, L/C, Credit Card, and other standard online payment methods.
What shipping methods do you provide?
We provide various delivery options based on your preferences, including EXW, FOB, CFR, DDP, DDU, and other requested methods.
How long is the delivery time?
It depends on the machine model you require and your destination country. For production time, a standard marking machine mode only needs about 20 working days. The shipping duration will depend on flight or shipping transit times.
What materials can the laser marking machines process?
Depending on the system type selected: Fiber Lasers are ideal for metals (steel, brass, copper, aluminum, gold, silver) and hard plastics; CO2 Lasers are suitable for non-metals (wood, MDF, leather, acrylic, textile); UV Lasers are used for high-accuracy marking; MOPA lasers enable color marking on stainless steel.
What is the engraving accuracy of these systems?
Our laser systems provide high precision with a repeat accuracy of ±0.001mm and a minimum line width capability of 0.02mm, ensuring clean and sharp results.
