Recommendation: Customers can purchase this system alongside our dedicated smoke absorber to effectively minimize and filter operation emissions for a healthier working environment.
| Technical Specifications | |
|---|---|
| Brand | LY |
| Power | 40W / 60W (Optional) |

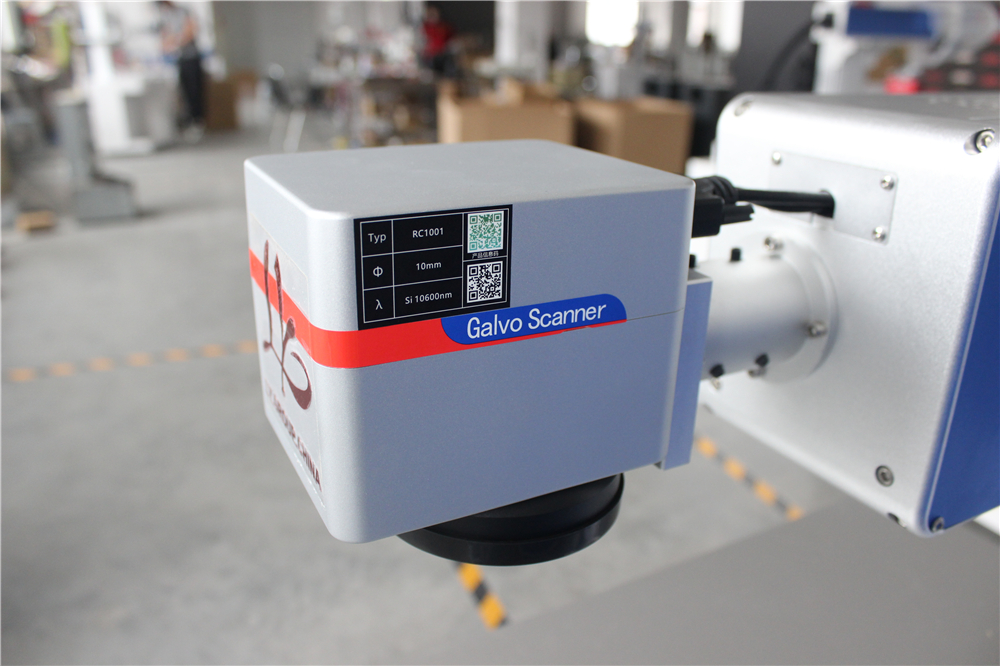

| Galvanometer | RC1001 |
| Power supplier | Mean well |
| Laser wavelength | 1064NM |
| Laser quality | M2<1.4 |
| Output frequency | 20KHZ-80KHZ |
| Laser Marking Area |
70*70MM / 110*110MM / 150*150MM (Standard Equipped) / 175*175MM / 200*200MM / 300*300MM (Note: Machine comes standard with a 150*150MM field lens for optimal results. Larger field lens areas are optional, though larger working areas will reduce effective laser power intensity.) |
| Mini line width | 0.01mm |
| Repetition accuracy | 0.0001mm |

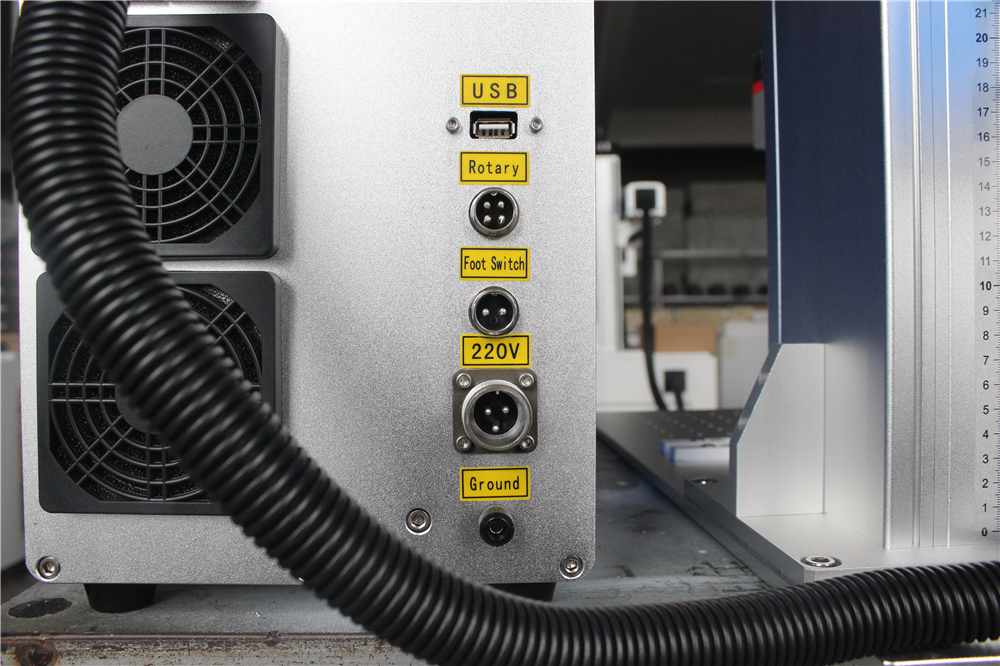

| Voltage | 220V or 110V |
| Marking speed | 5000mm/s |
| Cooling system | Air-cooling |
| Net weight | 45KG |
| Gross weight | 55KG |
| Machine size | 620*600*400mm |
| Warranty Year | 2 Years |
| Control card | BJJCZ EZCAD Original |
| Operation System | Win xp/7/8/10 (32bits/64 bits) |
| Operation Environment | 5-45 degree, clean or dust-free |

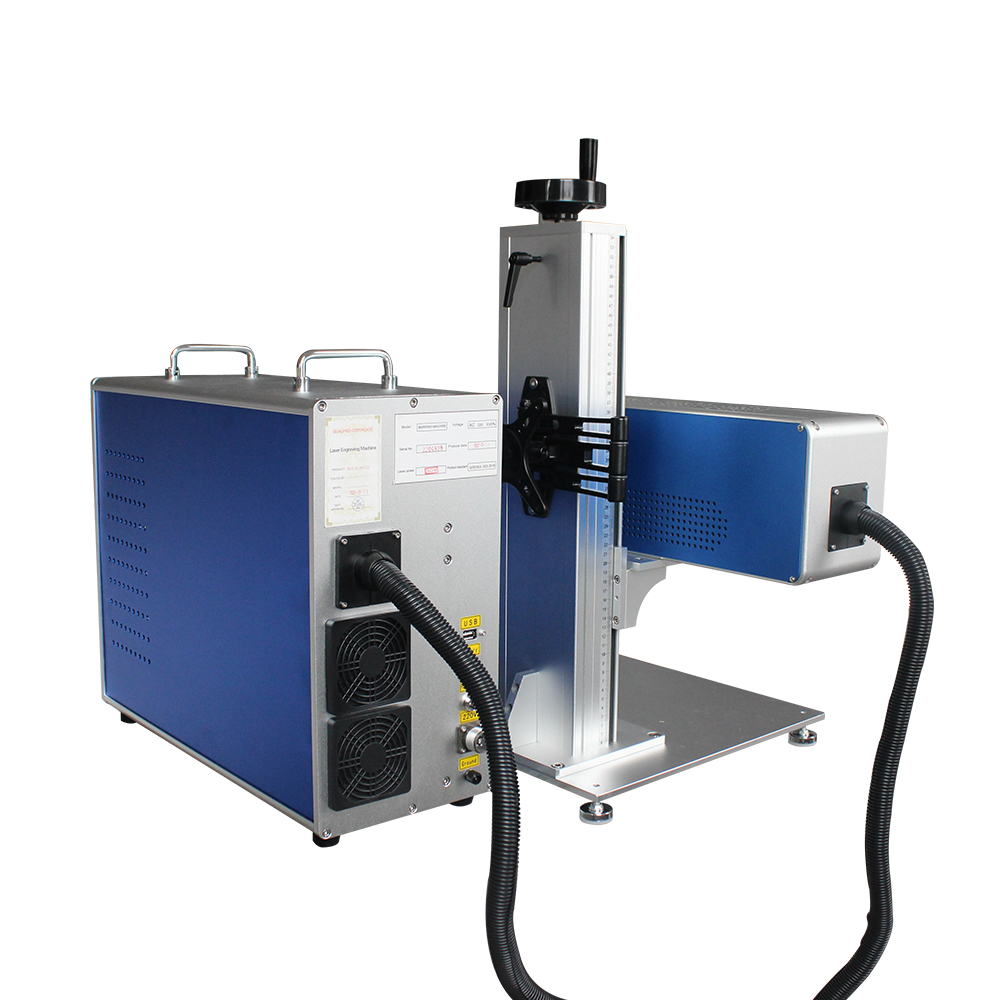

This system is designed specifically for non-metal materials. It provides quick and precise marking on wood, acrylic, leather, paper, and similar organic materials.
The machine is standardly equipped with a single 150*150MM field lens, which delivers excellent marking performance. Other field lens sizes (ranging from 70*70MM up to 300*300MM) are optional; however, please note that larger work areas will yield slightly weaker laser power density.
The machine uses the original BJJCZ EZCAD control card. It is fully compatible with Windows XP, 7, 8, and 10 operating systems (both 32-bit and 64-bit versions).
This machine features an integrated air-cooling system, removing the need for external water cooling units and simplifying maintenance.
The DAVI 40W LY CO2 RF Metal Pipe Laser Marking Machine comes with a 2-year warranty covering technical parameters and reliability.
Yes. It is highly recommended to purchase a smoke absorber alongside this marking machine to filter operational exhaust and reduce harmful smoke in the working environment.
