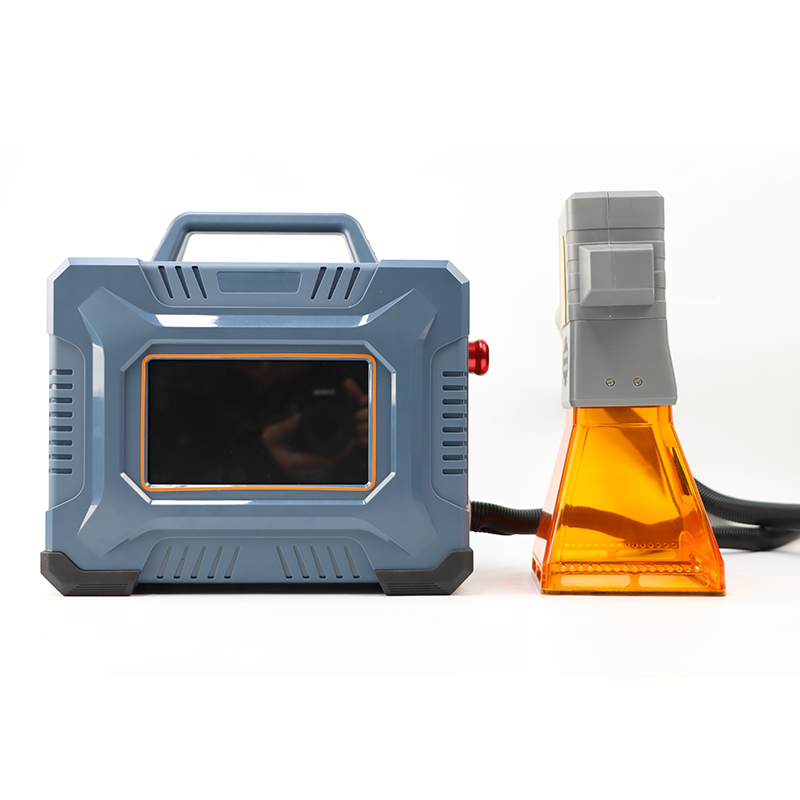

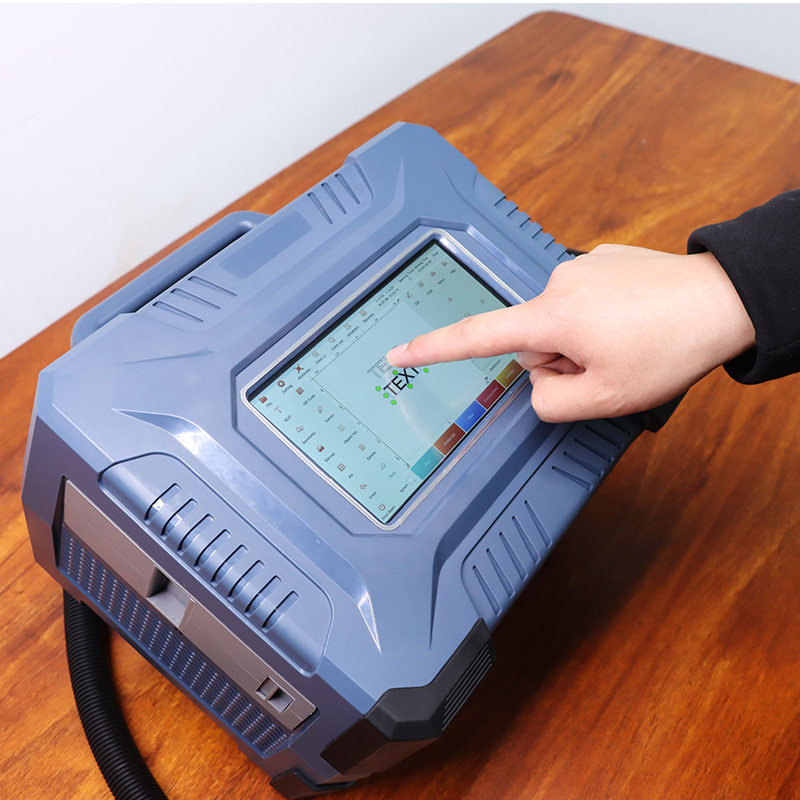

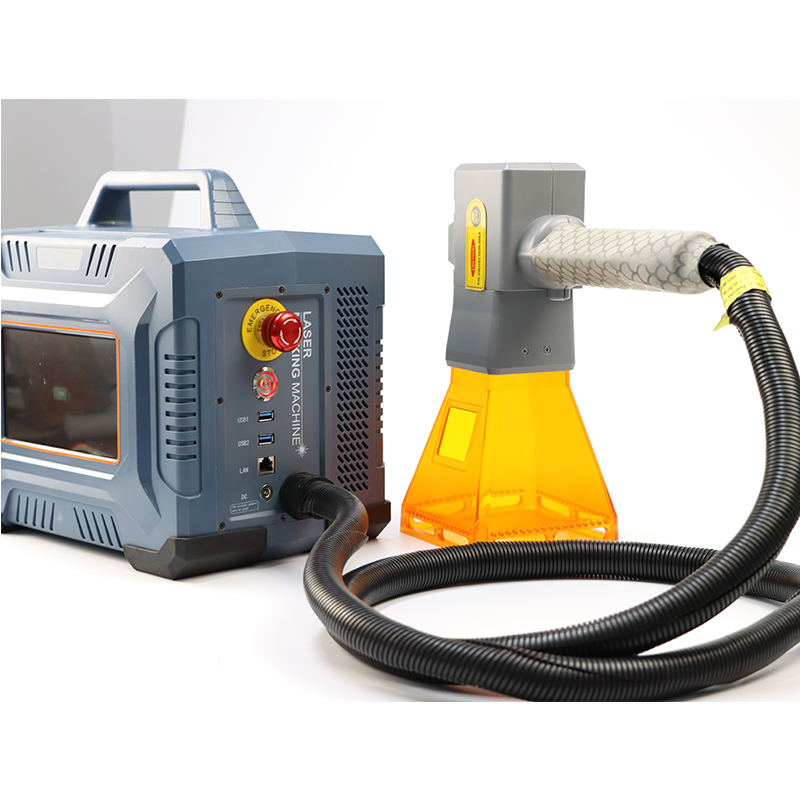

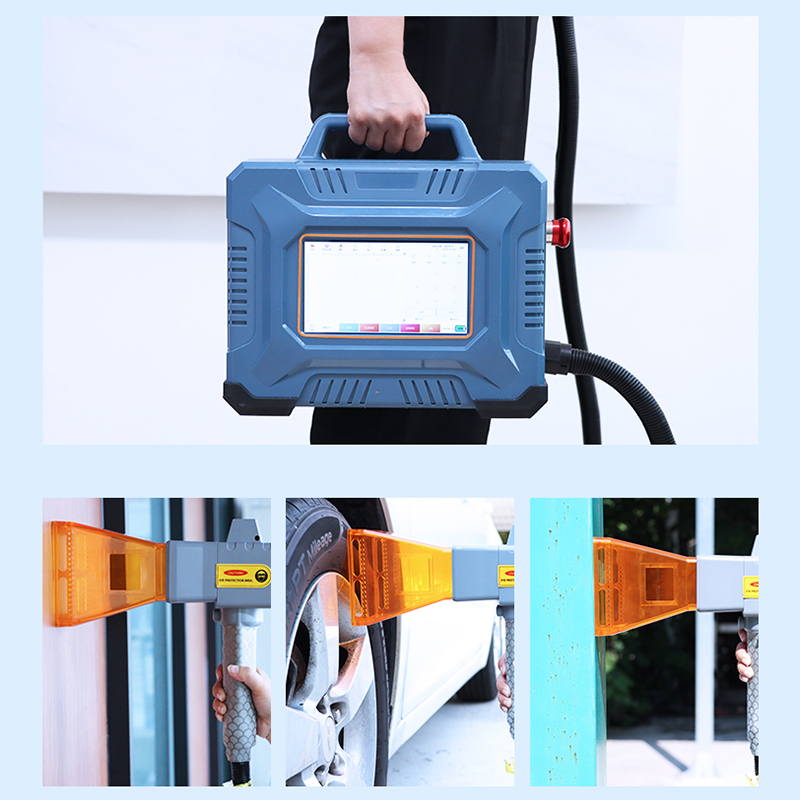

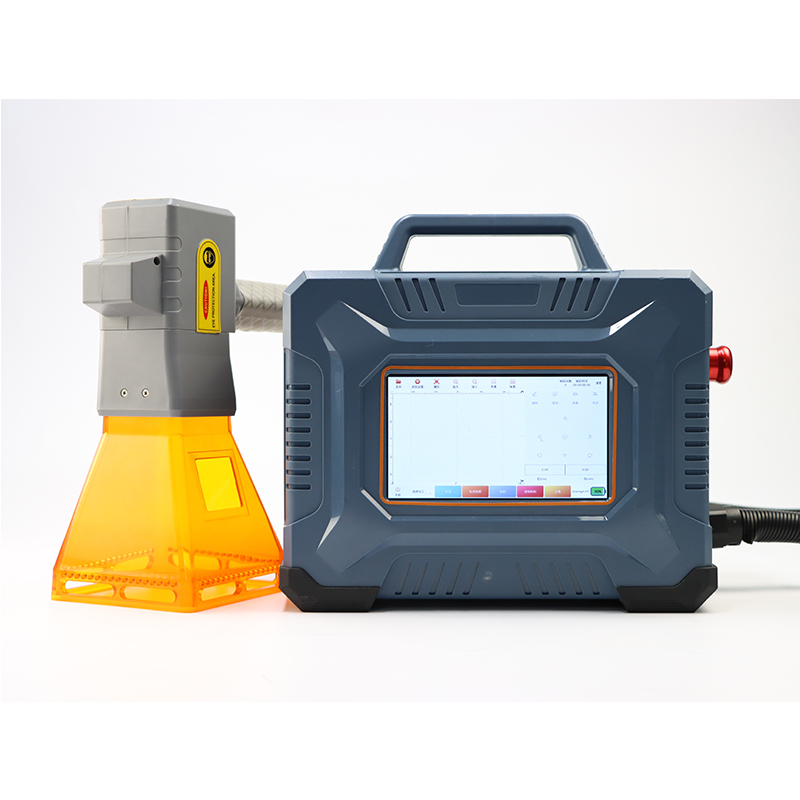

| Model | Power model: LM20/LM25/LM50 | Lithium battery model: LMB20/LMB25/LMB50 |
| Machine material | Environmentally friendly engineering plastics | |
| Laser Type | Fiber Laser Generator | |
| Frequency adjustable range | 1-600 khz | |
| Laser output power | 20W/25W/30W/50W | |
| Power consumption of the whole machine | ≤500W | |
| Maximum power consumption W | 20W: 250W / 30W: 280W | |
| Power supply | AC 220V/110V, 50/60Hz | |
| Battery life | 6-8 hours | |
| Continuous working time with full power | 3.5-5.5 hours | |
| Printing type | QR code, barcode, Chinese, English, numbers, logos, patterns, etc. | |
| Laser wavelength | 1064nm | |
| Marking range | 50mm*50mm, 100mm*100mm (standard), 150mm*150mm | |
| Printing Orientation | Unidirectional Printing | |
| Printing speed | ≤7000mm/s | |
| Font | Simplified Chinese, Traditional Chinese, English, Korean, Russian, Japanese, Arabic numerals, etc. Special requirements can be added | |
| Positioning method | red light positioning | |
| File format | JPG/PNG/BMP/DXF/SVG/PLT | |
| Applicable industries | Mold, rubber, metal processing, aluminum alloy doors and windows, ceramic tile bathroom, whole house custom home, stone, packaging, | |
| Weight | 6.2KG | 7.8KG |
| Dimensions | 280mm*220mm*330mm (length, width and height) | |
| Marking depth | 0.2-1.2mm | |
| After-sales service | The whole machine is guaranteed for one year, and the power board and laser are guaranteed for two years. | |
With 10,000 square meters + production center and modern office service center, won the national high-tech enterprise, provincial "specialized and special new" enterprise, provincial "Gazelle" enterprise, AAA credit, ISO9001 quality system certification, EU National CE certification and many other honors and qualifications, excellent brand image, good business credit and professional service team.
Relying on a high-quality elite R&D team to build an independent innovation R&D center, a large number of core and key technologies with extensive competitive advantages have been accumulated, with 8 invention patents, more than 20 utility model patents and more than 20 software copyrights, and always maintain laser the dominant position in the industry. Continuous creation of high-quality products, combined with product design and sample preparation, engineering services and large-scale high-efficiency, low-cost and high-quality manufacturing advantages, provide customers with the most competitive full set of laser equipment accessories products.
Provide global delivery sales services, ensure that the goods are delivered to the location designated by the customer in "appropriate, timely, appropriate, and appropriate" quantities, and cooperate with customers to achieve the goal of having the goods in stock when they are not needed, and zero inventory when the goods are not needed.
