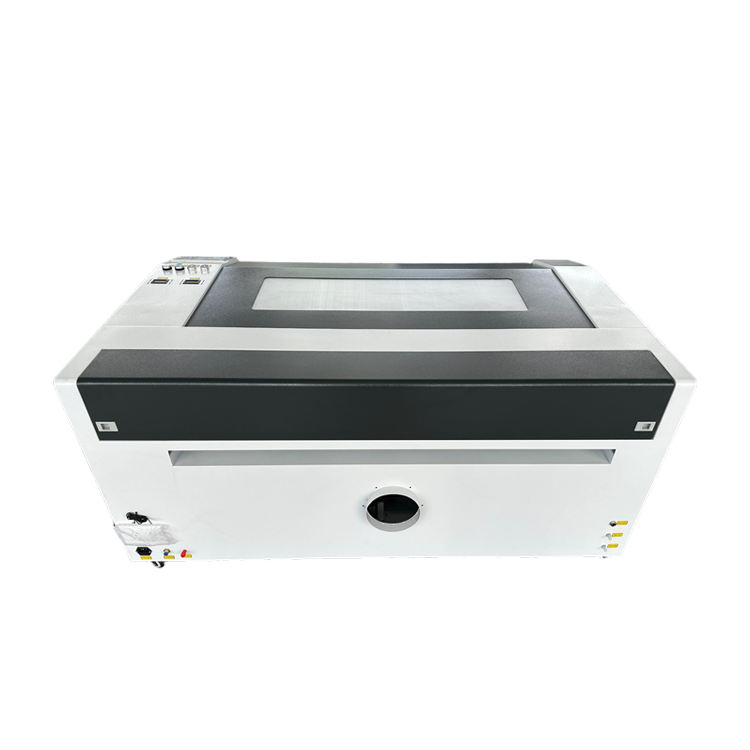

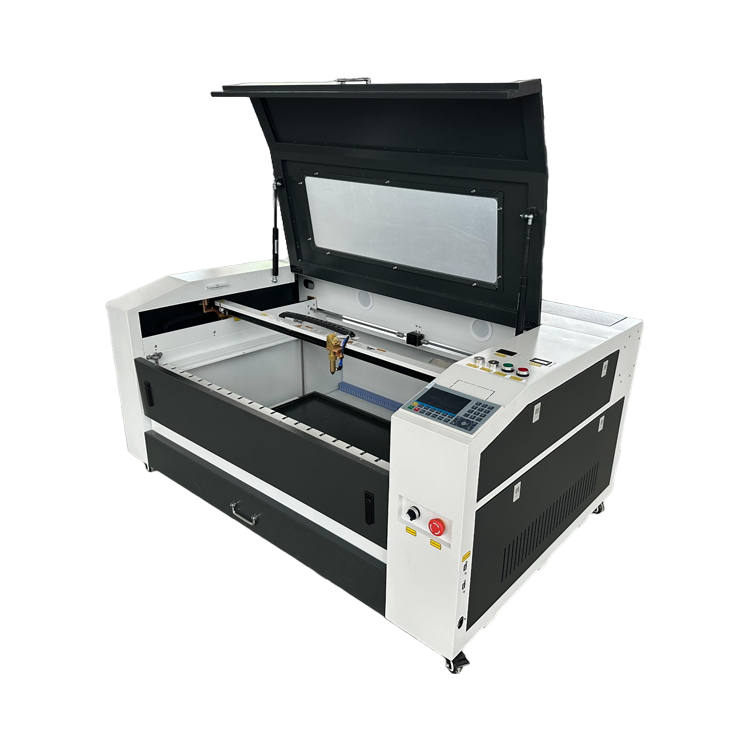

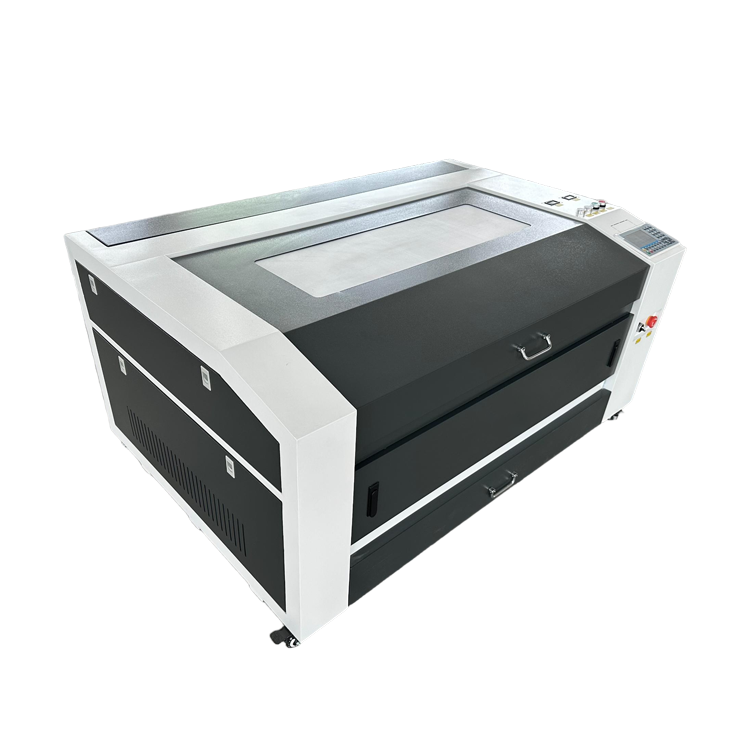

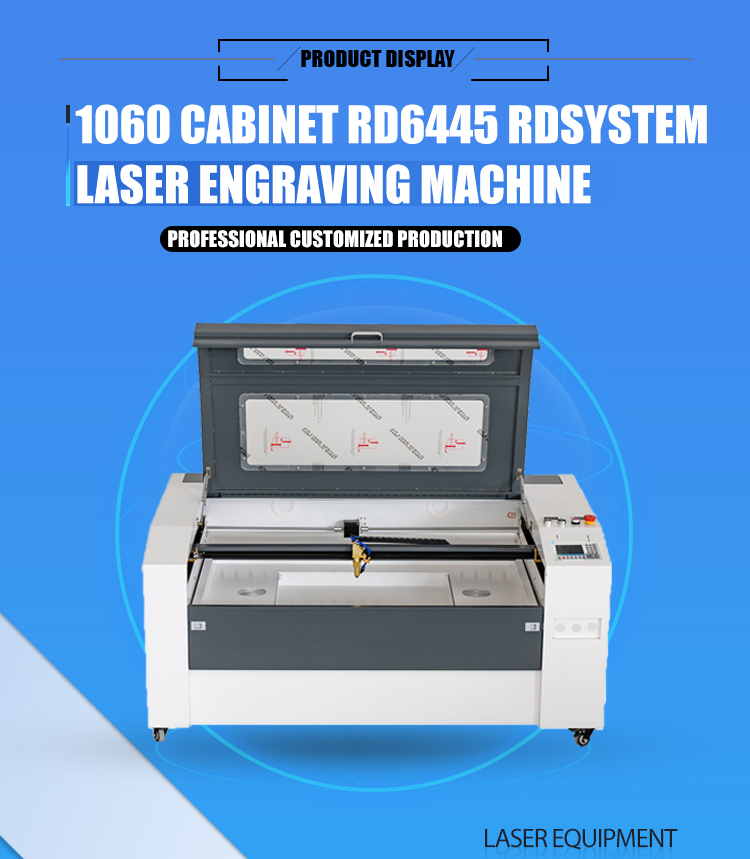

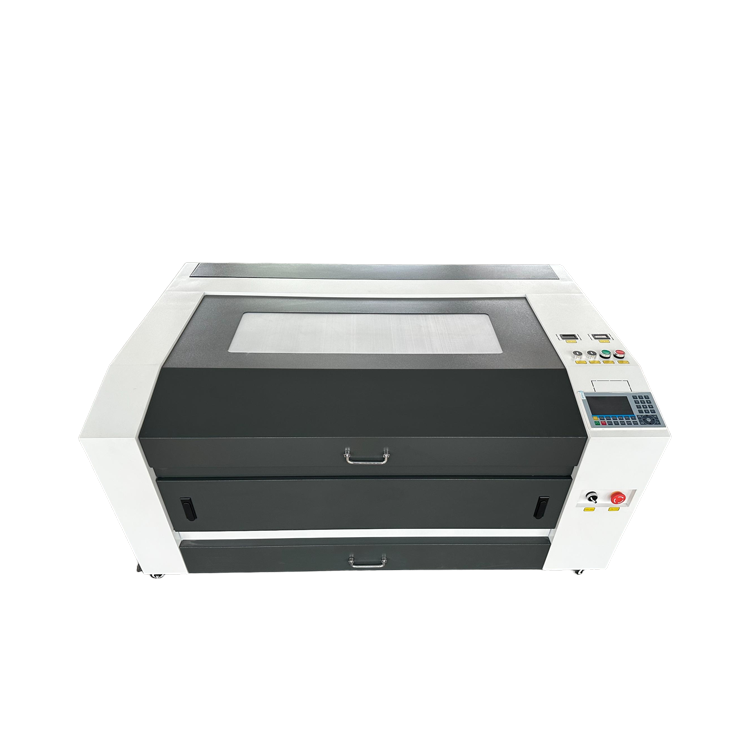

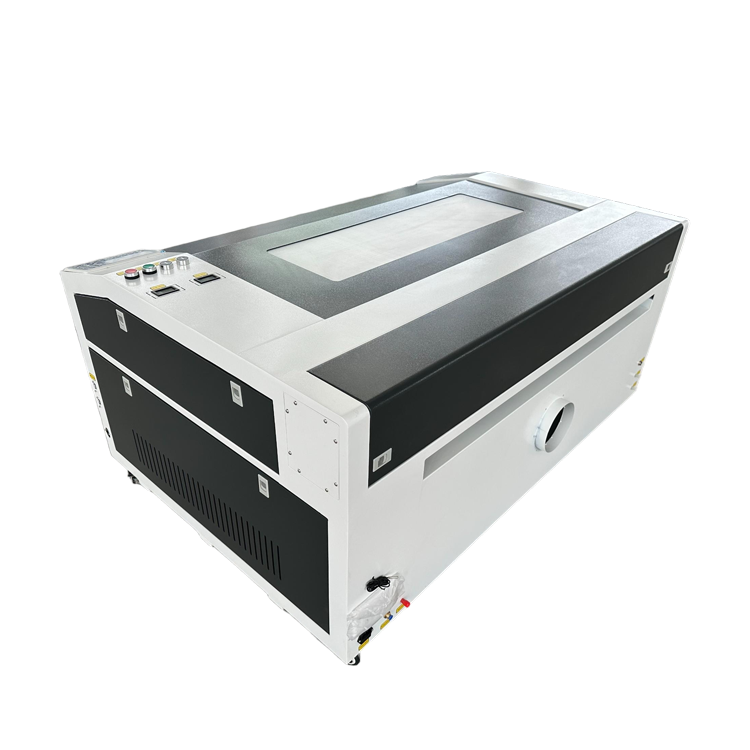

| Product | 1060-RD |
| Laser type | CO2 |
| Laser power | 80W/100W/130W/150W/180W |
| Working area (L*W) | 1000mm*600mm |
| Engraving speed | 1 - 1200mm/s |
| Engraving thickness | 1 - 5mm (as the case may be) |
| Cutting speed | 1 - 800mm/s |
| Cutting thickness | 1 - 15mm (as the case may be) |
| Repeated Positioning Accuracy | 0.01mm |
| Working Voltage | 110v±10% 50HZ / 220v±10% 60HZ |
| Working Temperature | 5 - 45℃ |
| Working Humidity | 5 - 95% |
| Minimum Character | English 1mm, Chinese characters 2mm |
| Guideway | High precision linear square rail |
| Drive Mode | Digital subdivision stepper driver |
| Positioning Mode | Red light positioning |
| Compatible Software | Artcut / Photoshop / Coreldraw / AutoCAD / Lasercut |
| Graphic Format Supported | BMP, GIF, PCX, TGA, PLT, CDR, DXF, AI |

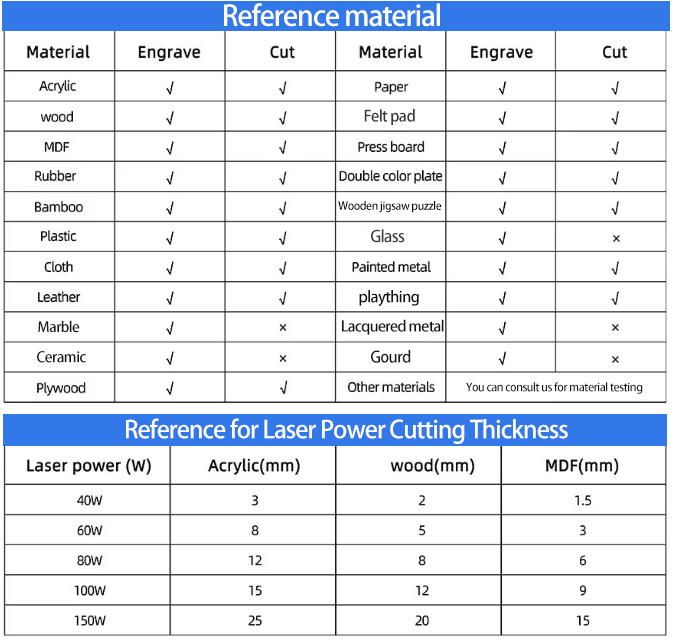

| Applicable Material | Non-metallic material |
| Cooling Mode | Water cooling |
| Control Software | DSP |

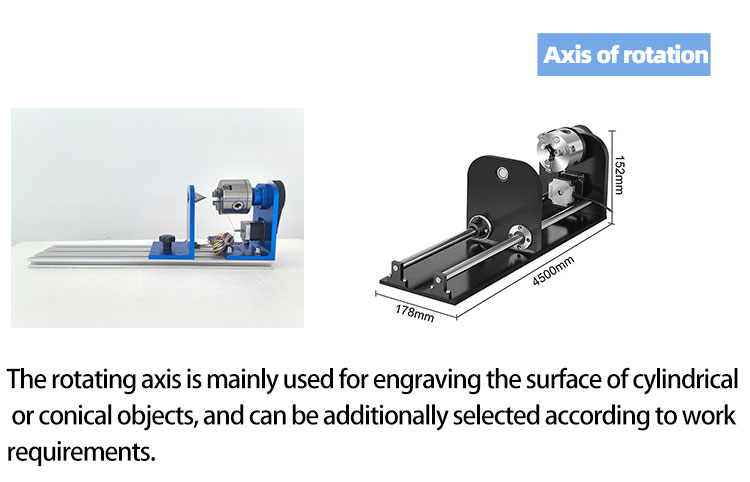

| Optional Device | Rotating device |
| Highest Scanning Precision | 0.01MM |
| Color Separation | Yes |
| Control software language | English / Chinese |
| Motor | Stepper motor |
| Working material | Non-metallic material |
| Net weight | 180KG |
| Gross weight | 200KG |
| Working table | Strip work table (Optional honeycomb, blade) |
| Laser head | High precision closed |
| Laser tube life Span | 10000 working hours |
| USB Ports | USB2.0 |

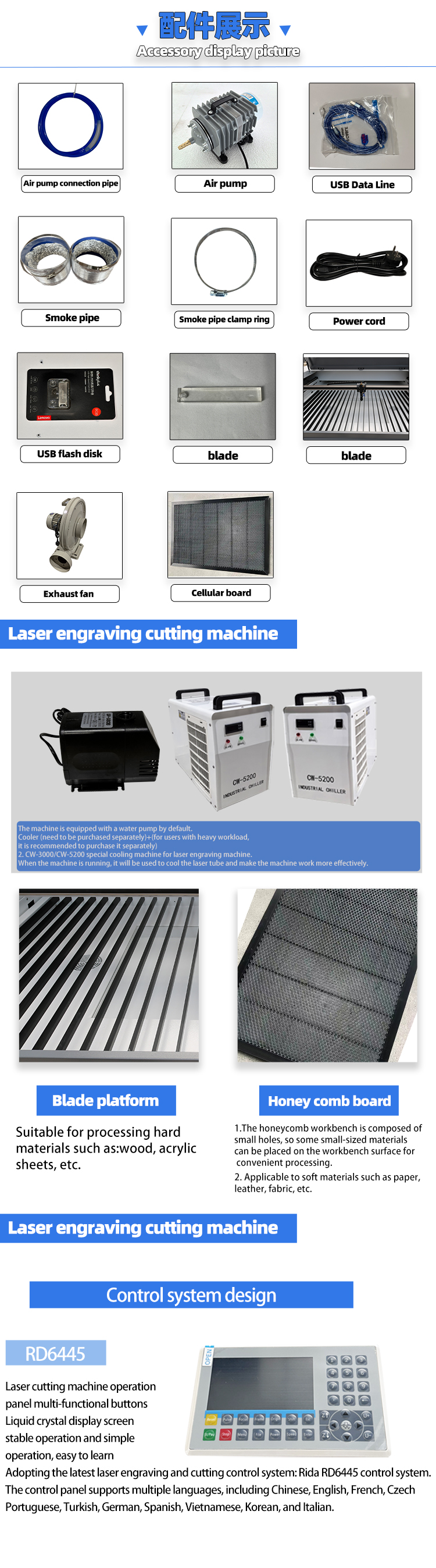

| Package Inclusion | Machine, installed accessories |
| Protection System | Water cooling (Optional cover protection) |
| Package | Export wooden box |
| Linear rail | Imported high precision linear guide rail, dust-proof and lubricated |

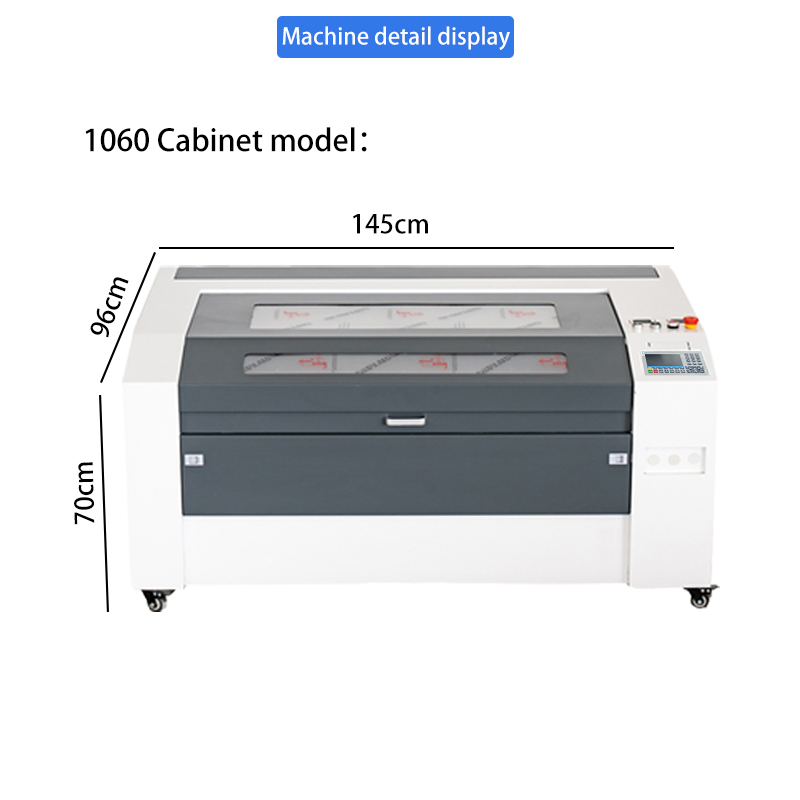

| Machine size | 1460*960*700mm |
| Packing size | 1570*1080*870mm |
| Certificate | CCC, CE, GS, ISO, SGS, UL |
| Up and down work table | 0 - 400mm Electric lift (Optional auto focus) |
