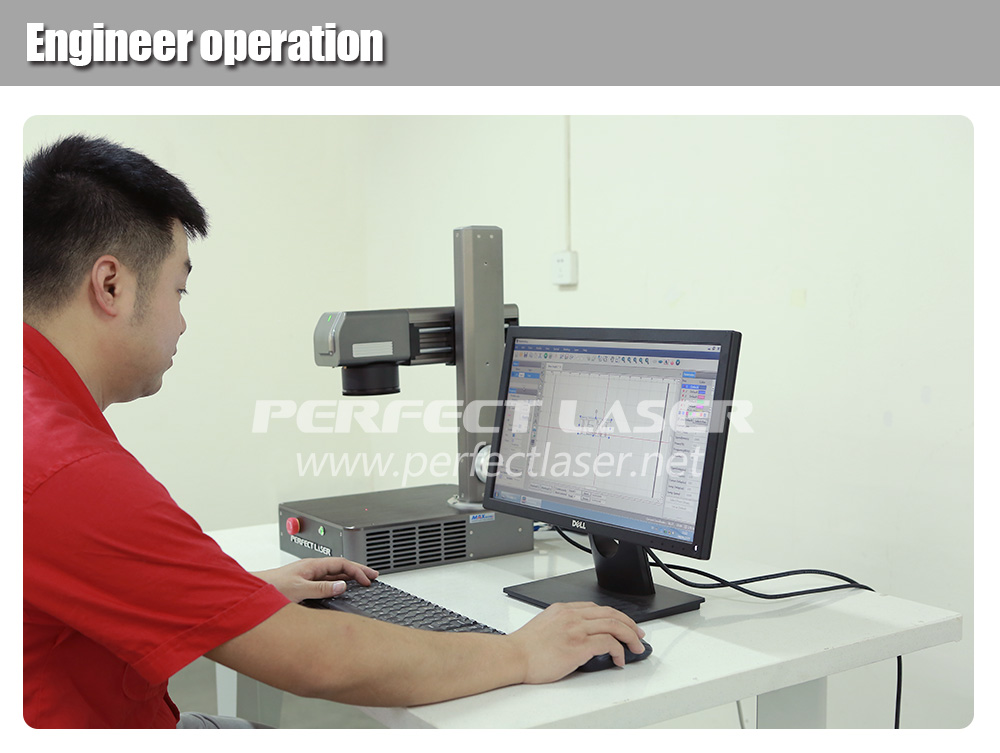

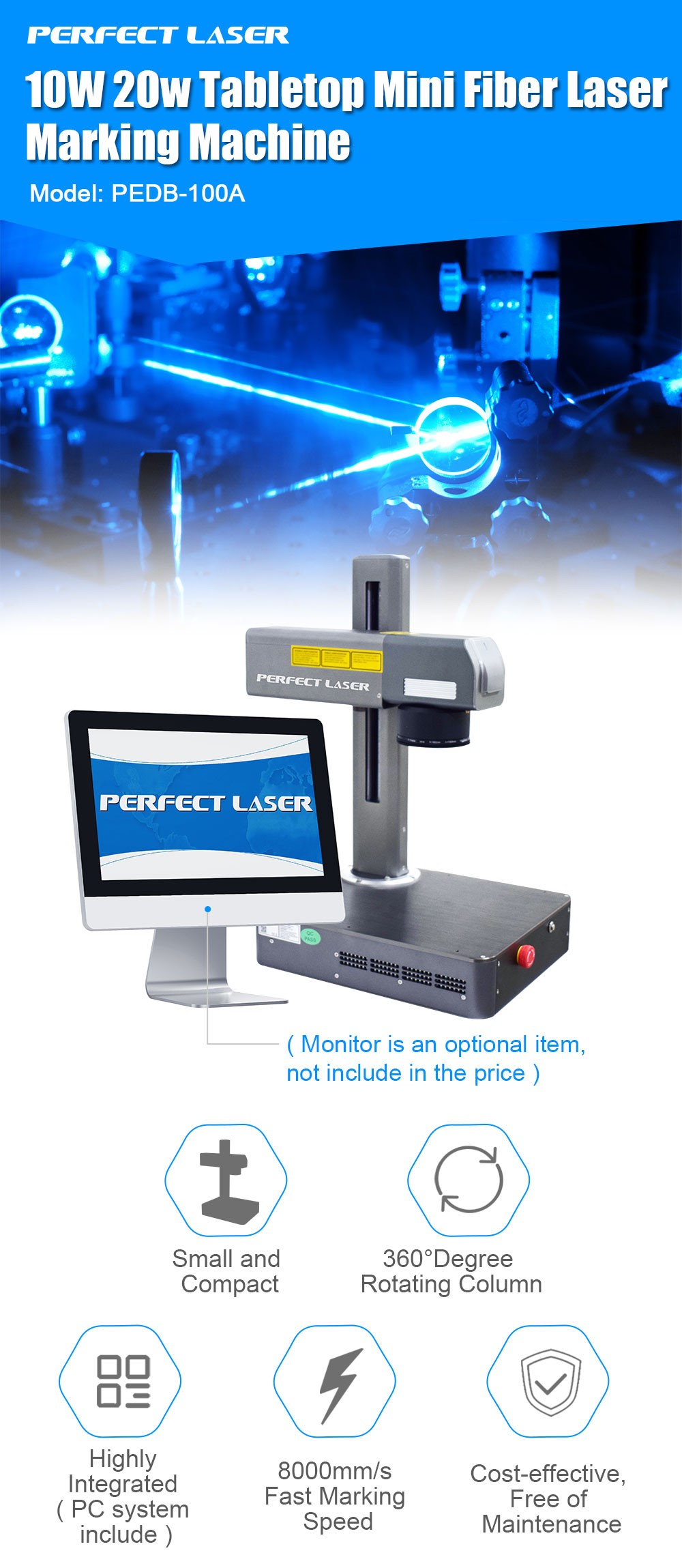

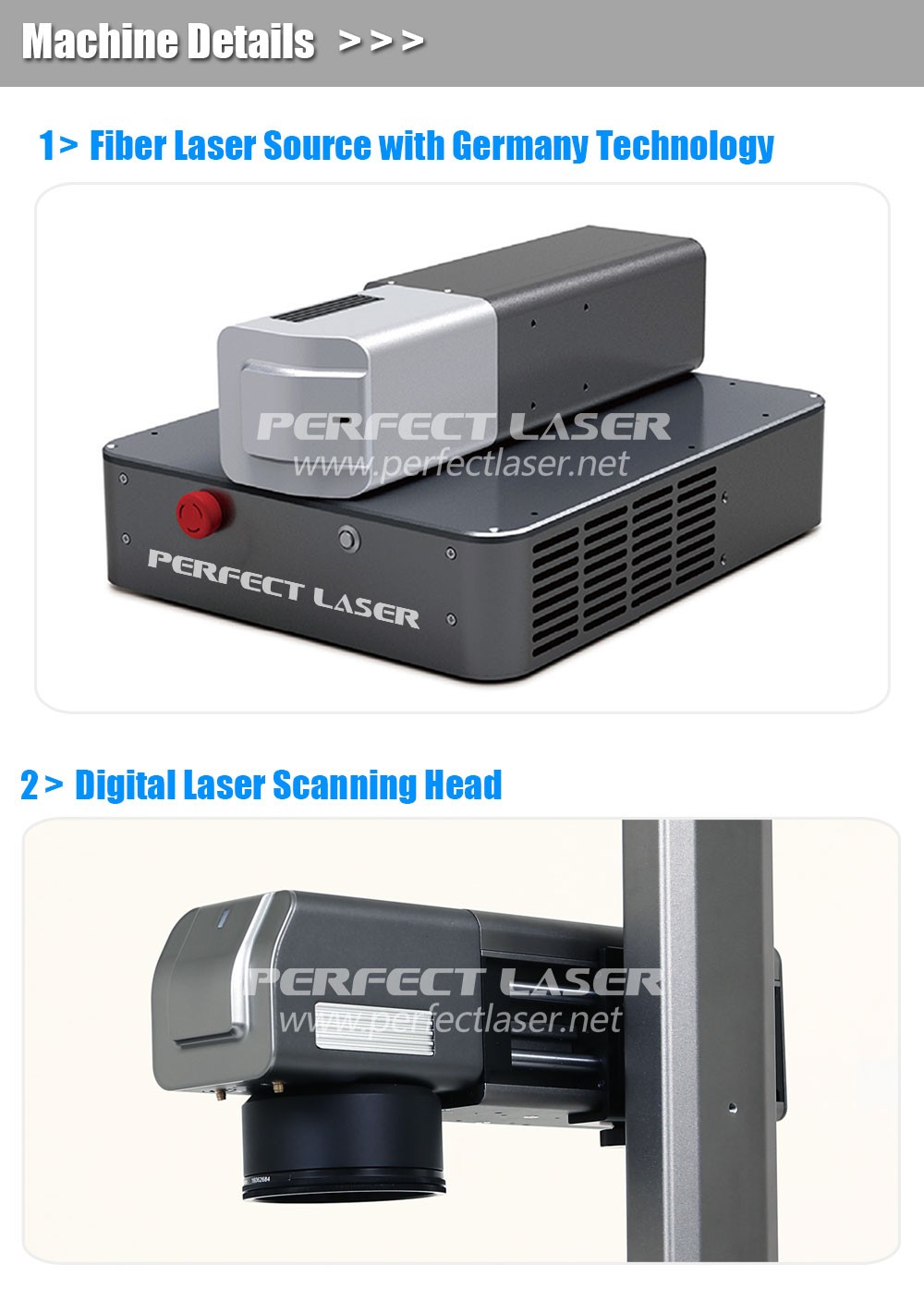

Utilizes advanced laser technology featuring a wide selectivity of operating wavelengths, ultra-low amplitude noise, high stability, and an ultra-long operational lifetime.
Fast response ability (< 0.7ms) that enables rapid marking speeds and exceptional precision for intricate designs.

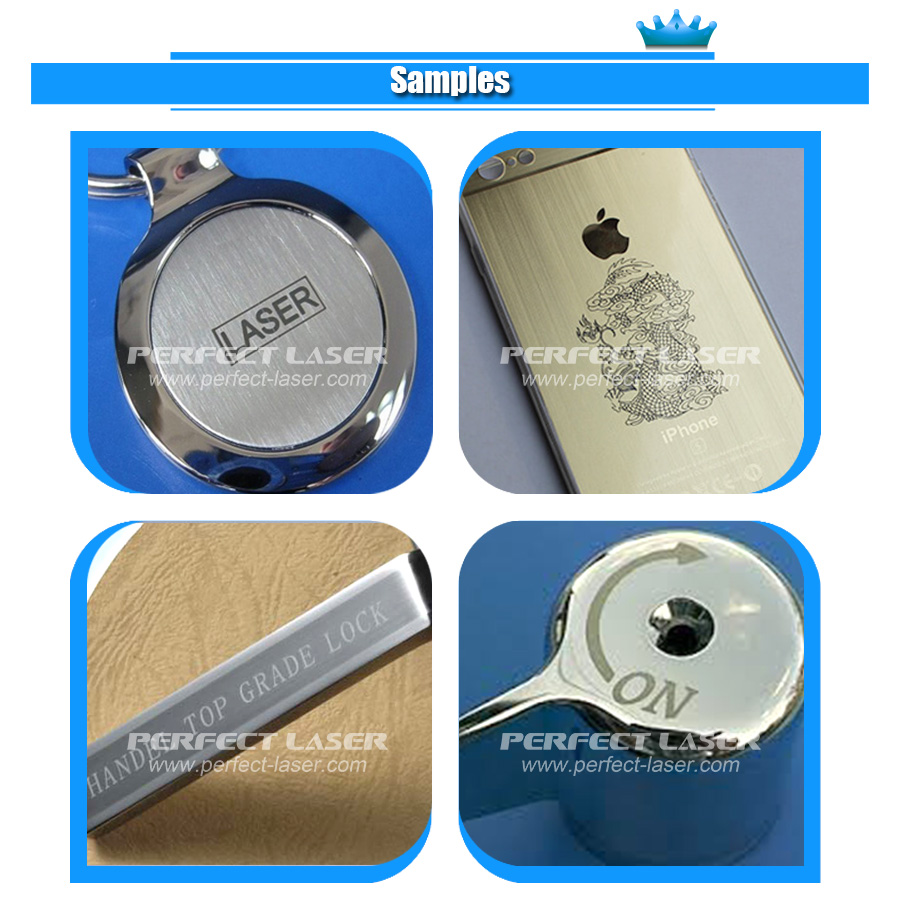

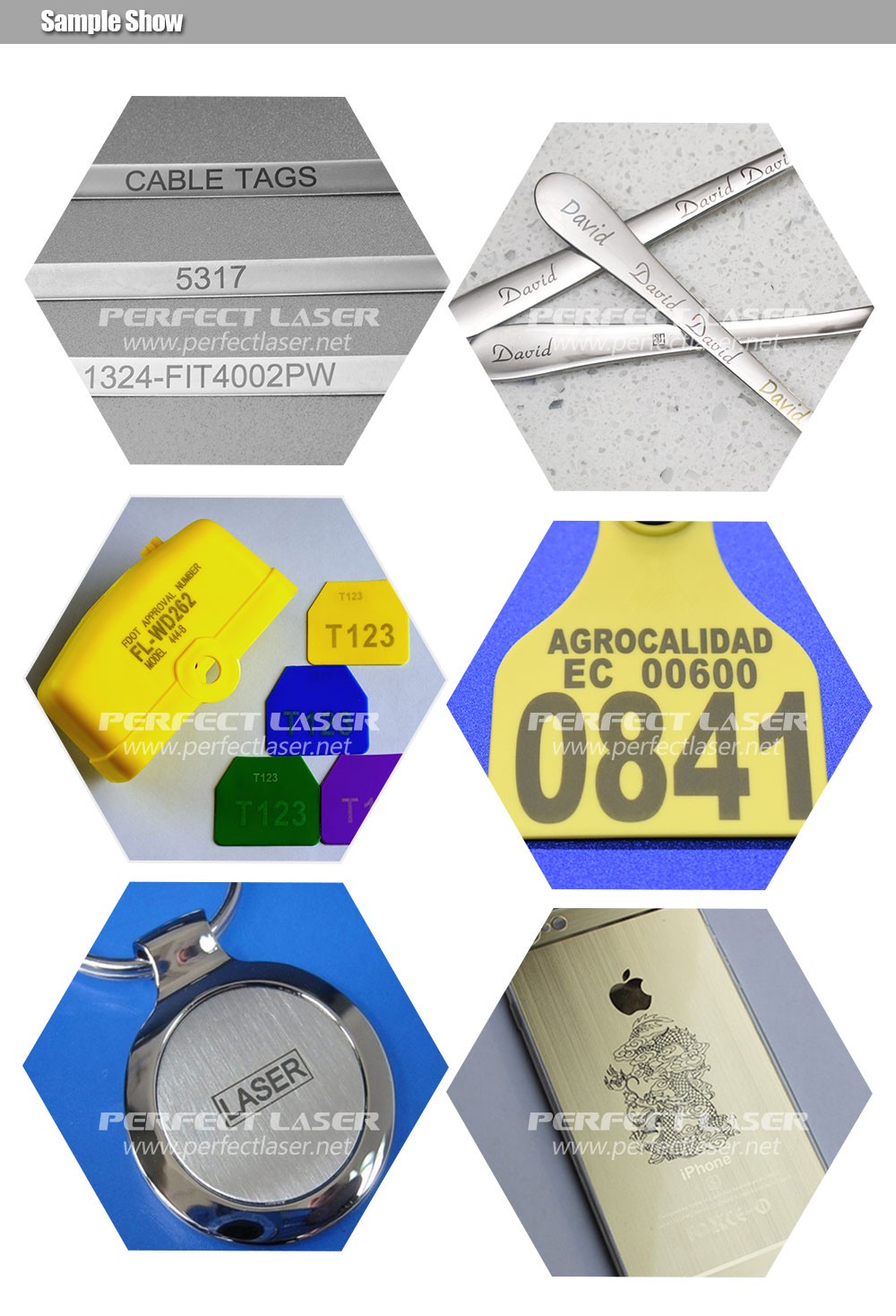

The 110x110mm focus lens optimizes the focusing beam, reducing focal spot size for highly defined and accurate marking results.

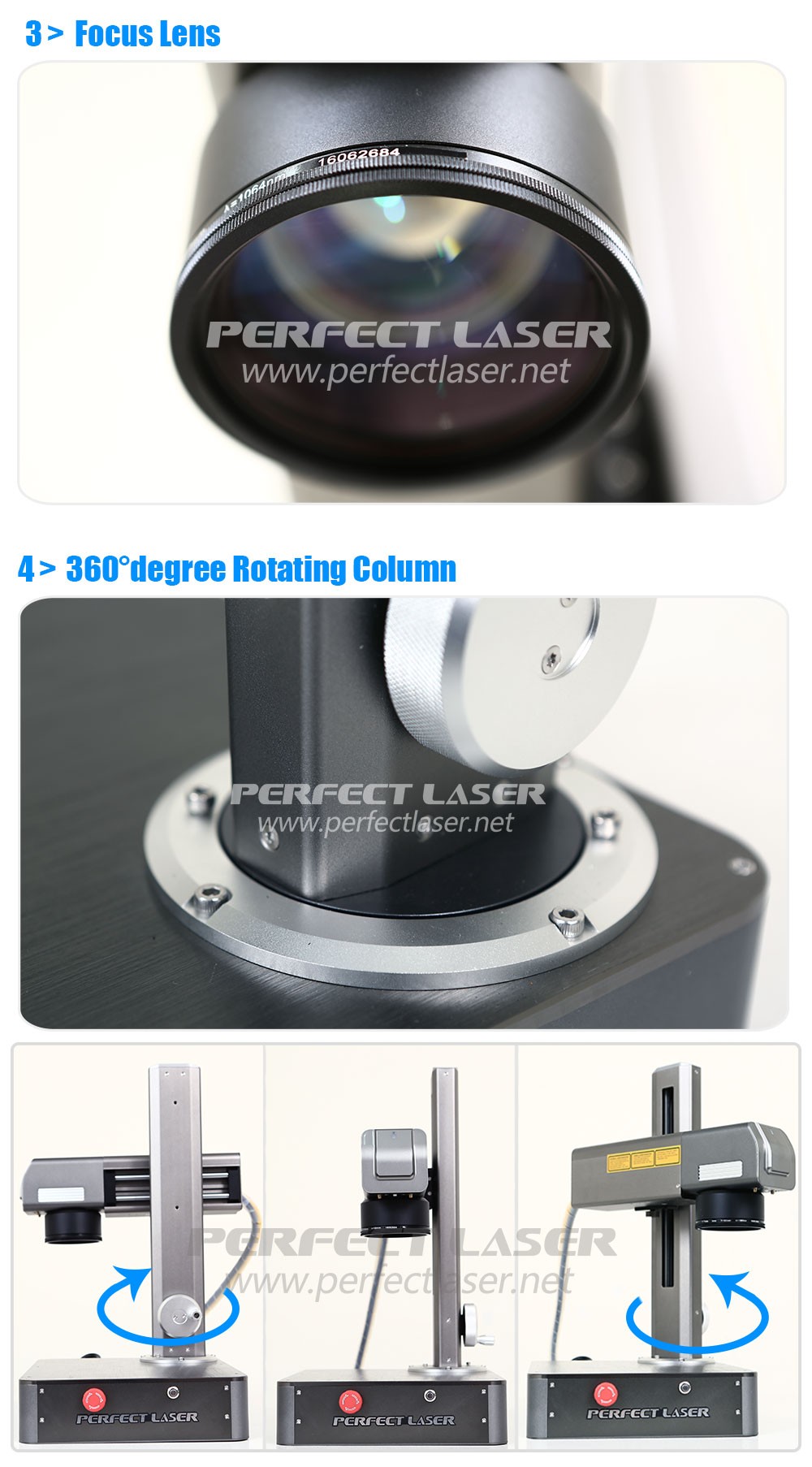

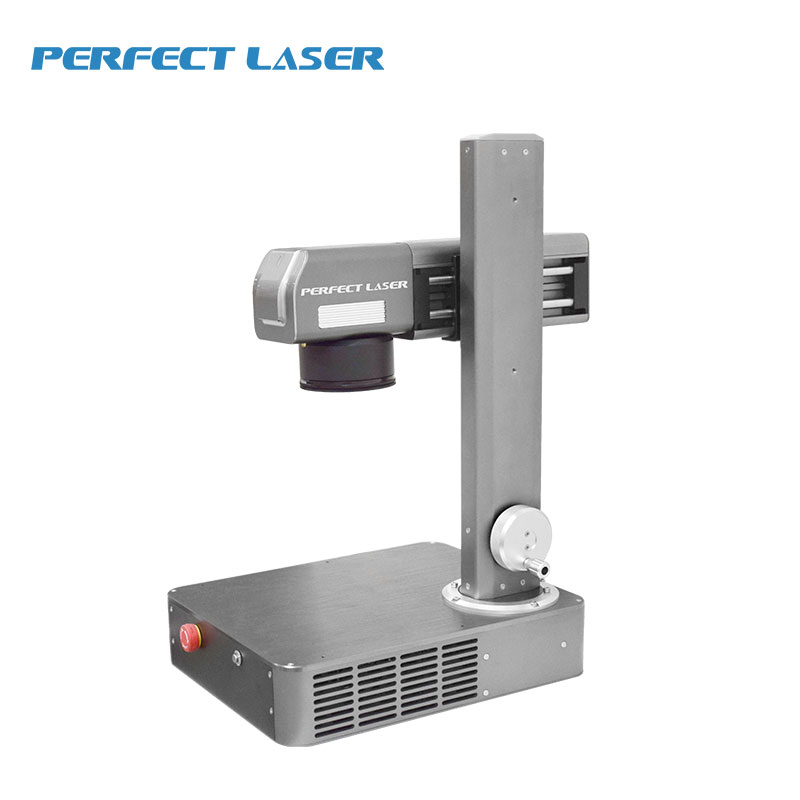

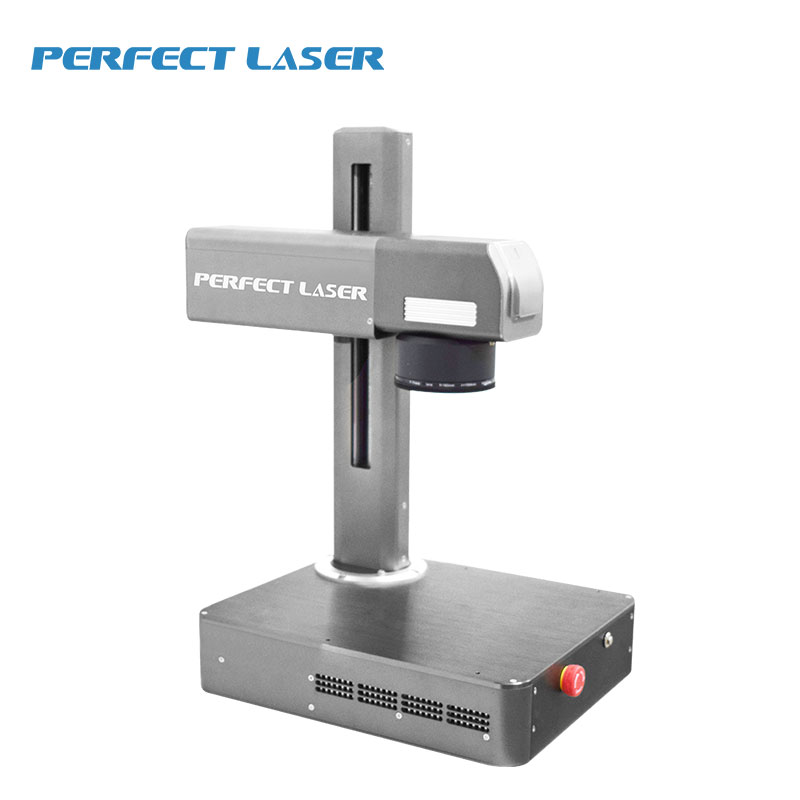

The system column is capable of 360-degree rotation to facilitate multi-angle marking on objects that are difficult to reposition. Simply loosen the bottom screw, rotate, and tighten.

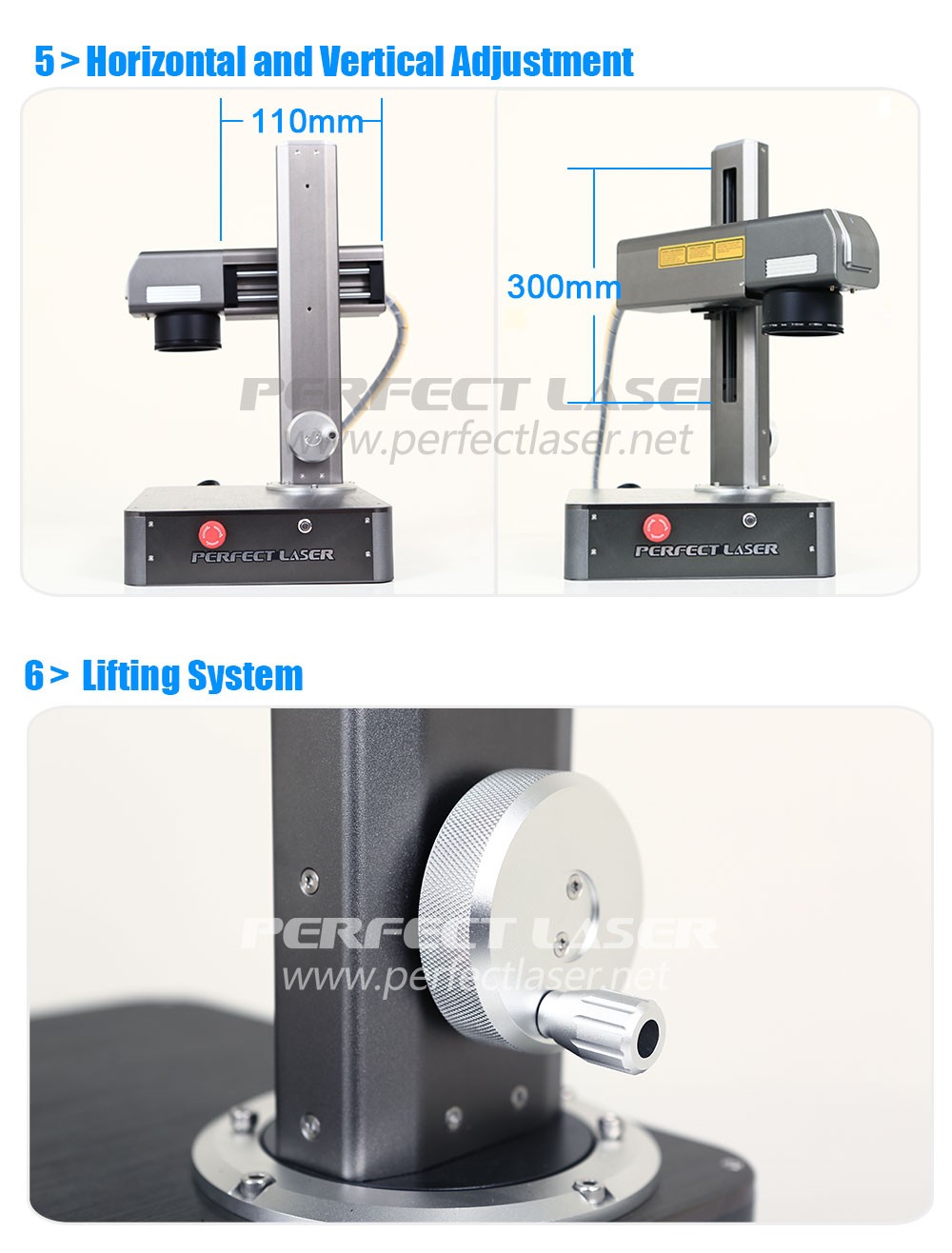

Features a lifting range of 0-300mm to accommodate workpieces of various heights. The optical bridge displacement stroke measures 110mm.
The manual lifting handle allows precise distance adjustments between the laser marking head and the surface of target workpieces.

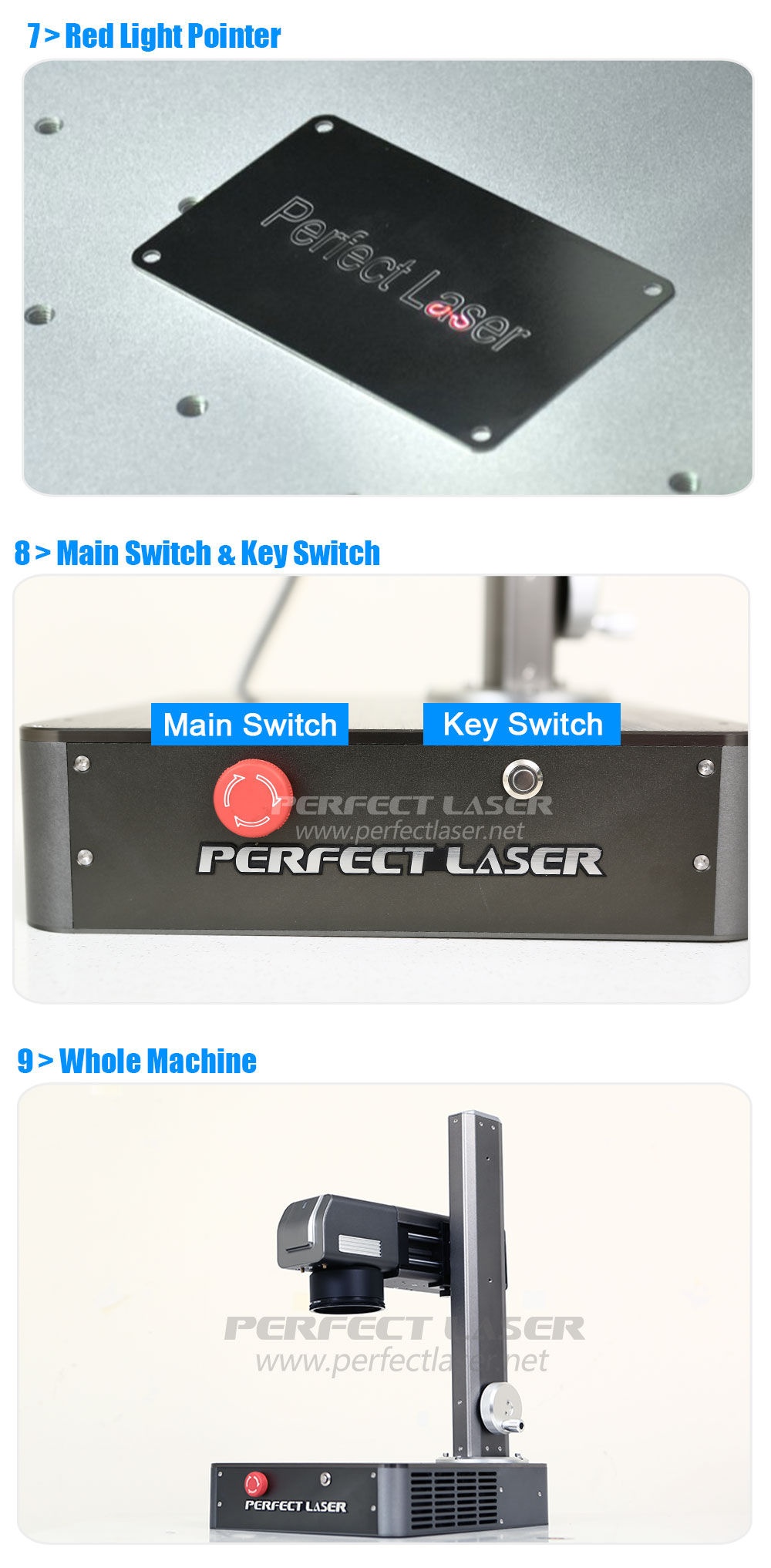

Provides a visual red light pointer to assist operators in quickly aligning and focusing the laser on target surfaces.
Designed with safety and efficiency in mind, using a secure key switch configuration to control the main system power.
Consumable-free design requiring virtually no maintenance, engineered to deliver reliable performance for over 10 years.

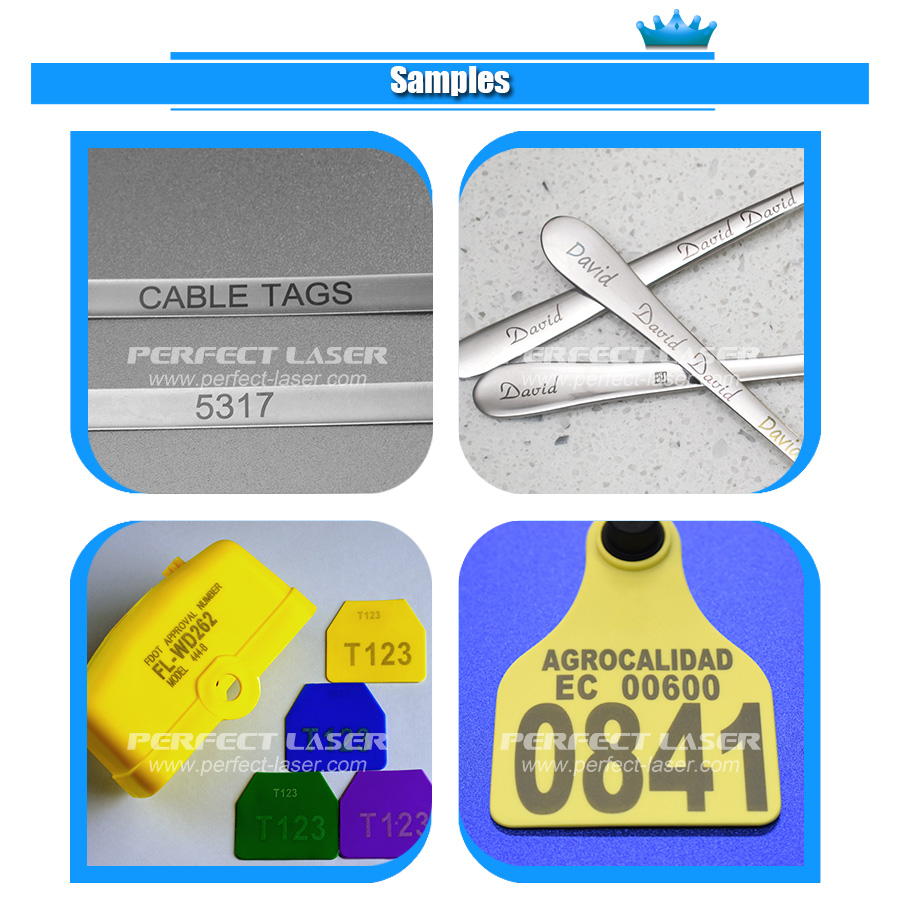

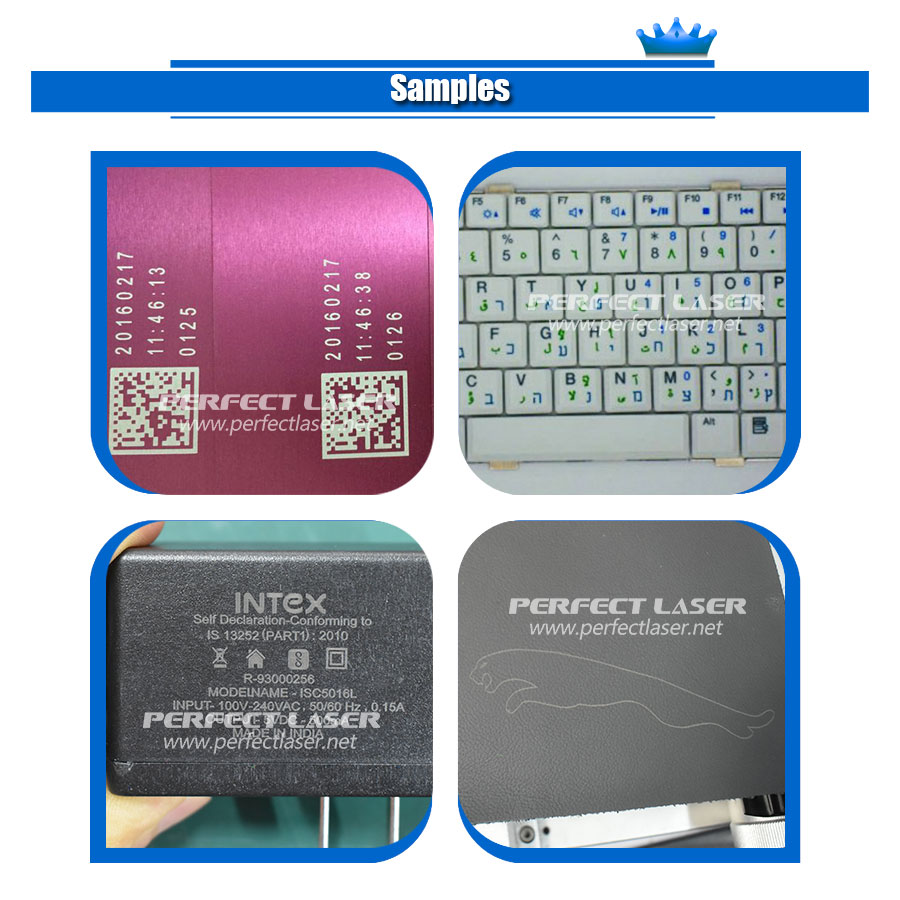

| Parameter | Specification Detail | |
|---|---|---|
| Model | PEDB-100A | |
| Product Name | Fiber Laser Marking Machine | |
| Laser Type | Fiber Laser | |
| Fiber Laser Source Brand | Max (Chinese Top Brand Laser Source) | |
| Laser Power Options | 10W | 20W |
| Laser Wavelength | 1064 nm | |
| Beam Quality | M² < 1.4 | |
| Modulation Frequency | 20-50 kHz | 30-60 kHz |
| Carving Line Speed | 0-8000 mm/s | |
| Marking Speed | 600-1000 Characters / min | |
| Focus Mode | Manual / Auto | |
| Minimum Line Width | 0.02 mm | |
| Minimum Character Size | 0.15 mm | |
| Marking Area | 110×110mm (Standard) / 70×70mm (Optional) | |
| Repeatability | ±0.002 mm | |
| Cooling Method | Air Cooling | |
| Operational Environment | Clean or dust-reduced environment | |
| Working Temperature | 10-35 ℃ | |
| Machine Power Consumption | ≤ 100 W | ≤ 160 W |
| Voltage | AC220V±10%, 50 HZ | |
| Working Desk Size | 270×210mm | |
| Column Lifting Range | 0-300mm | |
| Column Rotation Angle | 360° rotation | |
| Light Bridge Displacement Stroke | 110mm | |
| Guarantee Period | 3 Years for Fiber Laser Source, 2 Years for the Complete Machine | |
| Integrated Computer Specification | ||
| CPU | Intel J1900 Processors | |
| RAM | ADATA 4G DDR3L 1600 | |
| BIOS | AMI EFI BIOS | |
| Super I/O | Winbond W83627DHG-P | |
| Ethernet | 1x LAN Intel I211 (post IO interface) | |
| Graphic Control | Intel HD Graphics | |
| Monitor | Optional (Extra charge applies) | |
| Display Interface | 1x HDMI (Supports resolutions up to 1920×1200 @60Hz) | |
| Hard Disk | 32G SSD | |
| USB Interface | 4x USB 2.0 | |
| Serial Port | 1x RS232 (pin), COM1 (supports RS422 / RS485 modes) | |
| Operating System Support | Preconfigured Windows 7 Professional 32-bit; supports Win 7 / Win 8 / Win 10 / Linux | |
| Storage Temperature Range | -40℃ ~ 85℃ | |
| Operating Temperature Range | 0℃ ~ 60℃ | |
| Humidity Tolerances | 5% ~ 95% relative humidity, non-condensing | |
