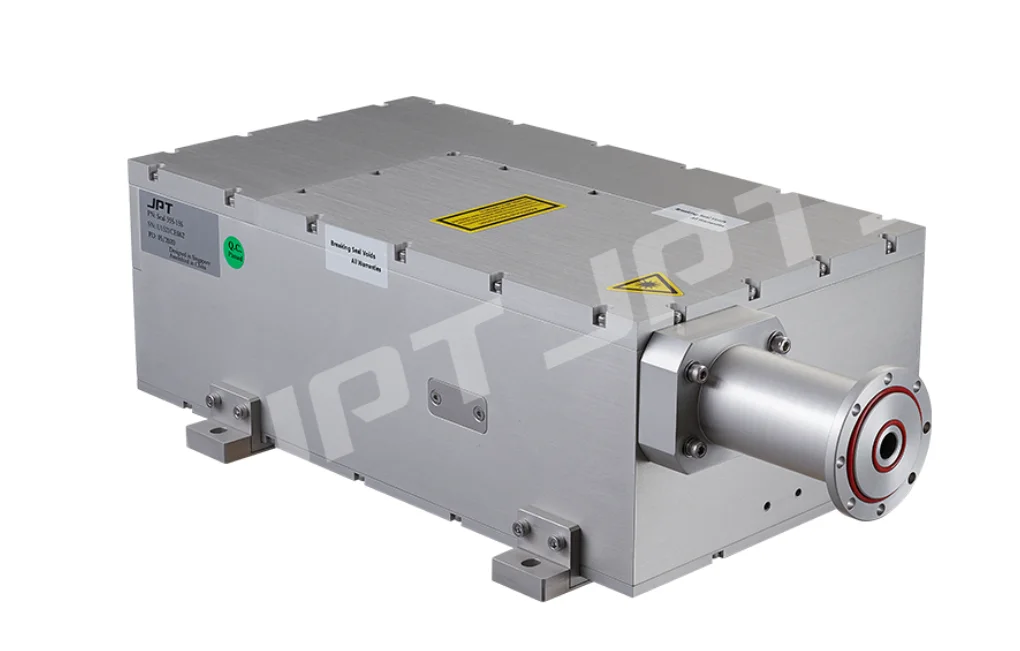

Top laser brands: JPT/Gainlaser. Good beam quality and long laser life.

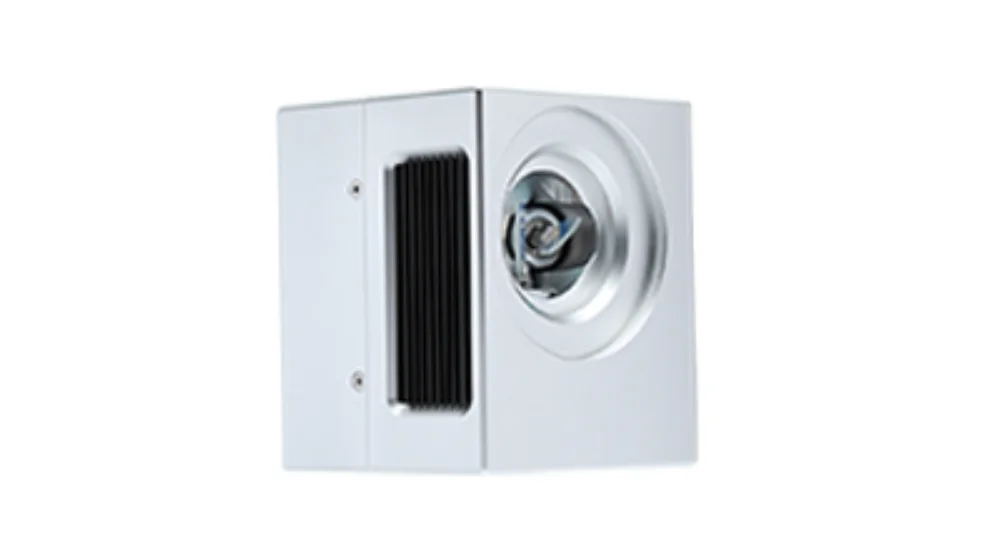

The best professional galvos, ultra-high precision and fast speed.

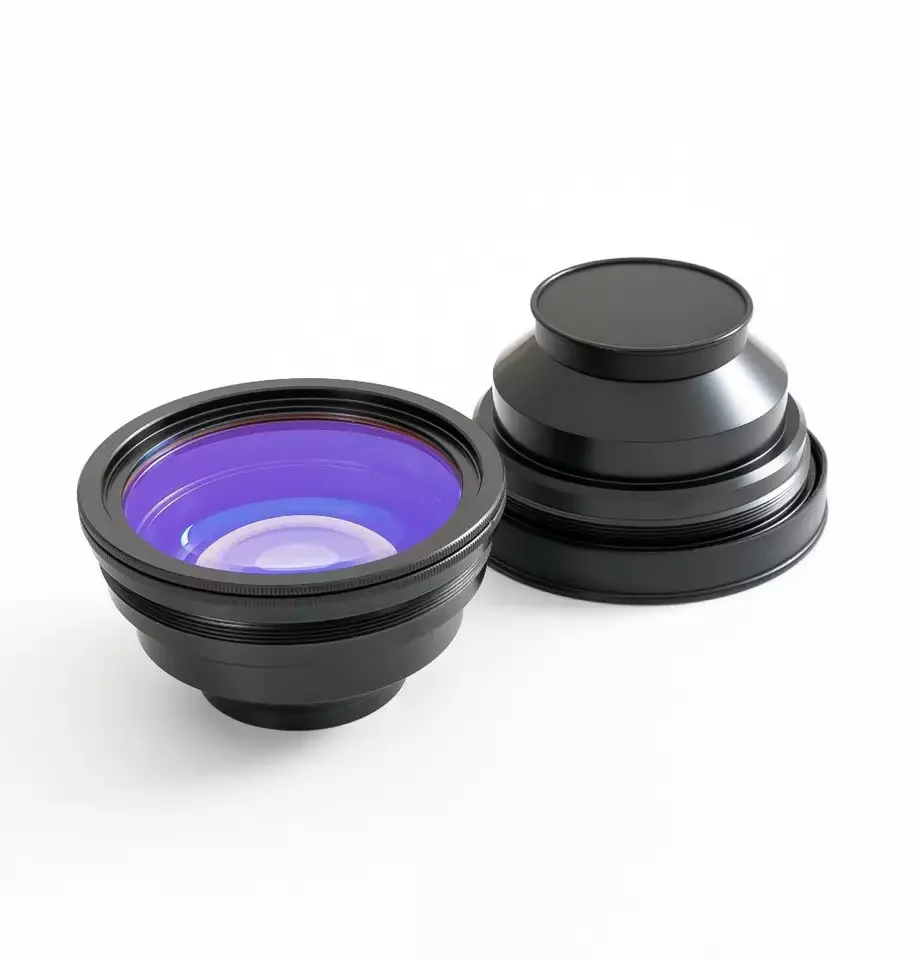

Imported HS good quality lens, 355nm, high energy conversion rate, and long life.

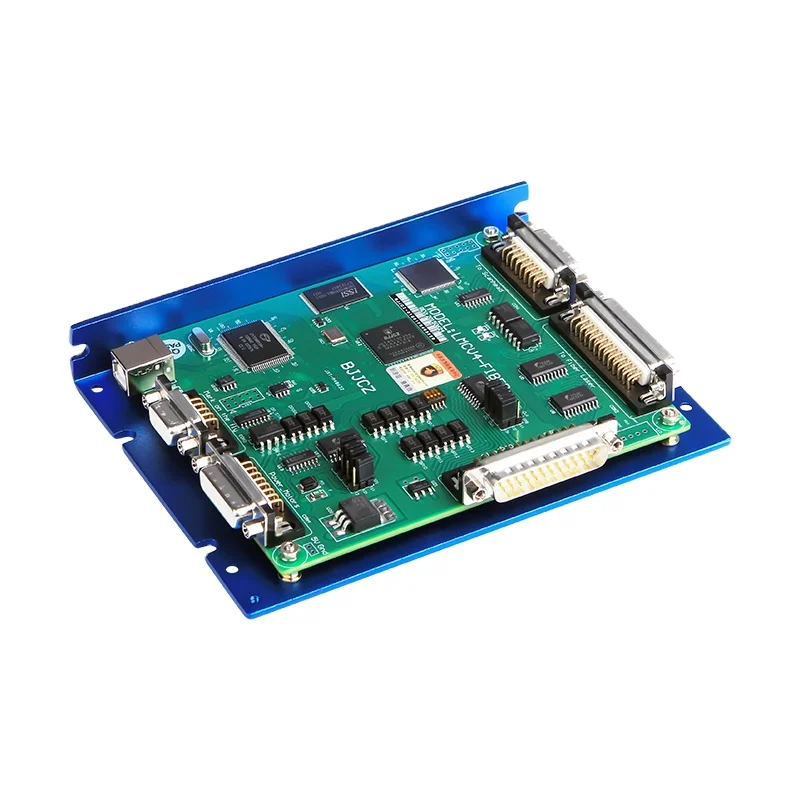

Multi-language setting, stable marking, friendly user interface.

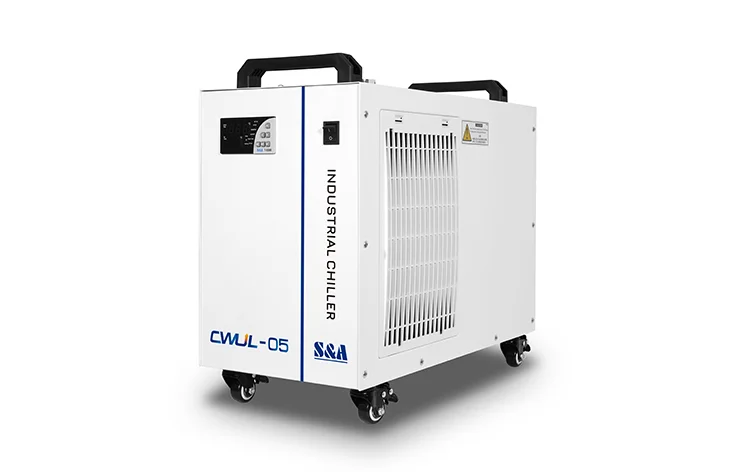

S&A/Huaku brand. Precise temperature control, multiple settings and safety display functions, easy to operate.
Powerful editing function, easy to use, Support any pattern, text, QR code and other processing.

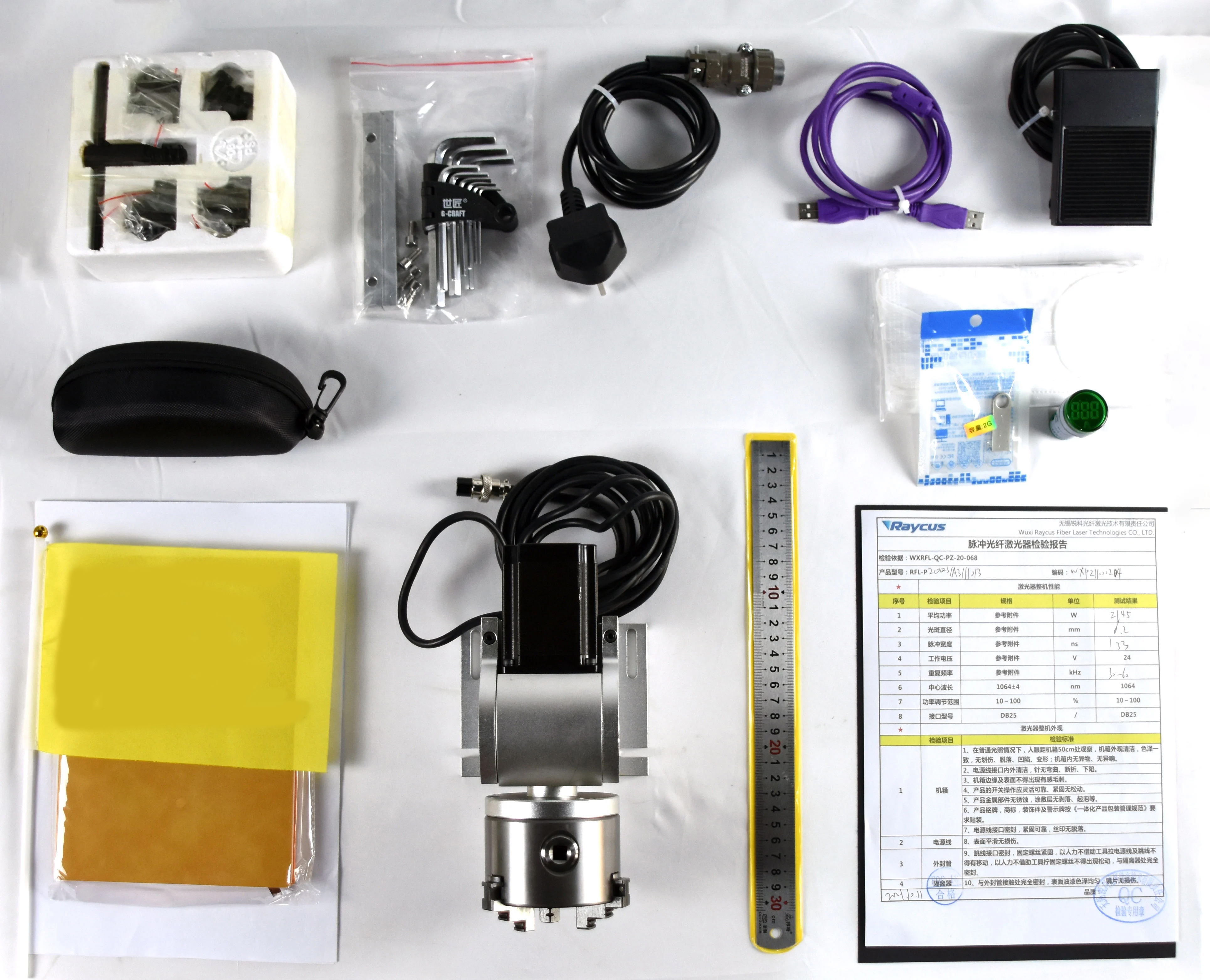

Foot switch, U disk, power cable, tools, focal length ruler, laser goggles, etc.

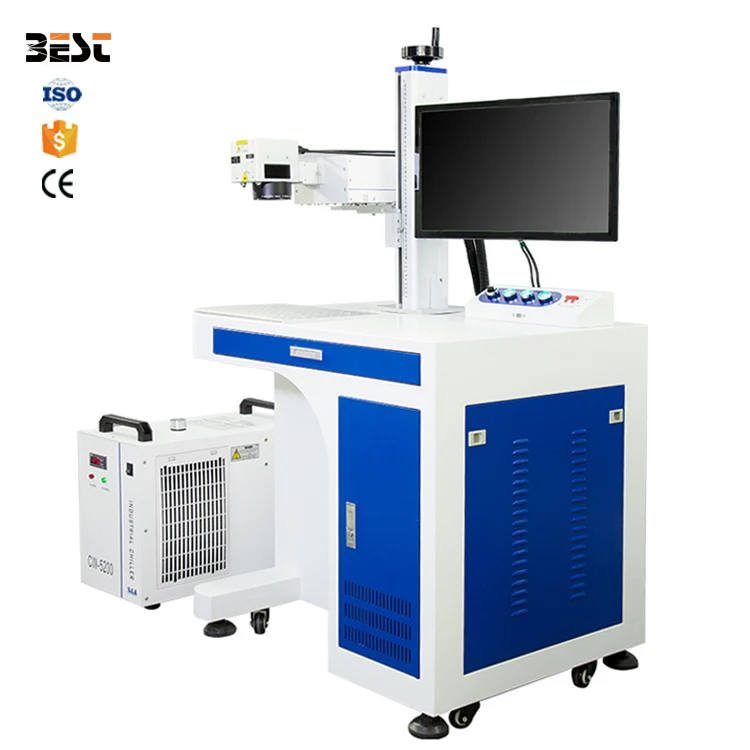

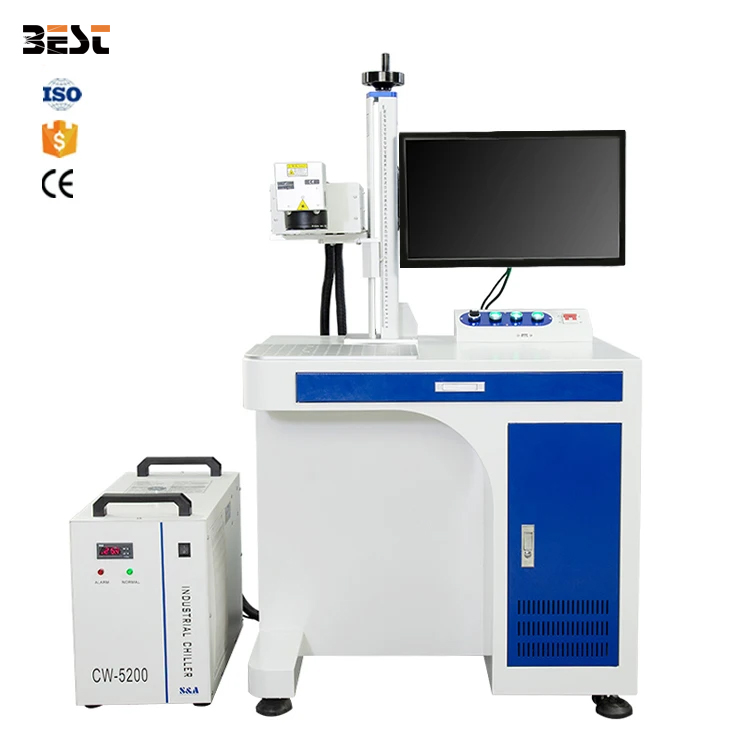

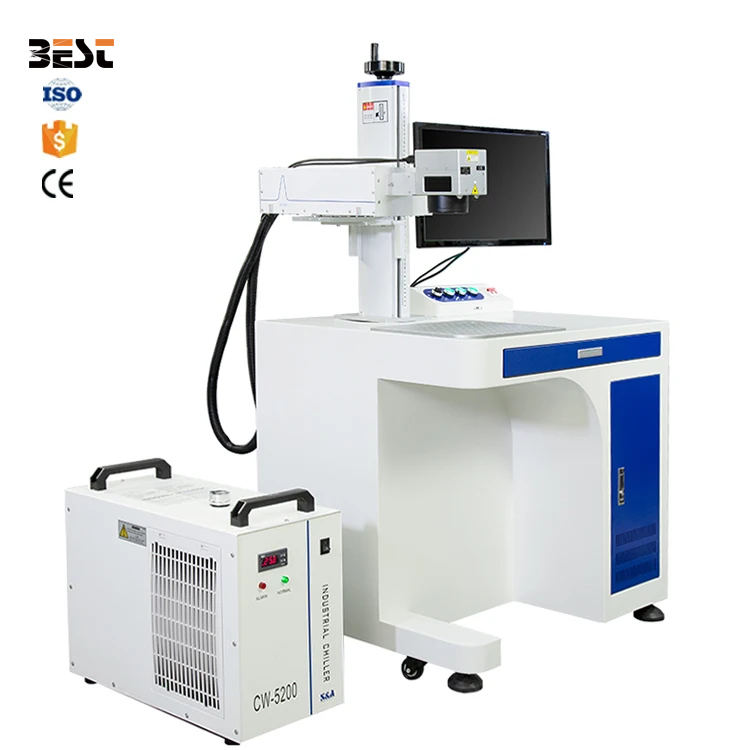

| Product Name | UV Laser Marking Machine |
| Type | Desktop |
| Laser Source | JPT/Gainlaser |
| Laser Power | 3W/5W/7W/10W |
| Marking Area | 110*110 / 150*150 / 200*200 / 300*300mm |
| Marking Speed | ≤7000mm/s |
| Repetition Precision | 0.001mm |
| Positioning | Double Red light indicating |
| Cooling Method | Water-cooling chiller |
| Lens Height Adjustable | 500mm/800mm |
| Applicable Material | Glass / Silicone / Plastic / Electronic component, etc. |
| Software | EZCAD 2.14.11 |
| Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, JPG, PNG, etc. |
| Support Windows | All Windows systems |
| Environmental Requirements | 0-45°C, Humidity ≤ 90% |

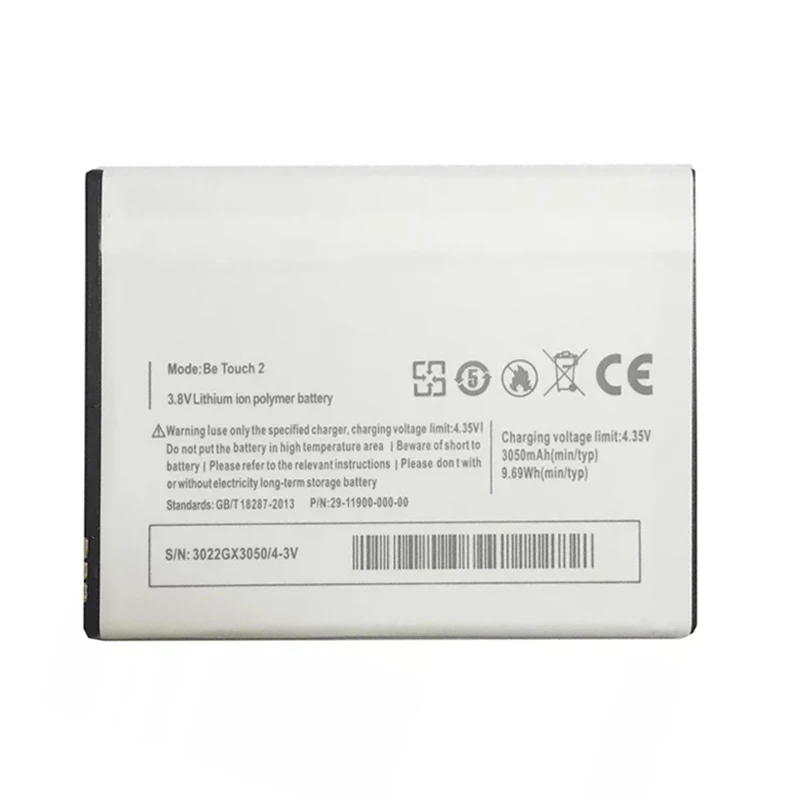

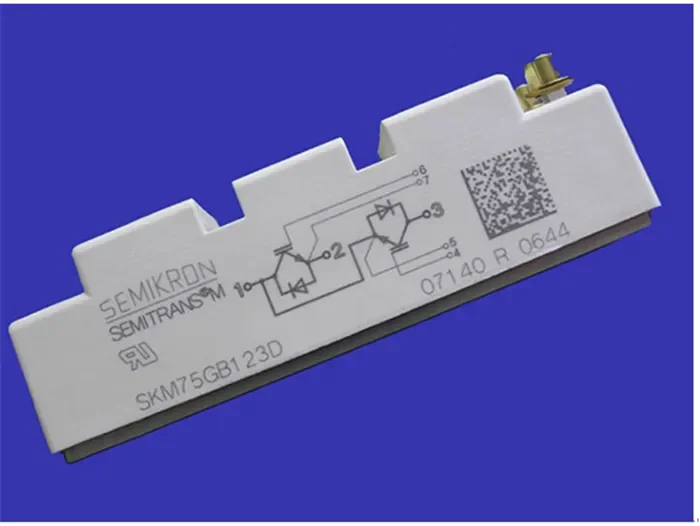

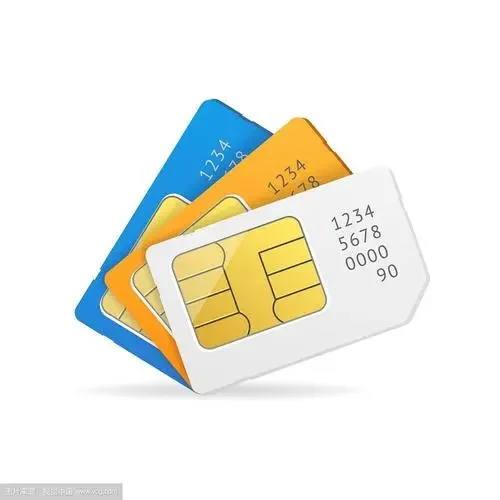

Mainly used in the marking of shiny materials, such as mobile phone screens, ceramics, acrylic, glass, plastics, and various electronic components.

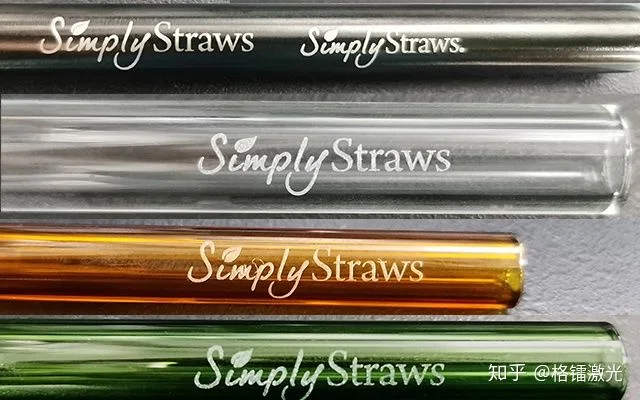

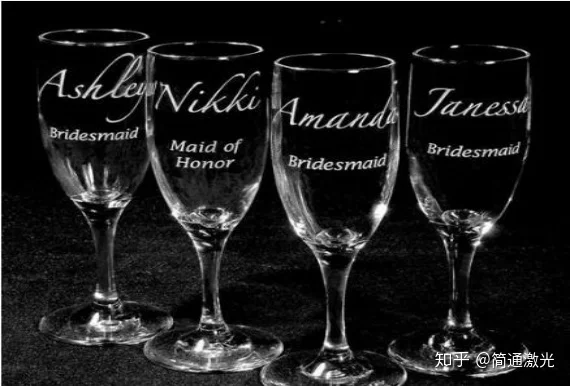

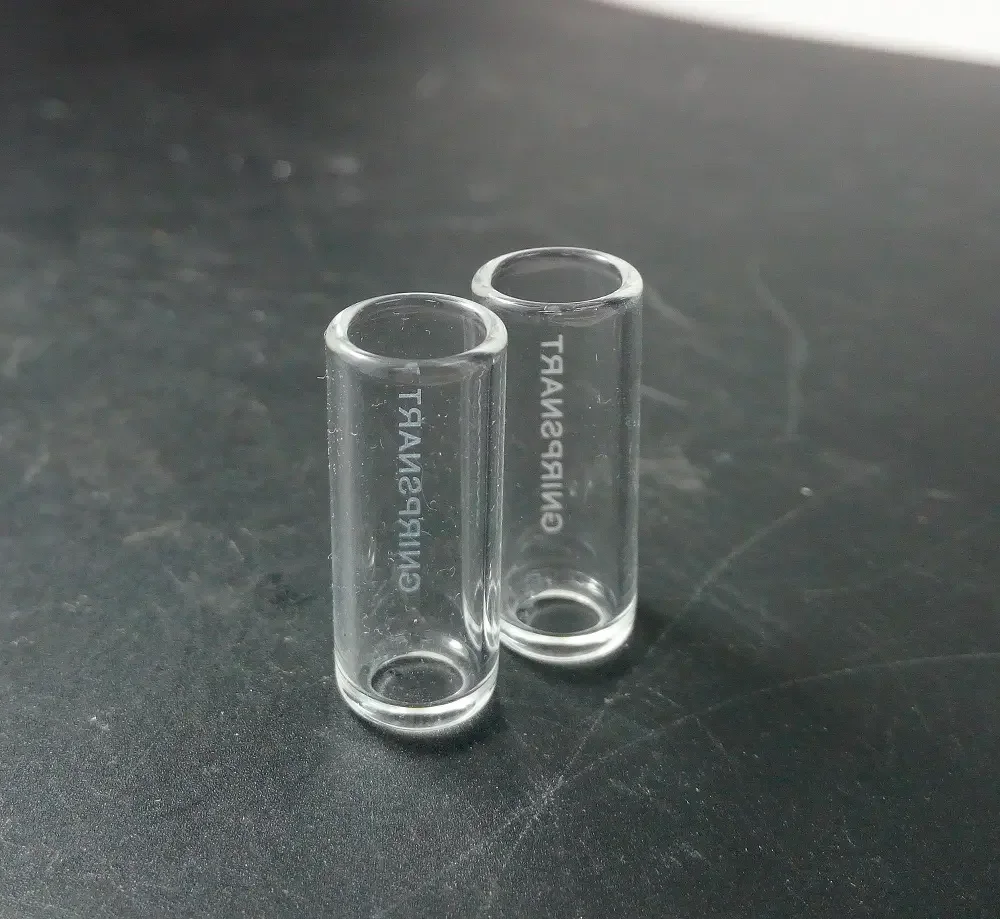

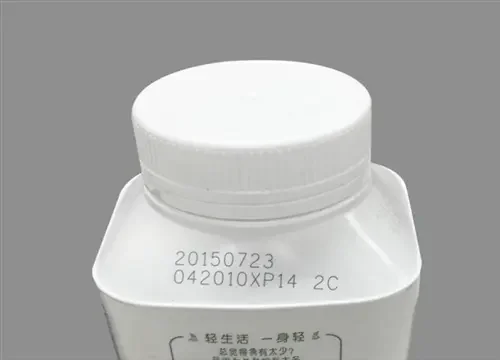

This UV laser marking machine is highly versatile and mainly used for sensitive or reflective materials. It can easily mark glass, silicone, various plastics (like PP, PE, PVC), acrylic, ceramics, and electronic components without causing thermal damage.
UV lasers use a short wavelength (355nm) which allows them to break the chemical bonds within the material rather than relying on heat to vaporize it. This minimizes thermal stress, preventing melting, charring, or warping of the target object.

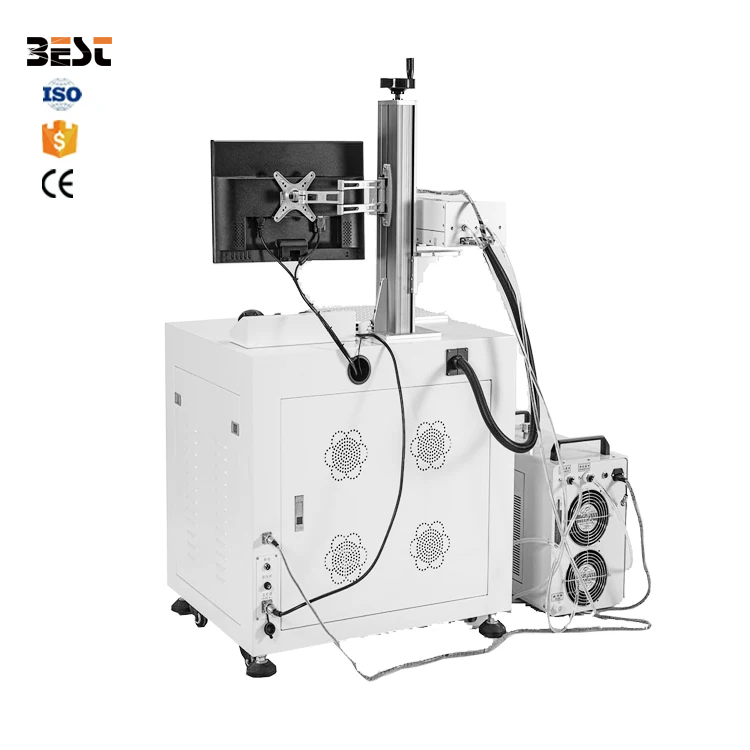

Yes, this desktop UV laser marking machine comes with an integrated water-cooling chiller (S&A/Huaku brand). UV laser sources are highly sensitive to temperature variations. A professional water chiller provides precise temperature control to ensure laser stability and extend the overall lifespan of the laser source.

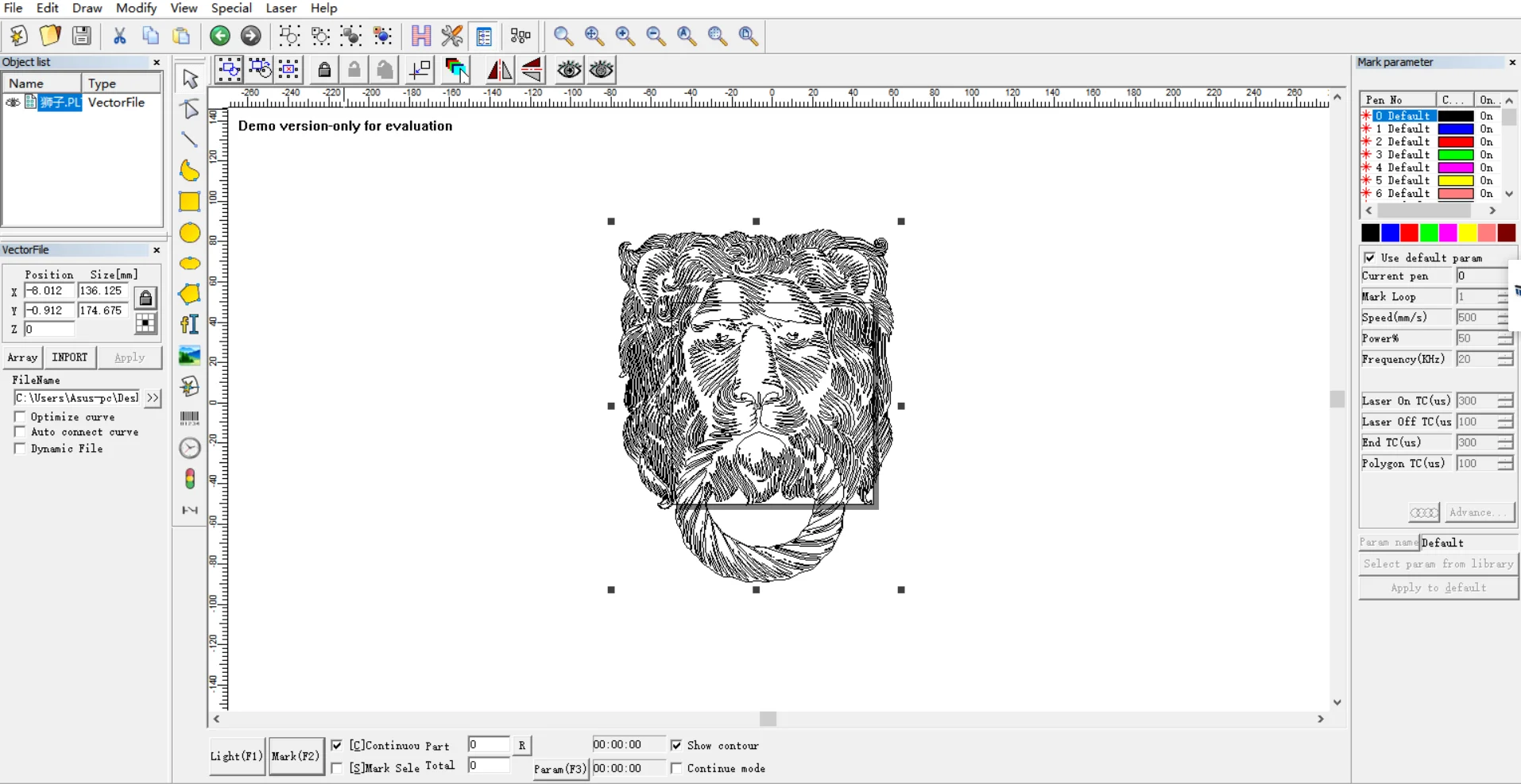

The machine uses EZCAD software, which is highly user-friendly and features powerful editing functions. It supports multiple languages and a wide variety of graphical formats including AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, JPG, PNG, and more.

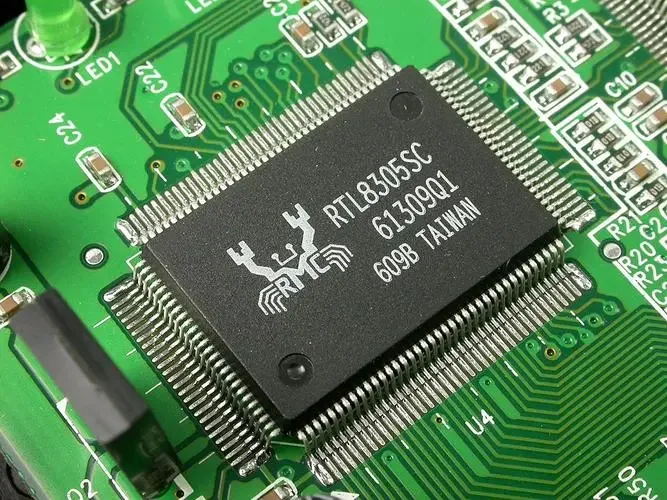

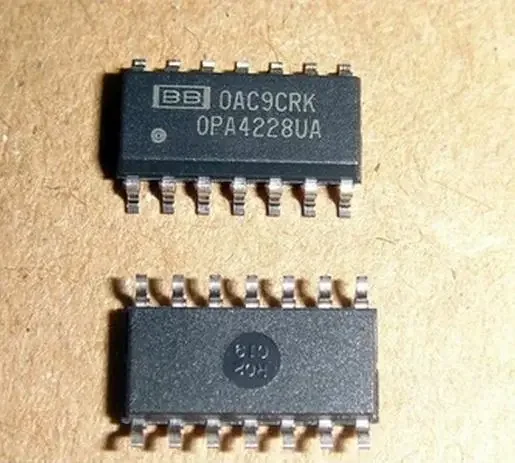

This mini desktop machine offers ultra-high marking speeds up to 7000mm/s. Due to its advanced Beijing Sino Galvo scanner and quality optics, it reaches a repetition precision of 0.001mm, making it perfect for micro-markings on microchips and tiny electronic parts.
