| Laser Source | JPT/Max/ Reci/ Raycus |
|---|---|
| Max Power | 20w/30w/60w/100w/120w |
| Marking Range | 110*110m,150*150mm,175*175mm,200*200mm,300*300mm working area option |
| Minimum Line Width | 0.01mm |
| Minimum Character | 0.1mm |
| Marking Speed | 10000mm/s |
| Marking Depth | 0-1.5mm |
| Engraving Line Speed | ≤7000mm/s |
| Repeatability Accuracy | ±0.001mm |
| Graphic Format Supported | BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, ETC. |
| Working Environment | Clean and dust free or dust less |
| Matching system | Win7,Win8,Win9,Win10 |
| Product packing Size | 75cm* 47cm* 85cm |
| Laser Module Life | >100000 hours |

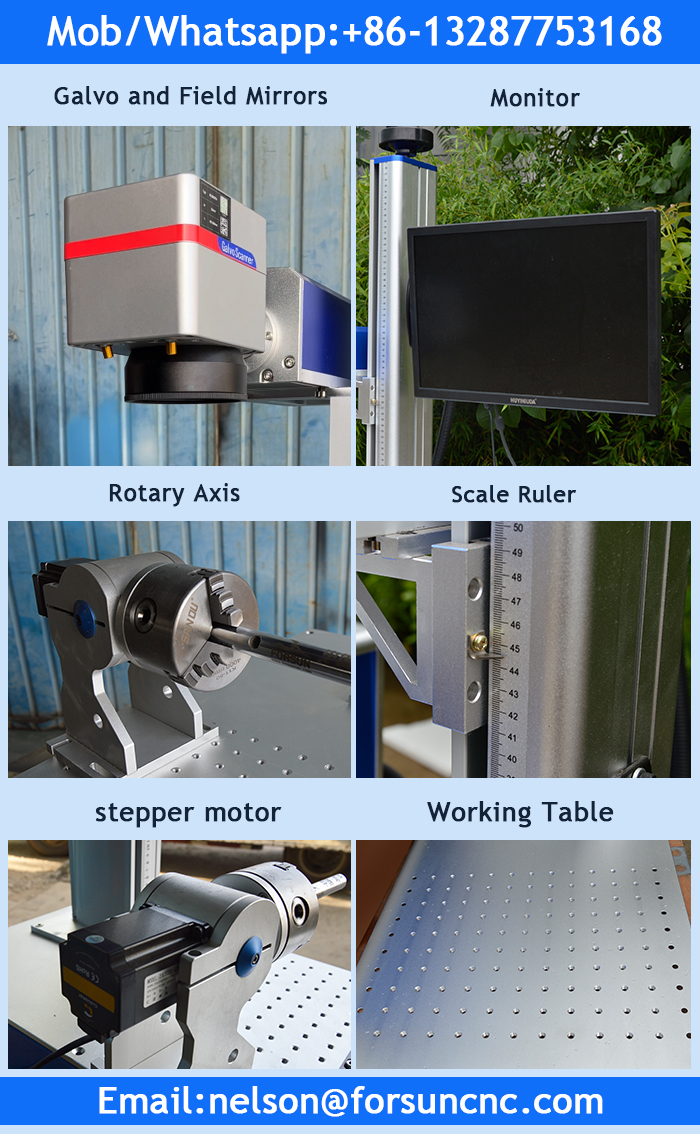

| 1. Controller | EZCAD software with stable performance and high reliability, Compatible with Windows XP/Vista/7/8/9/10; Supporting file types AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP; Support language English, Spanish, Arabic, Korean, Japanese. |
| 2. Laser Source | We use Chinese best brand Raycus laser generator with best cost performance. Optional: CAS/MAX/IPG/JPT color marking laser source. |
| 3. Field Lens | High system resolution and good light perception, Famous "Wavelength" brand, fast speed, high transparent rate. |
| 4. Galvo Head | High speed galvanometer scan head, using digital signal, high precision. |
| 5. Reducer | Japan Shimpo Reducer - The world best reducer brand. Used to replace traditional rack and belt, to make machine more powerful and stable. |

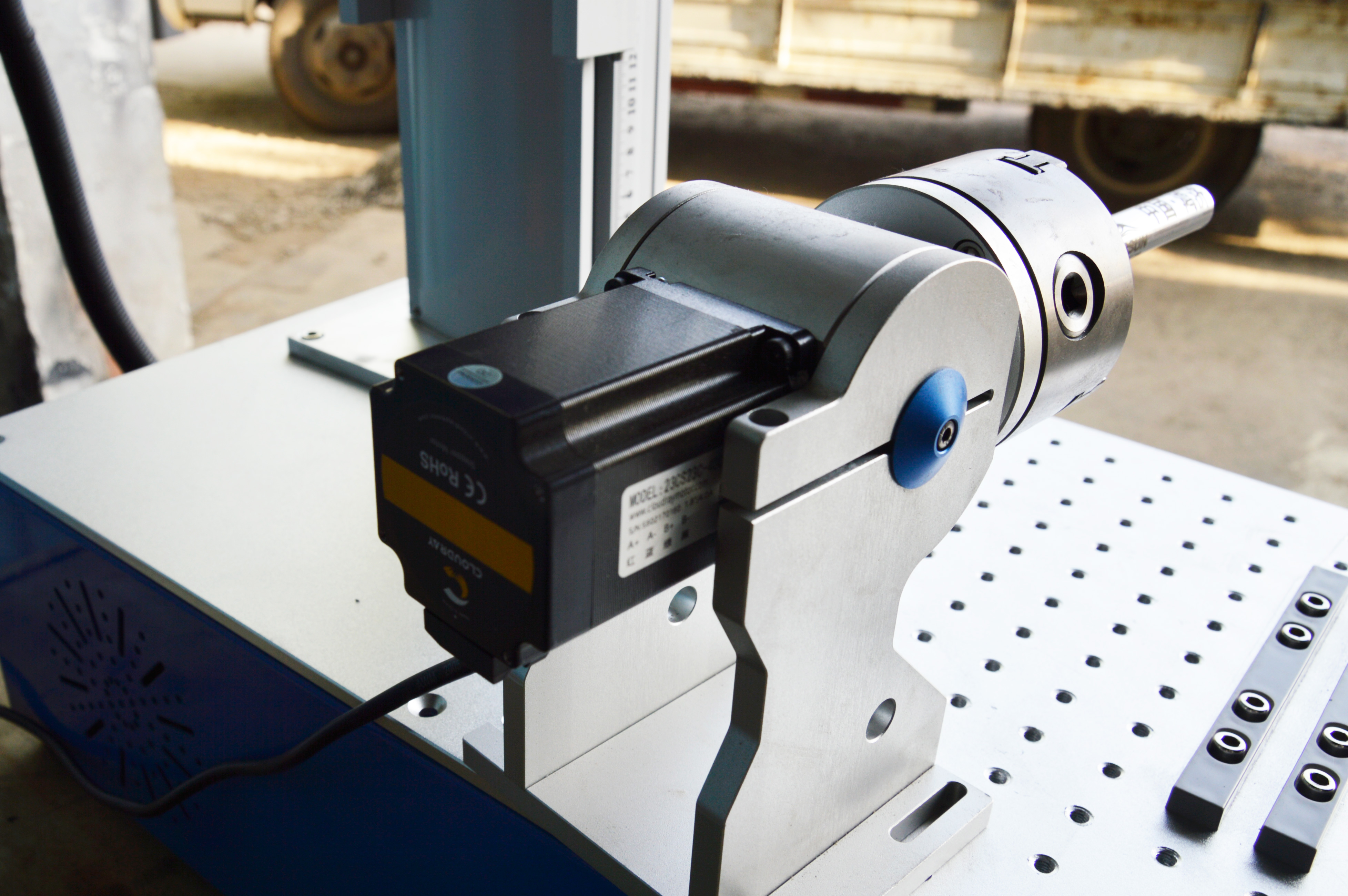

| 6. Rotary | Which can also add rotary and rotary table, suitable for ring, pens and other ring items. |
Most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc.
Many non-metal materials, such as ABS, Some non-metallic materials & Special surface treatment: silicon wafer, ceramics, plastic, rubber, epoxy resin, Nylon, PES, PVC, Makrolon. Printing ink, Plating, Spraying, Coating film.
Alloy and metal oxides: Anodized Aluminum.
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
