50W 3D JPT Mopa Portable Fiber Laser Color Marking Machine Air-Cooled CNC for Metal Gold Jewelry ID Cards DXF/PLT/BMP/AI/DST

Product Description

100W 50W 3D JPT Mopa Portable Laser Color Marking Machine Metal for Gold Jewelry ID Card

3D fiber laser marking machine, suitable for printing three-dimensional patterns. Find the appropriate parameters by stacking the number of layers.

Machine Features

Low Cost In Use: No wearing parts. Free of maintenance.
Free of Maintenance: Fiber laser machine can be used free of maintenance.
Red Light Preview: Equipped with red light preview indication area function.
High Precision: High precision marking, speed, depth of the engraving control randomly.
Low Power Consumption: Power consumption is less than 500W.
Eco-friendly: No consumable, no pollution, energy saving and environmental protection, in line with European environmental standards.
Air Cooling: Completely air cooling, low energy.

Technical Parameters

Parameter	Details / Values
Model	RC-UA
Laser power	20w/30w/50w/other
Laser wavelength	1064nm ±10nm
Q-frequency	20KHz-100KHz
Pules frequency	20KHz-100KHz
Divergence	0.3mard
Marking range	110110mm/175175mm/200200mm/300300mm/other
Minimun line width	0.01mm
Minimun character	0.1mm
Marking speed	10000mm/s
Marking depth	0~0.5mm
Engraving line speed	≤7000mm/s
Repeatability accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking format	Graphics, text, bar codes, two-dimension code, automatically marking the date, batch number, serial number, frequency, etc.
Graphic format supported	BMP, JPG, GIF, PNG, TIF, AI, DXF, DST, PLT, etc.
Working voltage	220V ±10%/50Hz/4A
Unit power	<0.5kw
Use of the environment	Clean and dust free or dust less
Working condition: Humidity	Free of condensed water
Laser module life	>100000hours
The whole life	More than 15 years
Packing size	850670950mm
Net Weight	65KG

Product Details

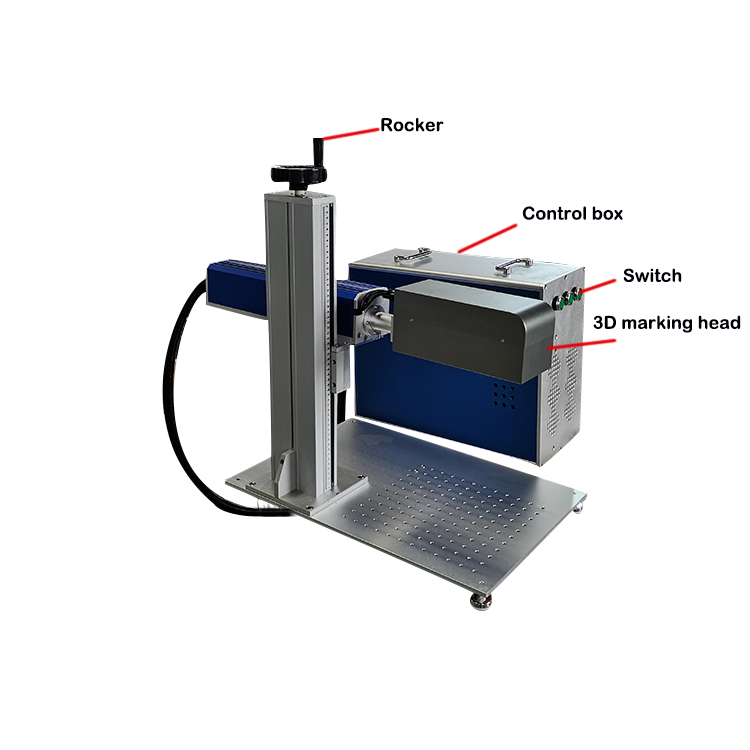

The fiber laser, vibration mirror, Galvo head, and laser control card are the main parts of the machine. The marking machine adopts high quality parts:

Other Accessories

Other Optional Options

Applications

Applied Materials

1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet, Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition.

2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material.

Applicable Industries

1. Precision & Electronics: Computer keyboards; precision instruments, auto parts, medical equipment, bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, wire and cable, Industrial bearings, building materials.

2. Packaging & Labeling: Food packaging; health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising, logo, etc.

Quality Control

We are a reliable manufacturer and have been in this field since 2009. You will get the best quality and after-sale service. Long-term cooperation and business are what we aim for, and we support every customer who purchases equipment from us. INTEGRITY, QUALITY, and RESPONSIBILITY are our guiding principles.

Our Services

Pre-Sales Service

- Free Pre-Sales Consulting / Free Sample Marking
- We offer a 12-hour quick pre-sales response and free consultation.
- Technical support is available for all users.
- Free Sample Making & Testing.
- Progressing solution design for all distributors and users.

After-Sales Services

- 2-year guarantee for the fiber laser marking machine.
- Full technical support via email, call, and video.
- Lifelong maintenance and spare parts supply.
- Free design of fixtures as required by customers.
- Free training for installation and operation.

Packing & Shipping

1. Anti-collision package edge: All parts of the machine are covered with soft materials, mainly pearl wool.
2. Fumigation wooden box: Our wooden boxes are fumigated, saving transport and custom checking time.
3. Whole film packaging: Avoids all damage that may occur during delivery. Covered tightly with plastic to keep water and rust out.
4. Solid base: Wooden box bottom features a solid iron socket for easy handling and transport.

Production Gallery

Related Products

Frequently Asked Questions

Q1 How can I get the best machine for me?

You can tell us your working material and detailed requirements with pictures or videos so we can recommend the best model based on our experience.

Q2 This is the first time I use this kind of machine, is it easy to operate?

Yes, we send an English manual and guide video to show you how to operate the machine. If needed, we can also assist you using online tools or remote help programs.

Q3 If the machine has a problem at my place, what should I do?

We offer free replacement parts within the warranty period if the machine encounters problems under normal use conditions.

Q4 What is the guarantee in case the machine breaks down?

The machine has a two-year guarantee. In the event of a breakdown, our technicians will assess the problem based on your feedback. Non-consumable parts are replaced free of charge if caused by quality issues.

Q5 How long is the delivery time?

Standard machines take 5 to 7 days. Non-standard and customized machines built to specific client requirements take 15 to 30 days.

Q6 How is the packaging?

The packing consists of three protective layers: a waterproof thickening plastic bag inside, protective foam to absorb shock, and a solid export wooden case outside.
