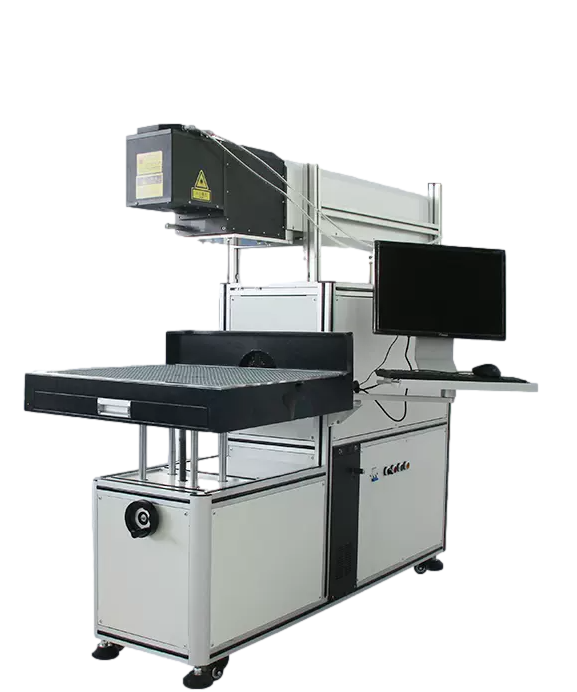

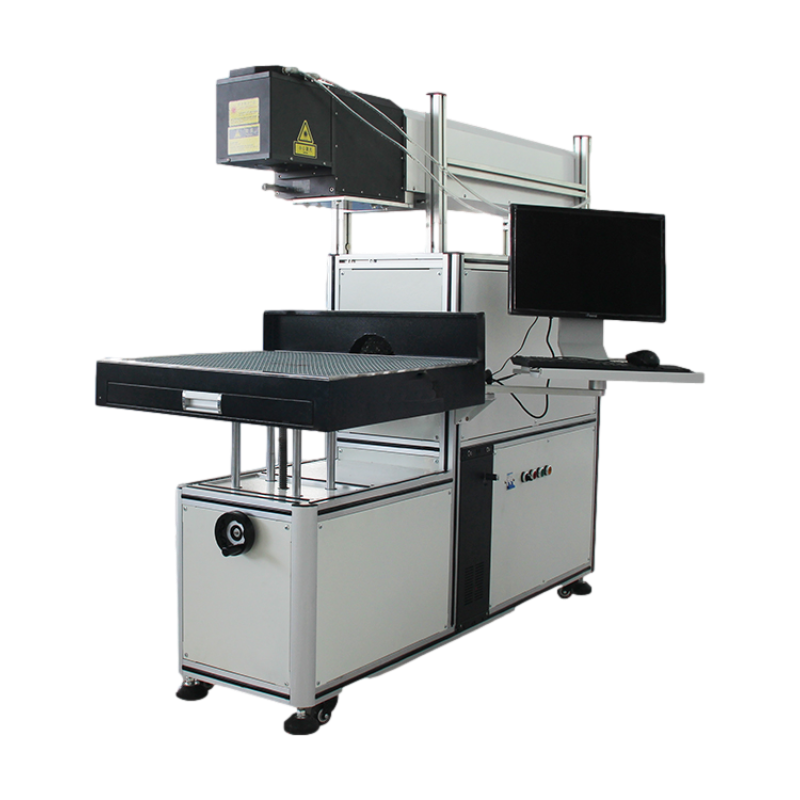

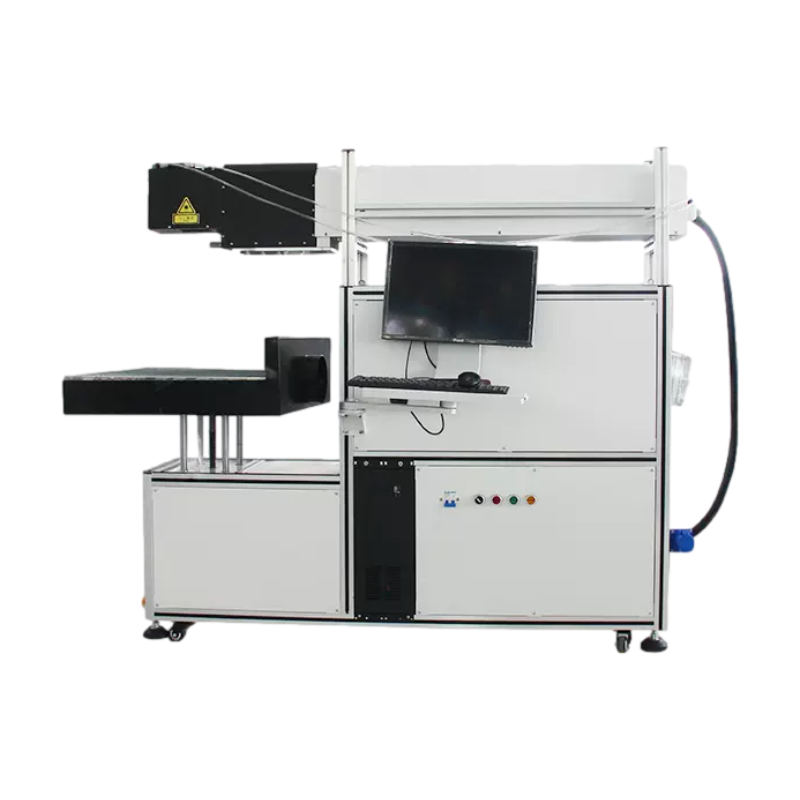

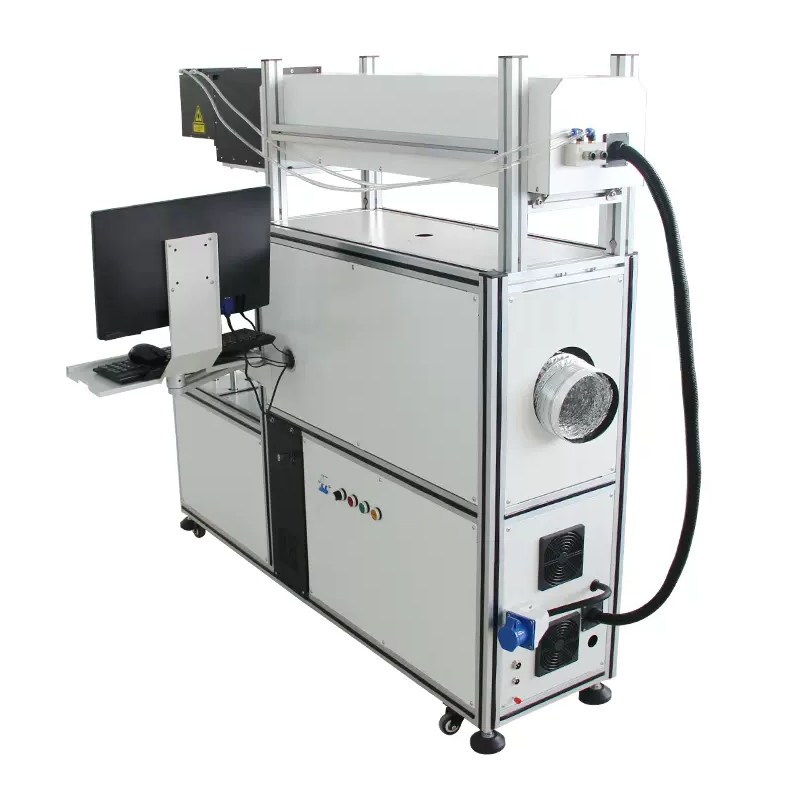

| Product Name | RF Metal Auto Focus Laser Marking Machine |
| Model | WH6060 |
| Color | Slivery (color can be changed) |
| Laser source | RF Metal Laser tube CO2 laser source |
| Laser power | 100w 120w 150w 200w |
| Engraving speed | 0 - 30000mm/s |
| Laser wavelength | 1064nm |
| Working area(mm) | 400x400mm/ 600*600mm |

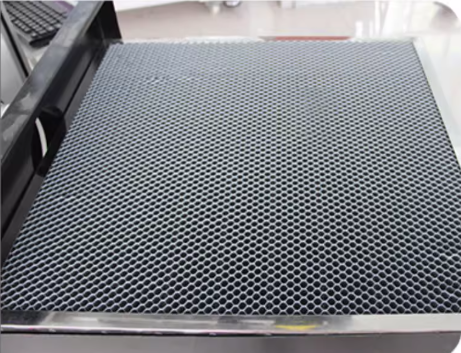

| Work table type | Honeycomb table |
| Laser frequency | <=50Hz |
| Mini Shaped Character | 1mm |
| Marking depth | <3mm |
| Repeat precision | ±0.001mm |
| Mini laser line | 0.18mm |
| Laser tube cooling | Water cooling |
| Control system | 3D Dynamic software |
| Working life of tube | ≥50000 hours |
| Supported graphic | PLT, DXF, AI, BMP, JPG, JPEG, DWG |
| Software supported | CorelDraw, AutoCAD, Photoshop |
| Operating temperature | 0℃~45℃ |
| Operating humidity | 5%~95% |
| Power supply | AC 110 - 220V , 50 - 60Hz |

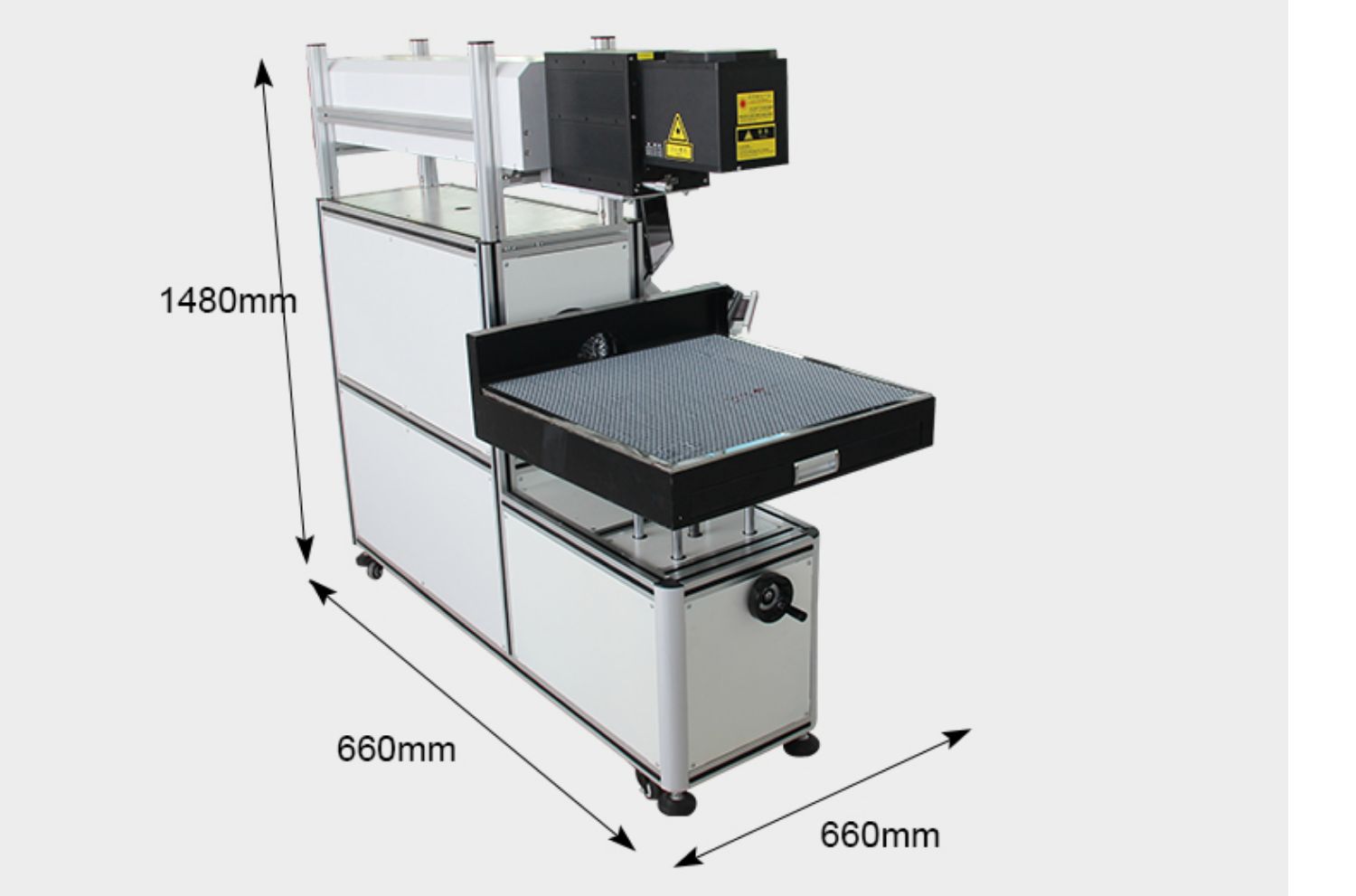

| Machine dimension | 1650*660*1480mm |
| Weight | 150kg |
| HS code | 8456110090 |
This machine is ideal for non-metal materials including leather, paper, textiles, towels, fabric, acrylic, epoxy resin, wood, bamboo, ceramics, crystal, jade, and more.

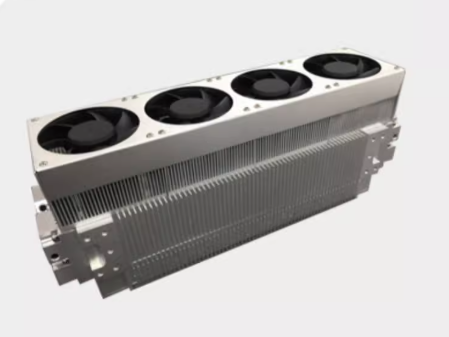

Metal RF laser tubes provide a much longer service life (≥50,000 hours), stable output power, highly uniform beam quality, and finer marking details compared to standard glass tubes.

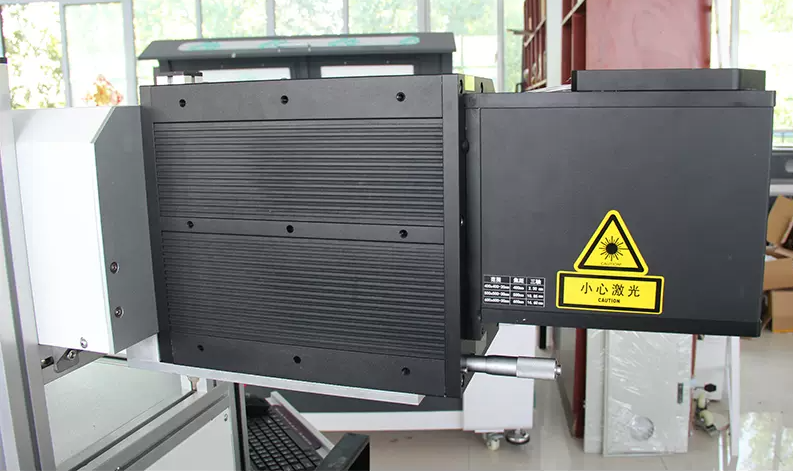

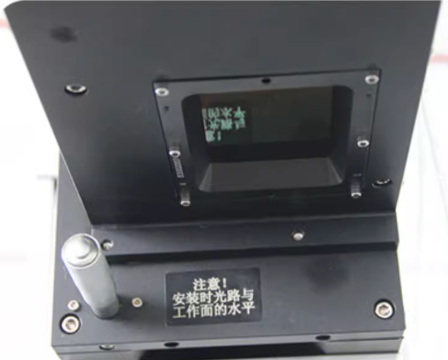

The 3D high-speed scanning galvanometer supports autofocus and allows for precise dynamic marking on curved or uneven surfaces while maintaining high speed and fine detail.
The control system uses 3D Dynamic software and is compatible with CorelDraw, AutoCAD, and Photoshop. Supported graphic formats include PLT, DXF, AI, BMP, JPG, JPEG, and DWG.

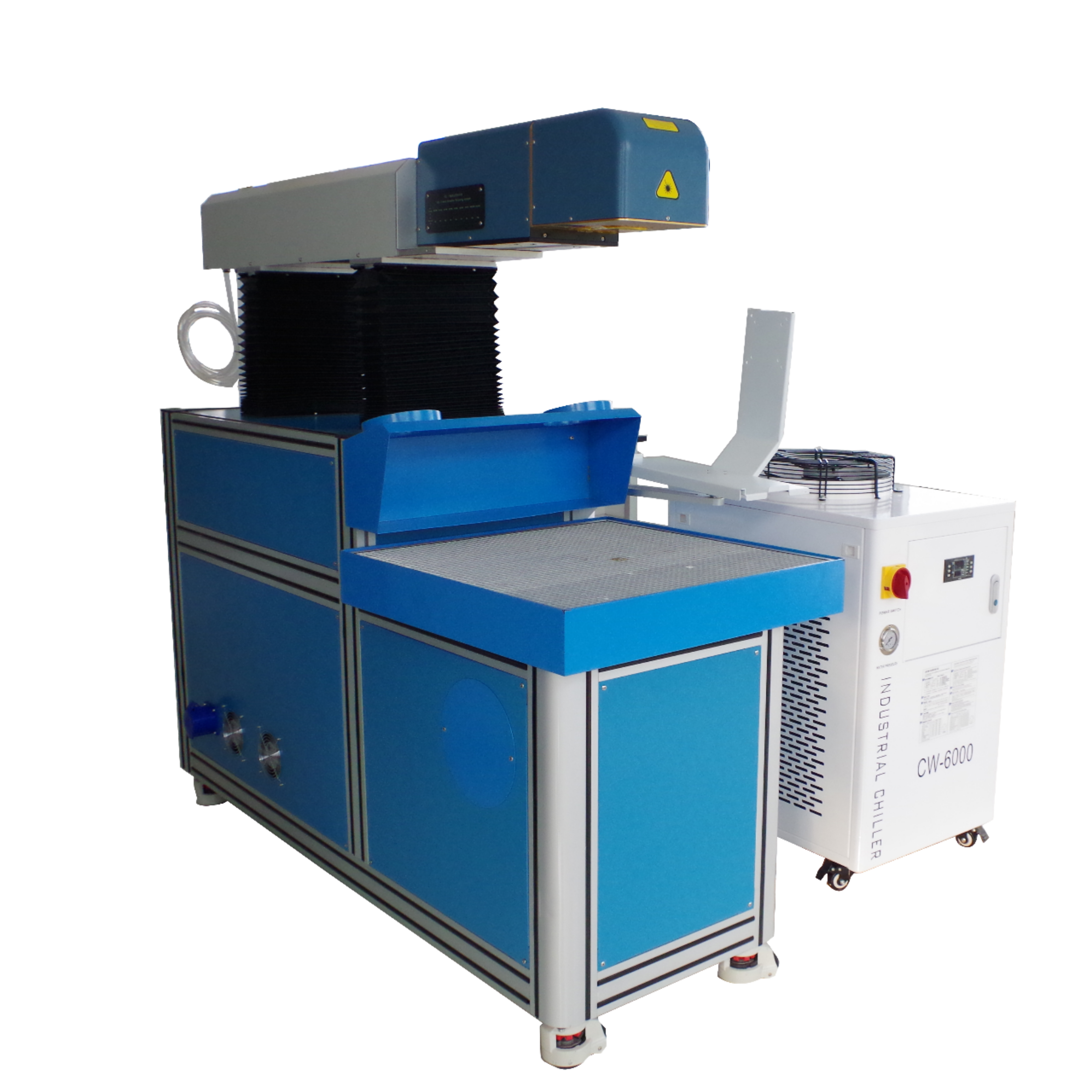

The machine utilizes an efficient water cooling system to regulate the temperature of the laser tube, ensuring continuous operation and protecting the laser source from overheating.

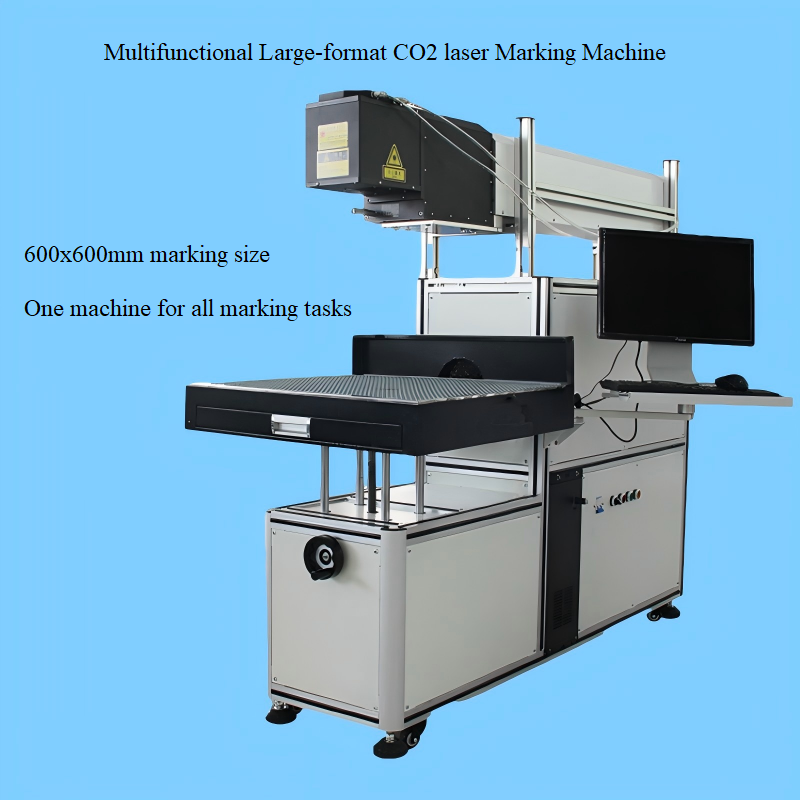

The machine features a large processing area options of 400x400mm or a maximum of 600x600mm, allowing for large-format marking operations.
