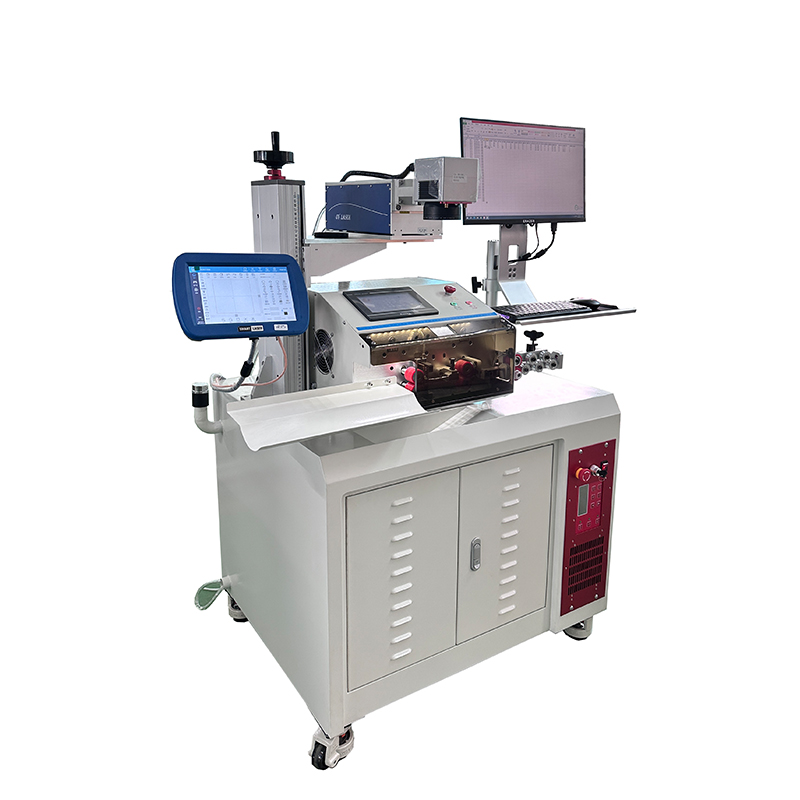

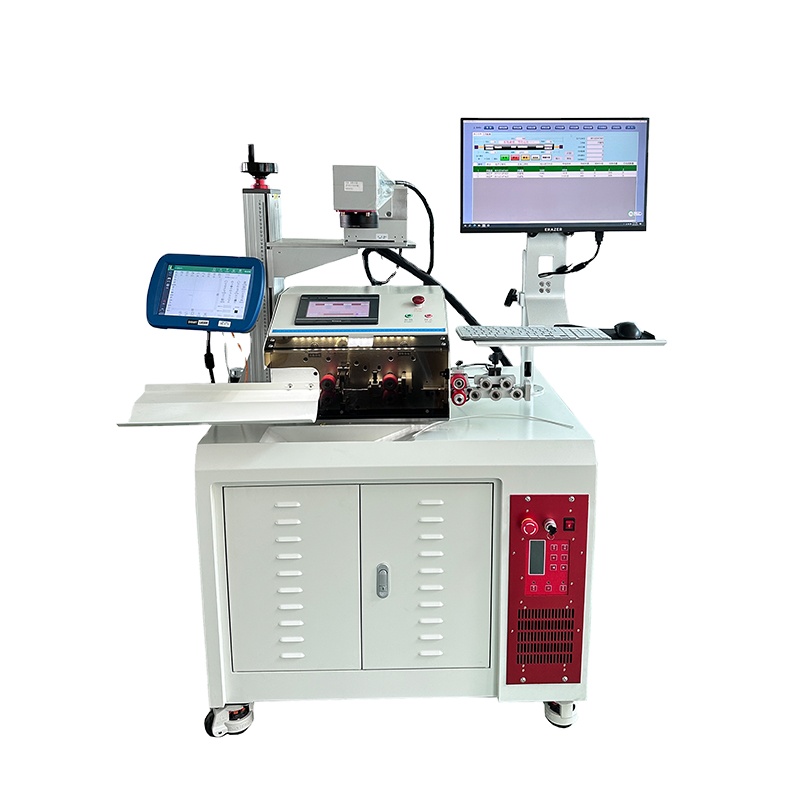

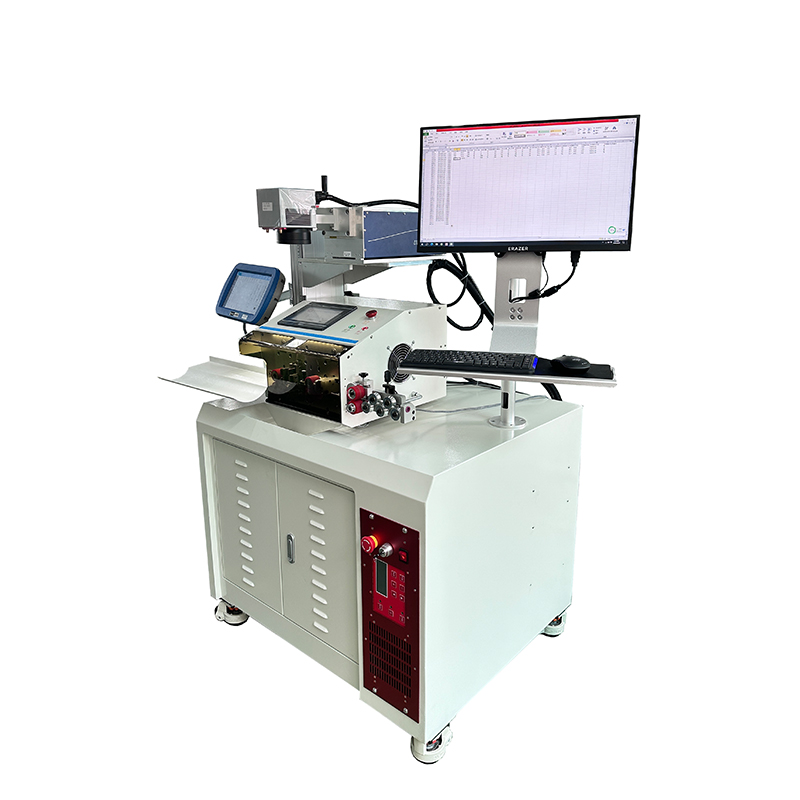

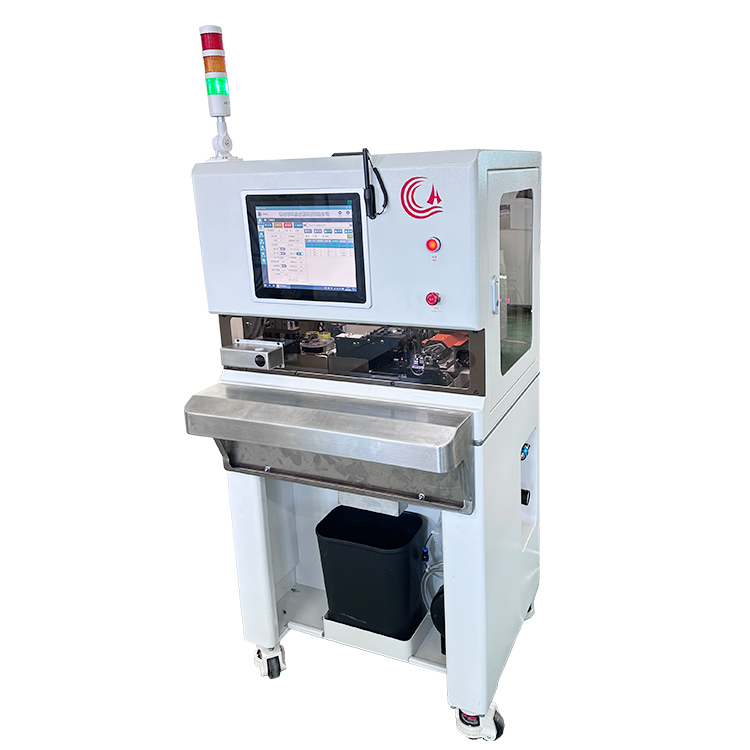

Automatic Wire Stripping Cutting and UV Laser Marking Machine
Automatic Wire Stripping Cutting and UV Laser Marking Machine
Automatic Wire Stripping Cutting and UV Laser Marking Machine
Automatic Wire Stripping Cutting and UV Laser Marking Machine
Automatic Wire Stripping Cutting and UV Laser Marking Machine
1 / 5
Automatic Wire Stripping Cutting and UV Laser Marking Machine
Automatic Wire Stripping Cutting and UV Laser Marking Machine
Automatic Wire Stripping Cutting and UV Laser Marking Machine
Automatic Wire Stripping Cutting and UV Laser Marking Machine
Automatic Wire Stripping Cutting and UV Laser Marking Machine

Automatic Wire Stripping Cutting and UV Laser Marking Machine

Send Inquiry

Product Description

MACHINE CHARACTERISTICS
The working principle of a computerized wire stripping machine combined with a laser marking machine is as follows:
Computerized Wire Stripping Process
  • 1 Working principle of the computerized wire stripping machine.
  • 2 The computerized wire stripping machine is set up by adjusting the desired parameters and placing the wire or cable to be stripped onto the machine.
  • 3 The machine utilizes a transmission system and stripping blades to perform the wire stripping operation. The stripping blades can be adjusted to ensure the appropriate length and depth of the stripping.
  • 4 During the stripping process, the machine controls the speed and force of the blades to ensure accuracy and consistency.
  • 5 Once the stripping is completed, the outer insulation material of the wire or cable is removed, exposing the internal conductors.
Laser Marking Process
  • 1 The laser marking machine generates a high-energy laser beam using a laser generator.
  • 2 The laser beam is focused and controlled through an optical system to form a fine beam.
  • 3 The control system operates the laser beam by precisely controlling its movement and switching based on the desired marking content.
  • 4 When the laser beam is directed onto the surface of the target object, it interacts with the material, causing chemical or physical reactions that form visible marks on the surface.
  • 5 The control system can adjust the laser's power, scanning speed, and scanning mode to achieve different marking effects and requirements.
The working principle of a computerized wire stripping machine combined with a laser marking machine integrates the stripping and marking processes. Firstly, the computerized wire stripping machine performs the wire stripping operation, and then the laser marking machine utilizes laser technology to mark the stripped wire or cable. This combined equipment enhances production efficiency, ensures the accuracy and consistency of stripping and marking, and completes both operations in a single process, saving time and labor.
Automatic Wire Stripping Cutting and UV Laser Marking Machine
TECHNICAL DATA
Parameter Specification (HC-715C)
Model HC-715C
Power 220V/250W
Function Cutting and stripping
Productivity 4800PCS/h (depends on wire)
Display Touch screen
Wire material Cable wire, PVC, Teflon wire, glass wire, etc.
Wire size 0.1-2.5mm² (AWG#28-#14) (depends on wire)
Cutting length 0.5-99999.9mm
Cutting accuracy Within 1mm + L*0.2%, L=cutting length
Stripping length Front: 0.5-30mm (leaving middle skin more than 18mm) (depends on wire)
Cutting Depth Accuracy 0.01mm
Conduit diameter 1.5-4.5mm
Feeding method Wire feeding with leather belt, no embossing and scratches on the wire skin
Size/Weight L430xW440xH320mm / 45kg
Can be installed Coding device, middle stripping device, splitting and piercing device, encoder device

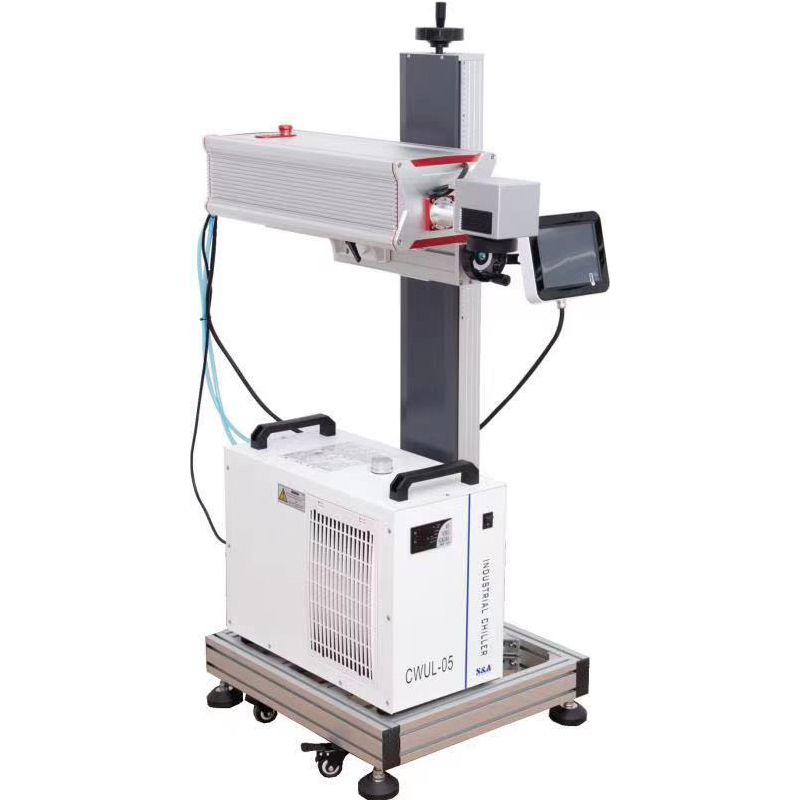

LASER MARKING MACHINE PARAMETERS
Parameter Specification
laser 355nm, UV laser
Standard power 5W
laser wave length 355nm
modulating frequency From 30 to 200 KHz is adjustable
Scaling characteristics Coke depth: ± 10mm
Minimum line width: 0.01mm
Field mirror size: 254
Stent height is 500mm
mode of operation Touch screen (very easy to operate)
Electricity demand 220V 50/60Hz
The laser machine consumes the power 1200W
The deflection mirror High-precision two-dimensional scanning system
cooling-down method hydrocooling
Focus on the lens 320mm
The weight of the machine 80kg
location mode Red light positioning, focus
Print the number of characters Any row within the marking range
message length Not limiting the number of characters
Type of marking line Dmatrix, vector machine

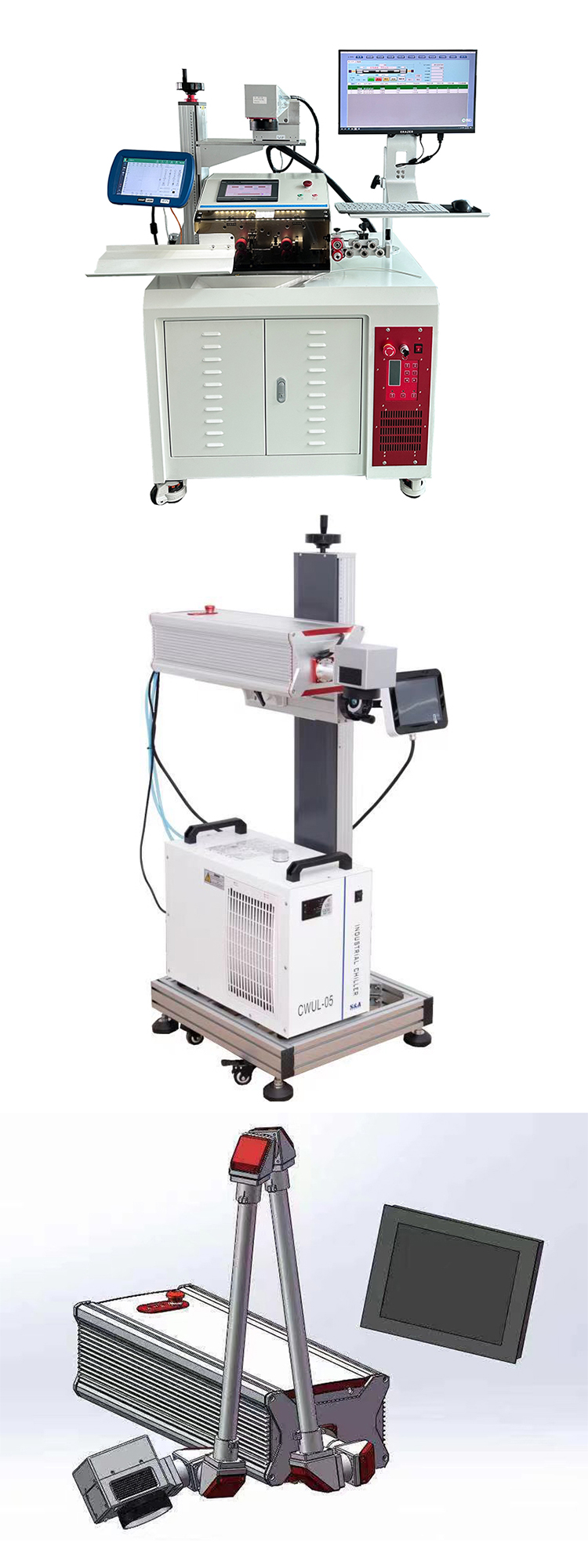

PRODUCT GALLERY
Automatic Wire Stripping Cutting and UV Laser Marking Machine Details
Automatic Wire Stripping Cutting and UV Laser Marking Machine Overview
Automatic Wire Stripping Cutting and UV Laser Marking Machine Workspace
Automatic Wire Stripping Cutting and UV Laser Marking Machine Processing Unit
Automatic Wire Stripping Cutting and UV Laser Marking Machine Controls
Automatic Wire Stripping Cutting and UV Laser Marking Machine Output
Frequently Asked Questions
Q: What is the advantage of combining wire stripping and laser marking in one machine?
A: By integrating these two systems, the machine completes wire stripping, cutting, and laser marking in a single process. This greatly increases production efficiency, ensures perfect alignment between stripping and marking, and reduces labor time.
Q: What types of wire materials can the HC-715C process?
A: The machine is highly versatile and handles cable wire, PVC, Teflon wire, glass wire, and other common wire types, ranging from 0.1 to 2.5mm² (AWG#28-#14) in size.
Q: How does the feeding method protect the wire from damage?
A: This machine uses a high-quality leather belt feeding method. Unlike standard roller feeds, the belt ensures smooth wire feeding without leaving any scratches, embossing, or physical markings on the wire jacket.
Q: Why is a UV laser used for the marking system?
A: The 355nm UV laser provides cold marking, which produces highly readable, permanent text and codes with minimal thermal stress. This ensures the wire insulation is not damaged or degraded during the marking process.
Q: Can the operation parameters be adjusted easily?
A: Yes, the machine is equipped with an intuitive touch screen interface. Operating parameters like cutting length, stripping depth, and laser marking data can be configured quickly and easily.
Q: What optional devices can be installed on this machine?
A: The machine can be customized and expanded by installing optional modules such as a coding device, middle stripping device, splitting and piercing device, or an encoder device based on your production requirements.

Related Products

20w/30w/50w/100w Max Raycus JPT Mopa Portable Metal Fiber Laser Marking Machines Galvo Brand DXF PLT Format Home Use

20w/30w/50w/100w Max Raycus JPT Mopa Portable Metal Fiber Laser Marking Machines Galvo Brand DXF PLT Format Home Use
AIO A2 Integrated Fiber Laser Marking Machine With Smart Control And All-in-One Design

AIO A2 Integrated Fiber Laser Marking Machine With Smart Control And All-in-One Design

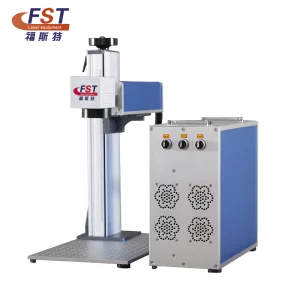

Industrial Grade Split Fiber Laser Marking System with Stable Output Fine Detail Laser Engraver Marking Machine FST Ezcad-Series

Industrial Grade Split Fiber Laser Marking System with Stable Output Fine Detail Laser Engraver Marking Machine FST Ezcad-Series
Flying CO2 Fiber Laser Marking Machine 20W 30W 50W 100W For Metal And Plastic

Flying CO2 Fiber Laser Marking Machine 20W 30W 50W 100W For Metal And Plastic
Fiber Laser Marking Machines JPT RAYCUS Laser Engraver On Stainless Steel Aluminum 20w 30w 50w Fiber Laser Coding Machine

Fiber Laser Marking Machines JPT RAYCUS Laser Engraver On Stainless Steel Aluminum 20w 30w 50w Fiber Laser Coding Machine
New 100W Portable Air-Cooled Fiber Laser Marking & Engraving Machine With Deep Marking Supports DXF/BMP/DWG/DST/AI Files

New 100W Portable Air-Cooled Fiber Laser Marking & Engraving Machine With Deep Marking Supports DXF/BMP/DWG/DST/AI Files
Autofocus Online Flying 30W Co2 Galvo Laser Marking Machine With Conveyor for Jeans Id Card Cable Bird Ring Pen Wood Engraving

Autofocus Online Flying 30W Co2 Galvo Laser Marking Machine With Conveyor for Jeans Id Card Cable Bird Ring Pen Wood Engraving

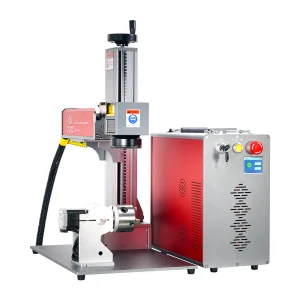

NEW Intelligent Detection 2.5D 3D MAX JPT Mopa M7 20W 30W 50W 60W 100W 200W Color Lightburn EzCad Fiber Laser Marking Machines
