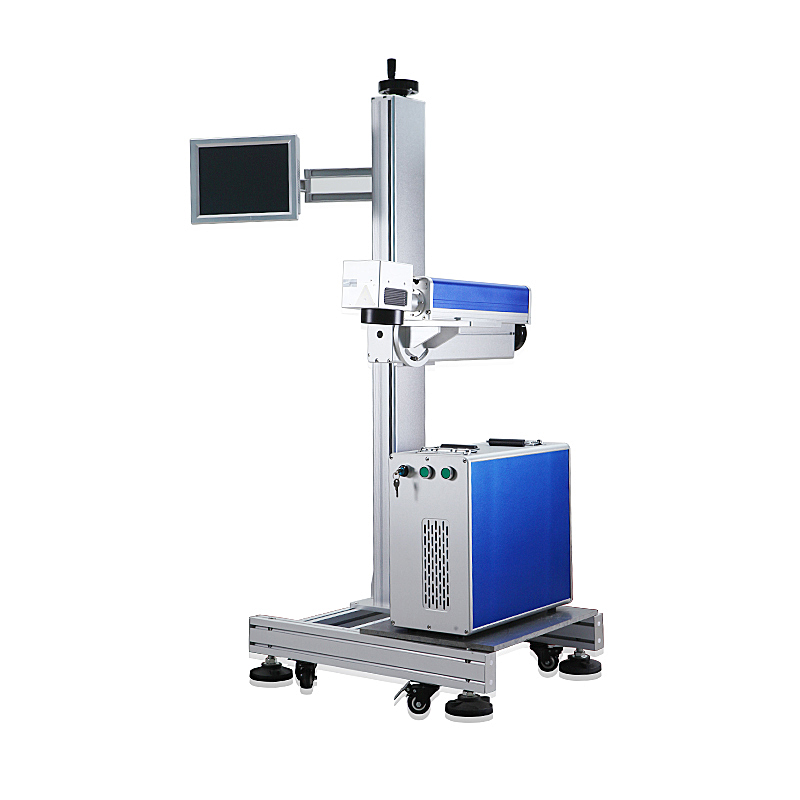

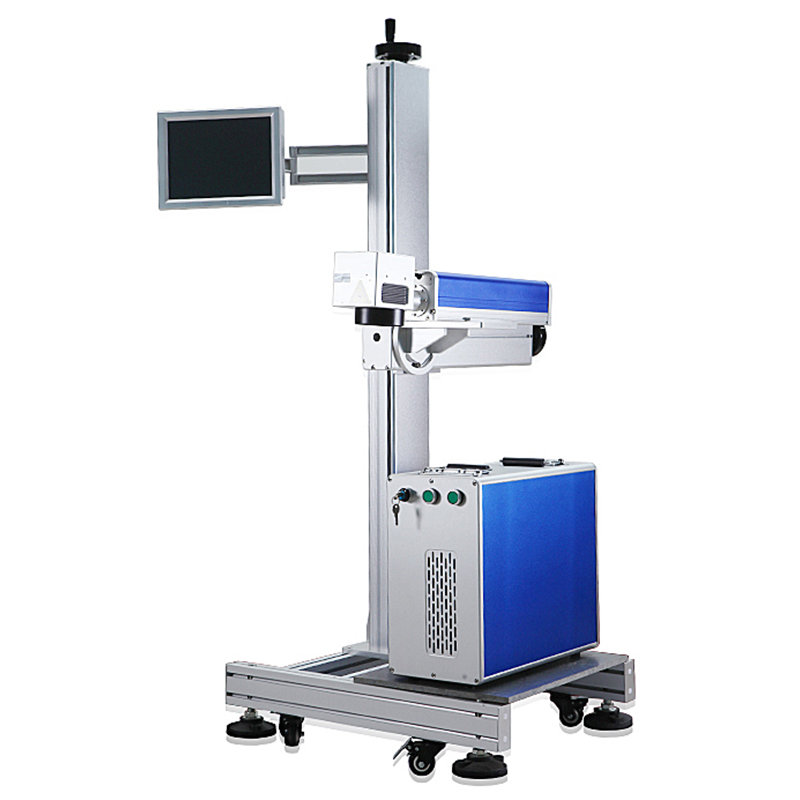

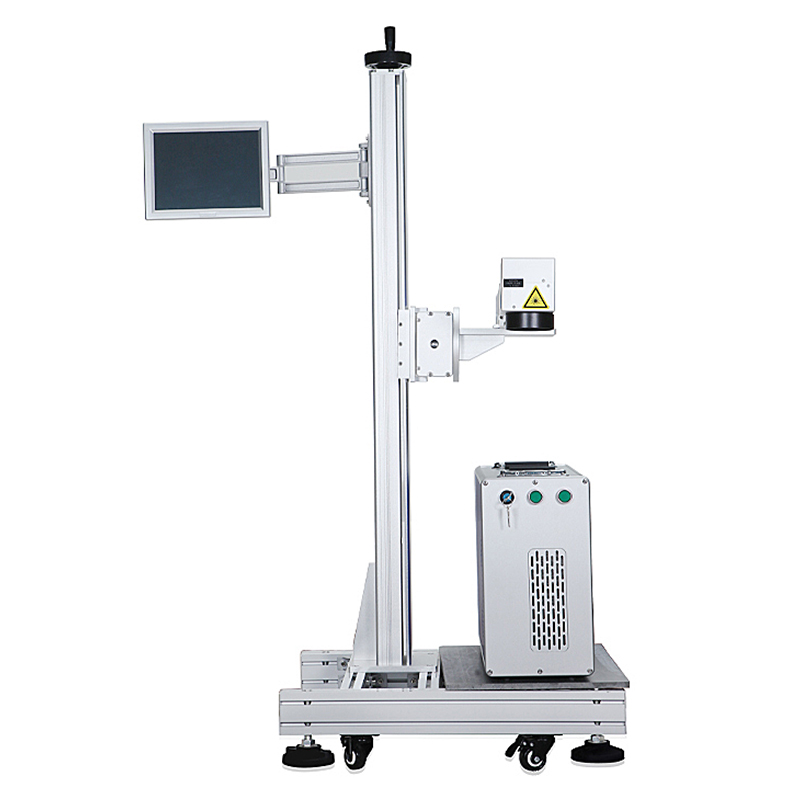

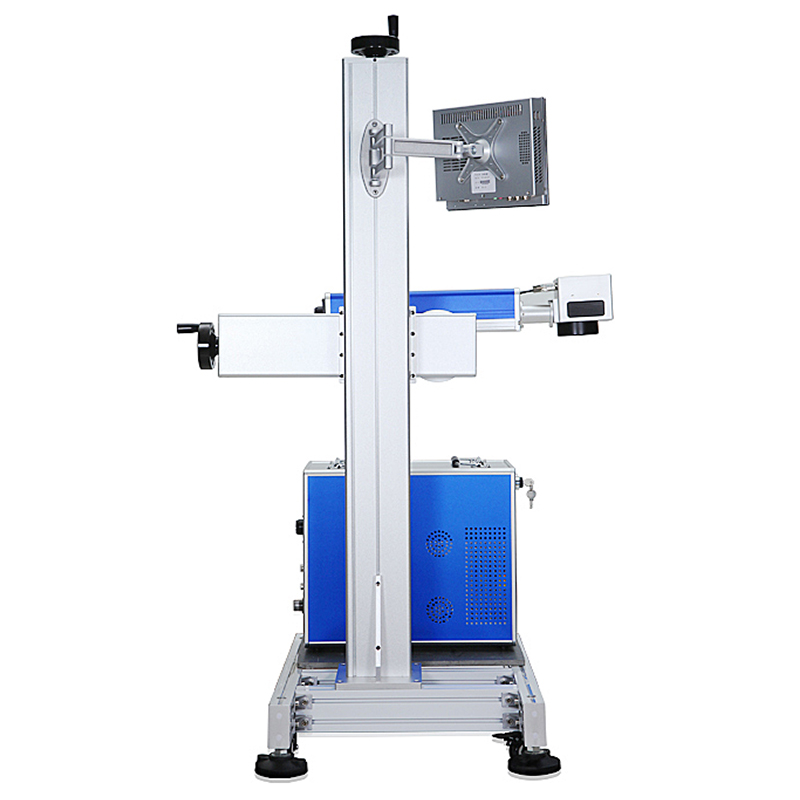

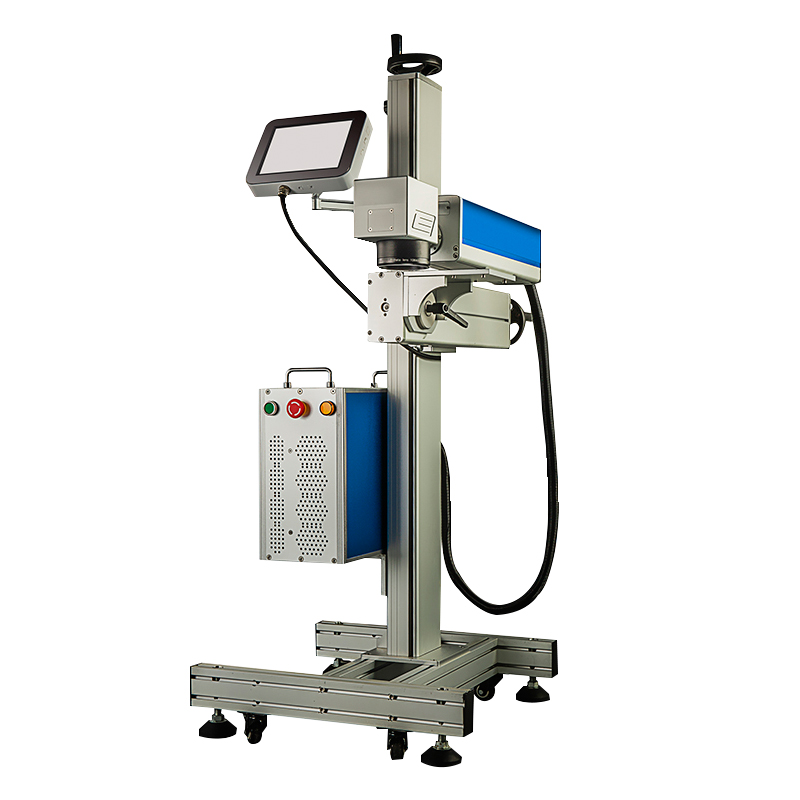

A Flying CO2 Laser Marking Machine is a type of laser marking system that uses a CO2 laser to etch or mark materials. It is called a "flying" marking machine because it has a conveyor belt that moves the materials through the machine while the laser is marking them.
The laser beam can be precisely controlled to create high-quality and permanent marks on a variety of materials, including plastics, wood, glass, leather, and more. The conveyor belt system allows for continuous marking at high speeds, making it ideal for mass production.
The non-metal laser engraving machine is controlled by a computer. It uses a 10.64um laser beam to expand and focus the laser beam, and then controls the deflection of the galvanometer to act on the workpiece surface according to a predetermined trajectory to vaporize the workpiece surface to achieve engraving effect.
Use imported radio frequency metal tube carbon dioxide laser, with good beam pattern, stable system performance and maintenance-free, suitable for industrial processing sites with large batches, multiple varieties, high speed and high precision continuous production.
The whole machine is highly integrated, with one-button switch control, good laser beam pattern, and stable system performance. It is suitable for industrial processing sites with large batches, multiple varieties, high speed, and high precision continuous production.
| Laser Type | CO2 Lasers |
| Laser Power | 30W, 40W, 60W |
| Laser Wavelength | 10.64 um, Q-switched operation |
| Emission Bandwidth (FWHM) | <10 nm |
| Long-term average power instability | <5% |
| Pulse width, (FWHM) | 100 ns |
| Laser switching ON time | 180 μsec |
| Laser switching OFF time | 180 μsec |
| Pulse Repetition Rate* kHz | 20 kHz |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Typical beam quality, M2 | <1.8 |
| Operating voltage | 220V |
| Max. Power consumption | 500W |
| Marking size | 110mm×110mm (F-theta 160) |
| Spot size | ≤ 40 micron (F-theta 160) |
| Cooling unit | winding cooled |
| Pilot laser | 650nm diode laser, visible red light for marking guide |
| Continuous working time | ≤16h |
| Control units | EZCAD (English Version) |

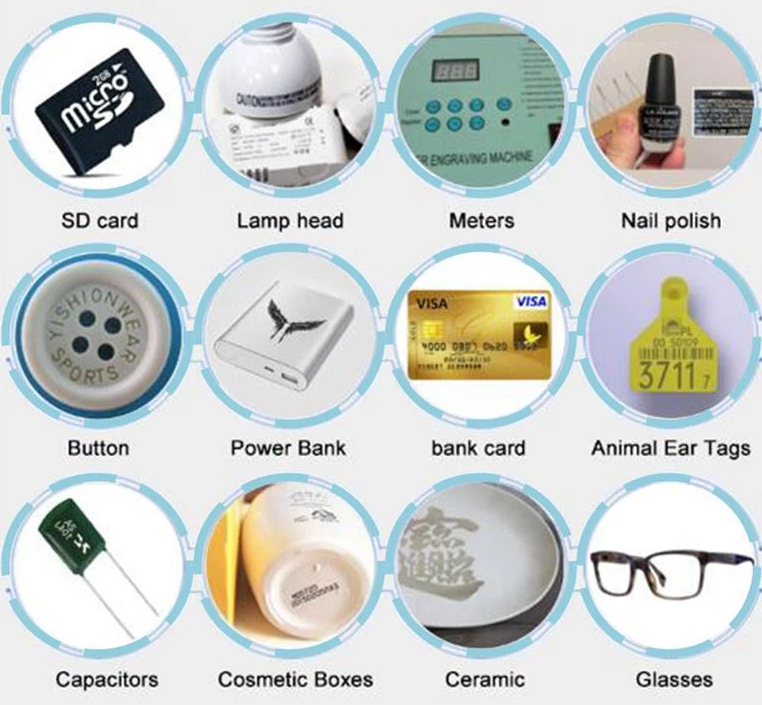

This system uses a CO2 laser specifically designed to etch and mark a variety of non-metal materials, including plastics, wood, glass, leather, and more.

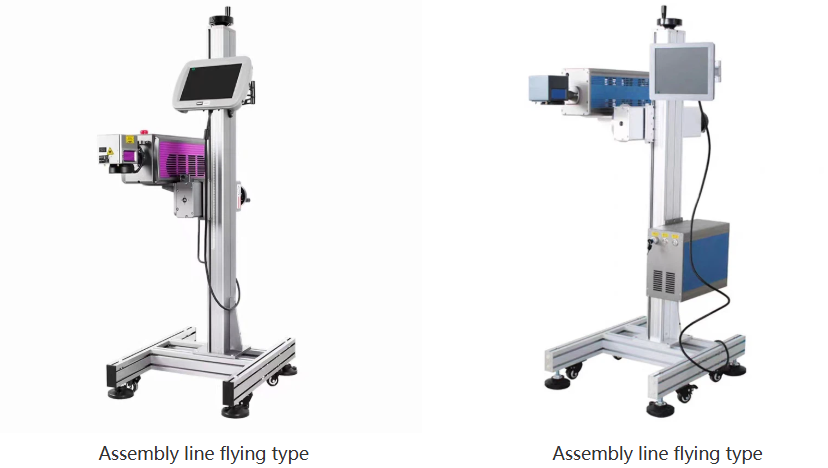

It is called a "flying" system because it features an integrated conveyor belt that continuously feeds and moves materials through the machine dynamically while the laser marks them, making it perfect for high-speed mass production.

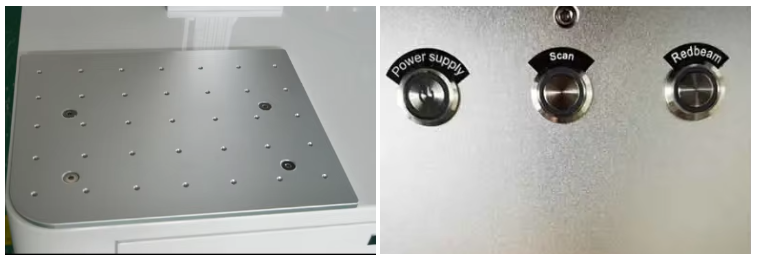

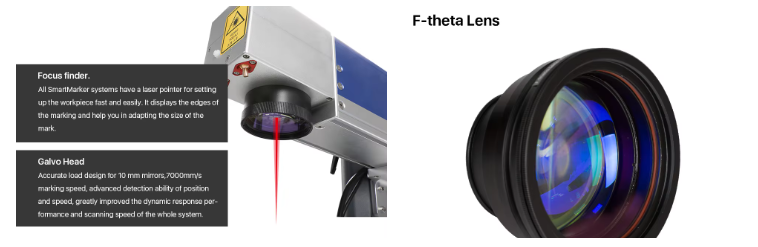

The machine features a computer control system using a 10.64um laser beam, an imported RF metal tube CO2 laser, a high-precision galvanometer deflection system, and a robust working table and switch board.
This model is highly configurable and is available in 30W, 40W, and 60W power variants to suit different marking depth and speed requirements.
Designed for demanding industrial environments, the system features a robust cooling unit that supports a continuous working time of up to 16 hours.
The machine is integrated with EZCAD software (English Version), which provides a stable, user-friendly control interface for precise marking paths.
