Third-party Authoritative Certification (CE, FCC-SDOC, FDA, MSDS, ROHS, etc.), Small and Lightweight. Easy to Carry, One-click for Marking, Can be Operated Outdoors. 110V/220V Plug-in Version/Rechargeable Lithium Battery Version. Flexible and Portable.

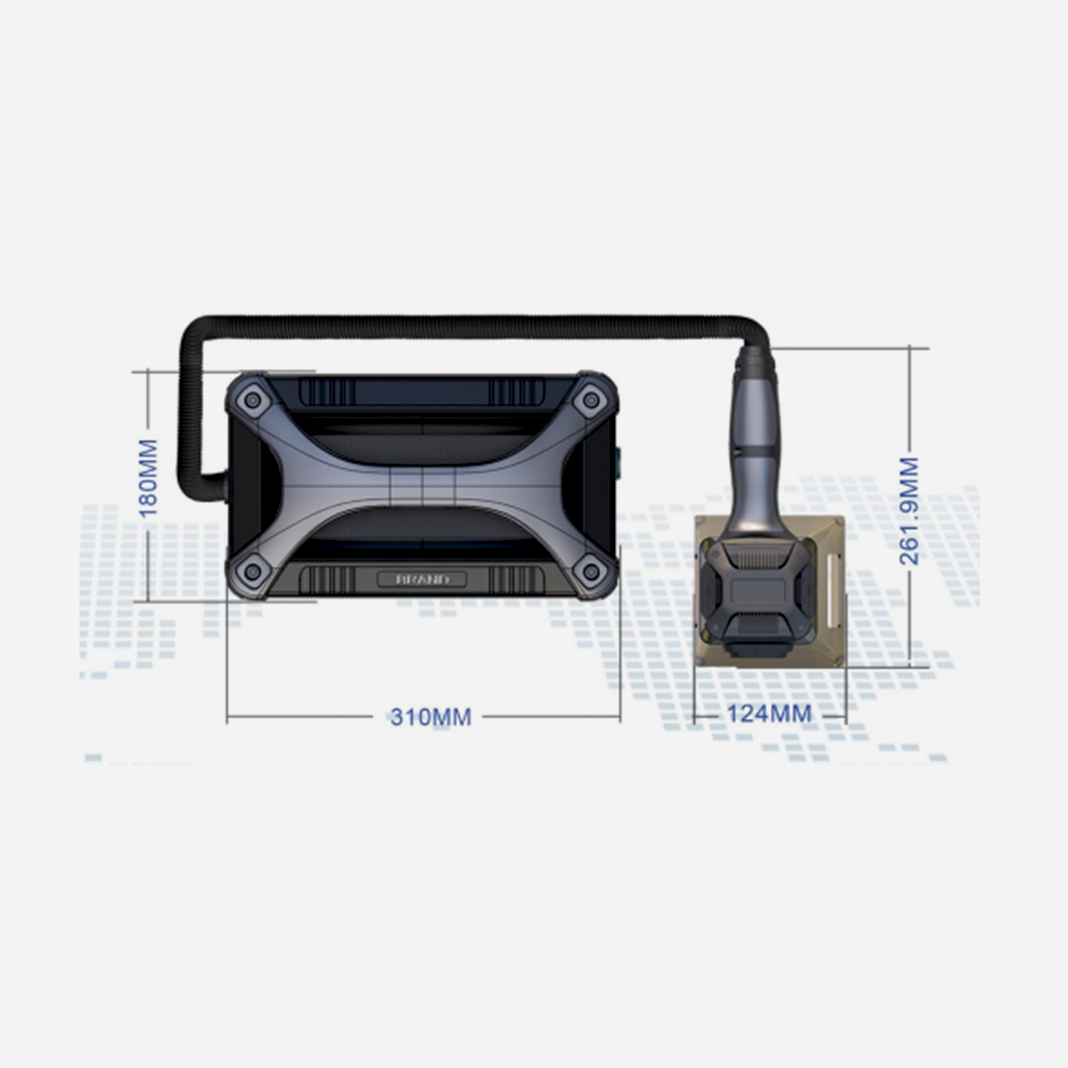

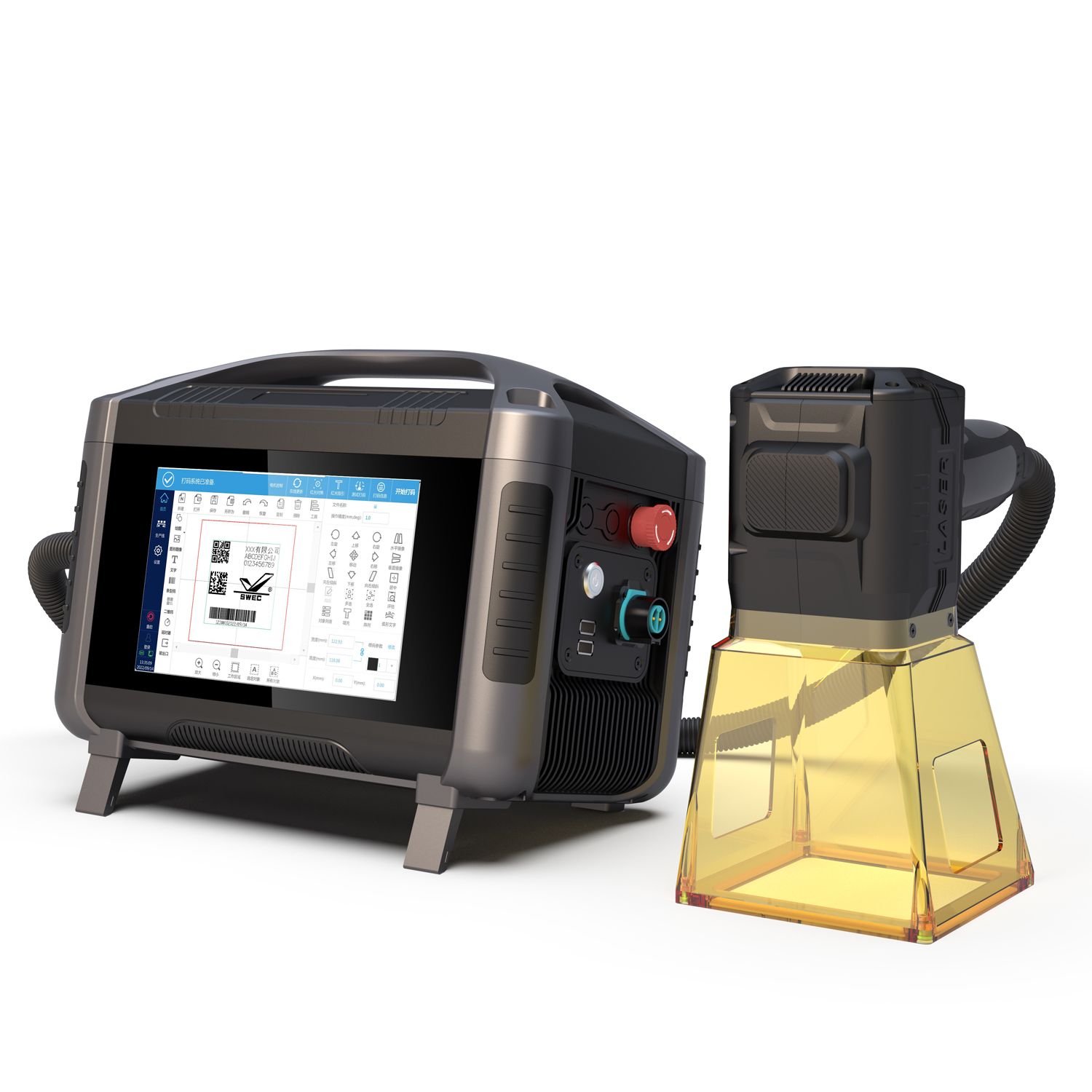

Body design: small and lightweight, the whole machine only weighs 6.8Kg; Handheld operation, flexible operation;
8-inch fully bonded LCD screen, one-key trigger. It can be used for multiple purposes in one machine, and the hardware is diversified and compatible;
Using 8-core processor, configuration security level, high performance, stable response.
Technical parameters of the machine part
| Laser | Fiber laser generator |
| Output power | 8W, 20W, 25W, 30W |
| Marking range | 70×70mm, 100×100mm (Optional) |
| Deflection seismic mirror | High-precision two-dimensional scanning system |
| Laser wavelength | 1064nm |
| Focus the lens | 130mm |
| Marking speed | ≤7000mm/s |
| Master control | Integrated motherboard, 8-inch capacitor fully bonded to the screen |
| Operating system | Linux system |
| Marking type of engraving | Redlett Positionen, Foxin |
| Line width | 0.03mm |
| Repeatable positioning accuracy | 0.01mm |

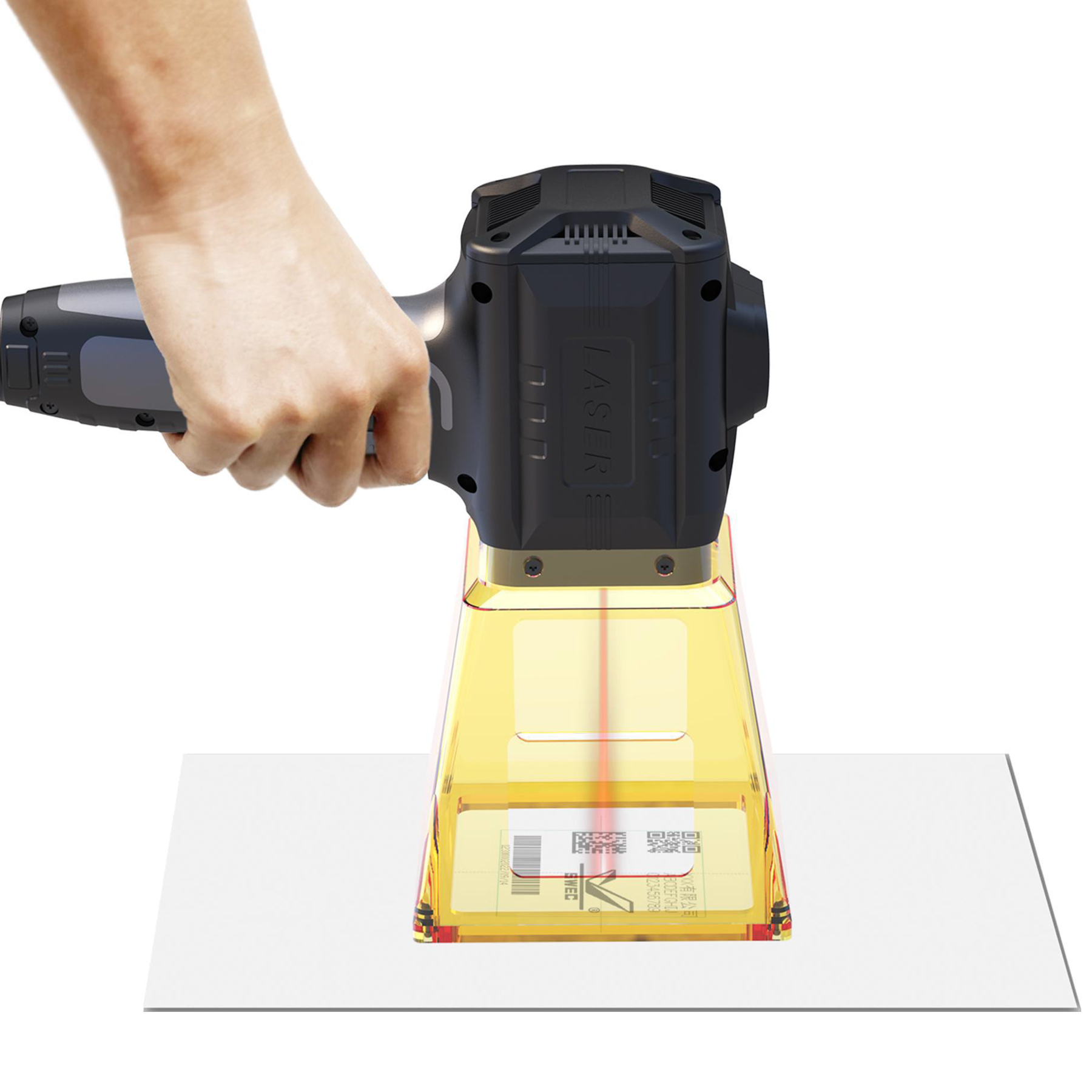

| Targeting method | Red light positioning, focusing |
| The number of engraved character lines | Any line within the valid marking range |
| Tenon Benn Gravid Charak Tryins | 800 characters (related to material and printed content) |
| Font | Chinese and English, numbers, Chinese Traditional and other standard fonts |
| File format | BMP, DXF, HPGL, JPEG, PLT |
| Barcode | CODE39, CODE128, QR |
| Power supply | 110V/220V AC, Lithium (216wh) |
| Power consumption | 145-250W |
| Operating temperature | 0-40° |
| Total weight | 6~6.8KG |
| MAX laser source | √ |
| Equipped with red light positioning function | √ |
| Support fast focusing and high-precision marking | √ |
| Linux system with 8-core processor | √ |
| High security level, stable performance, and rapid response | √ |
| Paired with an 8-inch color touch screen, the interface is simple and easy to use | √ |
It has a wide range of applications in various industries such as electronics, plastics, mechanical components, food, clothing and leather, and pharmaceuticals.
Our in-house designers and engineers have produced countless great designs for customers from different

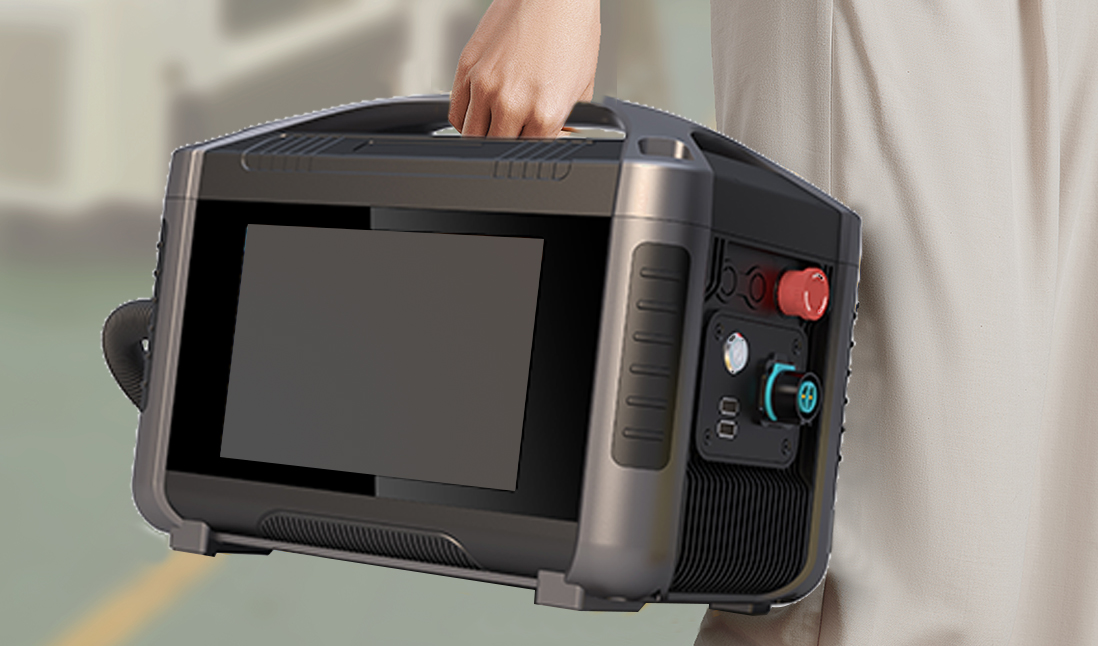

The whole machine is light and portable, and the component design is flexible; Compatible with multi-brand hardware; Flexibly adapt to a variety of scenarios.

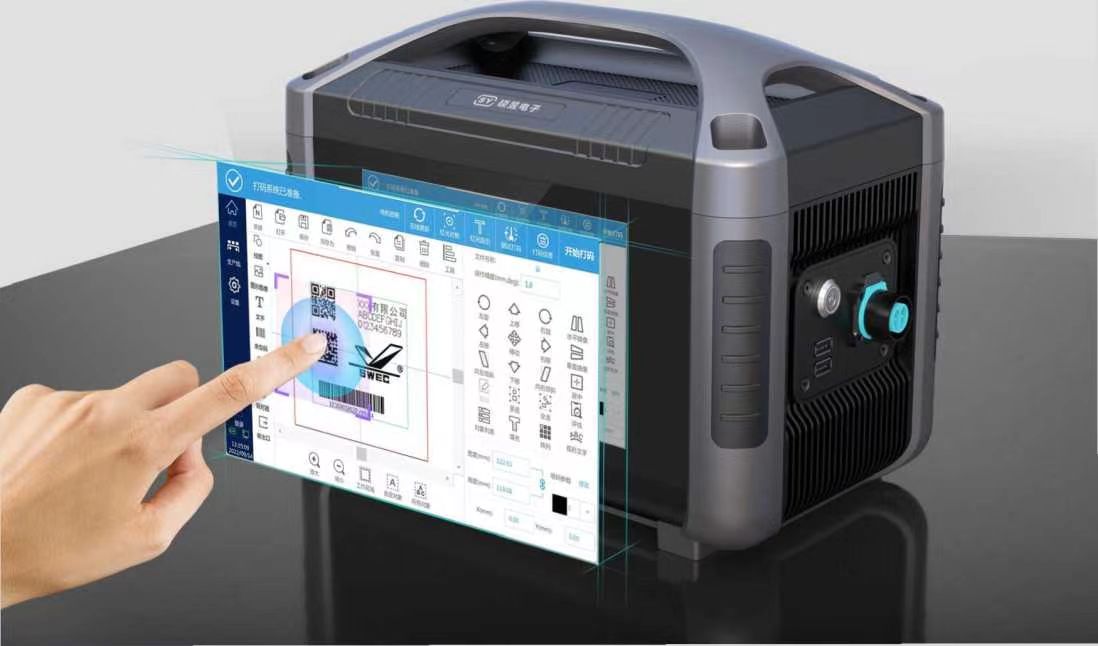

8-inch large screen, one-key touch, simple and smooth operation, easy to use.
What scenarios can this machine be applied to?

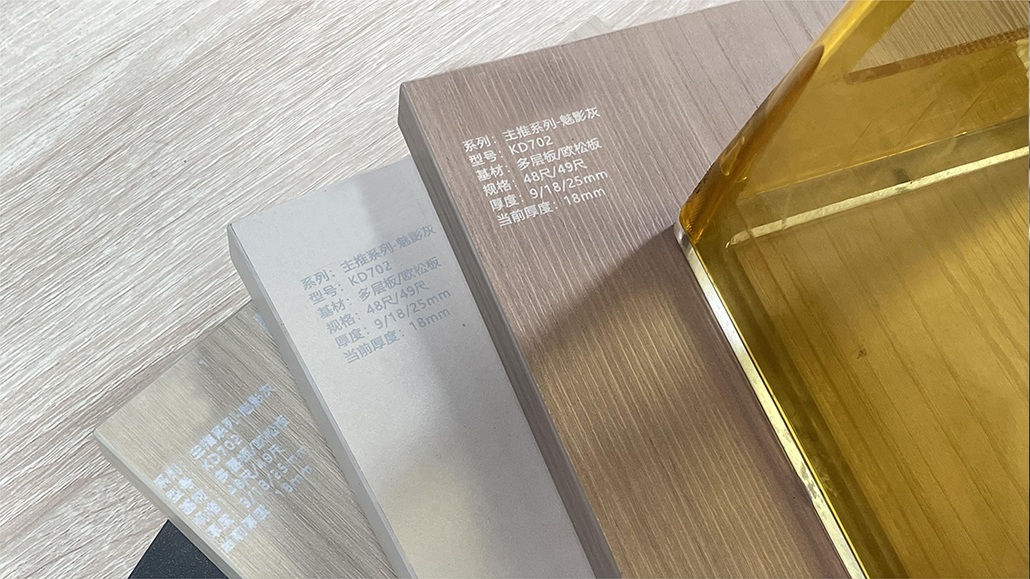

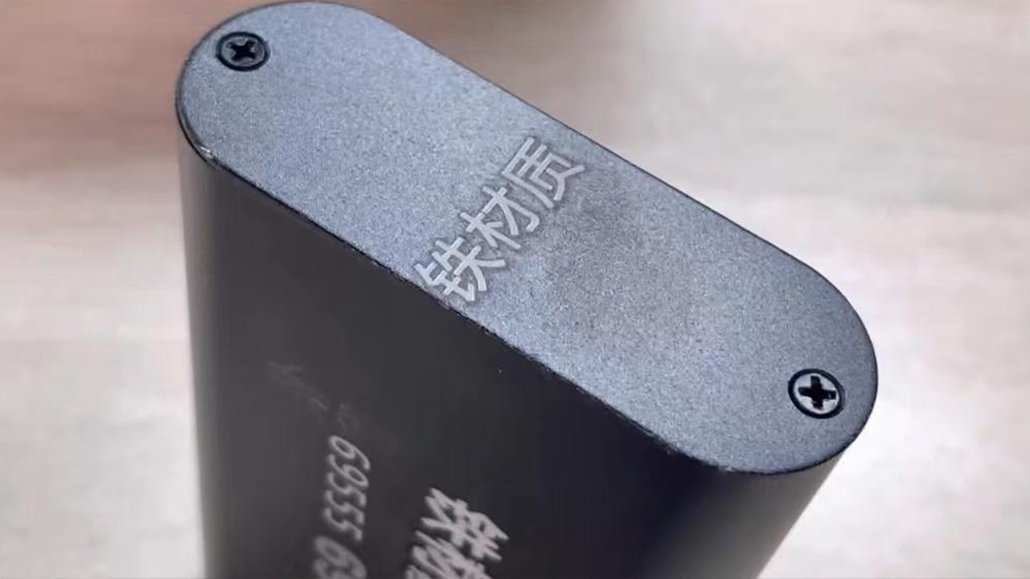

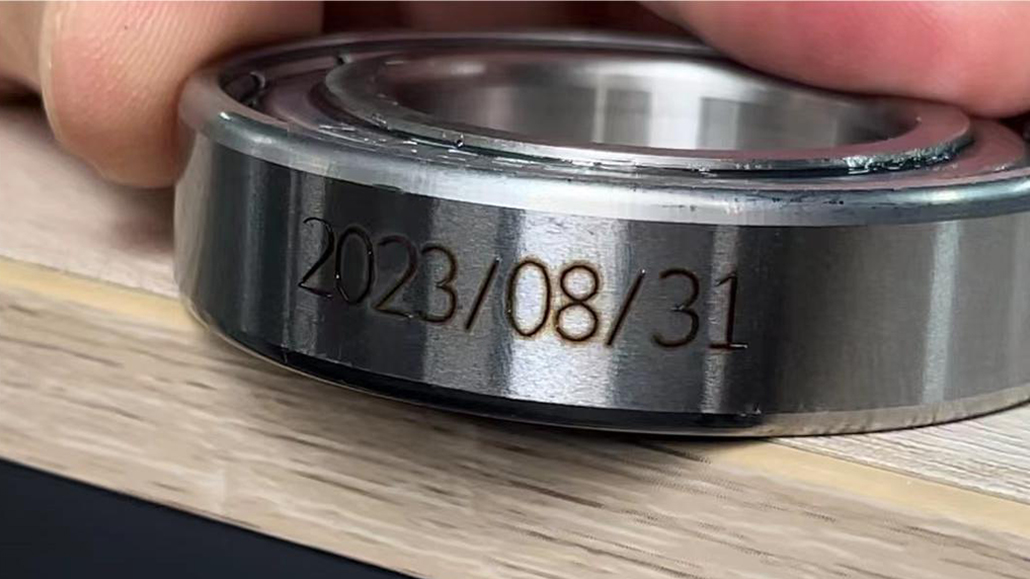

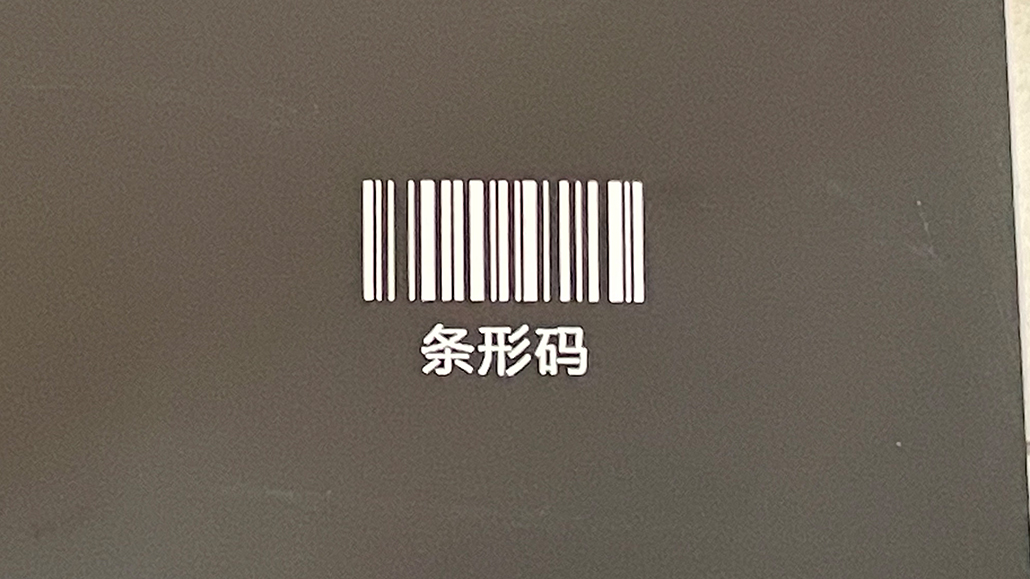

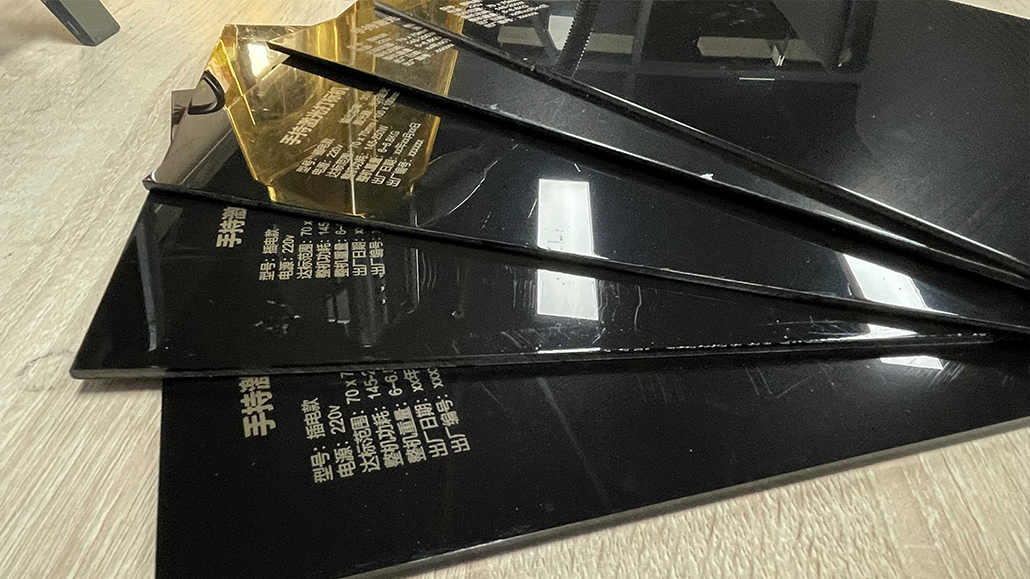

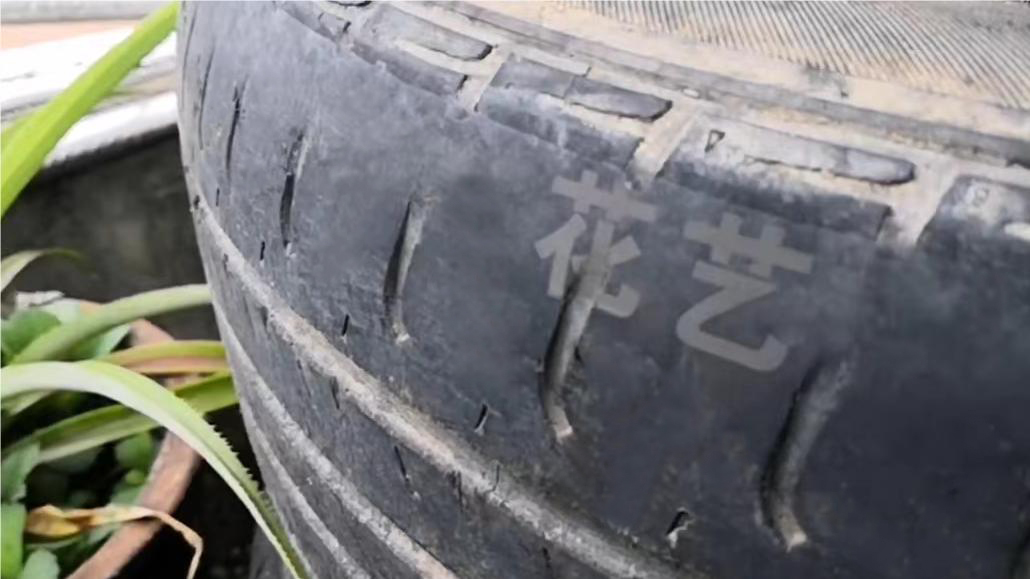

Suitable for metal materials such as gold, silver, copper, steel, as well as non-metallic materials such as paper, plastic, glass, leather, etc. Widely applicable, supporting personalized customized marking, such as ordinary marking, barcode marking, or meeting the marking needs of code, barcode, text, nameplate, date, pattern and other content. Please consult specifically.
What services can I provide?
One year maintenance service, no additional fees required due to equipment issues. Remote assistance, please contact our team promptly if there are any issues. We will respond to your needs as soon as possible and provide you with professional support and services.
What is the difference between models with and without batteries?

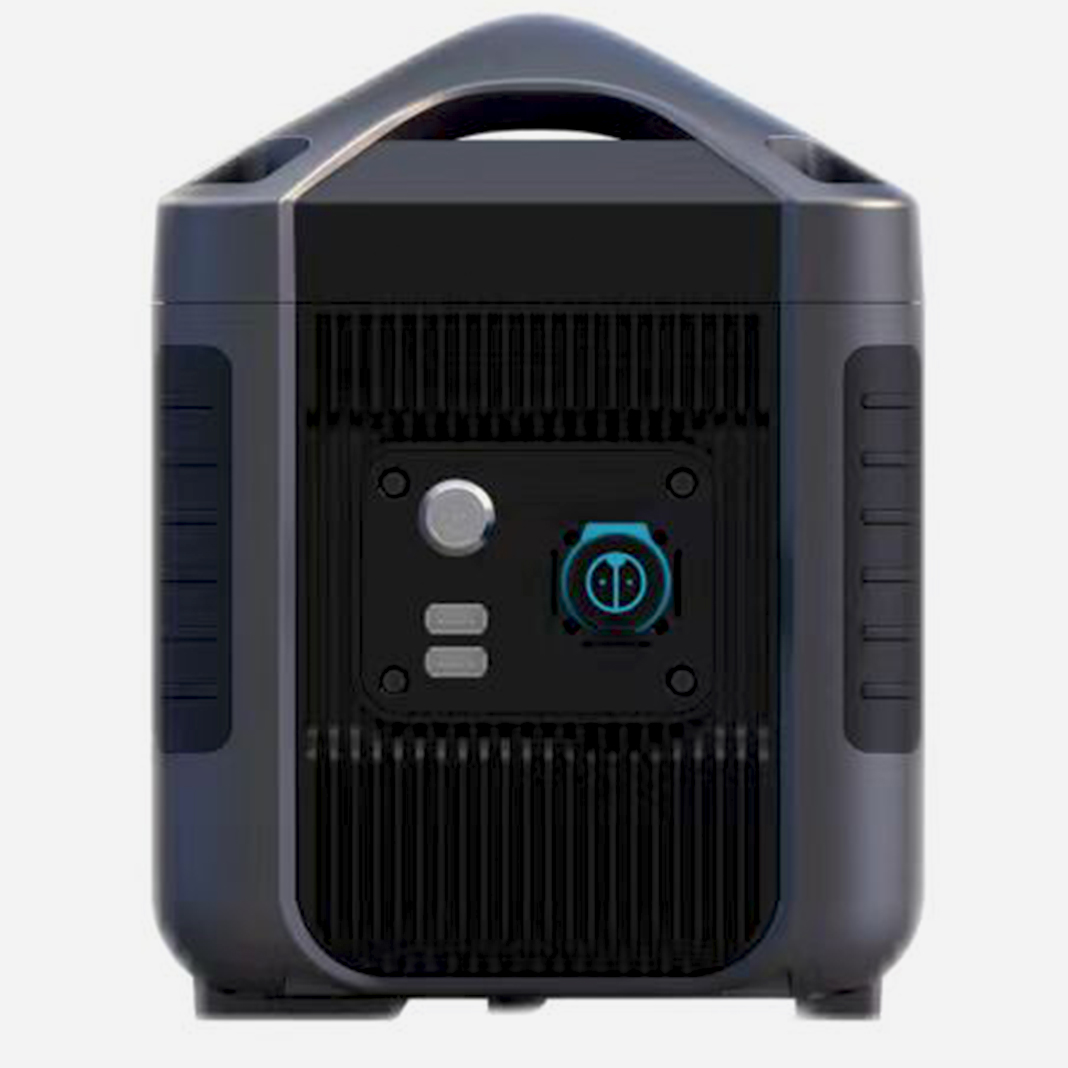

1. Models with batteries can be labeled using lithium batteries (216Wh) or 110V/220V AC power supply.
2. The models without batteries only support 110V/220V AC power supply.
What is the marking speed and precision level of this machine?
The machine offers a marking speed of up to ≤7000mm/s with a repeatable positioning accuracy of 0.01mm and a minimum line width of 0.03mm, ensuring high-precision results.
What core hardware and system configuration does the engraver utilize?
It runs on a robust Linux operating system powered by an 8-core processor, equipped with a MAX laser source and an 8-inch fully bonded capacitive touch screen for seamless operation.
Which file formats and barcodes does the machine support?
It supports multiple common file formats including BMP, DXF, HPGL, JPEG, and PLT, as well as standard barcode formats such as CODE39, CODE128, and QR codes.
