Product Description

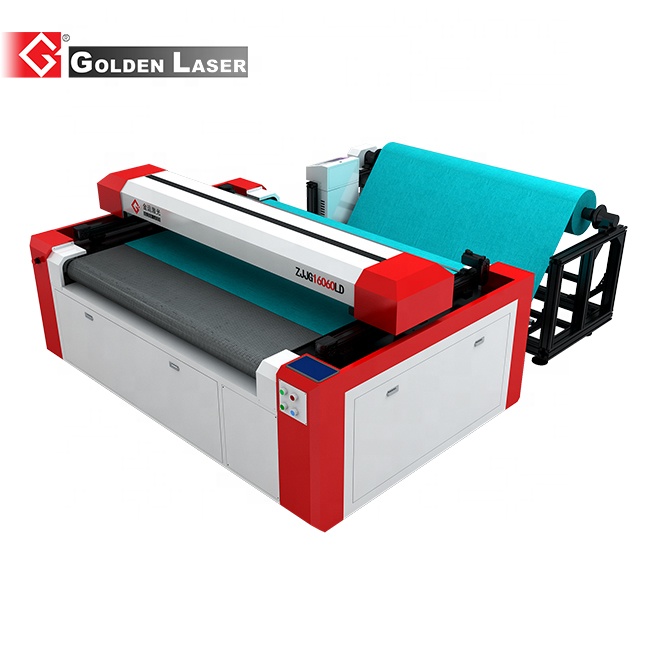

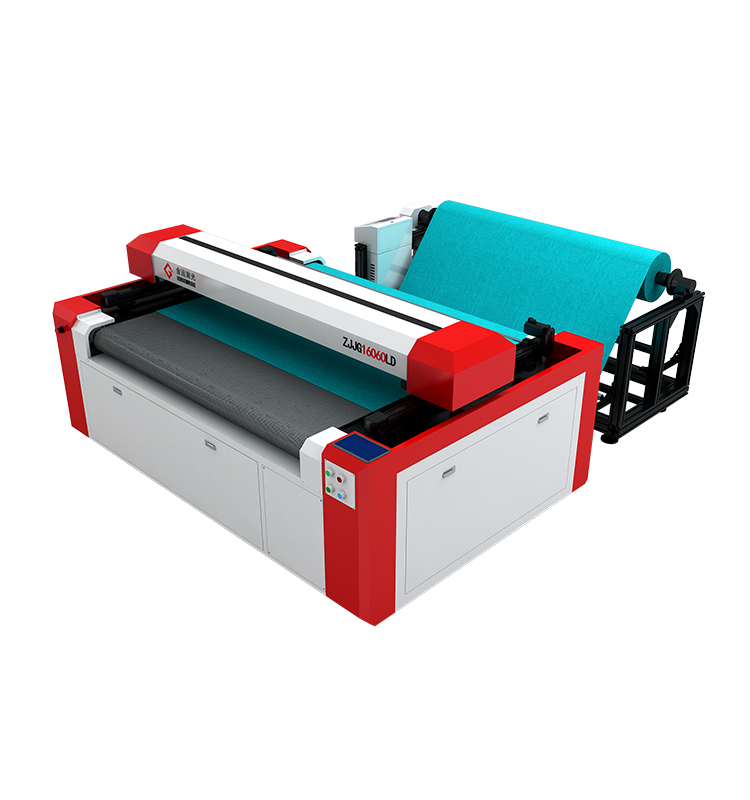

Textile Galvo Laser Cutting Machine
The ZJJG-16060LD is an economical laser machine which integrates both high-speed Galvanometer (Galvo) and high-precision X-Y gantry laser heads powered by a single laser tube.
The Galvo laser system offers rapid performance for perforating, marking, and scoring, while the X-Y gantry laser system handles the complete cutting process, delivering clean, precise cuts.
Machine Pictures
Technical Specifications
ZJJG-16060LD Technical Parameters
Working Area (W×L)
1600mm × 600mm (63” × 23.6”)
Beam Delivery
Galvanometer
Laser Source
CO2 Glass Laser Tube
Laser Power
80W
Mechanical System
Servo Motor, Belt Driven
Working Table
Conveyor Working Table
Max. Cutting Speed
1-1000mm/s
Max. Marking Speed
1-2000mm/s
Options
CO2 RF metal laser tube, Auto-feeder
Customizable Configurations
Laser Source
CO2 glass tube / CO2 RF metal tube
Laser Power
80W / 110W / 130W / 150W
Table Type
Honeycomb / Conveyor
Working Area
Fully customizable
Camera Recognition (Smart Vision)
Optional (Available on demand)
Auto Feeder
Optional (Available on demand)
Key Advantages & Features
With a 1600mm×600mm working area, this system provides ample space to process the majority of standard cutting and marking applications, such as large-format heat transfer vinyl processing for apparel. The ZJJG-16060LD represents a low investment with high ROI, generating considerable profit while significantly increasing production efficiency.
By sharing one CO2 laser tube, the galvanometer provides high-speed processing on thin materials while the X-Y gantry handles thicker stock seamlessly.
Multi-Functional Performance
Full format flying laser processing with no graphic limitations, enabling seamless large-format splicing.
Precision Cutting
High-speed Marking
Micro-perforation
Accurate Scoring & Kiss Cutting
Easy Operation
Automatic changeover between galvanometer marking and cutting with flexible workflow settings.
Intelligent system featuring automatic calibration for extreme accuracy and straightforward operation.
High Precision
Equipped with an advanced camera recognition system to achieve automatic alignment for perforation, engraving, and cutting.
Galvanometer full format flying processing, ensuring high efficiency without interruptions.
Custom Configurations & Lab Testing
The modular design of our laser systems allows for specialized configurations tailored to satisfy individual production requirements. Our technical sales team is ready to analyze your workflow needs to suggest the most suitable configuration.
The ZJJG-16060LD enables processing of a wide range of flexible non-metallic materials, including fabrics, textiles, leather, vinyl, PTFE, EVA foam, acrylic, wood, and more. We gladly offer complimentary cutting tests in our Lab Center using your specific materials. Contact us to send your samples and view how they are processed.

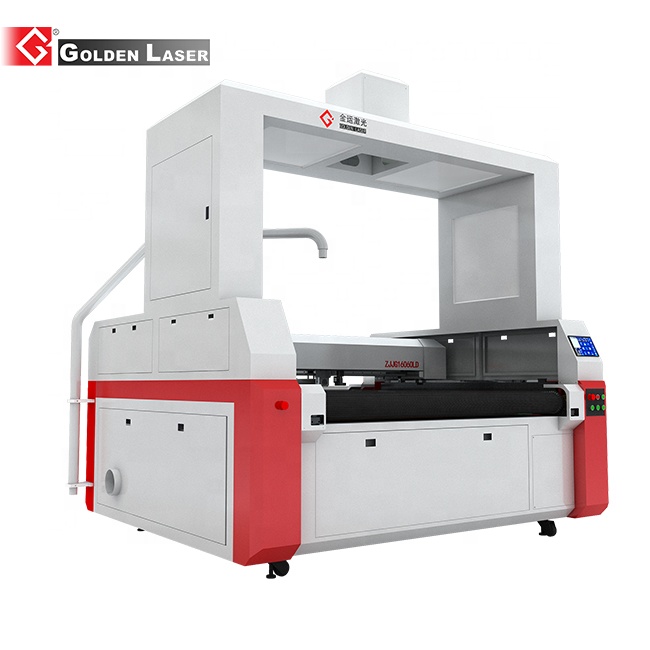

Smart Vision Camera Recognition
The ZJJG-16060LD can be upgraded with a specialized camera recognition system named "Smart Vision".
As shown, this system integrates an overhead HD camera positioned at the top of the machine alongside a secondary CCD camera mounted directly on the gantry. This setup provides high-precision positioning, nesting optimization, and high-accuracy alignment cutting or perforation.
Process Materials & Applications
Processable Materials: Textiles (natural and technical fabrics), denim, leather, PU leather, wood, acrylic, PMMA, paper, vinyl, EVA, rubber, plastic, and various non-metal substrates.
Applications: Garment accessories, footwear components, gift cards, product labeling, packaging, puzzles, heat-transfer vinyl, activewear, home textiles (carpets, curtains, sofa fabrics, armchairs), technical textiles (automotive interiors, airbags, filters, air dispersion ducts), and more.

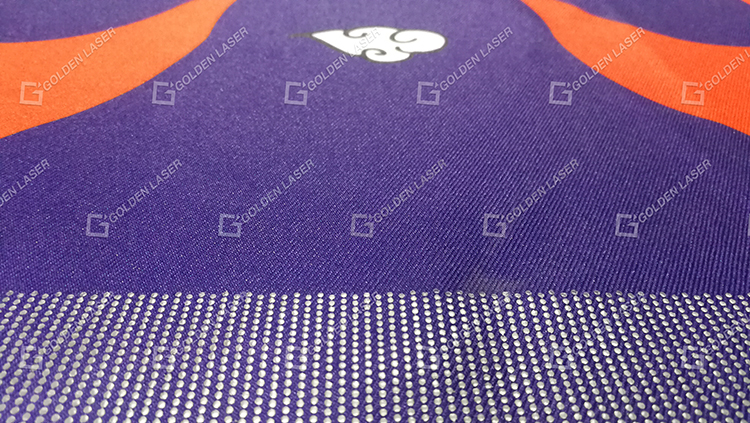

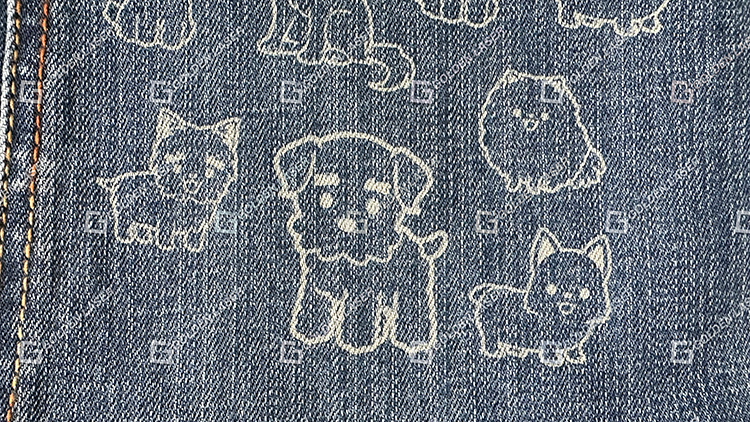

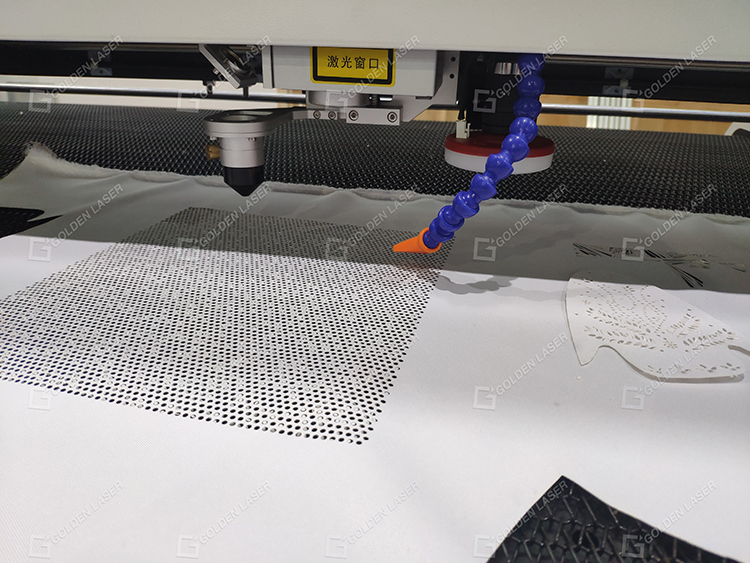

Laser Cutting & Perforating of Fabrics

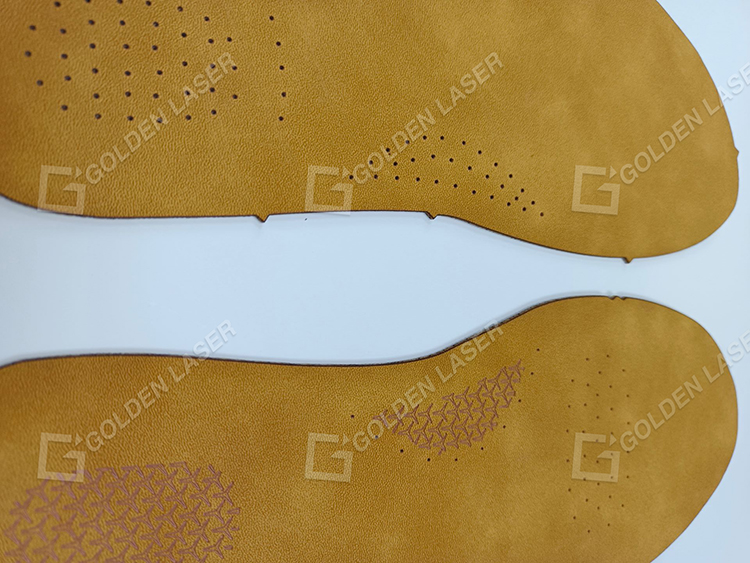

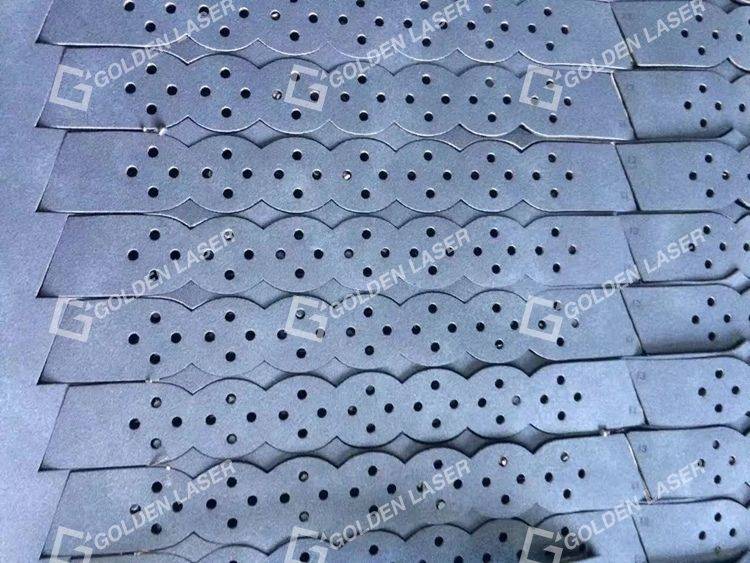

Laser Cutting & Perforating of Leather

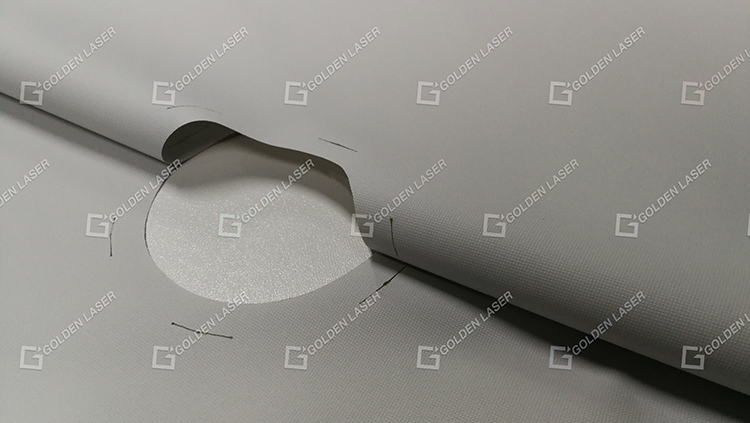

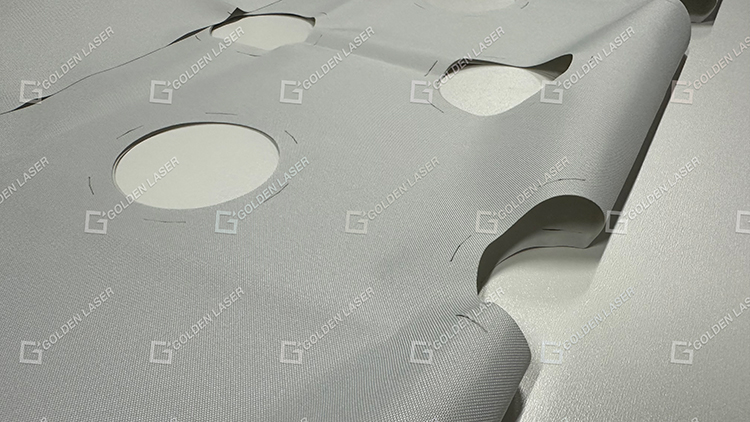

Laser Cutting & Scoring of Air Ducts

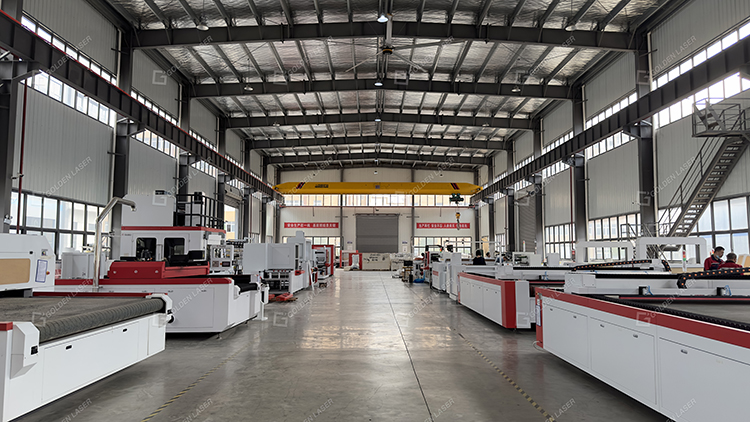

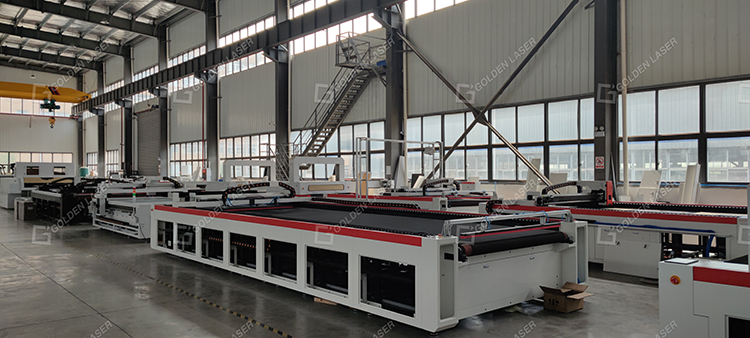

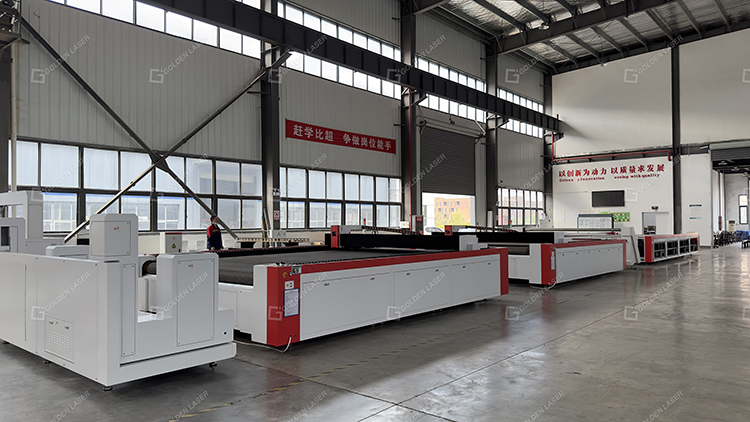

Factory Gallery & Team Presence
Service & Quality Guarantees
Installation Service: Available with all of our laser machines. We dispatch qualified technicians to customer facilities for quick setup and pre-operation tuning.
Training Support: We offer detailed training on machine operation either directly at your factory or at our training center.
Quality Assurance: Guaranteed performance (processing speeds and output quality matching sample test data). Detailed technical specifications are formally verified. We run each machine for several days under stress testing with customer-specified materials before shipment. Includes a standard 1-year warranty with optional extended coverage.
Packing & Delivery

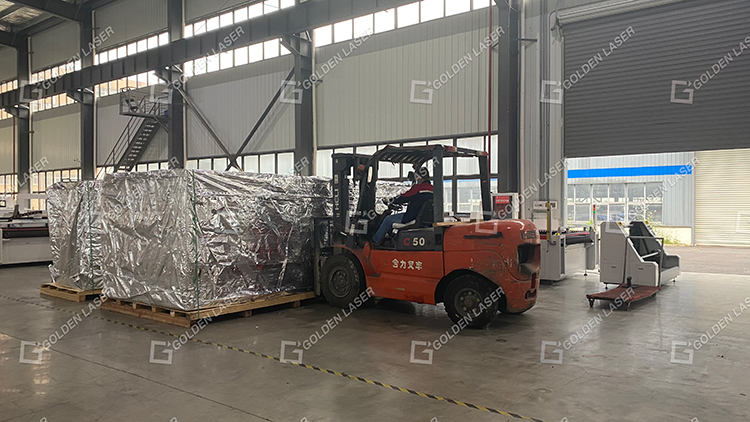

I. Whole Film Packaging Machine

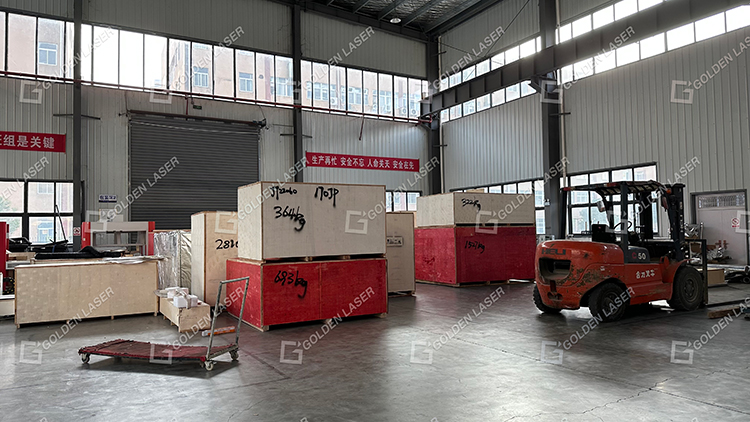

II. Plywood Wooden Box With Metal Belt

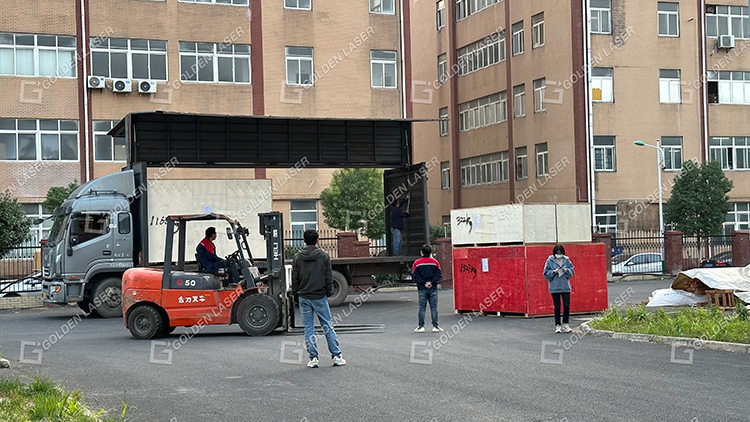

III. Secure Loading
IV. Standard Shipping
Frequently Asked Questions (FAQ)
Q1 How does a laser work?
LASER stands for ‘Light Amplification by Stimulated Emission of Radiation’. In the resonator of a laser source – in material processing, these are often CO2 lasers – a special kind of light beam is generated by the action of electric energy. With closed CO2 gas mix laser beam sources, the laser is maintenance-free and uses no laser gas, similar to a fluorescent tube.
Q2 Which advantages do laser systems have compared to conventional processing methods?
Every day, more application possibilities arise for the use of laser technology in the textile market. Our laser systems for cutting, engraving, and marking are used efficiently across all sectors of the industry, both for short runs and for large-scale industrial mass production.
Q3 How does non-contact cutting affect cutting results?
There is more to non-contact machining than meets the eye. In contrast to mechanical processing, there is no physical contact with the material being processed at any time during laser cutting. While knives, routing machines, or punches cause stress to the material, which can lead to undesirable consequences such as damage, laser cutting offers clean results without fabric warping or tool wear.
Q4 What materials can the ZJJG-16060LD laser machine process?
It is highly effective for processing non-metal flexible materials, including textiles (natural and technical fabrics), denim, leather, PU leather, wood, acrylic, paper, vinyl, EVA, rubber, and plastics.
Q5 How does the "Smart Vision" camera recognition system work?
The "Smart Vision" option integrates an overhead HD camera and a gantry-mounted CCD camera. It automatically captures and recognizes material contours for precise positioning, pattern matching, and automatic alignment cutting.
Q6 What support and service guarantees do you provide?
We provide global installation assistance, comprehensive operator training services, and a 1-year product warranty. All machines undergo rigorous operational tests using customer-provided materials before shipment to ensure maximum performance.
