Product Description

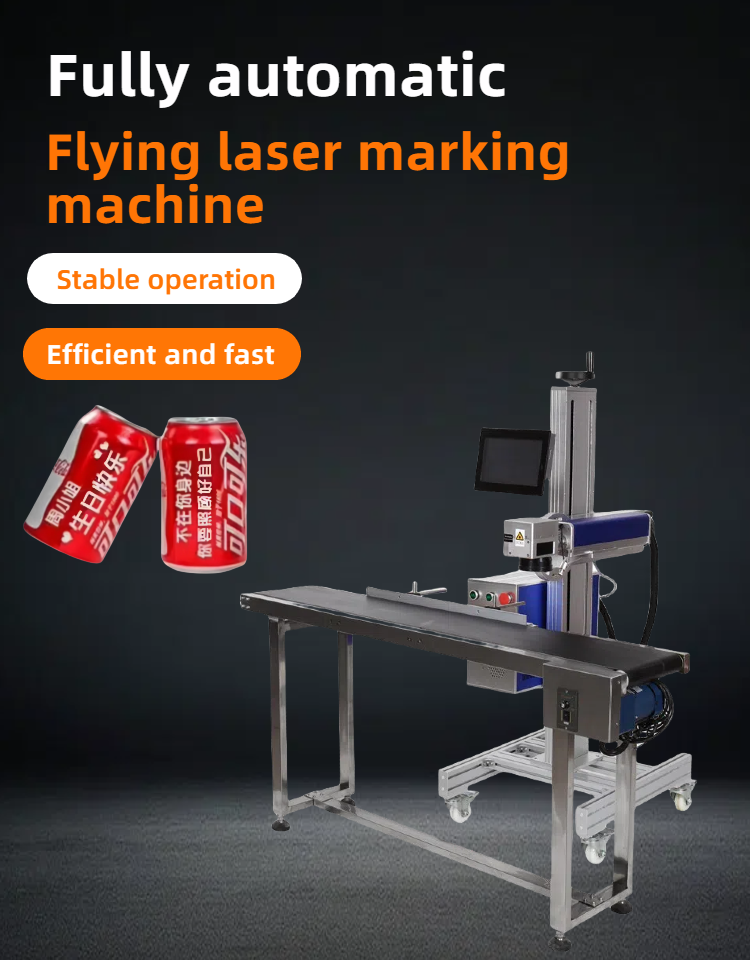

Laser Marking Machine

Technical Specifications

Effective working area (optional) (X = 100mm) * (Y = 100mm)
Laser power (optional) 20W/30W/50W/100W
Worktable Conveyor table (optional)
Wavelength 1064nm
Laser frequency 20-100kHz
Computer system Windows XP/Win7/Win8/Win10
Minimum character 0.15mm
Maximum marking depth 2mm
Minimum linear width 0.01mm
Cooling method Air cooling
Maximum marking speed 7000mm/s
Data transmission USB 2.0
Control system EZCAD controller
Supported graphics formats AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Compatible software CorelDRAW, AutoCAD, Adobe Illustrator, Cadian
Total power 300W (AC220V 50Hz / AC110V 50Hz)
Packaging weight 80kg
Packaging dimensions 1050 mm × 515 mm × 450 mm

Product Gallery

Laser Machine View 1
Laser Machine View 2
Laser Machine View 3
Laser Machine Details 1
Laser Machine Details 2

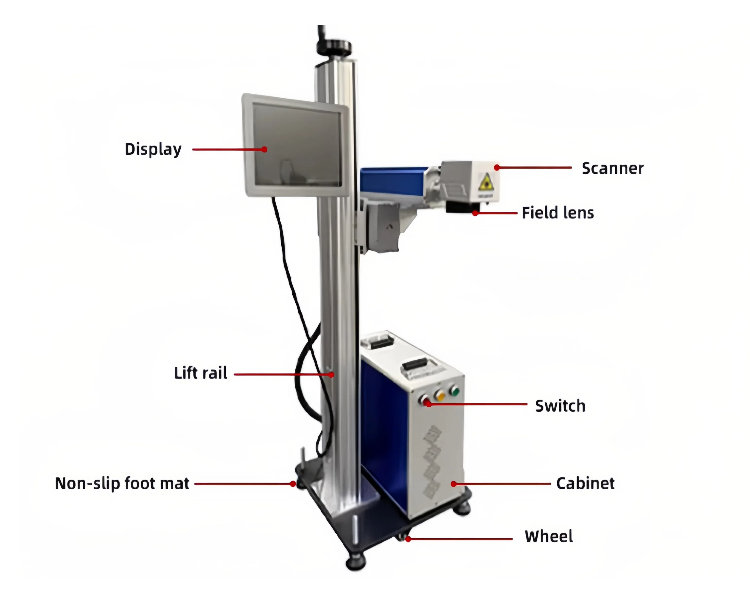

Laser Machine Details 3
Laser Machine Design
Laser Component 1
Laser Component 2
Laser Dimension Diagram
Laser Structure View

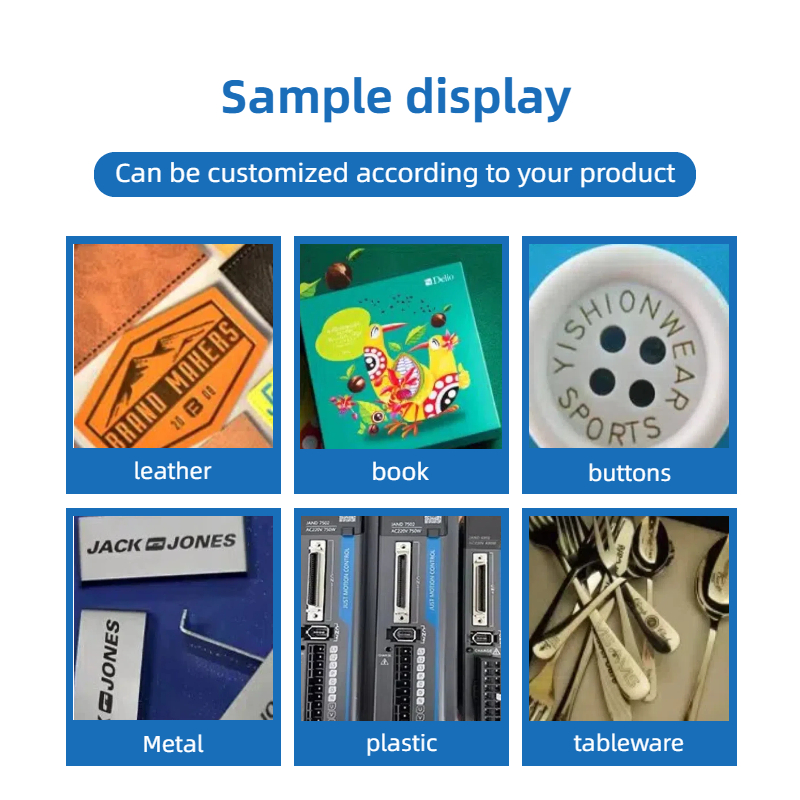

Laser Application Sample

Frequently Asked Questions

Q: What laser power options are available for this machine?
A: This machine offers multiple optional laser power levels including 20W, 30W, 50W, and 100W to match different marking requirements.
Q: Which computer operating systems are compatible with the control software?
A: The system is fully compatible with Windows XP, Windows 7, Windows 8, and Windows 10 operating systems.
Q: What is the maximum speed and depth for marking?
A: The machine can reach a maximum marking speed of 7000mm/s, with a maximum marking depth capability of up to 2mm.
Q: What file formats and design software are supported?
A: It supports formats like AI, PLT, DXF, BMP, DST, DWG, LAS, and DXP. It is compatible with popular software such as CorelDRAW, AutoCAD, Adobe Illustrator, and Cadian.
Q: How is the system cooled, and does it require external water tanks?
A: No water tank is required. The system utilizes built-in air cooling, which makes it compact and easy to maintain.
Q: What is the total power consumption and packing weight?
A: The total power consumption is 300W (compatible with both AC220V 50Hz and AC110V 50Hz inputs). The overall packaging weight is approximately 80kg.
