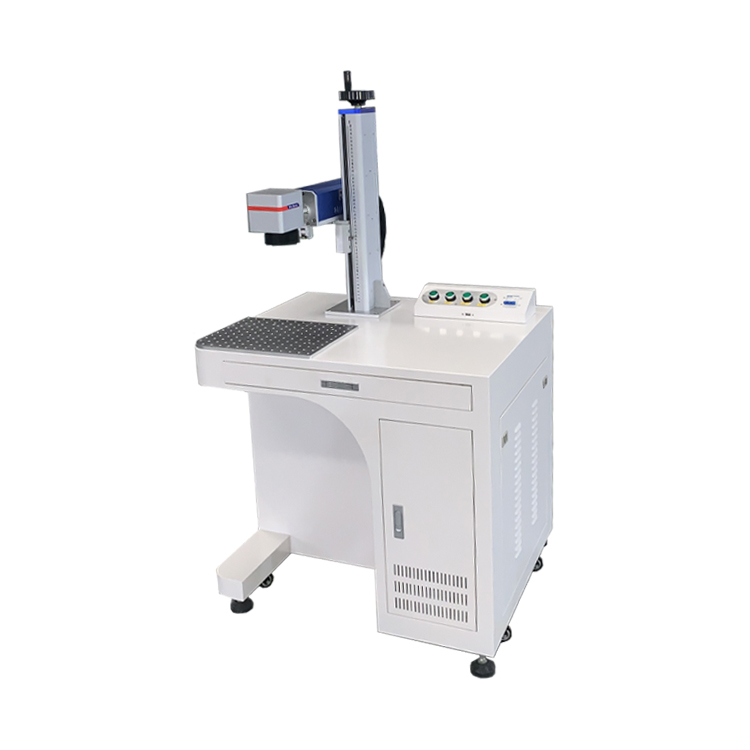

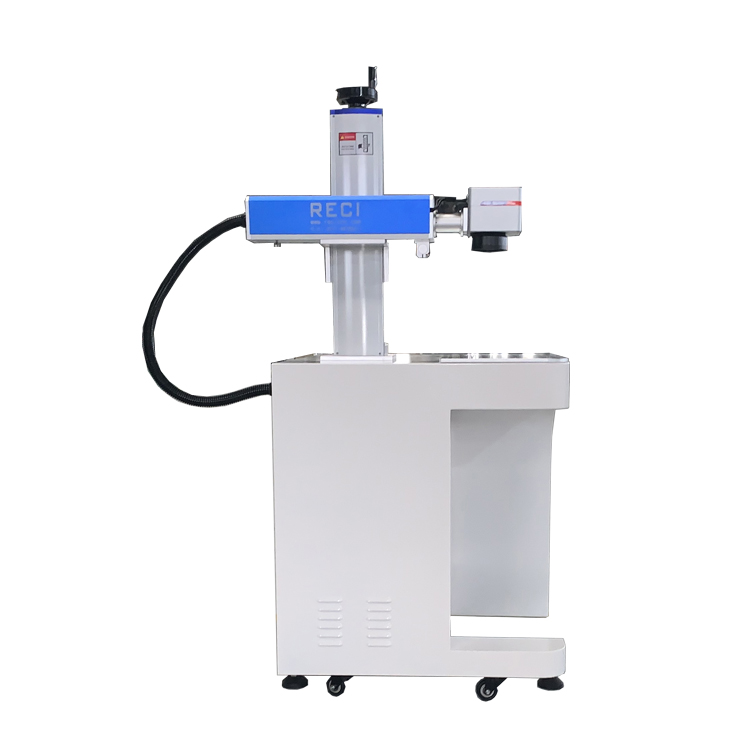

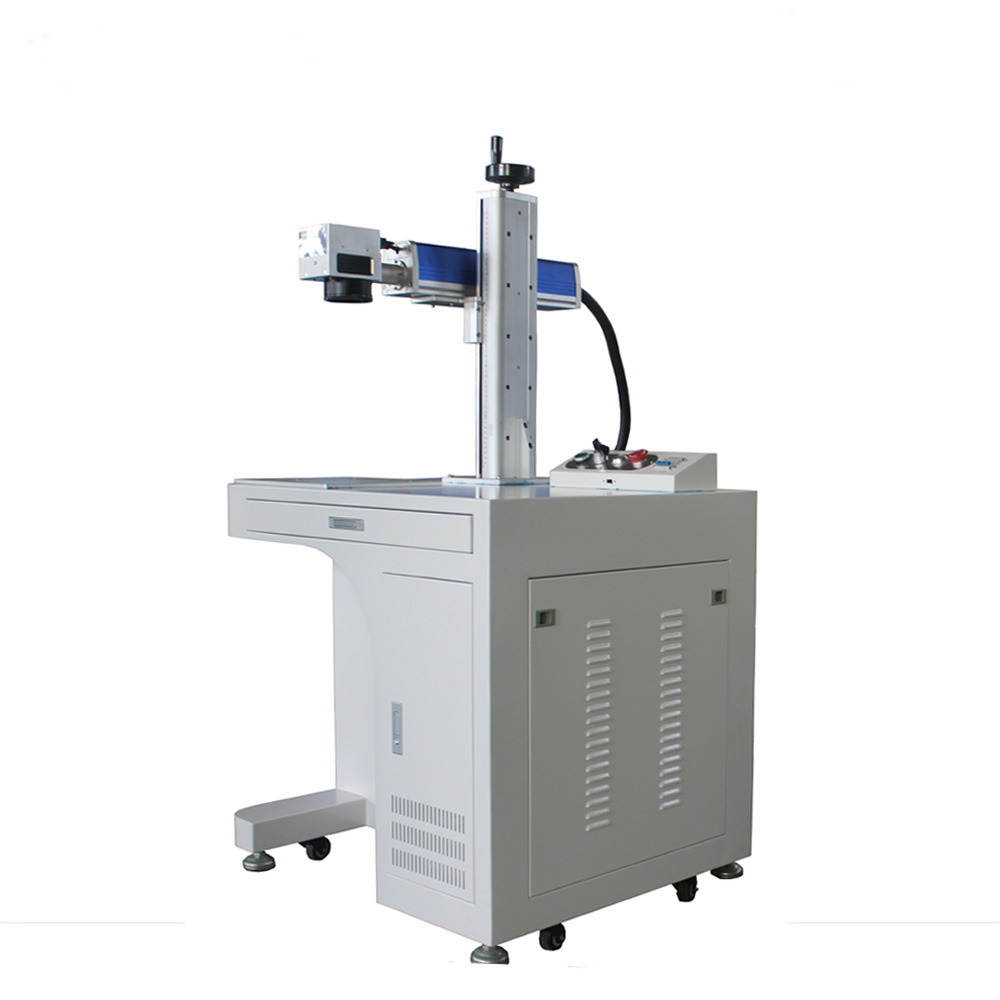

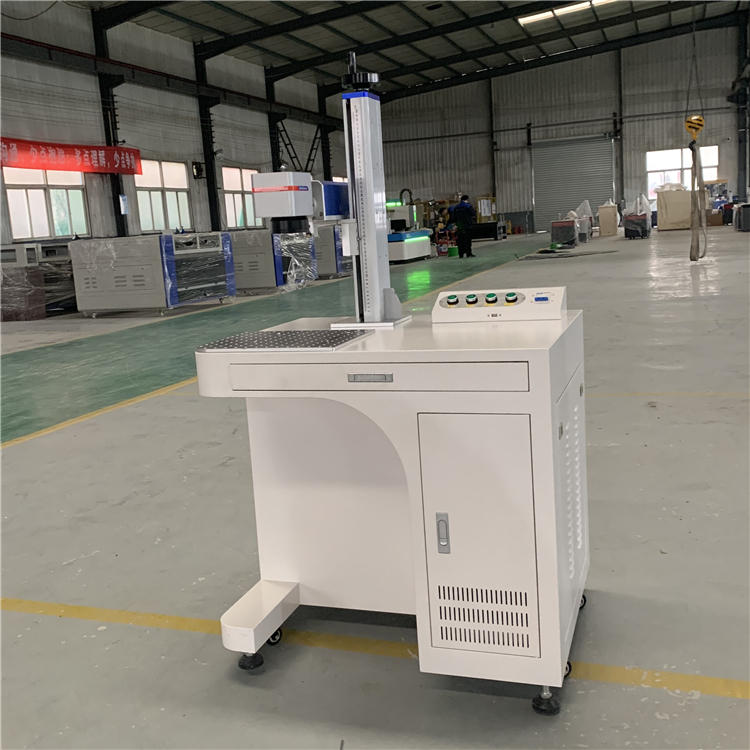

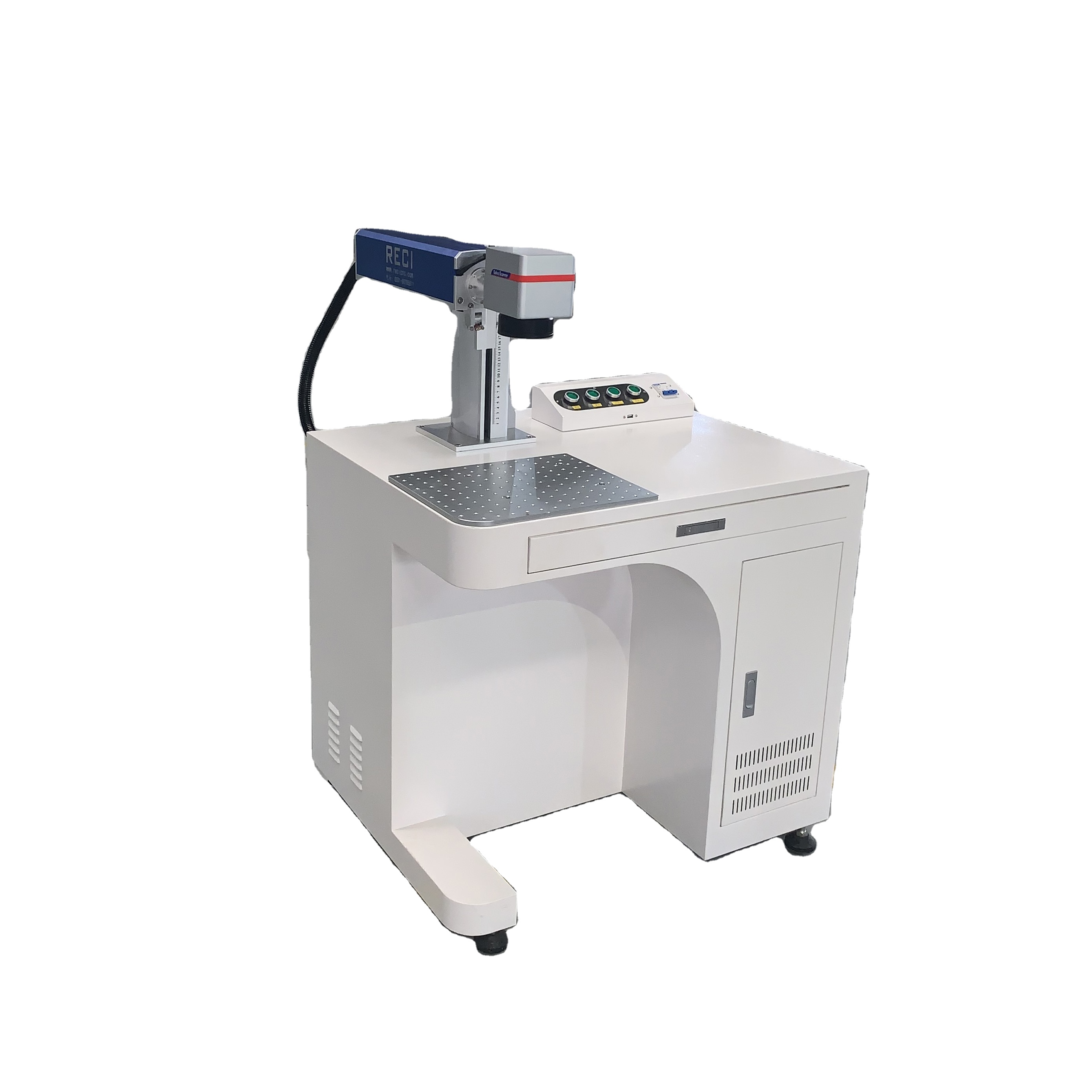

The desktop laser marking machine uses a table platform to improve product accuracy and stability. The new lifting column and double red light auto focus for precise positioning and marking of products.
| Parameter | Specification |
|---|---|
| Model | RC-10/20/30/50T |
| Laser power | 10w/20w/30w/50w |
| Laser wavelength | 1064nm ±10nm |
| Q-frequency | 20KHz-100KHz |
| Pules frequency | 20KHz-100KHz |
| Divergence | 0.3mard |
| Marking range | 110*110mm/175*175mm/200*200mm/300*300mm/other |
| Minimun line width | 0.01mm |
| Minimun character | 0.1mm |
| Marking speed | 10000mm/s |
| Marking depth | 0~0.5mm |
| Engraving line speed | ≤7000mm/s |
| Repeatability accuracy | ±0.001mm |
| Beam quality | M2:1.2~1.8 |
| Marking format | Graphics, text, bar codes, two-dimension code, automatically marking the date, batch number, serial number, frequency, etc. |
| Graphic format supported | BMP, JPG, GIF, PNG, TIF, AI, DXF, DST, PLT, etc. |
| Working voltage | 220V ±10%/50Hz/4A |
| Unit power | <0.5kw |
| Use of the environment | Clean and dust free or dust less |
| Working condition: Humidity | Free of condensed water |
| Laser module life | >100000hours |
| The whole life | More than 15 years |
| Packing size | 850*670*950mm |
| Net Weight | 80kg |

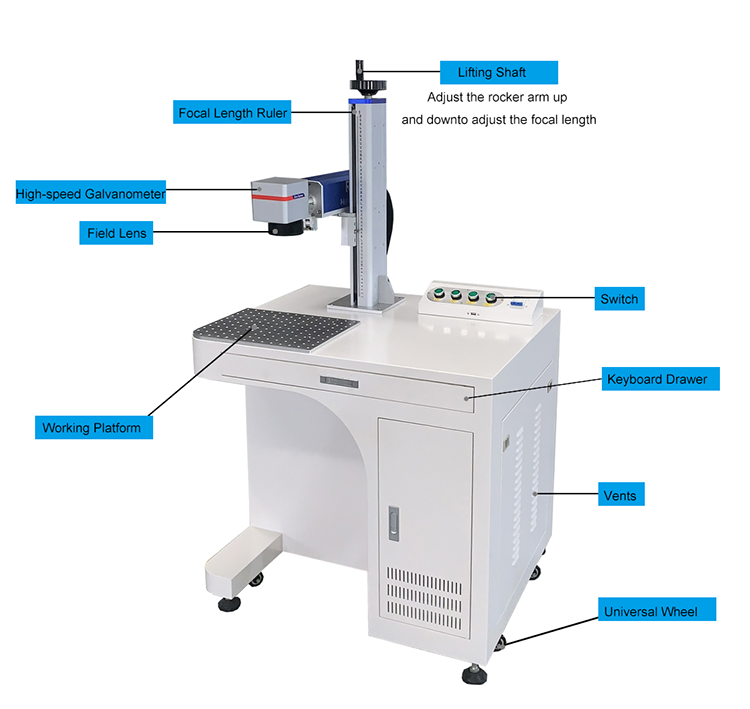

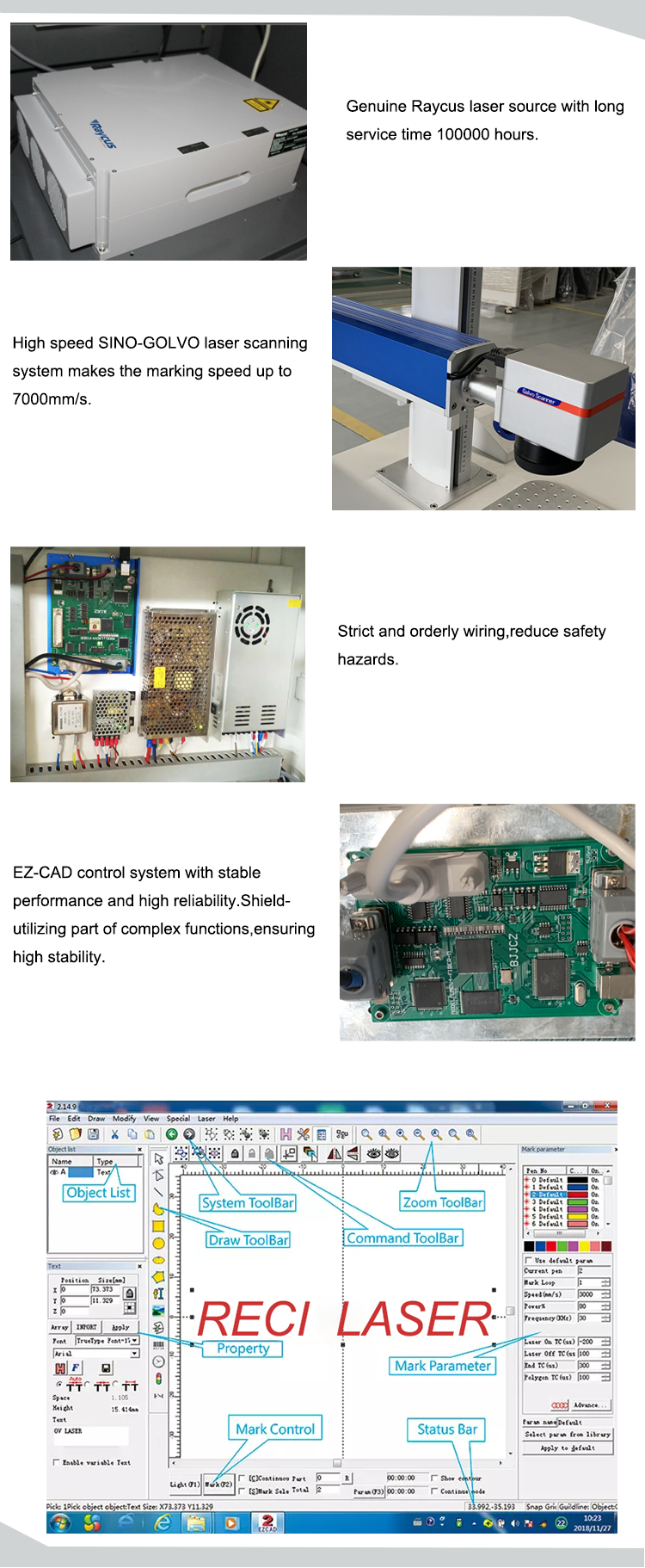

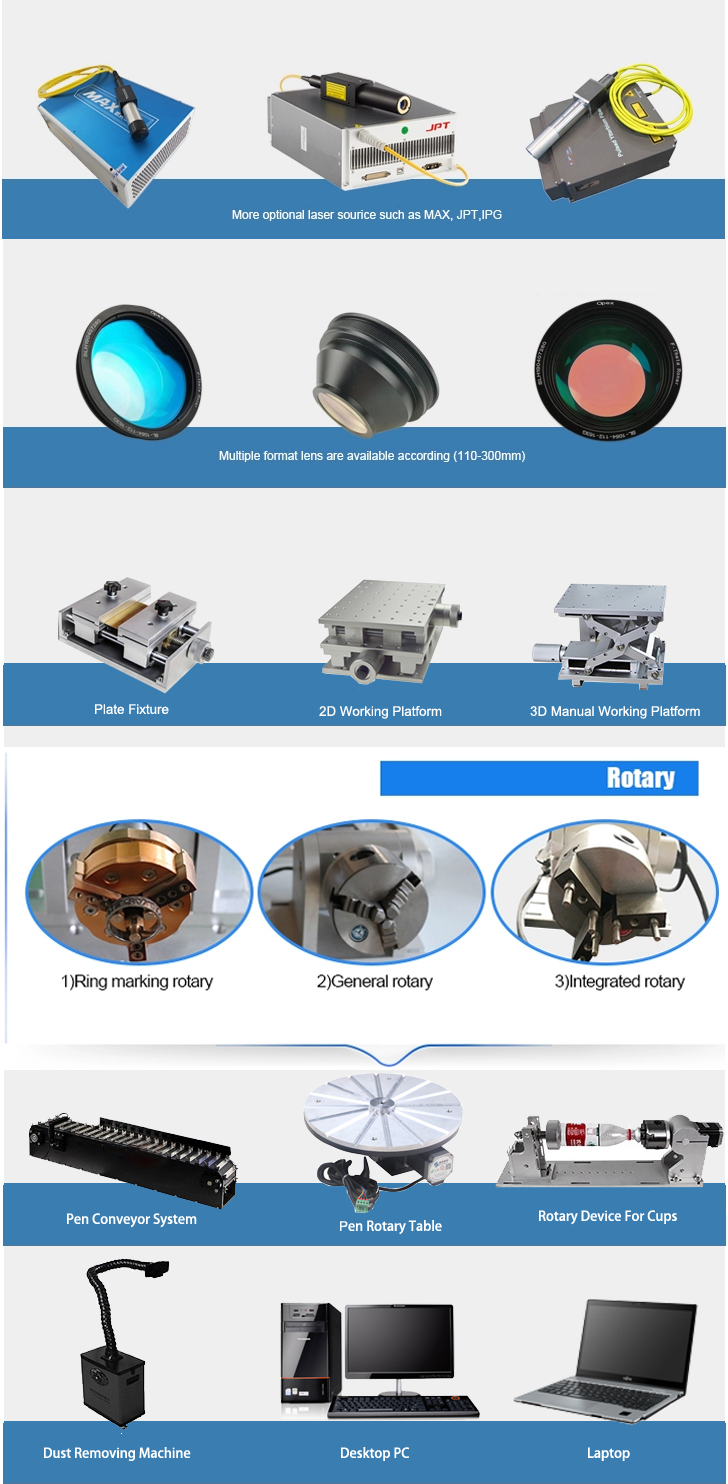

The fiber laser, vibration mirror, Galvo head, and laser control card are the main parts of the machine. The fiber laser marking machine adopts high quality parts:
Metals: Gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet, aluminum, all kinds of alloy plates, sheet metal, rare metals, coated metal, anodized aluminum, and special surface treatments.
Non-metallic: Non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin.
Hardware & Electronics: Computer keyboards, precision instruments, auto parts, medical equipment, bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, data matrix, jewelry, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, wire and cable, industrial bearings.
Packaging & Consumer Goods: Food packaging, health care products, plastic buttons, bathing supplies, business cards, clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial numbers, bar codes, PET, ABS, pipelines, advertising.
