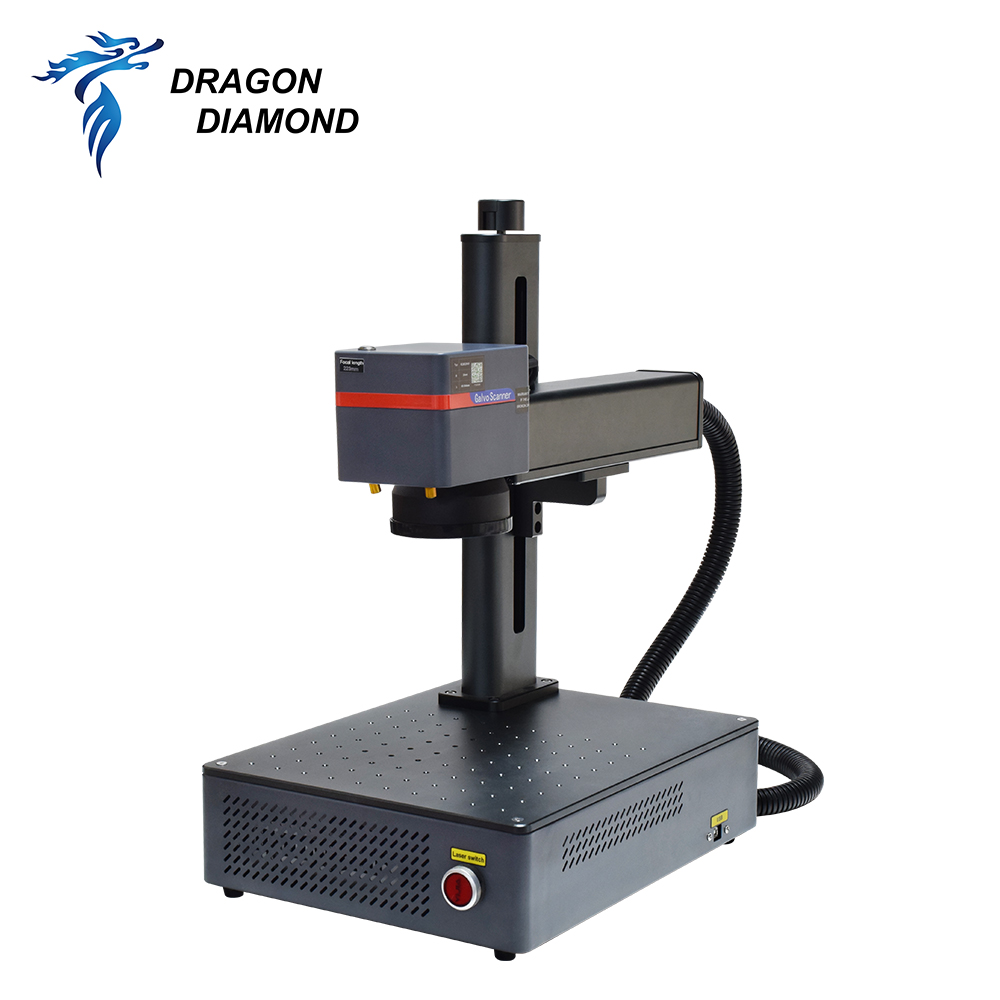

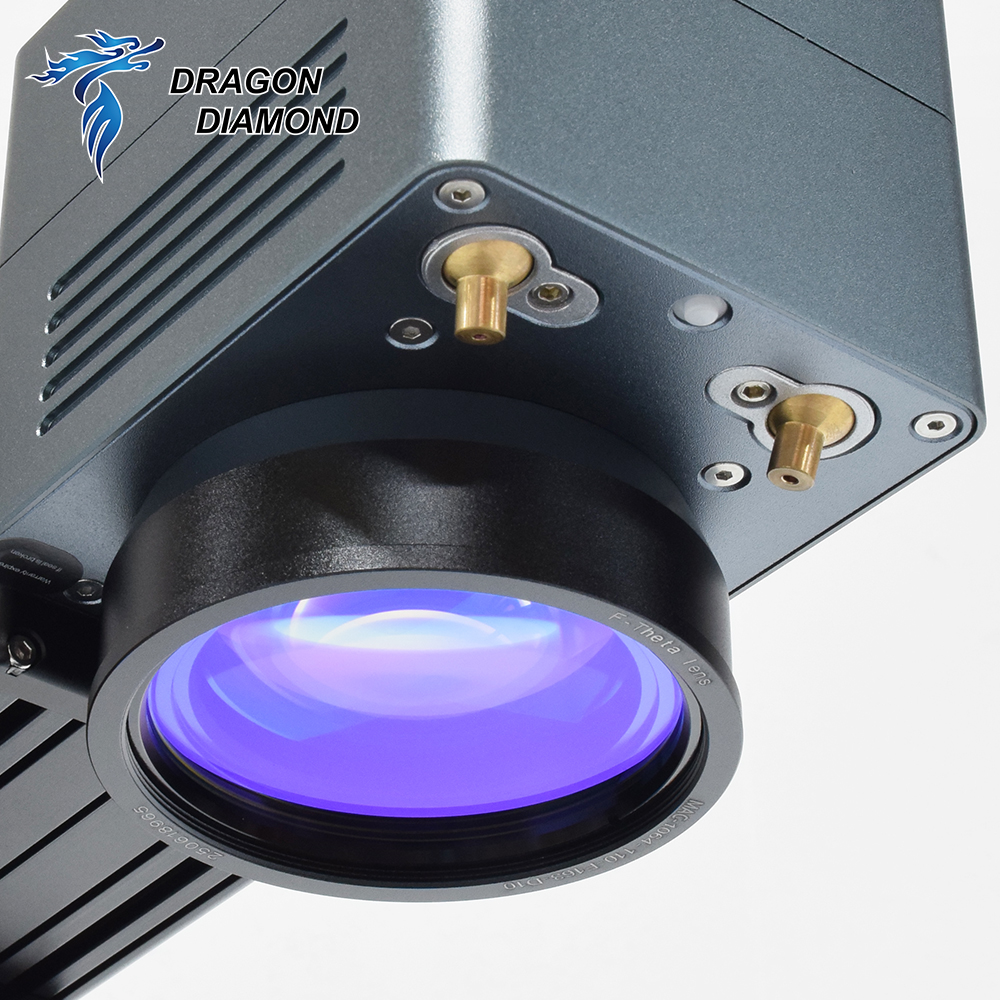

Fiber marking machine is a very convenient device that has been on the market for many years and is widely used in industrial and customized fields. It is suitable for a variety of materials because of its extremely low maintenance cost, fast marking speed, high precision, strong permanence, non-contact processing, environmental protection and safety.

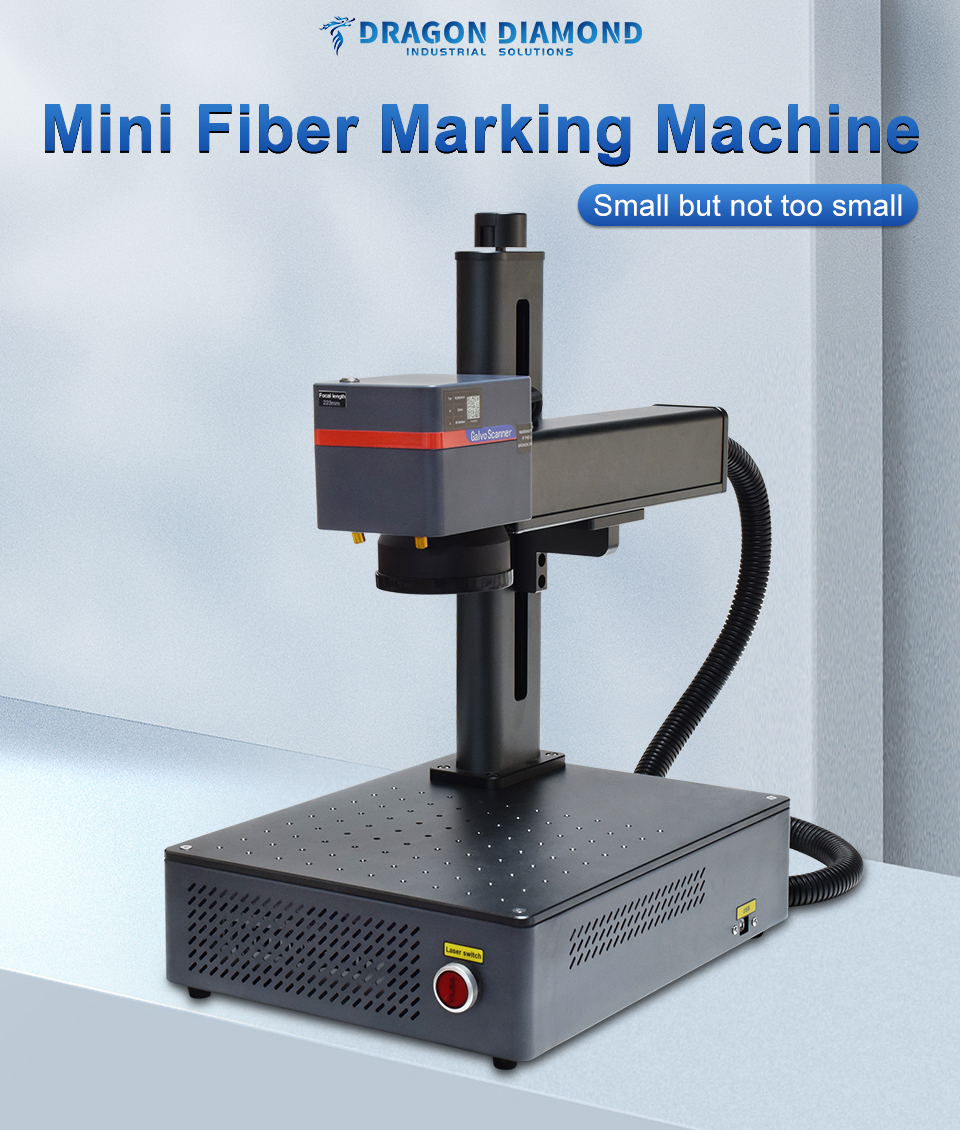

With its thoughtful design and exquisite appearance, it is the most cost-effective and economical device in the entire network. Small but not too small

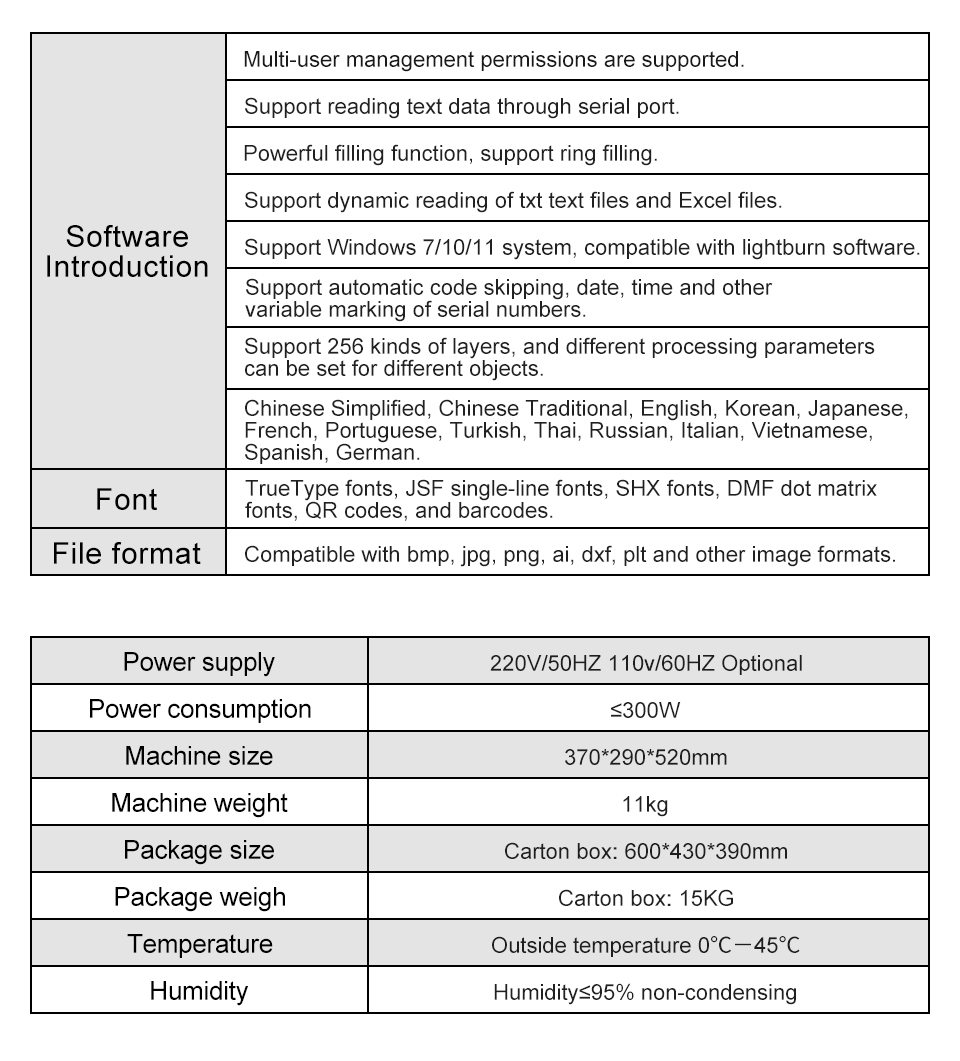

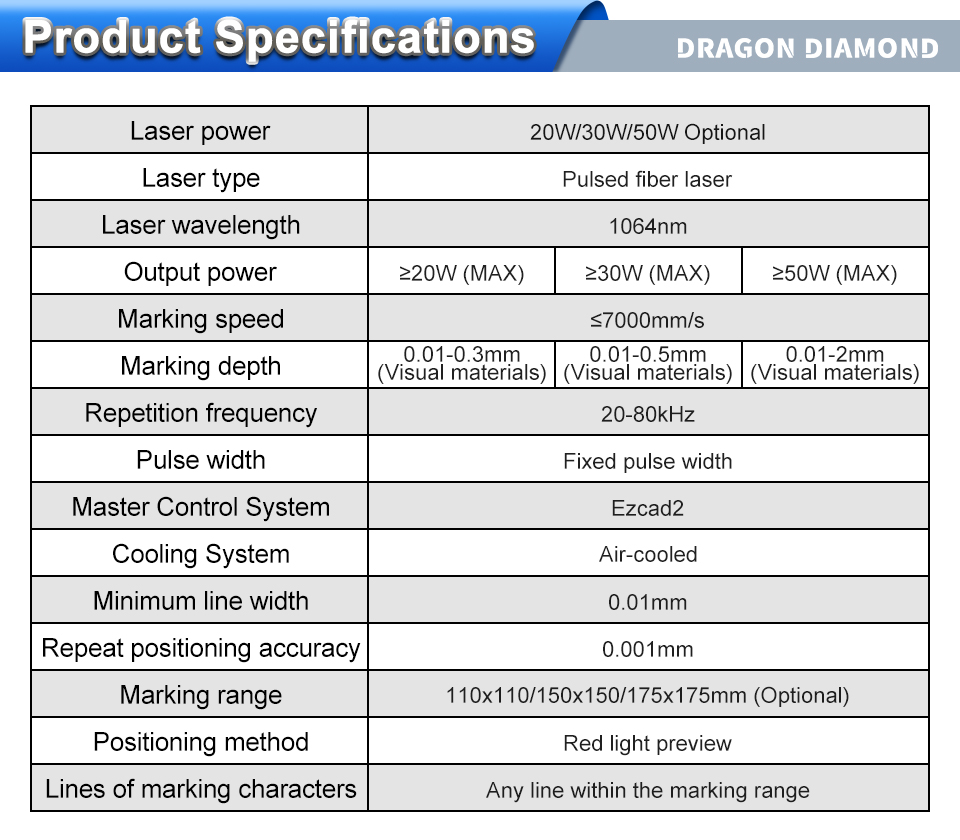

| Power source | MAX/RAYCUS | Graphic Format Support | PLT\DXF\BMP\JPG\AI.etc |
| Laser Power | 20W | Control System | BJJCZ |
| Cooling system | Air Cooling | Controller software | EZCAD |
| Marking Area (mm) | 110*110 | Laser Type | Fiber laser |

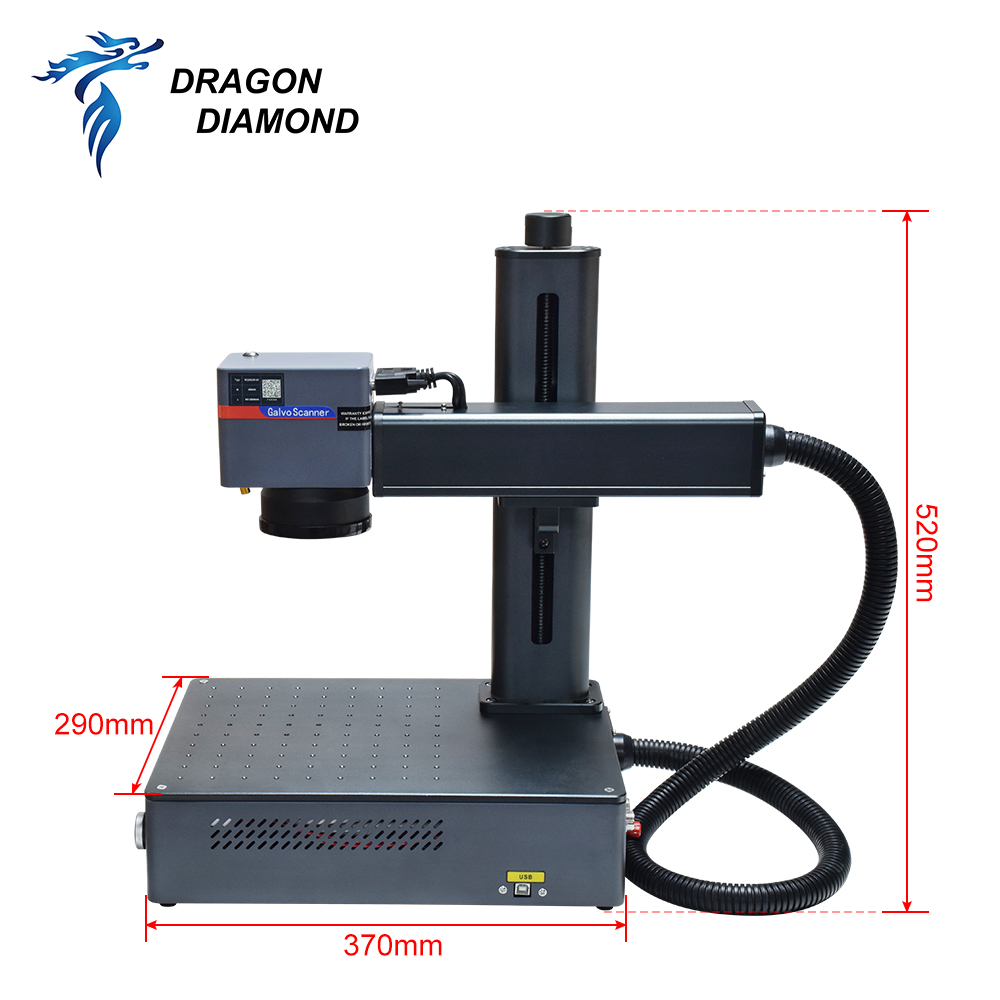

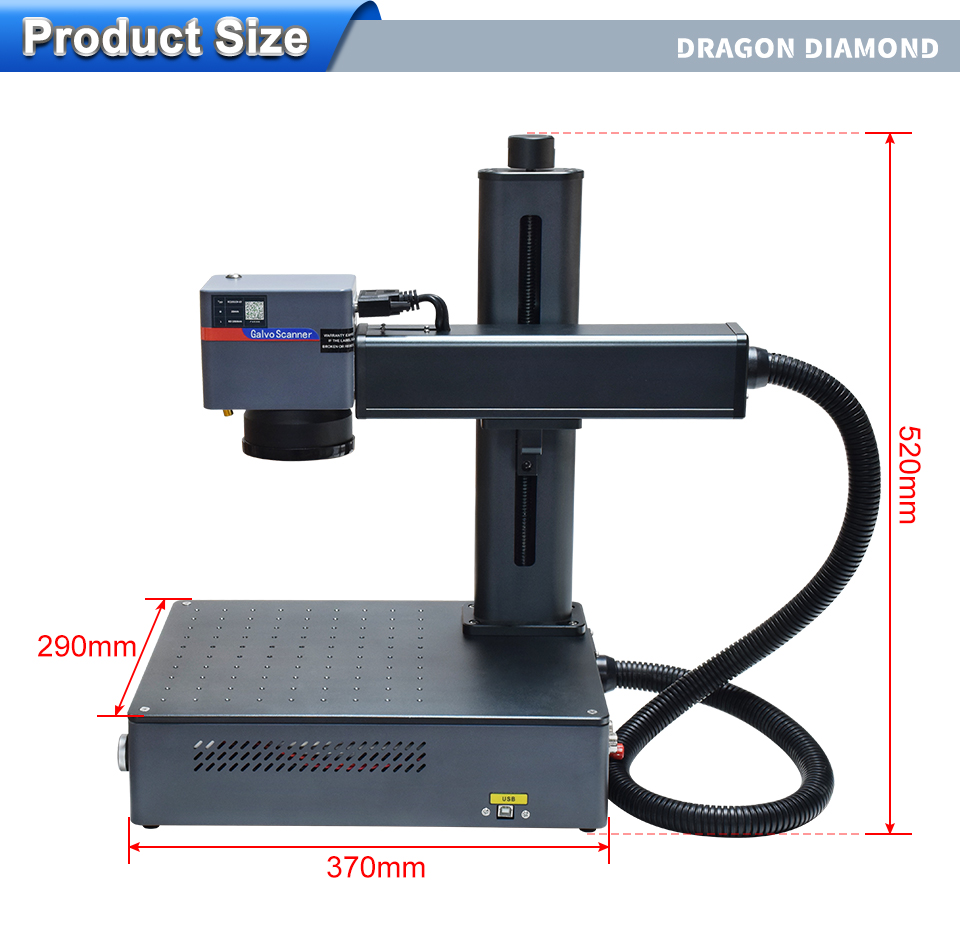

| Machine Size (mm) | 460*290*520 | Laser wavelength | 1060-1080nm |
| Net Weight (kg) | 12.5kg | Marking speed | ≤10000mm/s |
| Packing size (Carton box) | 60*43*39cm | Minimum line width | ≥0.01mm |
| Gross Weight (KG) | 21kg | Minimum character | ≥0.15mm |

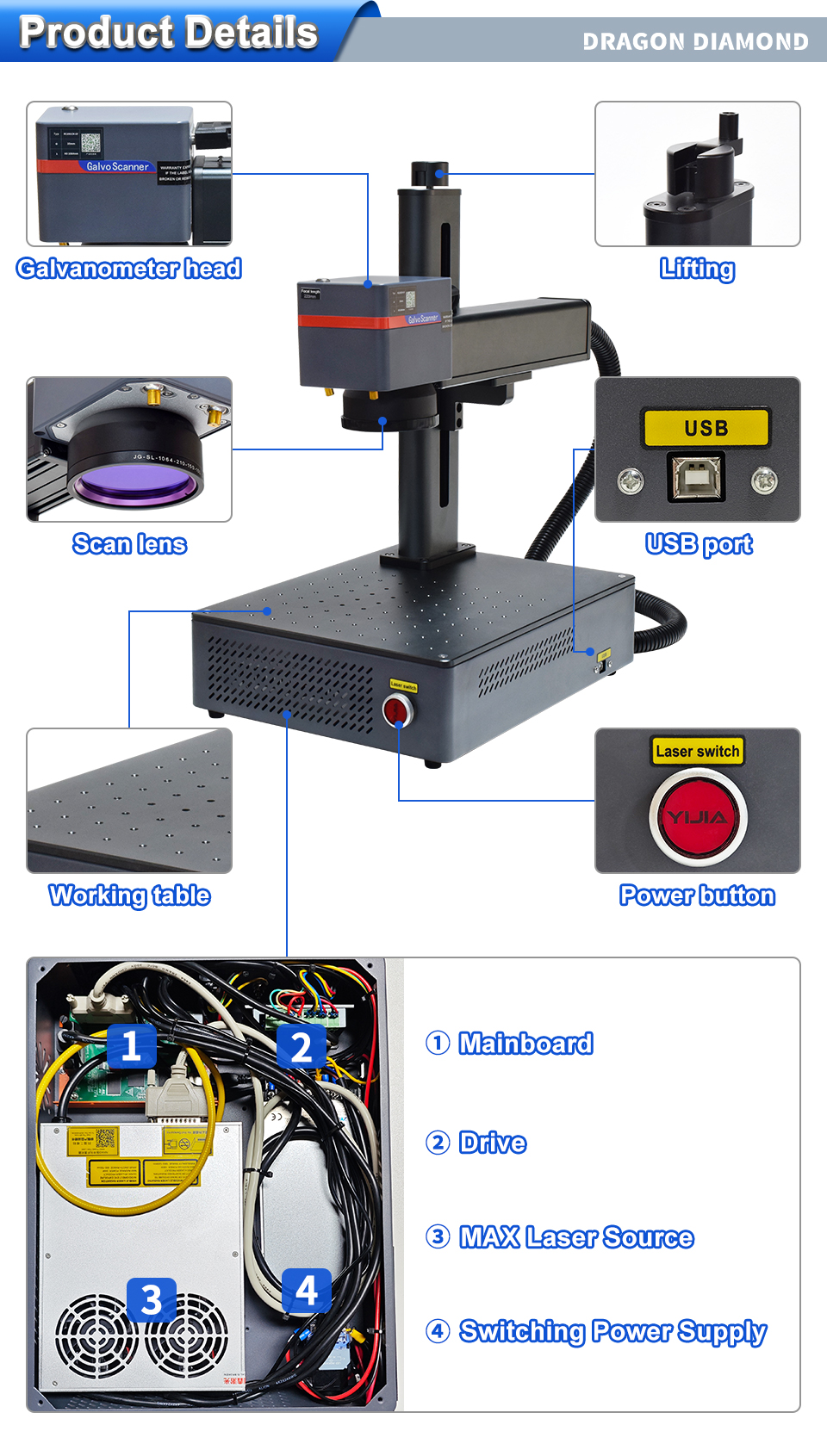

| Galvanometer/Scanner | RNF1002H | Repeat accuracy | ±0.002/ ±0.003mm |
| Focusing system | Red light dot focusing | Marking Interface | USB connection |
| Electric Lifting platform | No | Warranty | 1 YEAR |

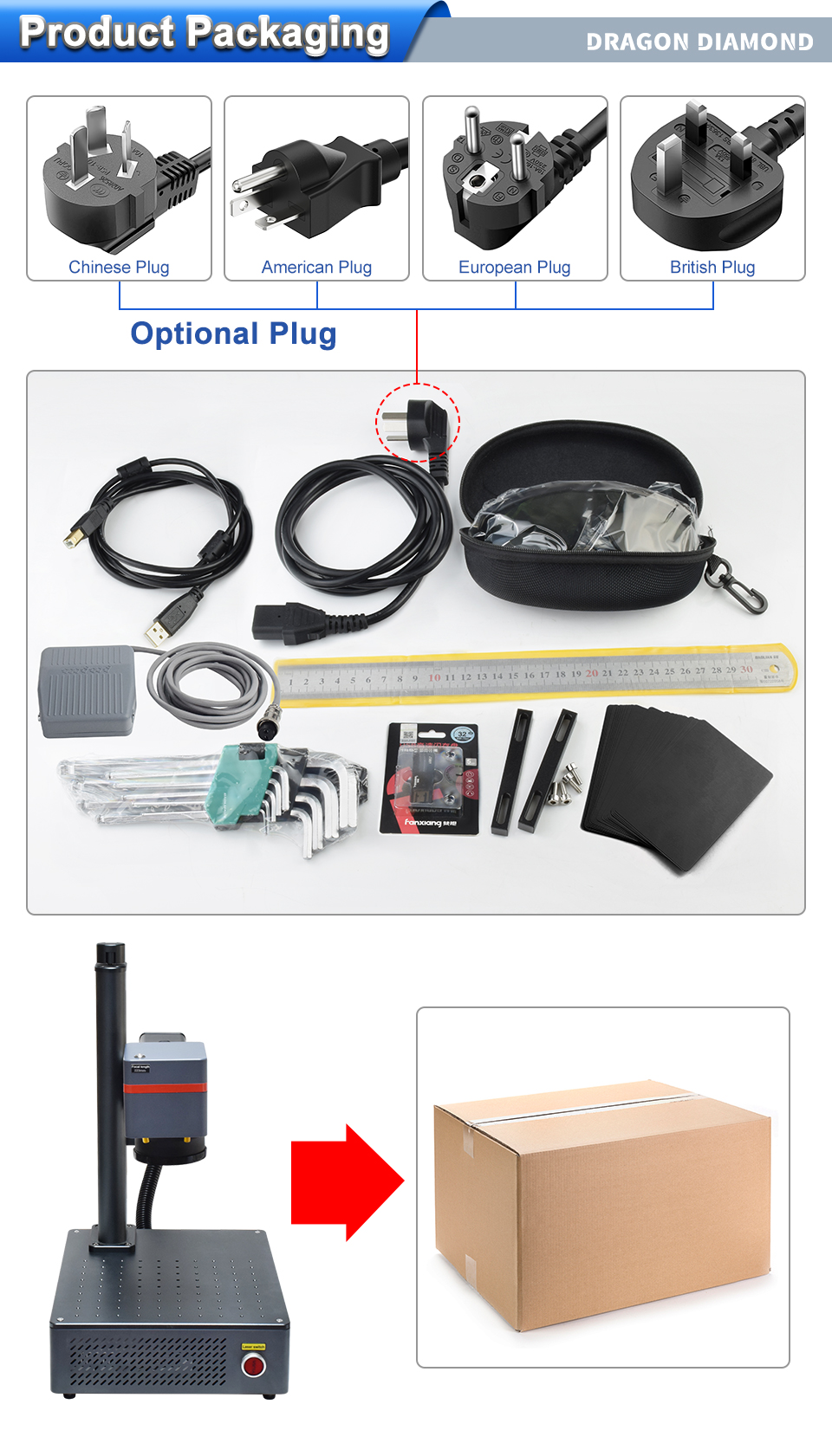

| Voltage | 110V-220V/50HZ-60HZ | Tool bag | Yes |

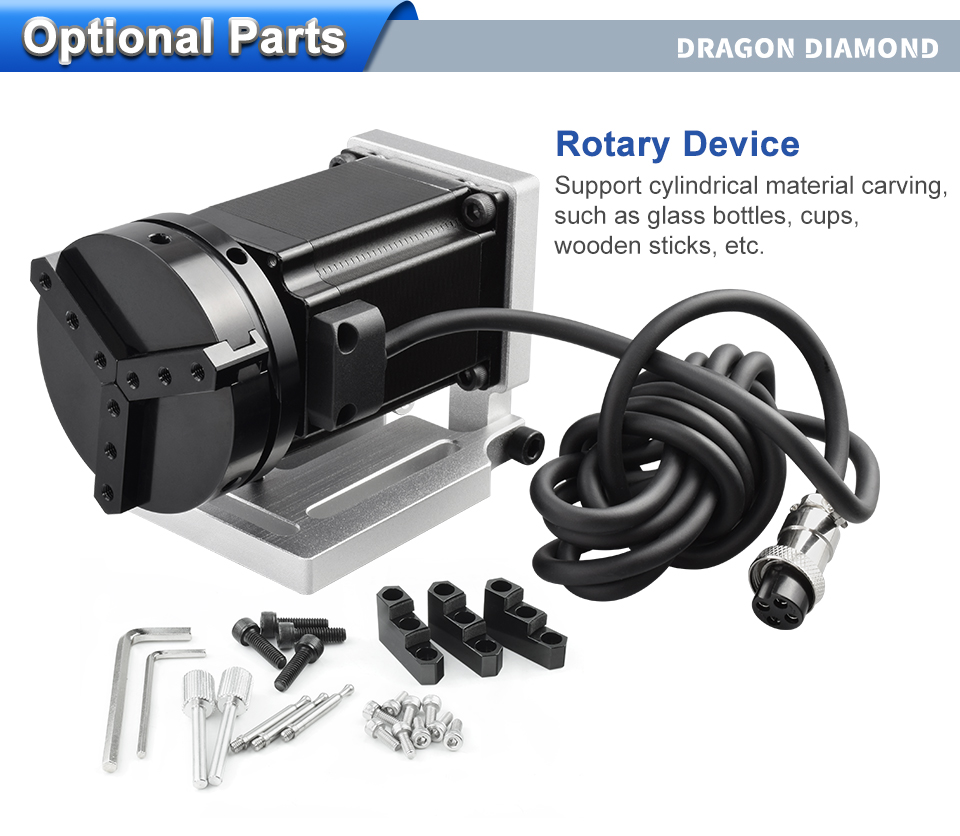

| Rotary device | Optional | Computer | Optional |
CE & FDA Approved
