| Parameters | Fiber Specifications | CO2 Specifications |
|---|---|---|
| Laser power | 20W / 30W / 50W / 100W | 60W / ≥70W |
| Laser wavelength | 1064nm | - |
| Beam quality | < 2 (M2) | - |
| Laser Type | Pulsed or continuous | - |
| Operating life | Laser operation > 100,000 hours | - |
| Cooling system | Built-in air cooling | |
| Power supply | Power supply: 220V 50HZ AC, power consumption of complete machine: 500W | |
| Use environment | Temperature: -20 °C - 45 °C, relative humidity 80% | |

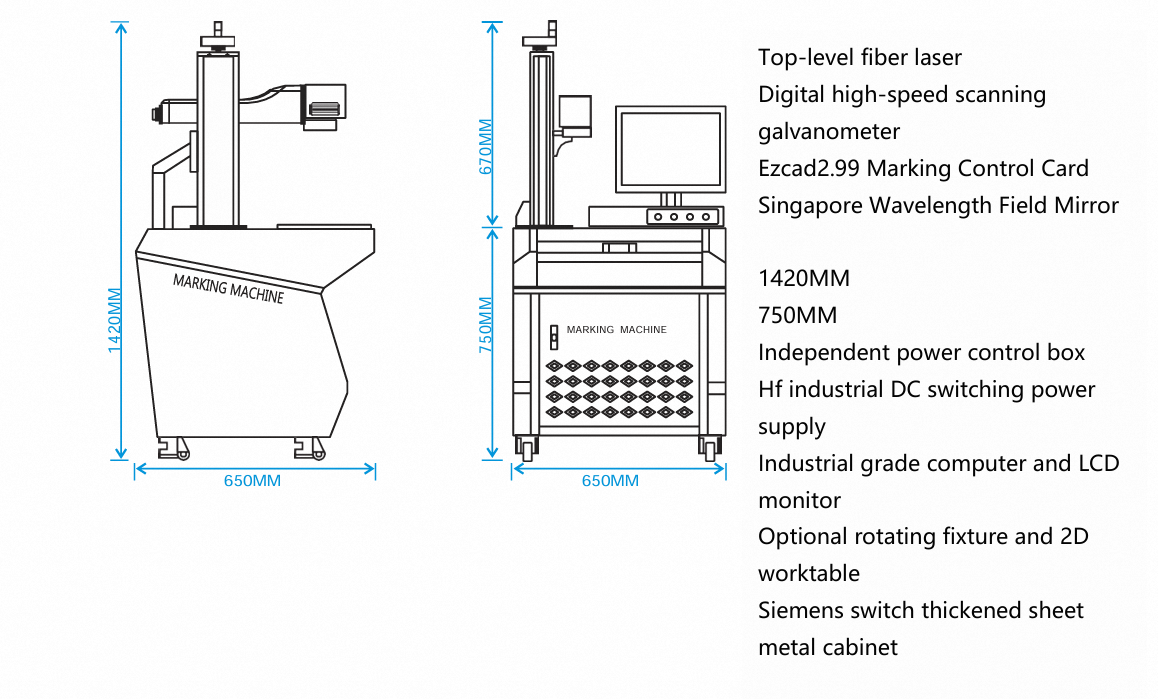

| Dimensions | 650 mm X 650 mm X 1420 mm | |
| Weight of complete machine | Integrated cabinet < 80kg | |
| Marking depth | ≤ 0.5mm depending on the material | |
| Marking line speed | ≤ 7000mm/s | |
| Marking range | Standard plane 110X110 (customizable 150X150, 300X300 mm) | |
| Minimum character | 0.15mm | |
| Minimum line width | 0.012mm | |
| Repeatability | ±0.002 | |
| Print content | Numbers, characters, English letters, patterns, two-dimensional codes, bar codes, etc. | |
