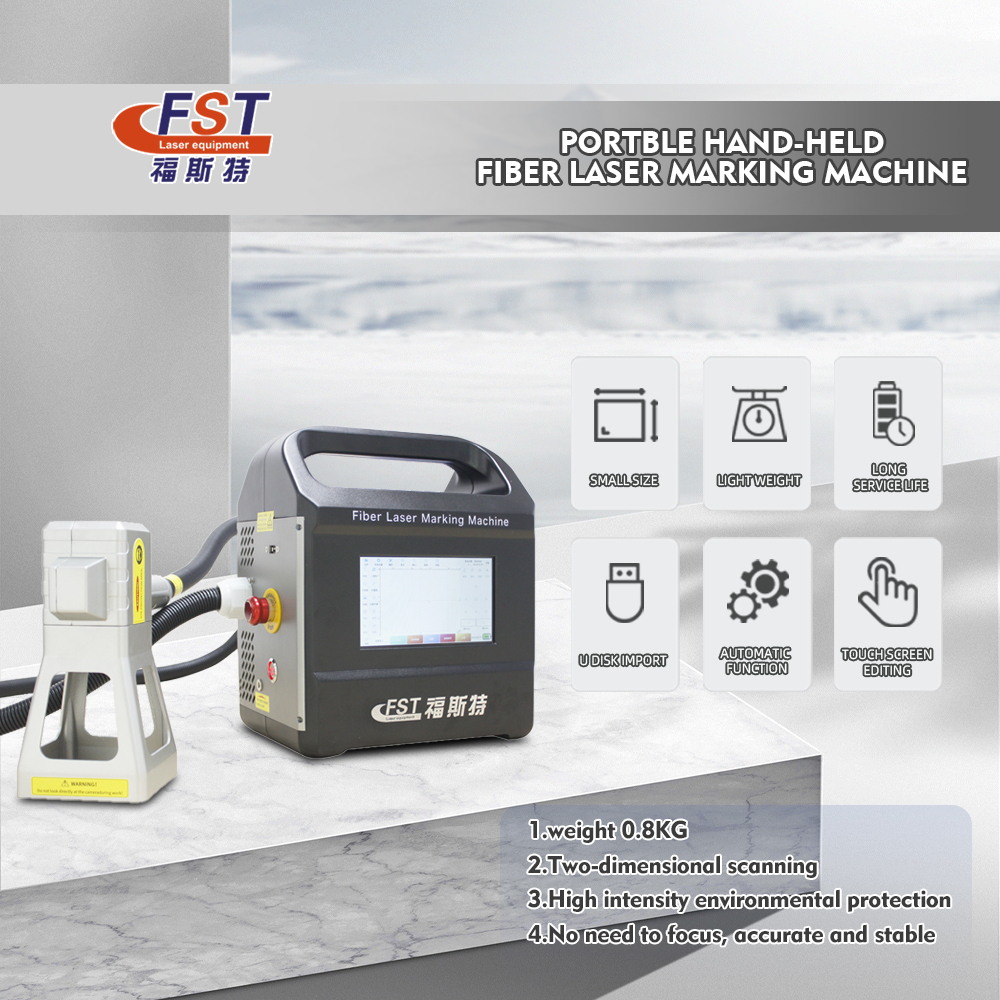

Factory Wholesale High Quality 30W Portable MAX Handheld Fiber Laser Marking Machine for Fast Accurate Metal Plastic Marking
Factory Wholesale High Quality 30W Portable MAX Handheld Fiber Laser Marking Machine for Fast Accurate Metal Plastic Marking
Factory Wholesale High Quality 30W Portable MAX Handheld Fiber Laser Marking Machine for Fast Accurate Metal Plastic Marking
Factory Wholesale High Quality 30W Portable MAX Handheld Fiber Laser Marking Machine for Fast Accurate Metal Plastic Marking
Factory Wholesale High Quality 30W Portable MAX Handheld Fiber Laser Marking Machine for Fast Accurate Metal Plastic Marking
1 / 5
Factory Wholesale High Quality 30W Portable MAX Handheld Fiber Laser Marking Machine for Fast Accurate Metal Plastic Marking
Factory Wholesale High Quality 30W Portable MAX Handheld Fiber Laser Marking Machine for Fast Accurate Metal Plastic Marking
Factory Wholesale High Quality 30W Portable MAX Handheld Fiber Laser Marking Machine for Fast Accurate Metal Plastic Marking
Factory Wholesale High Quality 30W Portable MAX Handheld Fiber Laser Marking Machine for Fast Accurate Metal Plastic Marking
Factory Wholesale High Quality 30W Portable MAX Handheld Fiber Laser Marking Machine for Fast Accurate Metal Plastic Marking

Factory Wholesale High Quality 30W Portable MAX Handheld Fiber Laser Marking Machine for Fast Accurate Metal Plastic Marking

Send Inquiry

Product Description

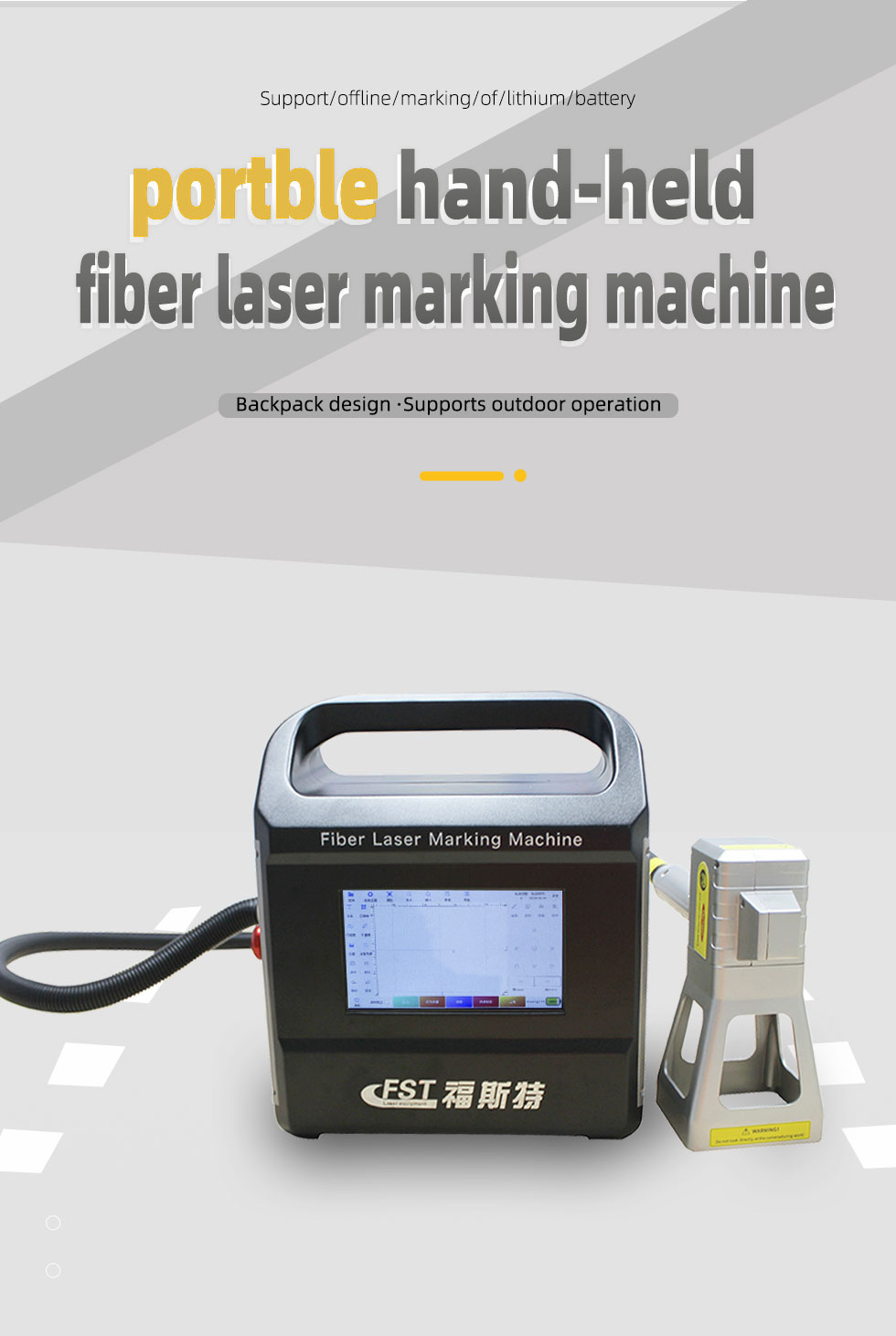

Product Presentation
Product Presentation
Product Presentation Details
Technical Parameters
Technical Parameters Schema
Parameter table LMB20/LMB30 LM20/LM30
Material engineering plastics
Laser type fiber laser generator
Laser power 20W/30W (Maximum support 50W)
Laser wavelength 1064nm
Maximum pulse energy 0.7mj
Adjustable frequency 1-600kHz
Printing method high-precision two-dimension scanning mode
Marking speed ≤7000mm/s
Operation interface embedded 7-inch touch screen, Linux operating system
Cooling system built-in air cooling
Marking line type both dot-matrix and vector
Marking area 60mmx60mm (Standard) / 100x100mm (Optional)
Position method red light positioning
Marking character lines any line within the marking range
Printing speed 600 characters/sec (depends on situation)
Language Chinese, English, Korean, German, Arabic numerals, etc
File format png, jpg, bmp, dxf, plt, svg
Power Supply 220V/110V
Max Power consumption 20W: 250W / 30W: 280W
Net weight of machine lithium battery: 7.8KG power supply: 6.4KG
Full power Continuous working hours about 4 hours (lithium battery)
Charging time 1.5 hours (lithium battery)
Adaptive temperature 0-40°C
Appearance dimension 330mm*280mm*200mm
Marking type QR code, barcode, English, date, logo, pattern, etc
Details Images

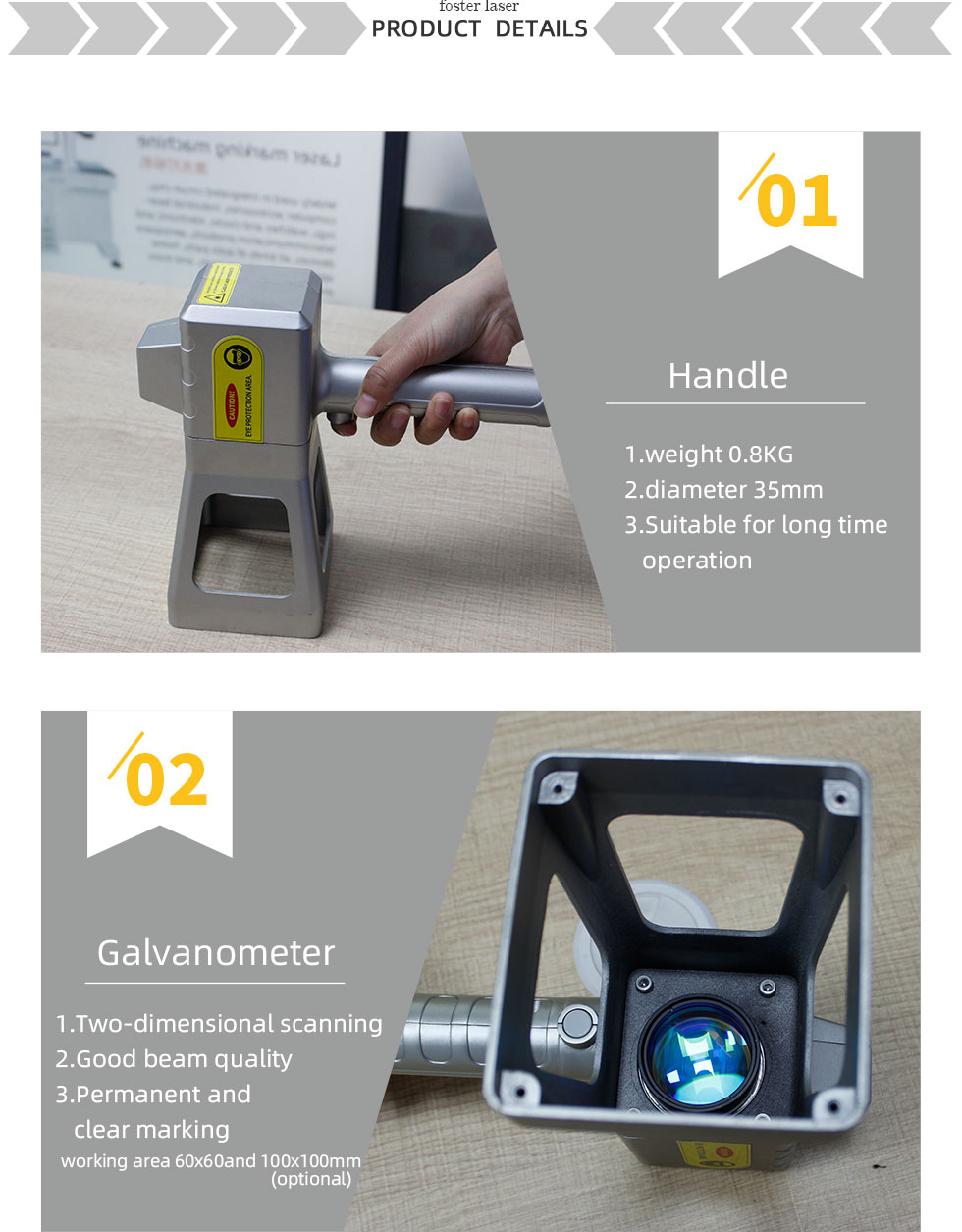

Detail Image 1

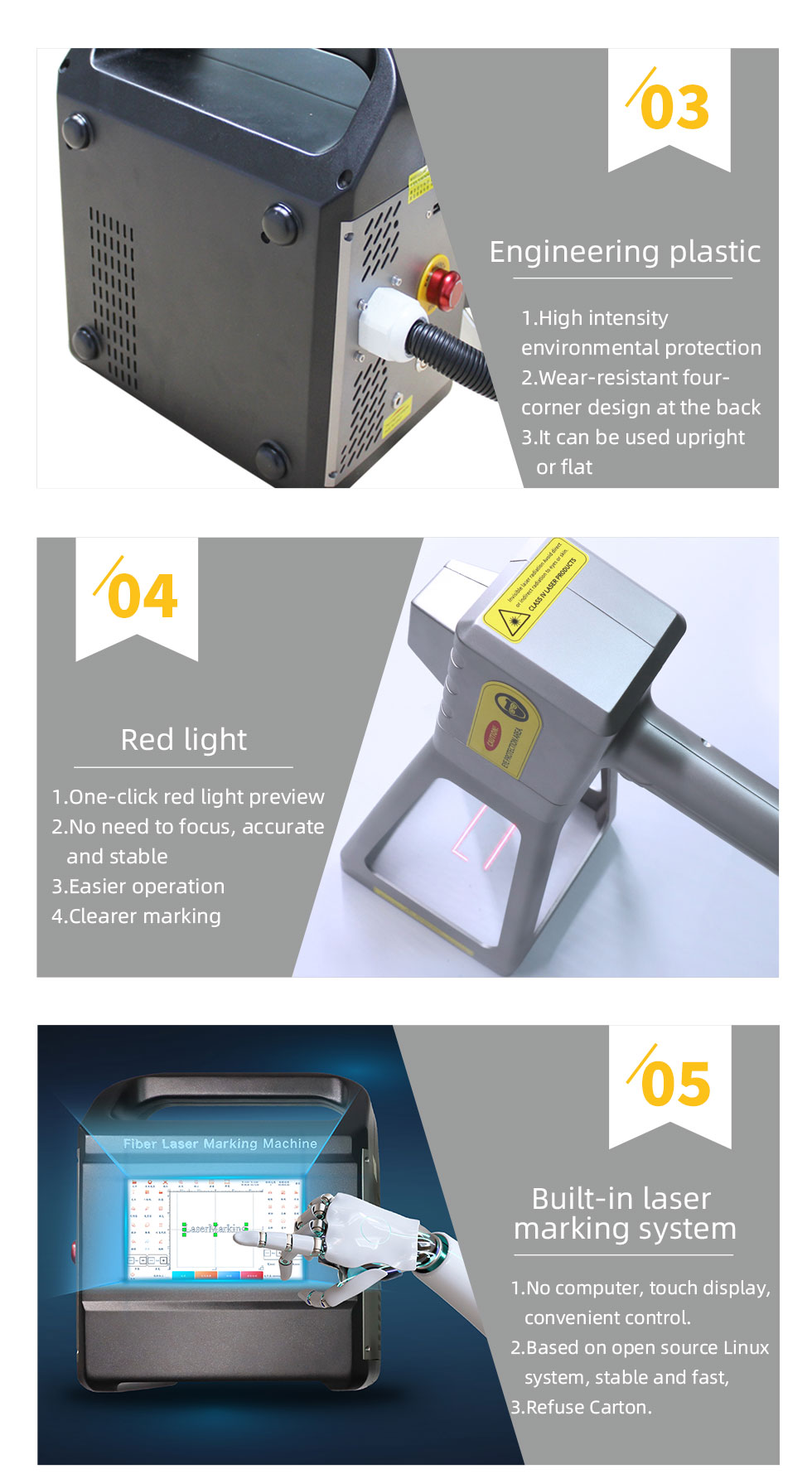

Detail Image 2
Product Selling Point

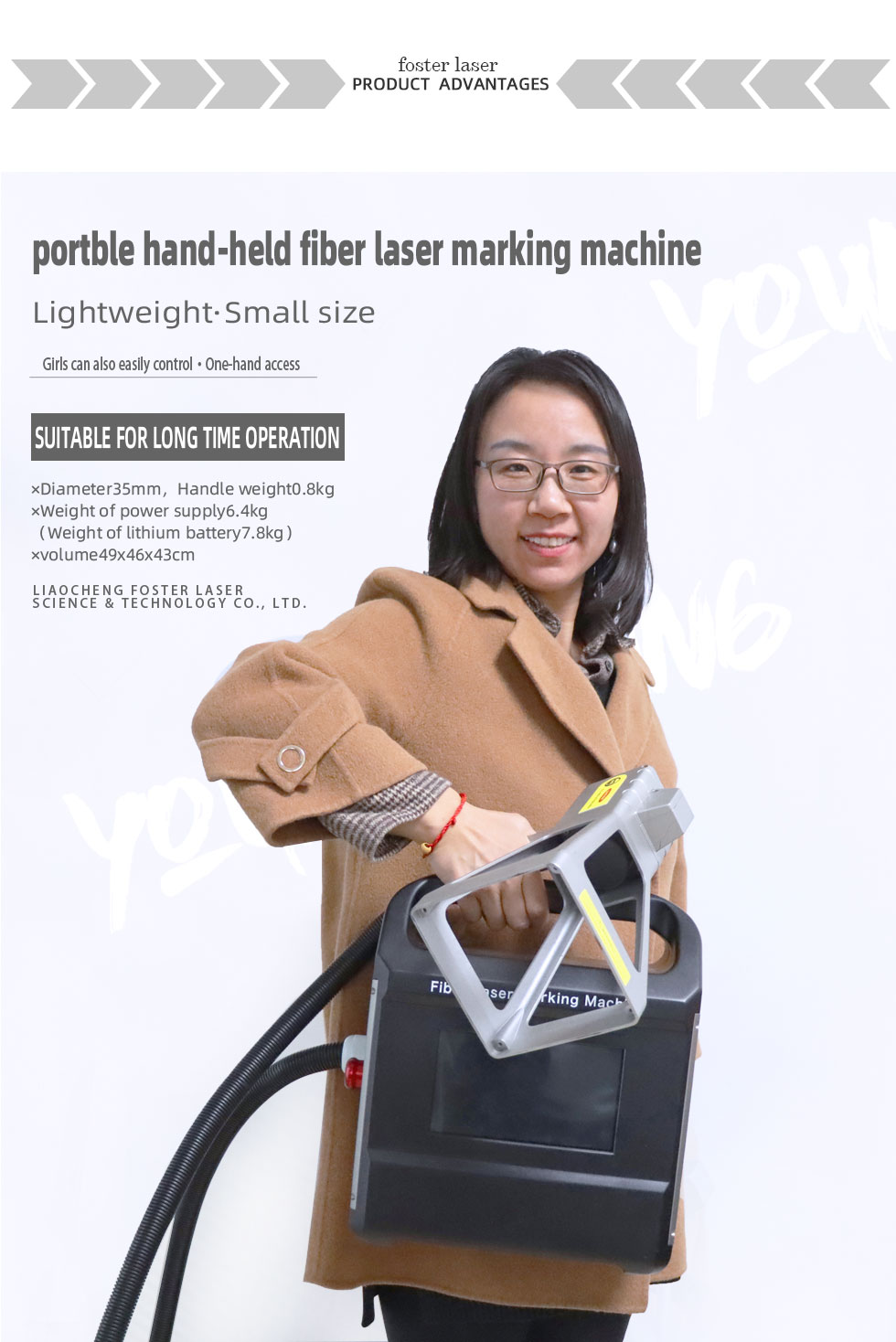

Selling Point 1

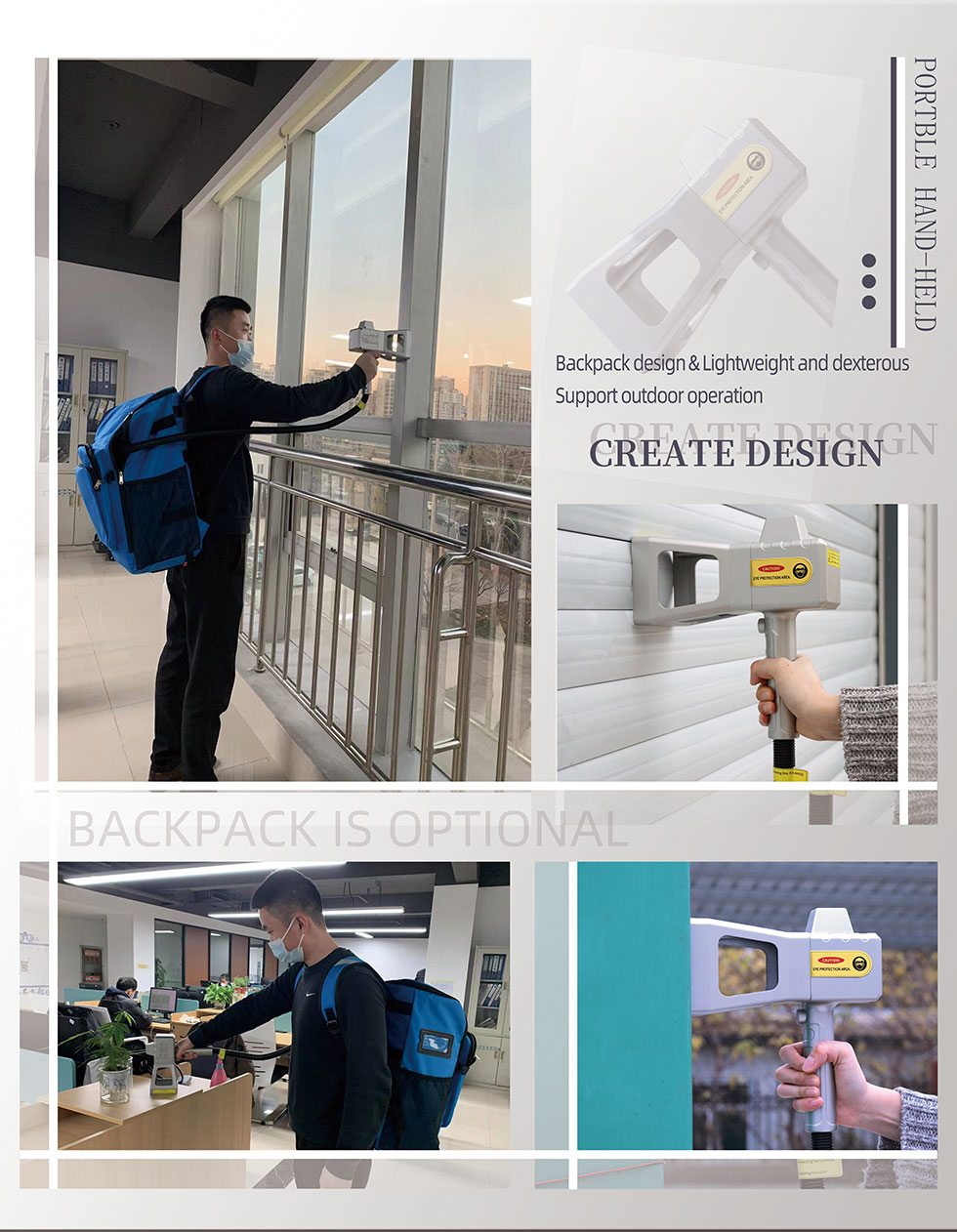

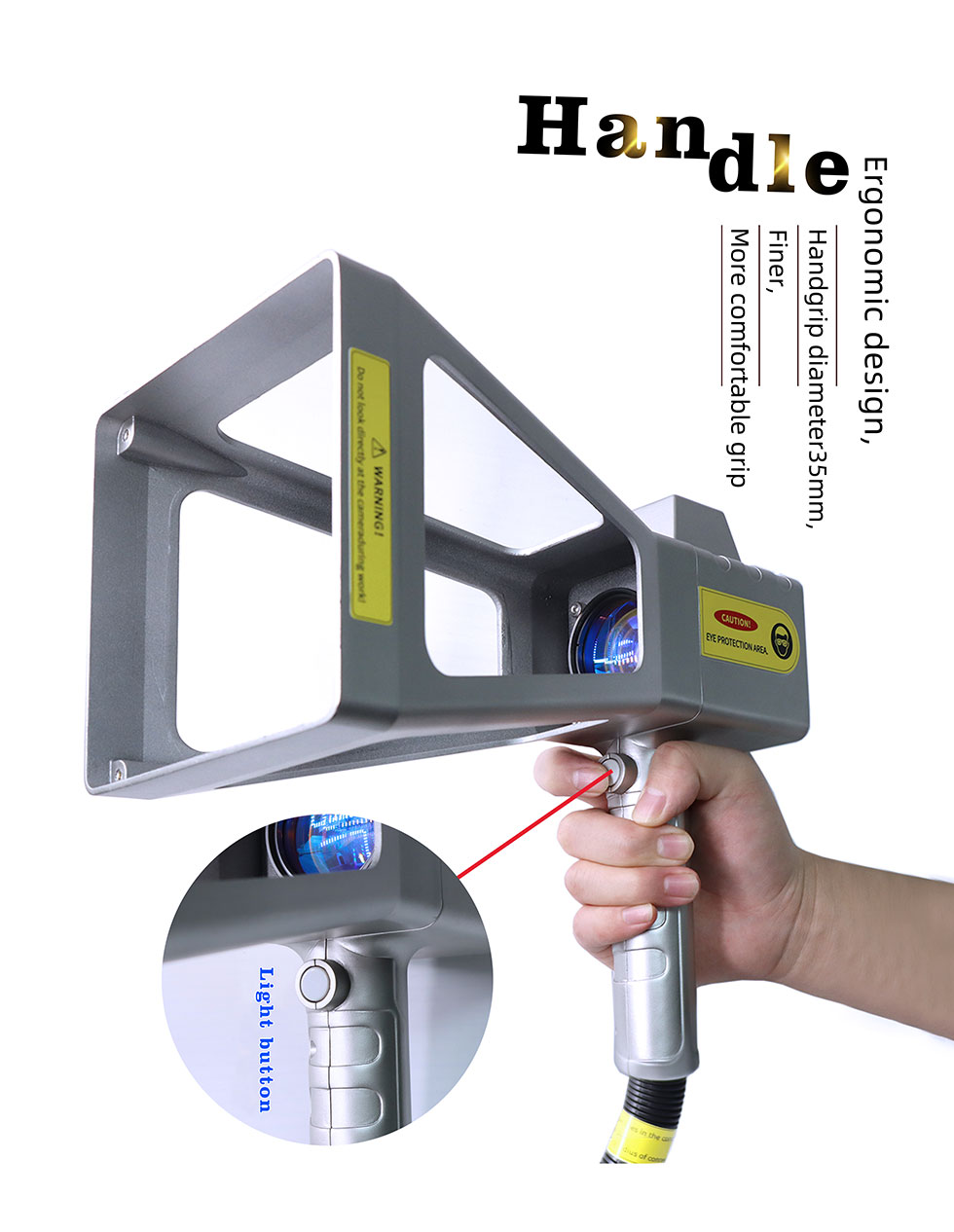

Selling Point 2

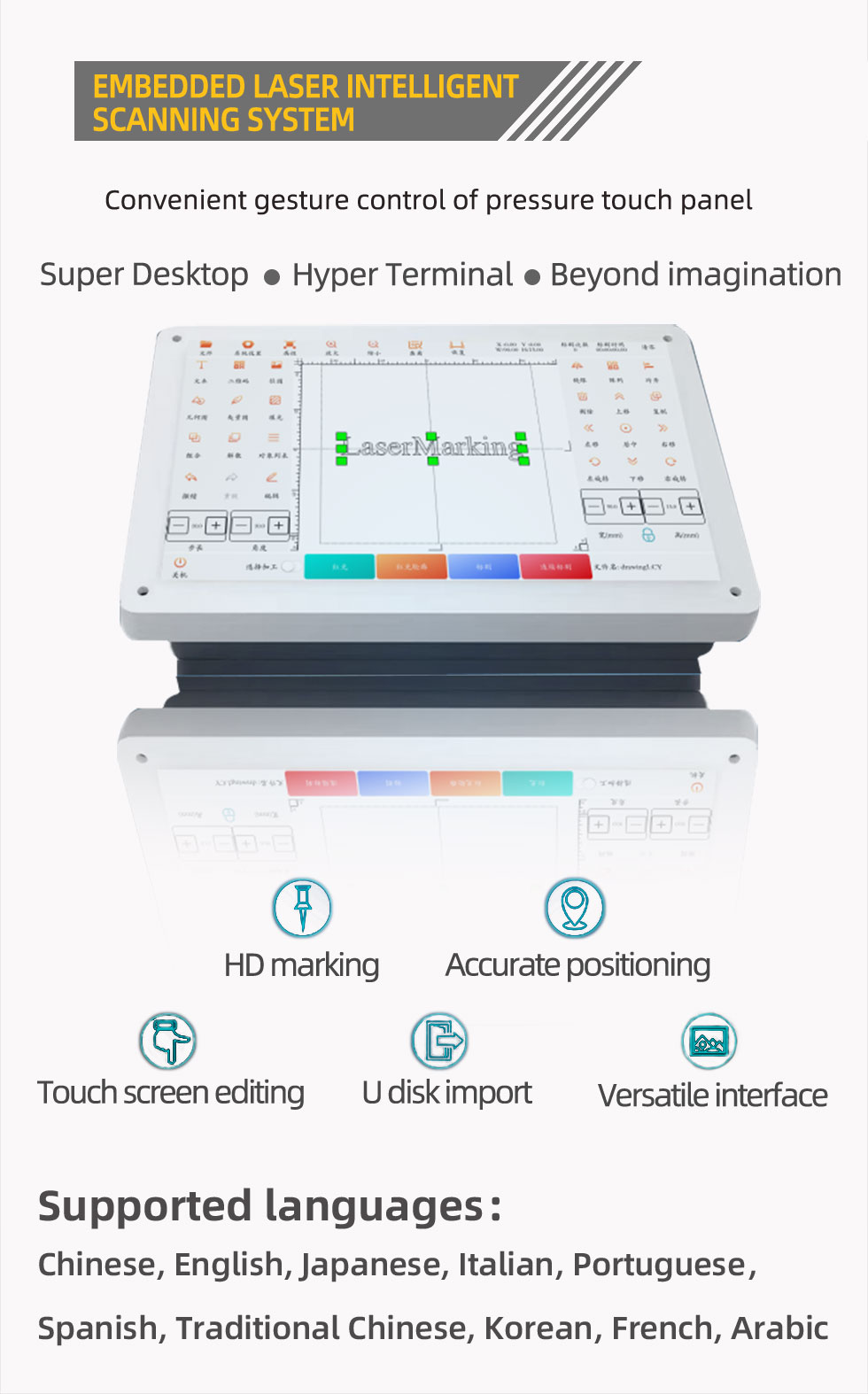

Selling Point 3
Selling Point 4

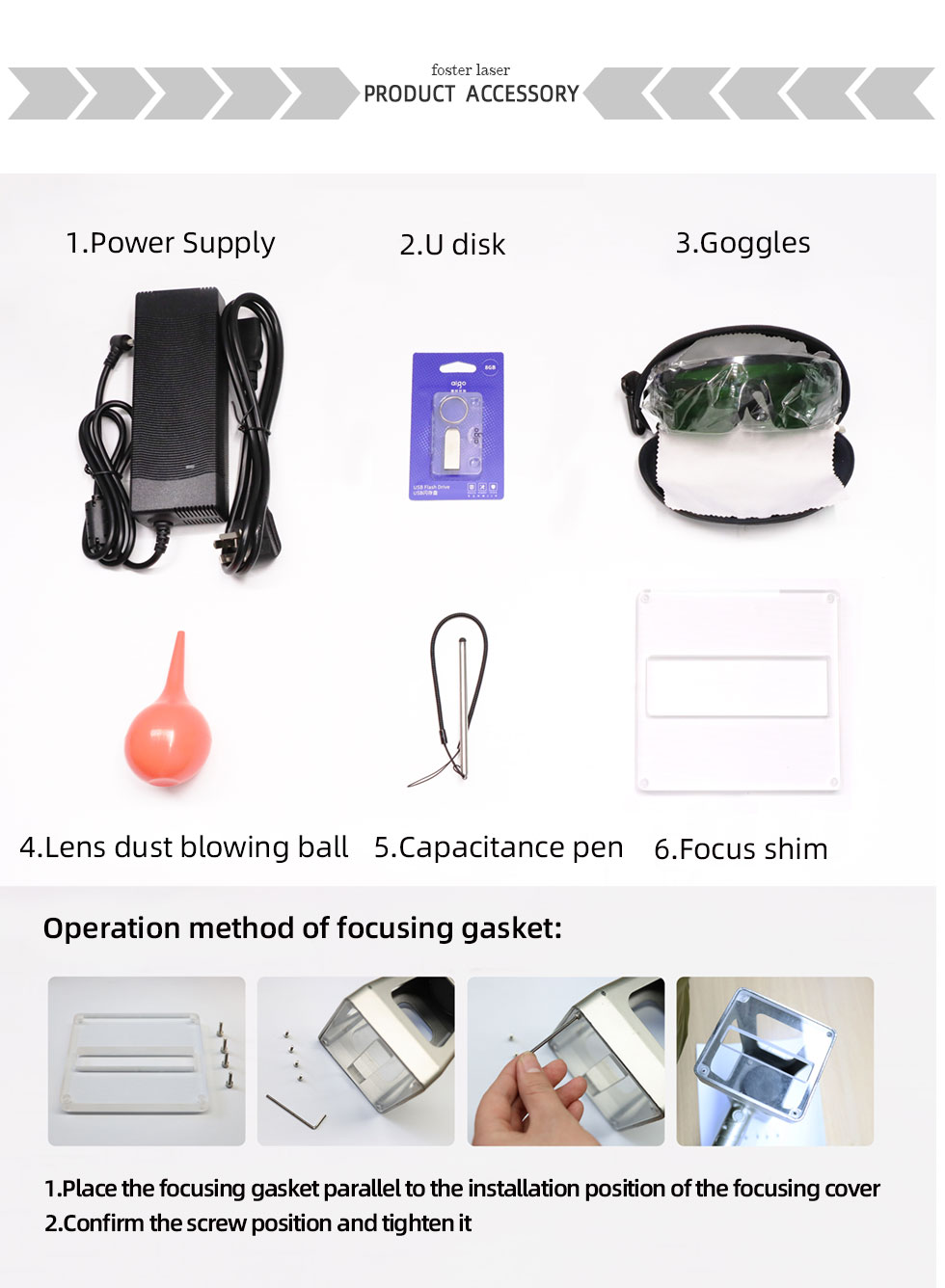

Selling Point 5

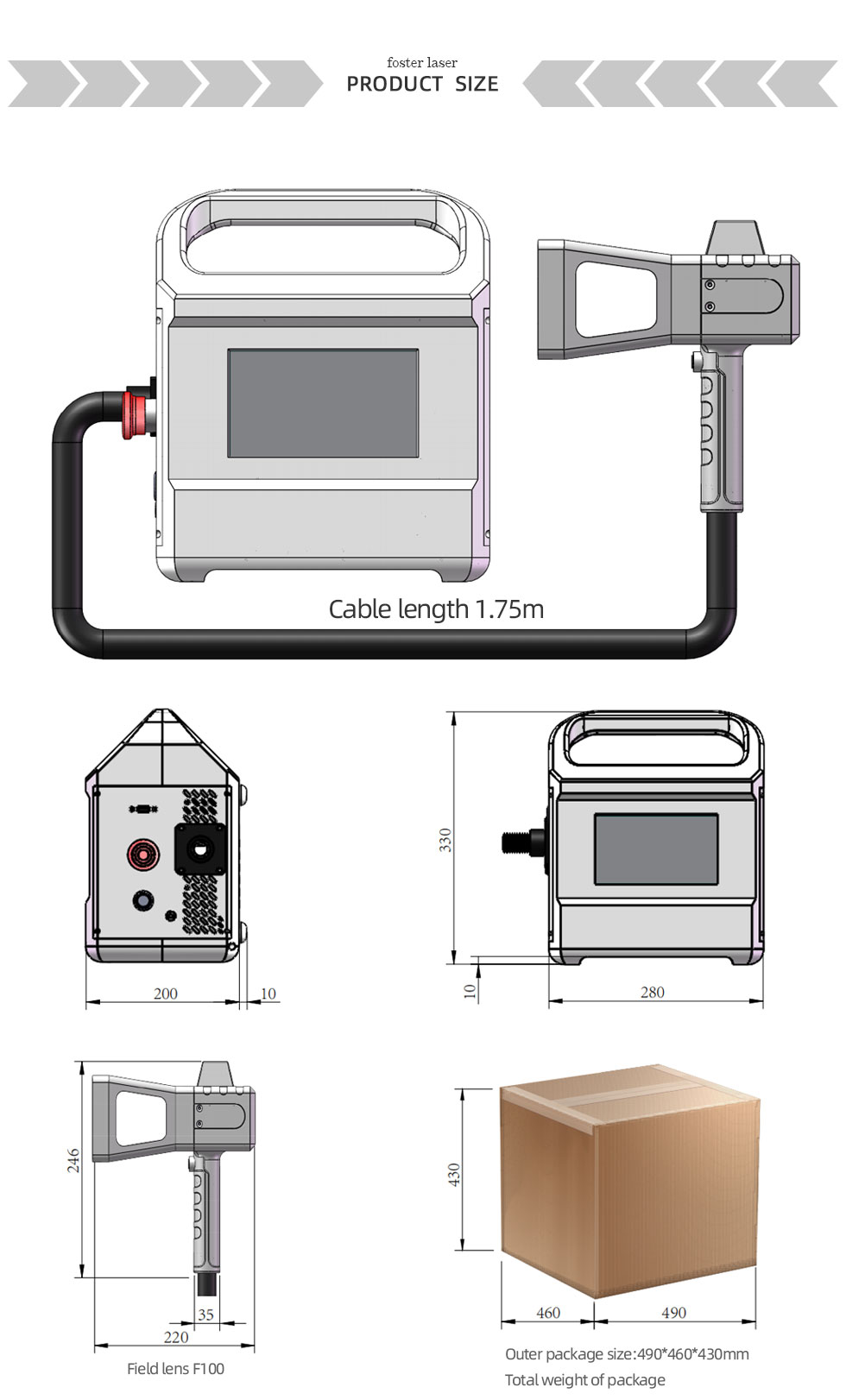

Selling Point 6
Applications Industry
Application Industry 1
Application Industry 2
Company Profile
COMPANY AND FACTORY INTRODUCTION
We are a professional manufacturer of laser engraving machines, laser cutting machines, and laser marking machines for 12 years. Since 2004, we have focused on the development and production of various types of laser engraving/cutting/marking machines with advanced management, strong research strength, and a steady globalization strategy. We have established a comprehensive product sales and service system globally to build a reputable brand in the laser industry.
Our target is "scientific management, high quality, high reputation, and continuous development as our policy, regarding customers as our center, and achieving a double win with our customers." We adhere to our tenet of "taking the market demand as the guide, continuing to innovate, and making improvements." We strive to provide high-quality products and perfect service for clients.
Furthermore, we pay close attention to after-sales service. Good service and outstanding quality are equally important. Following the spirit of "Credibility and integrity," we try our best to provide customers with superior products and better service.
Reliable professional laser equipment supplier!

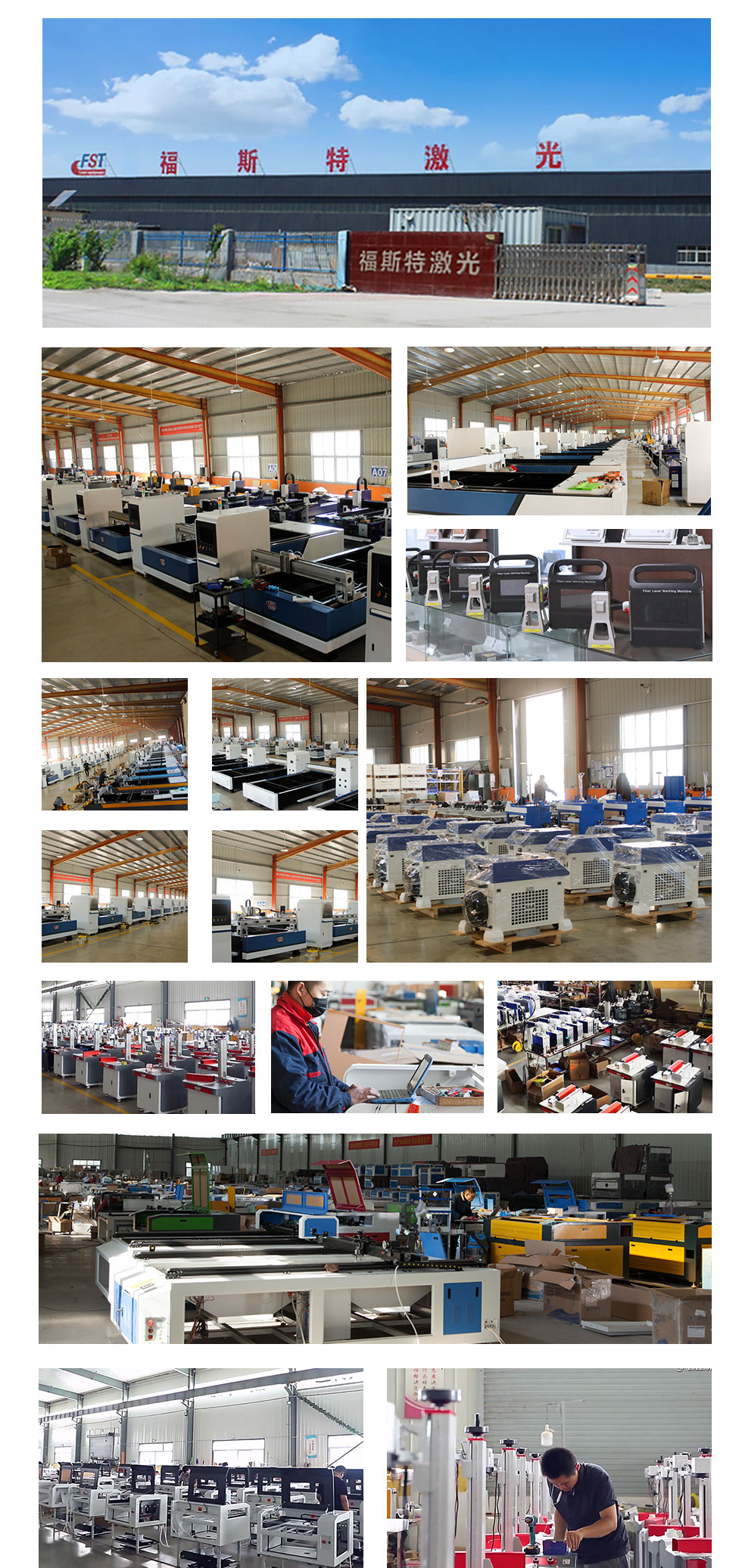

Factory Workshop
Office and Team
Office and Team
Exhibition
Exhibition Show
Frequently Asked Questions
What materials can this laser marking machine work on?
This fiber laser generator is designed for high-precision marking on various materials, particularly metals (such as stainless steel, aluminum, brass, and titanium) and engineering plastics.
How long does the battery last and how long does it take to charge?
The lithium battery version supports approximately 4 hours of continuous working time under full power. It takes about 1.5 hours to fully charge.
What is the marking speed and accuracy of the device?
It features a high-precision two-dimensional scanning system with a marking speed of up to 7000 mm/s. The system can print at speeds of up to 600 characters per second depending on the specific application details.
What file formats and languages are supported?
The embedded Linux operating system supports multiple languages including Chinese, English, Korean, German, and Arabic numerals. Supported file formats include png, jpg, bmp, dxf, plt, and svg.
What are the dimensions and weights of the different models?
The overall machine dimensions are 330mm * 280mm * 200mm. The net weight of the lithium battery version is 7.8KG, while the direct power supply version is lighter at 6.4KG.
What kinds of markings can the system produce?
The system can produce high-quality QR codes, barcodes, English characters, dates, logos, and custom vector patterns.
