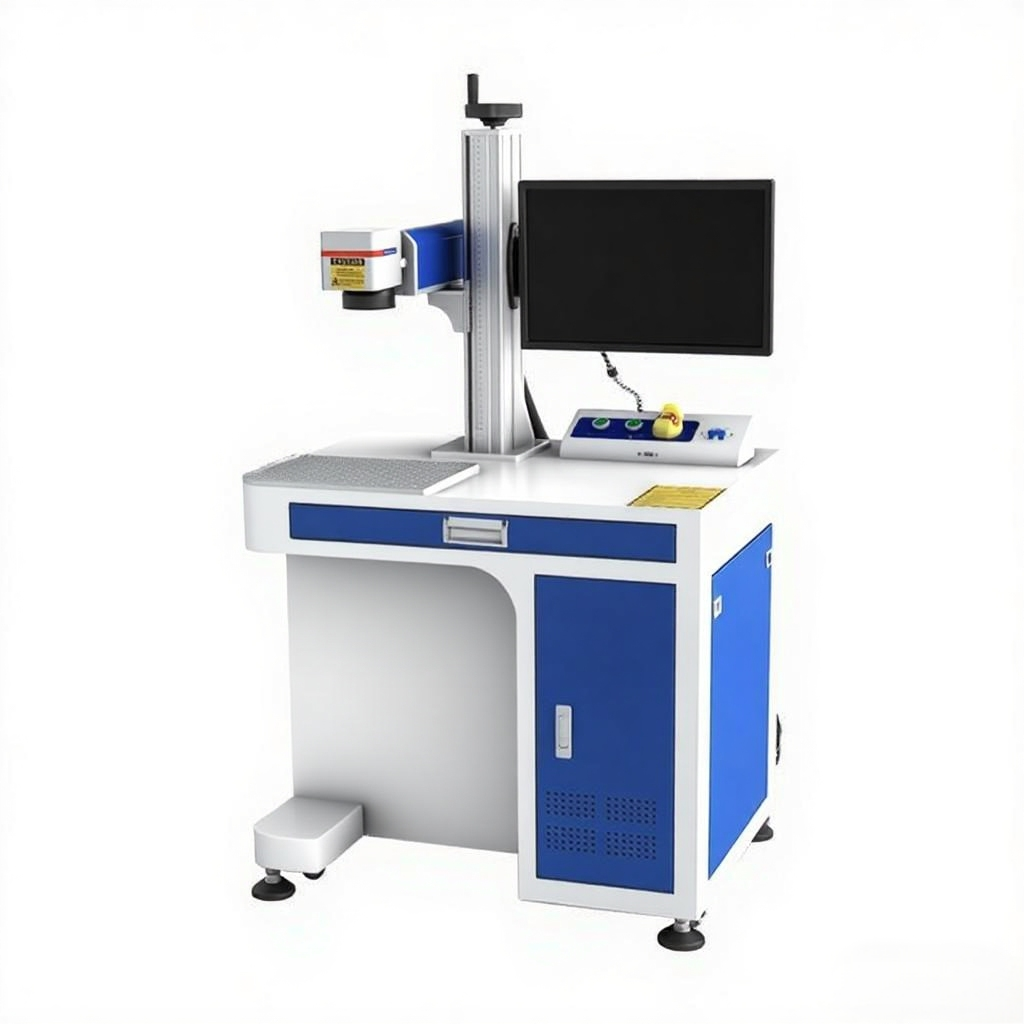

Laser Marking Machines 3d Mopa Fiber Laser Engraving Machine with Conveyor

1 / 5

Laser Marking Machines 3d Mopa Fiber Laser Engraving Machine with Conveyor

Send Inquiry

Product Description

1. Application areas: Marking, engraving on metal and some non-metal, such as stainless steel, carbon steel, aluminum, brass, gold, silver, stone, some kinds of plastic, etc. We can also customize high power for cutting thin metals, customize MOPA series for stainless steel color marking, aluminum black marking, and more precise effect for you.

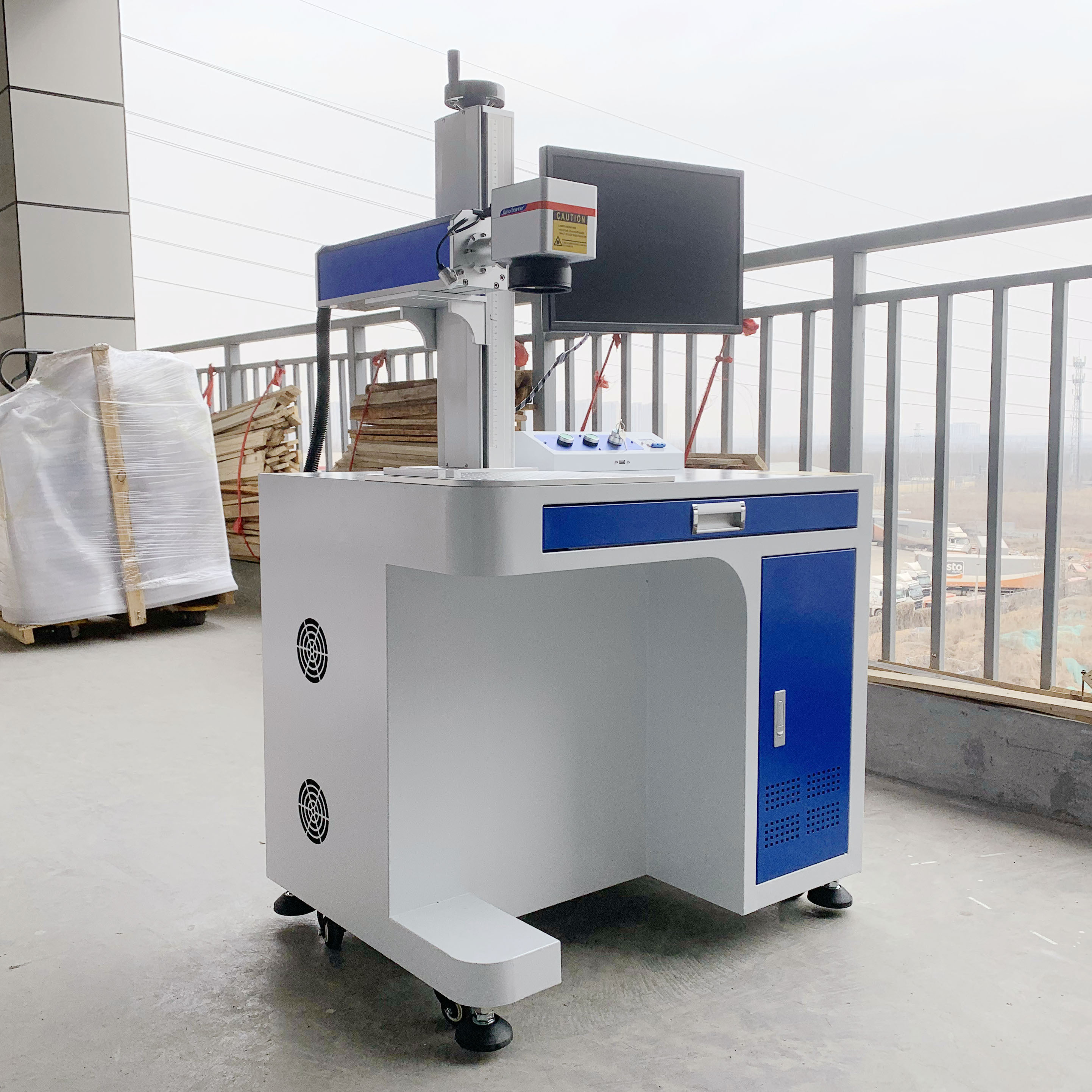

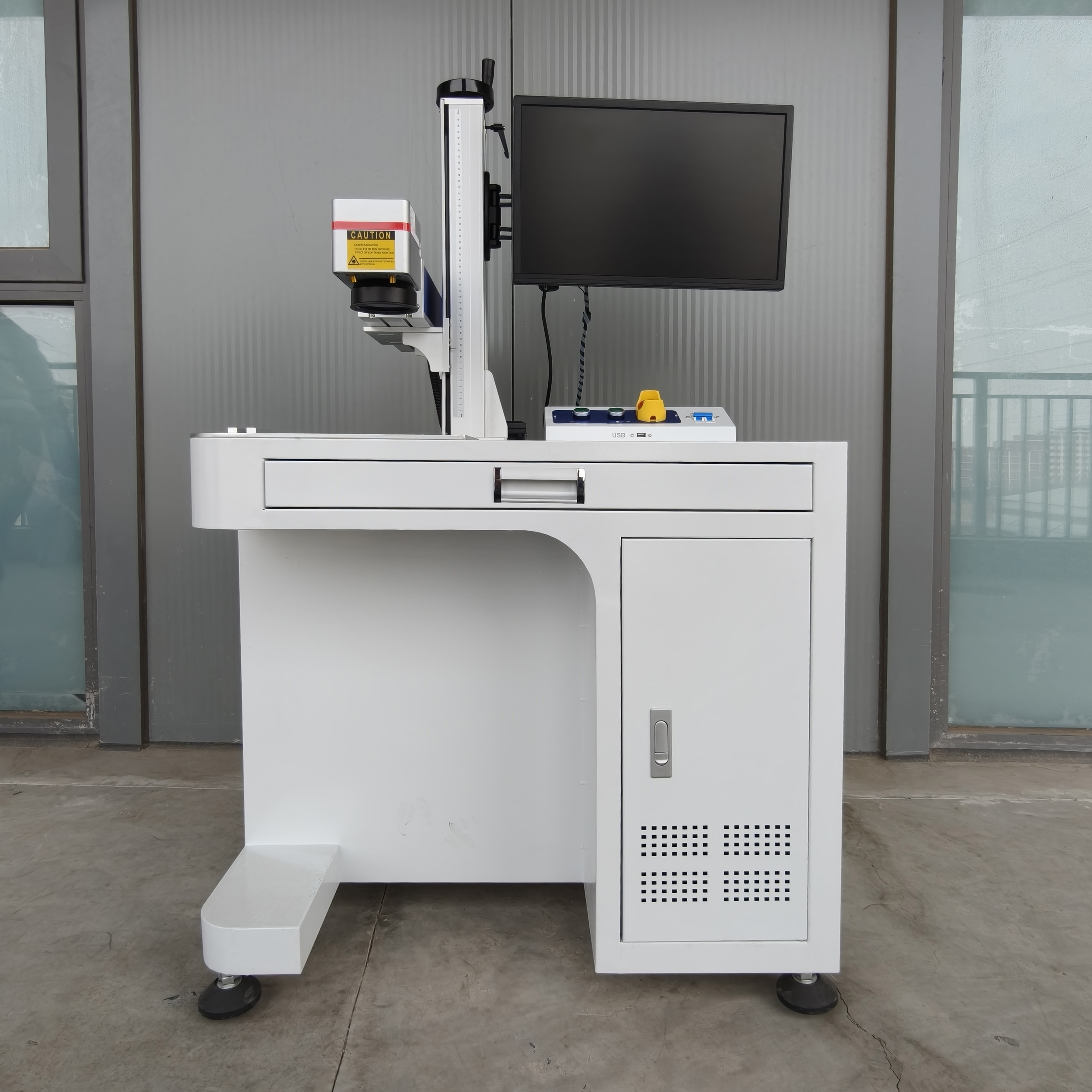

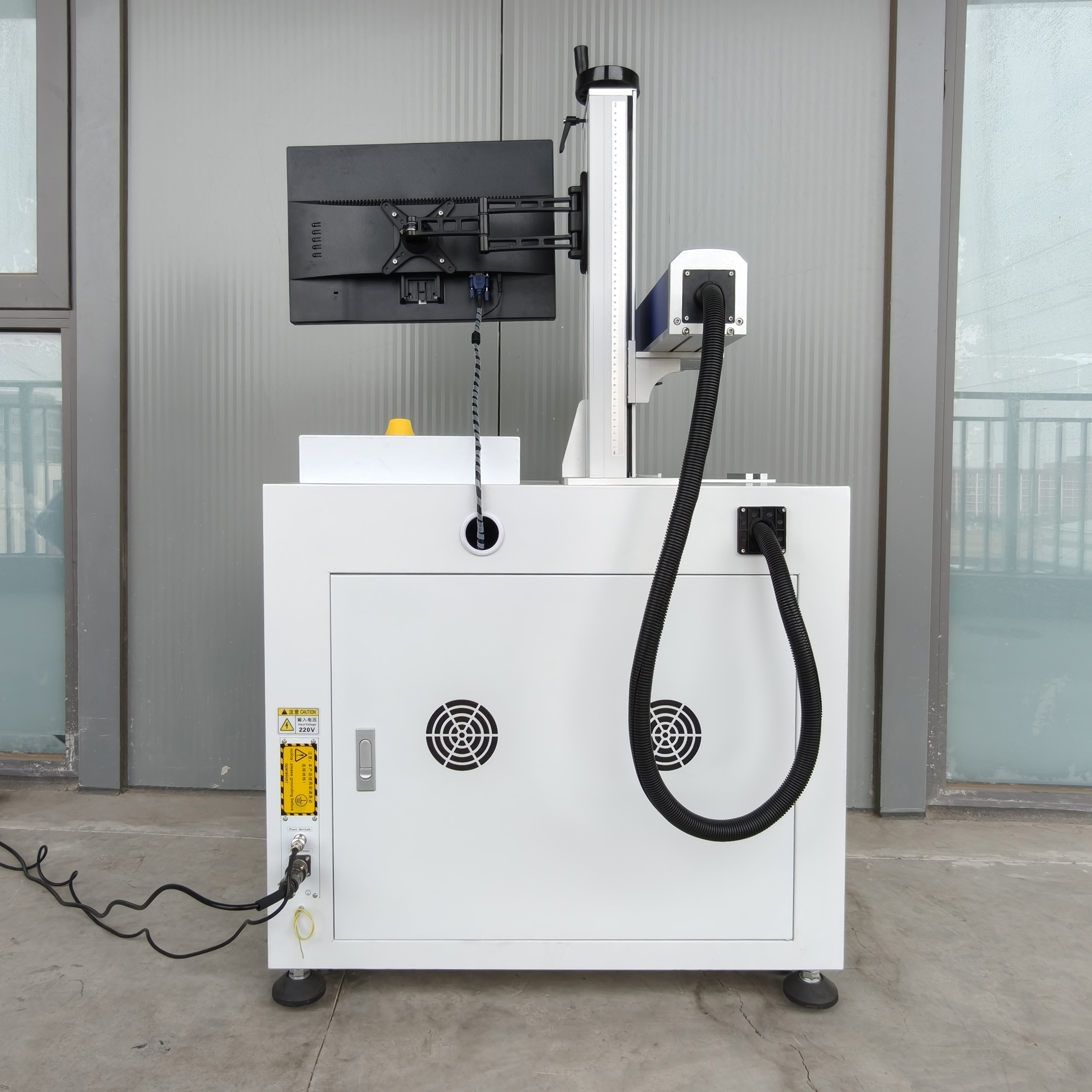

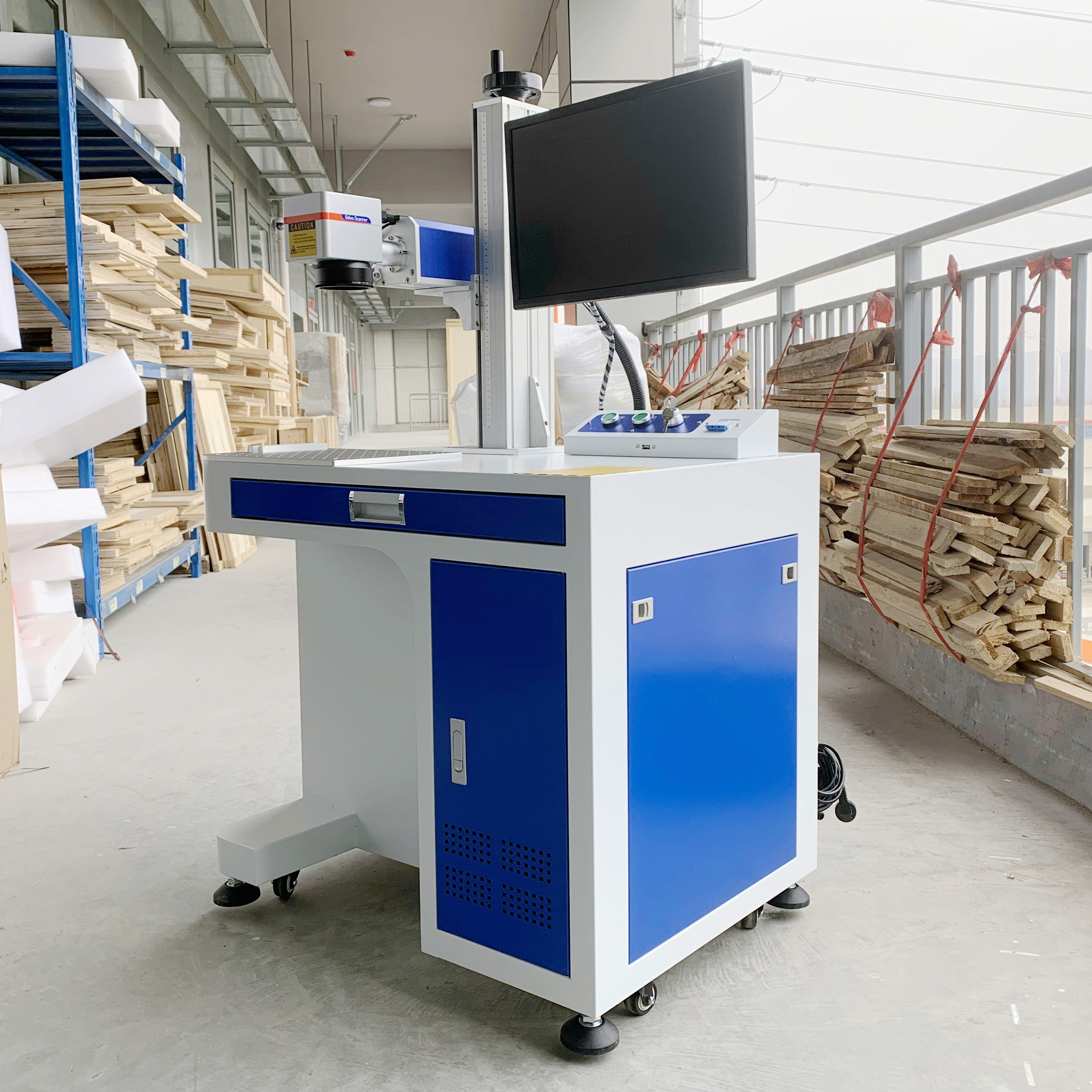

2. Features: This one is equipped with large desk and computer, high marking precision, low power consumption, supports 24-hour continuous work.

3. Selection and customization: Fiber laser has 20w, 30w, 50w, 60w, 80w, 100w, 200w and 300w power options. You can also choose rotary, cutting fixture, extra lens, and other accessories according to your application, supports LOGO customization.

Product Parameters

Product name	Fiber Laser Marking Machine
Laser power	20W 30W 50W 100W and others
Laser source	MAX/Raycus/JPT
Galvanometer	Sino-galvo
Field Lens	Sino-Golve / Hansel / Opex
Marking software	EZCAD
Operation system	EZCAD
Marking area	110110mm (7070mm-300*300 mm optional)
Marking speed	≤4000mm/s
Cooling mode	Air cooling
Repeated accuracy	<8μRad.
Frequency	0~4000kHz
Laser wavelength	1066±3nm
Positioning method	Double Red light guidance
Beam quality	M2<1.4
Beam diameter	5~7mm
Marking format	Picture (bmp, png, jpg, dxf, plt, dot, etc.), character, date, number, bar code, QR code, etc.
Support Languages	Chinese, Traditional Chinese, English, German, Arabic, Persian, Russian, Turkish, Vietnamese etc.
Power supply	110V/220V±10% 50Hz/60Hz
Warranty	2 years
Working condition	0~40°C
Package size	9207601100mm
Package weight	100KG
For more parameters please send us a message to get the technical parameter table

Products Details

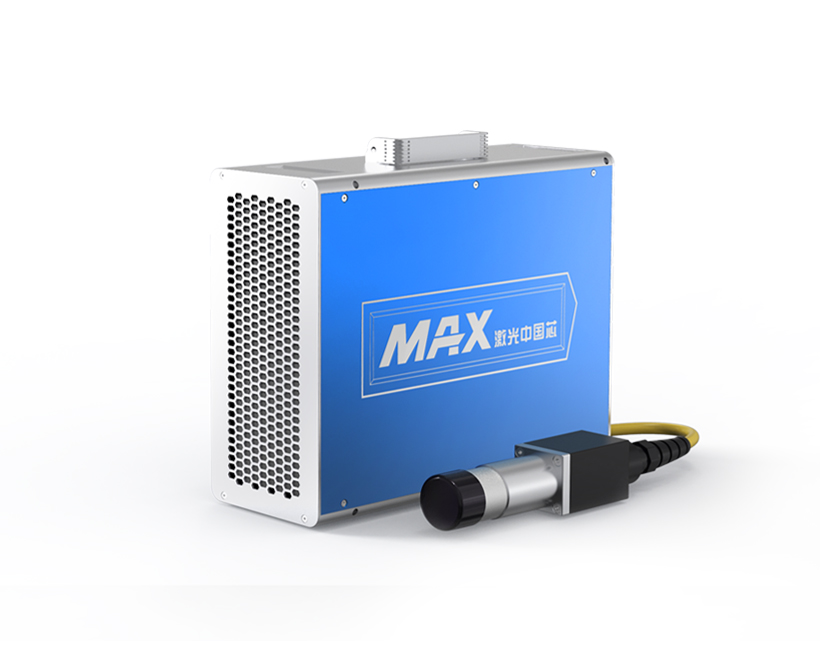

Laser Source: MAX/Raycus/JPT

This series of pulse lasers has the characteristics of high peak power, high single pulse energy, and optional spot diameter, and can be widely used in metals and non-metals.

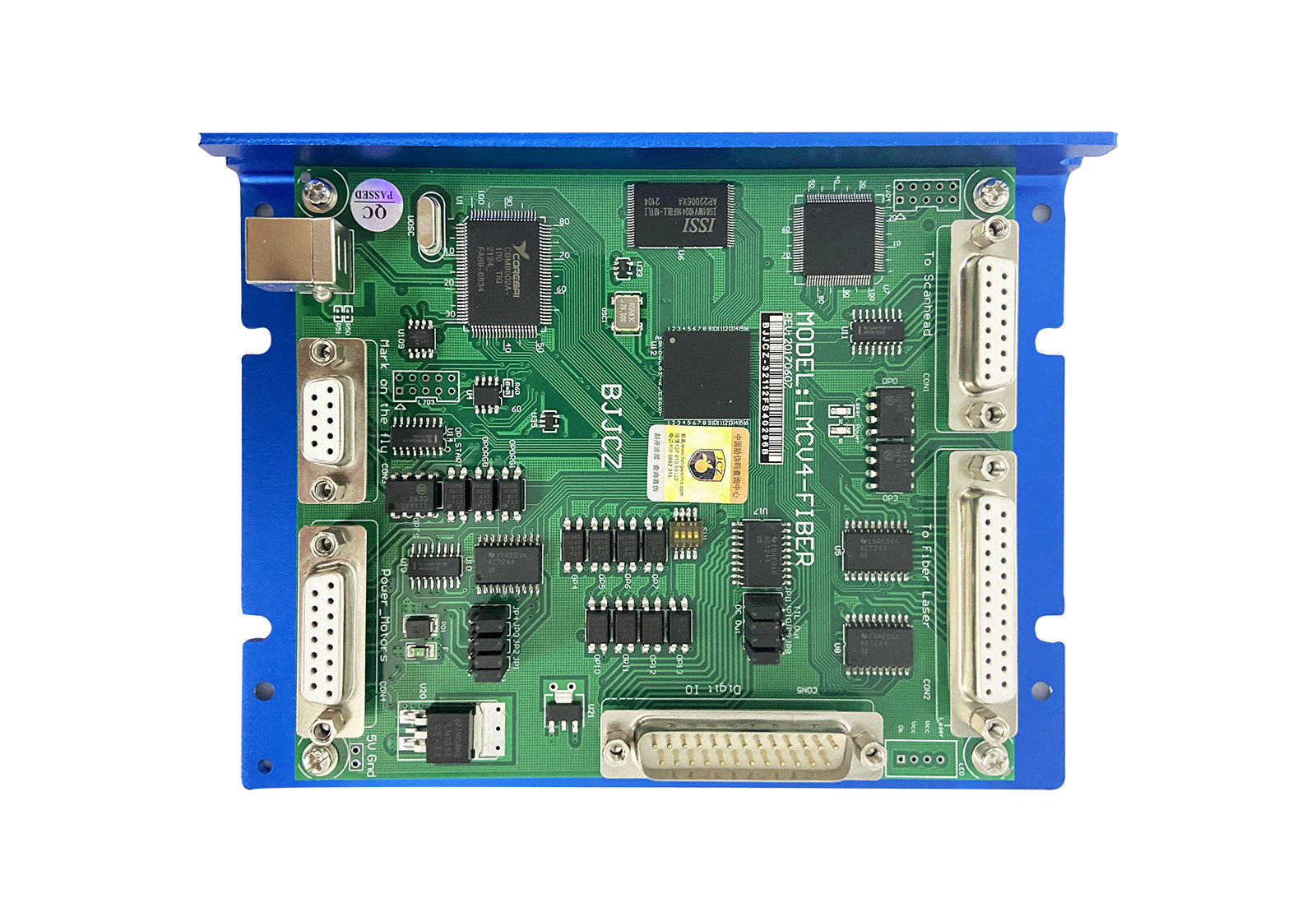

BJJCZ Mainboard

Leading technology, comprehensive functions, user-friendly and easy to use.

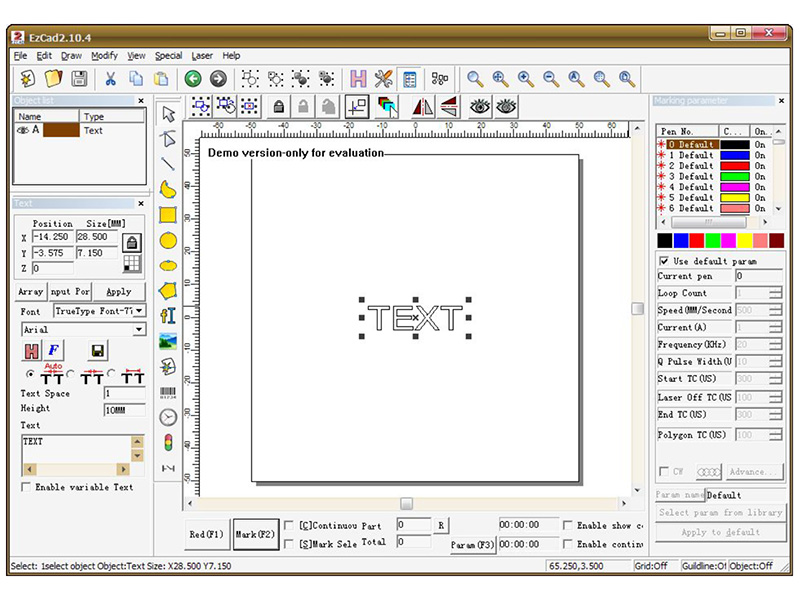

Marking Software EZCAD

Users can design their graphics freely. Various types of fonts are supported, along with flexible variable text, QR codes, LOGOs, pictures, barcodes, etc.

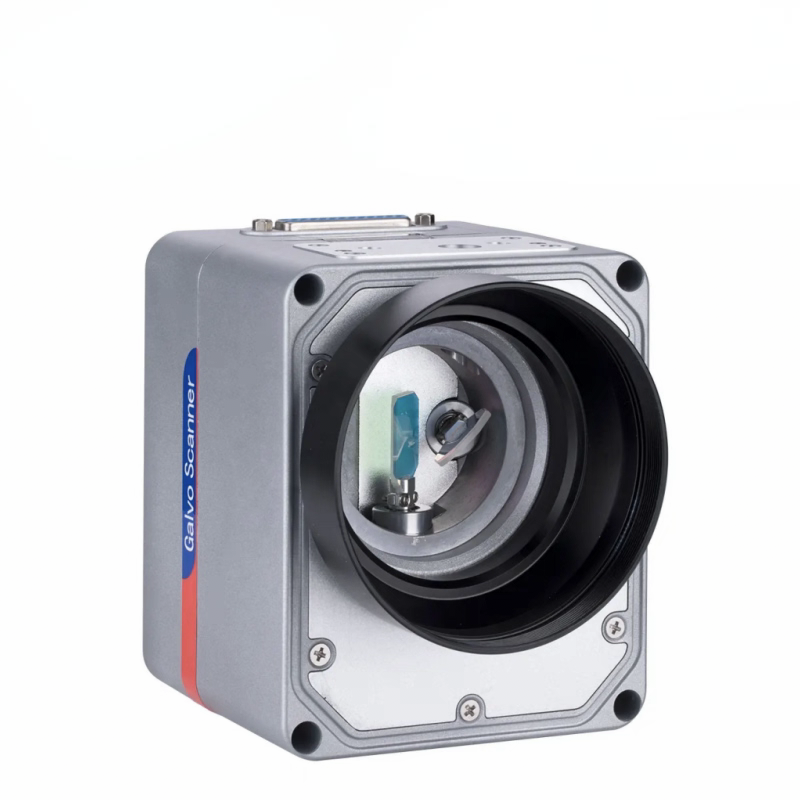

Sino-Galvo Scanner

The oscillator adopts a high-speed digital lens, featuring small size, high speed, high precision, and stable, reliable performance. Configured with double light for easy focusing.

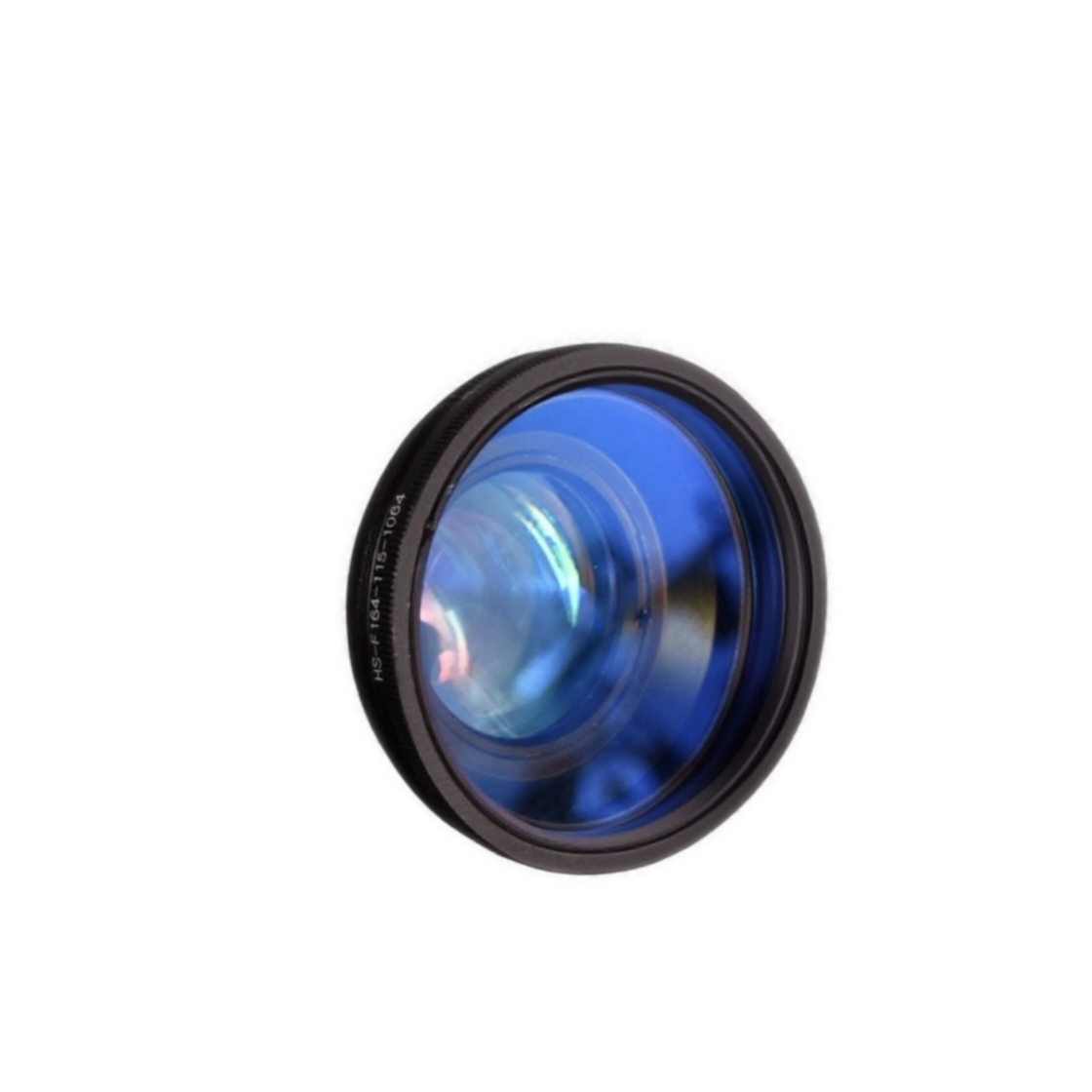

Field Lens

Made of glass or quartz material with high transmittance. A variety of specifications are available (110*110, 150*150, 175*175, 200*200, 300*300, etc.). Additional field lenses can be configured.

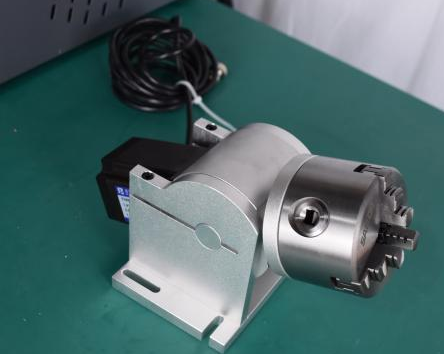

Rotary (65mm, 80mm, etc.)

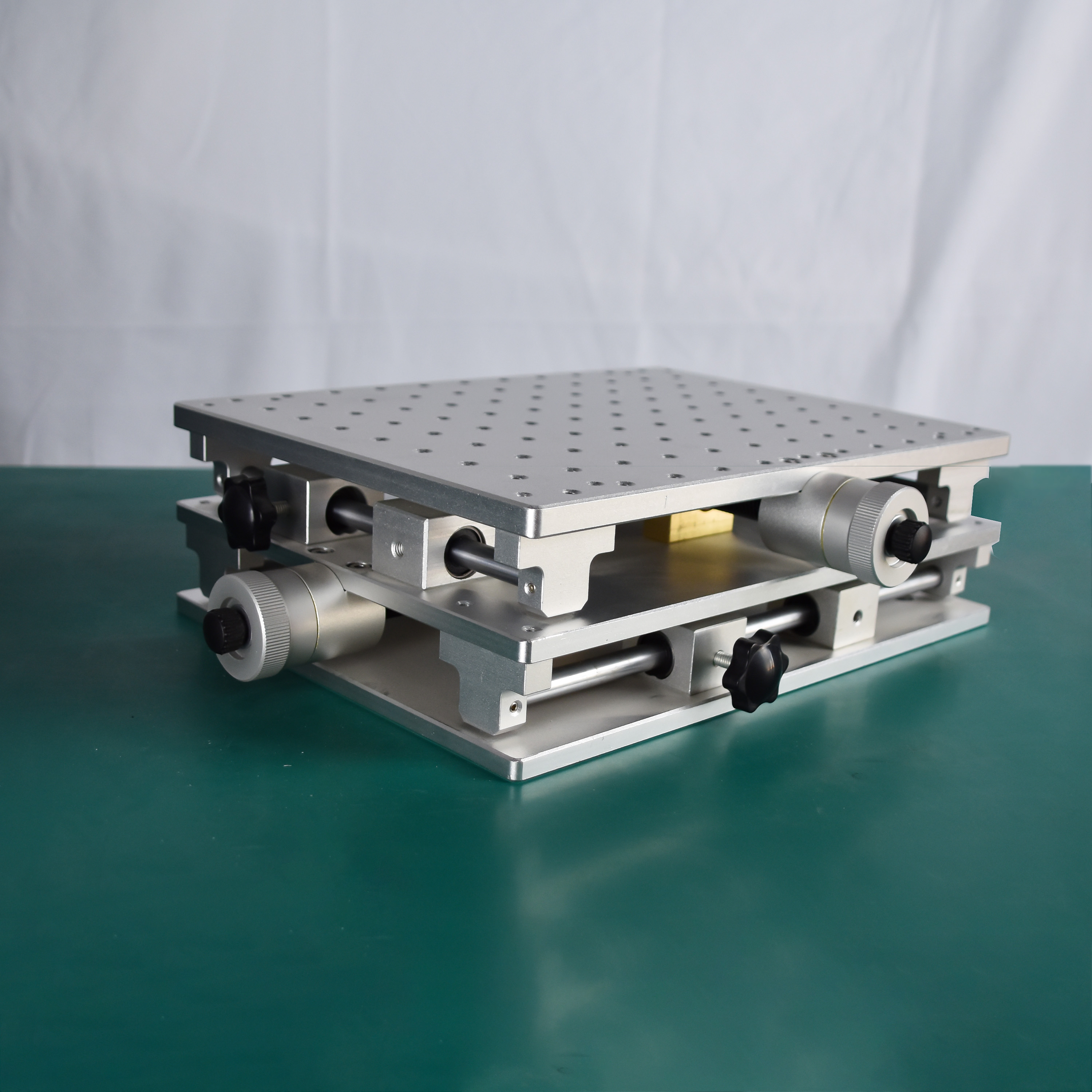

2D/3D workbench

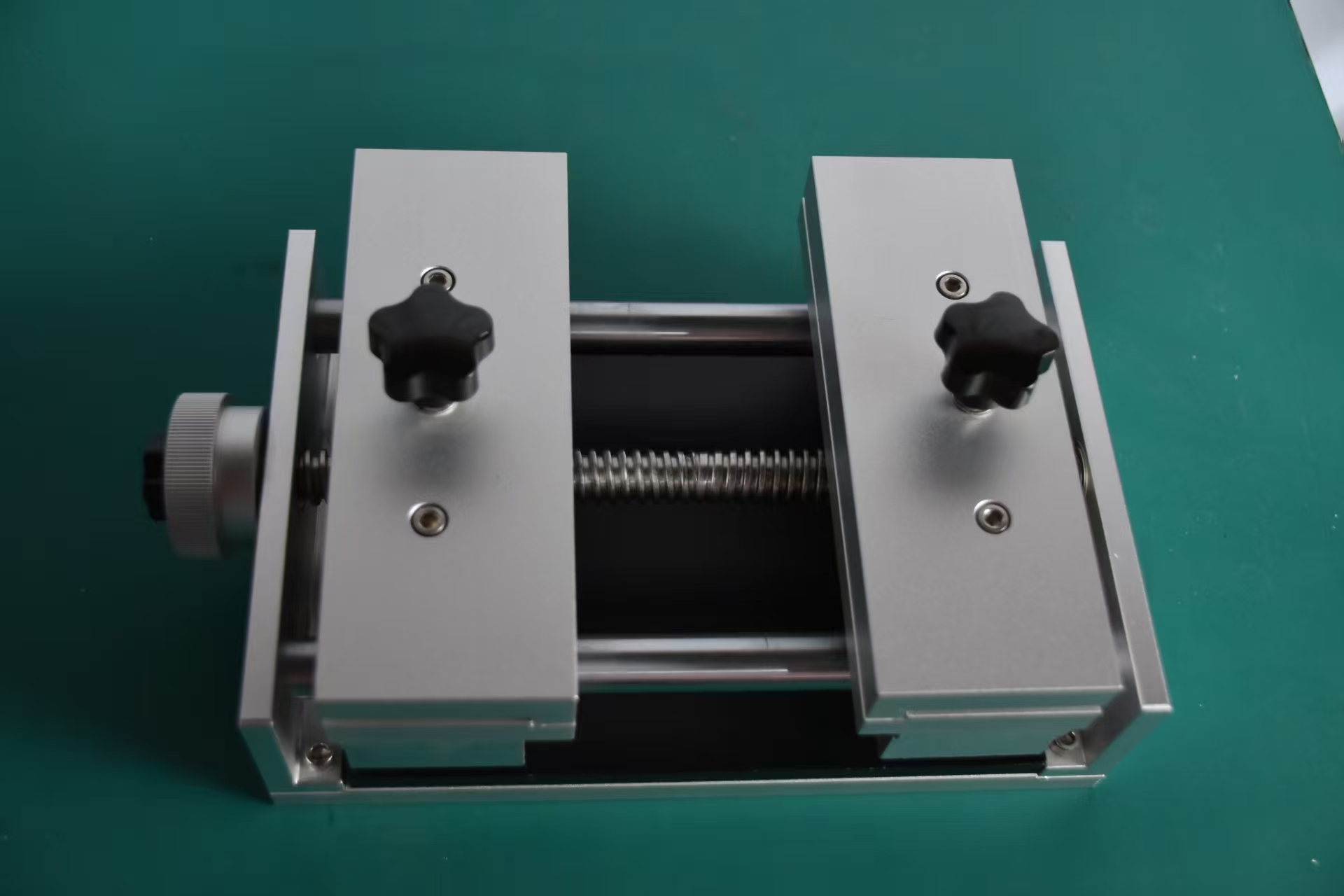

Cutting fixture

Packing and Delivery

Machine	1
Foot Switches	1
Power Cord, Data Line	1
Computer	1
Switch Button	1
Goggles	1
Focal Length Ruler	1
Tool Protection, Allen Wrench	1
Cleaning Tool	1
USB Drive	1
User Manual	1

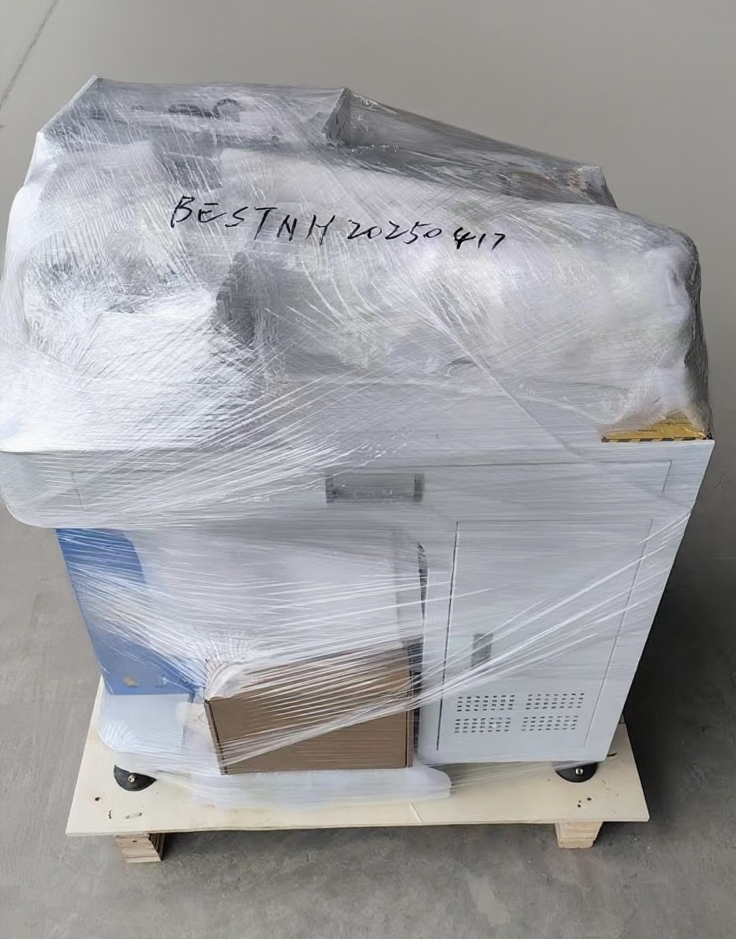

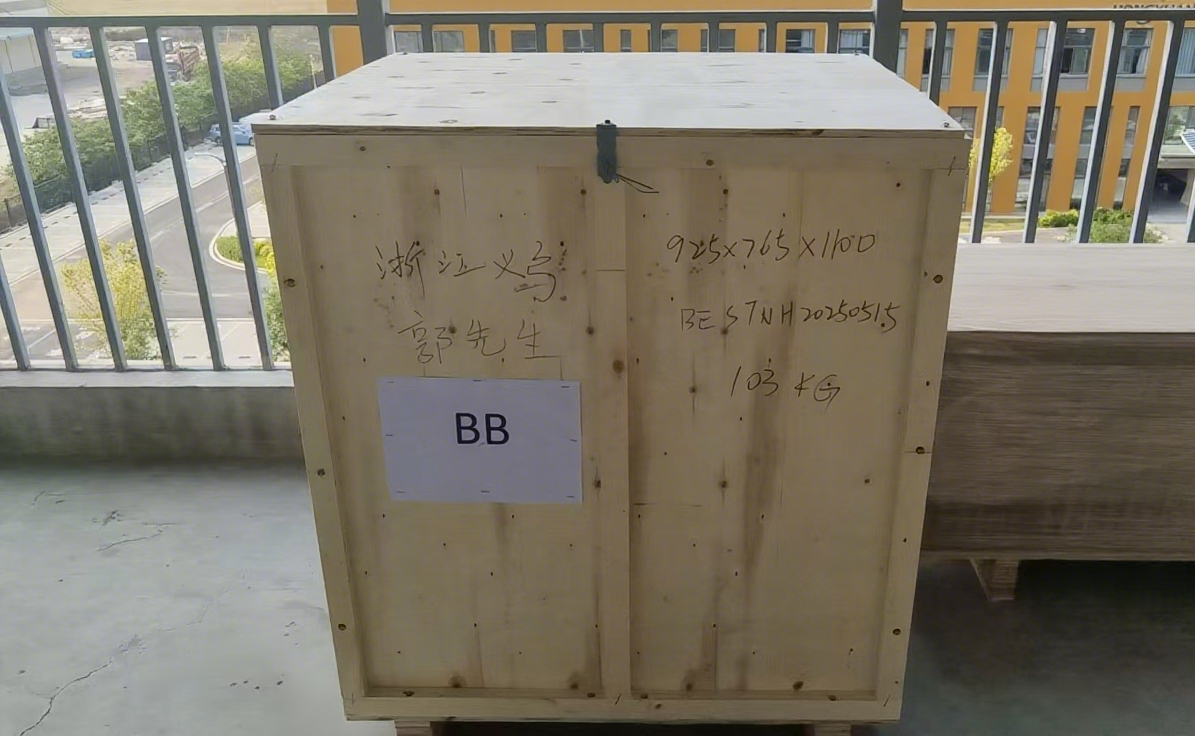

Our machine packaging uses waterproof film, anti-collision foam and wooden boxes to ensure maximum protection of the machine during transportation and avoid damage. We have established partnerships with many experienced freight companies and can provide you with a variety of transportation services including sea, railway, express and air transportation.

Frequently Asked Questions

What materials can this fiber laser marking machine engrave?

It is suitable for marking and engraving on all metals (including stainless steel, carbon steel, aluminum, brass, gold, silver) and some non-metallic materials like stone and certain types of plastics.

What laser source options and power options are available?

We offer laser sources from leading brands like MAX, Raycus, and JPT. The available power configurations include 20W, 30W, 50W, 60W, 80W, 100W, 200W, and 300W depending on your application needs.

Is the machine compatible with custom configurations?

Yes, we support personalization, including LOGO customization. Optional accessories such as different rotary sizes (65mm, 80mm), 2D/3D workbenches, cutting fixtures, and extra field lenses are also available.

What software does the marking system use and which file formats are supported?

The machine utilizes EZCAD marking software. It supports a wide variety of formats including BMP, PNG, JPG, DXF, PLT, dot matrix files, barcodes, QR codes, and variable text inputs.

How is the equipment packaged to prevent damage during shipment?

We use a multi-layer packaging process comprising waterproof film, thick anti-collision foam, and heavy-duty wooden boxes to ensure the machine arrives safely at your destination.

What accessories are included in the standard machine package?

The package includes the marking machine unit, a computer, a foot switch, power and data cords, safety goggles, a focal length ruler, an Allen wrench set, a cleaning tool, a USB drive containing system configurations, and a user manual.
