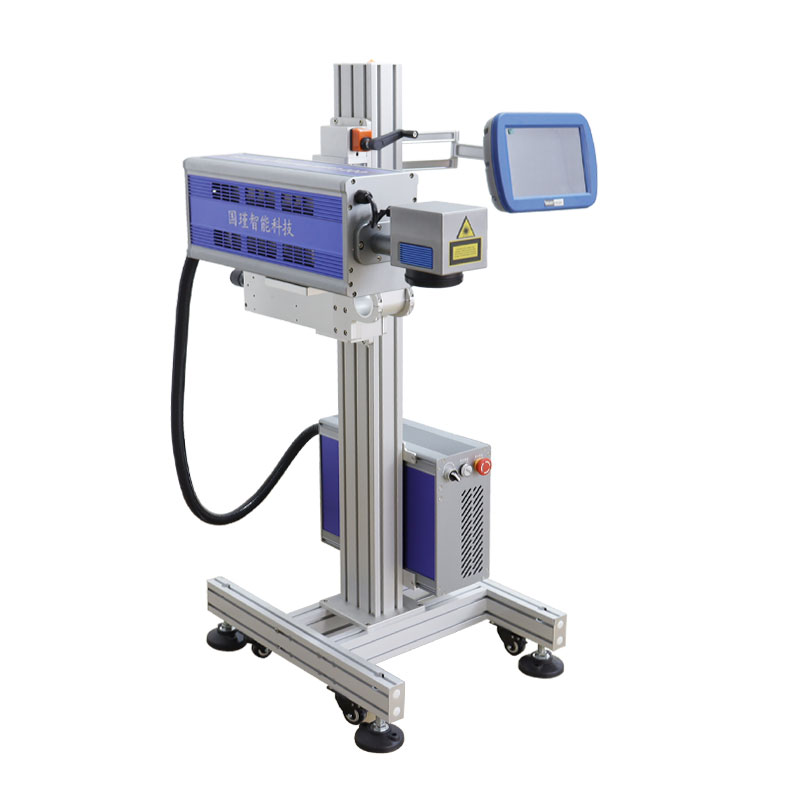

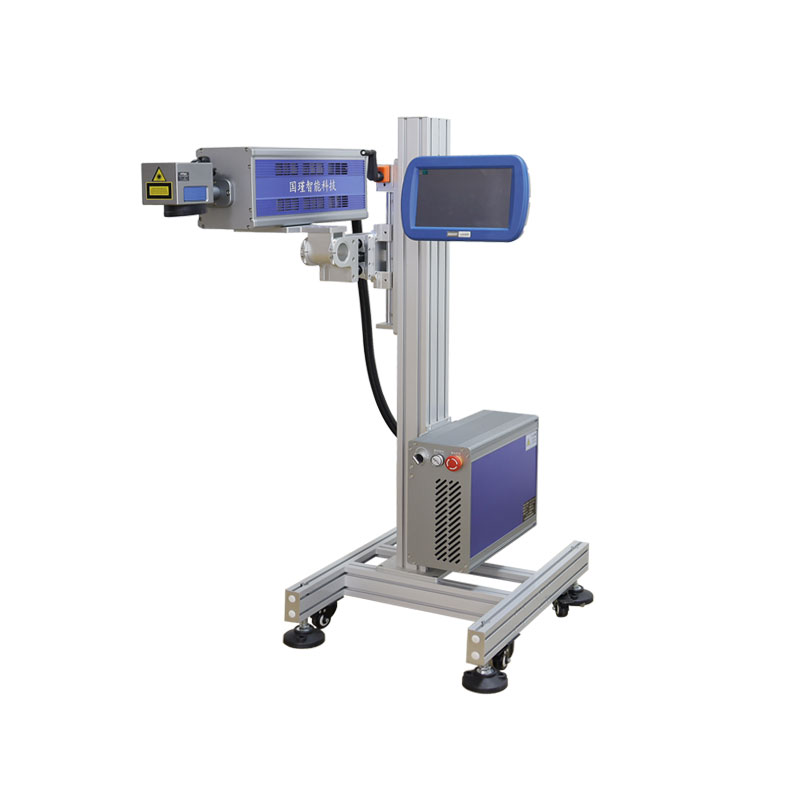

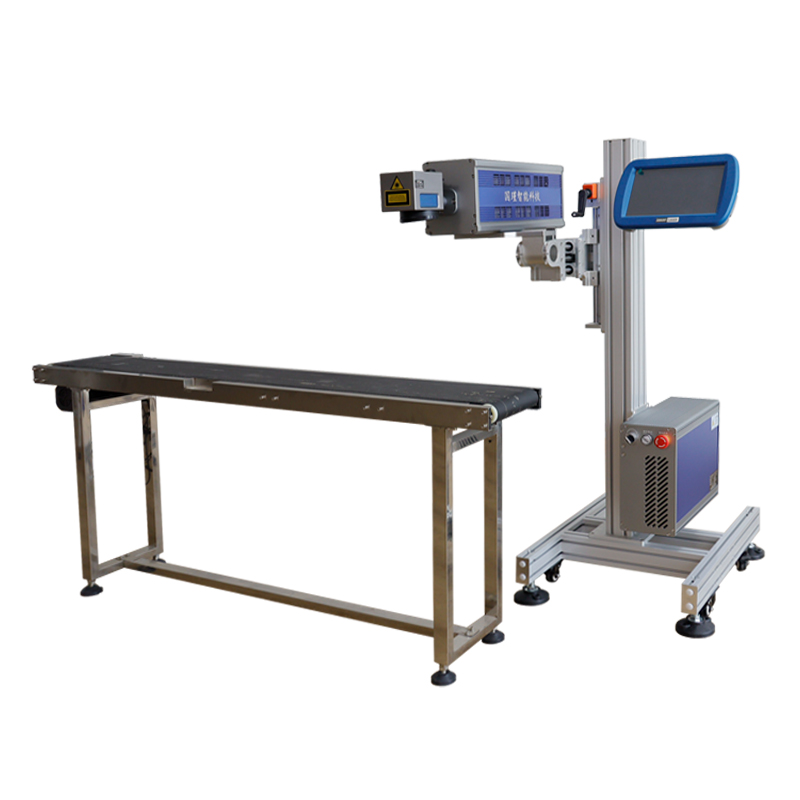

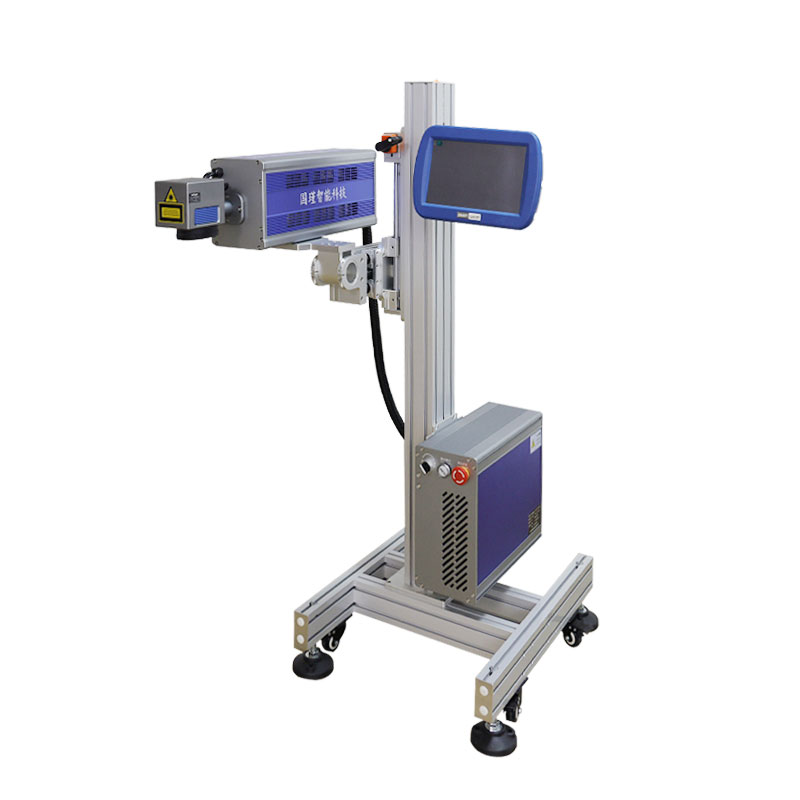

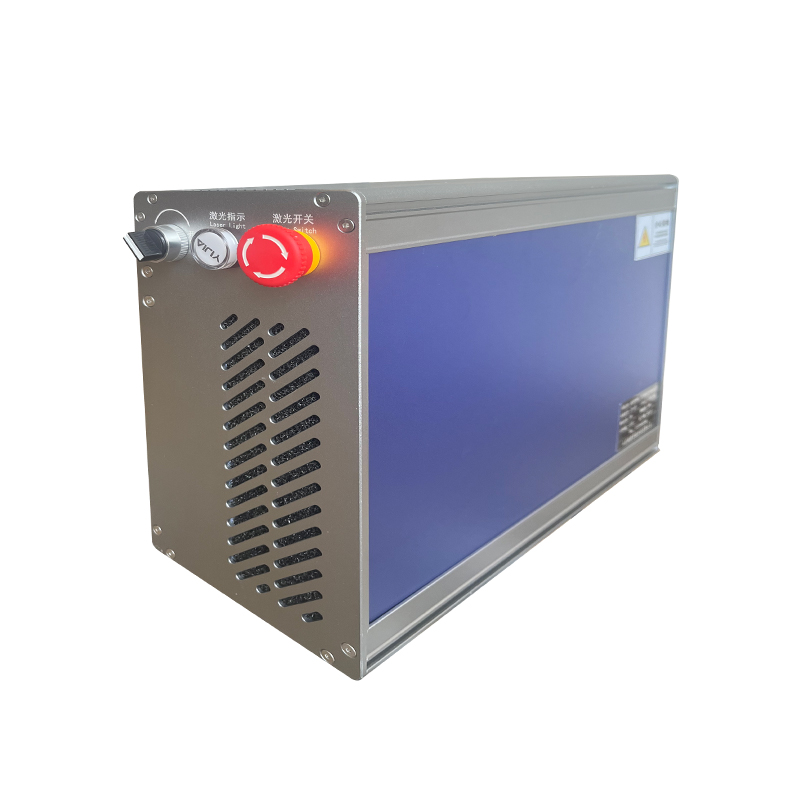

Carbon dioxide laser marking machine uses infrared band and 10.64μm gas laser to charge carbon dioxide gas into the high-voltage discharge tube to generate glow discharge, so that the gas molecules release the laser, and the laser energy is amplified to form a laser beam to process materials. The laser beam vaporizes the surface of the object for engraving purposes.
| Machine Type | Split Fiber Laser Marking Machine |
| Laser wavelength | 10.6um |
| Marking range(mm) | ≤400*400mm |
| Minimum character | 0.01mm |
| Minimum line width | 0.03mm |
| Marking speed(mm) | ≤8000 |
| Cooling method | Air cooling |
| Power | 220v/380v, 50hz/60hz, 2KVA |
| Support formats | PLT, BMP, DXF, JPG, TIF, AI, etc. |
| Laser source | CO2 |
| Laser brand | DAIVI |
| Beam Quality | 1.5-1.8 |
| Laser life | 100000 hours |
| Control software | JCZ EZCAD |
| Repeat accuracy(mm) | 0.01 |
| Size(cm) | 650mm*520mm*1480mm |
| Weight | 70kg |
| Warranty period | 2 years |
This CO2 laser marking machine is ideal for processing non-metallic materials such as wood, paper, leather, acrylic, glass, ceramics, rubber, and various plastics.
The DAIVI CO2 laser source has a long operational lifespan of up to 100,000 hours, ensuring reliable and stable performance over years of production.
The air cooling system efficiently regulates the temperature of the machine without the need for water tanks. This makes the design more compact, easier to maintain, and eliminates the risk of coolant leaks.
The machine comes with JCZ EZCAD control software and supports various file formats including PLT, BMP, DXF, JPG, TIF, and AI, allowing seamless integration with design files from CorelDraw or AutoCAD.
The machine dimensions are 650mm*520mm*1480mm and it weighs 70kg. It requires a standard power supply of 220V/380V (50Hz/60Hz) and can easily fit into standard industrial workspaces.
We offer a 2-year warranty period for the machine, which covers parts and technical support to ensure your production line operates with minimal downtime.
