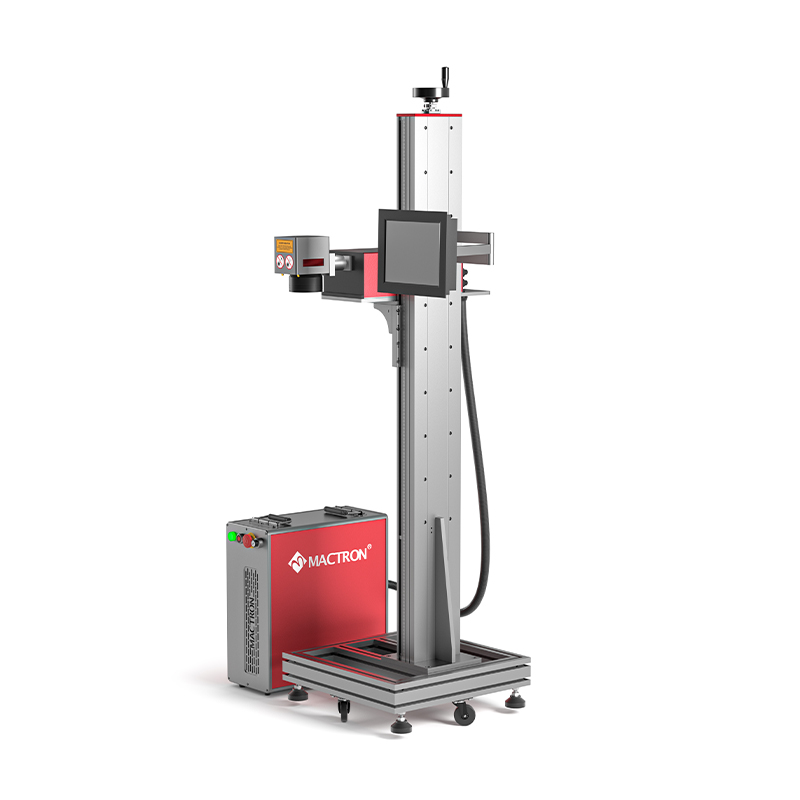

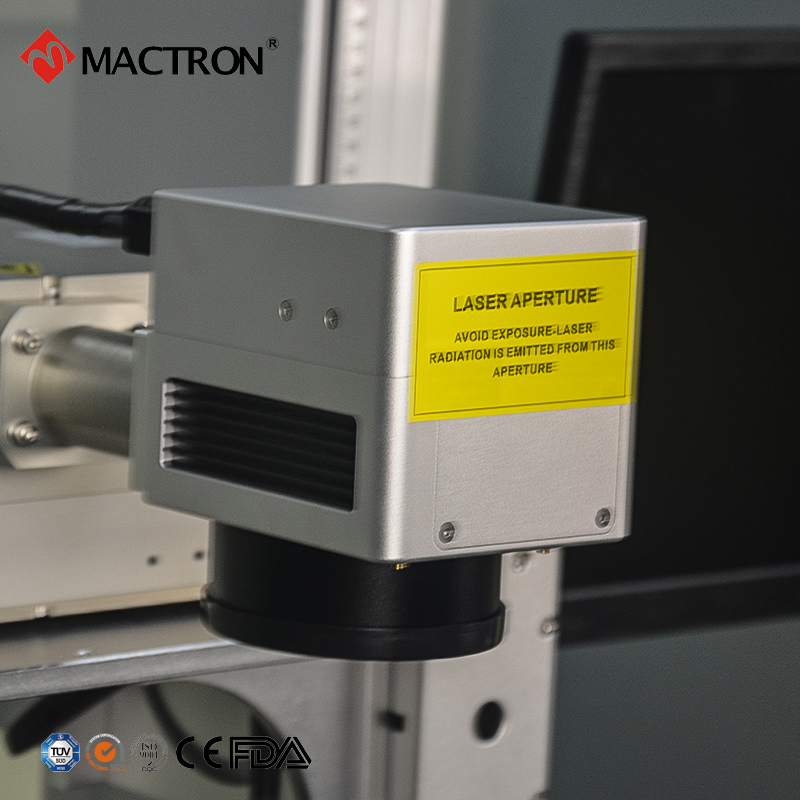

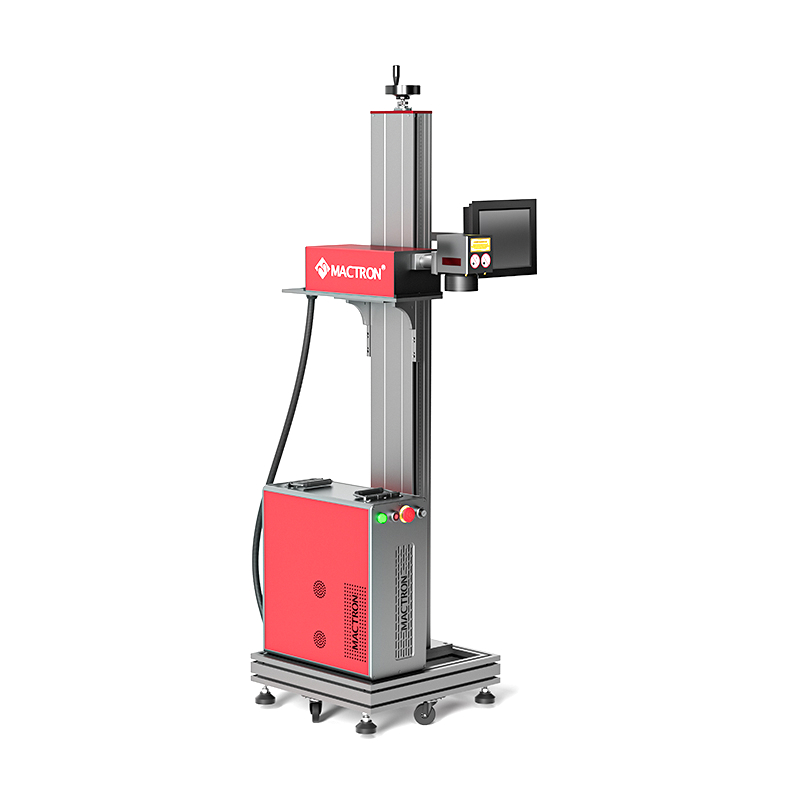

UV laser printing system adopts industrial split design, which is specially used for automatic production lines. The machine is equipped with high-quality ultraviolet laser, high-speed scanning galvanometer and dedicated flying marking system, which can be connected to production lines to mark text, numbers, pictures, and anti-counterfeiting codes on fast-moving products, which greatly improves the processing efficiency and realizes automatic production.
The uv laser printing system occupies a small space and is highly flexible, and is suitable for marking workpieces of different shapes; It can flexibly adapt to a variety of automation equipment and production lines by plugging in an intelligent interface. Moreover, the machine adopts laser flight marking control software and electronic touch screen, comprehensive functions, simple operation, easy to use, supports automatic generation of continuous serial numbers, and can meet the application requirements of extra-long distance marking and segmented marking on the material surface.
Compared with traditional inkjet printers, laser printing systems have the advantages of high speed, high flexibility, convenient operation, stable performance, long service life, and low maintenance costs.
The flying fiber laser marking machine occupies a small space and is highly flexible, and is suitable for marking workpieces of different shapes; it can be flexibly adapted to a variety of automation equipment and production lines by plugging in an intelligent interface. The machine adopts laser flight marking control software and electronic touch screen, has comprehensive functions, simple operation, easy to use, supports automatic generation of continuous serial numbers, and can meet the application requirements of extra-long distance marking and segmented marking on the material surface.
| Parameter | Details |
|---|---|
| Model | MT-OL3U/MT-OL5U/MT-OL10U |
| Laser Type | UV Lasers |
| Wavelength | 355nm |

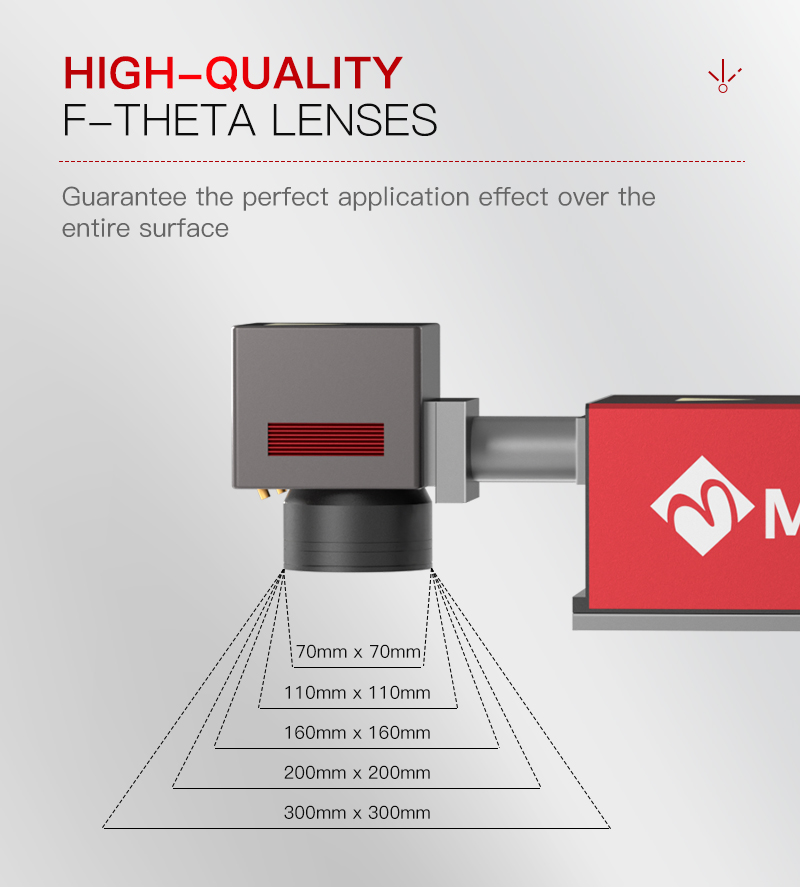

| Processing Area | 50*50MM, 70*70MM, 110*110MM (Optional) |
| Configuration Notes | OL = Online, U = UV Lasers, Customized Specification is Available |
| Frequency Range | 20-80Khz |
| Beam Quality | <2M2 |
| Laser Source Lifetime | ≤100000h |
| Marking Speed | ≤15000MM/S |
| Marking Depth | ≤0.1MM |
| Repetition Precision | ±0.01MM |
| Min. Line Width | 0.02MM |
| Min. Character | 0.5MM |
| Cooling Mode | Air, Water Cooling |
| Graphic Formats Supported | PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG |
| Power Source | AC 110/220V±10%, 50/60Hz |
| Work Environment | Temp: 10~40℃, Humidity : 5 ~80 %, Clean, Less Dust |
One-to-one service, quick response, providing operation videos, English manuals, process parameters, and other technical information. Includes a two-year warranty.
It is suitable for marking on the vast majority of metal and non-metal materials, especially for the high-end market of ultra-fine processing. The UV laser machine marks on the surface of packaging bottles of cosmetics, drugs, food and other polymer materials, offering fine marking effects, clear and permanent marks, which is superior to inkjet printing and pollution-free; flexible PCB plate marking, scribing; silicon wafer micro hole and blind hole processing; LCD smart glass QR code marking, glassware surface drilling, metal surface coating marking, plastic buttons, electronic components, gifts, communication equipment, building materials, etc.

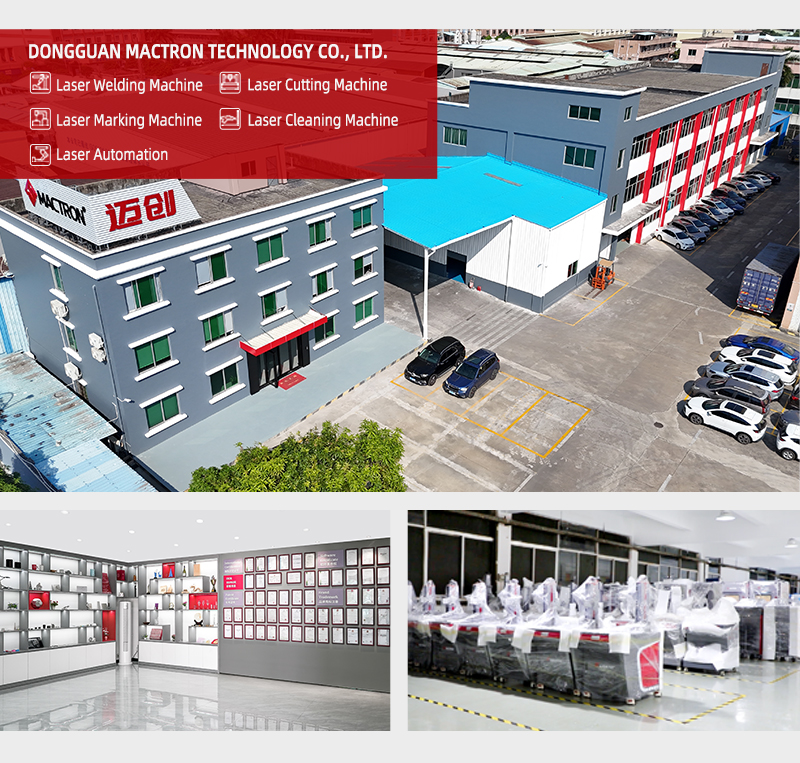

Main products range includes: Laser Marking Machines, Laser Cutting Machines, Laser Welding Machines, Laser Engraving Machines, Laser Cleaning Machines, Laser automation and industry intelligence solutions. The laser equipment system is widely used in many fields, including electronic communications, clothing, leather, jewelry, hardware tools, printing and packaging, advertising decoration, automobile and motorcycle parts, mechanical molds, and aviation components, craft gifts, sanitary ware, lighting, home appliances and many other industries.
