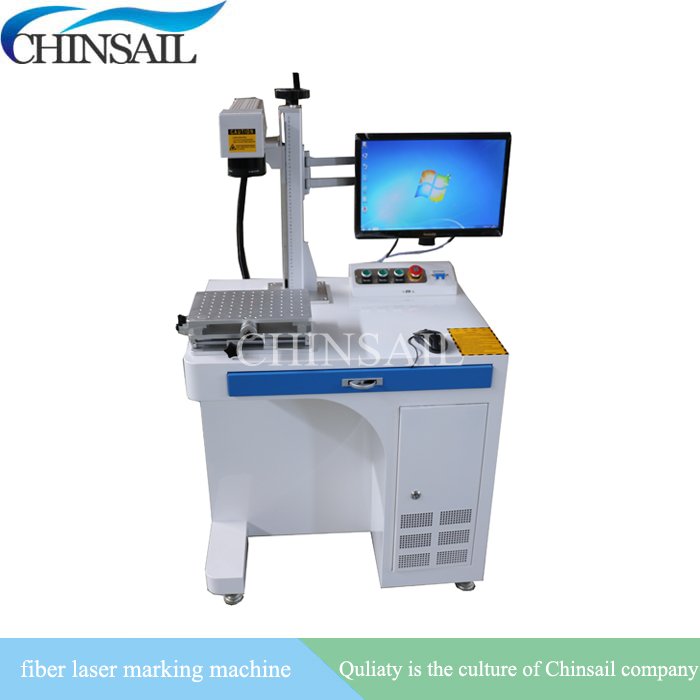

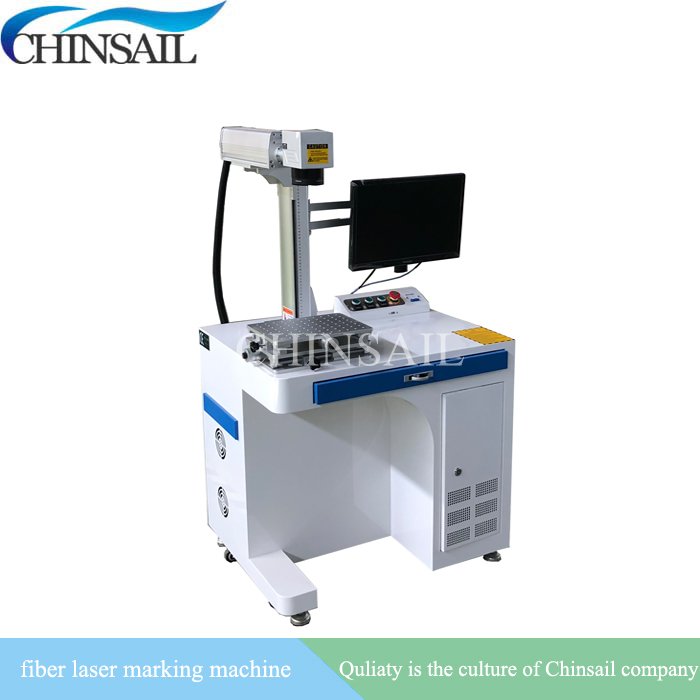

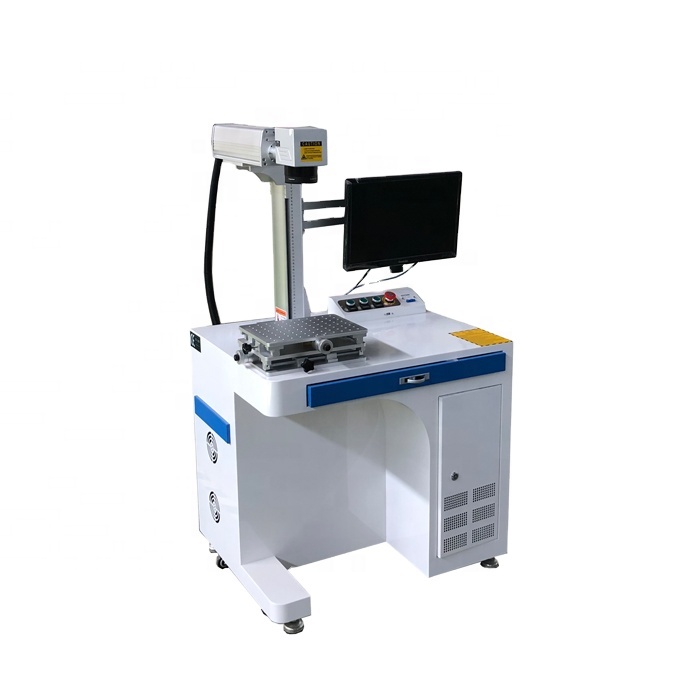

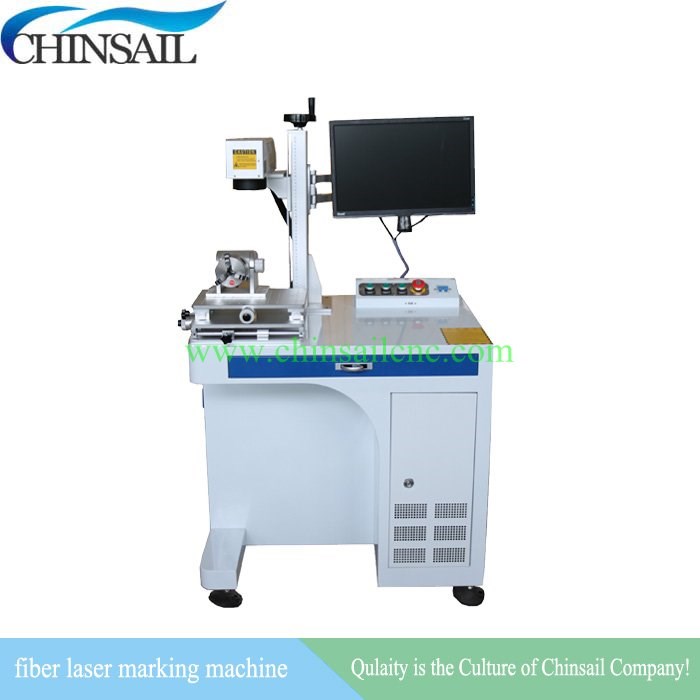

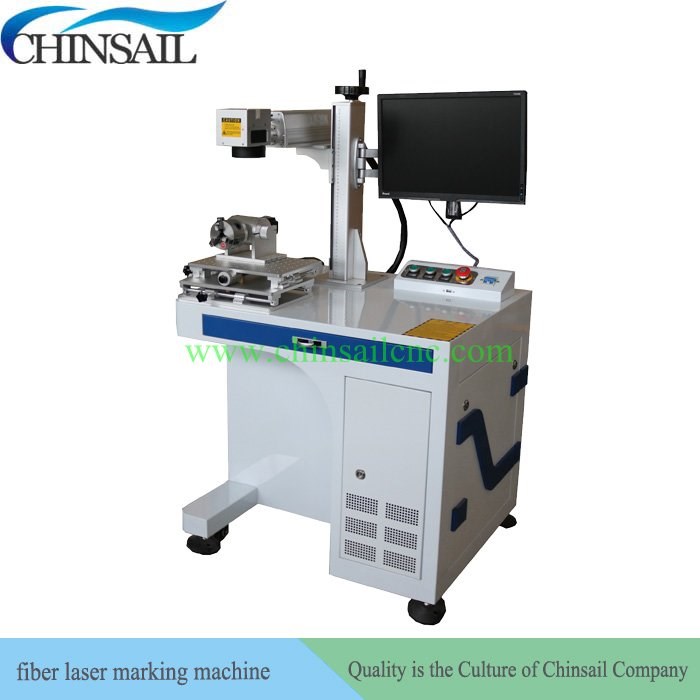

Mainly used for high-precision marking on metal and non-metal materials.

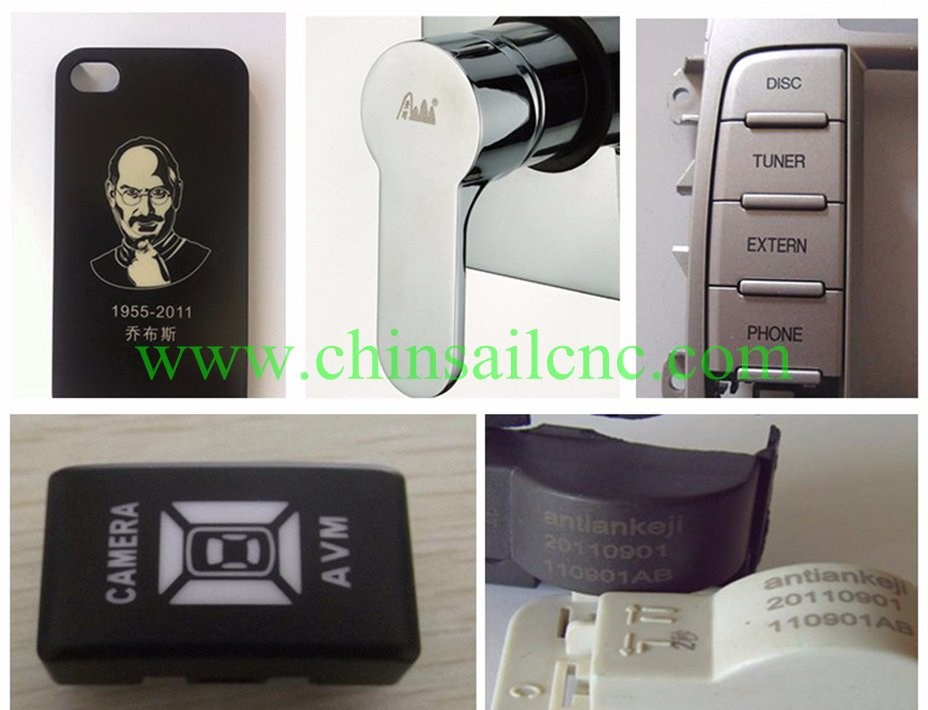

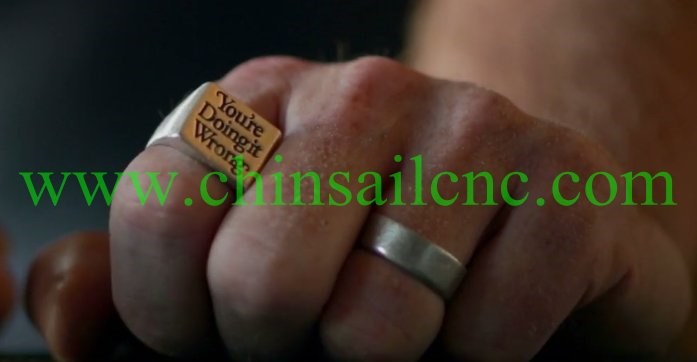

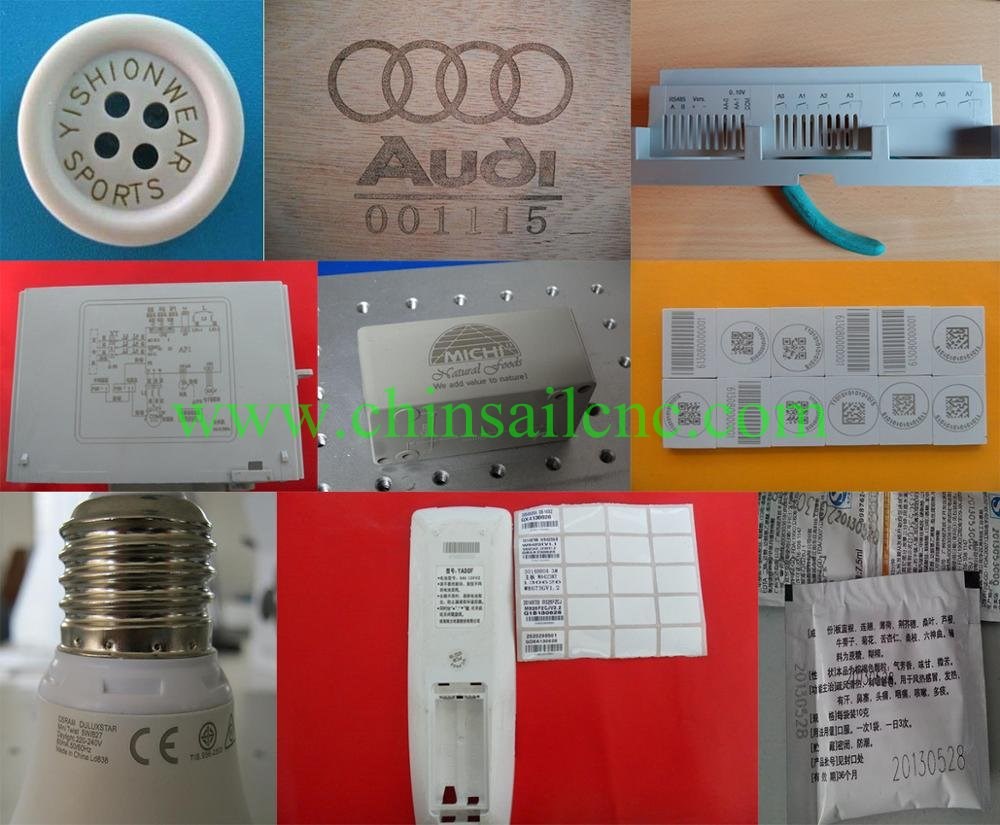

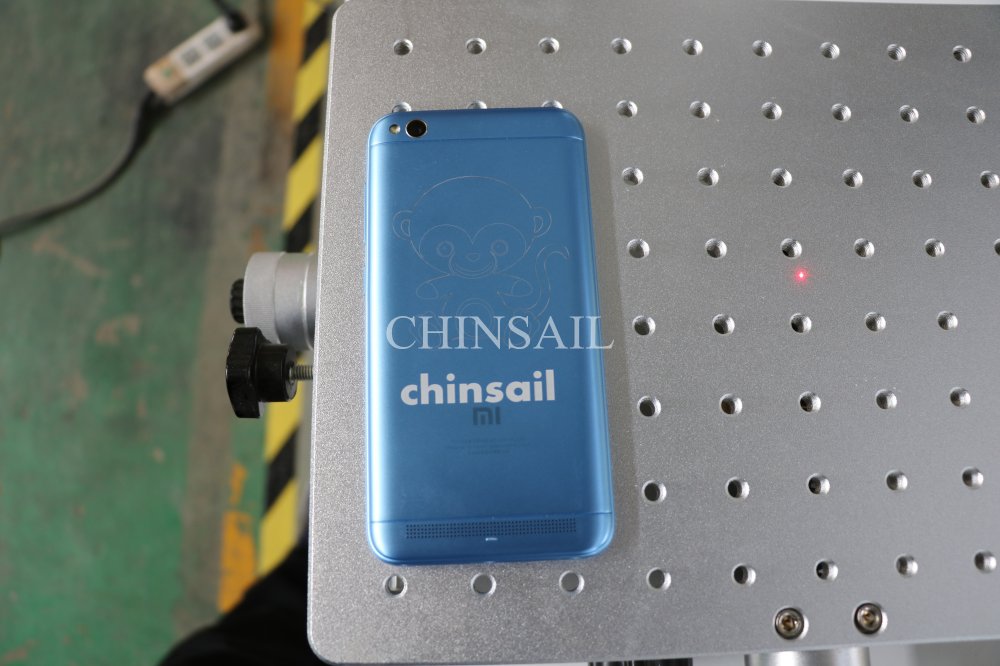

Ideal for mobile phone buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, medical device industry, jewelry, glass, clocks, auto parts, luggage buckles, cooking utensils, stainless steel products, and more.

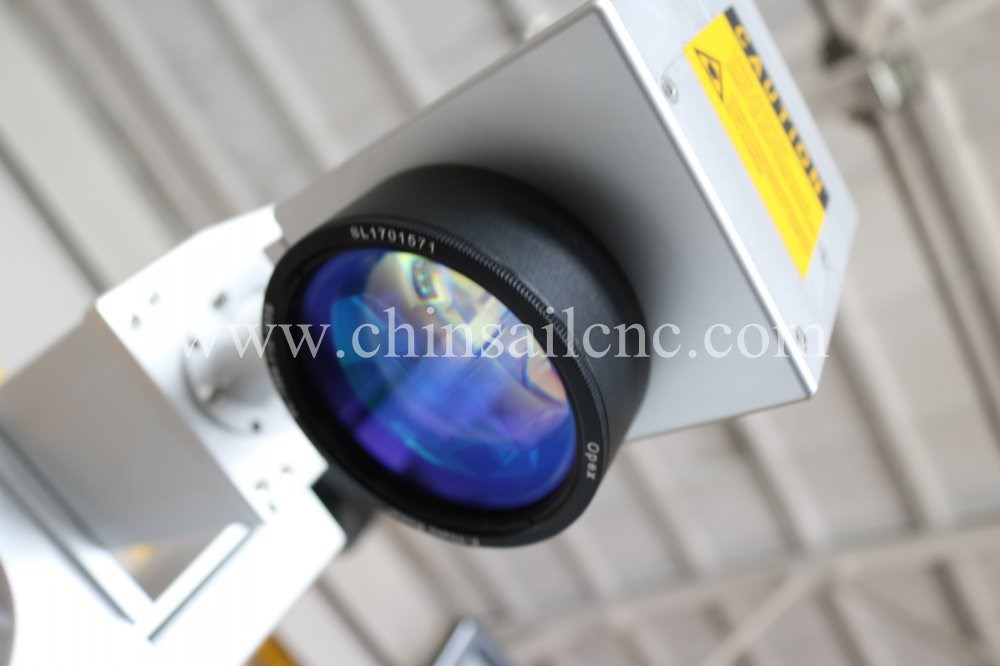

Imported wave length technology components for superior focus and clarity.

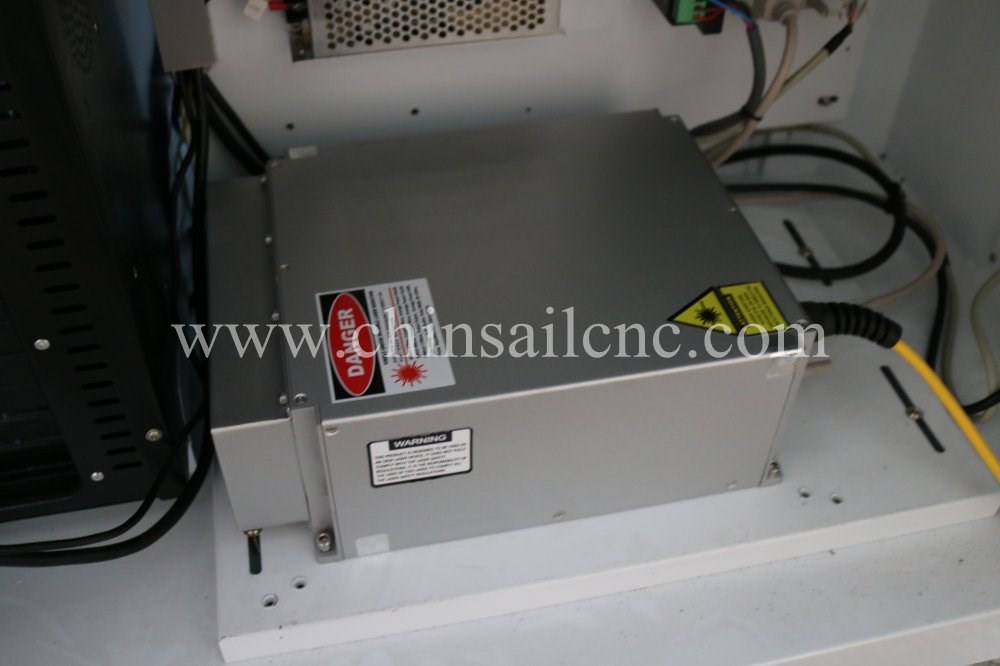

Optional configurations: Raycus / IPG / JPT MOPA / MAX based on operational needs.

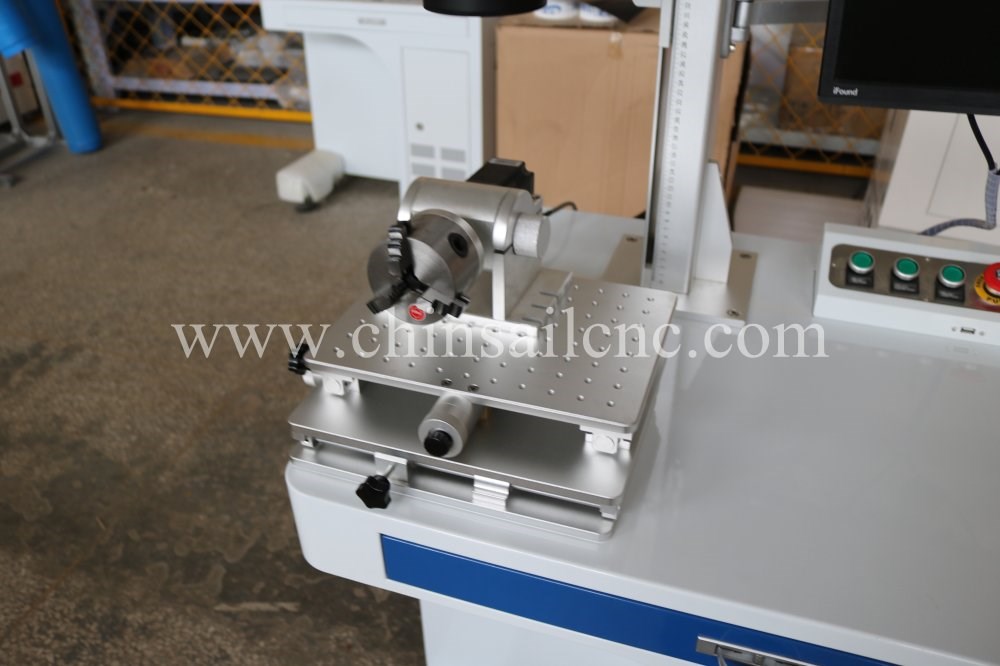

Enables high precision engraving for cylinder materials.
| Model | CXFiber |
| Laser power | 20w (30w/50w for option) |
| Laser Wavelength | 1065±10nm |
| Q-frequency | 20KHz~100KHz |
| Divergence | 0.3mard |
| Marking range | 0~300mm*300mm |
| Minimum line width | 0.01mm |
| Minimum character | 0.1mm |
| Marking speed | 10000mm/s |
| Marking depth | 0 ~0.5mm |
| Engraving line speed | ≤7000mm/s |
| Repeatability accuracy | ±0.001mm |
| Beam quality | M2:1.2~1.8 |
| Marking Format | Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency, etc. |
| Graphic format supported | bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc. |
| Working voltage | 110/220V±10% 50/60Hz |
| Unit power | <0.5kw |
| Use of the environment | Clean and dust free or dust less |
| Working condition: Temperature | 10°C-40°C |
| Working condition: Humidity | 5% free of condensed water |
| Laser module life | >100000 hours |
| Net weight | 98kg |
| Packing size | 760*680*770mm |
Double Protective Packaging:
1. The laser machine is first wrapped carefully with plastic sheeting to ensure clean delivery and complete damp proofing.
2. The wrapped laser machine is securely placed inside a heavy-duty plywood case designed to protect the equipment from clashing and structural safety hazards during transit.
3. Fast and safe containment loading processes ensure stable shipping directly to your destination.
