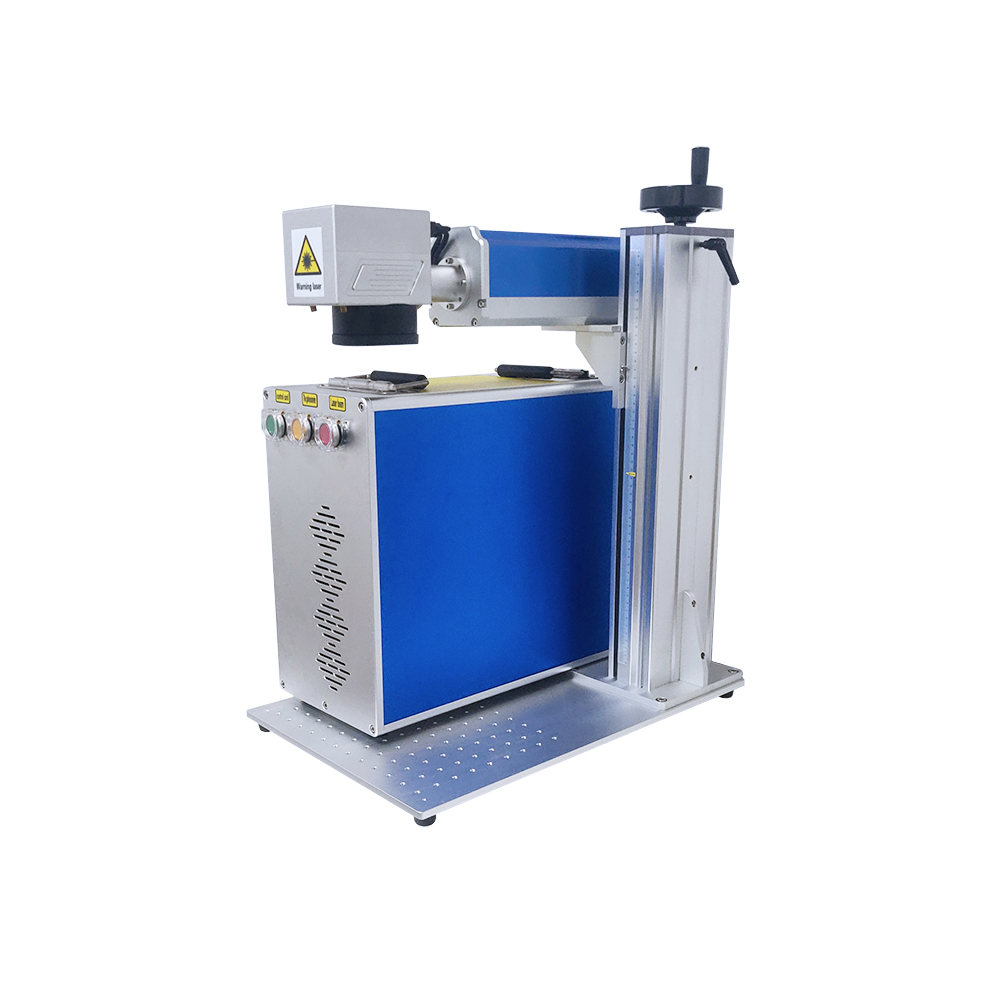

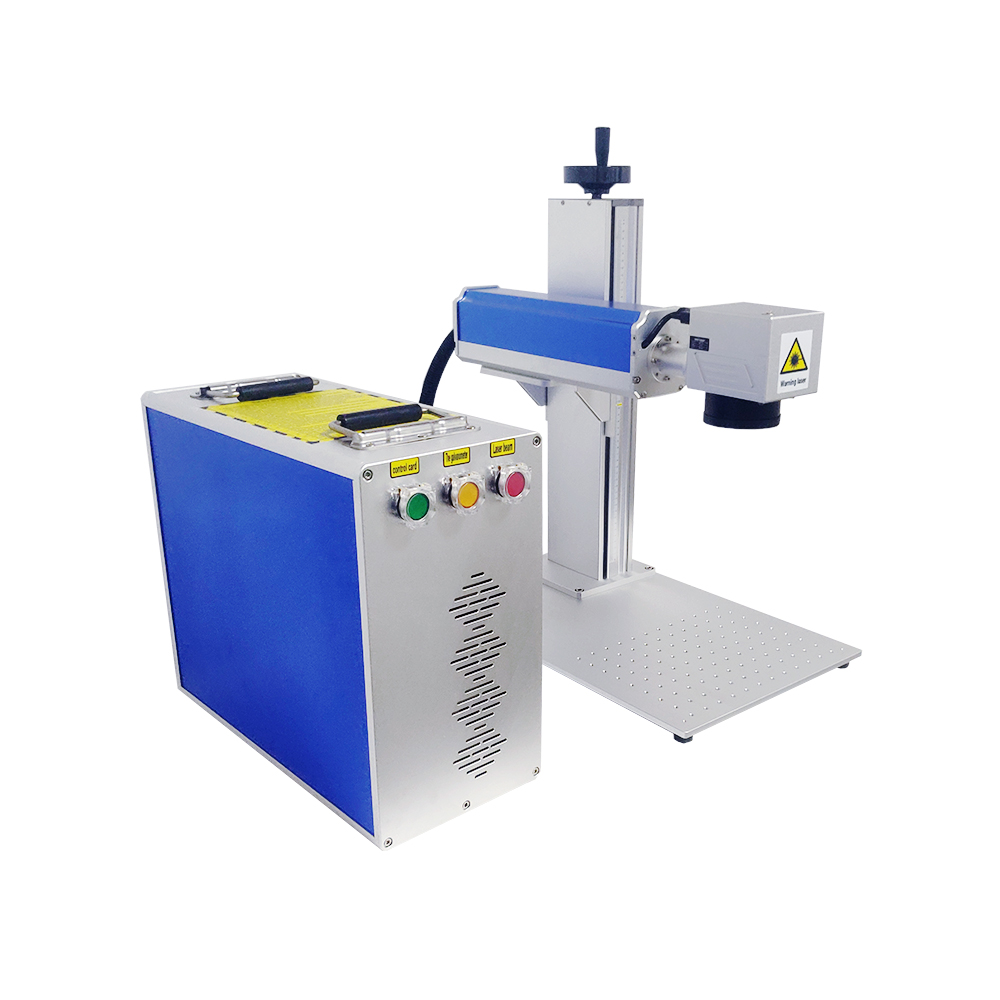

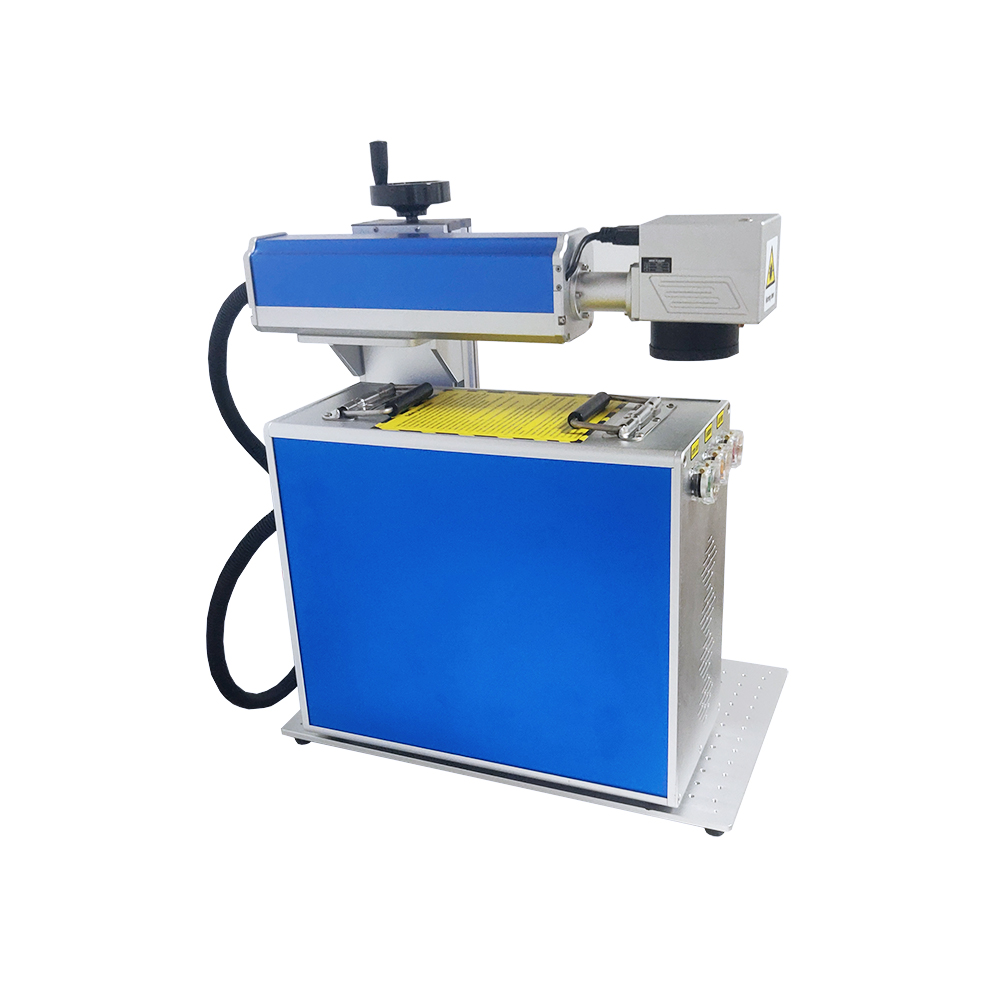

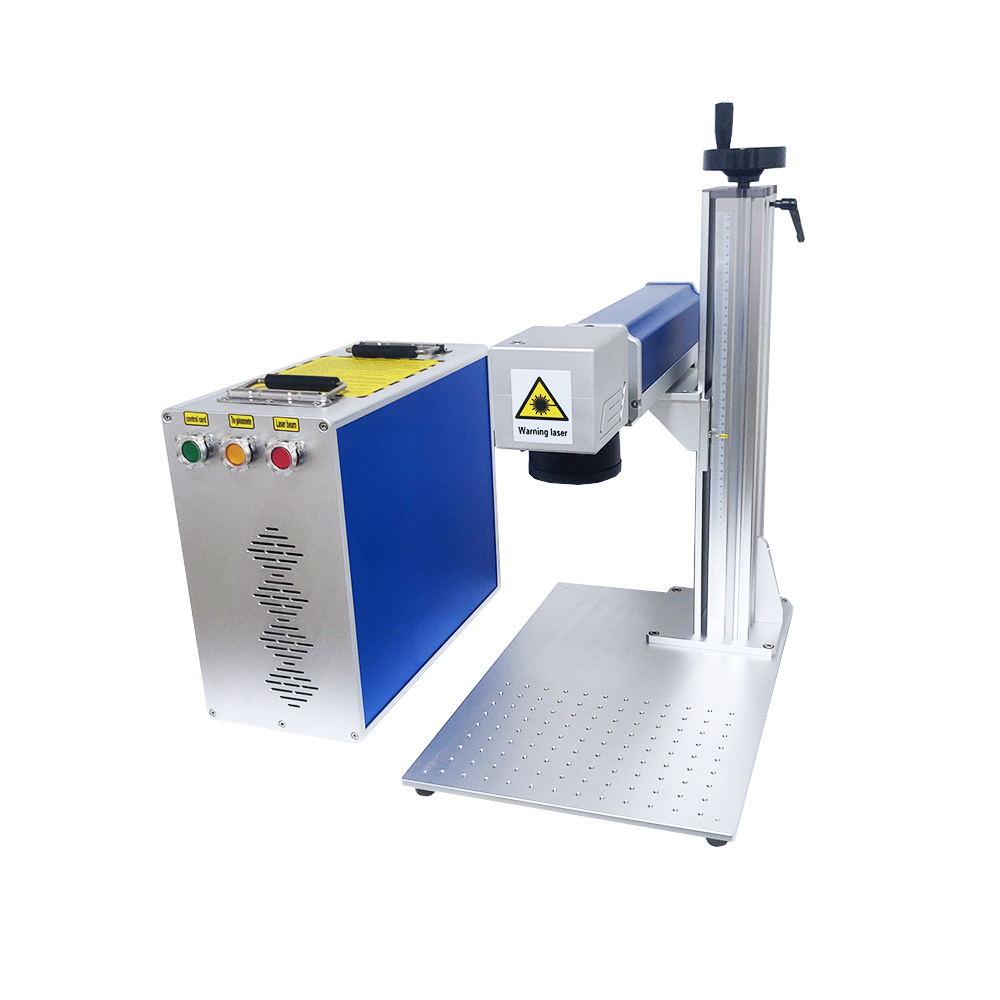

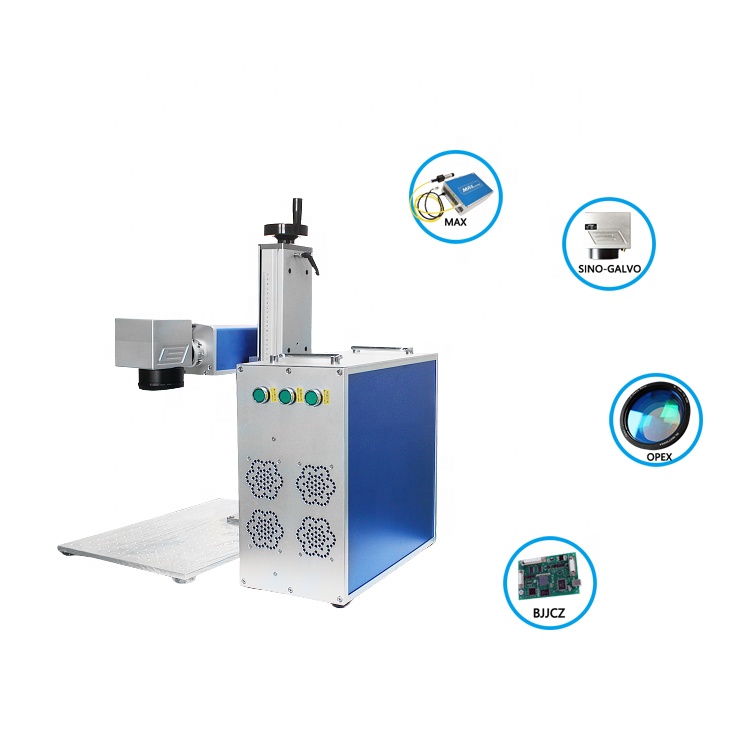

20w 60w 80w Mopa Fiber Laser 100w Laser Marking Machine Jewelry Metal Silver Gold Laser Engraving Machine
20w 60w 80w Mopa Fiber Laser 100w Laser Marking Machine Jewelry Metal Silver Gold Laser Engraving Machine
20w 60w 80w Mopa Fiber Laser 100w Laser Marking Machine Jewelry Metal Silver Gold Laser Engraving Machine
20w 60w 80w Mopa Fiber Laser 100w Laser Marking Machine Jewelry Metal Silver Gold Laser Engraving Machine
20w 60w 80w Mopa Fiber Laser 100w Laser Marking Machine Jewelry Metal Silver Gold Laser Engraving Machine
1 / 5
20w 60w 80w Mopa Fiber Laser 100w Laser Marking Machine Jewelry Metal Silver Gold Laser Engraving Machine
20w 60w 80w Mopa Fiber Laser 100w Laser Marking Machine Jewelry Metal Silver Gold Laser Engraving Machine
20w 60w 80w Mopa Fiber Laser 100w Laser Marking Machine Jewelry Metal Silver Gold Laser Engraving Machine
20w 60w 80w Mopa Fiber Laser 100w Laser Marking Machine Jewelry Metal Silver Gold Laser Engraving Machine
20w 60w 80w Mopa Fiber Laser 100w Laser Marking Machine Jewelry Metal Silver Gold Laser Engraving Machine

20w 60w 80w Mopa Fiber Laser 100w Laser Marking Machine Jewelry Metal Silver Gold Laser Engraving Machine

Send Inquiry

Product Description

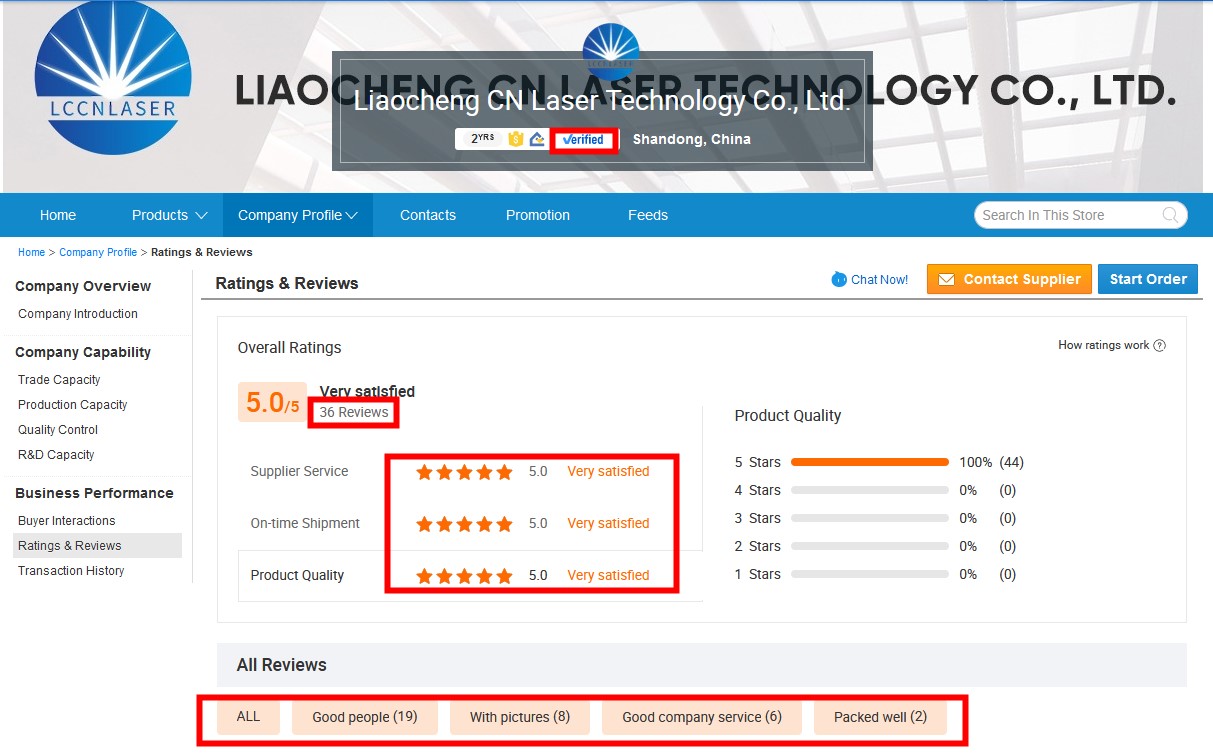

Quality Promise

Whatever we promise, we will do it.

If you have any requirements, feel free to ask us.

Quality & service second, to ensure your satisfaction.

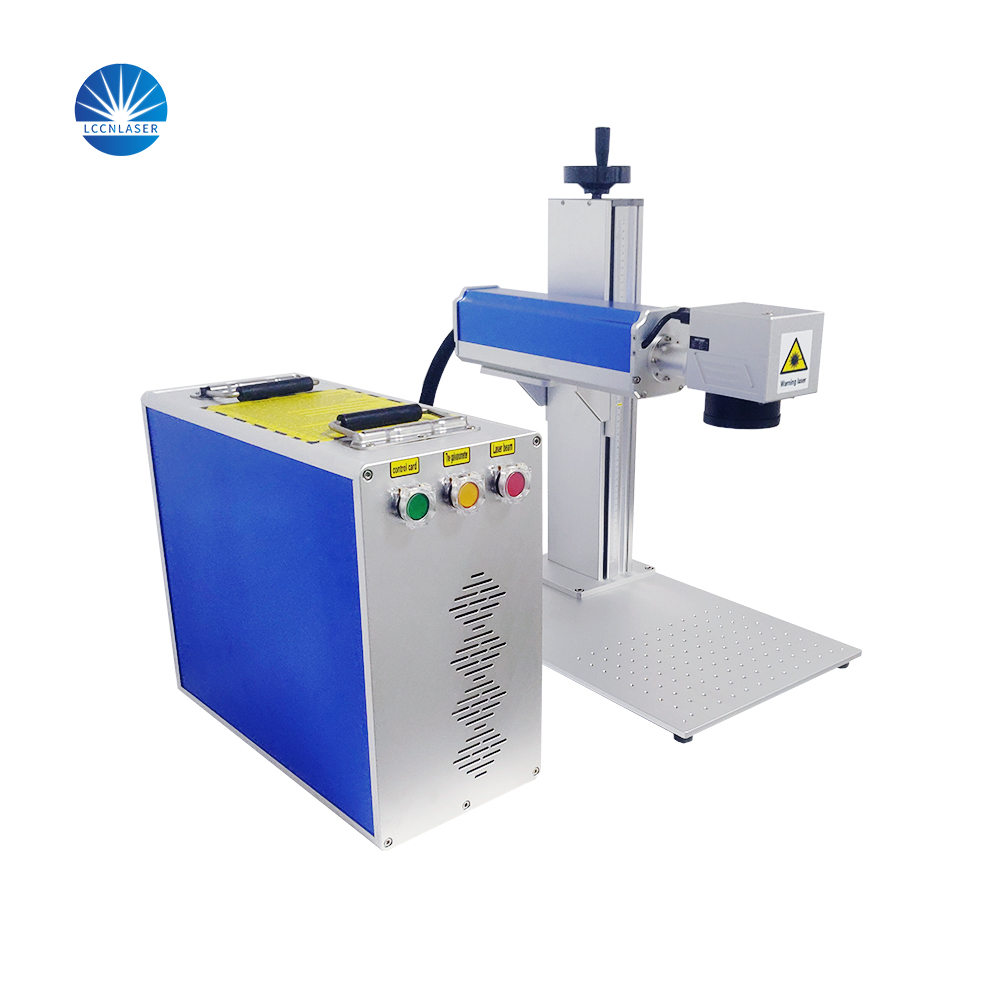

Product Intro
Product Description
Laser Type fiber laser
Laser Power 20W 30W 50W 60W
Model CN-20W/30W/50W/60W
Laser Wavelength 1064nm
Marking Area 75*75mm 110*110mm 150mm*150mm 175mm*175mm 200*200mm 300*300mm
Marking Depth ≤1.2mm
Marking Speed 10000mm/s
Minimum Line Width 0.012mm
Minimum Character 0.15mm
Repeated Precision ±0.003mm
Life-span of Fiber Laser Module 100,000 hours
Beam Quality M2 <1.5
Focus Spot Diameter <0.01mm
Output Power of Laser 10%~100% continuously to be adjusted
System Operation Environment Windows XP /7/8/10 32/64bits
Temperature of Operation Environment 15°C ~ 35°C
Power Input 220/110v single phase
Power Requirement <400W
Communication Interface USB
Machine Dimension/after package 760*680*770mm
Optional Rotary Device, Moving Table, other customized Automation
Detailed Images

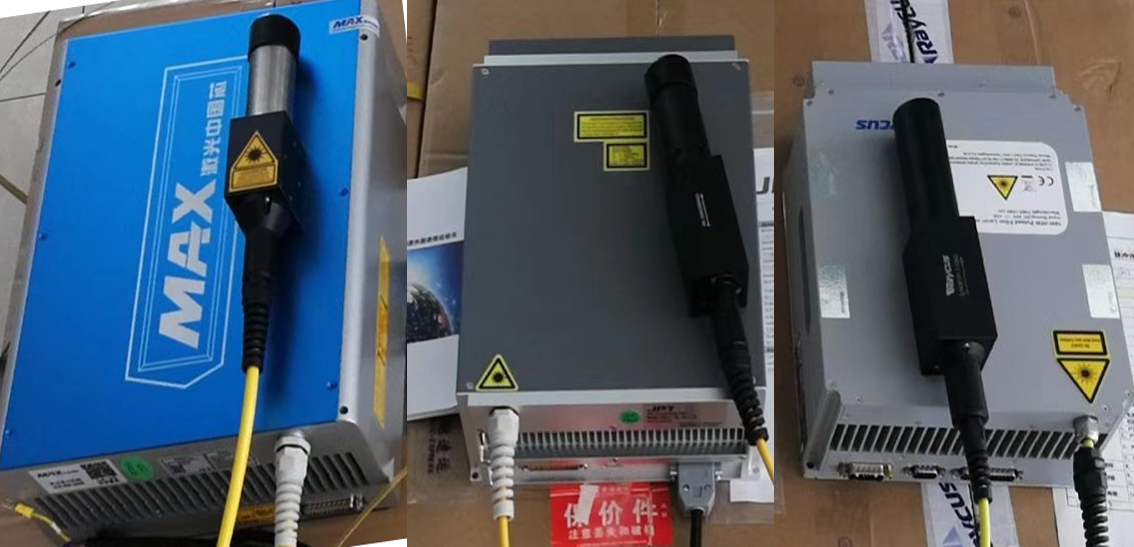

Laser Source
Laser Source (Optional)
We have good enough Laser source in stock: MAX, RAYCUS, JPT, IPG. You can choose which you prefer.

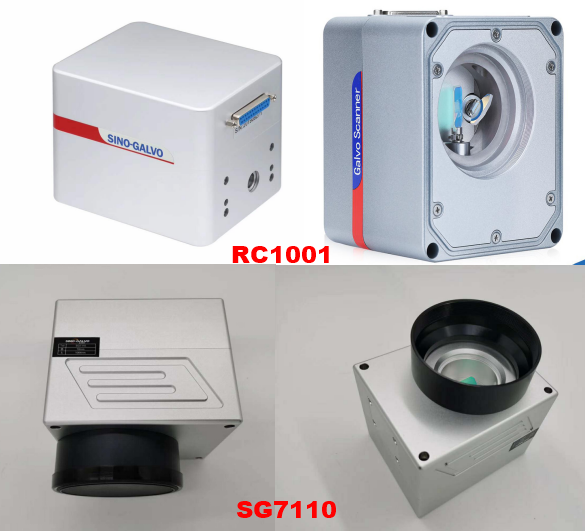

Sino-galvonometer
Sino-galvanometer (or other brand, optional)
The machine with automatic scanning system, friendly operation process. With 7000mm/s marking speed, 0.001mm repeat precision.

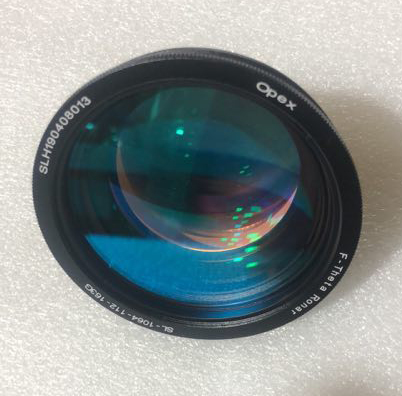

Opex Lens
Opex Lens
High precision lens from OPEX. Working area: 50*50mm / 75*75mm / 110*110mm / 150*150mm / 175*175mm / 200*200mm / 300*300mm.

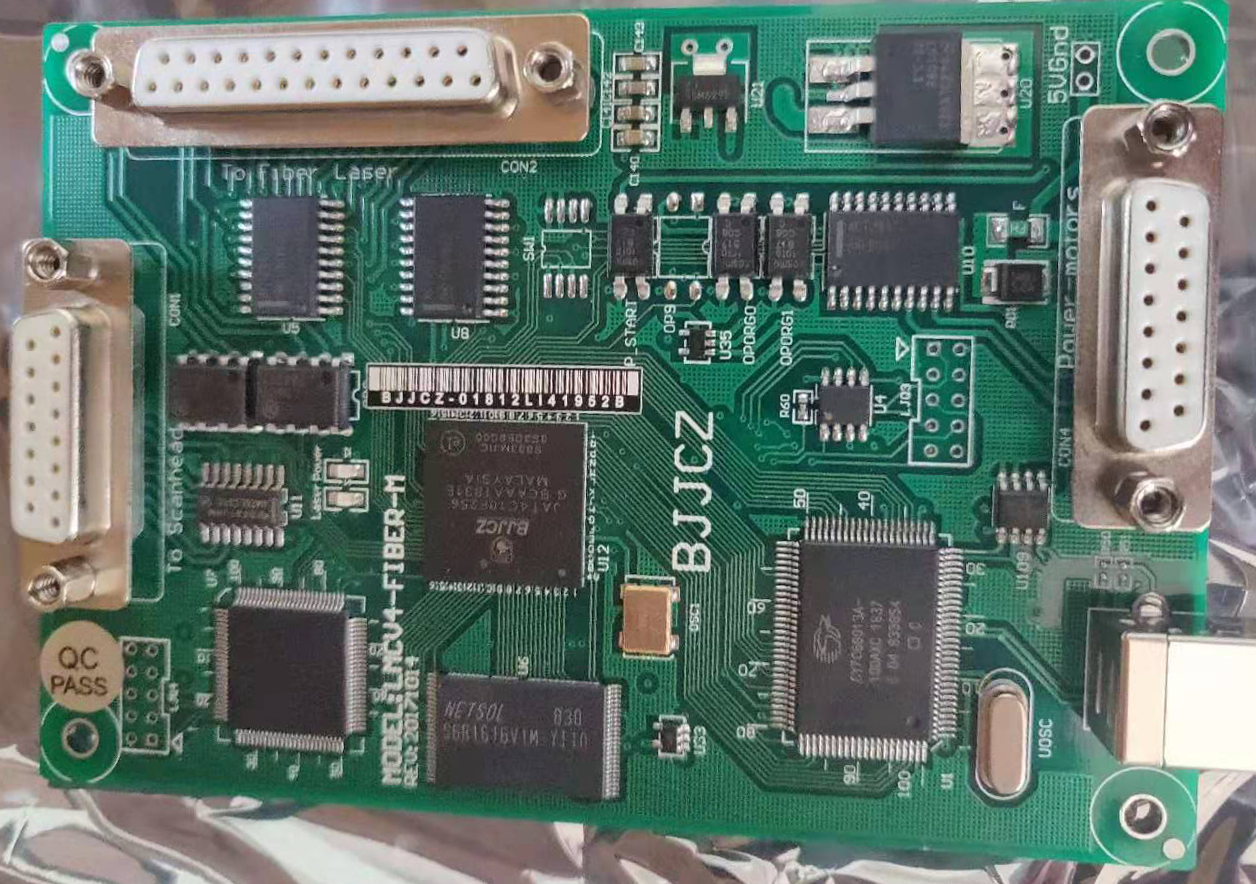

Original controller cards
Original Controller Cards
BJJCZ control card, support for all Windows systems, stable and faster work with the machine.

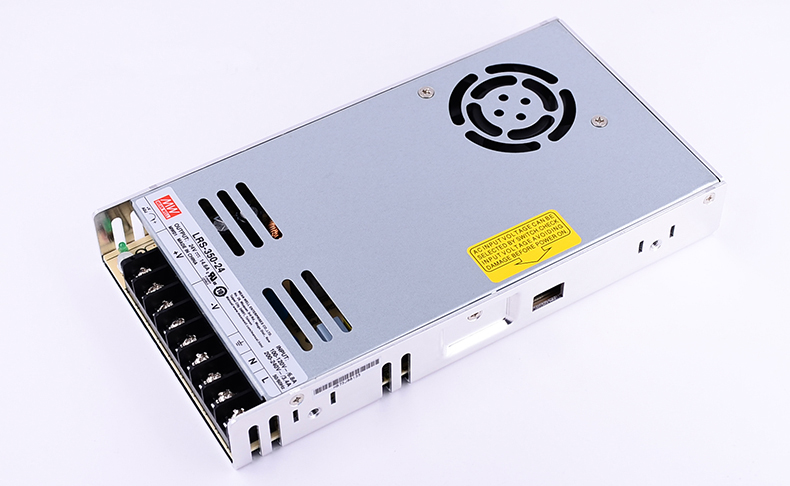

Power supply
Power Supply
Taiwan Import MW Laser power supply. Zero failure rate to ensure stable and long-lasting output of the machine.

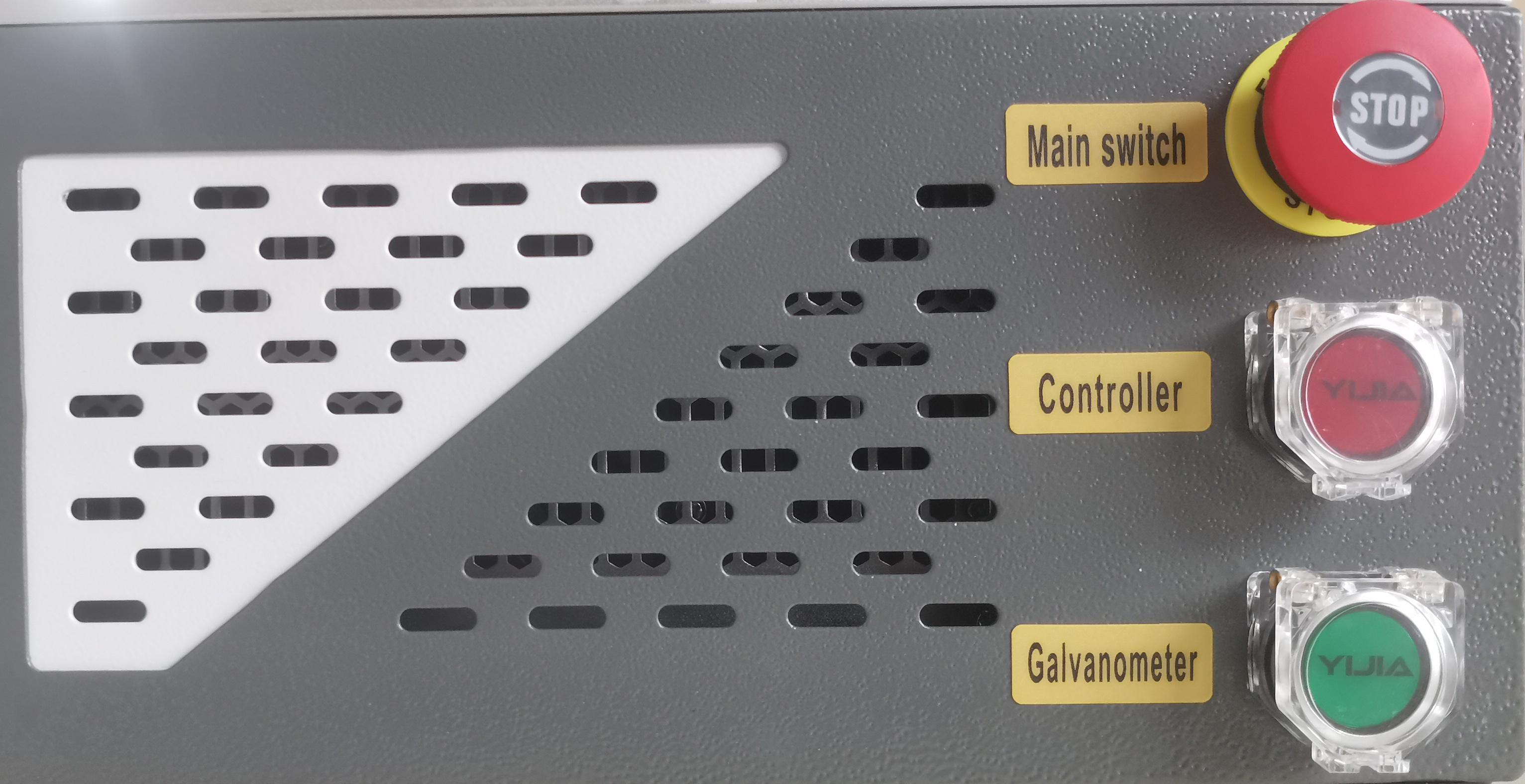

Switch button
Switch Button
Well-known brand buttons, high quality, durable, and trouble-free.

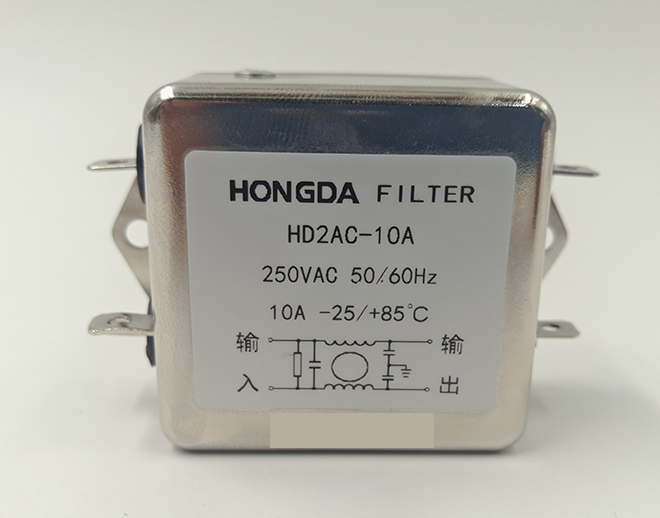

Filter
Filter
Filter clutter to prevent signal interference. We use our heart to make equipment, to the extreme of every detail.

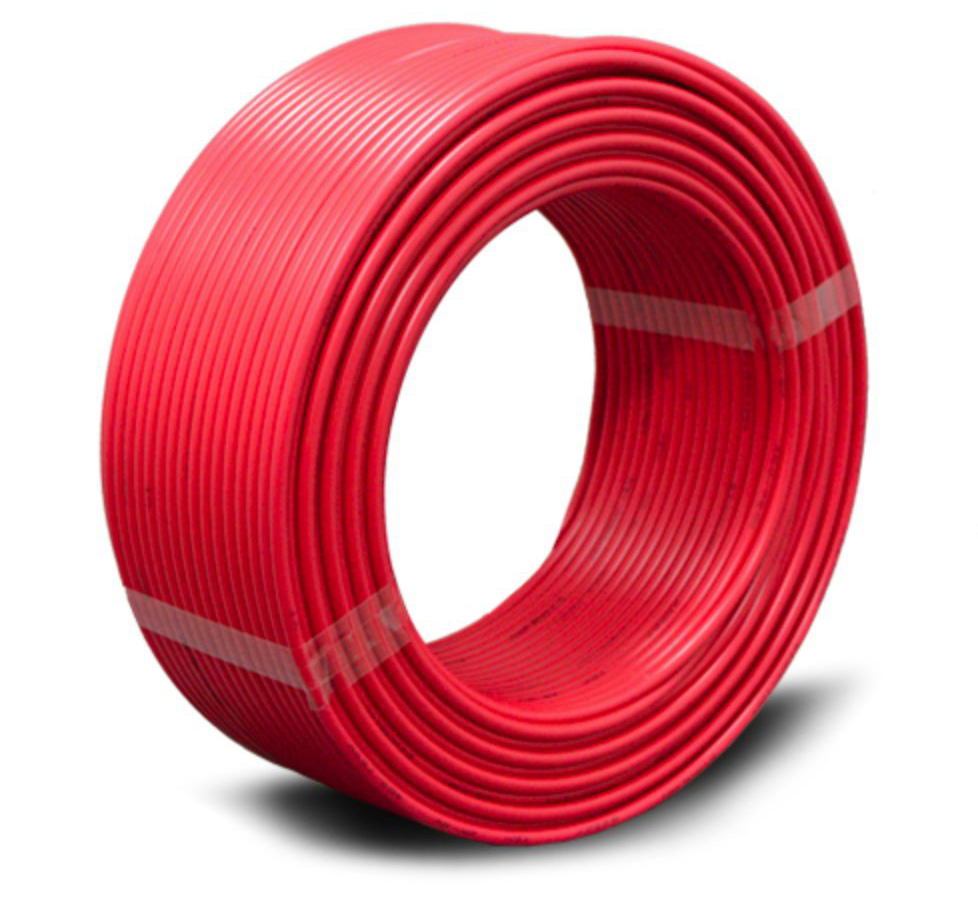

Wire
Wire
All equipment uses wires higher than the industry standard: 1.5 square copper wires. We use our heart to make equipment, to the extreme of every detail.

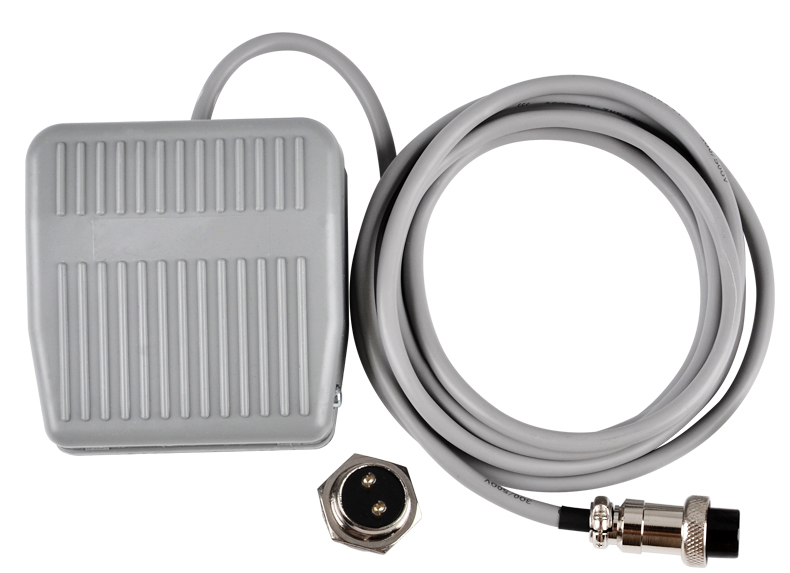

Foot switch
Foot Switch
When doing repetitive tasks, the pedal switch can significantly improve your work efficiency.

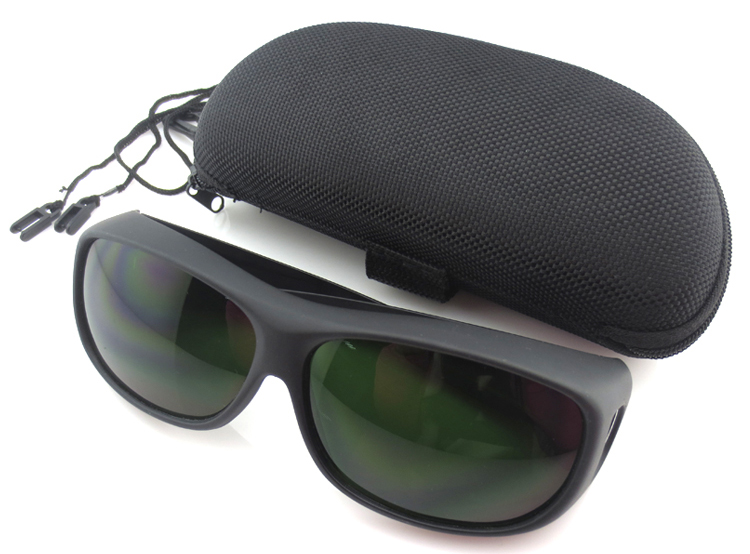

Safety Goggles
Safety Goggles
SAFETY FIRST!!! Protective eyewear to keep operators safe during machine operations.
Optional Accessories

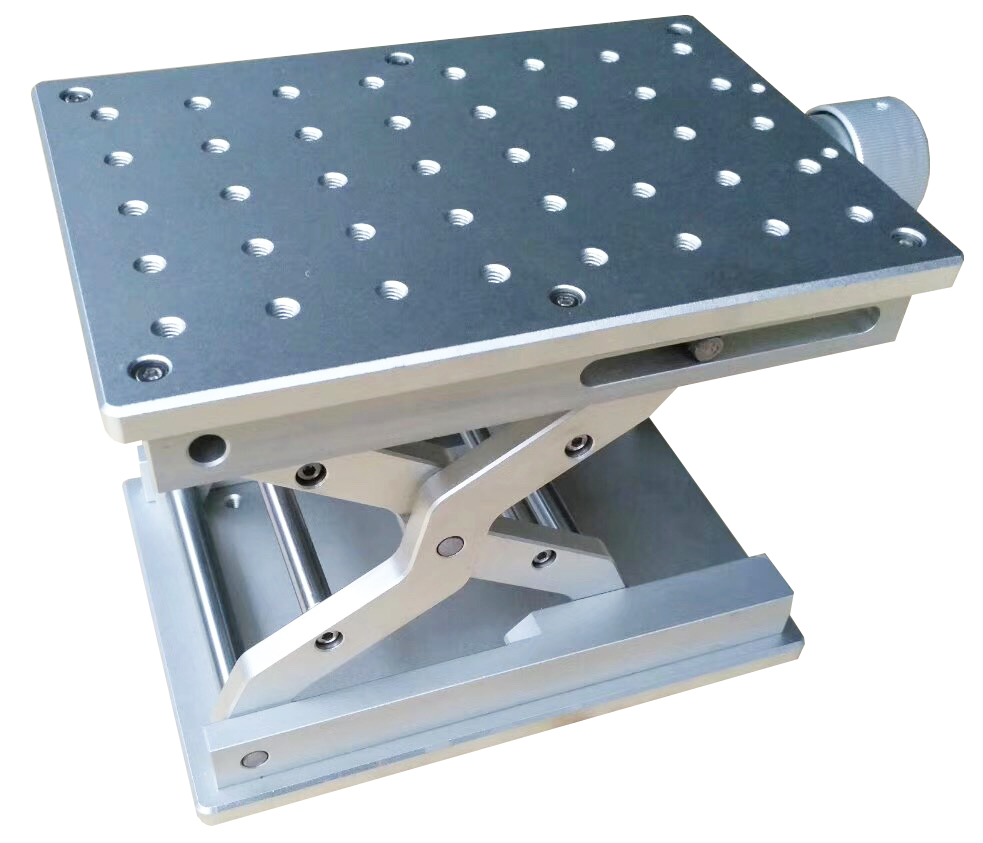

Lifting working table
Lifting Working Table
3D working table
3D Working Table

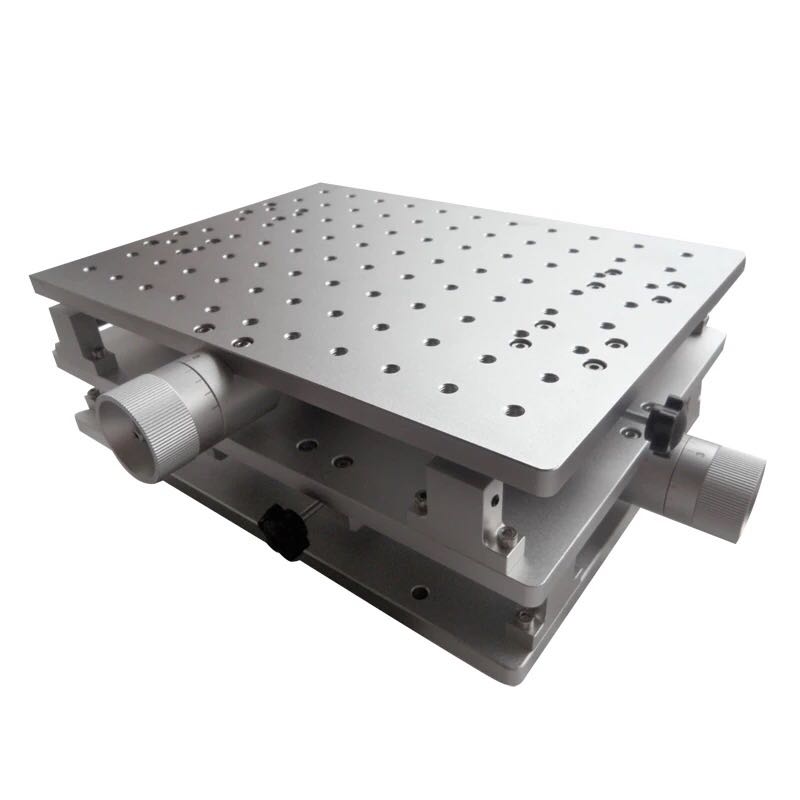

2D working table
2D Working Table

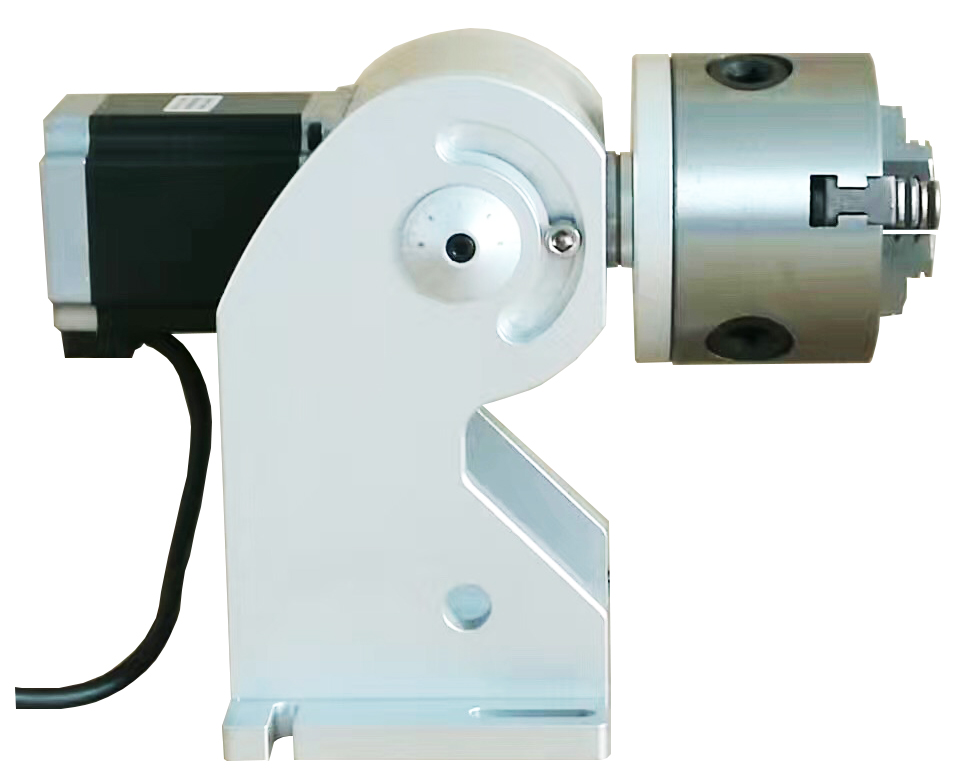

Standard Rotary
Standard Rotary

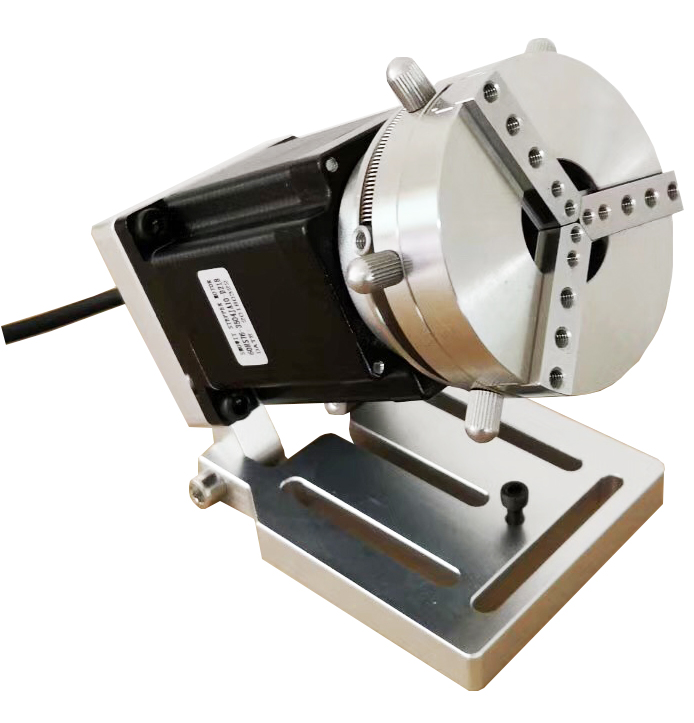

Jewelry rotation
Jewelry Rotation

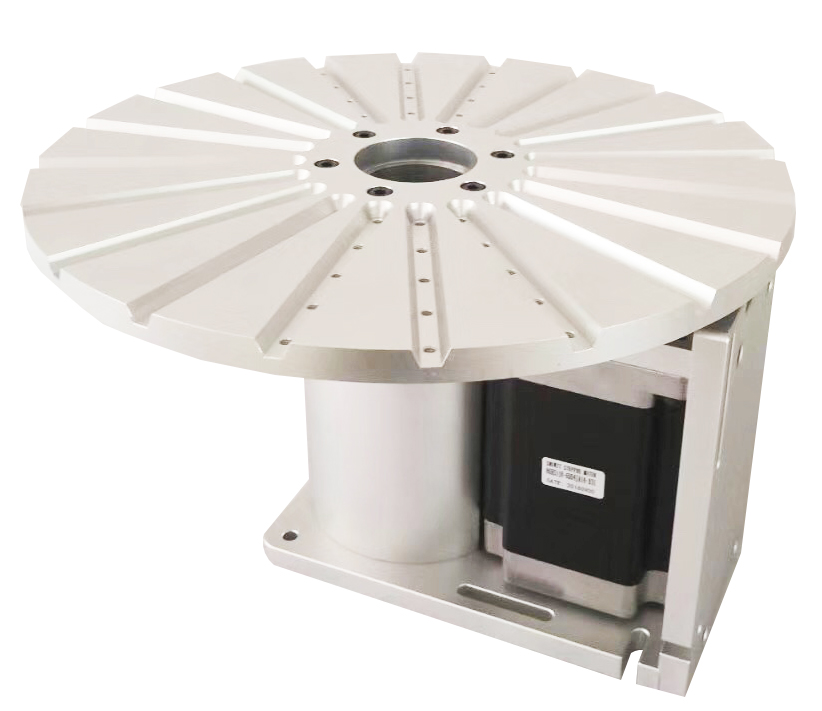

Pen rotation
Pen Rotation

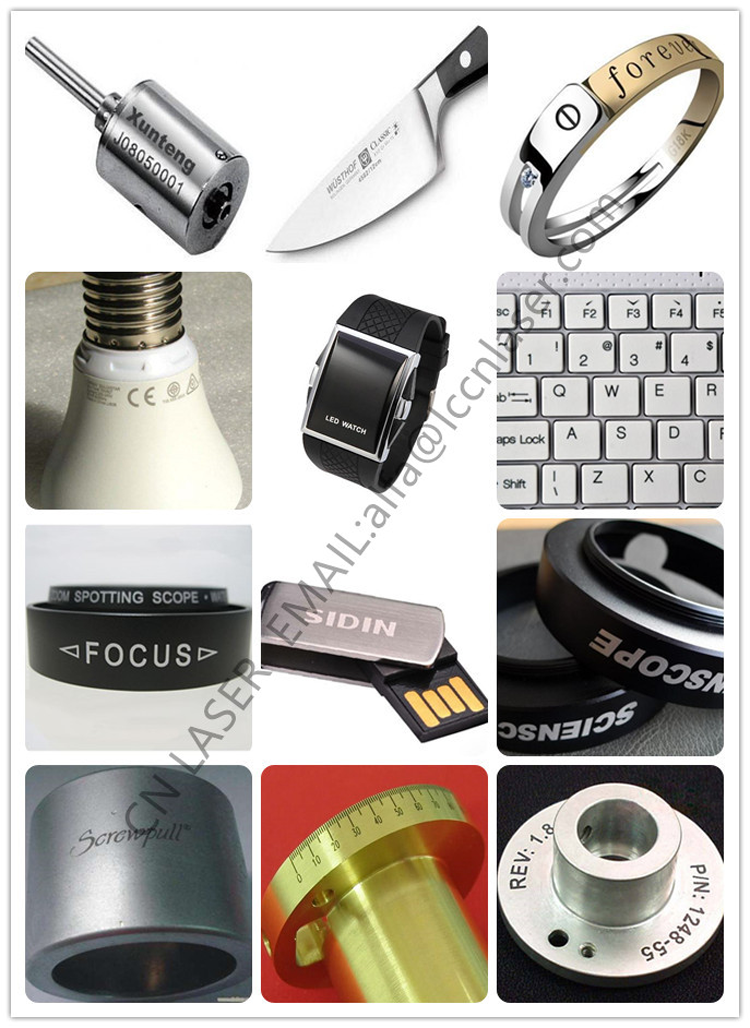

Sample Show
Sample show
Packing & Delivery
1. Timely Delivery Each machine is arranged with precise assembly steps without any delay.
2. After-sales Services and Guarantee We offer a 1-year warranty. During this period, if any problems happen, we are responsible for solving them.

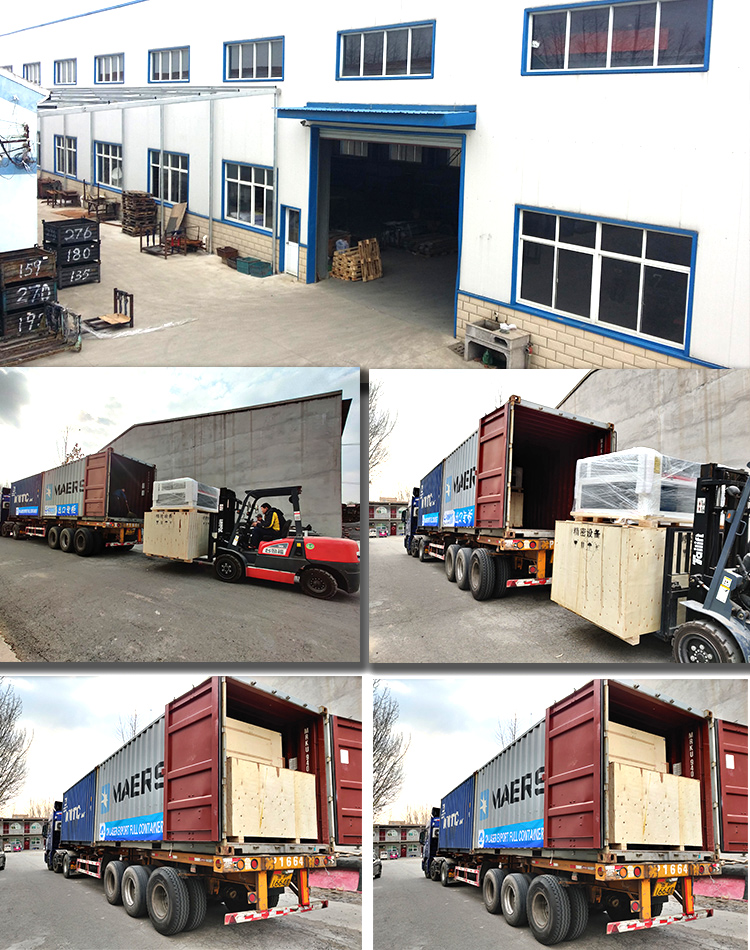

Packing 1 Packing 2
Our Company

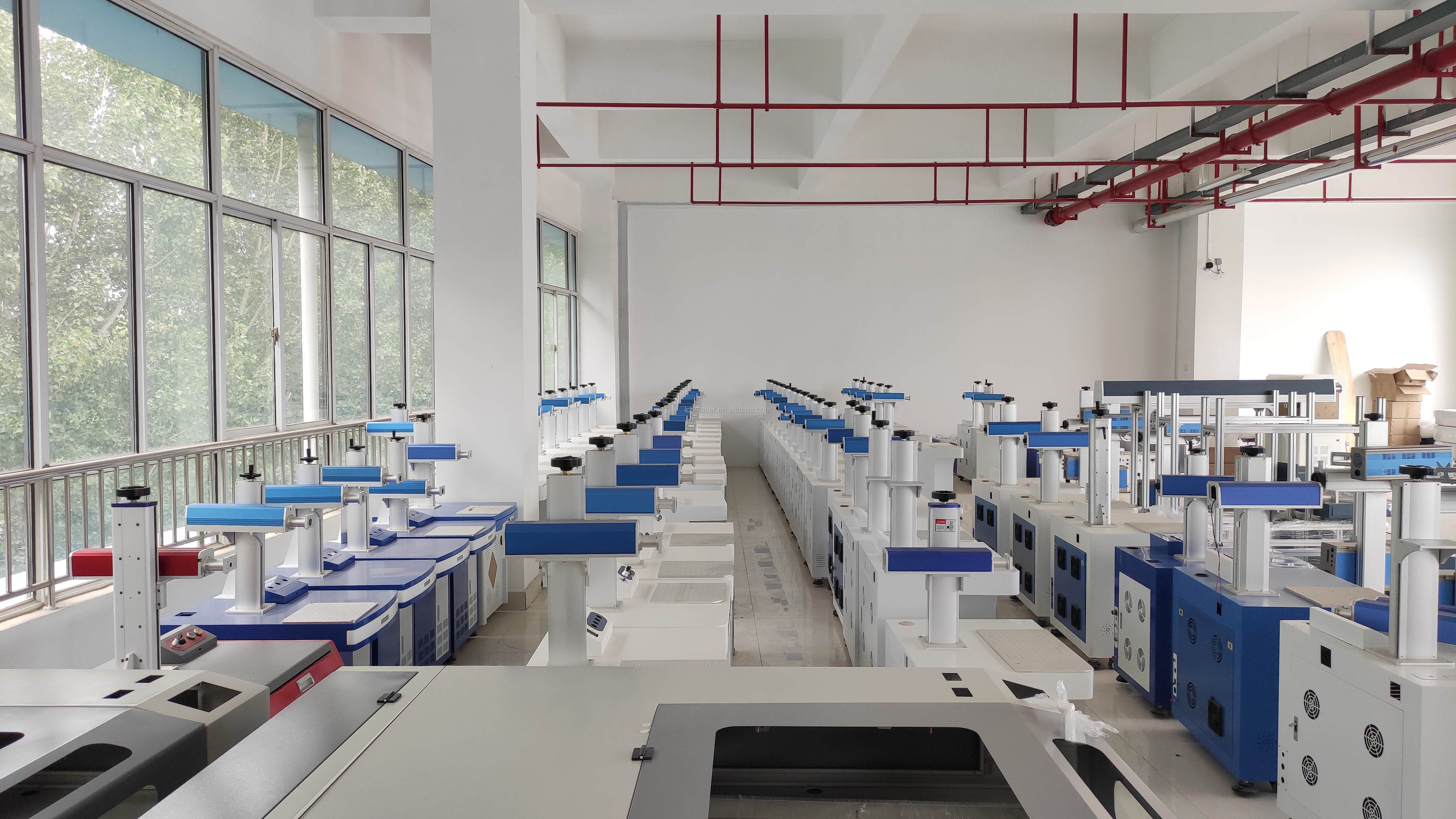

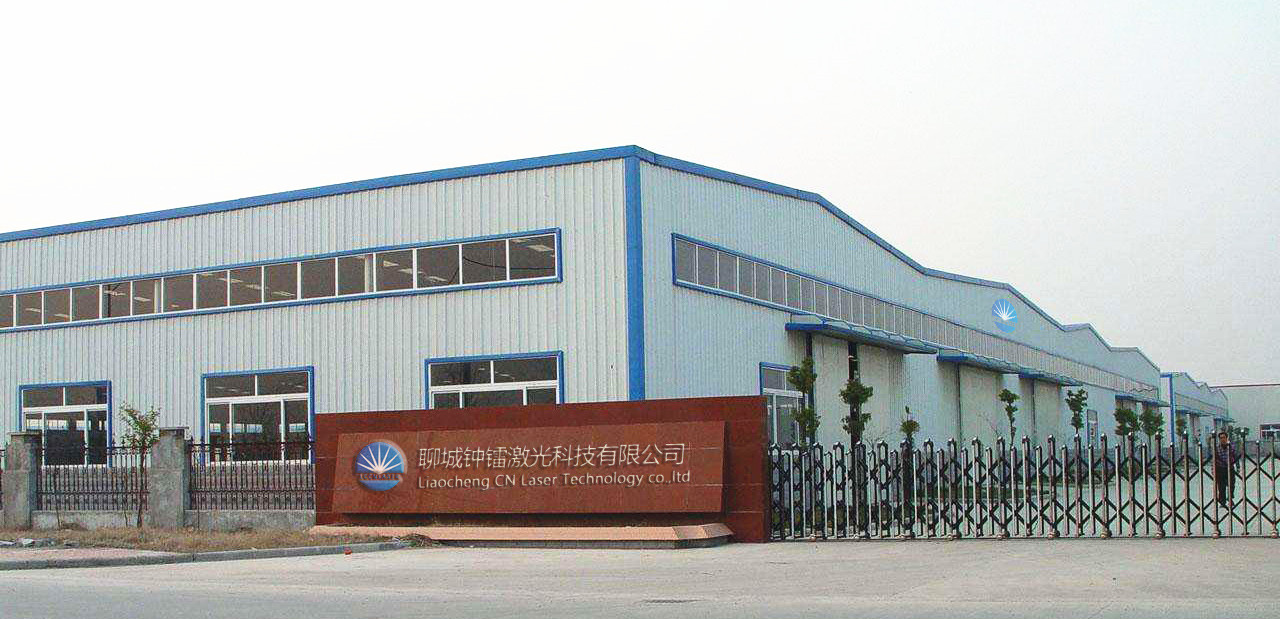

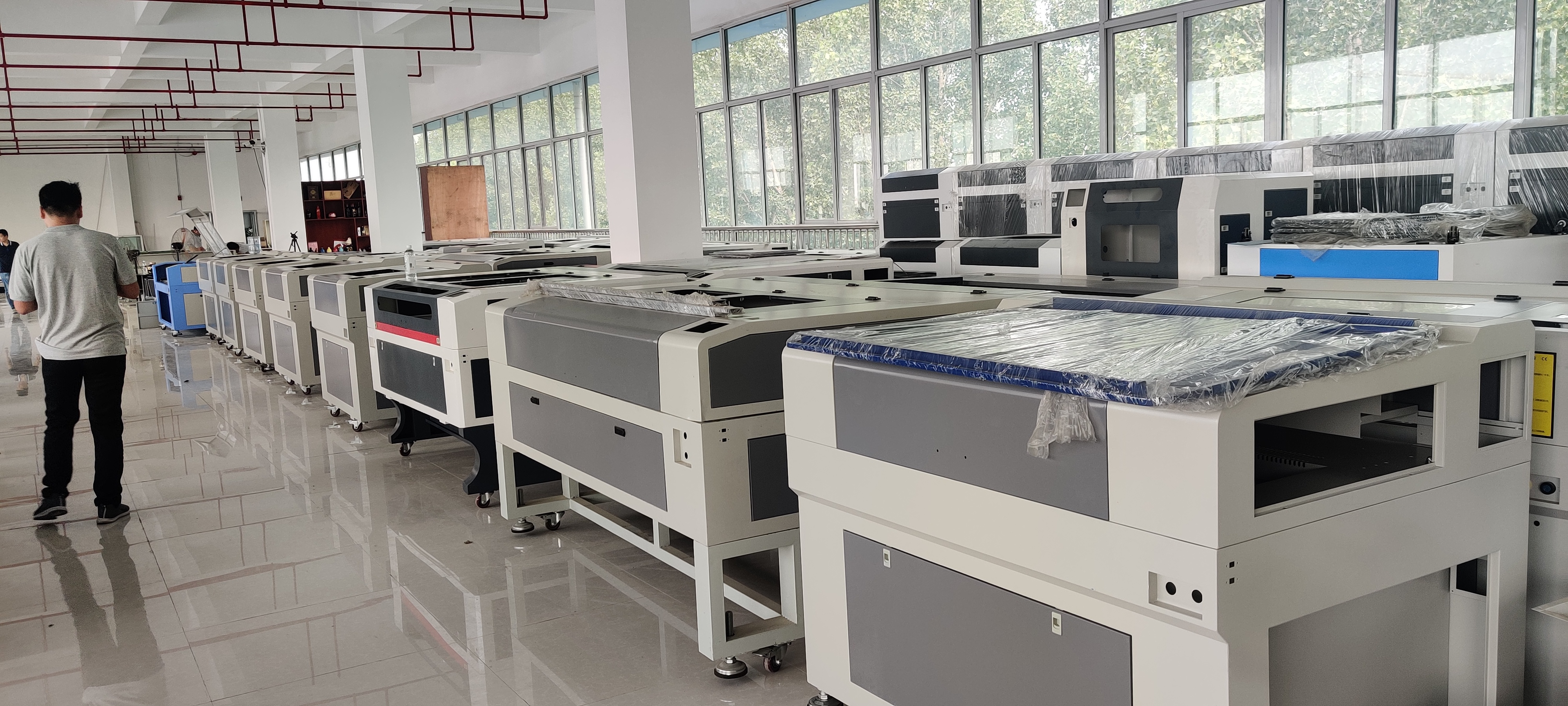

Factory Overview Production Process Quality Testing
Recommend Products

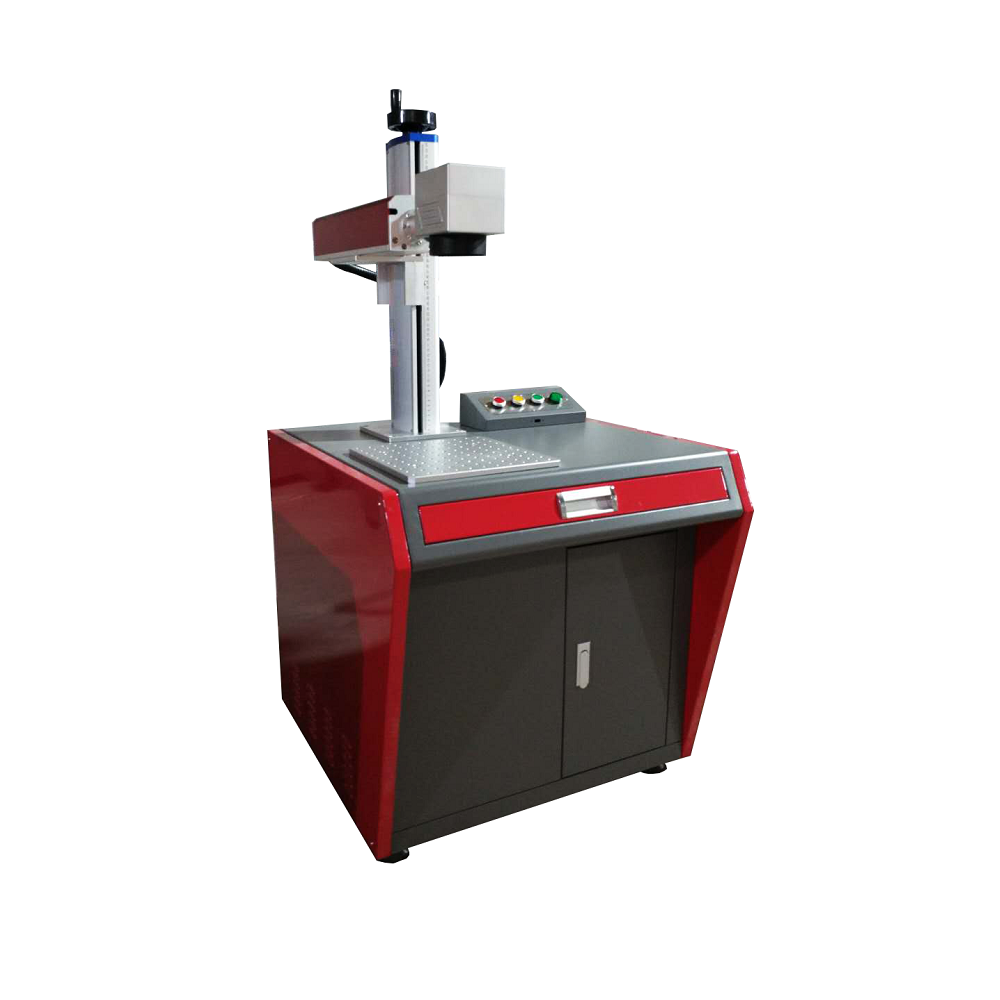

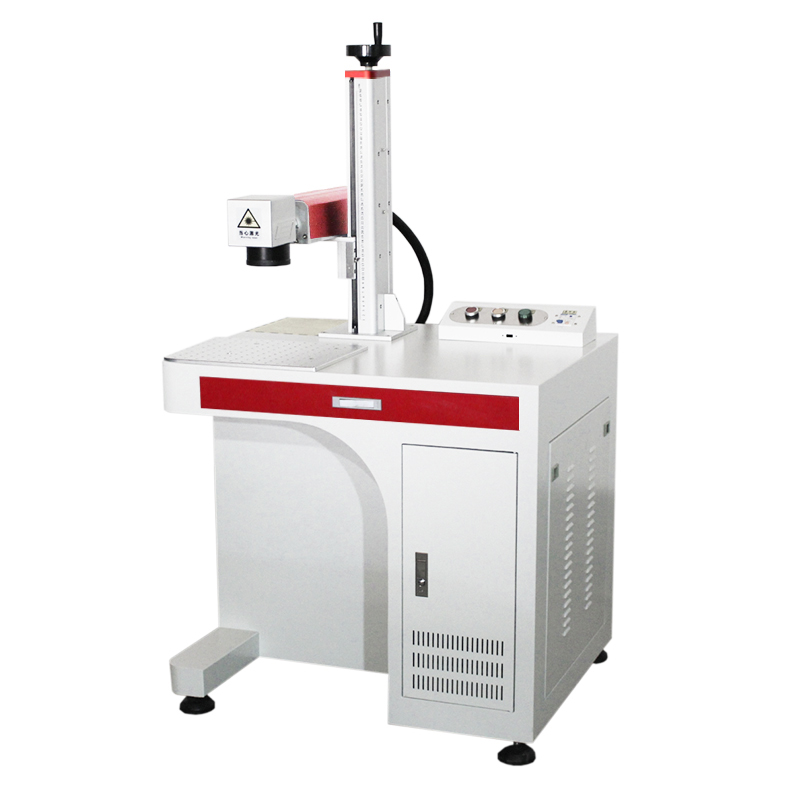

Cabinet type fiber marking machine
Cabinet type fiber marking machine
Cabinet type fiber marking machine
Cabinet type fiber marking machine

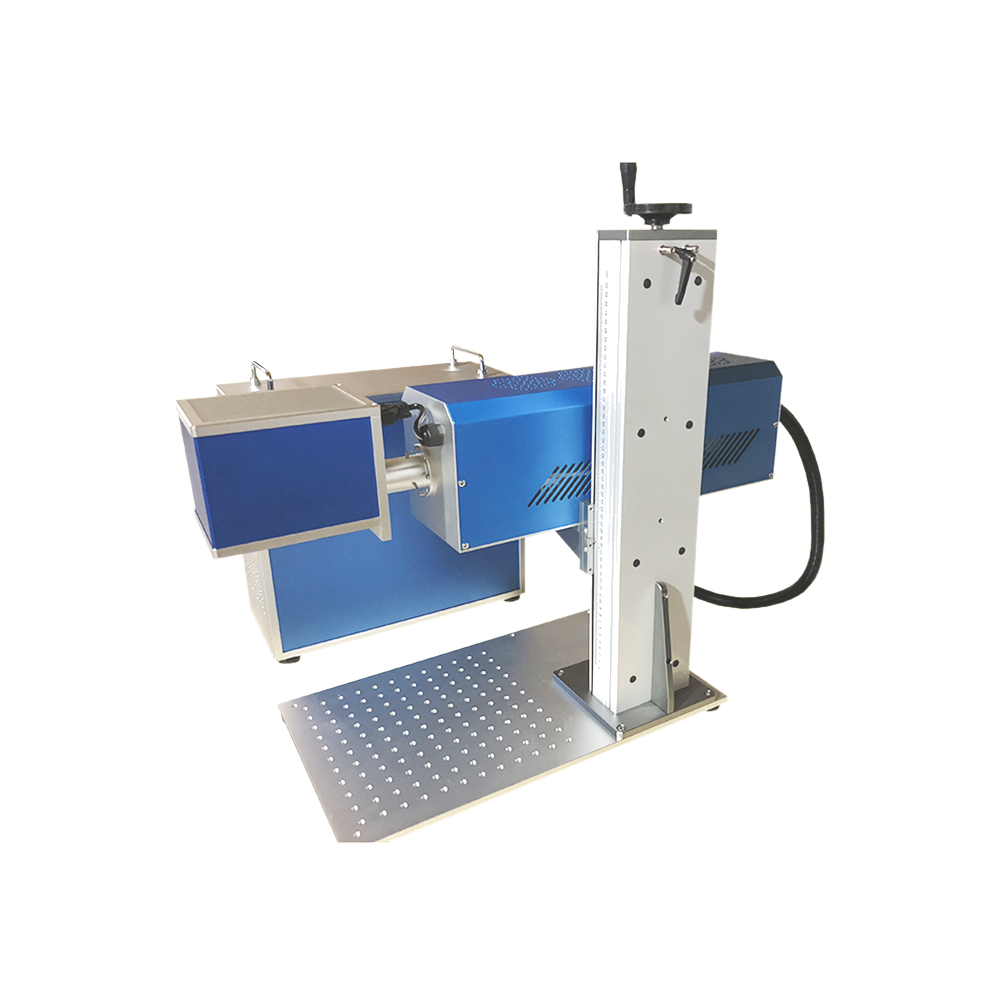

Split type CO2 marking machine
Split type CO2 marking machine

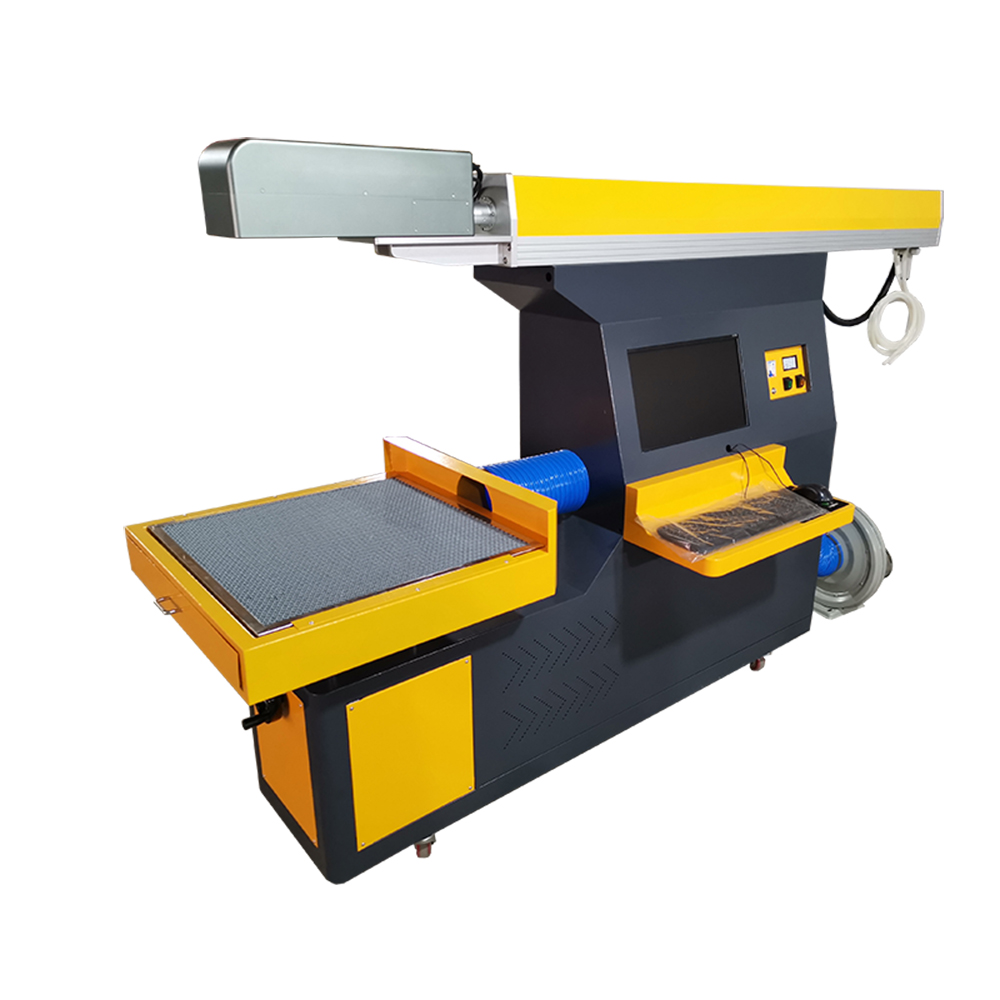

600*600mm co2 marking machine
600*600mm co2 marking machine

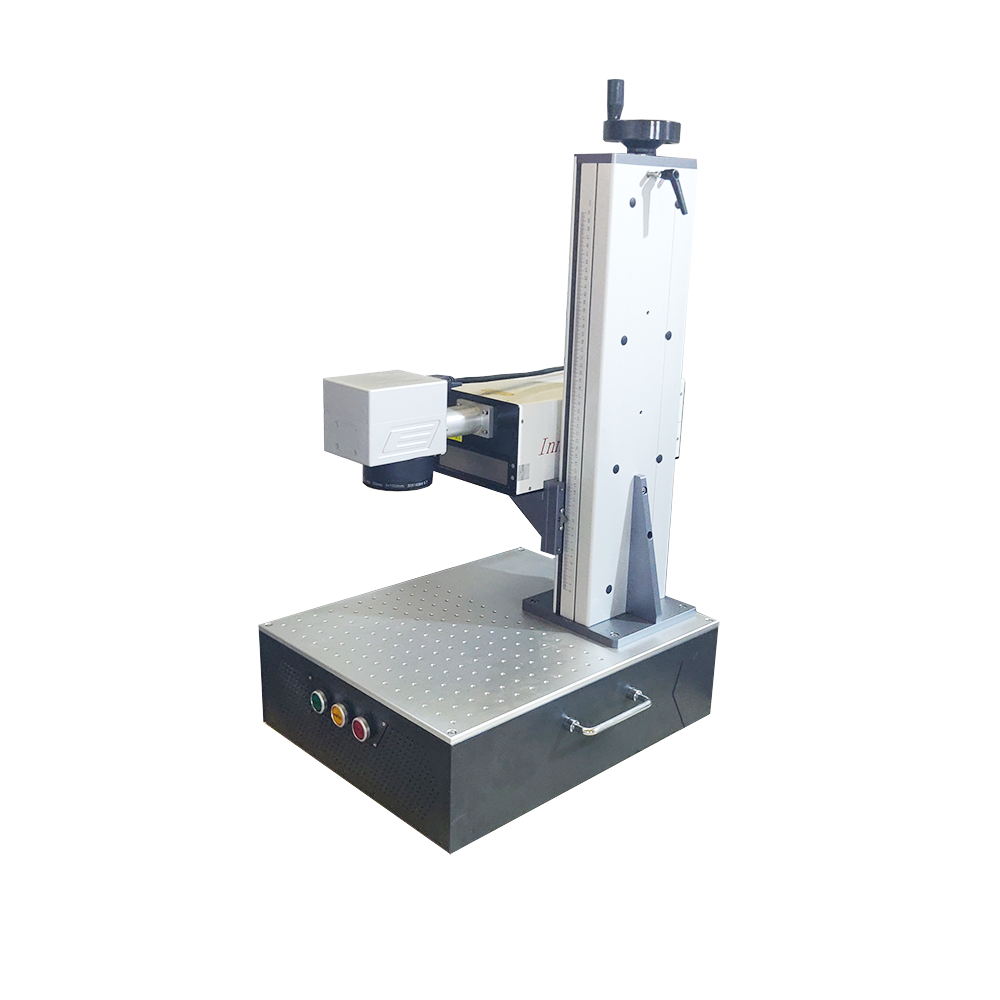

Split type UV marking machine
Split type UV marking machine

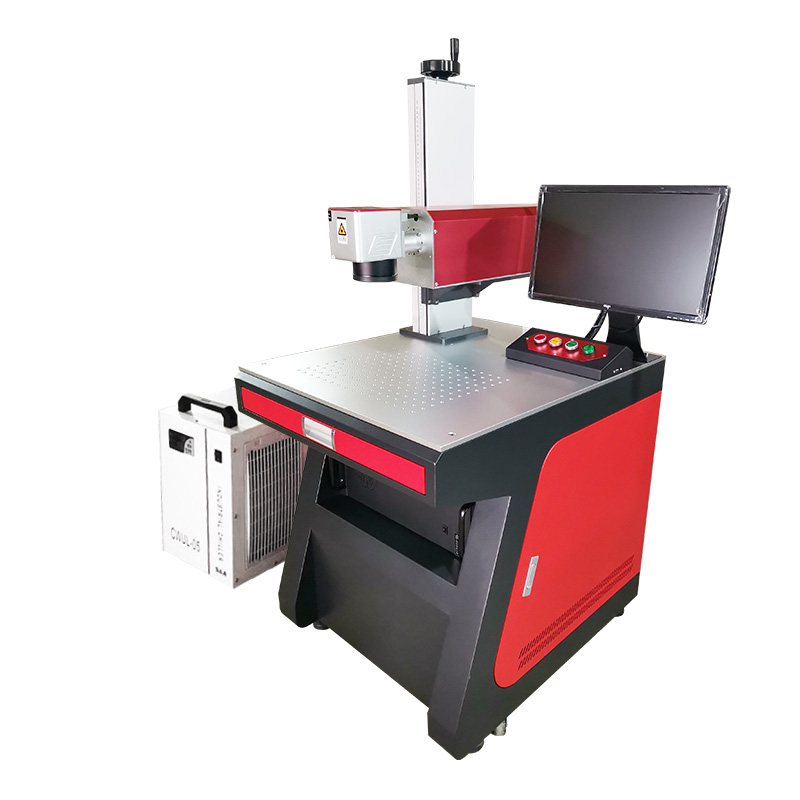

Cabinet type UV marking machine
Cabinet type UV marking machine
Certifications
Certifications
Frequently Asked Questions
Q1. How to get the most suitable machine and best price?
As different types of CNC machines apply to different materials, and different models apply to different materials, please tell us what material you want to cut or engrave, and what is the maximum size of the carved material. We will then recommend the most suitable model and the best price for you.
Q2. If we don't know how to use the machine, can you teach us?
Yes, we will send you a manual and guide video in English to teach you how to operate the machine. If you still cannot learn how to use it, we can help you via "TeamViewer" online help software, or talk by phone, email, or Skype.
Q3. How long is the delivery time?
For standard machines, it would be 3-5 days. For non-standard machines and customized machines according to the client's specific requirements, it would be 7 to 10 days.
Q4. How do you manage Quality Control?
The entire production procedure is under regular inspection and strict quality control. The complete machine is tested to ensure it works exceptionally well before leaving the factory. Our machines have passed the CE Certificate, meeting European and American standards, and have been exported to more than 100 countries.
Q5. Do you arrange shipment for the machines?
Yes, for FOB or CIF pricing, we will arrange shipment for you. For EXW pricing, clients need to arrange shipment by themselves or through their agents.
Q6. What is the after-sales warranty period for this machine?
We offer a 1-year warranty. During this period, if any problems happen, we are responsible for solving them.
