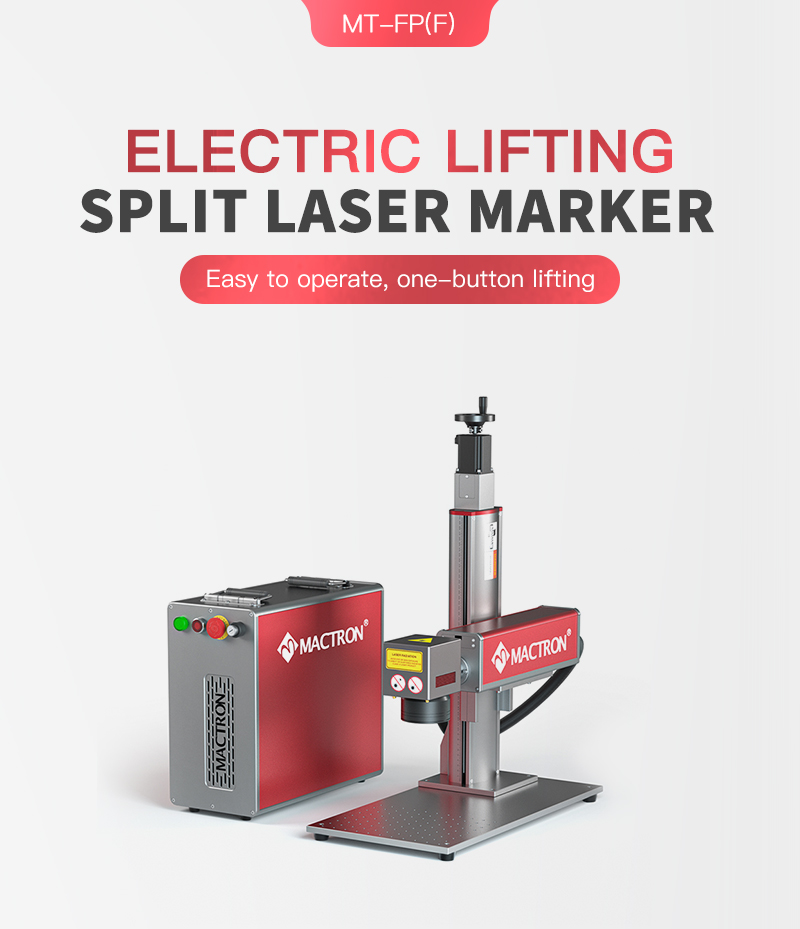

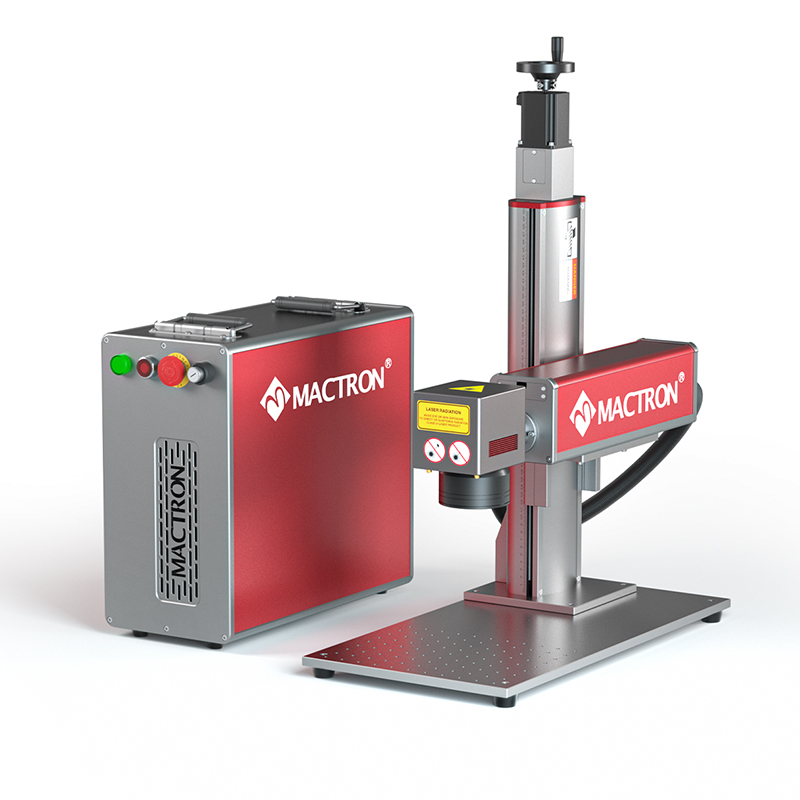

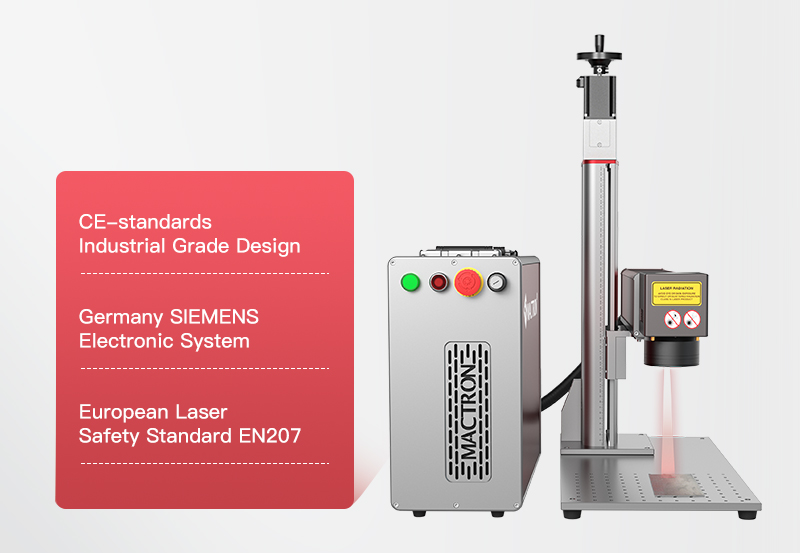

Portable laser marking machine is especially outstanding in the aspect of portability. It is endowed with the features of small volume and easily marking on the surface of big volume and heavy objects. The fiber laser marking machine adopts an advanced digital high-speed scan galvanometer and module design, which can separate the laser generator and lifter. This series has the advantages of low materials consumption, non-toxic, and pollution-free.
Based on the standard of portable fiber laser marking machine, equipped with an autofocus system that automatically senses objects through the sensor to achieve fully automatic and precise focusing.
| Model | MT-FP20 | MT-FP30 | MT-FP50 |
| Laser Type | Q-Switched Pulse Fiber Laser / MOPA Pulse Fiber Laser | ||
| Wavelength (nm) | 1064 | ||
| Laser Power (W) | 20 | 30 | 50 |
| Pulse Energy (mJ) | 0.66 / 0.8 | 1 / 0.8 | 1 / 1.25 |
| Repetition Rate (kHz) | 30-60 / 1-600 or 1-4000 | 50-100 / 1-600 | |
| Pulse Duration (ns) | 120-150 / 200 or 2-350 | 120-150 / 200 | |
| Beam Quality (M2) | <1.5 / 1.4 | <1.6 / 1.5 or 1.4 | <1.6 / 1.8 |
| Output Power (%) | 10 - 100 | ||
| Marking Specifications |
Font formats: TTF, JSF, DMF, SHX fonts, etc. Vector formats: PLT, DST, AI, DXF, SVG, GBR, NC, CAD, CDR, DWG, BOT, etc. Barcode formats: Code39, EAN, PDF417, DATAMATRIX, QR, 2D codes, etc. Bitmap formats: JPC, BMP, JPG, JPEG, PNG, etc. |
||
| Speed | Up to 8000 mm/s (314.96 in/s) | ||
| Beam Quality (M2) | Minimum Line 0.01 mm (0.0004 in) | ||
| Minimum Character | 0.2 mm (0.008 in) | ||
| Z axis type | Manual / Motorized & Programmable (optional) | ||

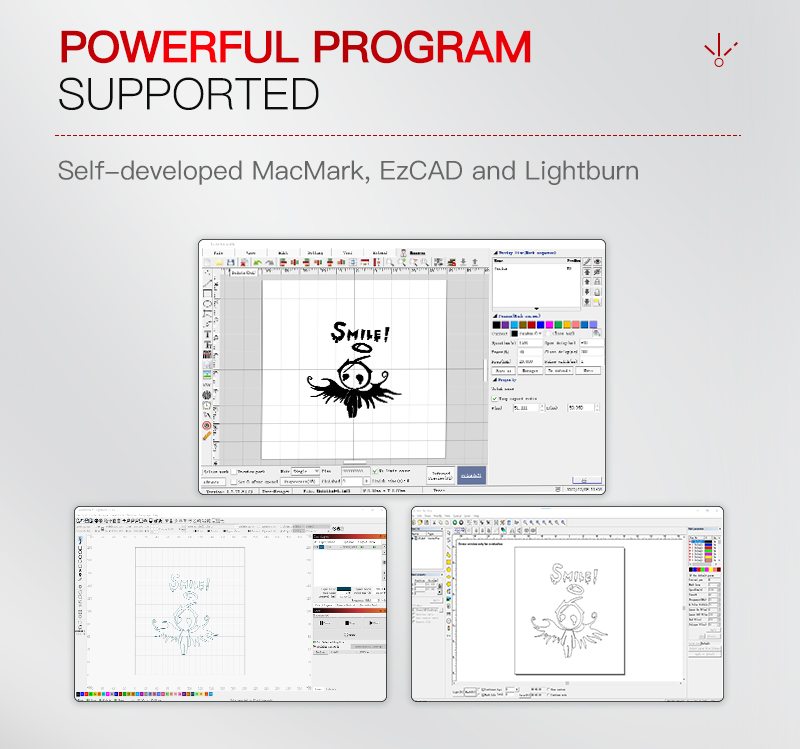

| Software | MacMark / PC software EzCAD (on separate, external, optional Windows OS PC) | ||
| Communication interfaces | USB; Terminal block I/O; (standard) Laser Safety Dedicated I/O; RS232; Ethernet TCP/IP (optional) |
||

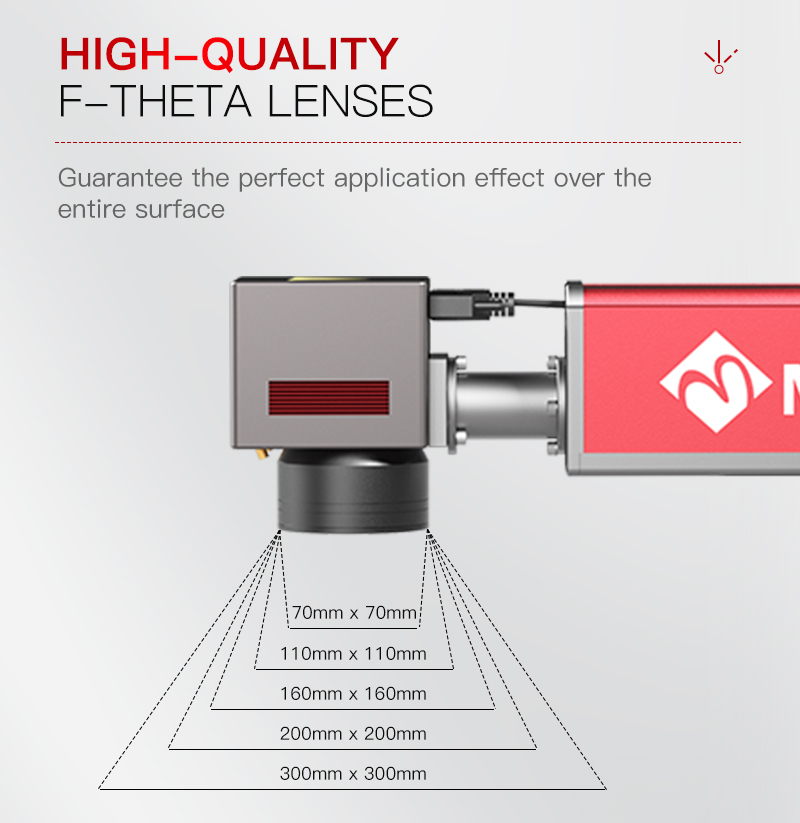

| Marking Area - Available lenses |
Standard: F160: 110 mm (4.33 in) x 110 mm (4.33in) Optional: F100: 70 mm (2.76 in) x 70 mm (2.76 in), F254: 160 mm (6.29 in) x 160 mm (6.29 in), F330: 200 mm (7.87 in) x 200 mm (7.87 in), F450: 300 mm (11.8 in) x 300 mm (11.8 in) |
||
| Cooling | Air-cooled, auto-overheat protection | ||
| Laser safety classification | Class 4 | ||
| Operating Temperature | 10°C to 40°C (50F to 104F) | ||
| Humidity | 10%- 90%, non-condensing | ||
| Electrical Requirements | L/N/PE 100 - 240 VAC 50/60Hz (According to local electricity supply) | ||
| Power consumption rate | 400 W (800 W Max) | ||
| Machine weight | 52 Kg (114.64lbs) | 57Kg (125.66 lbs) | |
Suitable for all kinds of metal and partial non-metallic material, high hardness alloy, oxide electroplating, coating, ABS, epoxy resin, oil film, engineering plastics, etc.
Widely applied in electronic components, communication equipment, the spare parts of automobiles and motorcycles, instruments and meters, aerospace, hardware and machinery, sanitary equipment, food and beverage, cosmetics, packing, solar energy, handicrafts and so on.
