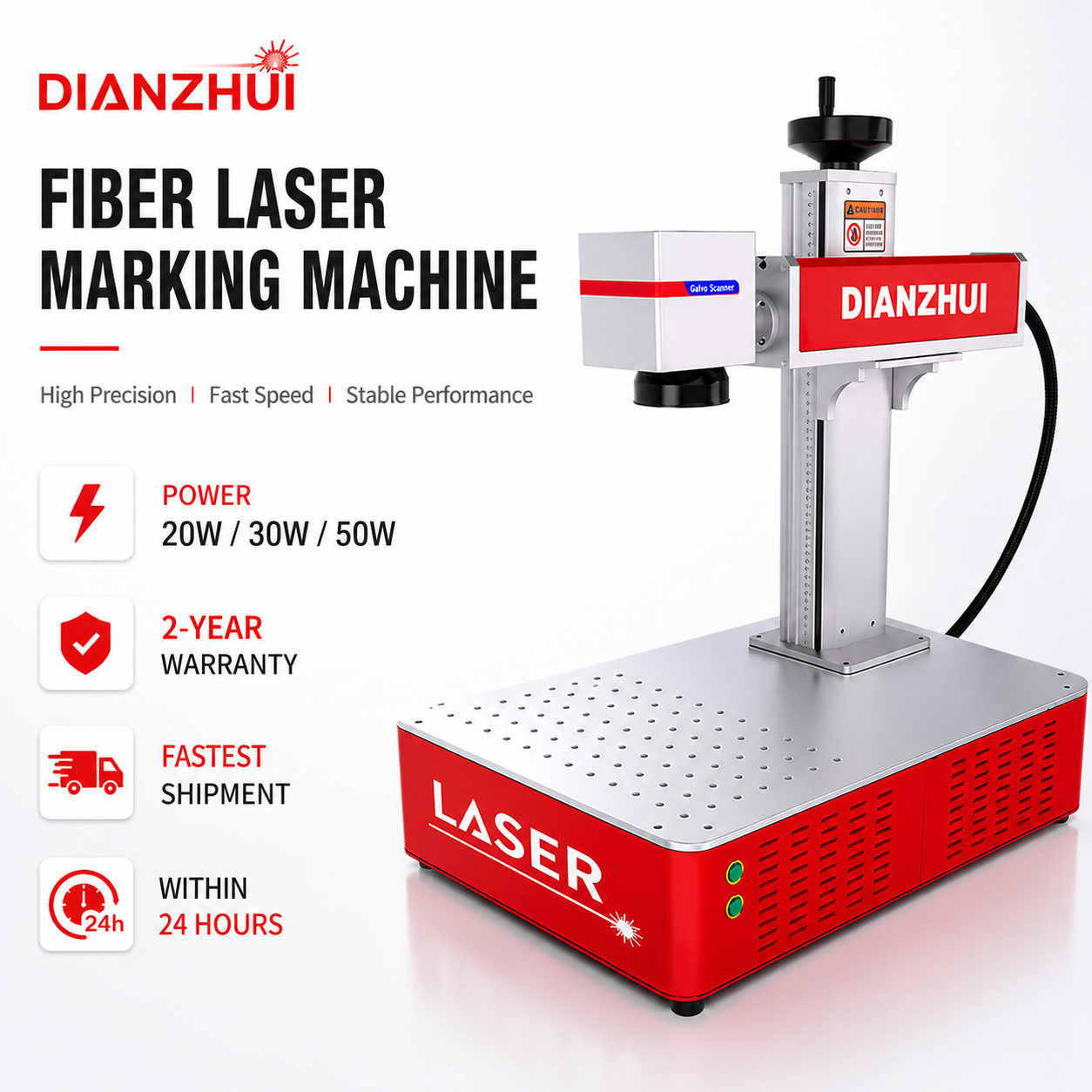

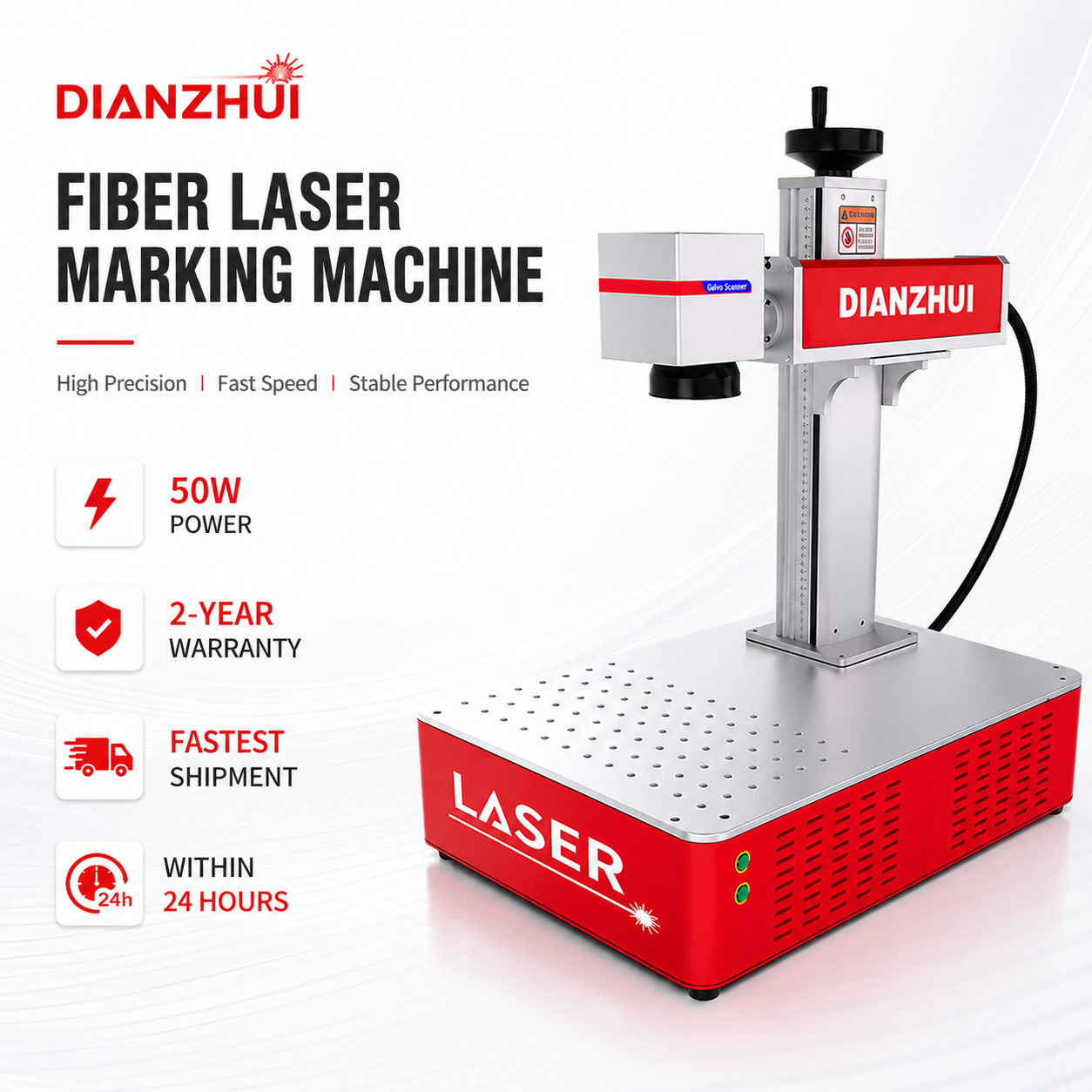

| Listings | Product Data Sheet | 20w/30w/50w Customizable |

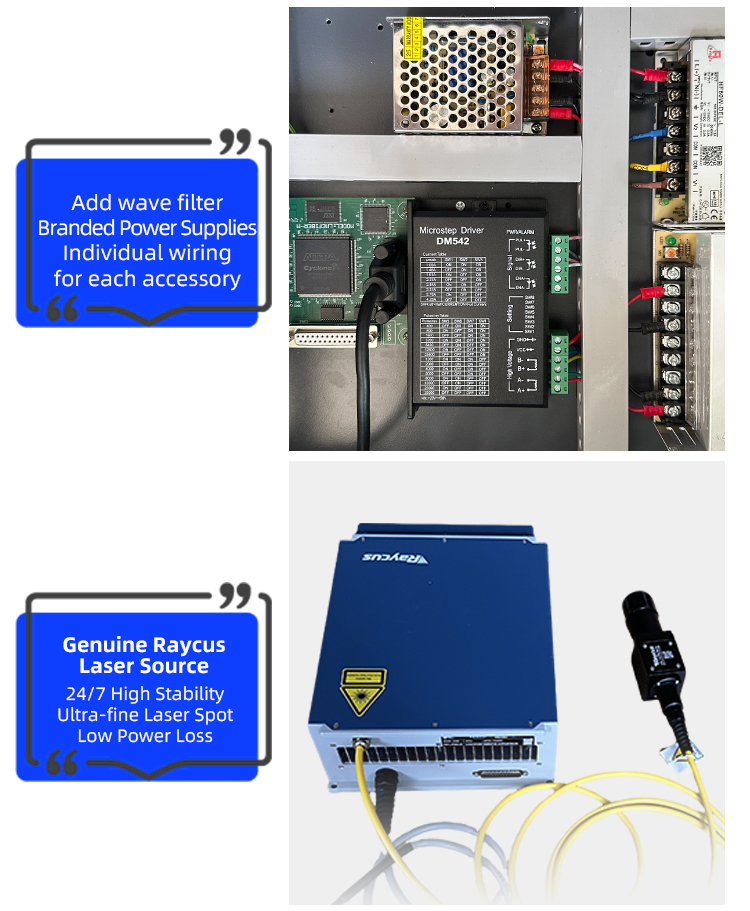

| Hardware Configuration | Laser Source | RAYCUS/MAX |
| Galvo Scanner | SINO-GALVO / (Mole customization) | |
| Marking Area | 110 / 150 / 200 / 300mm（Customizable） | |
| Control Board | Genuine EZCAD Control Board/ Genuine BSL Control Board | |
| Marking Software | Genuine EZCAD Software | |
| Cooling Method | Built-in Air Cooling, Silent Heat Dissipation Fan | |
| Red Light Pointer | Leituo | |
| Laser Properties | Beam Quality (M²) | 1.2 |
| Average Output Power | 60 / 100 / 200w | |
| Maximum Pulse Energy | 1 / 1.5 / 2mJ | |
| Tunable Frequency Range | 1-4000kHz | |
| Pulse Width | 2-500ns | |
| Output Power Instability | <5% | |
| Power Adjustment Range | 0-100% | |
| Spectral Width @3dB | <15 | |
| Polarization Direction | Random | |
| High Reflection Resistance | Yes | |
| Beam Diameter | 7.0 ± 0.5mm | |
| Laser Wavelength | 1064nm | |
| Operating Temperature Range | 0-40℃ | |

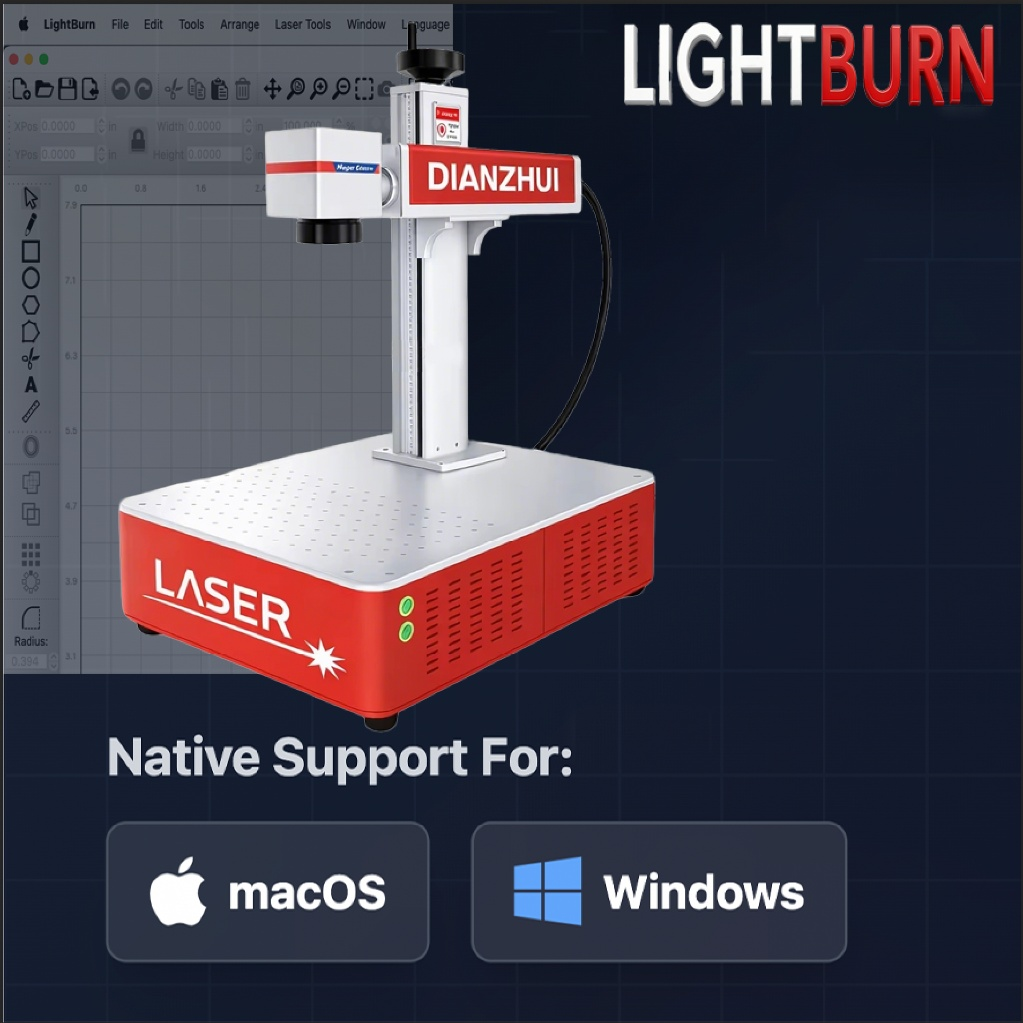

| Software Info | OS Compatibility | Windows 7 / 8 / 10 / 11/MAC(Lightburn) |
| Supported Languages | English, Chinese, German, Russian, Korean, Japanese, Italian, French | |
| Management Permissions | Multi-user Management Permissions | |
| Supported Formats | Fonts | Standard fonts (English, Chinese, Numbers, etc.) |
| File Formats | PLT, DXF, JPG, PNG, DWG, PSD, EPS, etc | |
| Machine Parameters | Total Power Consumption | 500W |
| Input Voltage: | 110V–240V, 50/60Hz | |
| Dimensions | 500×370×637mm |
