| Laser | Fiber laser generator |
| Output power | 20W / 30W |
| Marking range | 70×70mm, 100×100mm (Optional) |
| Deflection seismic mirror | High-precision two-dimensional scanning system |
| Laser wavelength | 1064nm |
| Focus the lens | 130mm |
| Marking speed | ≤7000mm/s |
| Master control | Integrated motherboard, 8-inch capacitor fully bonded to the screen |
| Operating system | Linux system |
| Marking type of engraving | Redlett Postionen, Foxin |
| Line width | 0.03mm |
| Repeatable positioning accuracy | 0.01mm |
| Targeting method | Red light positioning, focusing |
| The number of engraved character lines | Adjustable based on requirements |
| Print speed | 800 characters (related to material and printed content) |
| Font | Chinese and English, numbers, Chinese Traditional and other standard fonts |
| File format | BMP, DXF, HPGL, JPEG, PLT |
| Barcodes | CODE39, CODE128, CODE126, QR |
| Power supply | 20W/30W: 216Wh 15Ah 50W: 324Wh 15Ah |
| Power consumption | ≤250W |
| Operating temperature | 0-40° |
| Total weight | 8-8.8kg (8kg for plug-in version, 8.8kg for battery version) |

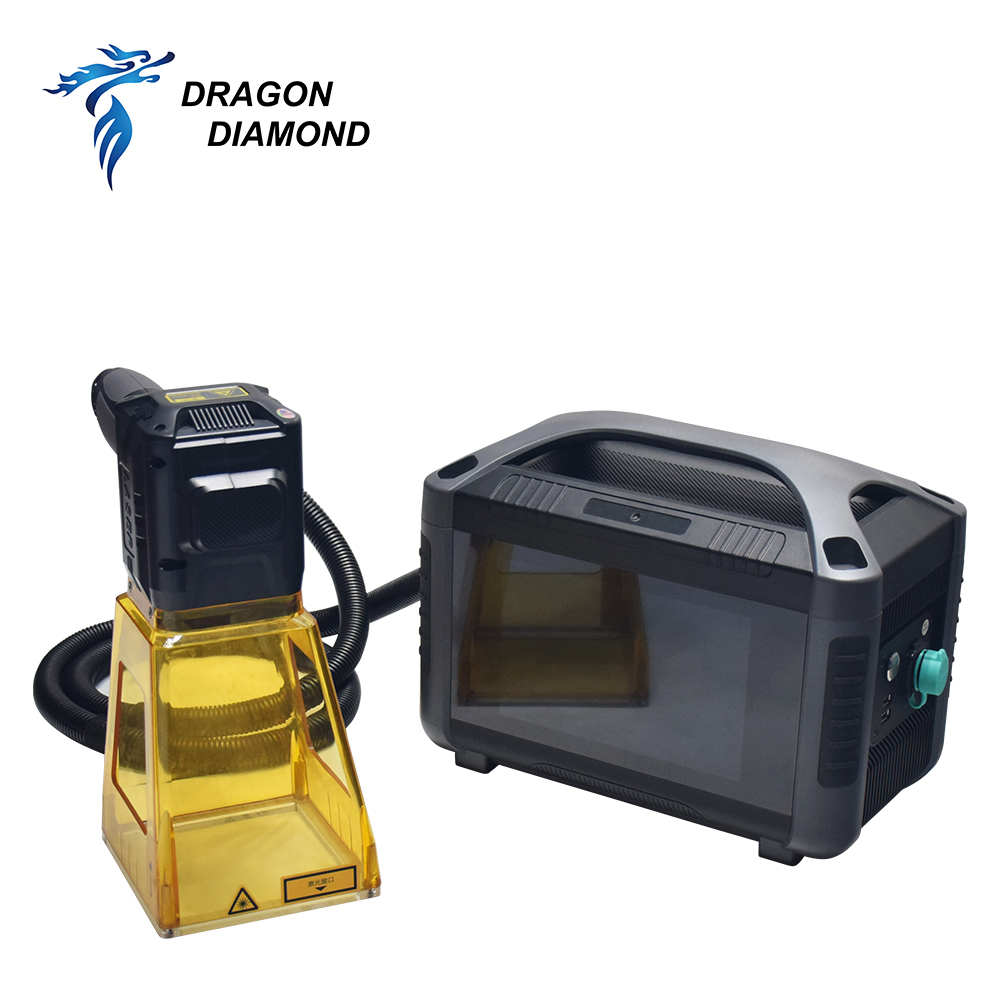

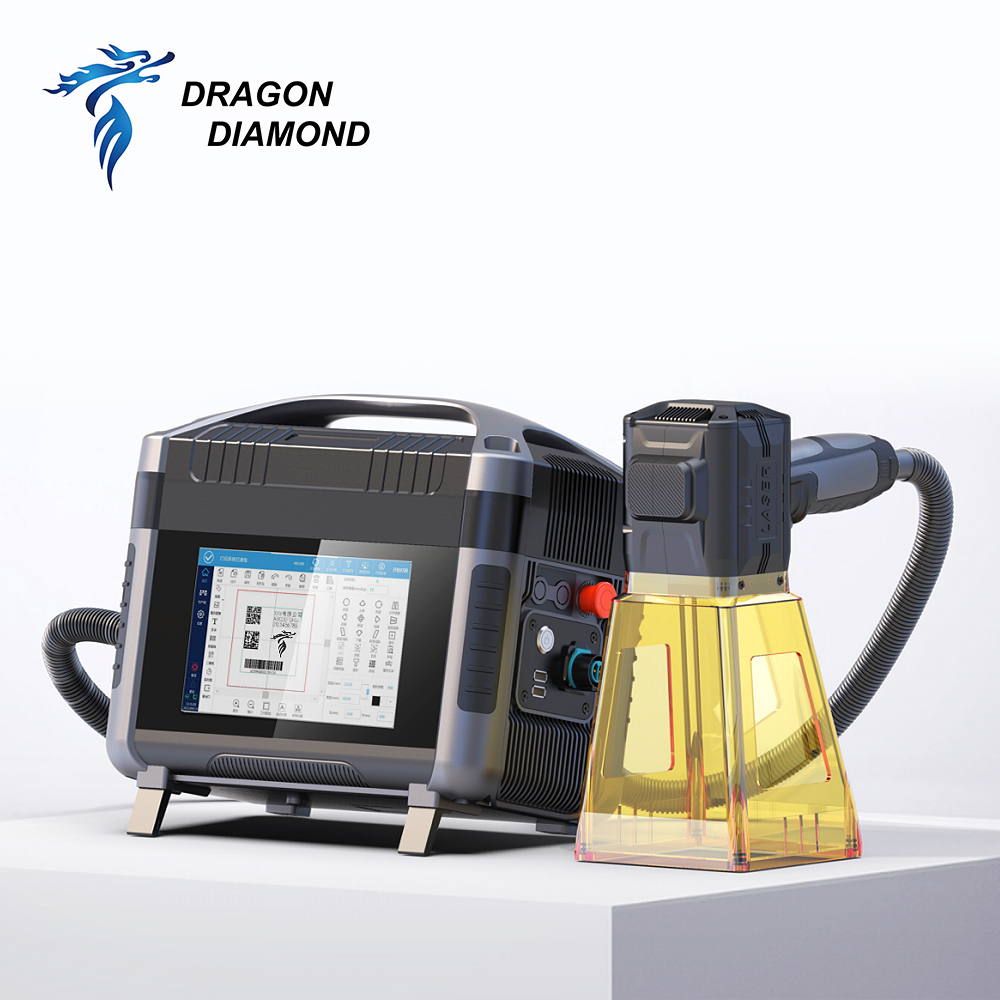

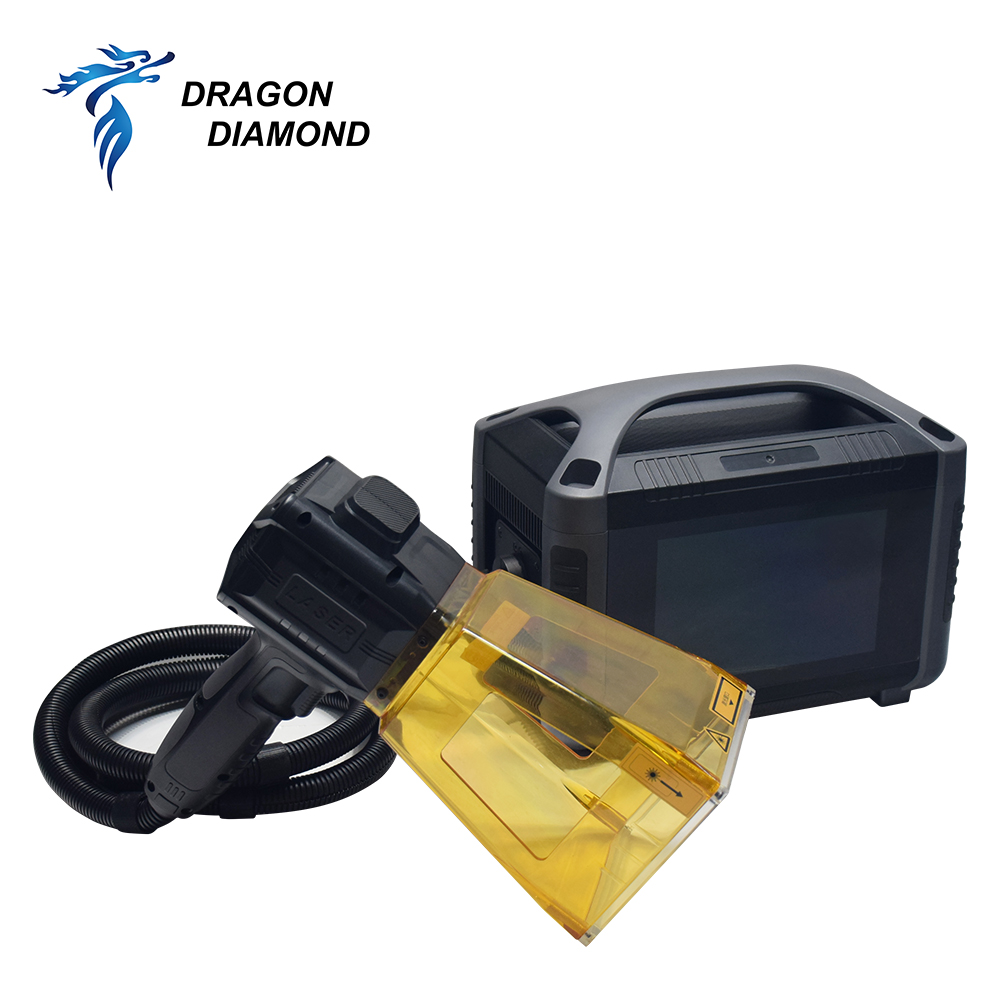

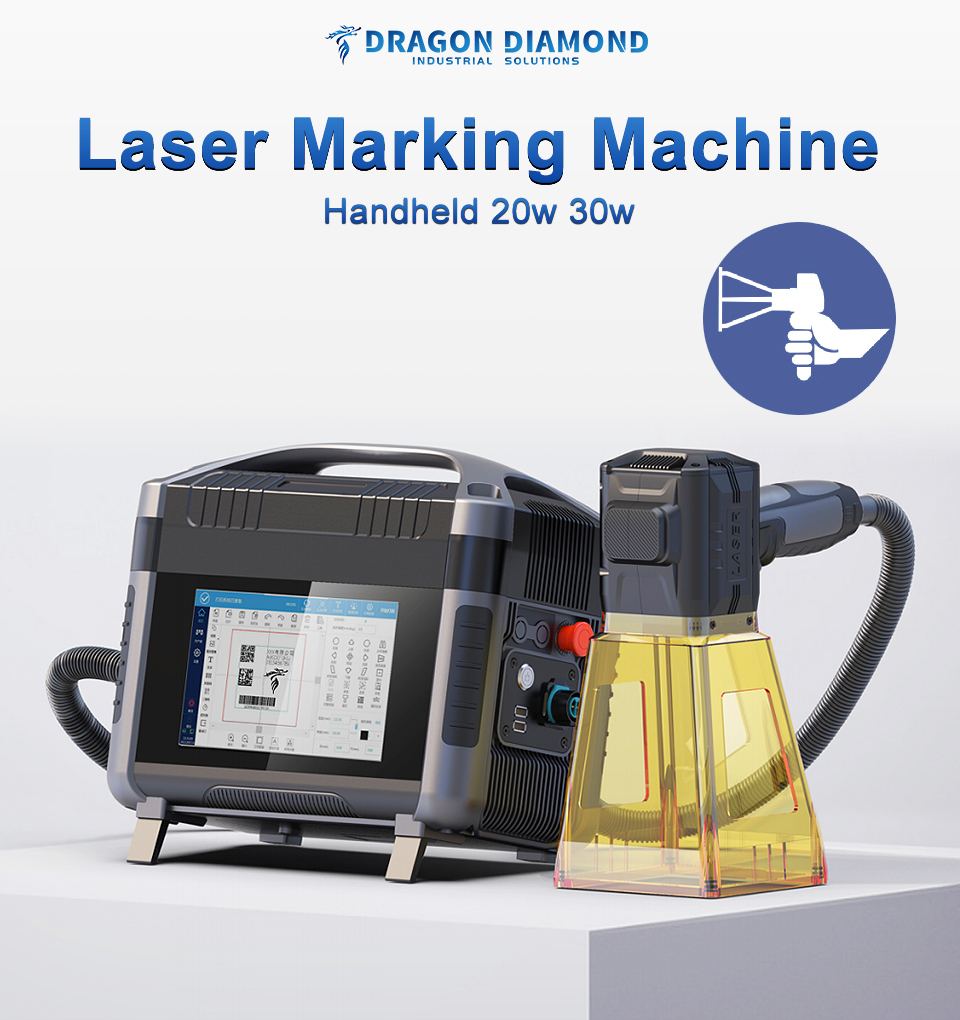

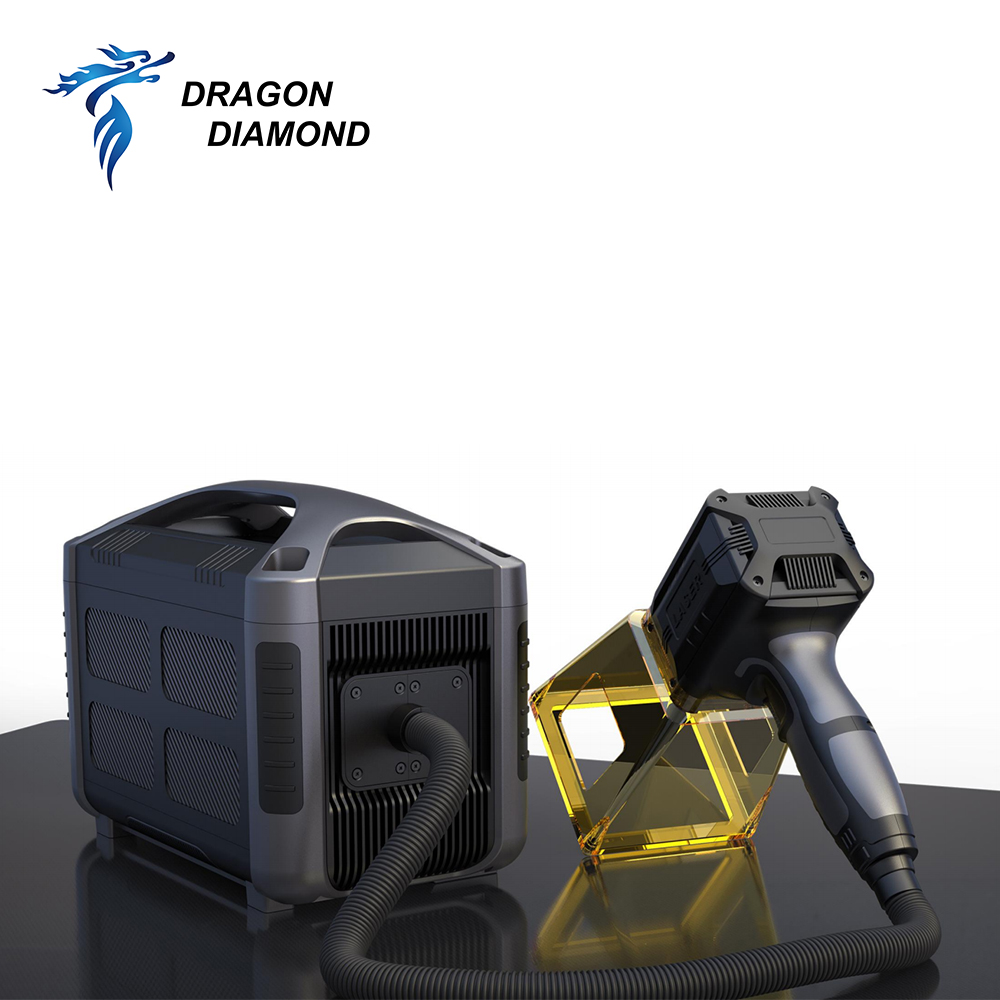

This fiber laser marking machine is highly versatile and suitable for engraving both metals (such as stainless steel, carbon steel, aluminum, brass) and plastics (like PVC, ABS, PE).

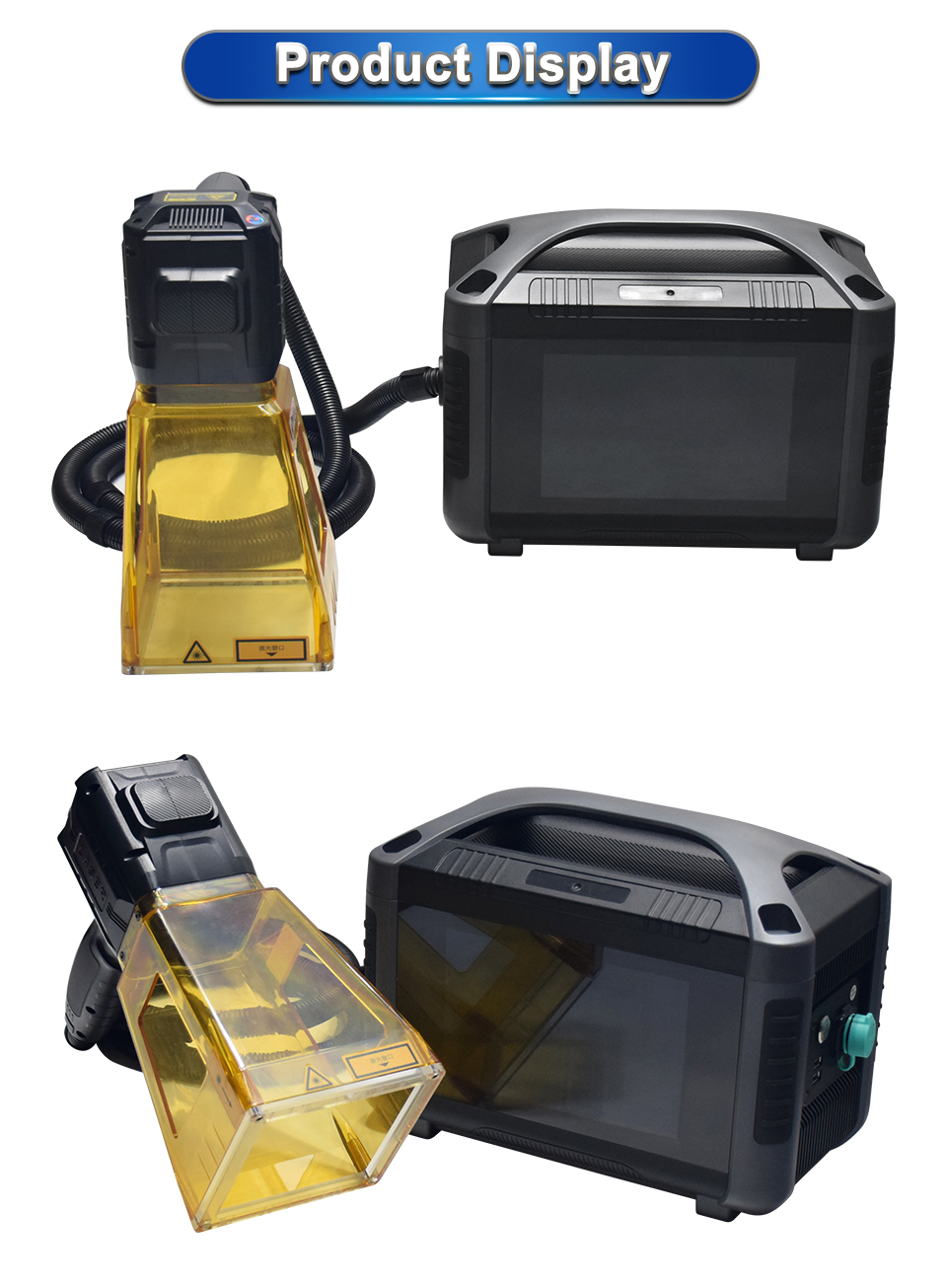

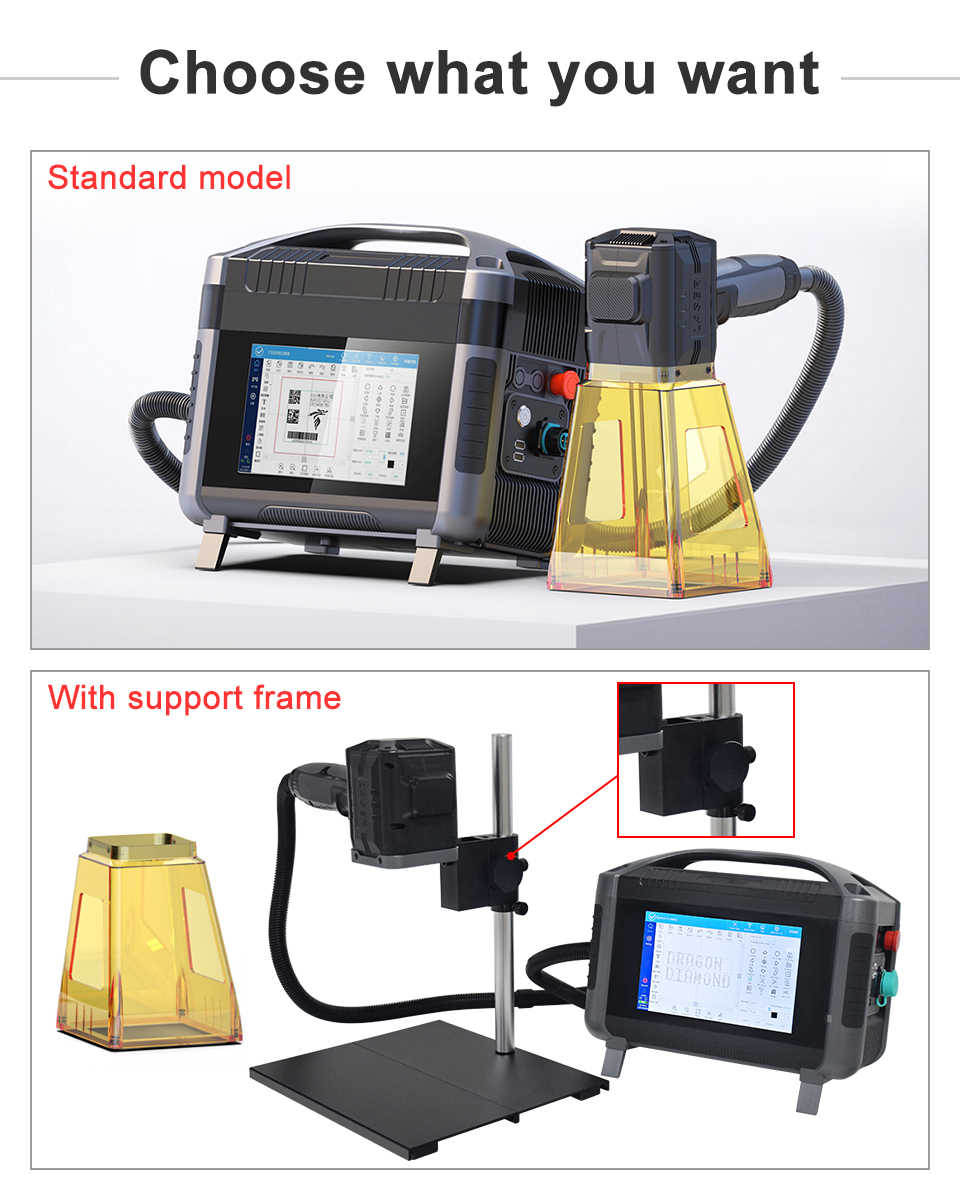

The plug-in version weighs 8kg, which is ideal for stationary workstation setups. The battery-powered version weighs 8.8kg, incorporating a high-capacity power bank for true outdoor portability.
We offer 20W and 30W configurations equipped with a 216Wh (15Ah) battery, as well as a high-power 50W configuration equipped with a 324Wh (15Ah) battery system.

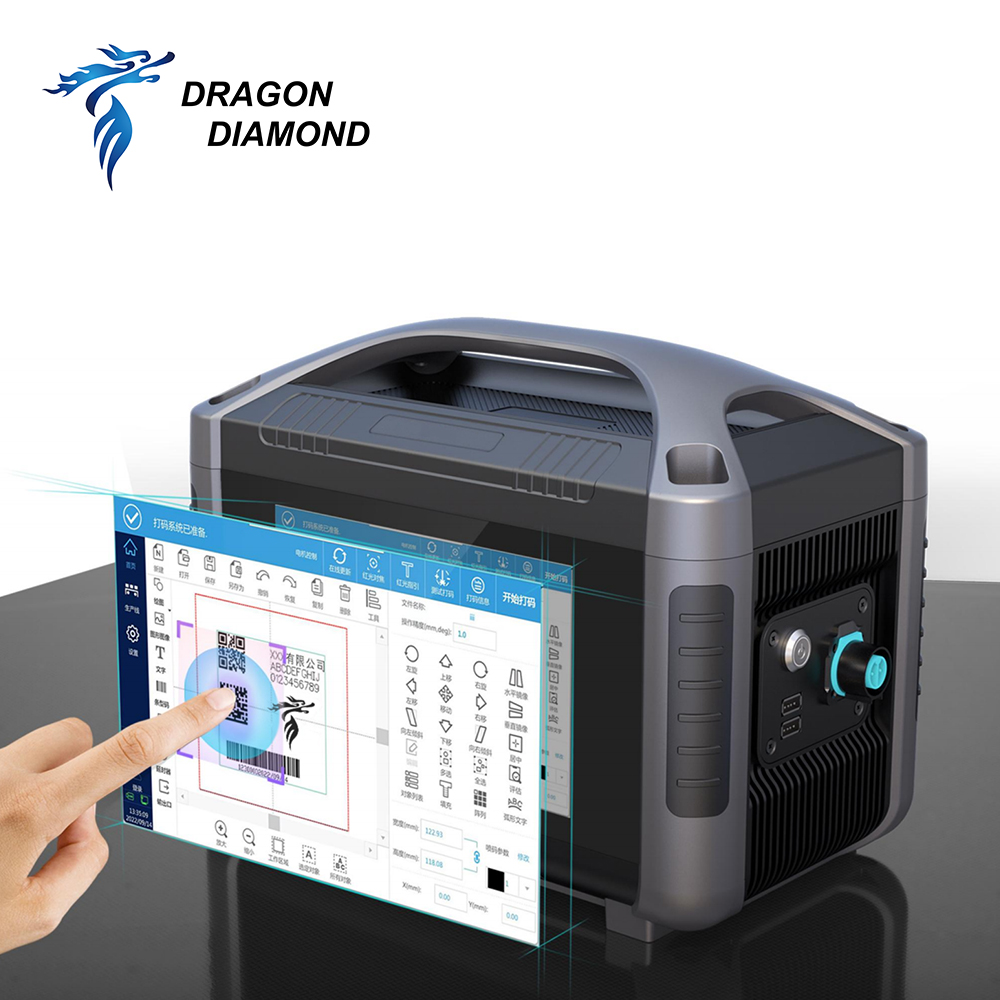

The integrated Linux system supports various standard file formats including BMP, DXF, HPGL, JPEG, and PLT, along with common barcodes such as CODE39, CODE128, CODE126, and QR codes.
It features a dual red light positioning and focusing system, combined with a high-precision two-dimensional scanning system to achieve a repeatable positioning accuracy of 0.01mm.
