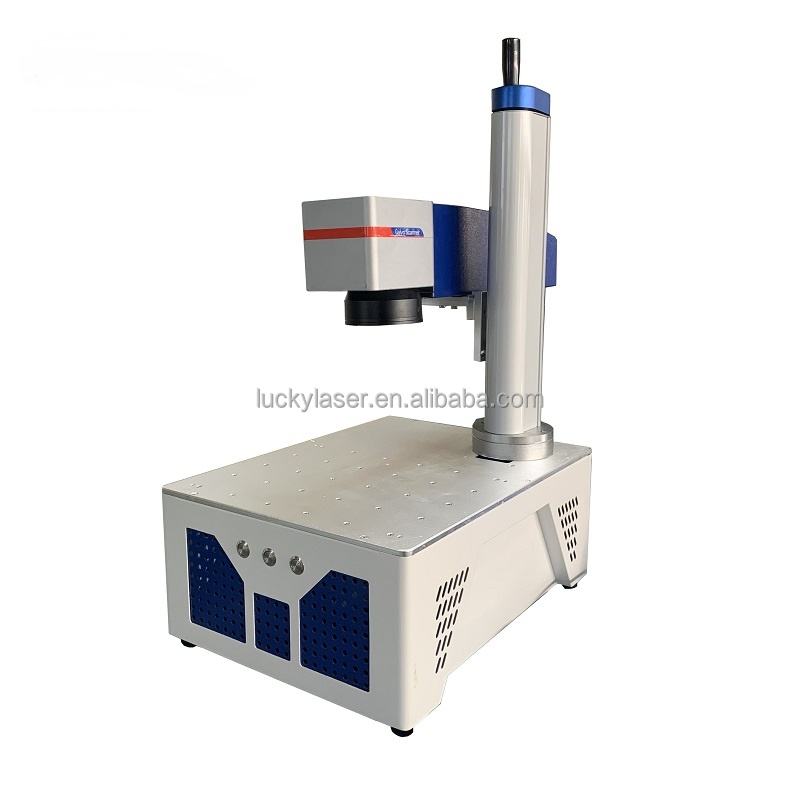

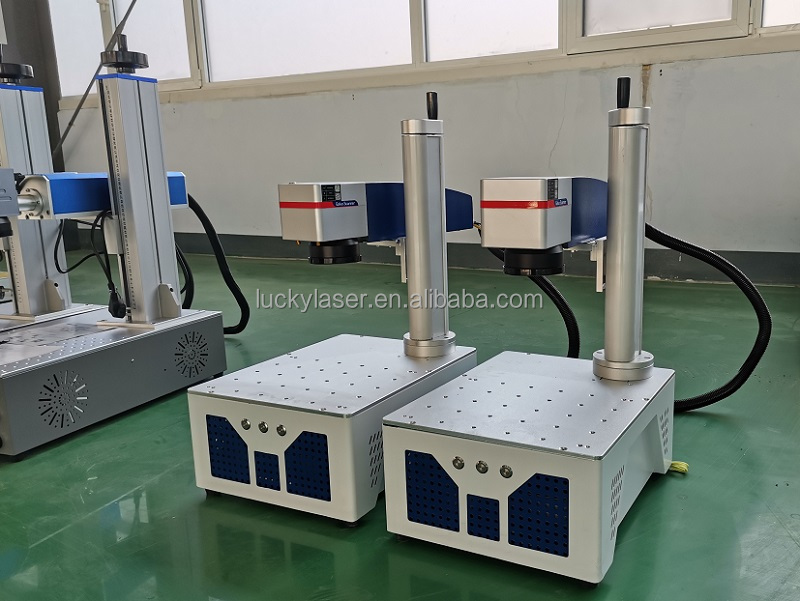

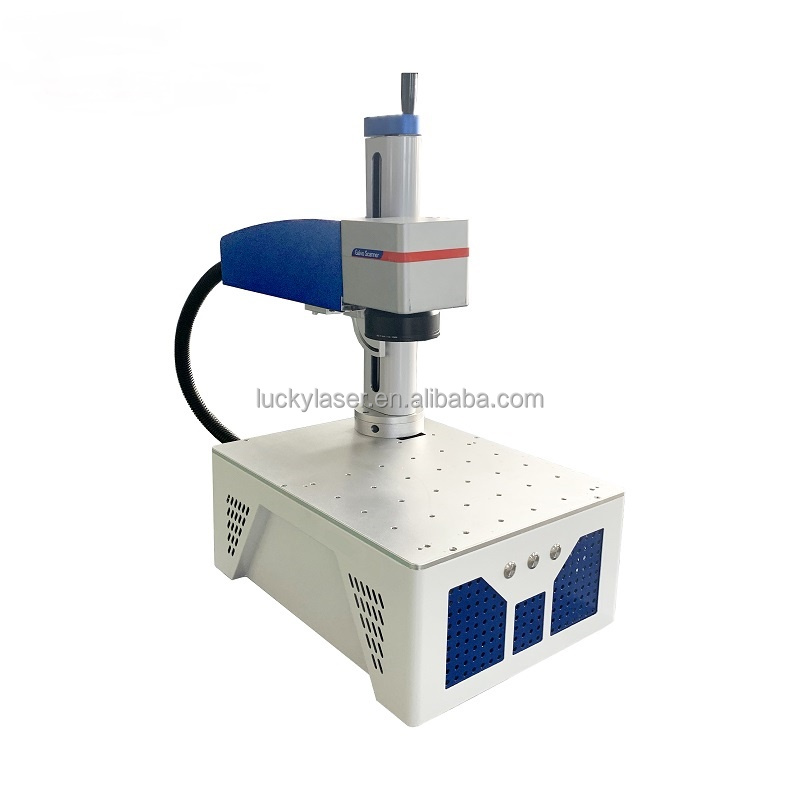

Raycus Max Laser Tag Equipment - High Precision Animal Ear Tag Laser Marking Machine
| Product Name | RTS 1064nm Portable Mini 20W 30W Fiber Laser Marking Machine Raycus Max Laser Tag Equipment Animal Ear Tag Laser Marking Machine | Laser Power | 20W 30W 50W |
| Laser Source | Raycus MAX JPT IPG | Laser Wavelength | 1064nm |
| Beam Quality | M² < 1.6 | Pulse Width | 2-500ns |
| Cooling System | Air cooling | Working Area | 110mm*110mm-300mm*300mm |
| Marking Depth | 0.01 - 2mm (By materials) | Marking Speed | 0-7000 mm/s |
| Repositioning Accuracy | ±0.003mm | Minimum Line Width | ≥0.015mm |
| Power Supply | 220V/110V 50Hz/60Hz | Machine Power | ≤450W |

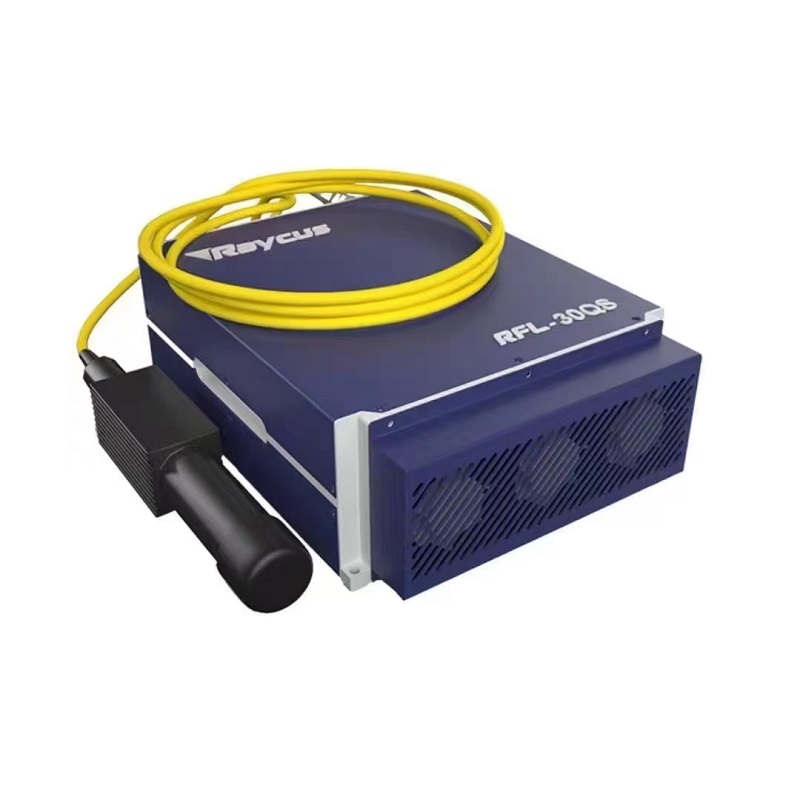

20W 30W Raycus QS fiber laser source for your choice.

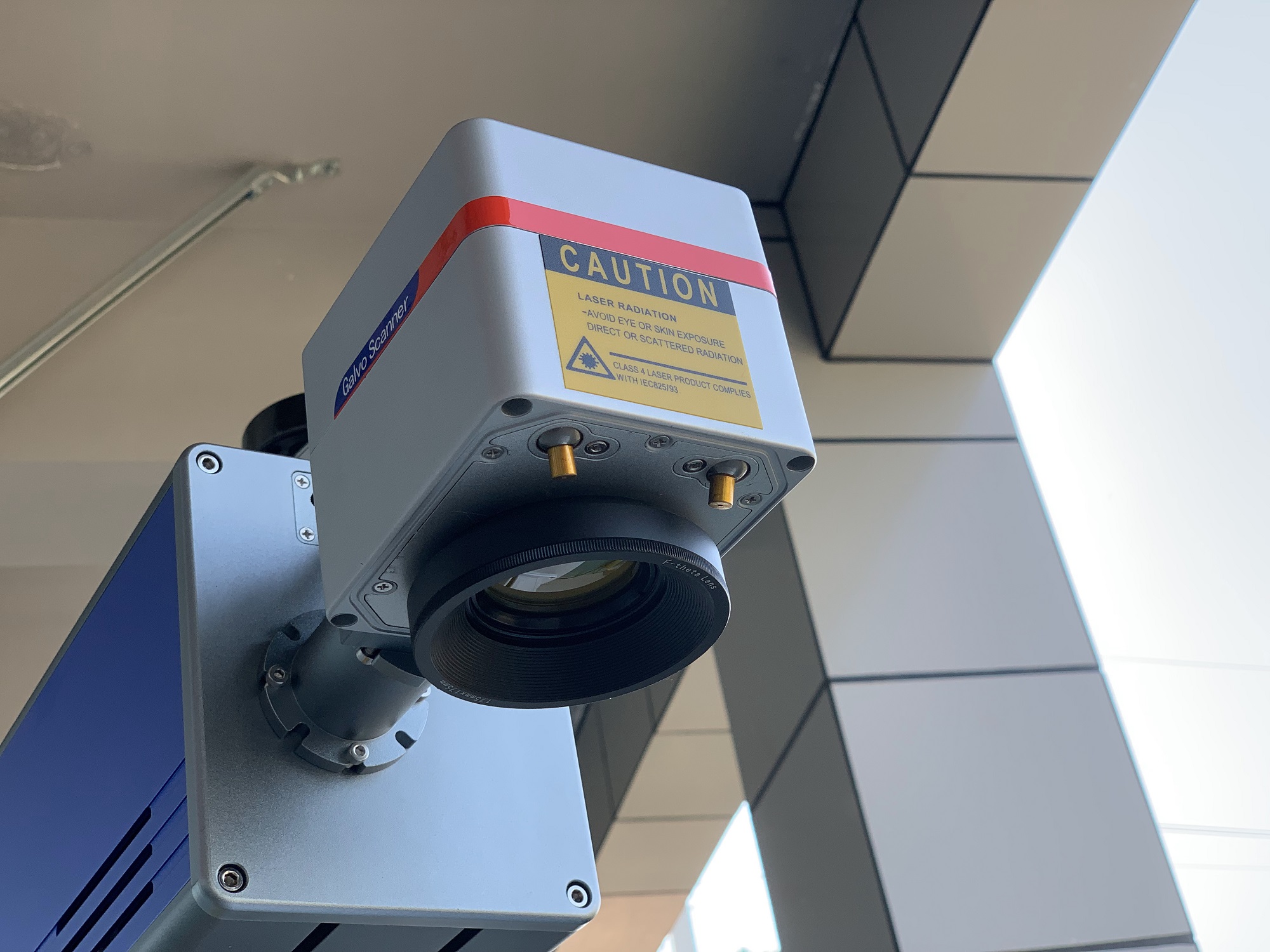

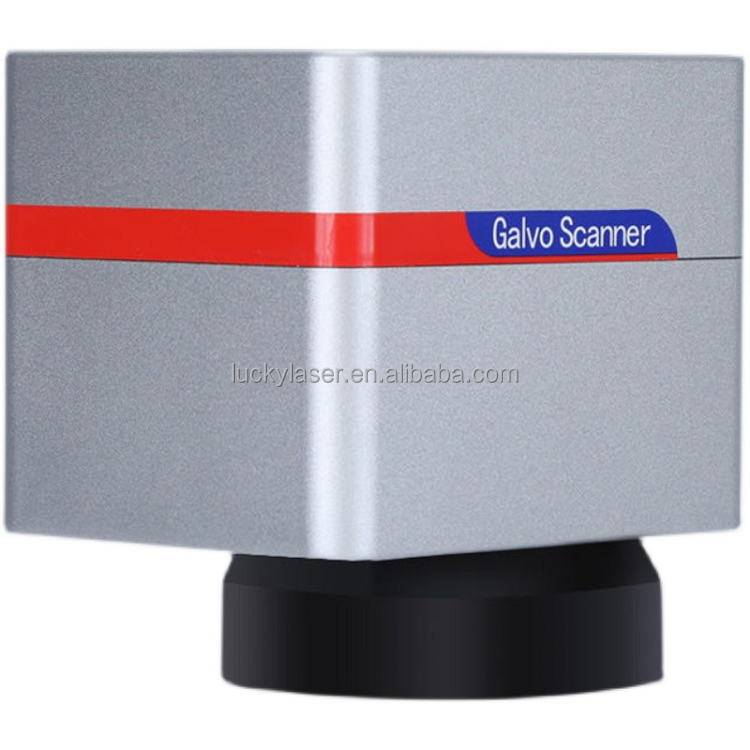

Sino RC1001 with dual red lights.

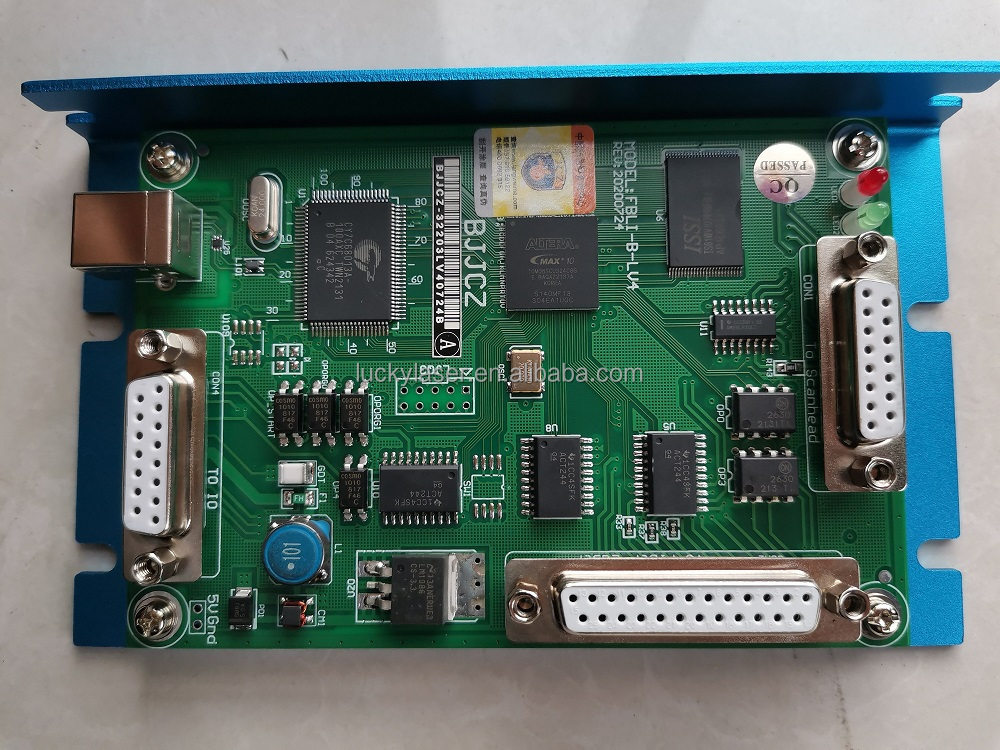

Original BJJCZ Main Board with Ezcad V2 Software.

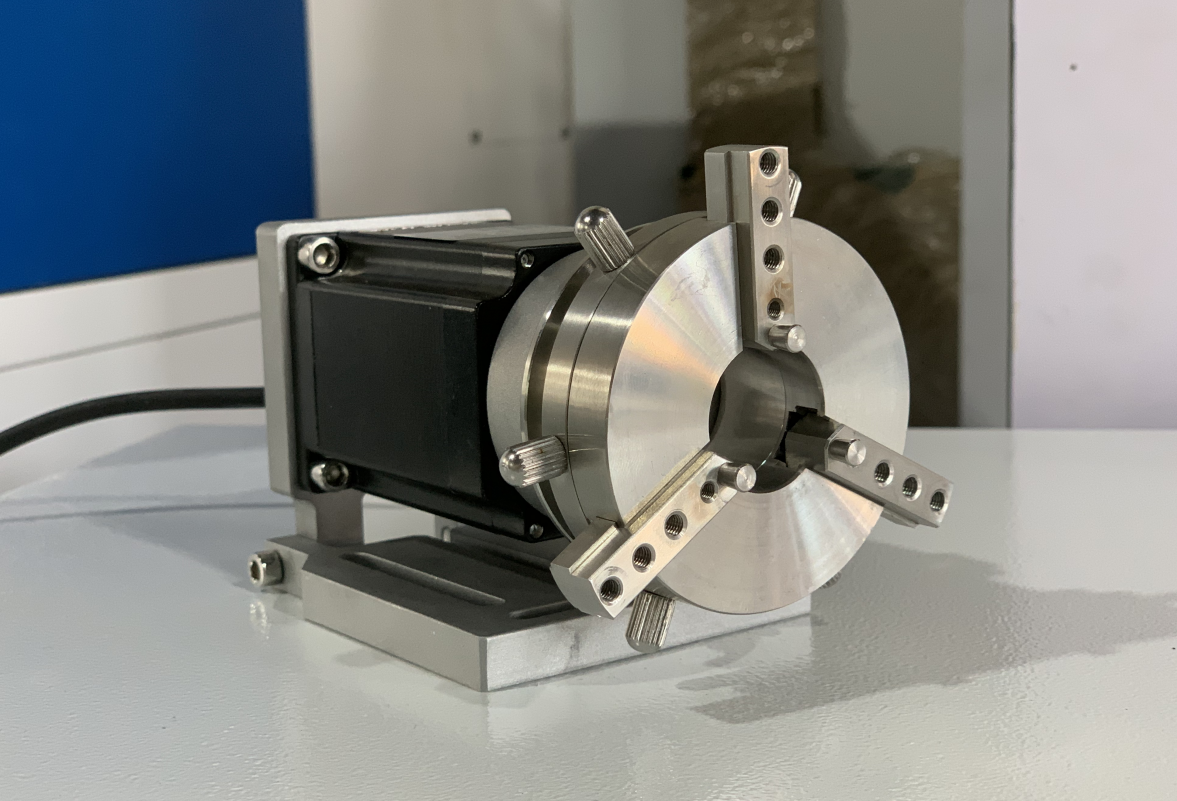

D50 / D69 Ring Rotary. Weight: 3KGS.
A: This 1064nm fiber laser marking machine is highly effective for marking and engraving on all metals (including stainless steel, aluminum, brass, copper, and titanium) as well as engineered plastics, ABS materials, and animal ear tags.
A: The Raycus fiber laser source is highly durable and has an operational lifespan of up to 100,000 hours under standard working conditions, requiring minimal maintenance.
A: A 20W laser is ideal for surface marking and high-contrast engraving on plastics and softer metals. The 30W version provides faster marking speeds and is capable of deeper engraving on harder metals.
A: Yes, the machine uses the original BJJCZ board paired with Ezcad V2 software, which is highly intuitive. It supports various formats including vector graphics, barcodes, QR codes, and automated serial numbers.
A: No, this fiber laser marking machine utilizes an efficient built-in air cooling system, making it compact, quiet, highly reliable, and free from the maintenance needs of water chillers.
A: Yes, by connecting the optional D50 or D69 ring rotary attachment, the machine can easily perform 360-degree continuous engraving on cylindrical or curved surfaces.
