| Parameter | Specifications (355 nm) | ||
|---|---|---|---|
| Pulse Repetition Rate Range | 10kHz to 150kHz / 60kHz to 150kHz (Options: single shot to 200kHz) | ||
| Pulse Width | ≤12ns @ 30kHz | ≤12ns @ 50kHz | ≤16ns @ 50kHz |
| Average Power | >3 / 5W @ 30kHz | >14W @ 50kHz | >17W @ 50kHz |
| Average Power Stability | < ±3% over 24 hours | ||
| Pulse Energy Stability | < 3% rms | ||
| Spatial Mode | TEM00 (M2 < 1.2) | ||
| Beam Diameter | 0.77mm | 1.0mm | |
| Beam Full Divergence Angle | < 2mrad | ||
| Beam Circularity | > 90% | ||
| Pointing Stability | < 50μrad | ||
| Polarization Orientation | Horizontal | ||
| Polarization Ratio | 100:1 | ||

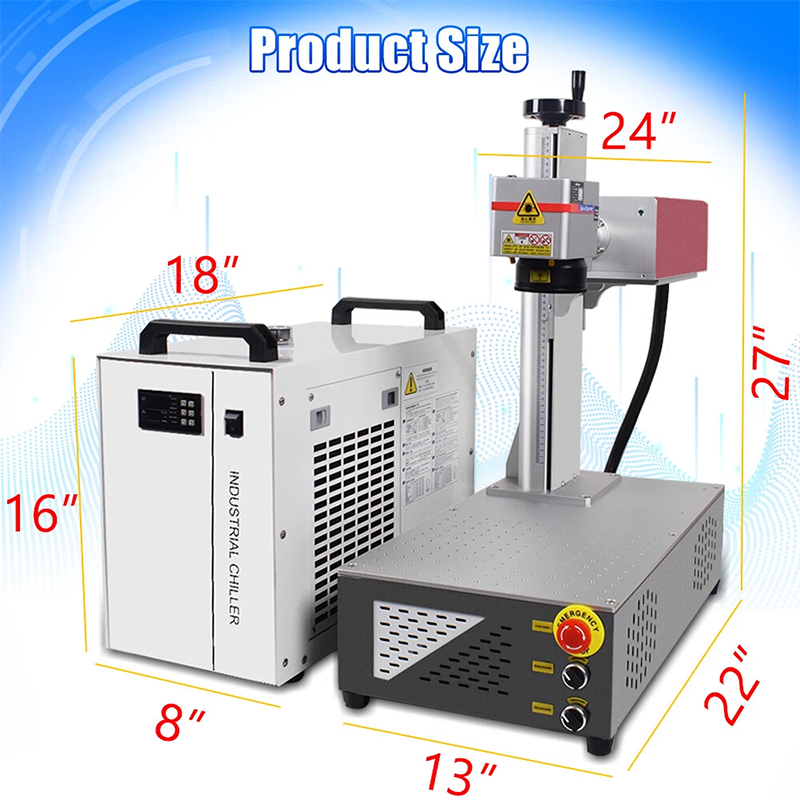

| Size | 404.98 * 155 * 115 mm | 426.98 * 115 * 155 mm | |
| Weight | 6.3 kg | 7 kg | |

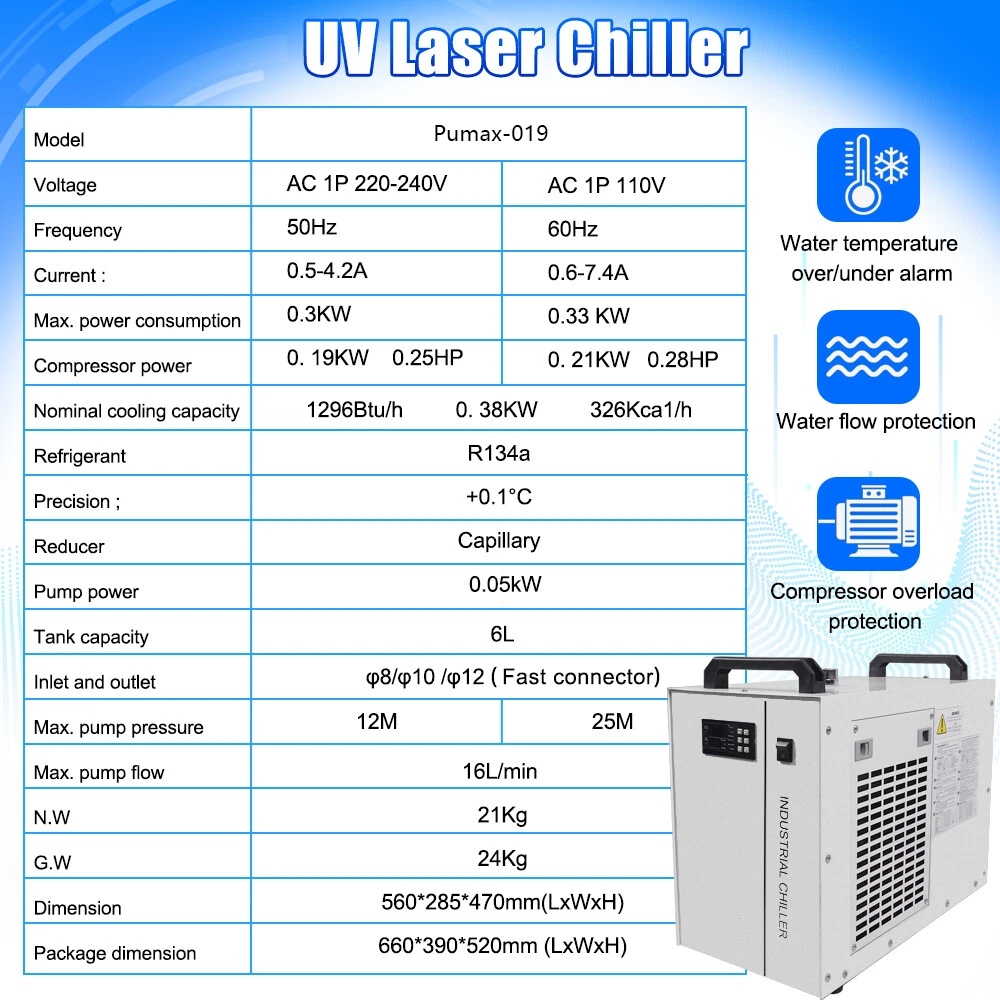

| Cooling Method | Water / Air-cooling | ||

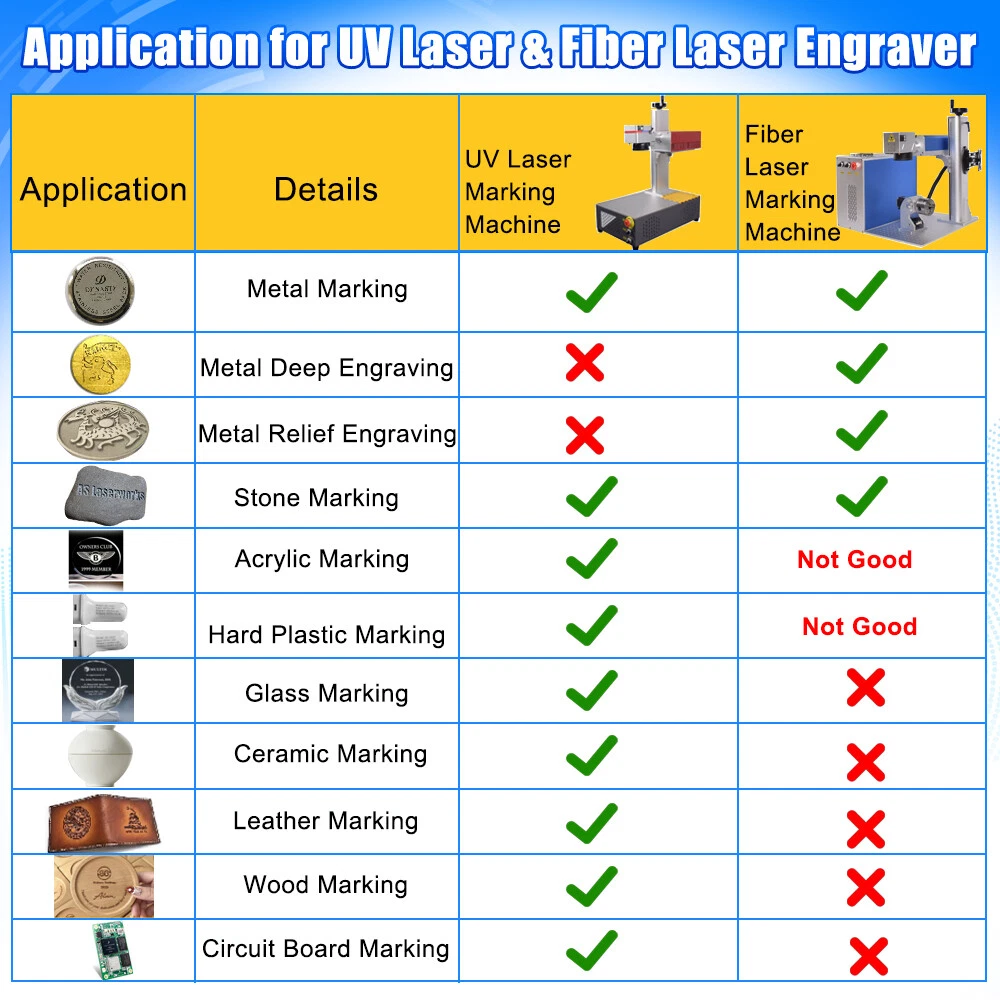

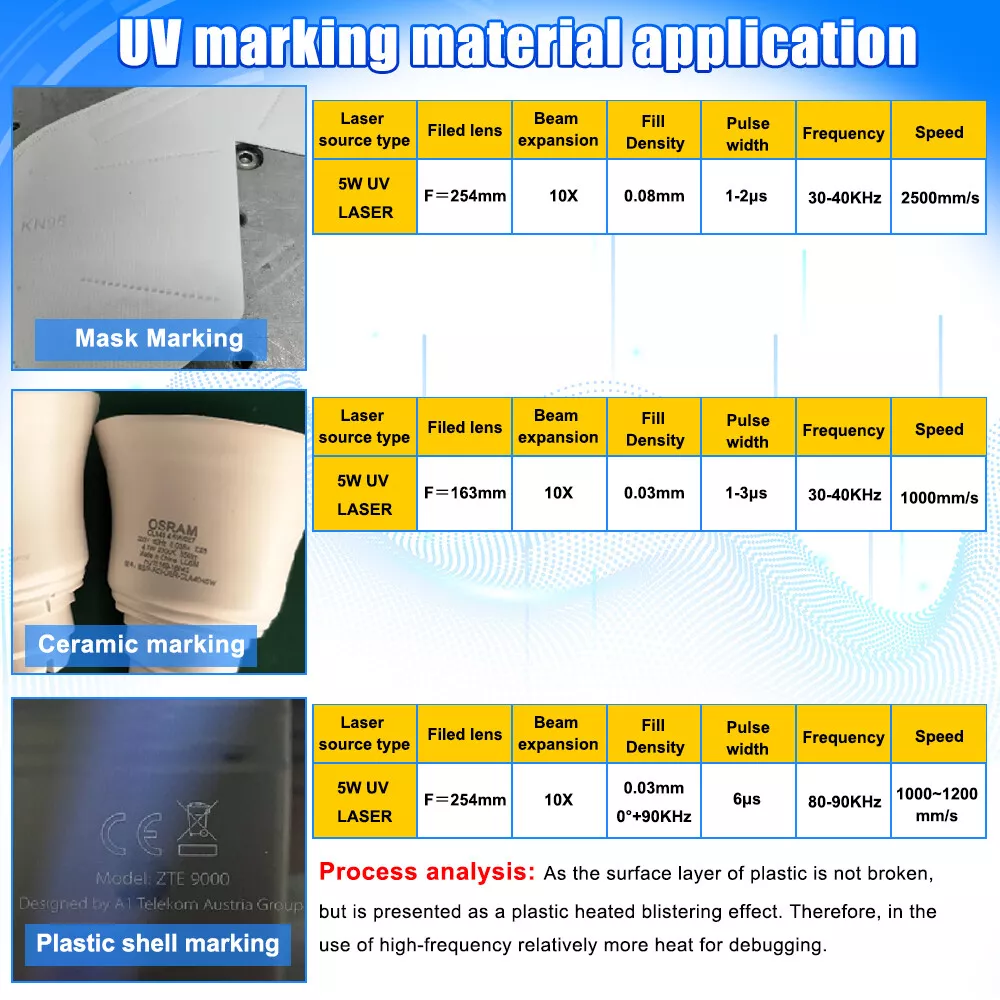

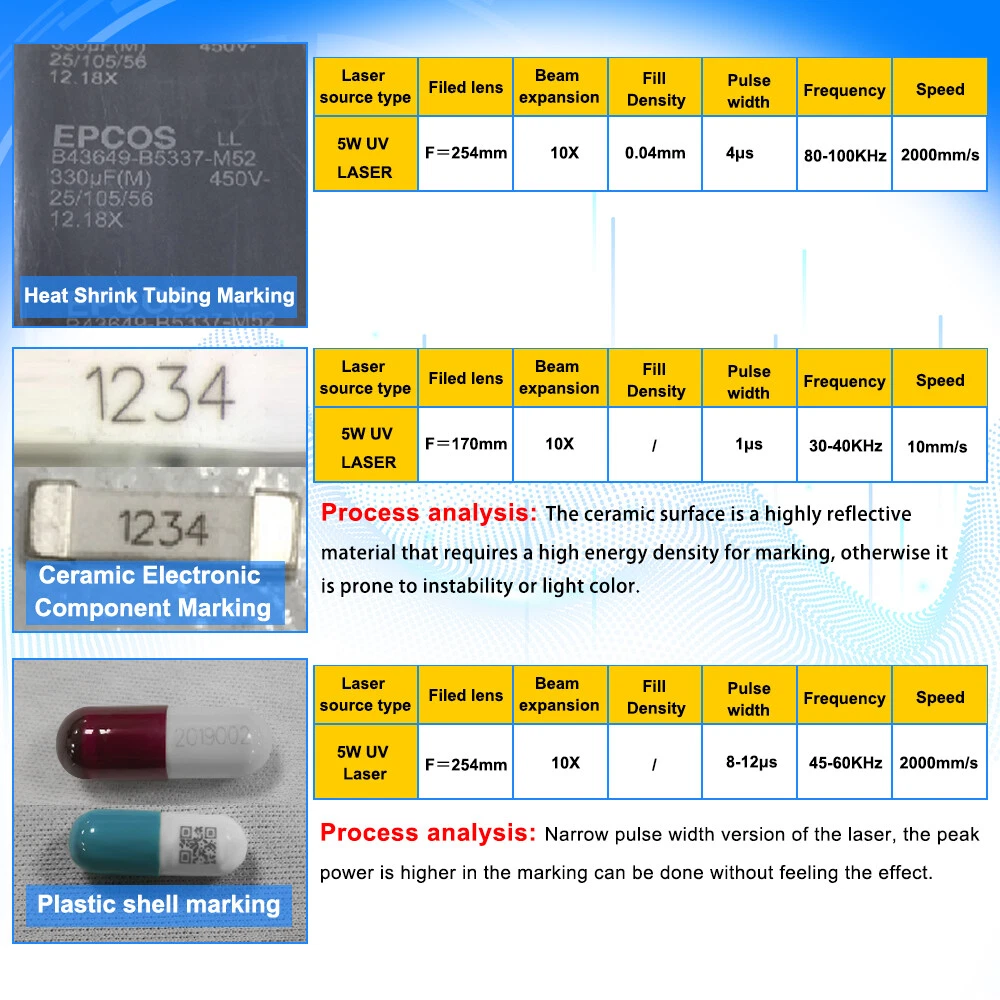

Any metal (including rare metals), stainless steel, alumina material, engineering plastics, electroplating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics, etc.
Clothing, embroidery cutting, fabric toys, paper products, leather goods industry, model industry, etc. requiring large-format material cutting, carving, and other applications.

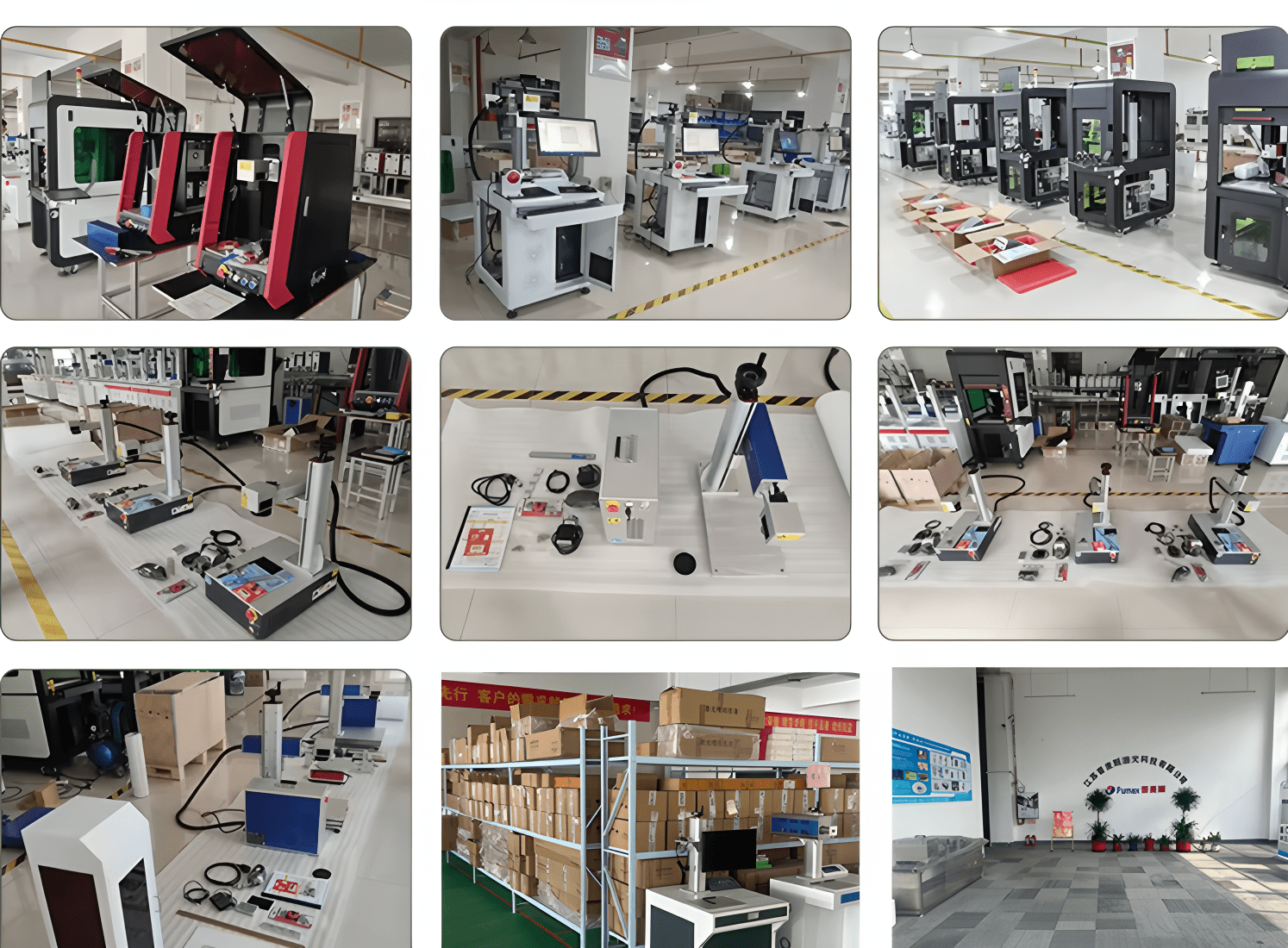

Since 2015, the factory has been located in the Hi-Tech industrial development area. As a high-tech enterprise, we specialize in the research, development, production, sales, and service of laser machines. With ten years’ dedicated operation, we have established a professional R&D team and laboratory, obtained dozens of laser application technology patents and design patents, and have been recognized as a national high-tech enterprise. After 20 years’ accumulation and development, our products have been highly accepted by customers and peer companies for quality and technology services. Also, our technologies have always taken a leading position in laser development and application fields.
Presently, we produce laser engraving machines, laser cutting machines, fiber laser cutting machines, fiber laser marking machines, UV laser marking machines, CO2 laser marking machines, and laser-beam welding machines. Meanwhile, we provide customers with a variety of laser automation applications for complete sets of equipment. These laser machines are widely used in leather, clothing, fabric, wood products, stone and glass, furniture manufacturing, model manufacturing, advertising, craft gifts, plastic rubber, printing, packaging paper, decoration, metal materials, electronics, electrical appliances, hardware, auto parts, and many other fields.
Currently, the factory has passed ISO9001 certification, international CE certification, SGS certification, US FDA, Saudi SASO certification, etc. Our customers are spread all over the world, including the USA, Britain, Singapore, Japan, South Korea, Malaysia, Thailand, Australia, Brazil, India, Russia, and more. We are committed to becoming an outstanding laser equipment manufacturer globally, operating on the principles of credit first, customer first, quality satisfaction, and punctual delivery, and we are willing to cooperate with you sincerely to develop hand in hand.
