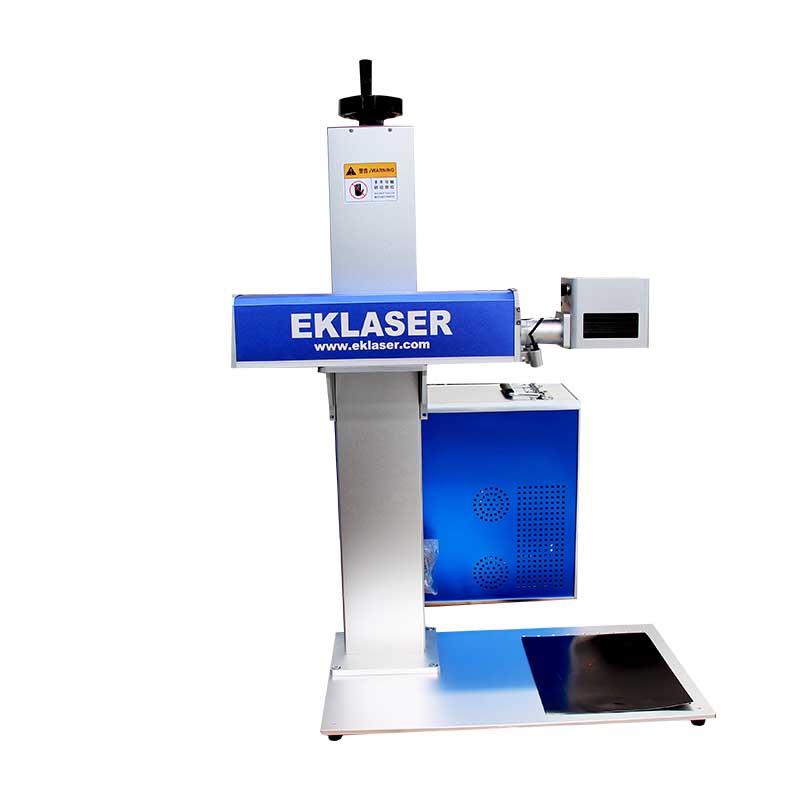

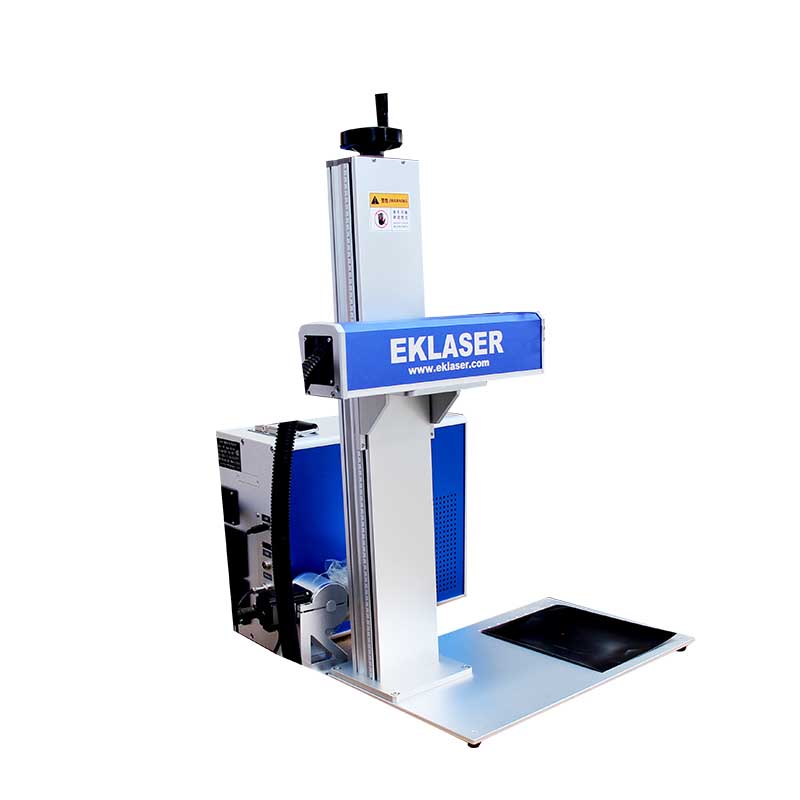

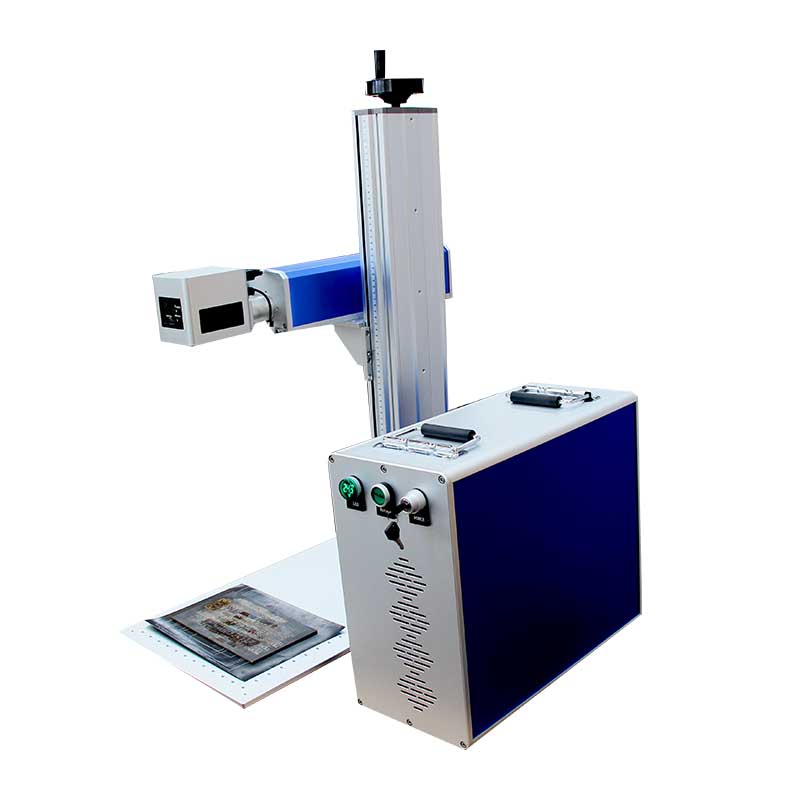

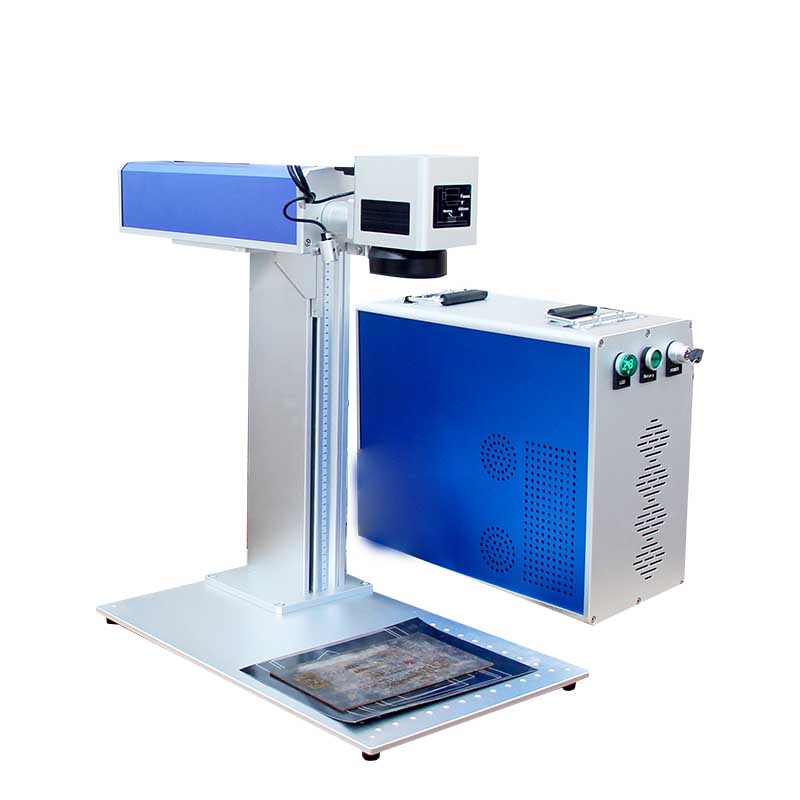

Longest lifetime for marking machine series, 100,000 hours free of maintenance. Features stable performance and high laser energy, allowing engraving on all metal materials and select nonmetal materials.
Adopts an integrated air cooling system with a compact machine size. Offers high beam quality suitable for precise strip and pattern marking.

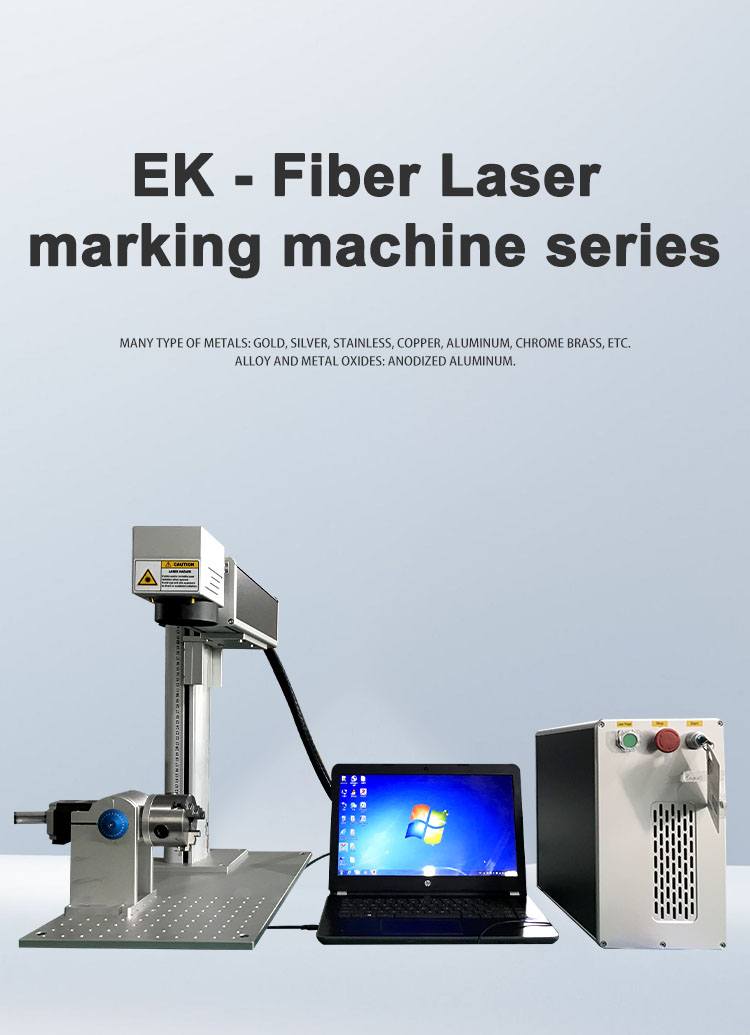

Features a third-generation laser marking design utilizing the industry's most advanced fiber laser technology.
Red light position indicator allows for easier alignment, testing, and changing of holders.
| Parameter Item | Specification Details |
|---|---|
| Model | Fiber laser marking machine |
| Laser-power | 20w / 30w / 50w |
| Working area | 110*110mm / 200*200mm / 300*300mm |
| Cooling way | Air cooling |
| Marking depth | 0.05mm - 1mm |
| Marking speed | 9000mm/s |
| Graphic format supported | PLT, BMP, DXF, AL, CDR, PCX, DST, GIF, DWG |
| Minimum linewidth | 0.01mm |
| Control system | Beijing JCZ controller |
| Working temperature | 5℃ - 40℃ |
| Operating humidity | 5% - 95% (without condensed water) |
| Software compatibility | EZ cad |
| Working voltage | AC220V 50HZ / AC110V 60HZ |
| Whole machine size | 750*870*1560mm |
We will supply free parts for this machine during the warranty period if the machine has any problems without man-made reasons. We also supply free after-service forever.
For standard machines, it would be 7-10 days. For non-standard machines & customized machines according to client's specific requirements, it would be 15 to 30 days.
We support T/T, L/C, Western Union, Paypal, and other standard payment methods.
All of our machines are packed with waterproof thin plastic inside and a fumigation-free plywood box outside the machine, wrapped with a stainless steel belt on the packages.
The fiber laser source offers a long lifetime of up to 100,000 hours free of maintenance with highly stable performance.
It can engrave on all types of metal materials (such as steel, brass, aluminum) and select nonmetal materials (such as plastics, polymers, and synthetic resins).
