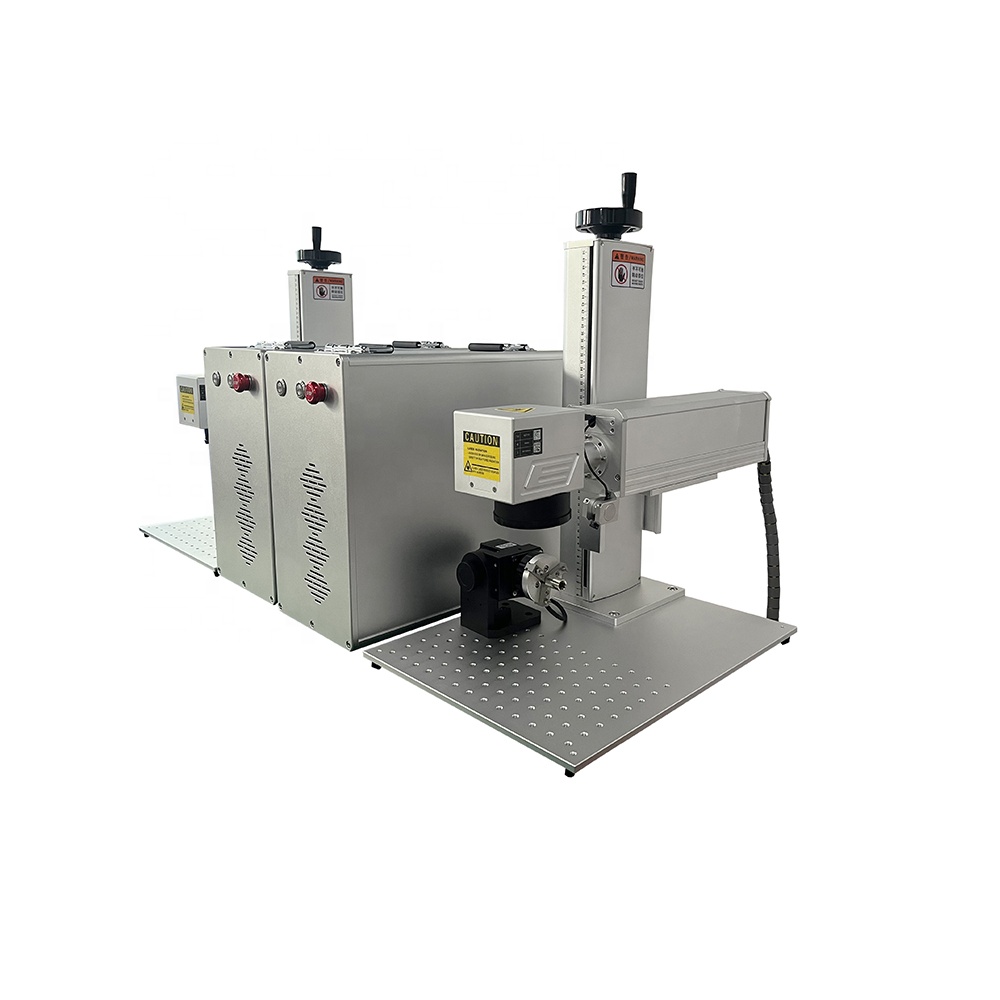

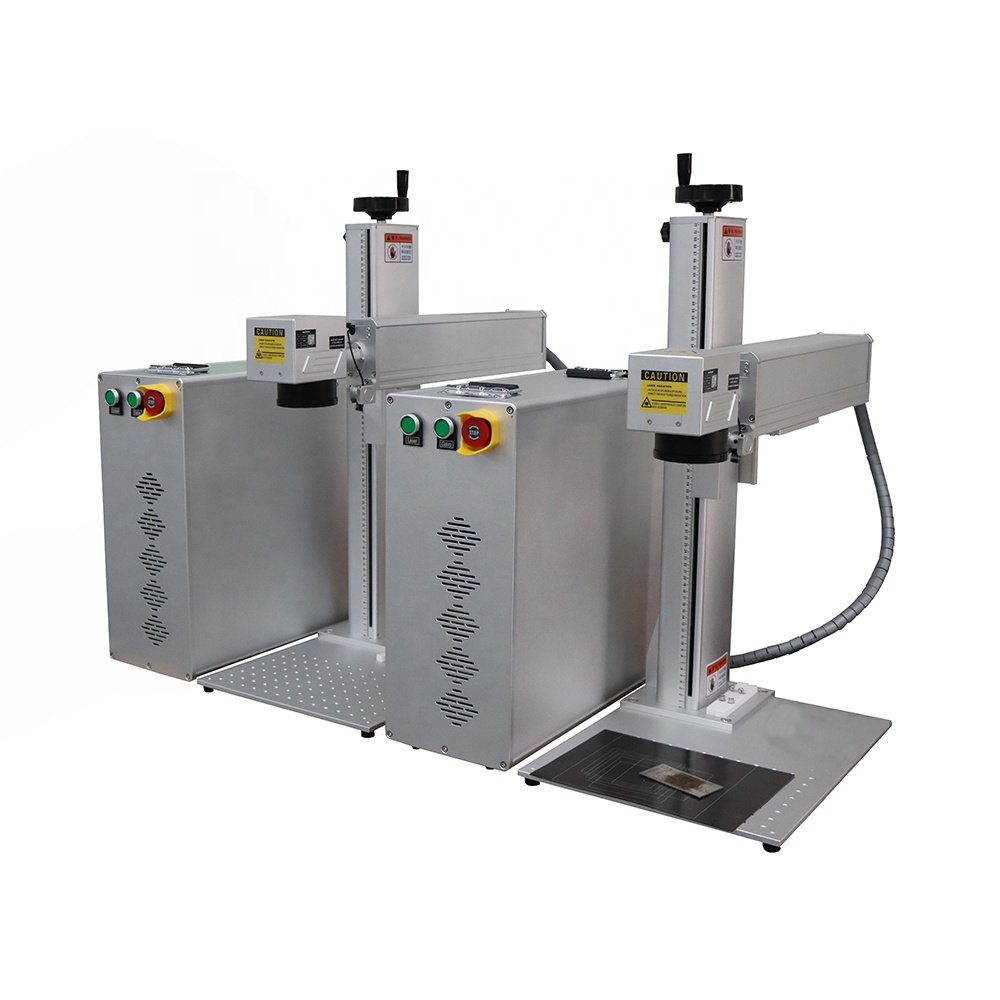

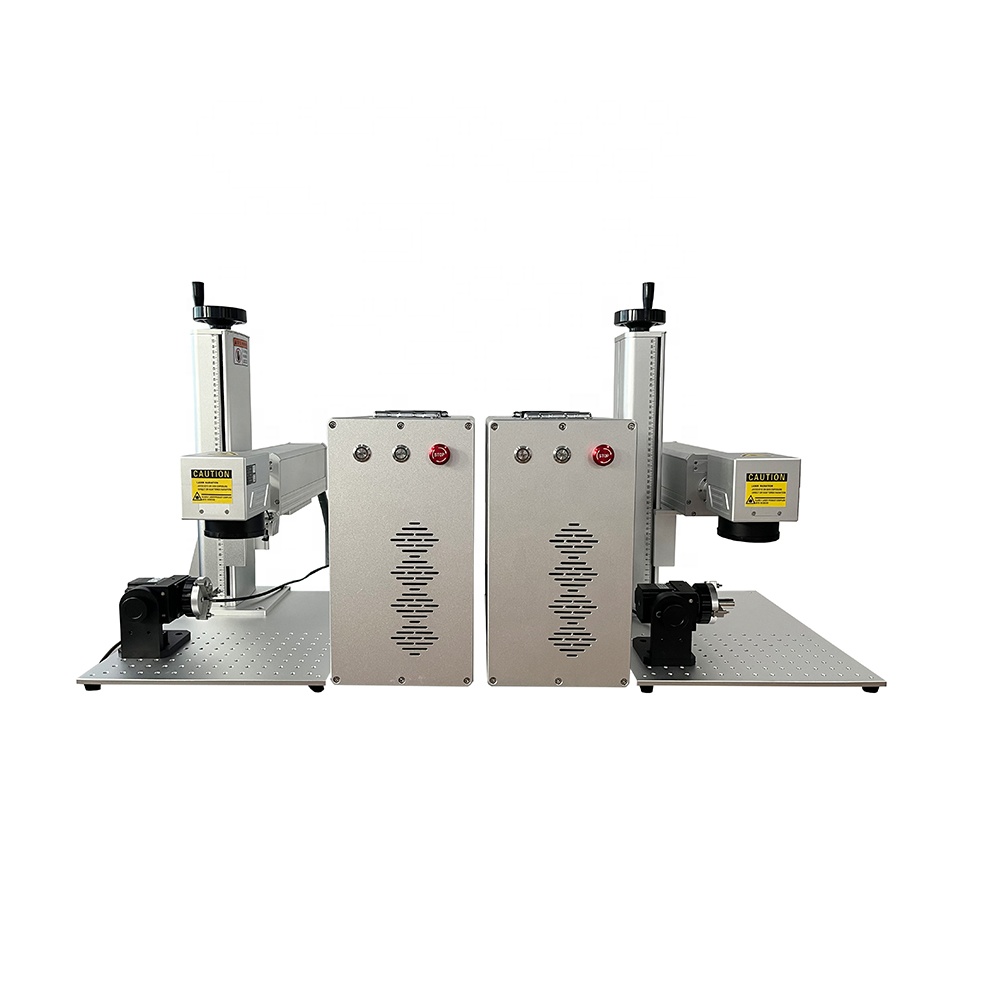

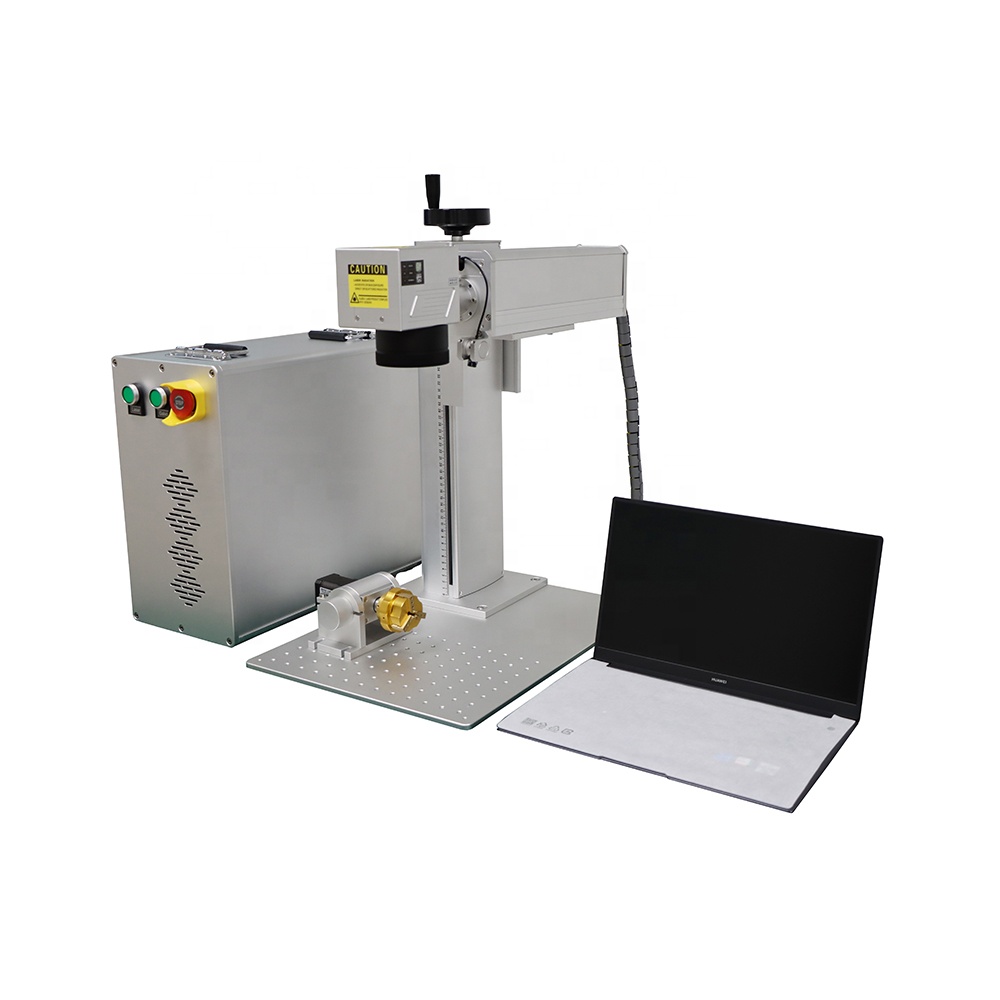

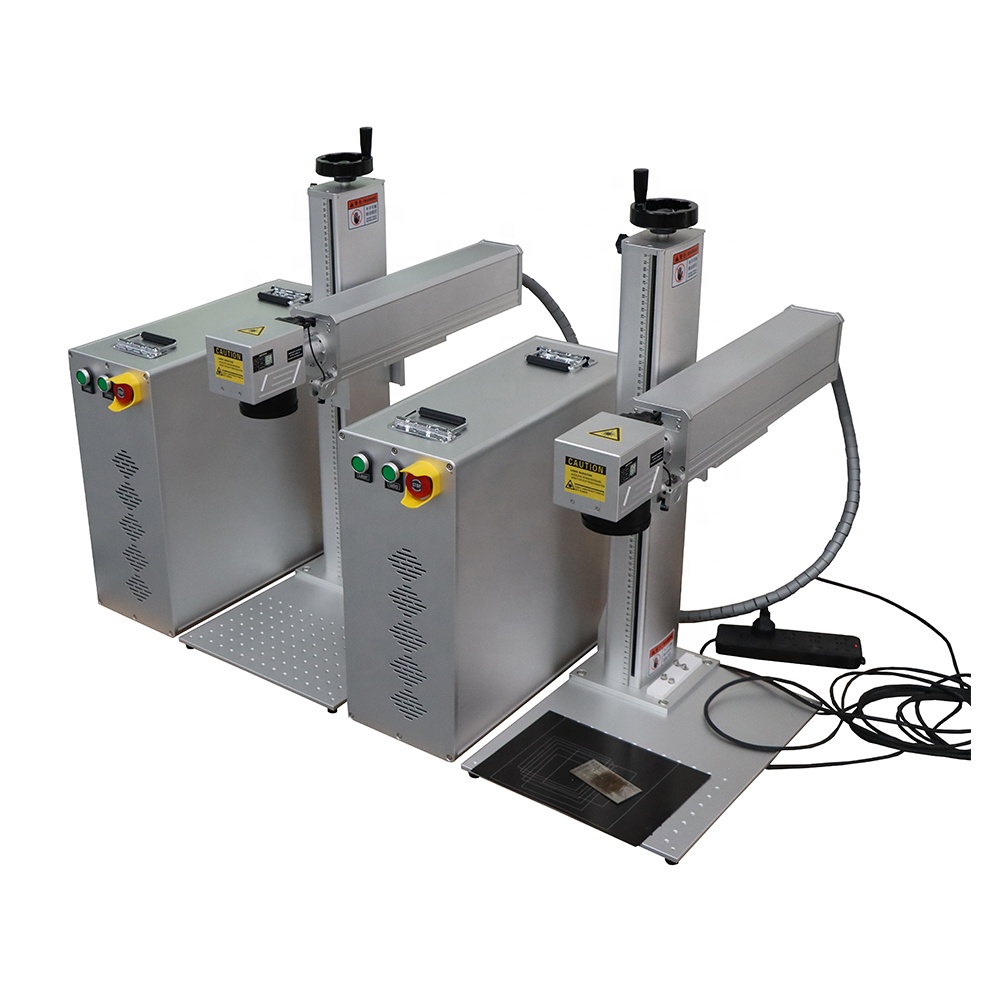

Small Jewelry Cutting Laser Engraving Machine Fast Marking and High Precision with Support for DXF PLT AI DWG Formats
Small Jewelry Cutting Laser Engraving Machine Fast Marking and High Precision with Support for DXF PLT AI DWG Formats
Small Jewelry Cutting Laser Engraving Machine Fast Marking and High Precision with Support for DXF PLT AI DWG Formats
Small Jewelry Cutting Laser Engraving Machine Fast Marking and High Precision with Support for DXF PLT AI DWG Formats
Small Jewelry Cutting Laser Engraving Machine Fast Marking and High Precision with Support for DXF PLT AI DWG Formats
1 / 5
Small Jewelry Cutting Laser Engraving Machine Fast Marking and High Precision with Support for DXF PLT AI DWG Formats
Small Jewelry Cutting Laser Engraving Machine Fast Marking and High Precision with Support for DXF PLT AI DWG Formats
Small Jewelry Cutting Laser Engraving Machine Fast Marking and High Precision with Support for DXF PLT AI DWG Formats
Small Jewelry Cutting Laser Engraving Machine Fast Marking and High Precision with Support for DXF PLT AI DWG Formats
Small Jewelry Cutting Laser Engraving Machine Fast Marking and High Precision with Support for DXF PLT AI DWG Formats

Small Jewelry Cutting Laser Engraving Machine Fast Marking and High Precision with Support for DXF PLT AI DWG Formats

Send Inquiry

Product Description

Our fiber laser engraving machine allows you to easily laser etch and engrave on metal materials. It can engrave logos, text, time, serial and part numbers, QR codes, bar codes, bitmaps, pictures, and images. From jewelry engravings to kitchenware bar code etching, invest in a fiber laser marking machine and expand your product portfolio. You can even engrave a variety of colors onto stainless steel with our MOPA fiber laser engraving machines!

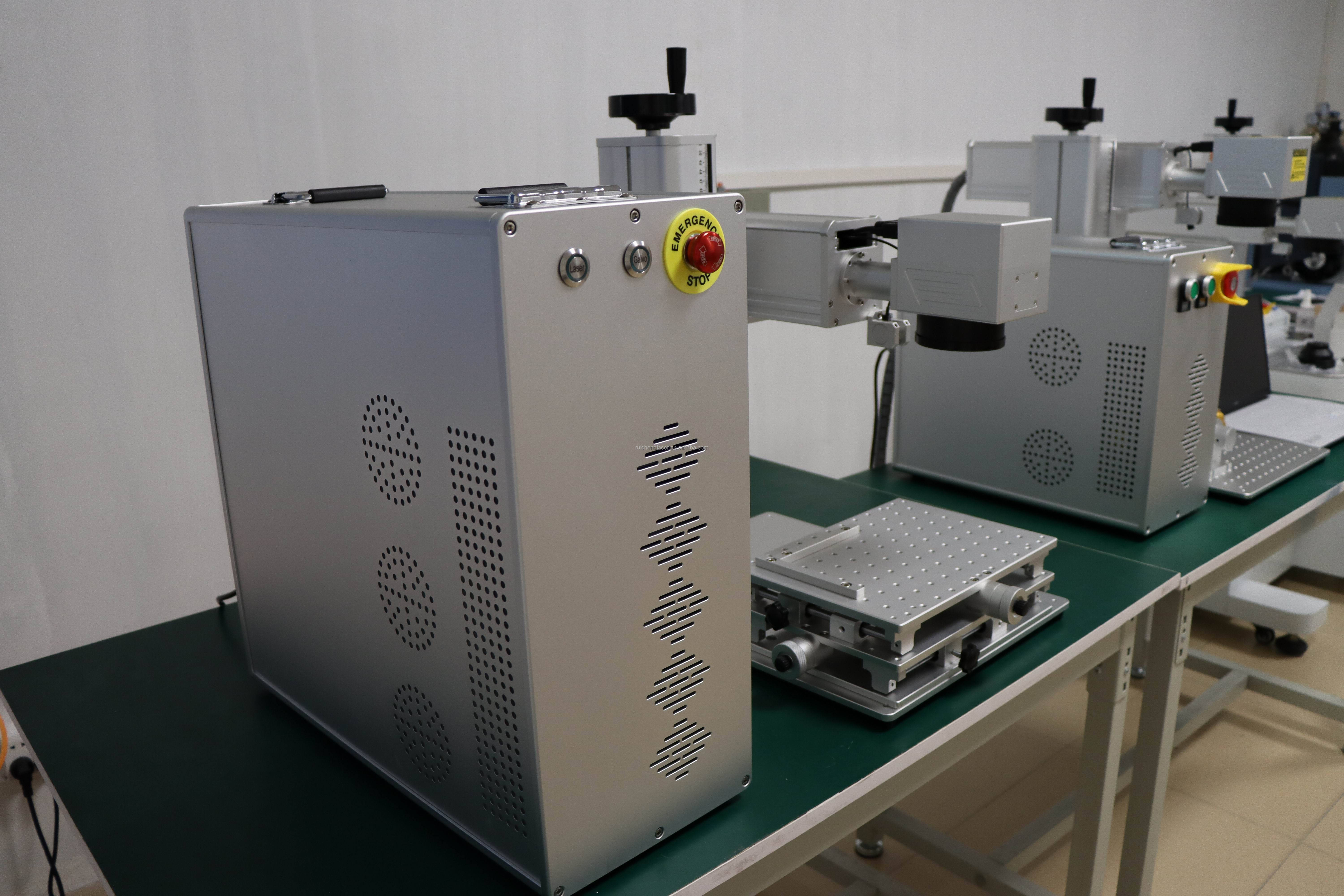

Fiber Laser Engraving Process

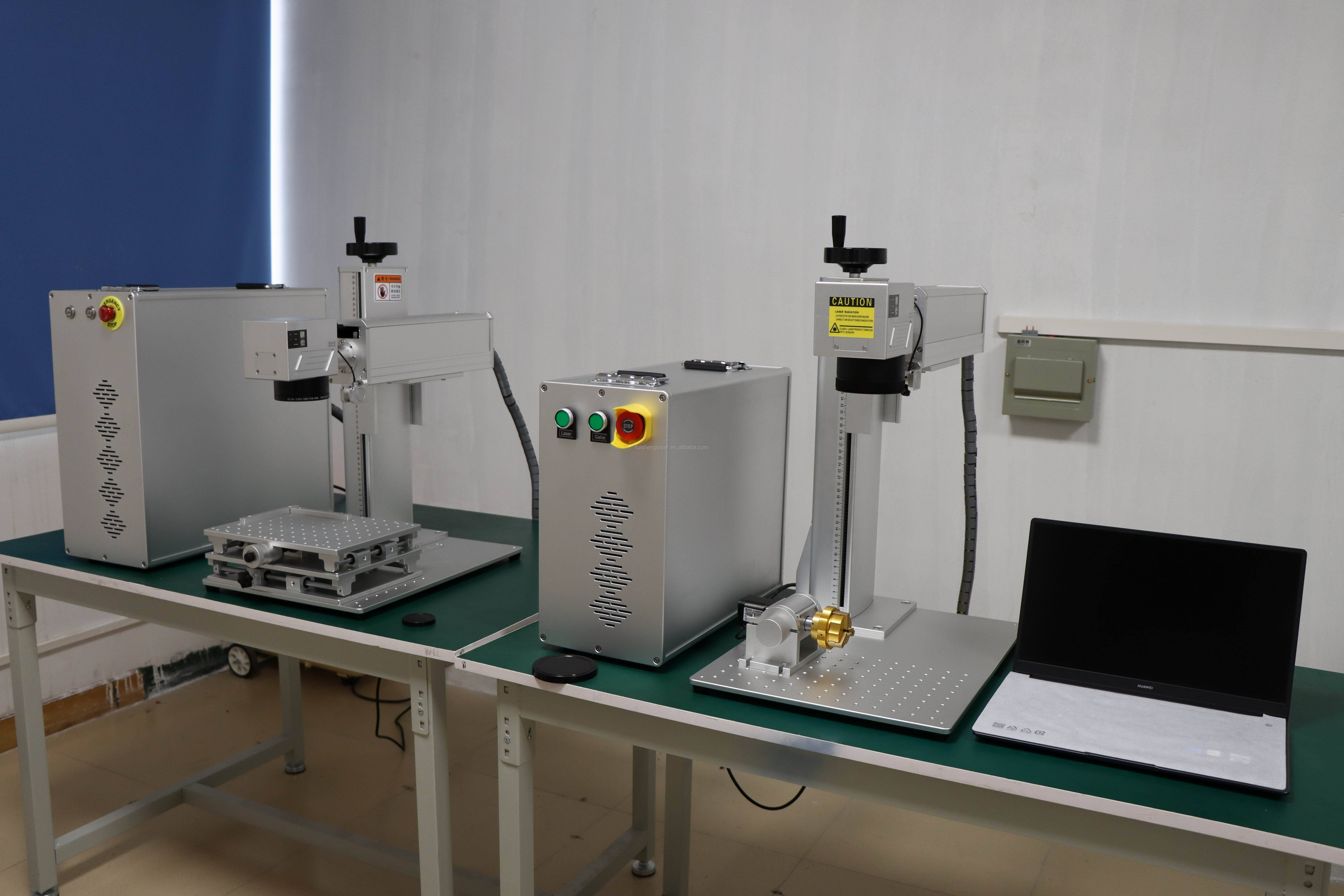

Fiber Laser Marked Metal Samples

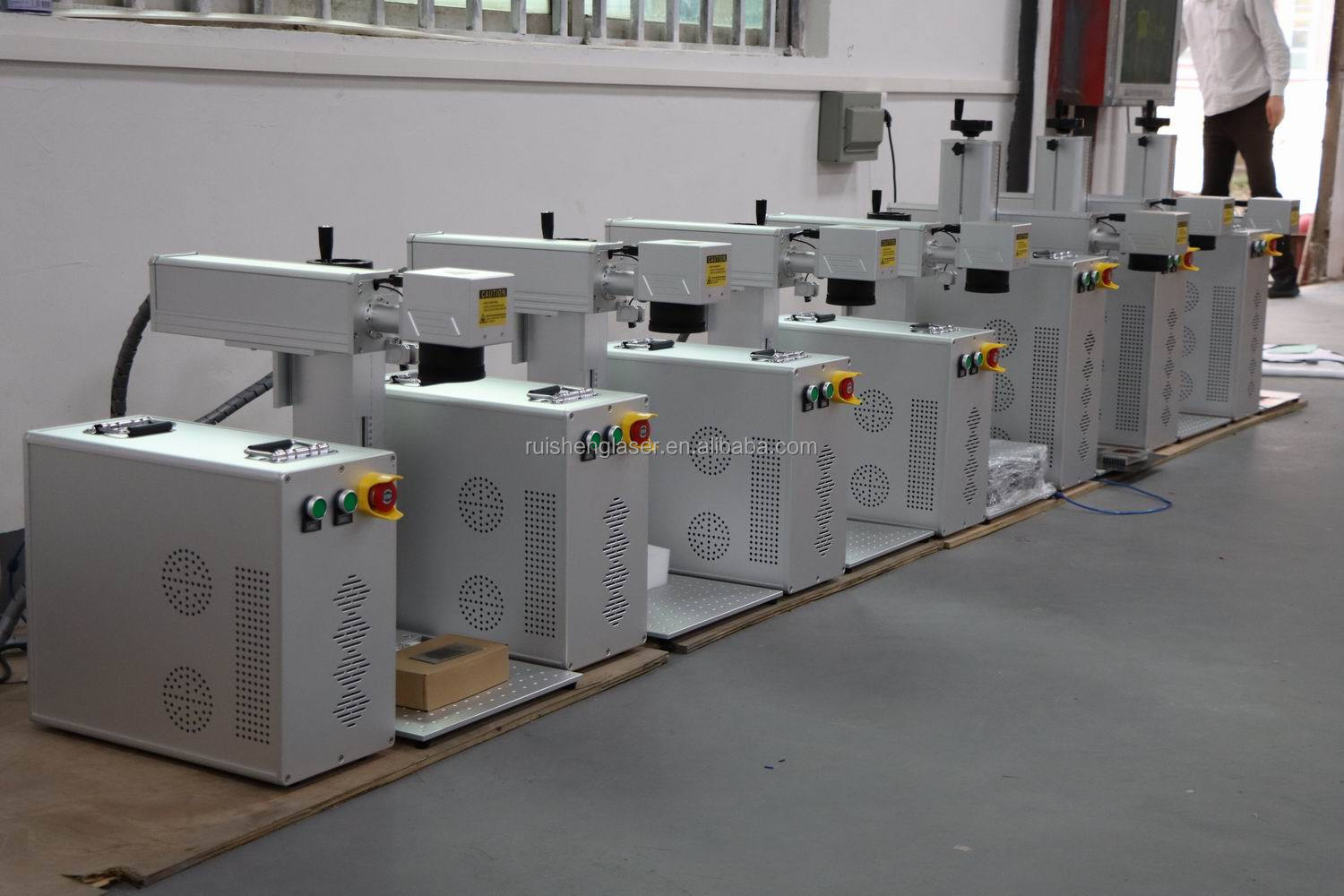

Laser Engraving Equipment Overview

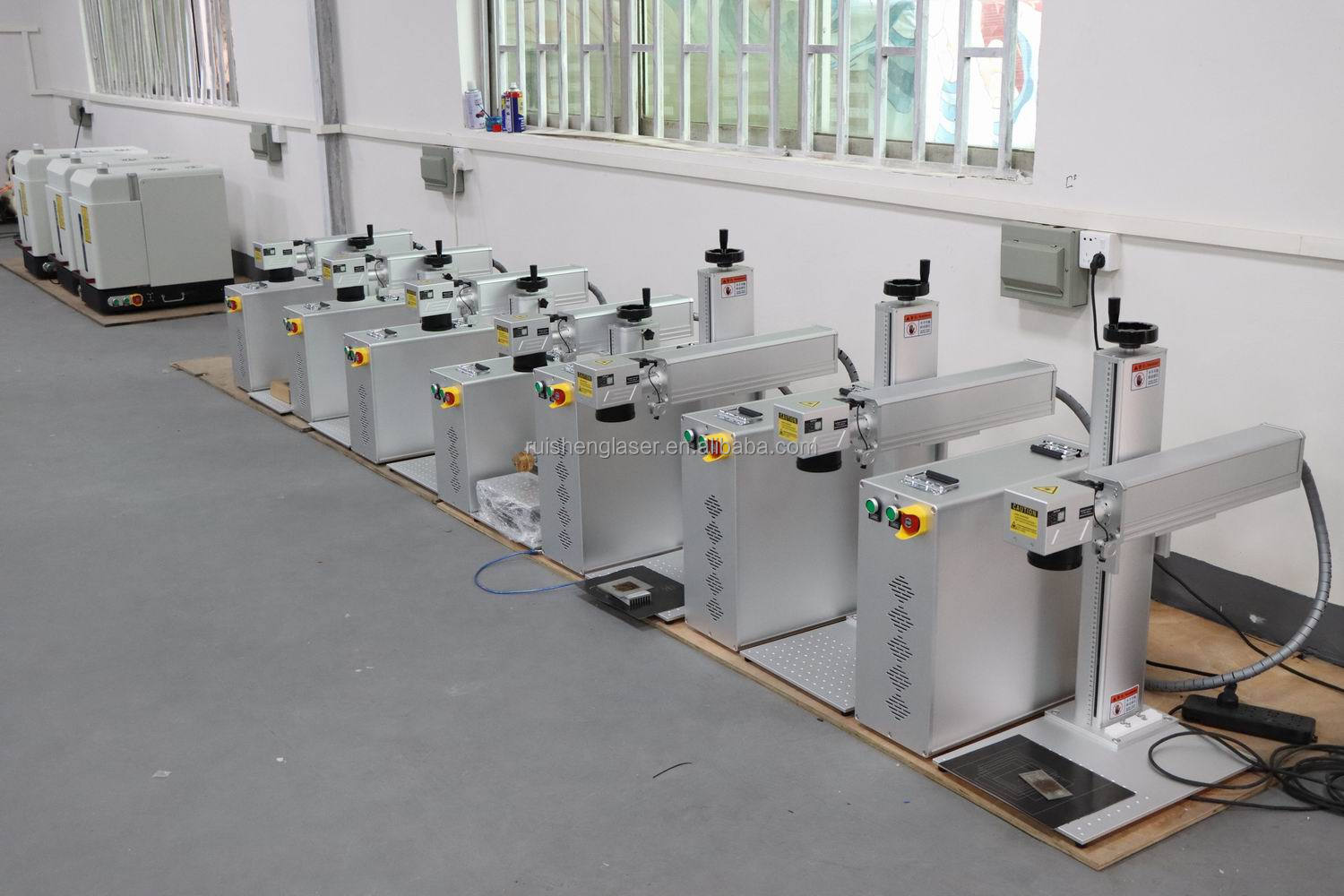

Laser Engraving Machine Setup
Machine Details

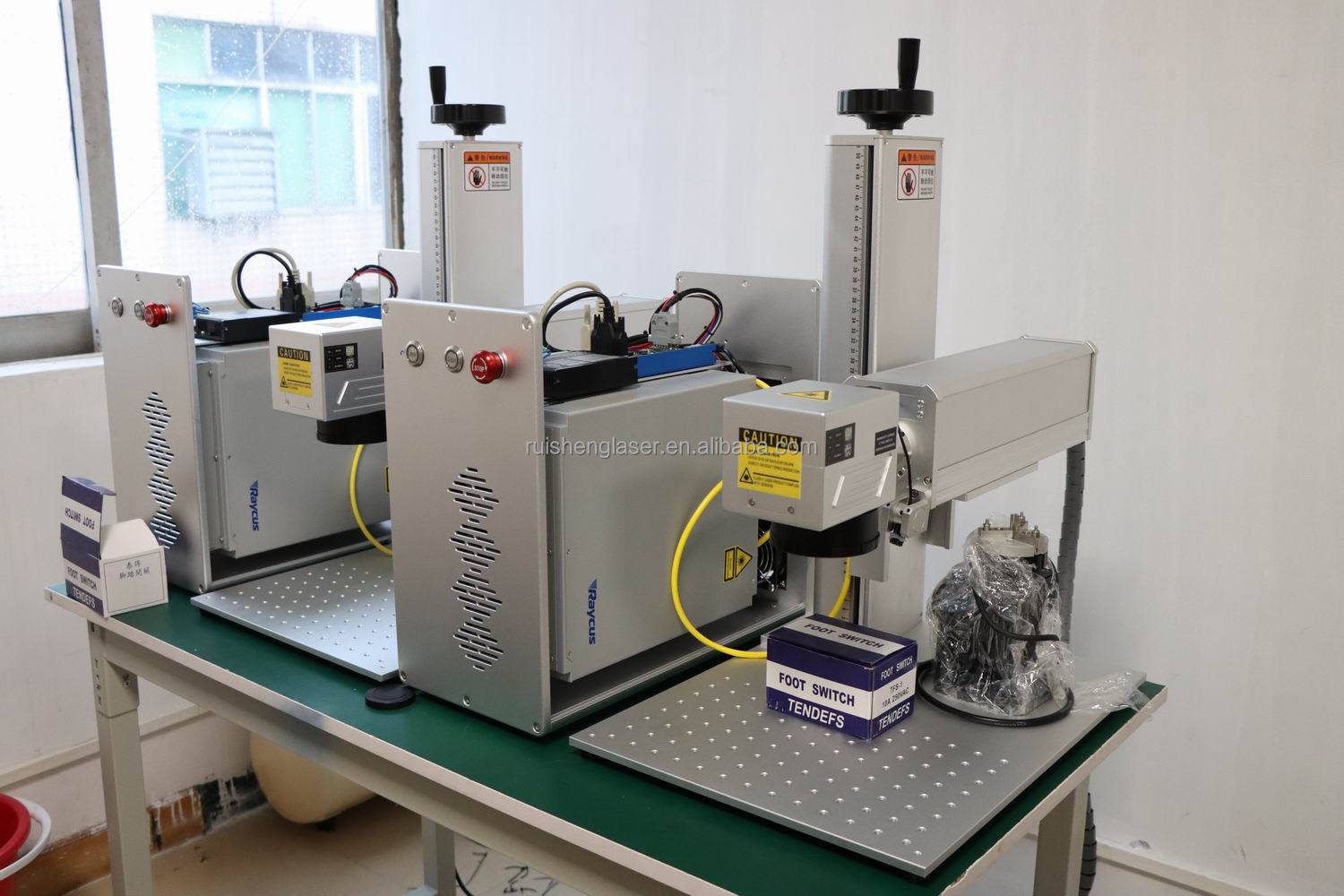

Laser Source
⚙ Laser Source
Raycus brand laser source, with a normal working life of 100,000 hours. You can also choose Max, JPT, or IPG.

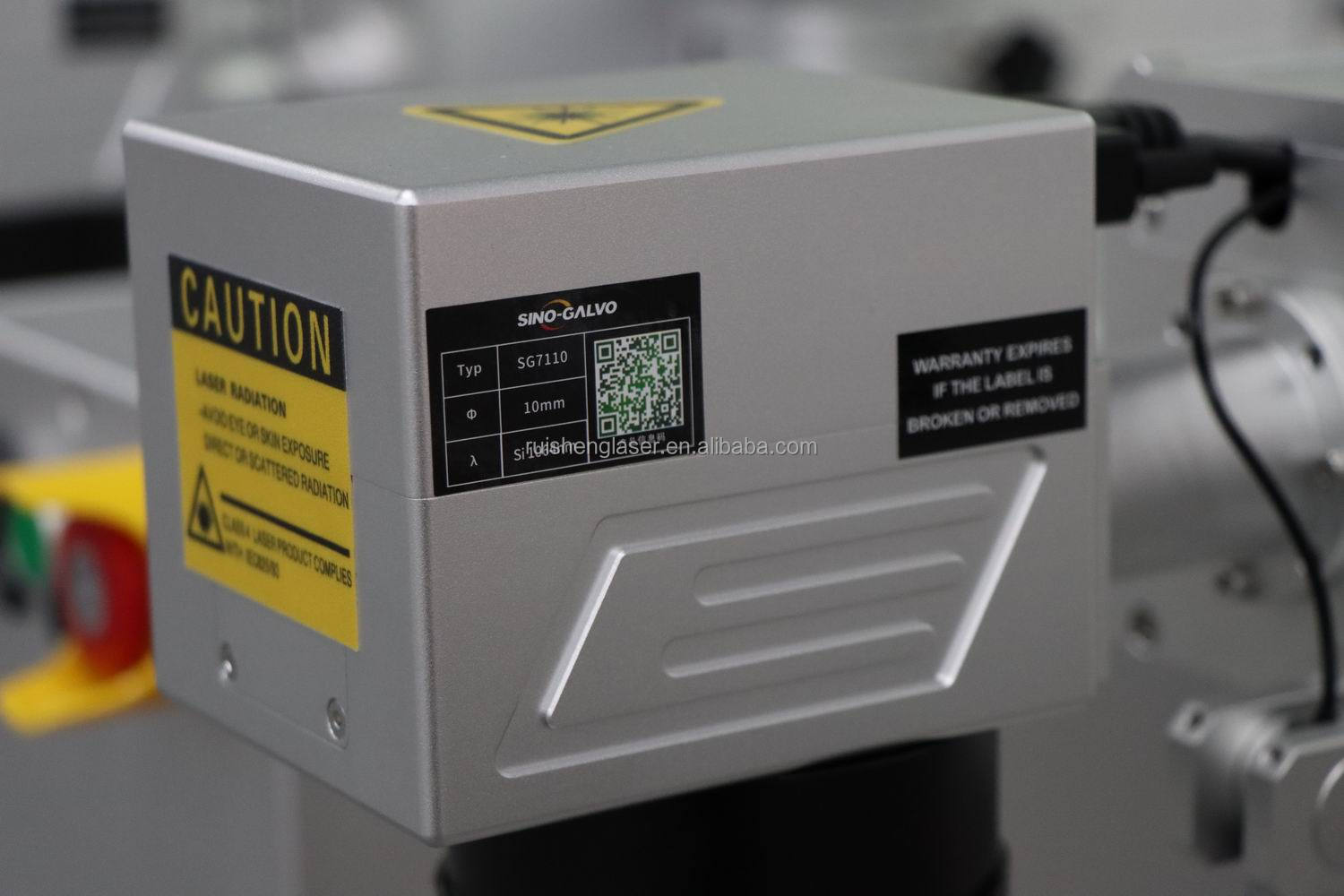

Scanner Head
⚙ Scanner Head
"SINO-GALVO" scanner head features outstanding running stability, high positioning accuracy, fast marking speed, and strong anti-interference capabilities.

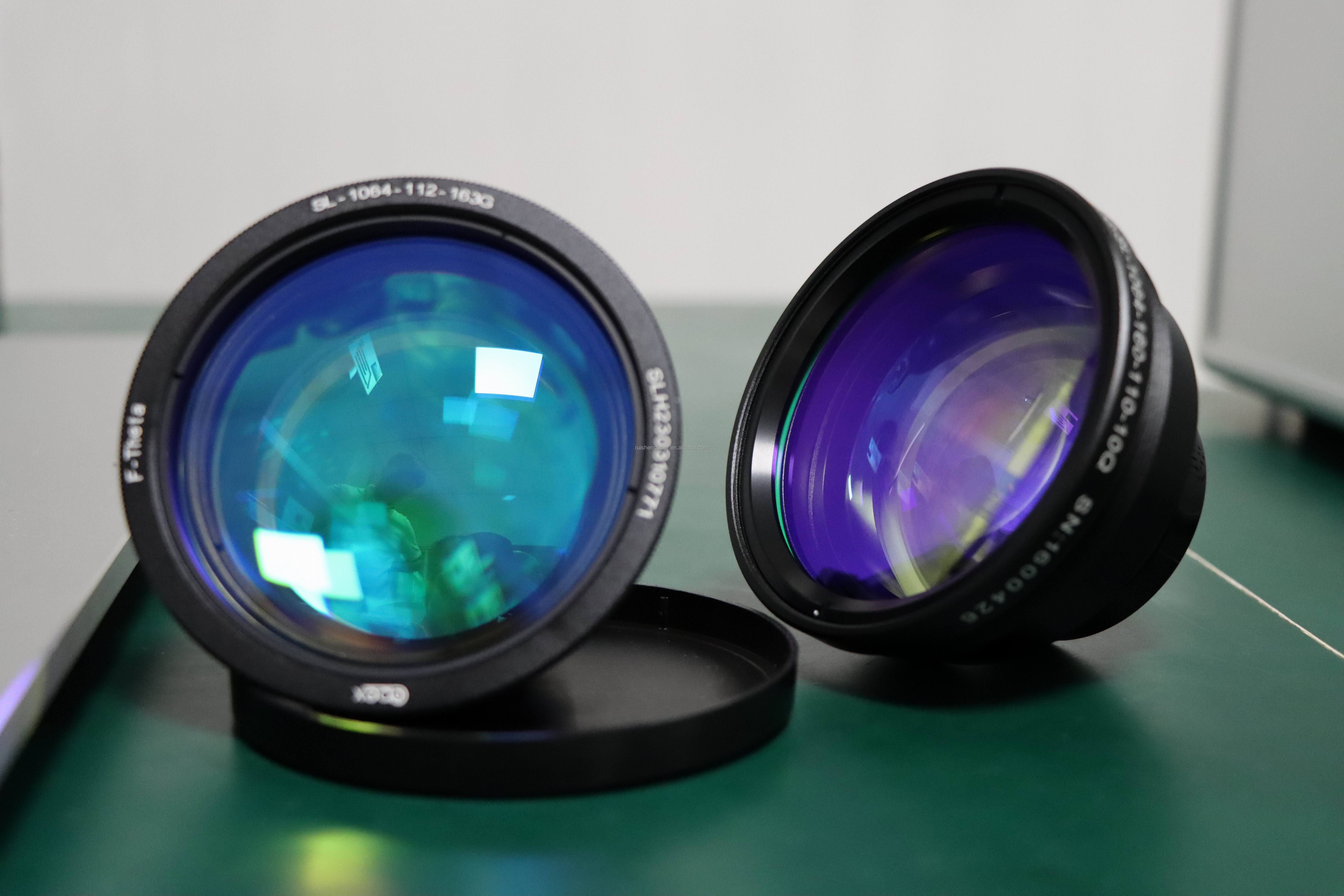

F-theta Lens
⚙ F-theta Lens
Designed with high light transmission to prevent power reduction. The standard marking area is 112*112mm, with alternative specifications available: 75*75mm, 150*150mm, 175*175mm, 220*220mm, 300*300mm, etc.

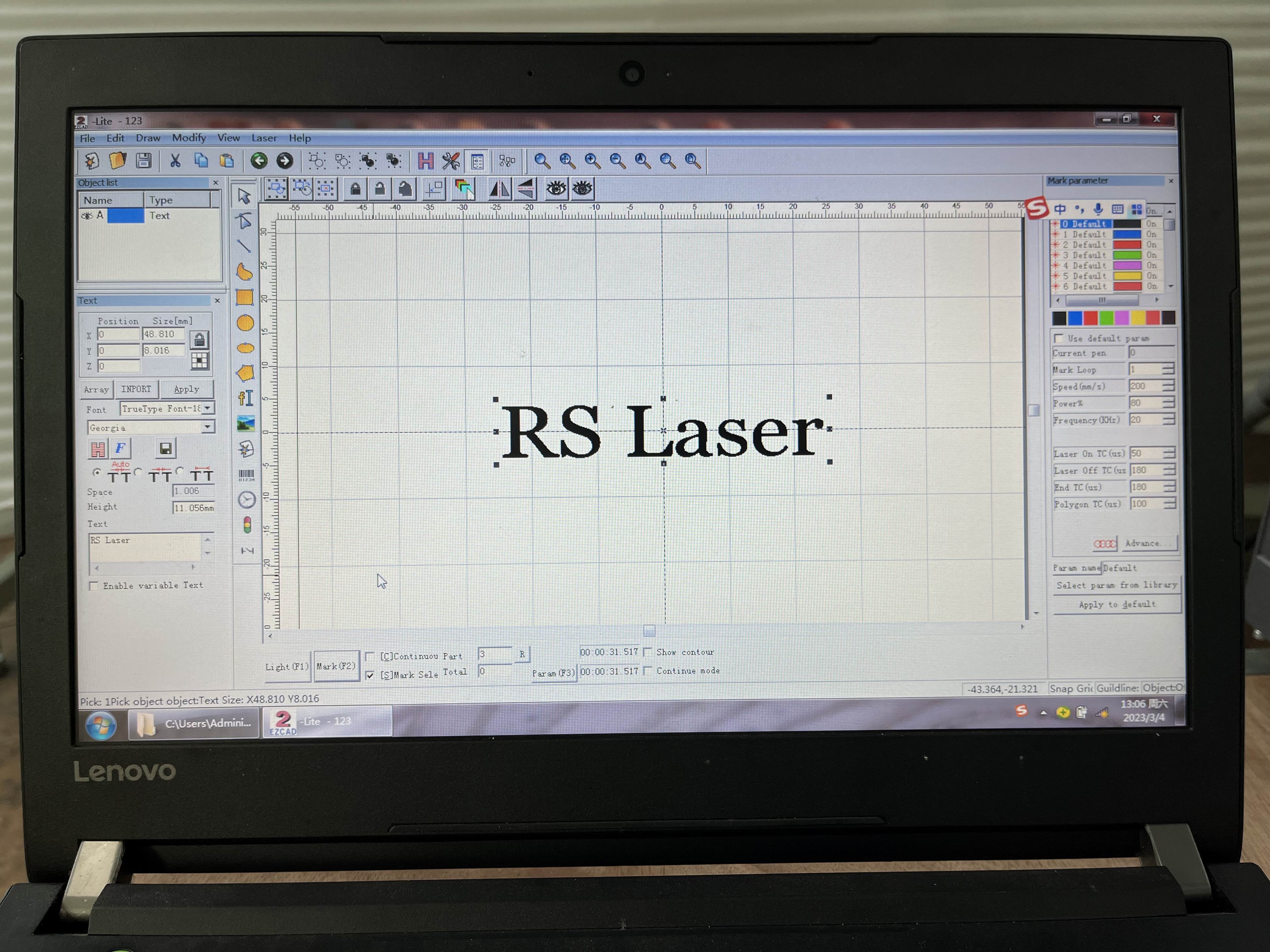

EZCAD Software
⚙ EZCAD Marking Software
Supports multiple languages, various file formats, and different fonts for versatile operation.

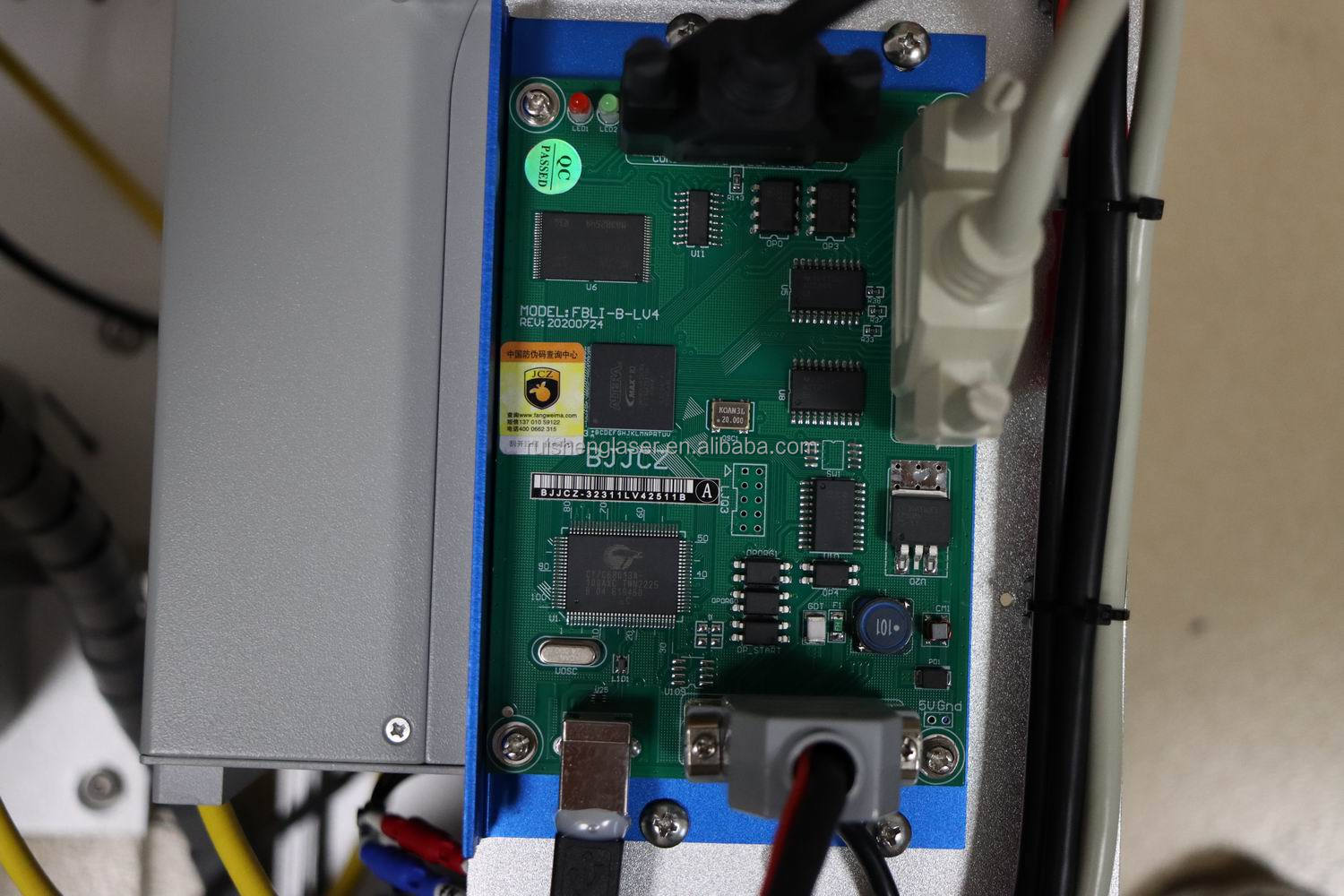

Control Board
⚙ Control Board
Original BJJCZ brand control system with high stability, easy operation, and reliable performance.

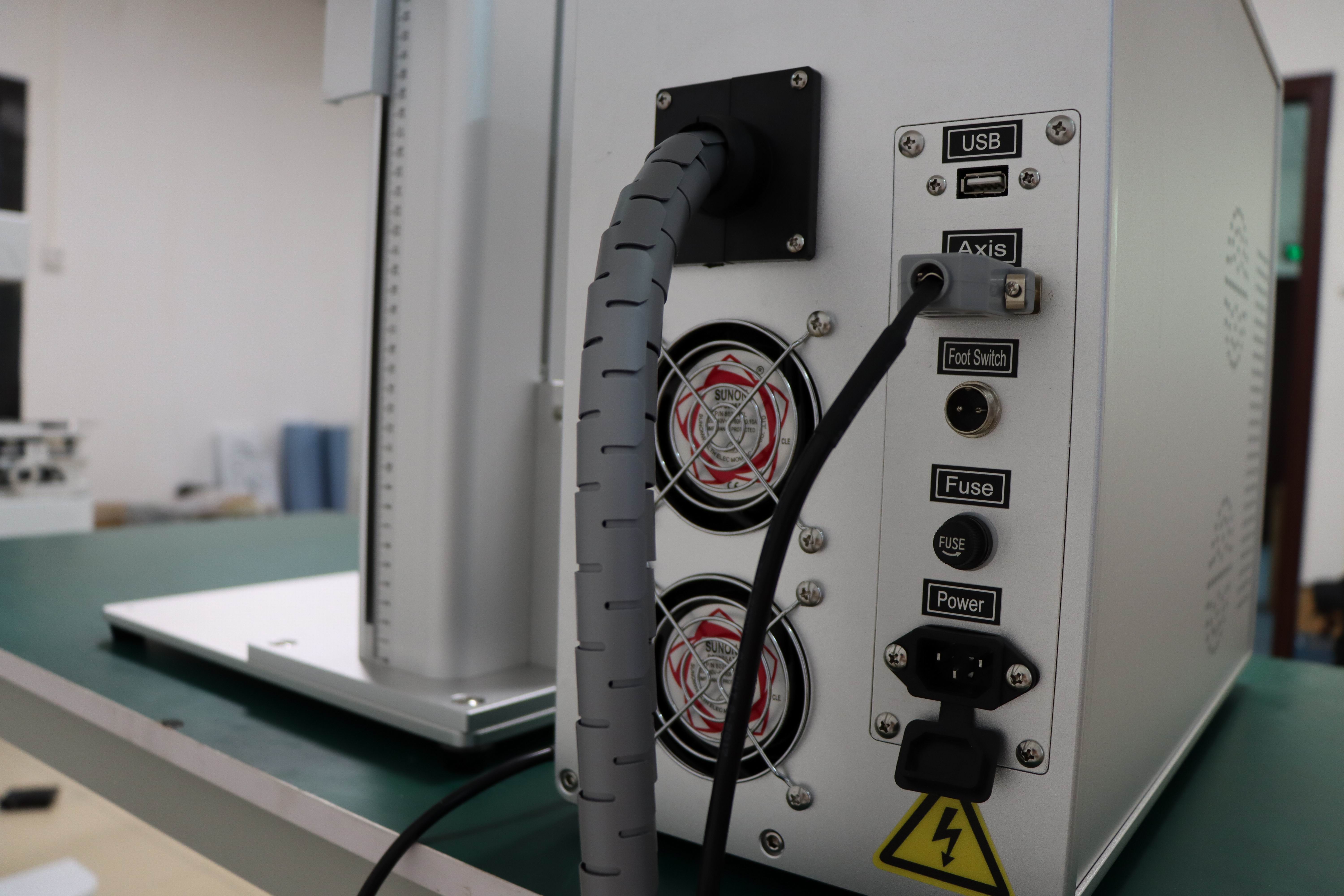

Backside Wire Connection
⚙ Backside Wire Connection
The backside panel features dedicated ports for USB, rotary axis, foot switch, and power supply. Clear layout makes installation easy and convenient.

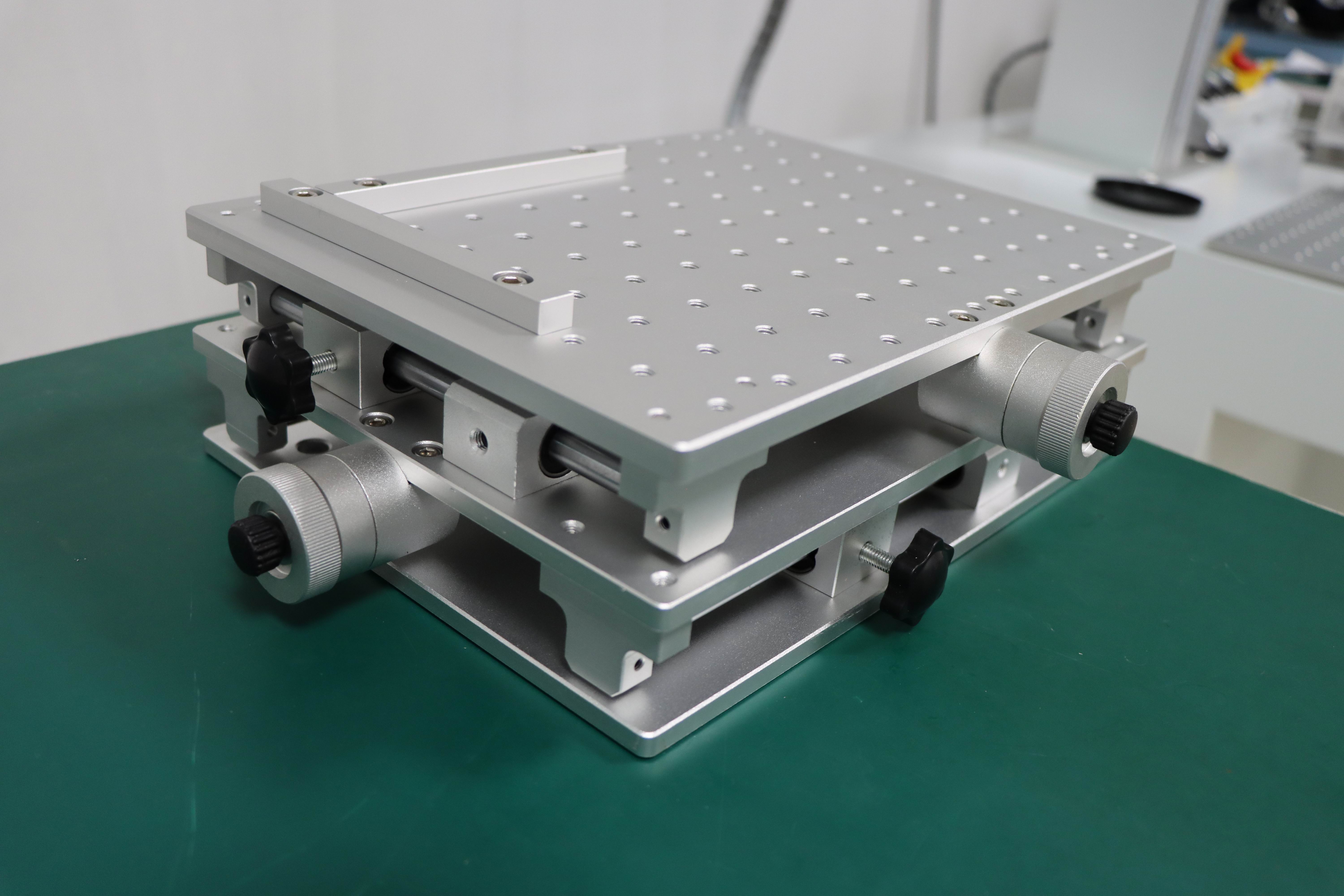

Working Table
⚙ 2D or 3D Working Table
Depending on your marking material size requirements, you can opt for a movable 2D or 3D working table.

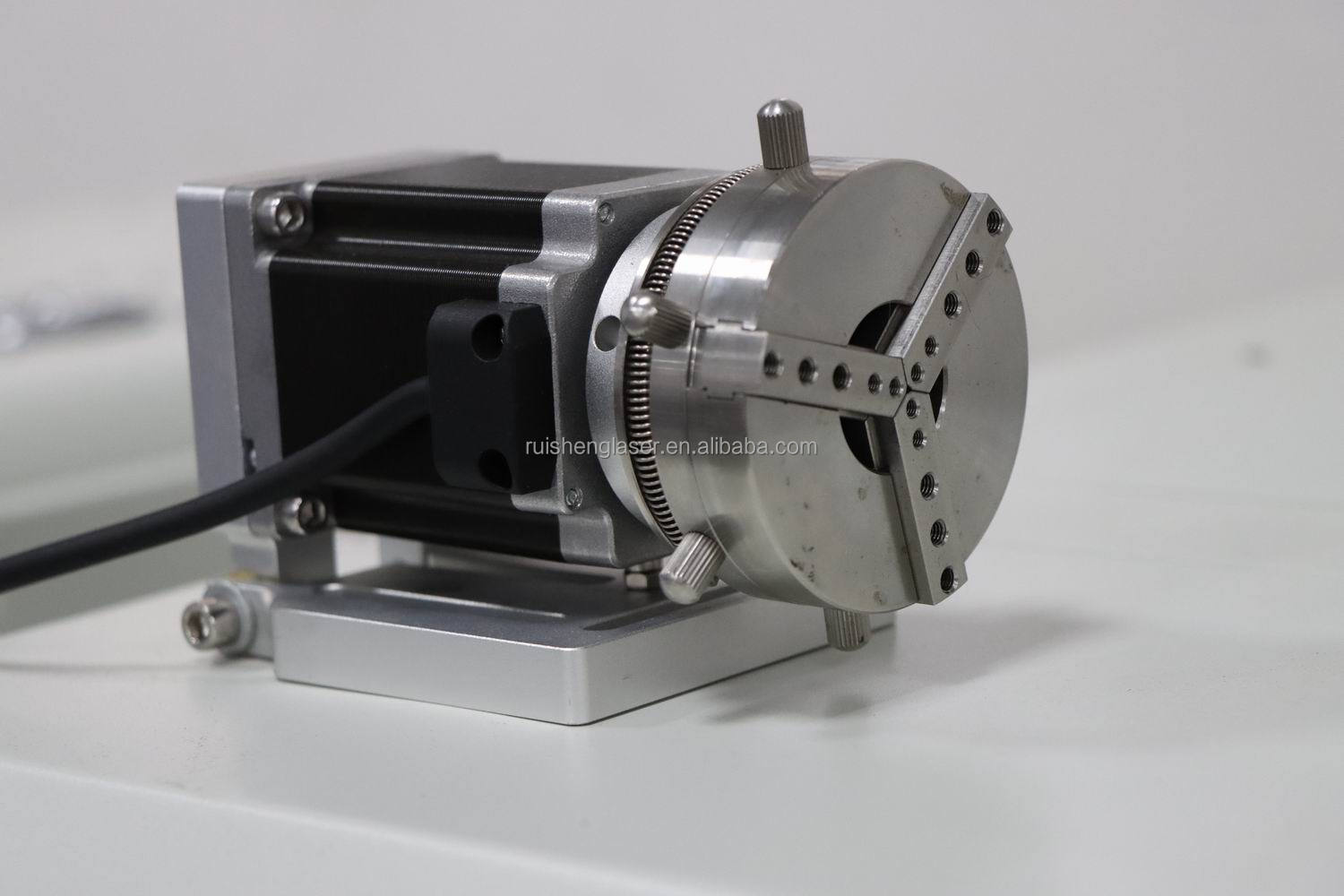

Rotary Axis
⚙ Rotary Axis
Ideal for engraving on cylindrical or spherical objects. Employs a stepper motor for precise digital control; rotation speed is automatically regulated by the software.

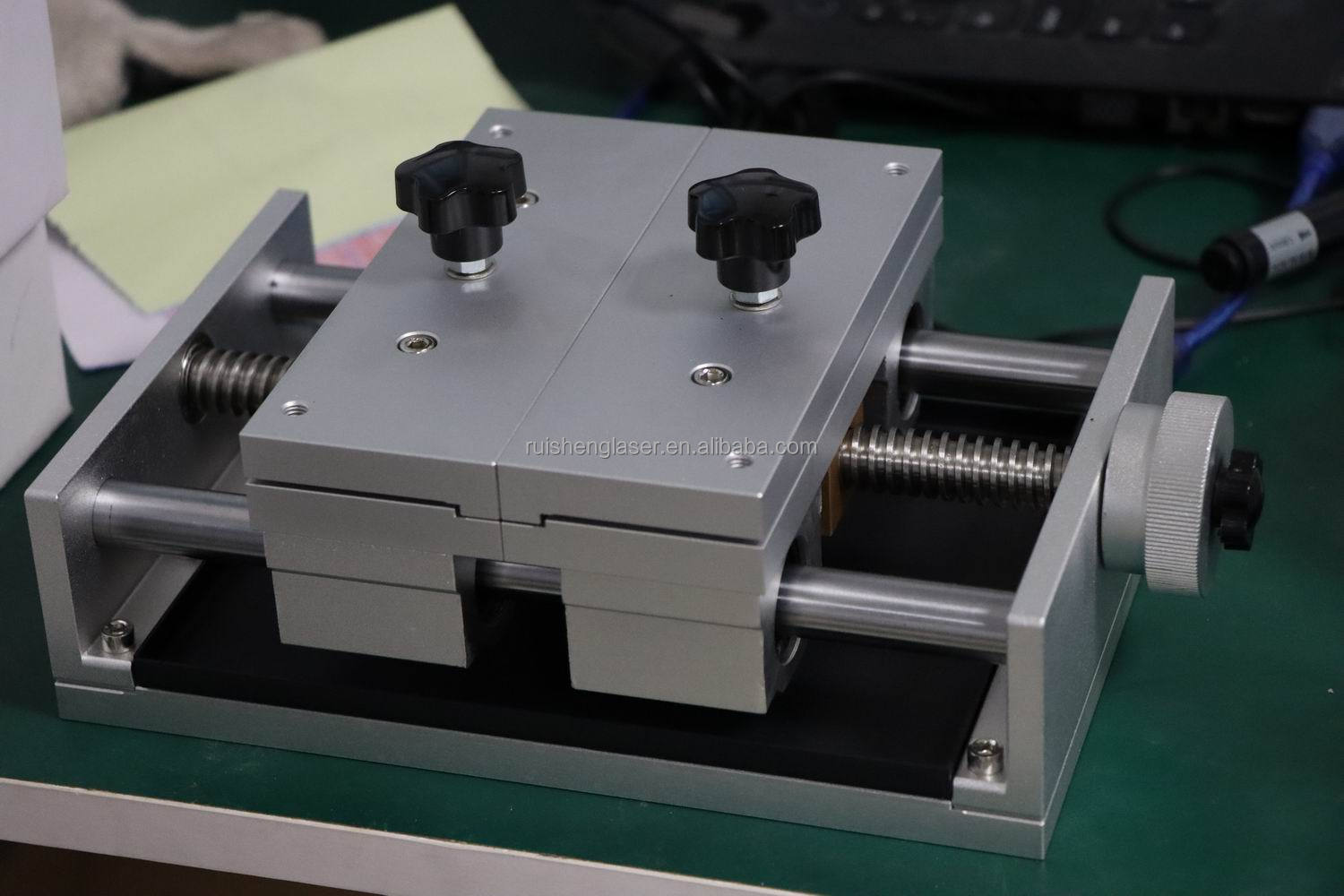

Fixture Equipment
⚙ Fixture Equipment
Used to fix thin metal sheets in place to prevent deformation during processing. Features a bottom plate to collect waste metal scraps.
Technical Parameters
Machine Model RS-PM20 RS-PM30 RS-PM50 RS-PM70 RS-PM100
Laser Power 20W 30W 50W 70W 100W
Working Scope 110*110mm; 175*175mm; 200*200mm; 300*300mm
Laser Source Raycus / MAX / JPT / IPG
Scanner Head SINO-GALVO
Working Table 2D or 3D working table
F-theta Lens "Wavelength" brand
Wavelength 1064nm
Control Board BJJCZ
PC System 14-inch Display System
Marking Software EZCad (Version 2.14.16)
Power Supply AC 220V±10%, single phase, 50/60Hz
Marking Speed 0 - 7000mm/min
Cooling Method Air cooling
Graphic Formats BMP, AI, DST, CDR, PLT, DXF, JPG, PNG
Packaging International standard export wooden box
Machine Color Grey or customized colors available
Marking Samples

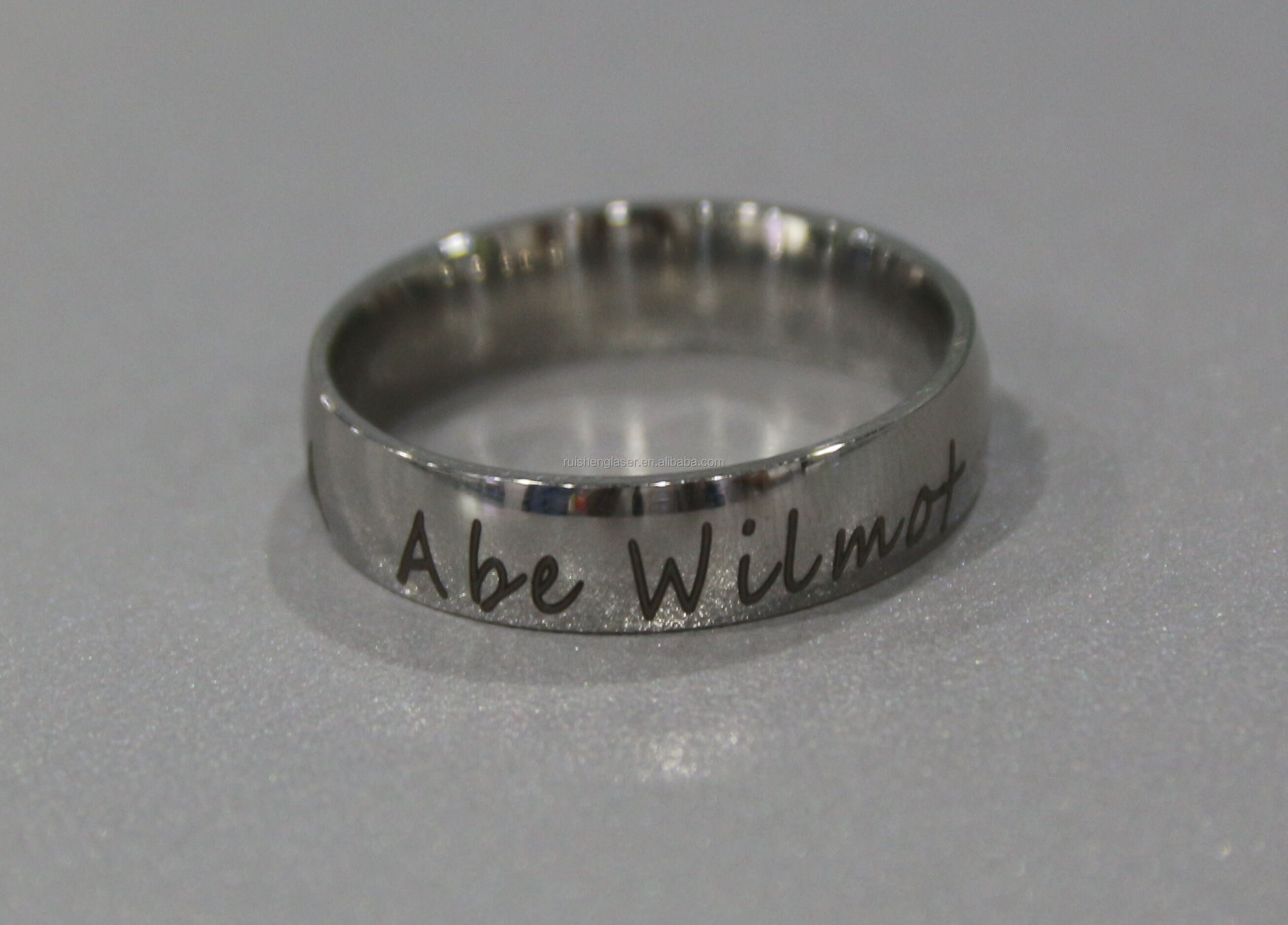

Metal Keyring Marking Sample

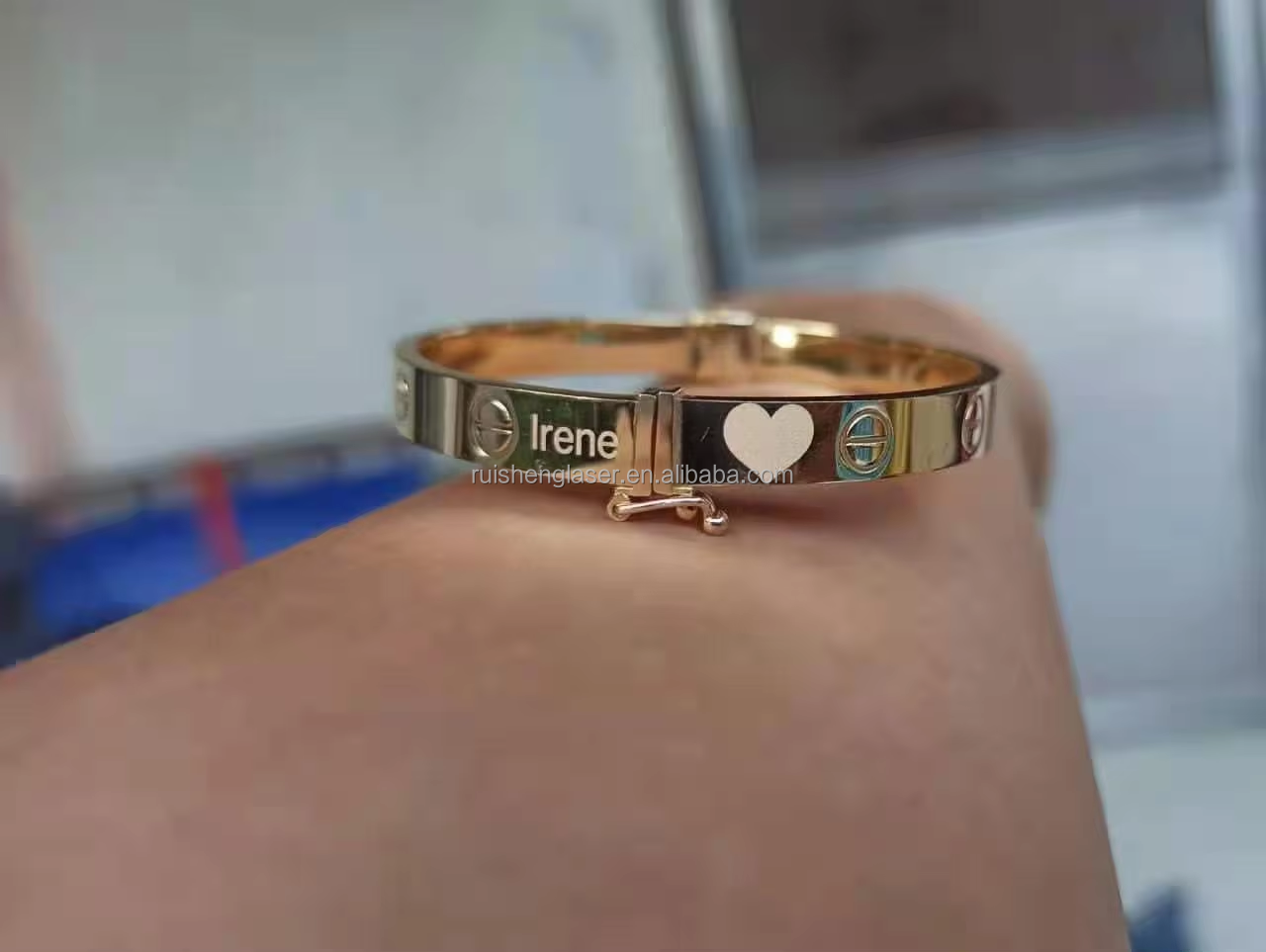

Color Metal Marking Sample

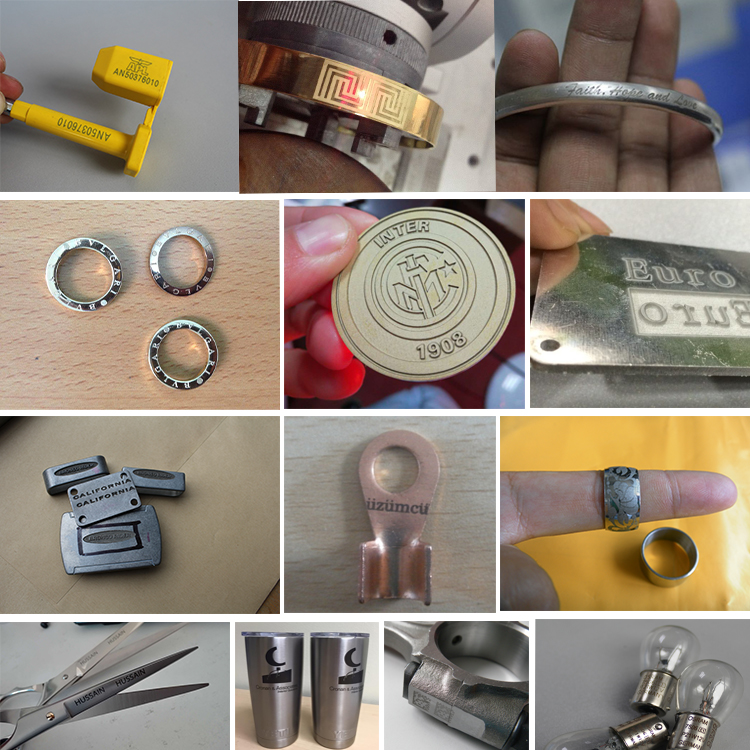

Complex Graphic Marking Display

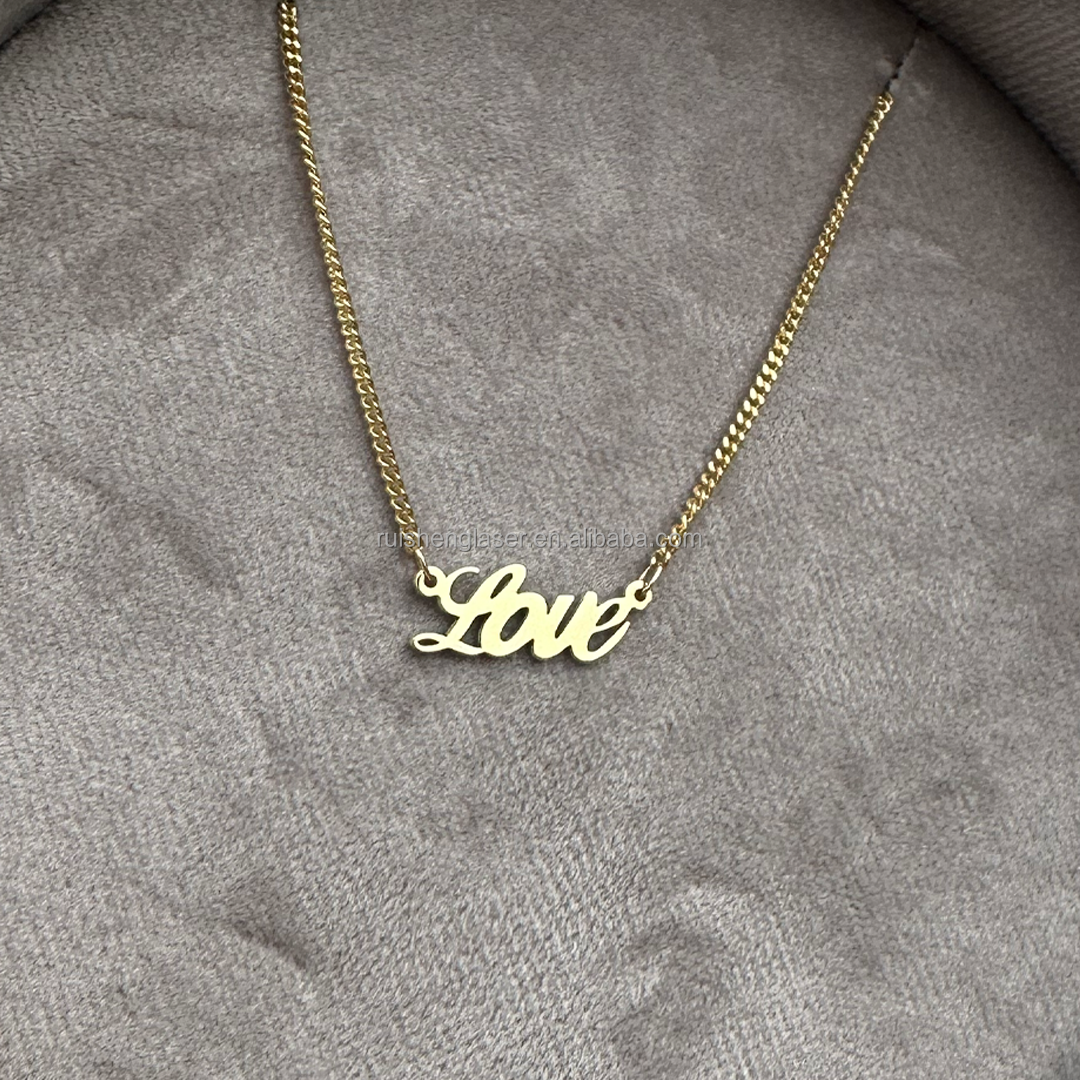

Technical Tool Marking Sample

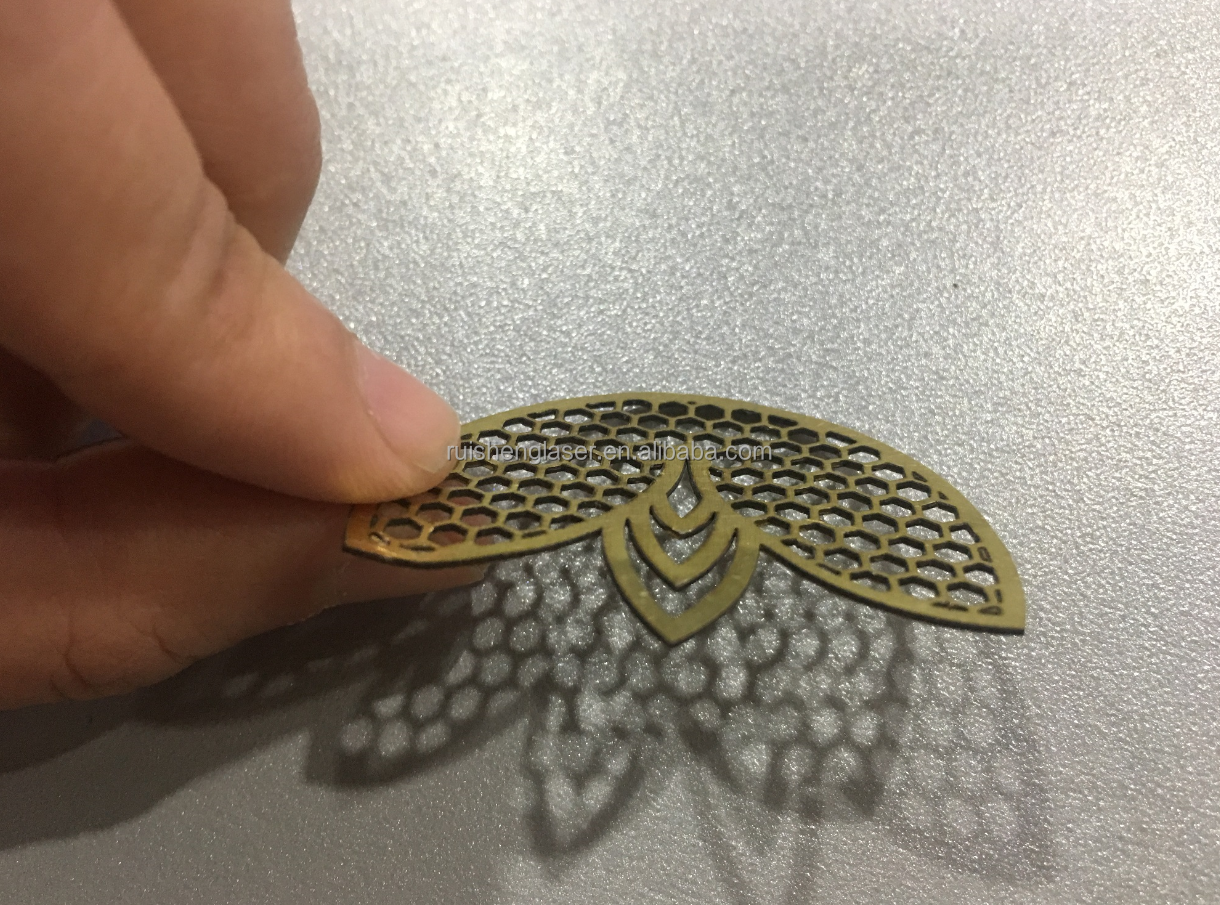

Logo Metal Etching Detail

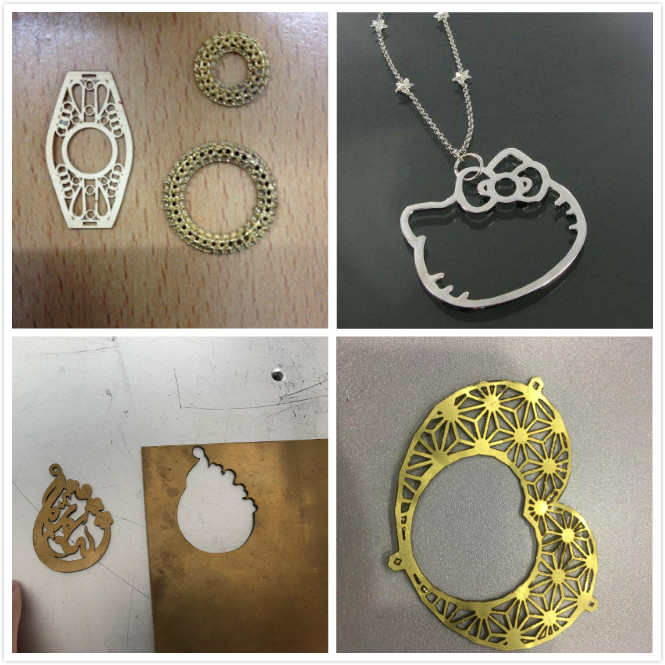

Industrial Parts Engraving

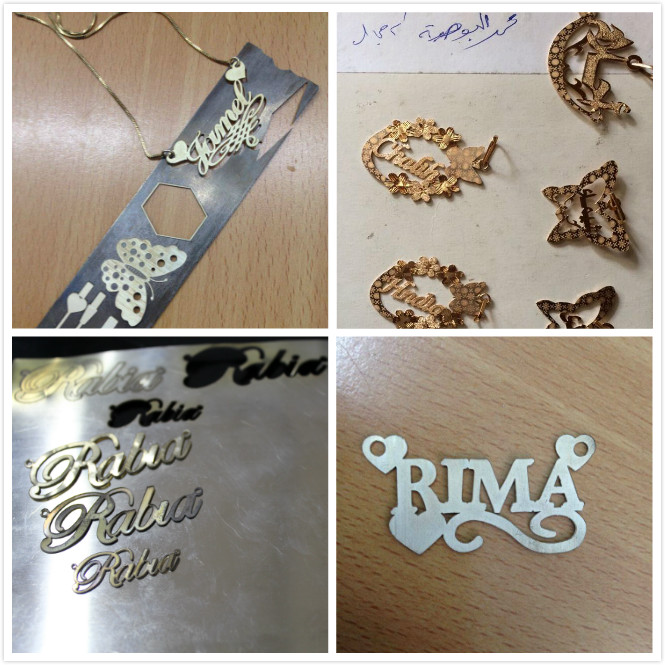

Engraved Hardware Sample

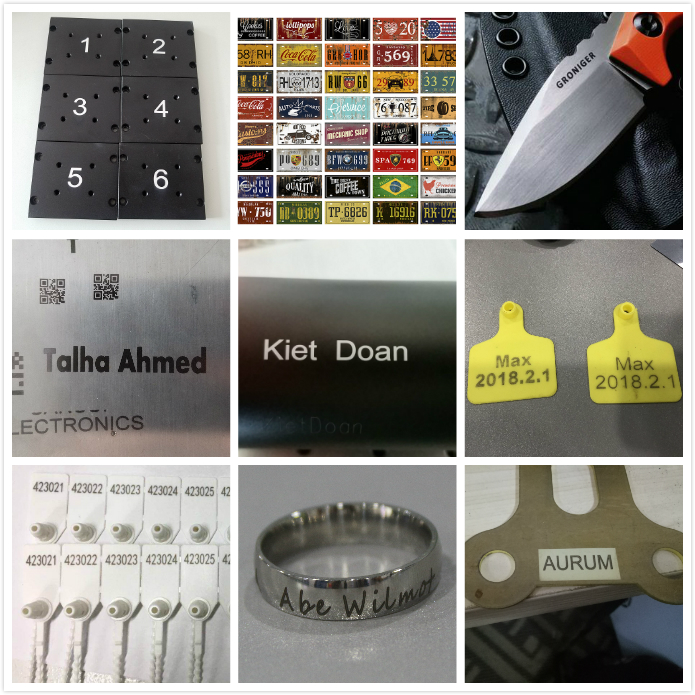

Hardware Measuring Tools Marking
Packaging and Shipping
Wooden Box Protective Packaging
Machine Prepared for Shipment
Customers Feedback
Customer Satisfied Feedback Chat
Professional Support & Services
One-to-One Product Solutions
Our sales managers and senior professional engineers provide the most suitable customized solutions tailored to your unique requirements. We support comprehensive OEM & ODM customized requests.
Year-Round Worry-Free Service
Professional consulting is available online and offline. We offer free training, online service guidance, and lifetime maintenance. Technical support issues can be resolved within 24 hours.
Rapid Customer Response
We value your business efficiency. Our support team guarantees inquiries and questions receive a response within 0.5 hours.
Fast & Flexible Delivery
We maintain inventory of our best-selling models, allowing dispatch within 3 working days. Choose from logistics options including express, air, ocean, or railway transport, with door-to-door services available.
Frequently Asked Questions
Q1. If we don't know how to use the machine, can you teach us?
Yes, we will send you a user manual and guided videos in English that explain how to operate the machine step-by-step. If you require further assistance, we can provide online remote support, phone assistance, or email training.
Q2. How long is the delivery lead time?
For standard machine configurations, delivery takes 3 to 4 days. For customized or non-standard models designed around client-specific requirements, the delivery time is 7 to 9 days.
Q3. How is the product quality controlled?
The entire production workflow undergoes regular inspection and strict quality control processes. Every machine is thoroughly tested to guarantee flawless performance before leaving the factory.
Q4. Do you arrange shipment for the purchased machines?
Yes, we arrange shipment for FOB and CIF terms. For EXW arrangements, clients can coordinate shipping independently or through their designated freight agents.
Q5. What materials can be processed with this fiber laser marking machine?
This system is optimized for etching and engraving metals (like stainless steel, brass, copper, aluminum, etc.) as well as selected non-metal substrates, enabling high-contrast serial numbers, QR codes, logos, and colorful MOPA engraving.
Q6. What is the estimated operational life of the laser source?
The integrated laser source (from top-tier brands like Raycus, JPT, or Max) is rated for a normal operational lifespan of approximately 100,000 working hours, requiring minimal maintenance.
