| Specification Details | Technical Parameters |
|---|---|

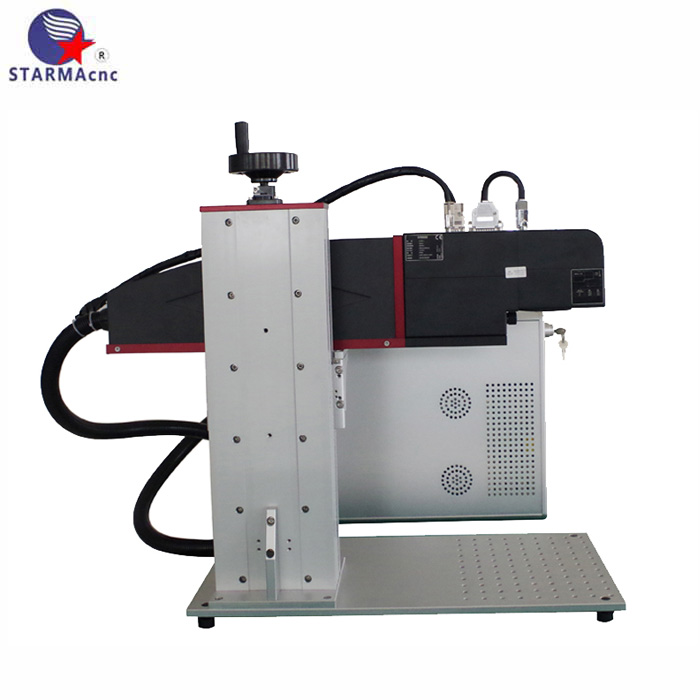

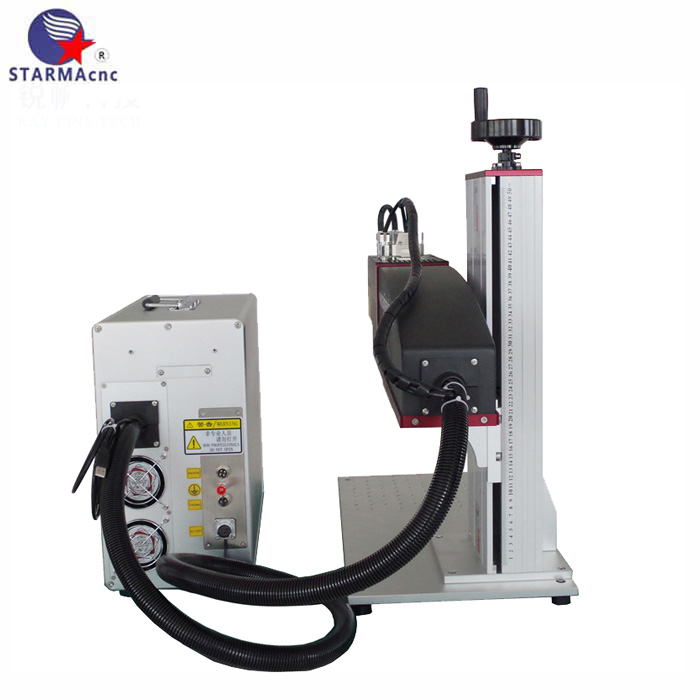

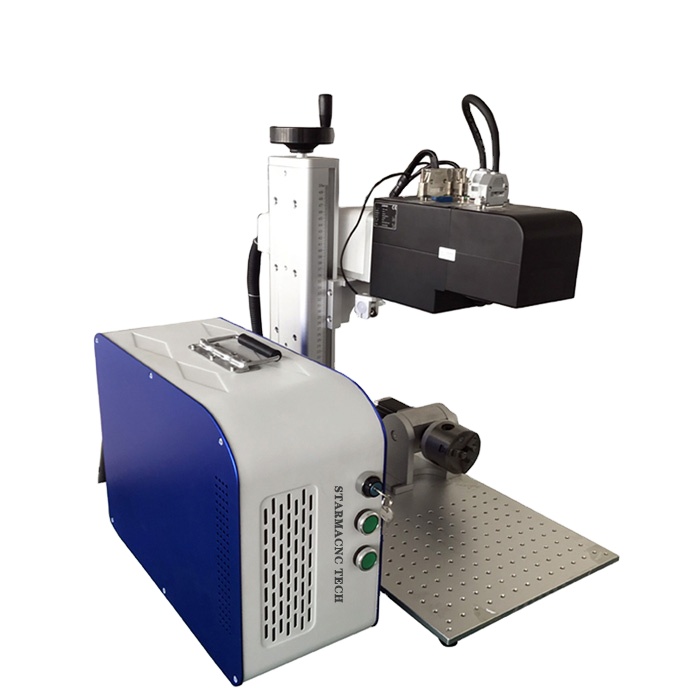

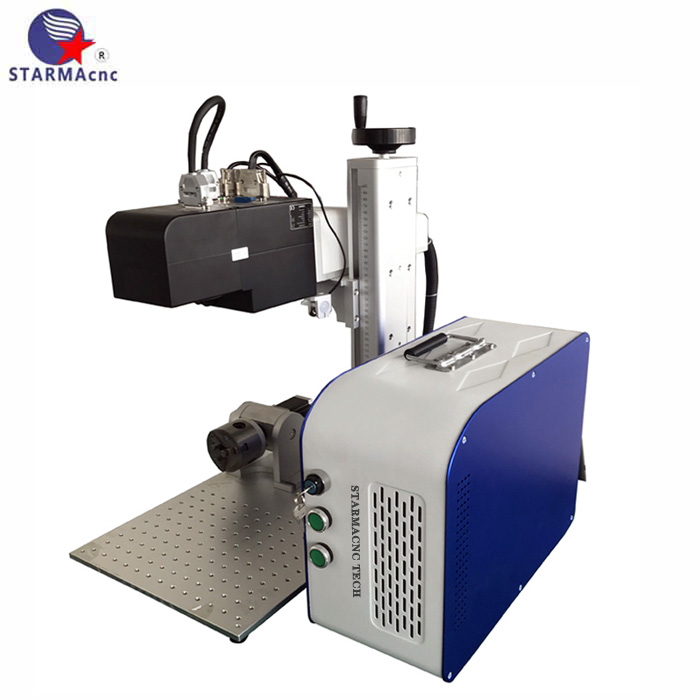

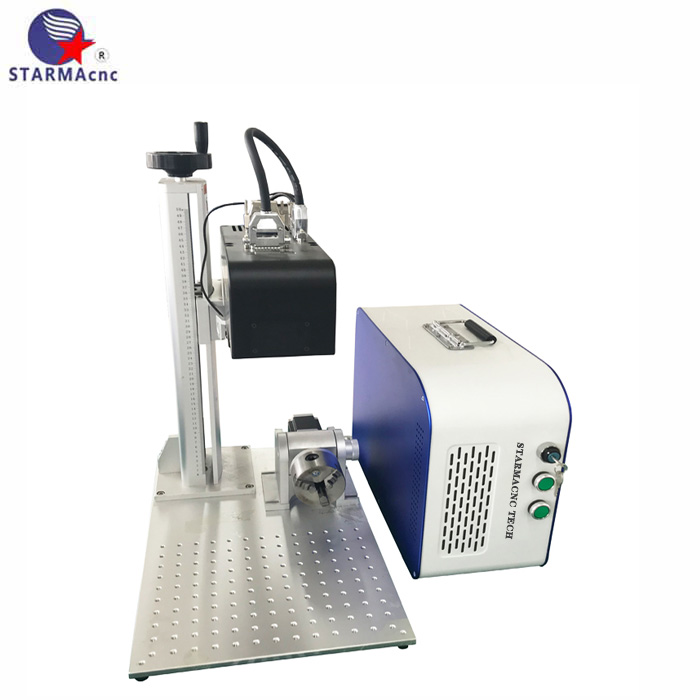

| Product Name | Easy to operate 3D engraving and cutting laser marking machine |
| Process Material | All metal materials |
| Brand | OEM / Professional Laser |
| Condition | 100% brand new |
| Working Area | 200*200mm (Optional options: 75*75mm, 110*110mm, 150*150mm, 175*175mm) |
| Laser Source | JPT or Raycus options |
| Control System & Laser Head | Beijing JCZ or FEELTEK options |
| Power Supply | Meanwell brand |
| Software Support | EZCAD3 or FEELTEK |
| Marking Speed | 0-8000mm/s |
| Cooling Mode | Efficient Air Cooling |
| Working Table | High-strength Aluminum |
| Auto Focus | Supported (Yes) |
| Rotary Axis | Optional support |
| Air Filter | Optional support |
| Working Environment Temp | 0-40 degrees Celsius |
| Machine Weight | Approx. 200KG |

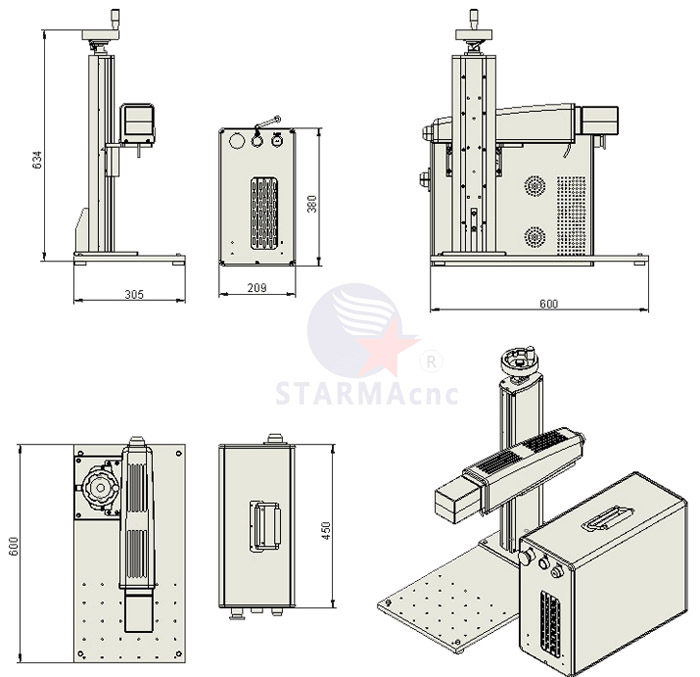

| Machine Dimension | 77 x 47 x 77 cm |
| Shipping Way | By sea or By truck transport |
| Certification | CE and SGS compliant |
| Power Option | Available Working Field Options | Laser System Integration | Machine Technology |
|---|---|---|---|
| 30W Option | 75mm, 110mm, 150mm, 175mm, 200mm | JPT Or FEELTEK system | Fiber Laser marking machine |
| 50W Option | 75mm, 110mm, 150mm, 175mm, 200mm | JPT Or FEELTEK system | 3D Laser marking machine |
| 80W Option | 75mm, 110mm, 150mm, 175mm, 200mm | JPT Or FEELTEK system | 3D Dynamic focus system |
| 100W Option | 75mm, 110mm, 150mm, 175mm, 200mm | JPT Or FEELTEK system | High power deep marking system |

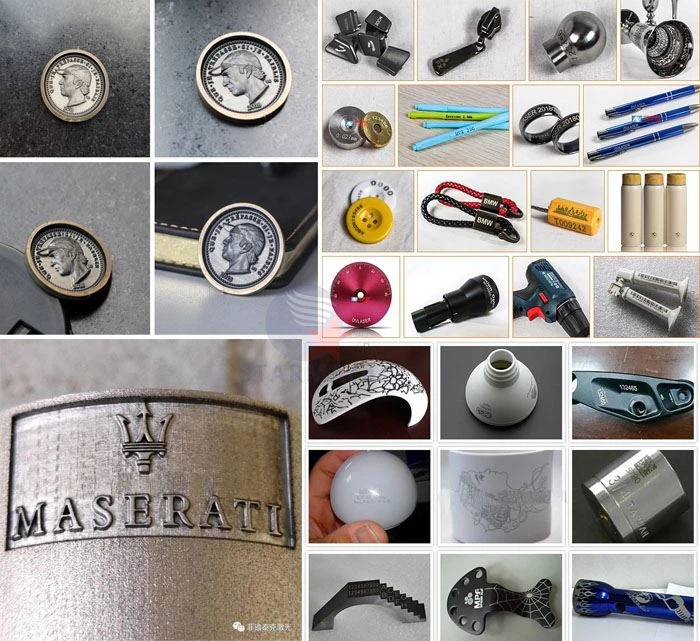

Designed specifically for high-end electronic products, this machine marks high-contrast black and white markings on anodized aluminum, aluminum alloy, stainless steel, and plastic electroplating products without damaging the surface. It is also fully capable of producing color marks directly on stainless steel surfaces.

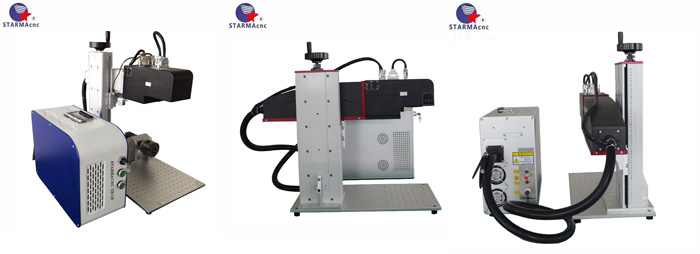

1) Dynamic Focusing: Unlike traditional 2D systems, a 3D laser marking machine adopts a specialized galvo head equipped with three moving mirrors. The third mirror moves dynamically forward and backward to automatically adjust the focal distance during operation.

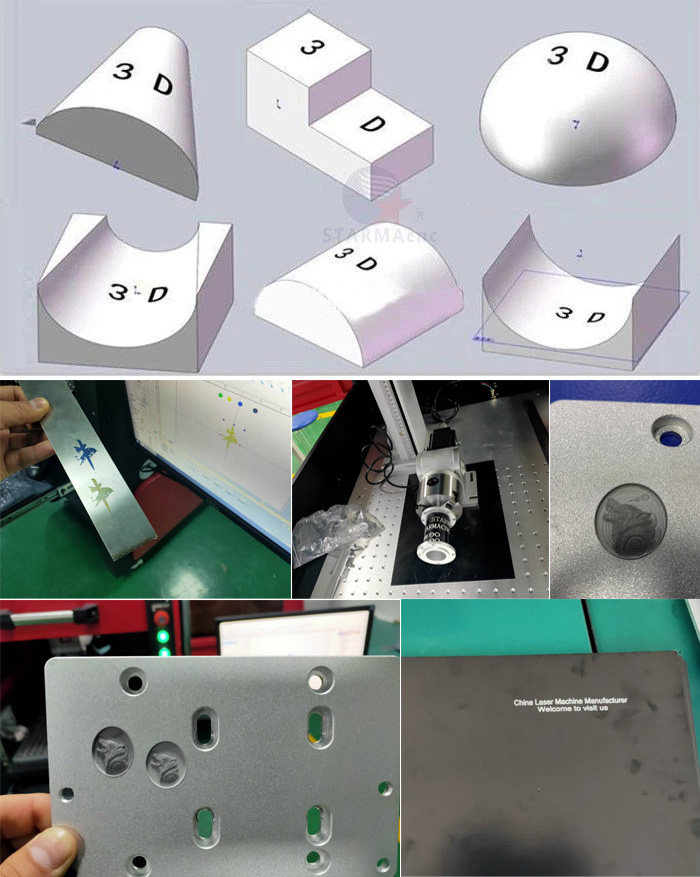

2) Advanced Capabilities: The outstanding functions of the 3D laser system include deep engraving, relief engraving, and direct curved metal marking.

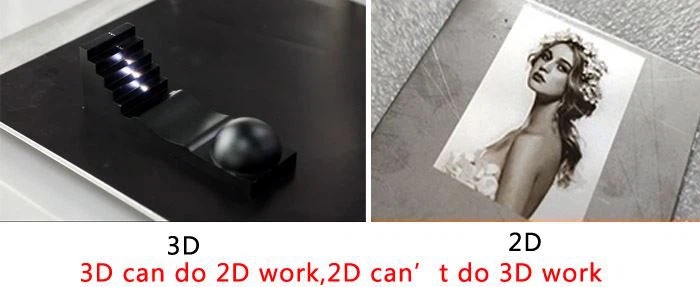

3) Operation Efficiency: While 2D lasers require a rotary fixture to mark curved surfaces, 3D laser marking systems mark curved profiles directly with higher speeds, better precision, and easier operational set-up.
Our 3D dynamic focusing laser marking systems boast an array of advanced features suitable for high-speed metal engraving. Notable features include:

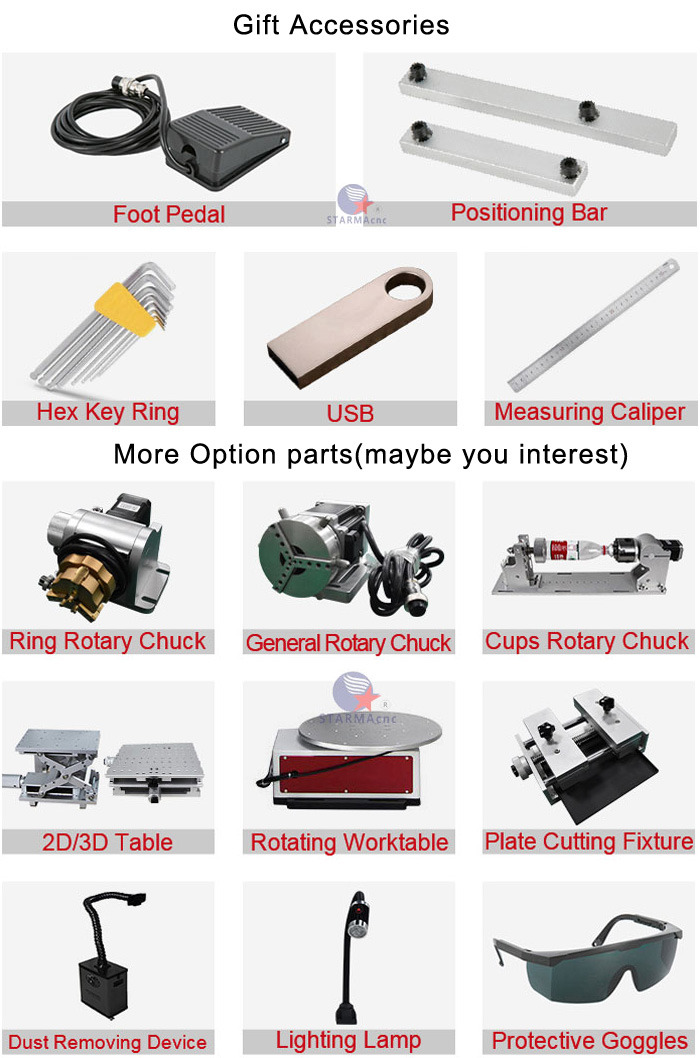

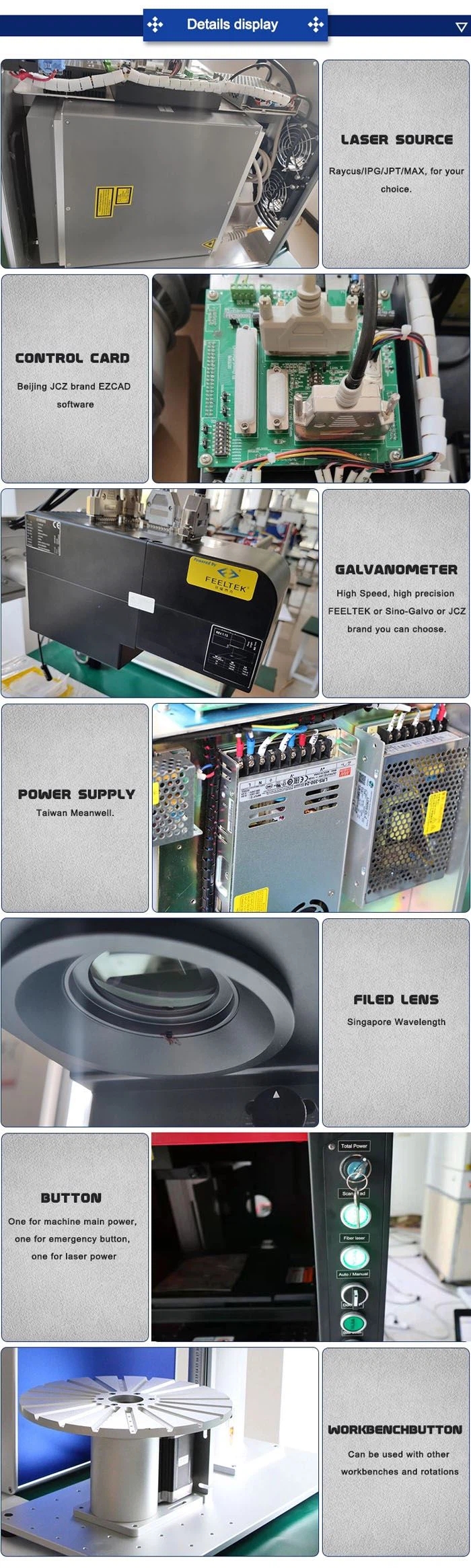

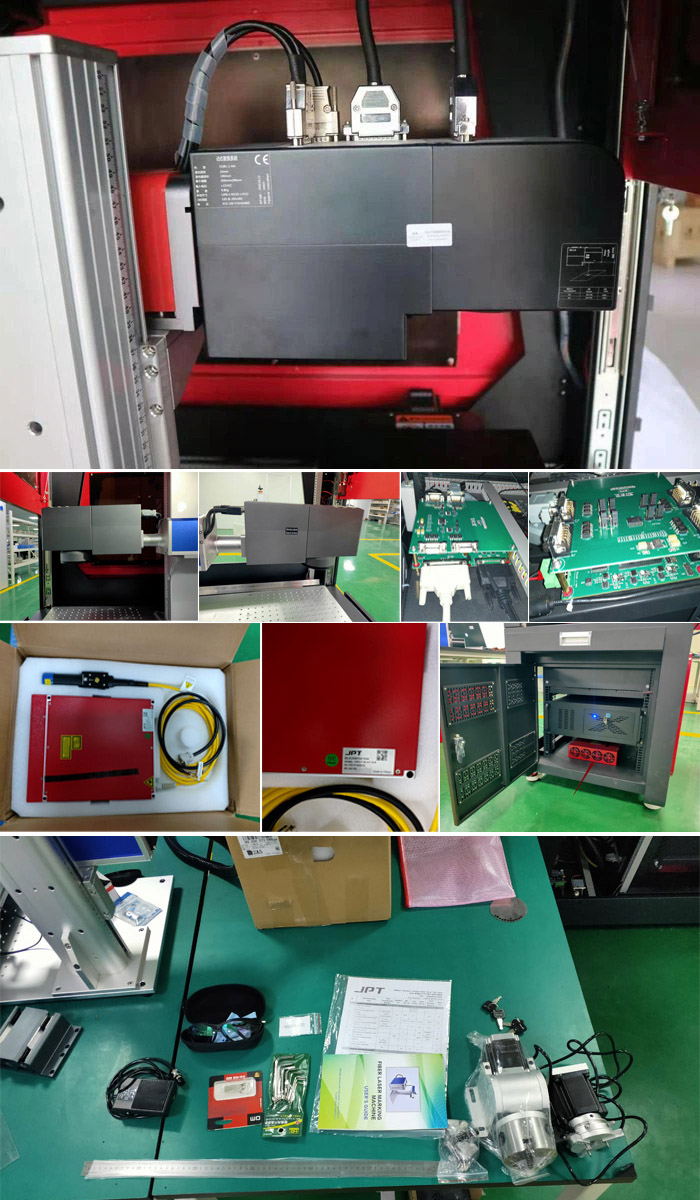

An exceptional range of accessories is provided to support your engraving process. Precision-engineered components work seamlessly with the laser marking units, ensuring optimal stability. Essential components such as specialized laser lenses, power supplies, laser tubes, and advanced modules are crafted using high-grade materials to withstand demanding operations over extended periods.
Free sample testing is supported. You can submit your specific material types to observe the detailed outcomes achievable under various settings. Excellent results are obtained on sensitive materials, high-density plastics, steel, aluminum, copper, silver, and gold.

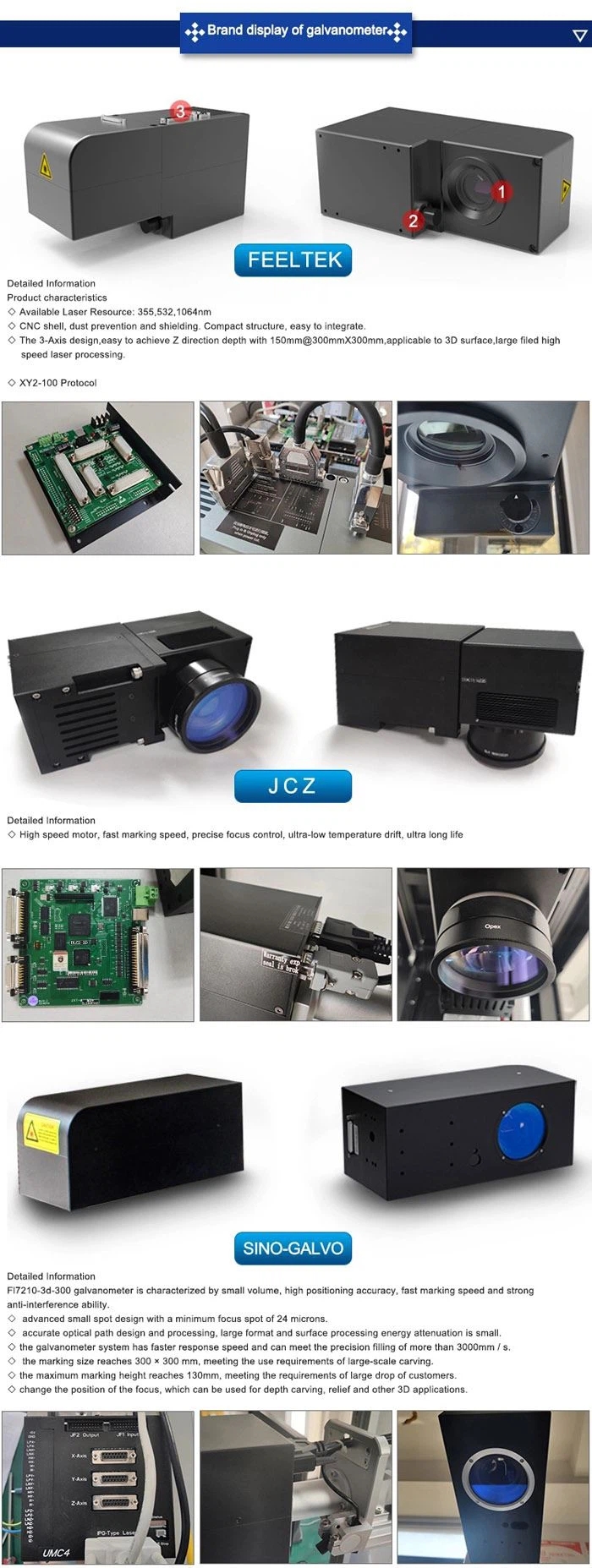

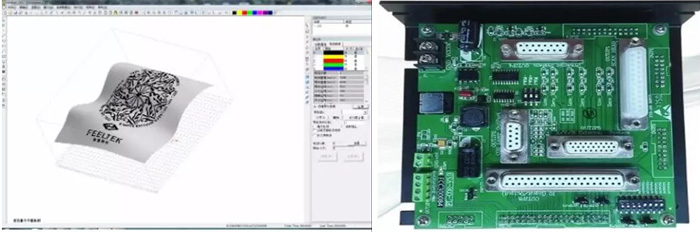

Every dynamic focusing marking machine is manufactured under strict internal quality standards. The systems integrate high-performance galvanometer mirrors to ensure all beam movements maintain precision. Sophisticated control software allows operator parameter micro-adjustments, ensuring repeatability across high-volume production batches.

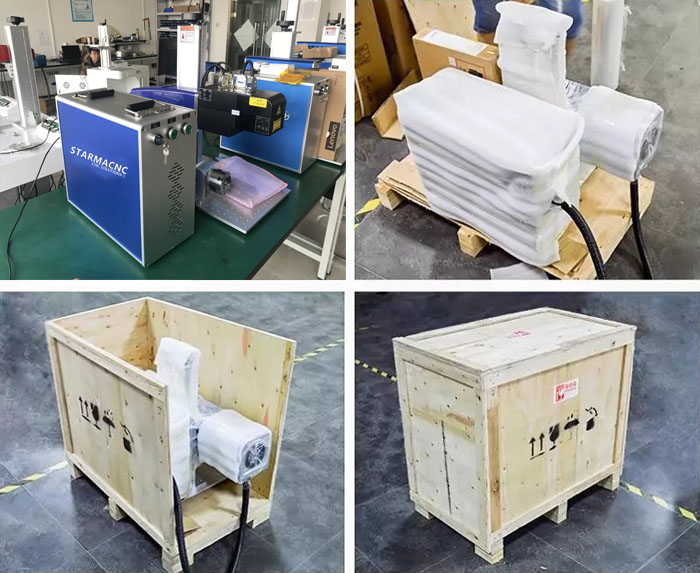

Our transport protection system employs premium packaging materials, including custom-fit high-density foam padding and heavy-duty reinforced wooden crates. This layout ensures maximum physical support during long-distance domestic and international shipping, minimizing mechanical risk during transit.

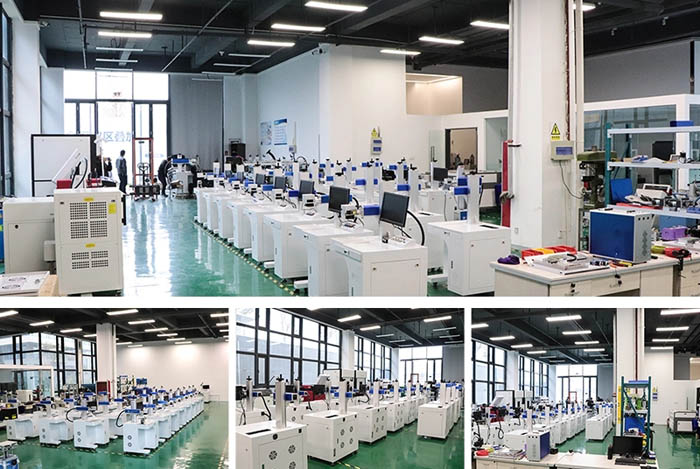

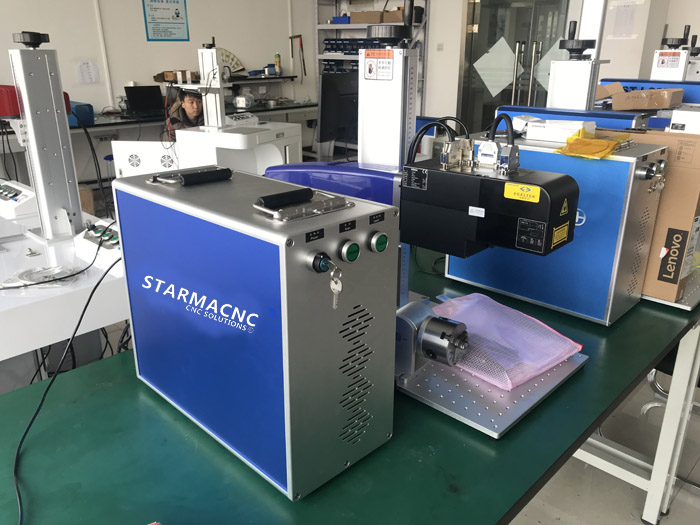

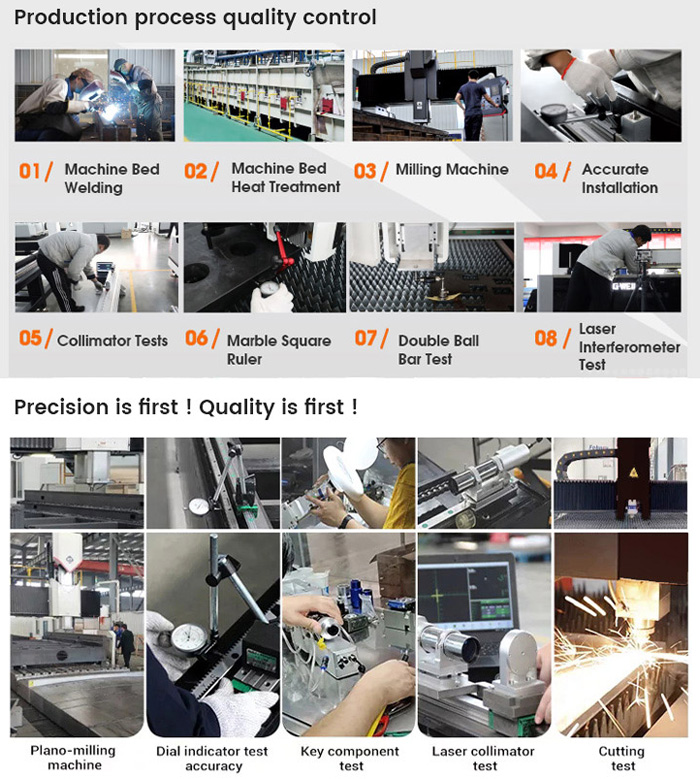

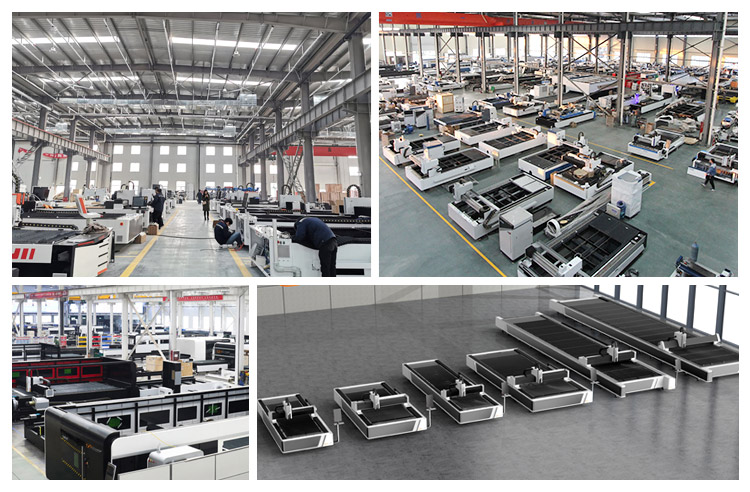

Our state-of-the-art production workshop is structured around standardized, high-tech processes. The manufacturing process of each machine is meticulously controlled to secure verified accuracy and structural durability. Standard machines conform to stringent standards to perform robustly across various work environments.
Comprehensive support manuals and operational documentation are supplied with each machine. Standard adjustments are pre-configured before delivery, allowing immediate operation upon arrival. Online technical guidance and support files are provided during the lifetime of the machine.
Our design process complies with prevailing safety regulations, including CE, FDA, ISO, and SGS, which reflects our dedication to reliable global distribution.
Invest in our 3D dynamic focusing laser marking machine for your business today and experience the precision, speed, and overall efficiency that it provides to your production line.
