Product Description

Product Description

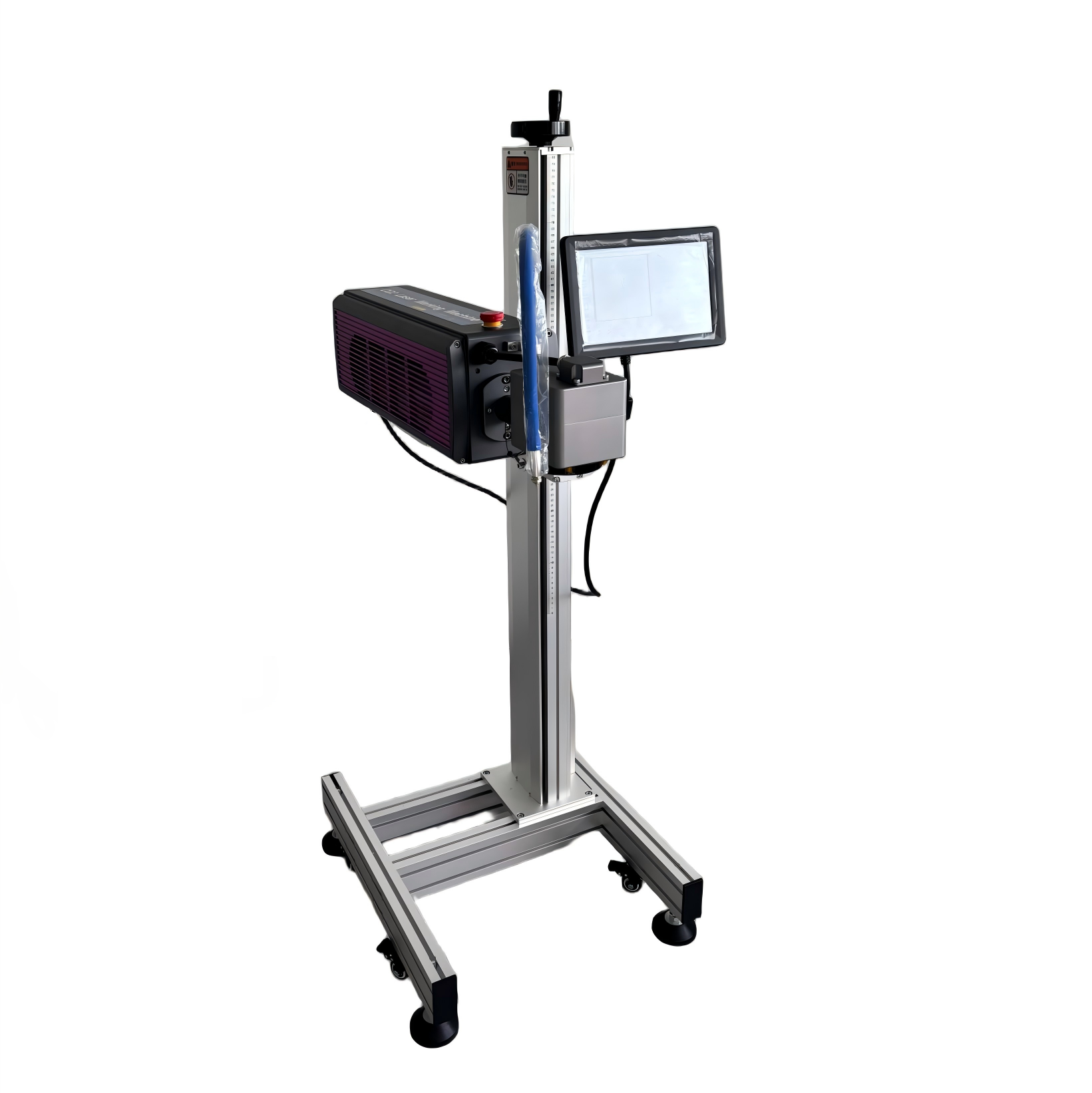

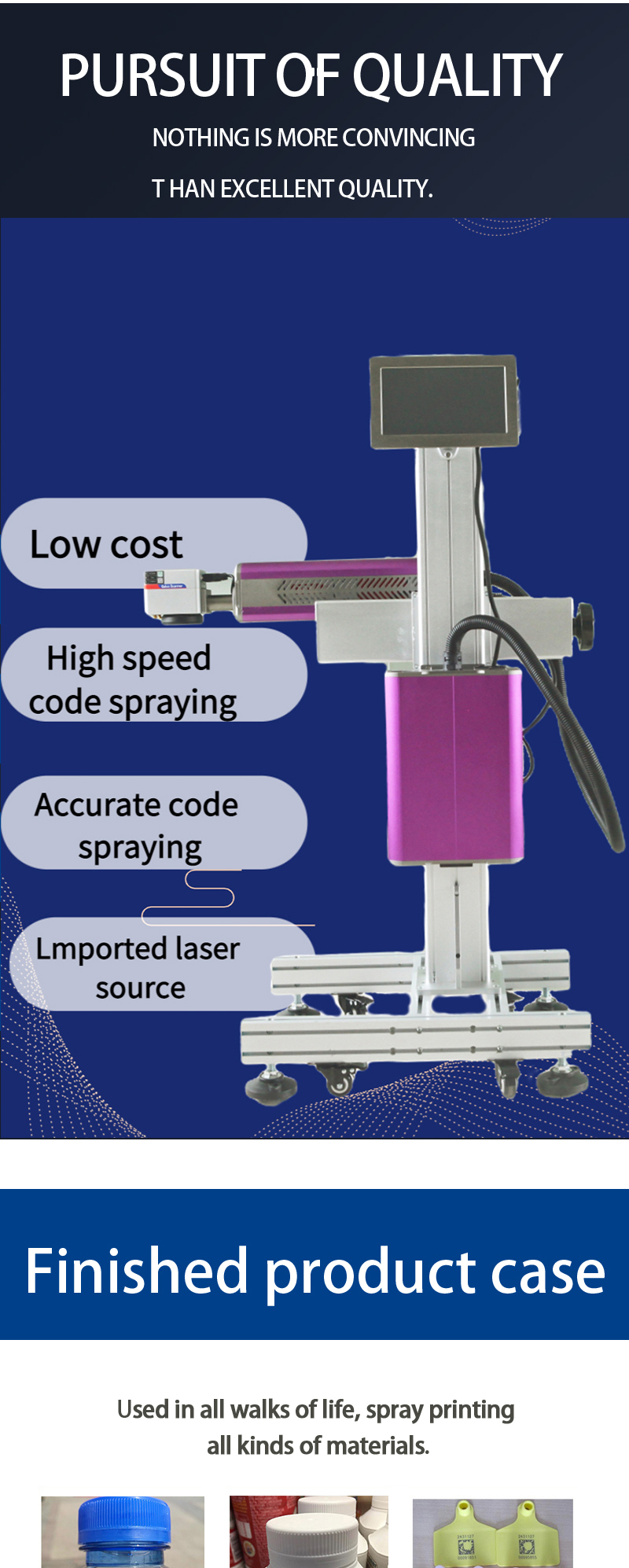

CO2 Laser Marking Machine
Technical features
  • Integrated compact body design
  • The laser inkjet printing head can be adjusted up and down, front and back, which is more convenient to use.
  • Ultra-high-speed coding is more than twice that of ordinary laser printers.
  • Low cost, low power consumption (almost 0 materials)
  • Excellent and permanent code marking, more accurate code printing
  • The operating system specially designed for pipeline applications is far better than ordinary Windows operation.
  • Strong environmental adaptability, sealing design, higher protection level
  • Extremely high reliability, stable operation without maintenance
  • Double red light focusing, saving time and effort
  • Full warranty for the whole machine, lifelong after-sales guarantee
Specification
L300/L3500/L4000
System technical parameters
OMA L Series CO2 Laser Marking Machine
Type of laser Laser wavelength :10.6um
Output power 30W (35W,45W optional)
Focal length 130mm (standard)
Maximum linear marking speed 12000mm/s
Marking parameters
Marking range 110*110mm, maximum marking range:500*500mm (optional)
Marking lines Set the number of rows arbitrarily within the valid marking range
Minimum line width 0.1mm
Speed Up to 150m/min
Character height 0.4-70mm
Font Single-line body, dot matrix body, TureType font
Marking content Text, graphics, bar code, QR code, dynamic serial data, real - time clock, TXT, code, RS232, communication, etc.
Marking angle Any angle, four-dimensional adjustable
Operation interface
Screen Industrial-grade touch screen
Language Chinese, English (can support other languages)
System Linux
Input device Handwriting
Working environment
Protection level IP55
Cooling Air-cooling
Environmental temperature 1℃ - 45℃
Humidity 10% - 90%, no condensation
Electrical requirements 100-240VAC, 50/60Hz, 0.7KW
Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Packaging Box
Packaging Box Detail

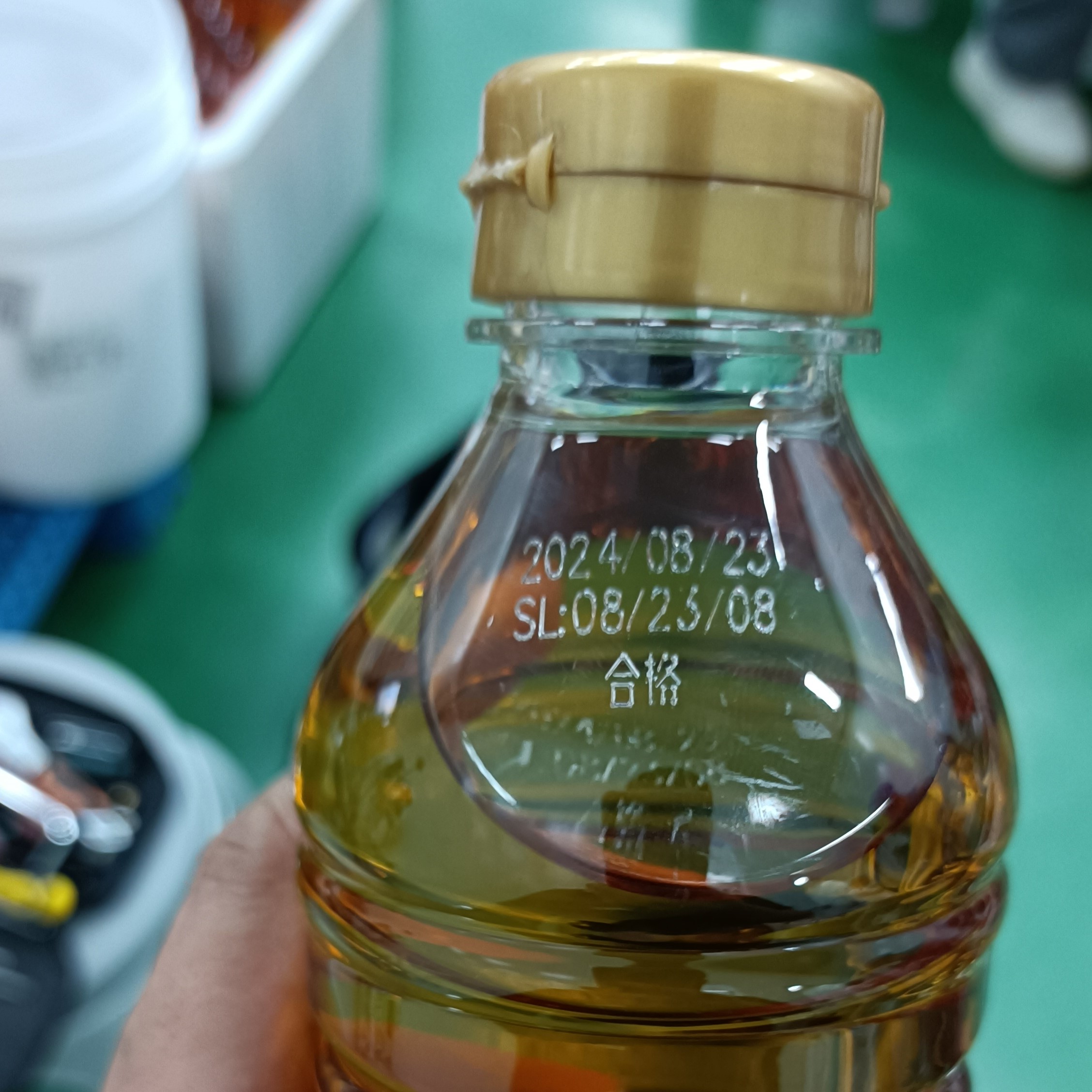

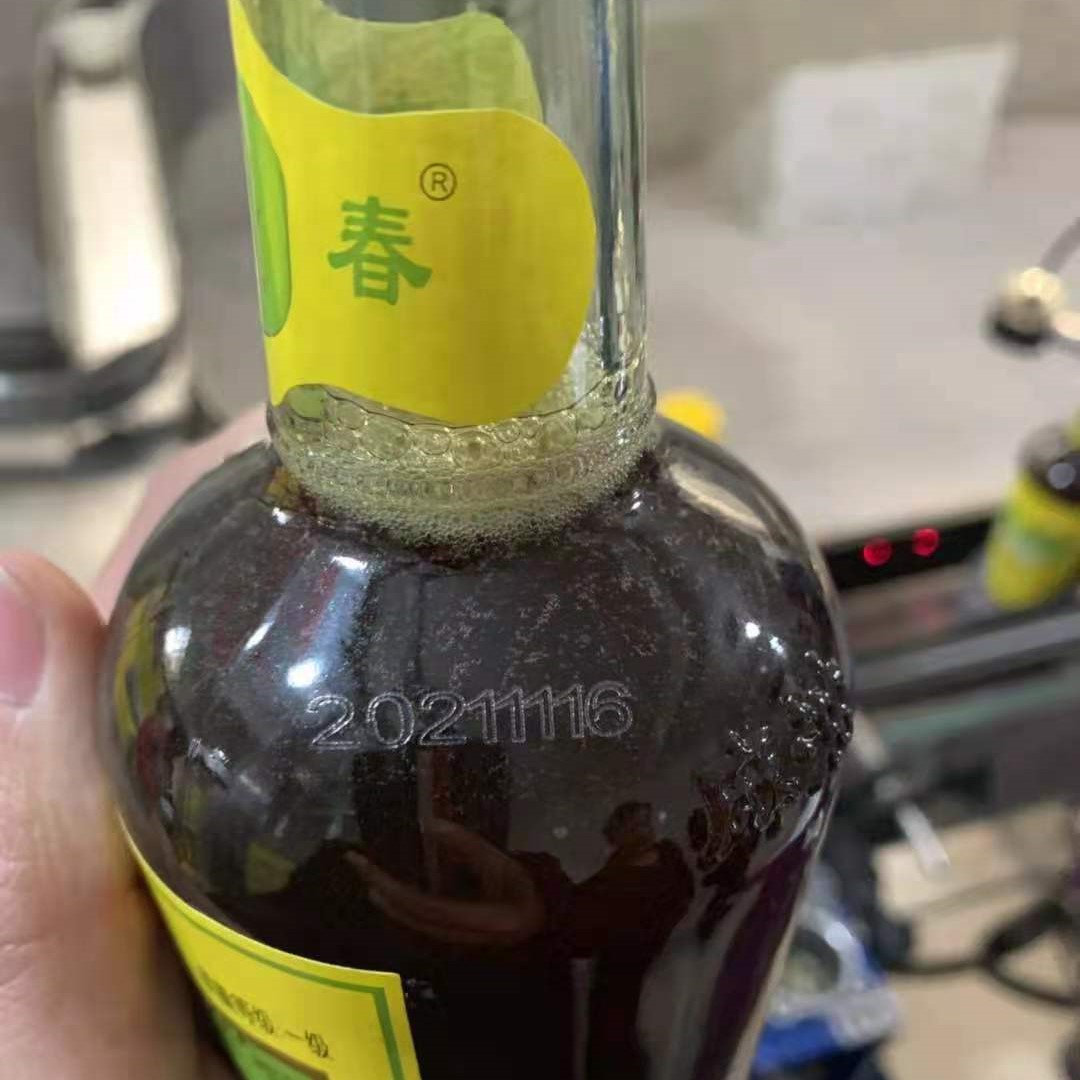

Applications Showcase
Marking Sample 1
Marking Sample 2
Marking Sample 3
Marking Sample 4
Marking Sample 5
Marking Sample 6
Marking Sample 7
Frequently Asked Questions
What type of laser does the OMA L Series use and what is its wavelength?
The OMA L Series utilizes a CO2 laser type with a standard wavelength of 10.6um, making it highly effective for non-metallic and organic material marking applications.
What content formats and languages are supported by the marking machine?
It supports marking texts, graphics, barcodes, QR codes, dynamic serial numbers, real-time clocks, and TXT files. The standard interface supports Chinese and English, with capability to support other languages as required.
What are the maximum marking speed and marking line capabilities?
The machine features a maximum linear marking speed of 12000mm/s and can handle line production speeds up to 150m/min. You can set the number of marking rows arbitrarily within the valid marking range.
What kind of operating system and hardware interface does it use?
The system runs on a highly stable and secure Linux operating system, utilizing an industrial-grade touch screen with handwriting support as the input device.
What are the environmental requirements for stable operation?
The system is air-cooled and boasts an IP55 protection rating. It is designed to work in temperatures ranging from 1°C to 45°C, with non-condensing relative humidity between 10% and 90%.
