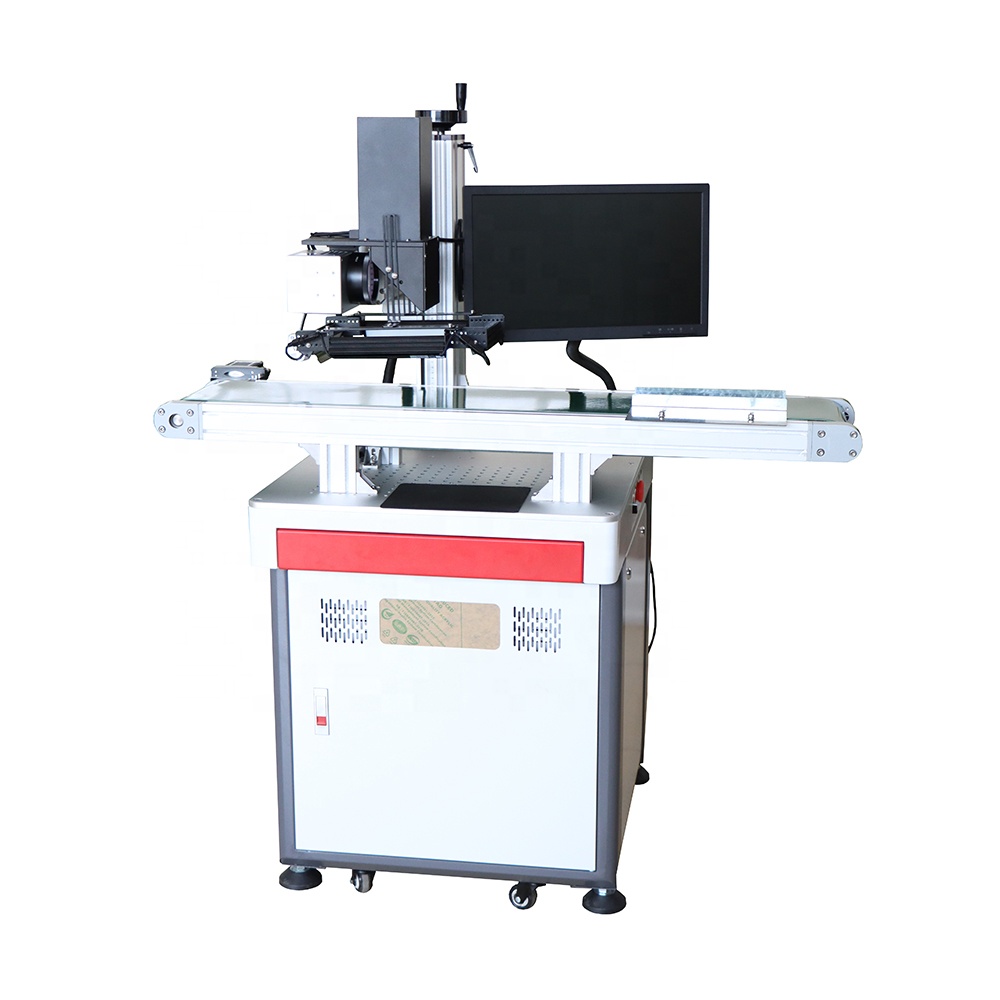

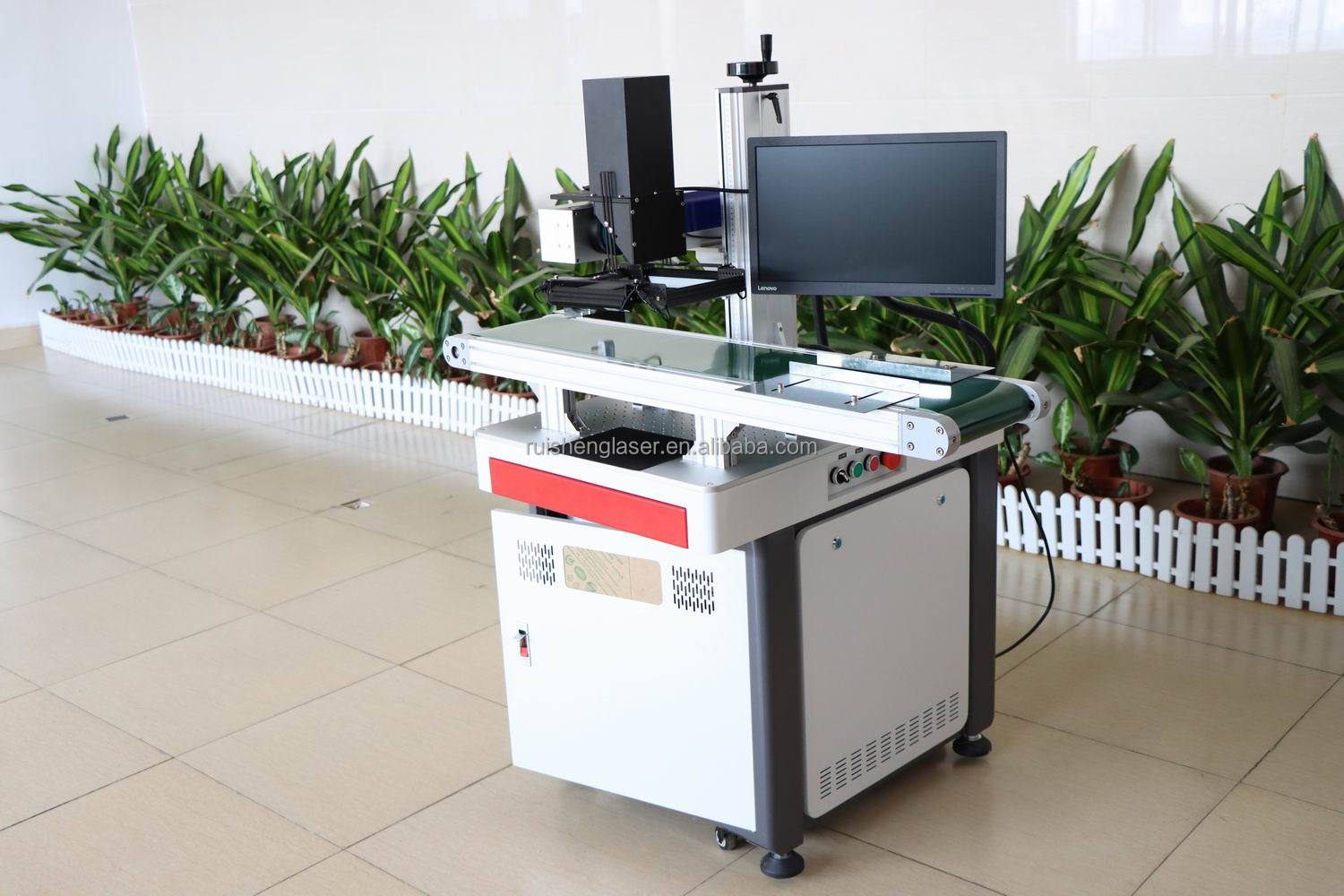

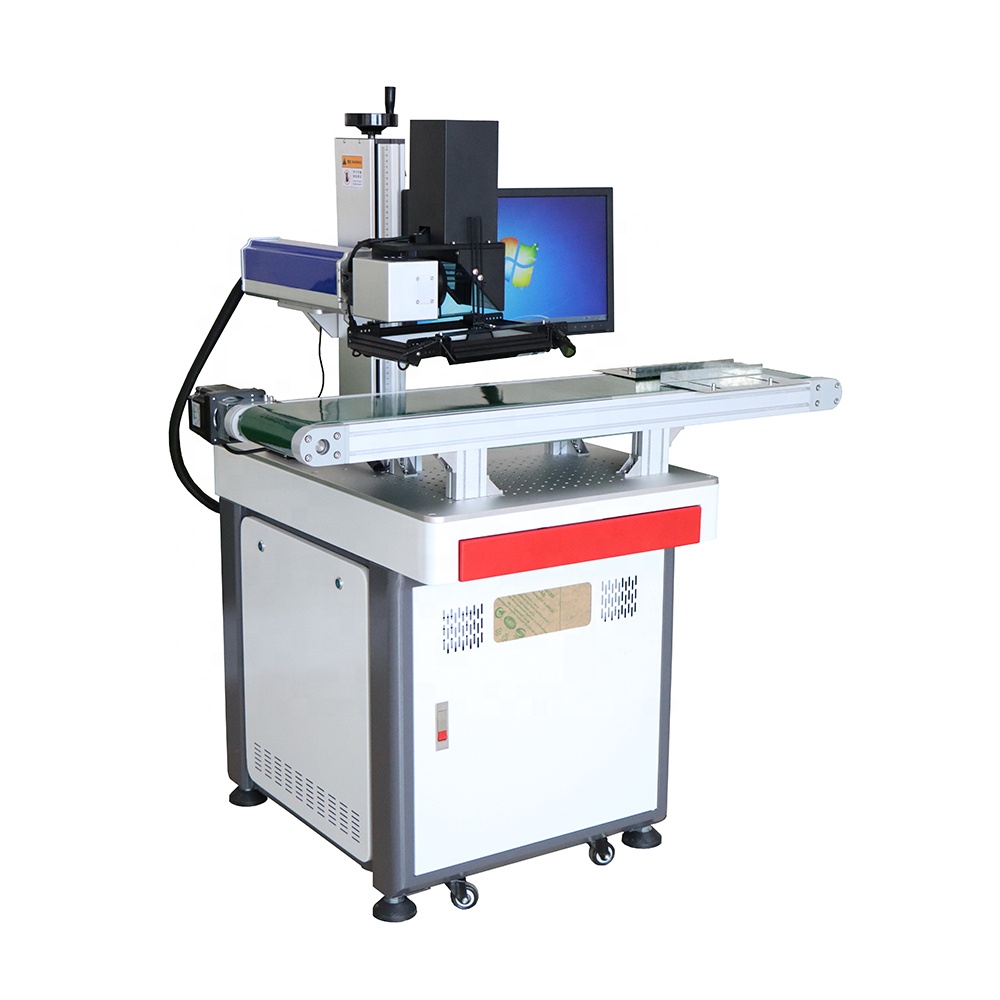

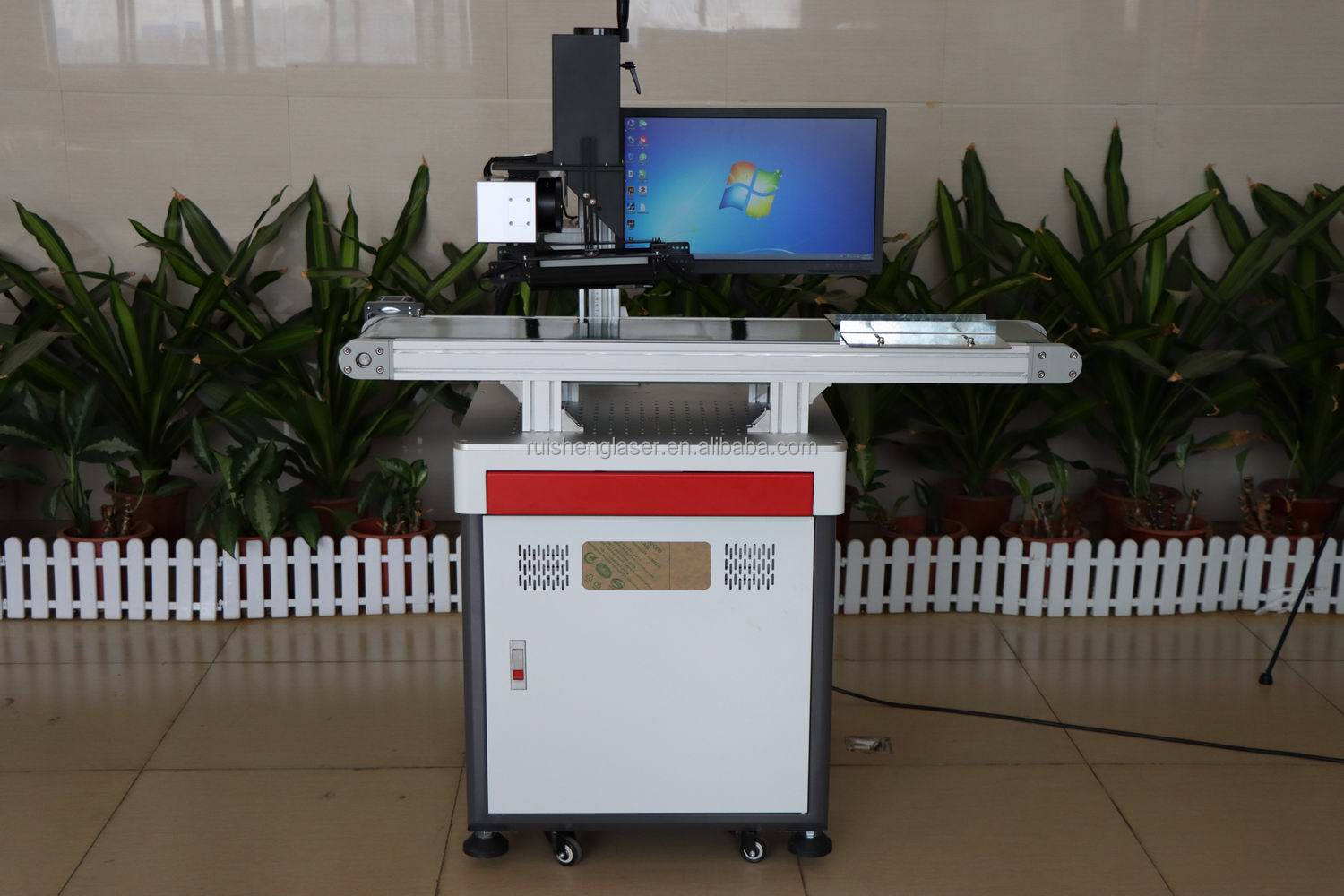

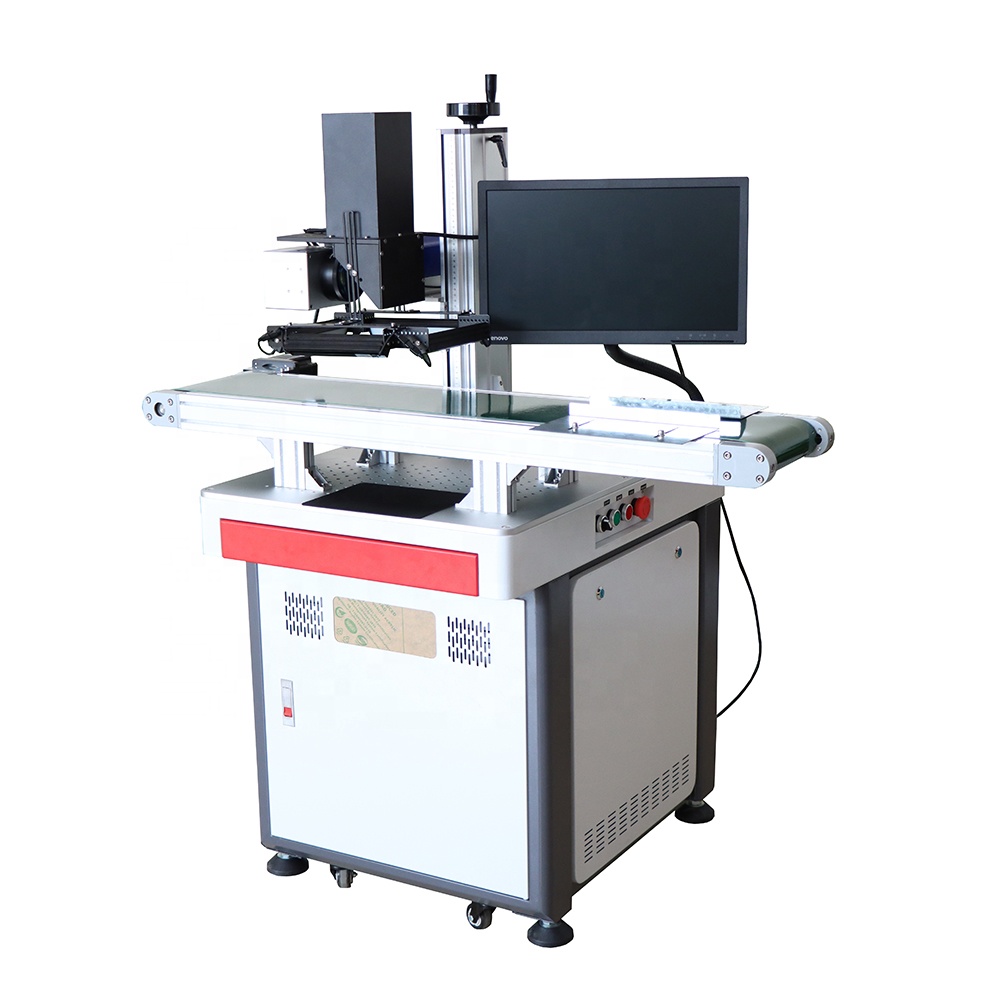

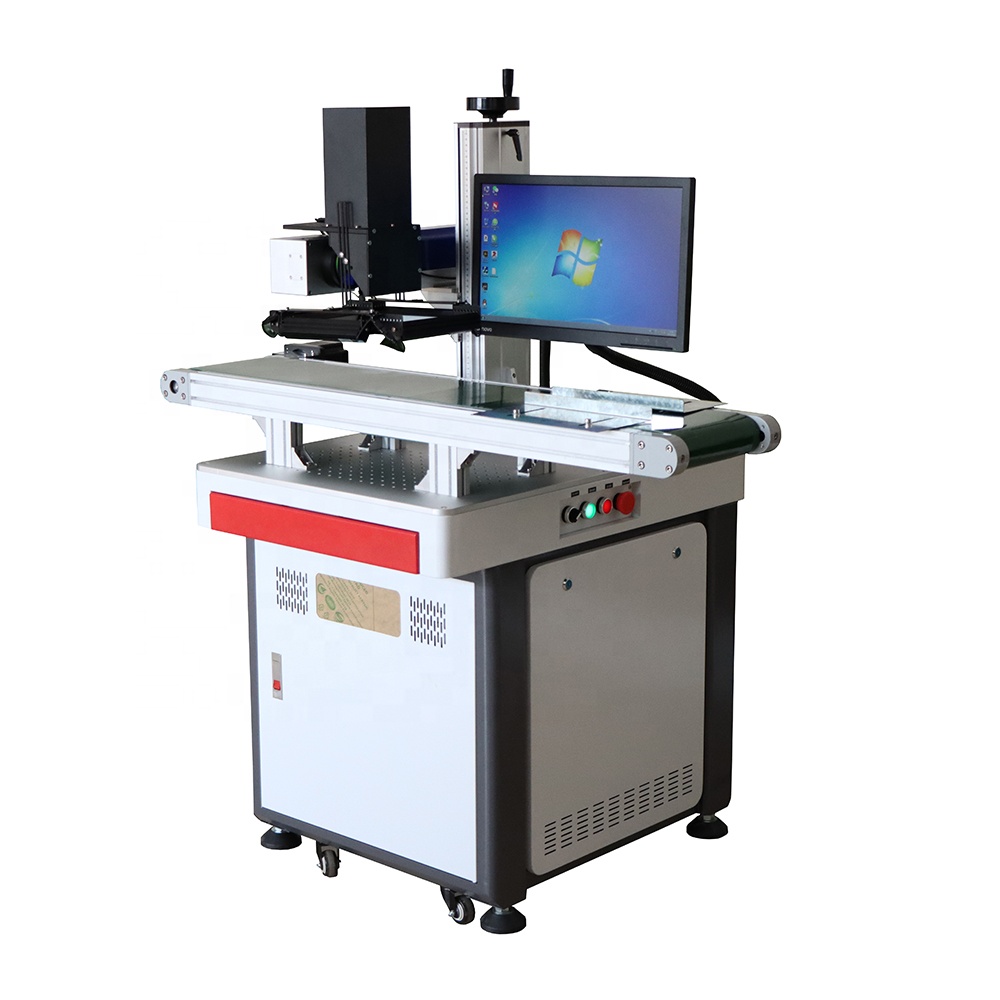

The automatic laser marking machine has imported high-precision CCD camera positioning and large-scale graphic visual recognition system, which can not only automatically locate products for marking but also realize large-scale visual positioning and marking through the moving belt conveyor platform.
It equipped with our self-developed high-speed marking control card and powerful software, compatible software output of AutoCAD, CorelDRAW, AI etc. It can realize automatic edition and correction of characters, signs, graphs images, bar codes, two-dimensional codes, automatically increased serial numbers. It can support various file formats like PLT, PCX, DXP, BMP, JPG, and so on.
| Machine Model | FM20 | FM30 | FM50 | FM60 | FM70 | FM100 |
|---|---|---|---|---|---|---|
| Working area | 110*110mm; 175*175mm; 200*200mm; 300*300mm | |||||
| Laser power | 20W | 30W | 50W | 60W | 70W | 100W |
| Laser source | Raycus/ MAX/ JPT/ IPG | |||||
| Scanner head | With "SINO-GALVO" brand | |||||
| F-theta Lens | From Singapore | |||||
| Control Board | With "BJJCZ" brand | |||||
| Computer | Industrial computer | |||||
| Visual marking system | "LocateMark" visual software | |||||
| Power Supply | AC 220V±10%, single phase, 50/60Hz | |||||
| Marking Speed | 0 -7000mm/s | |||||
| Cooling method | Air cooling | |||||
| Graphic Format Support | BMP, AI, DST, CDR, PLT, DXF, JPG, PNG | |||||
| Machine color | White & grey color or customized color available | |||||

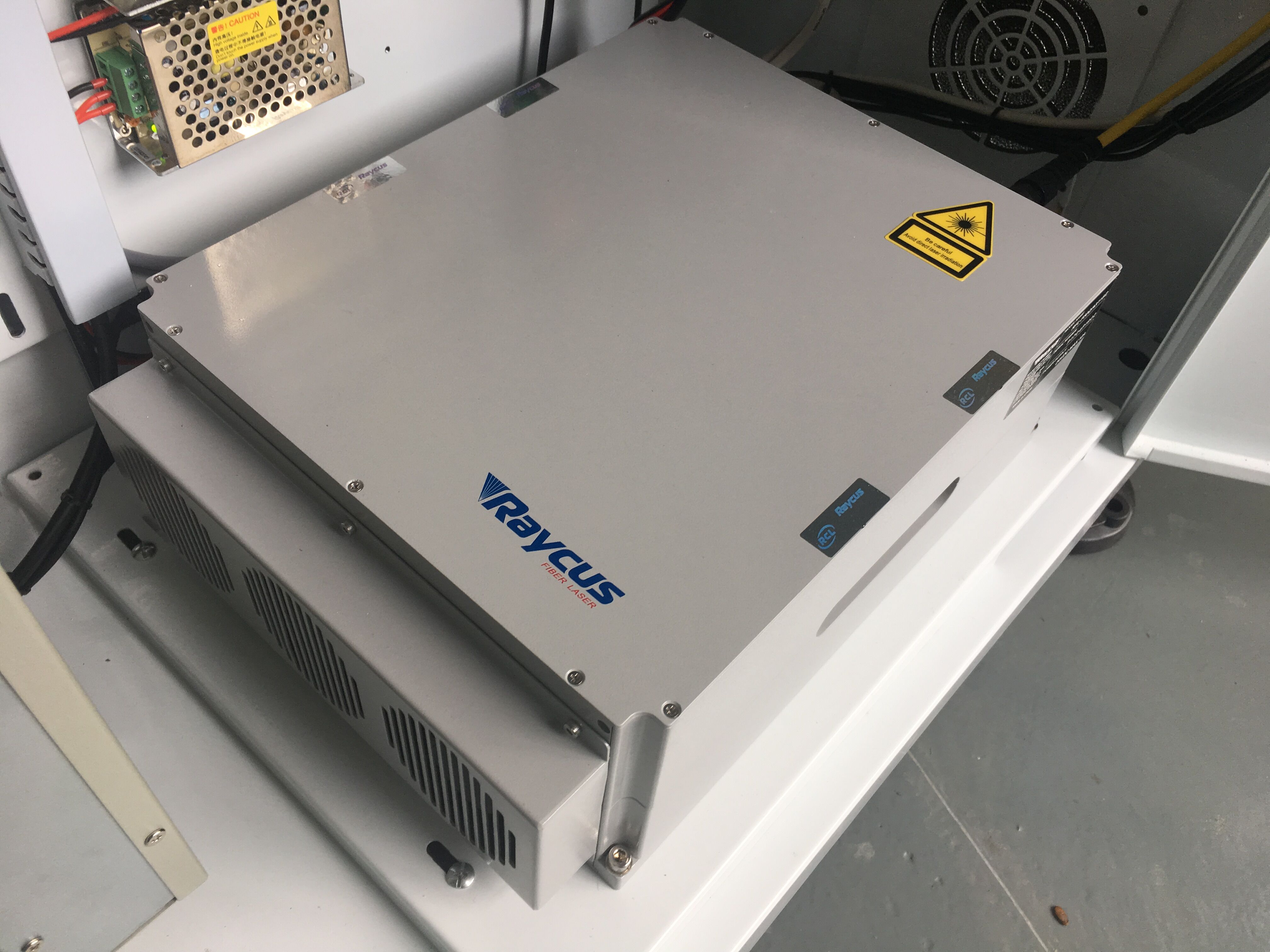

China top-one brand Wuhan Raycus fiber laser generator, it with high photoelectric conversion rate, with a normal working life of 100,000 hours. You can also choose Max, JPT, IPG, etc.

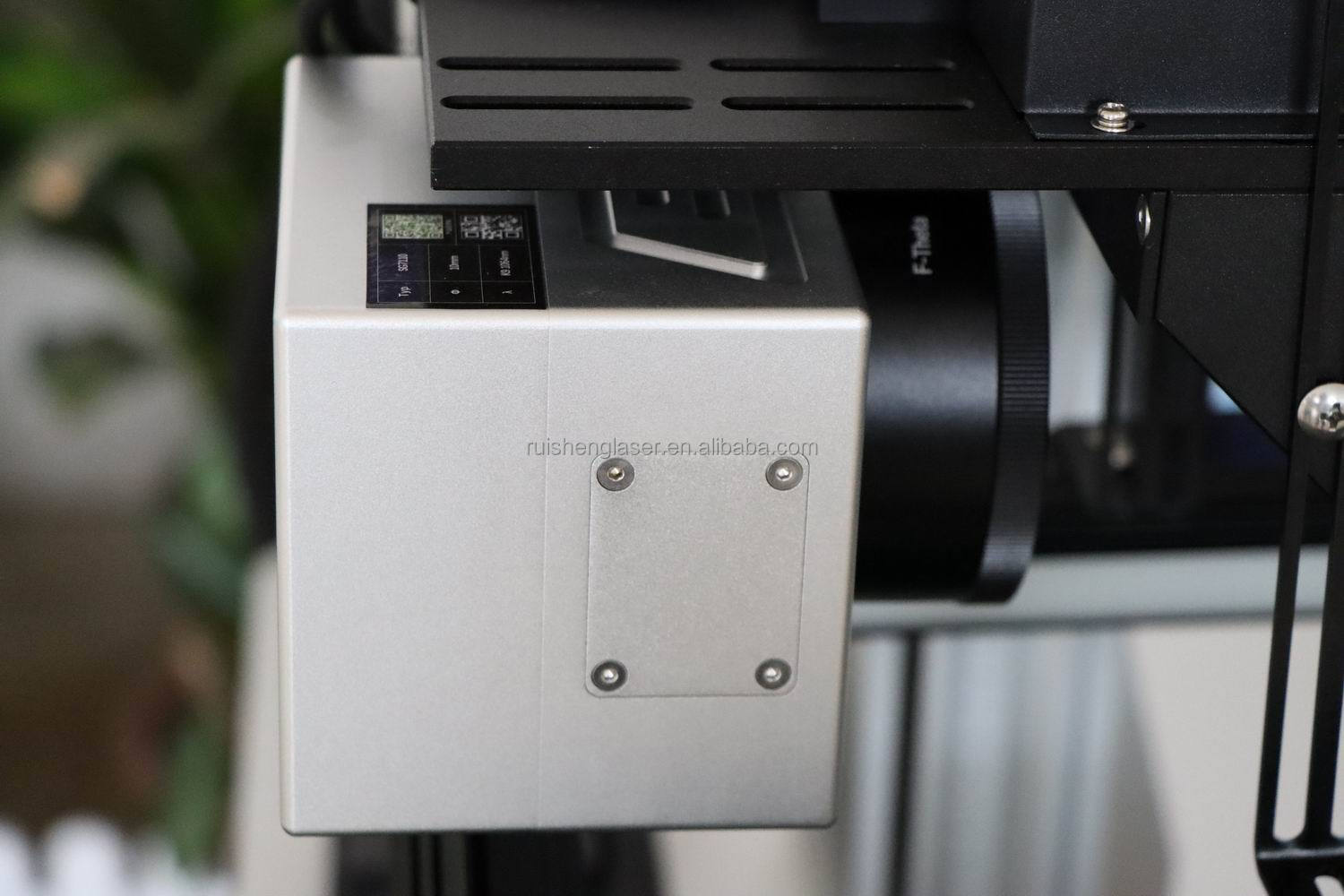

"SINO-GALVO" scanner head has a good running stability, high positioning accuracy, fast marking speed, and strong anti-interference ability.

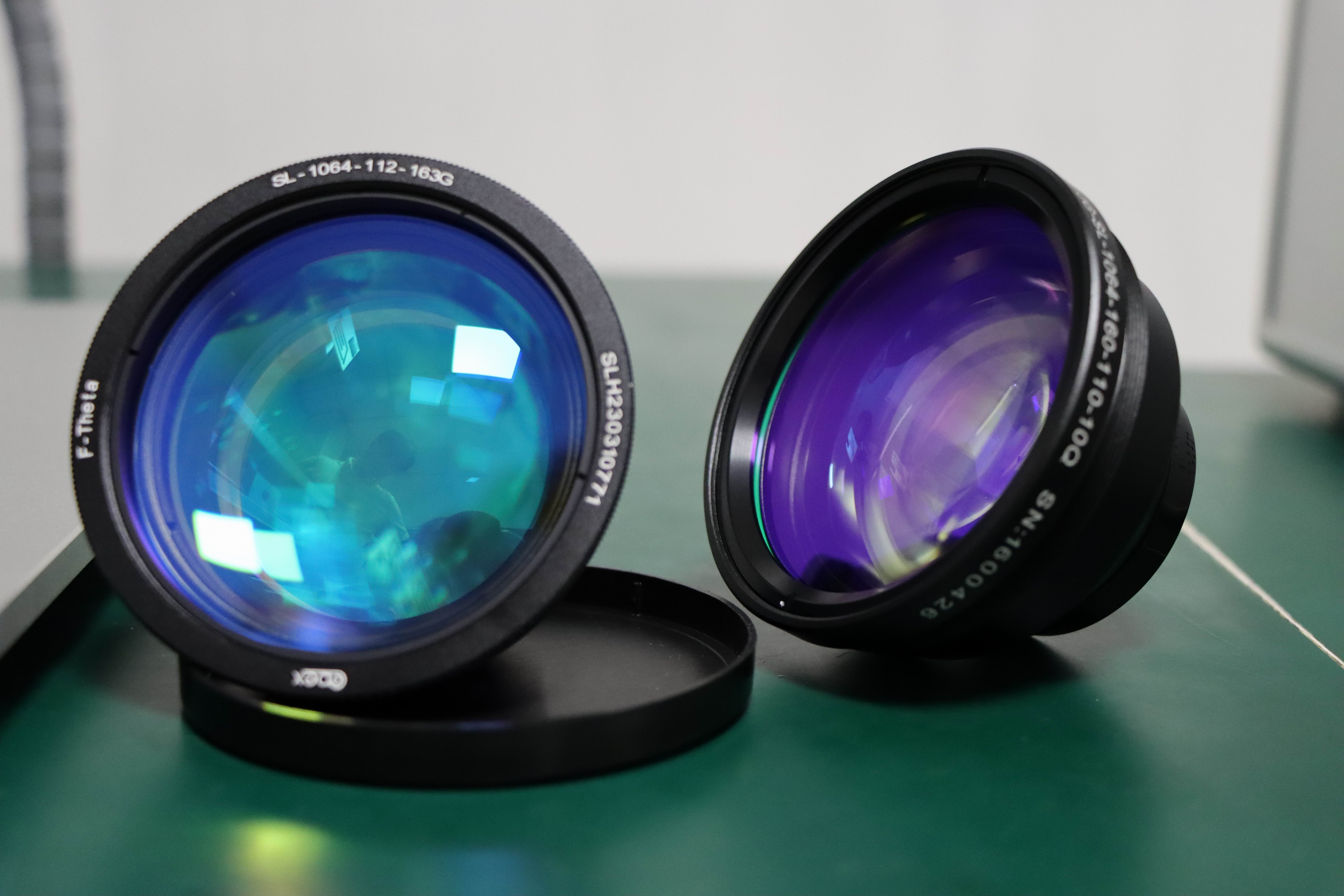

Built with highest light transmission to ensure no power reduction. Our standard lens features a 110*110mm marking area, with other specifications customizable based on your requirements.

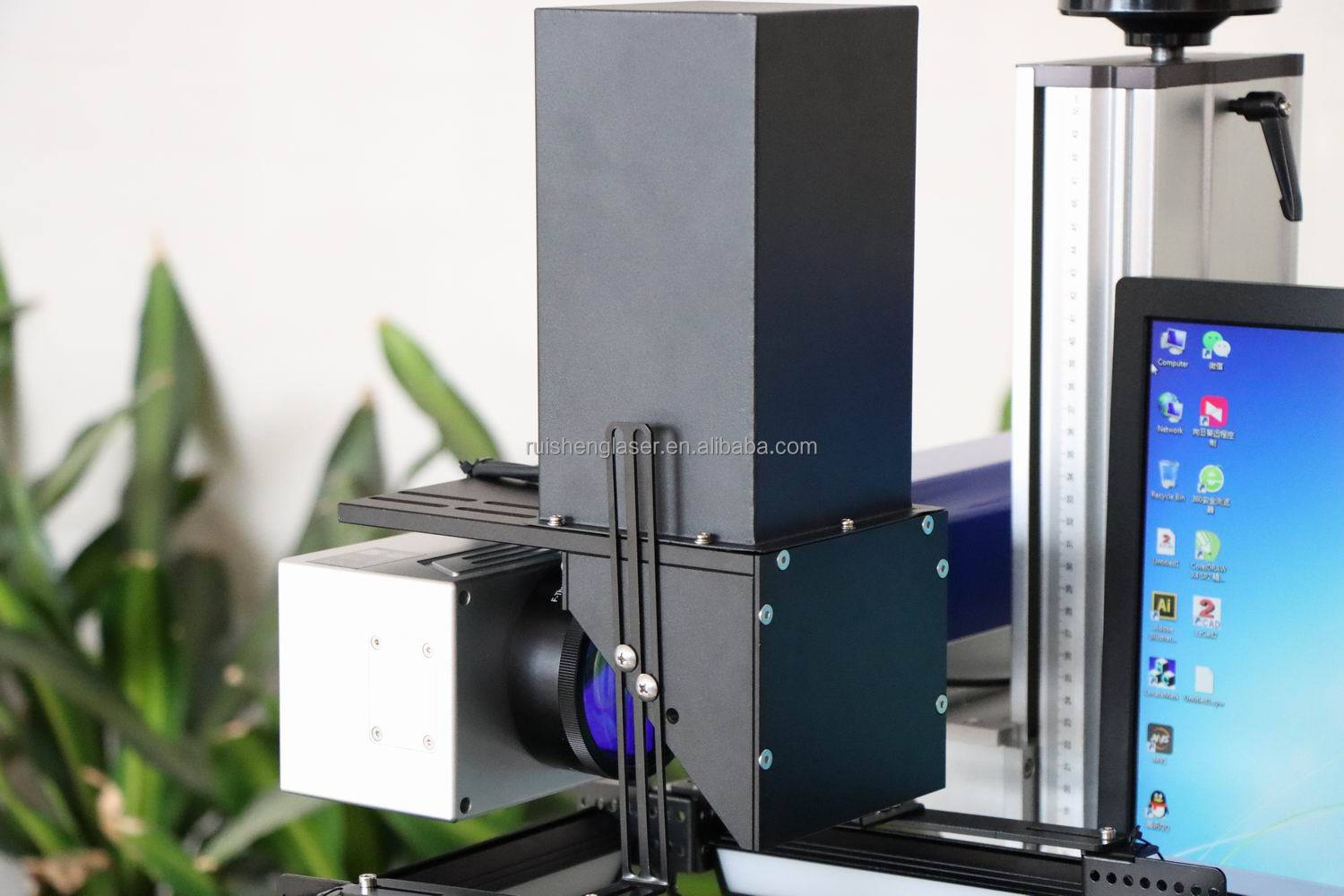

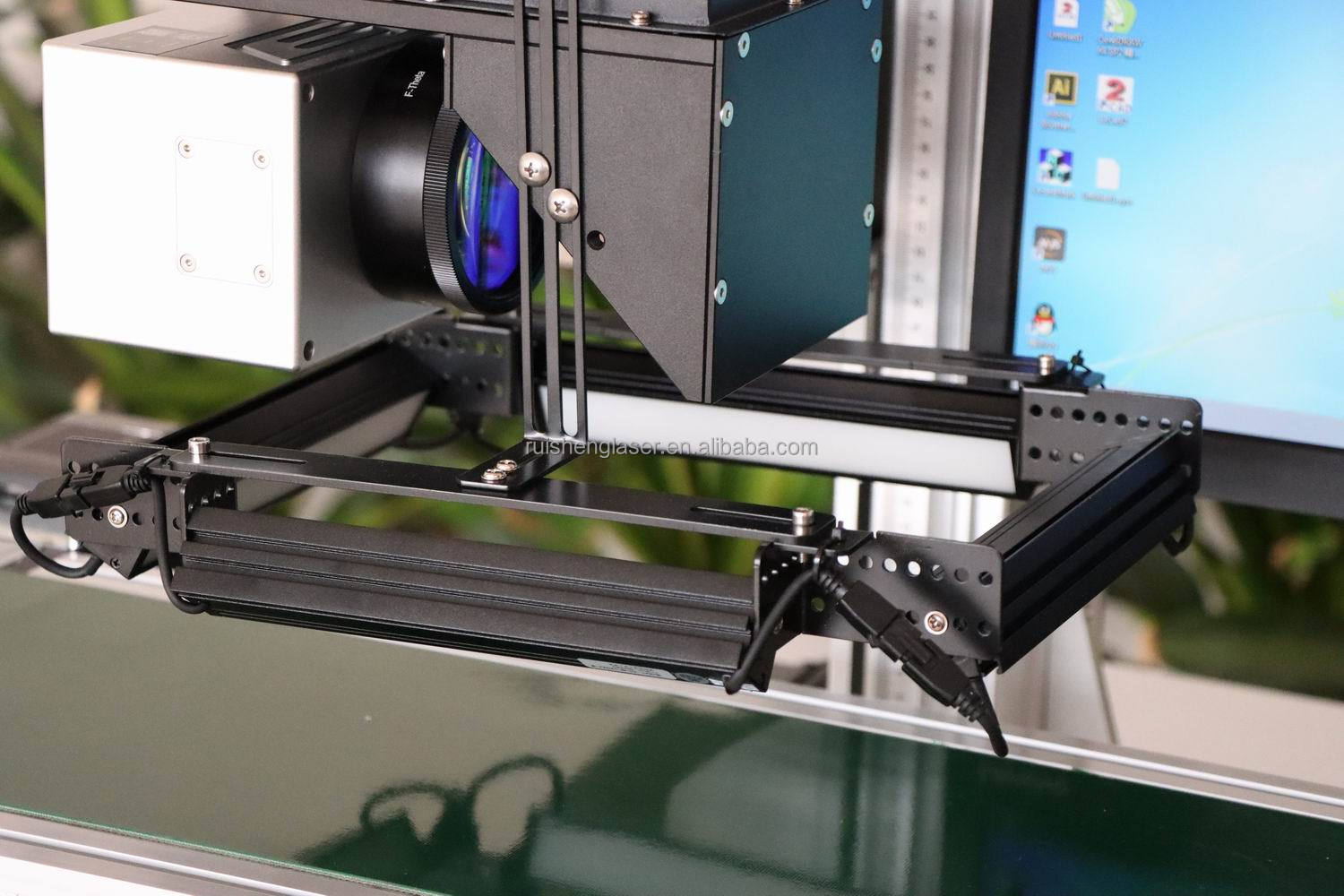

The CCD visual positioning laser marking system adopts an external camera to capture and locate the position and angle of the product in real time to perform automatic marking. It greatly simplifies feeding system designs.

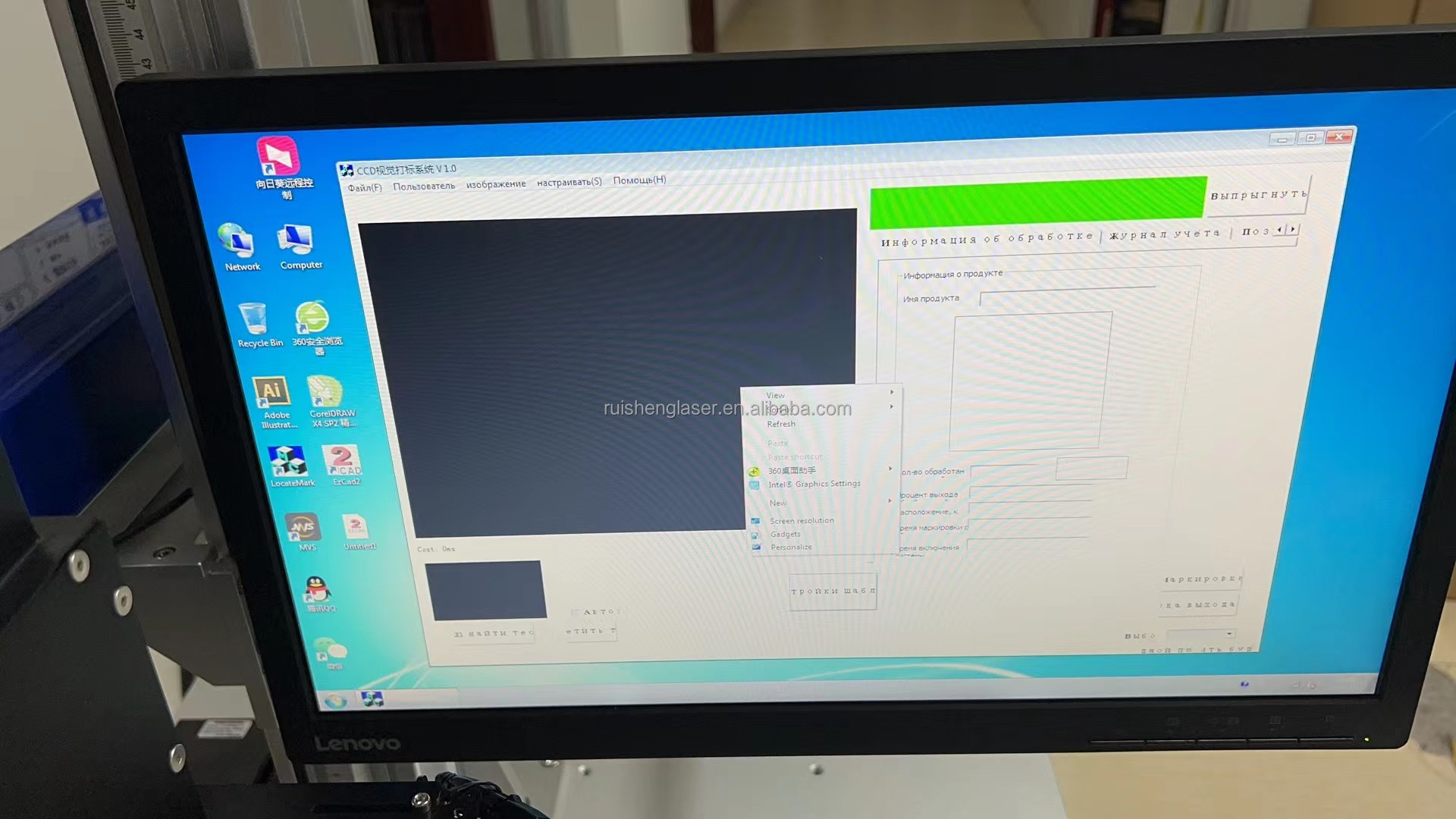

Self-developed "LocateMark" operating software. Featuring Chinese, English, and Russian languages to meet global operational needs.

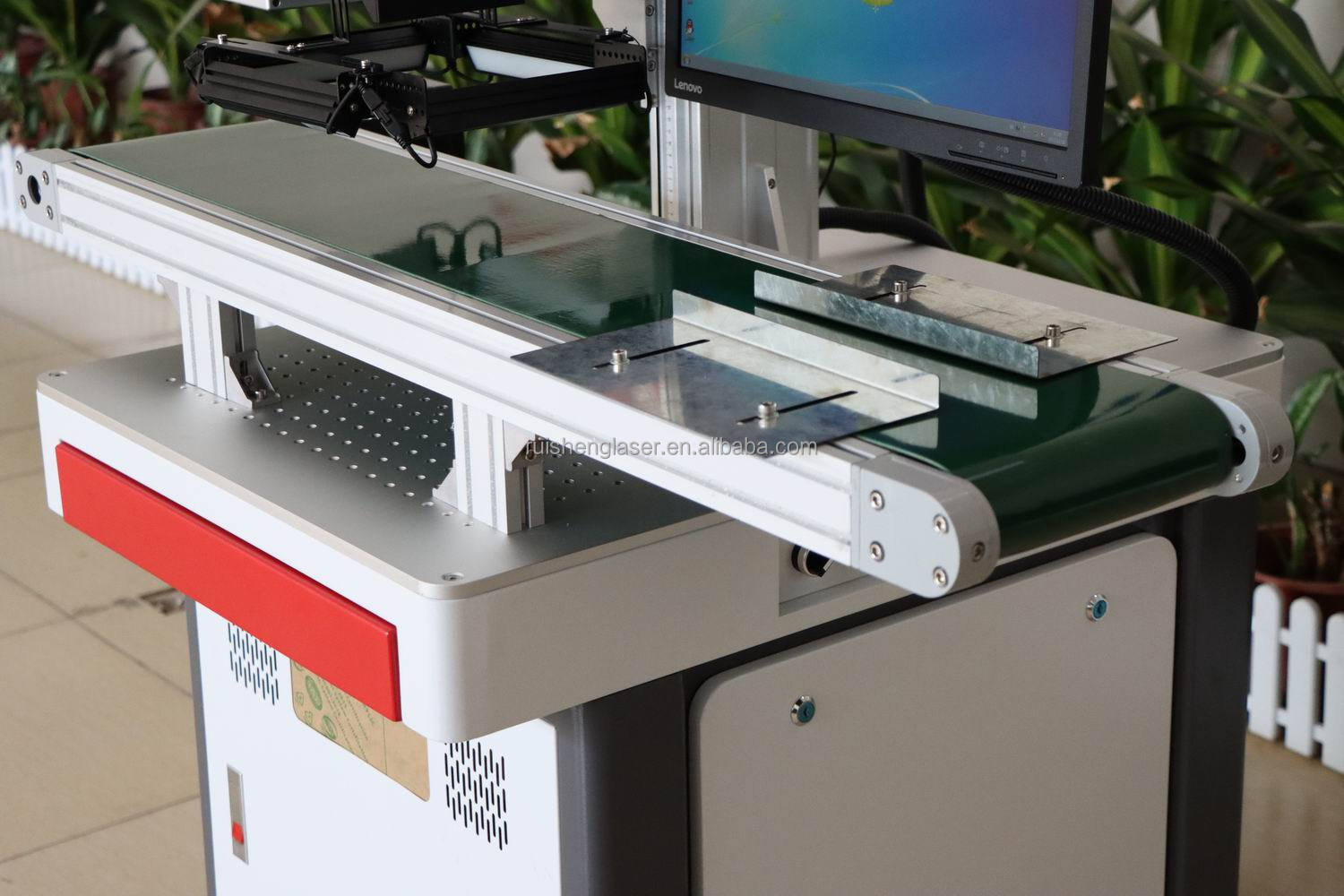

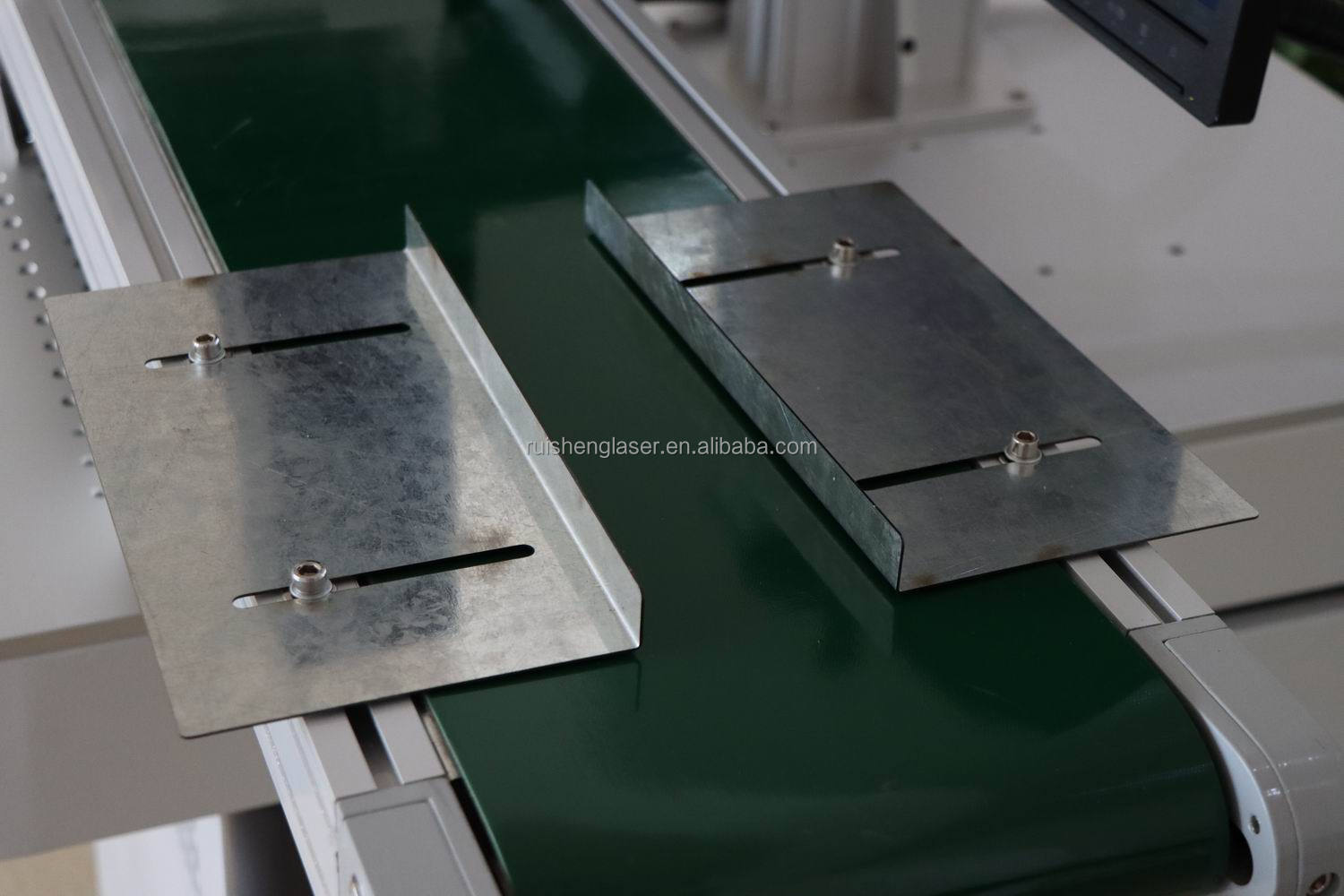

Designed with a metal baffle to prevent products from shifting outside the visual positioning area. Belt color options are available to optimize scanning contrast based on target products.
Established in 2010, we are a professional manufacturer engaged in the research, development, production, sales, and service of laser welding machines, laser cutting machines, CO2 laser engraving cutting machines, and laser marking machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
We offer standard products in stock and customized products with short lead times. A strong research team provides high-quality solutions. Selling well in all domestic provinces, our products are also exported to clients in countries and regions such as Russia, the United States, Mexico, India, Korea, Europe, and South America. We welcome OEM and ODM orders.
Our sales managers and senior professional engineers provide the most suitable product solutions according to customer demands.
We provide customized specifications, branding, colors, and layout configurations matching your industrial needs.
Professional consultation is available both online and offline. We support free training, online services, and free maintenance for a lifetime.
Customers are responded to within 0.5 hours. All issues and technical problems are targeted to be solved within 24 hours.
For best-selling products, we maintain stock for delivery within 3 working days. We coordinate via express, air transportation, sea transportation, and railway transportation with door-to-door services available.
