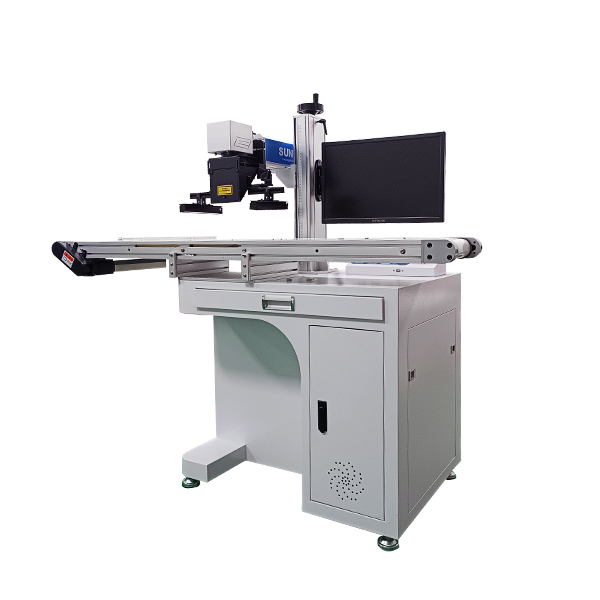

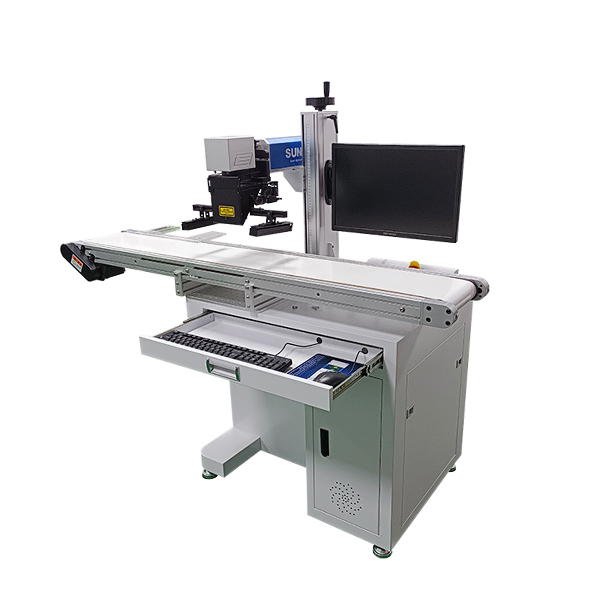

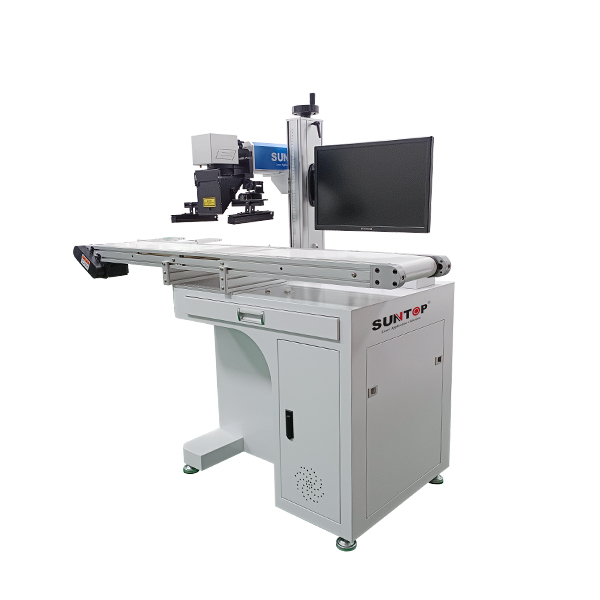

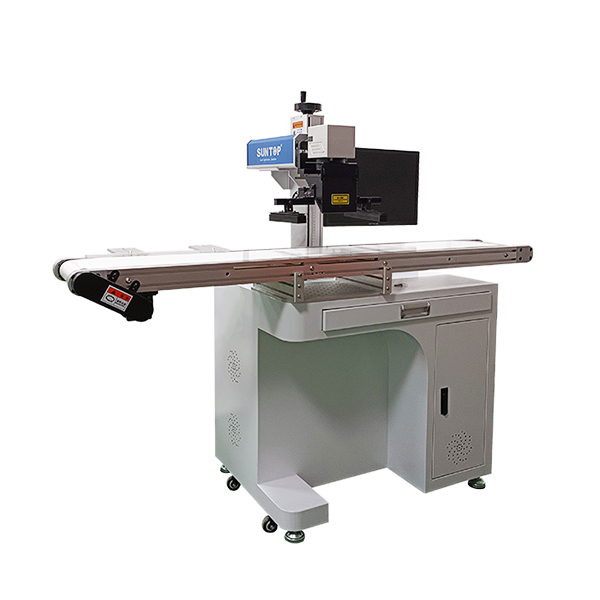

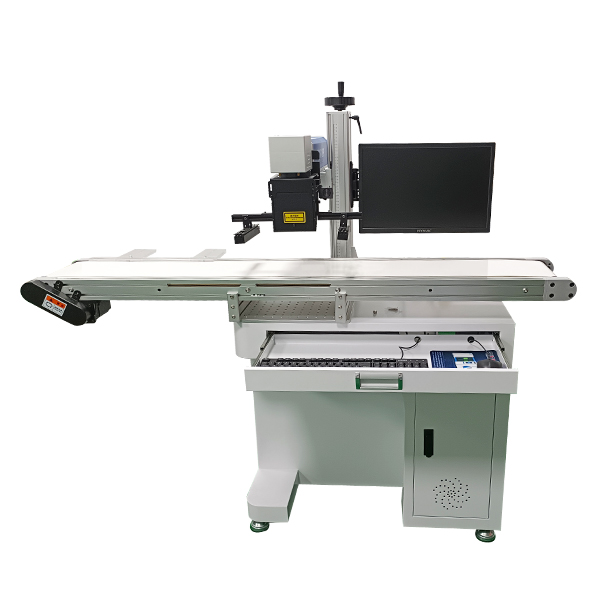

CCD Vision Fiber Laser Marking Machine is a kind of advanced equipment combining CCD vision technology and laser marking technology, which has the features of high precision, fast and multi-functional, and is widely used in industrial production fields.

• Adopt CCD camera positioning system, accurate positioning.
• Fast auto-focus, automatic marking, no need to manually make adjustments.
• Any position, any angle, any shape product automatic identification, one time to complete a number of products automatic marking.
• No adjustment, no maintenance, no consumables, long service life of up to 100,000 hours.
• Can be used with production line to reduce labor cost, can work continuously for 24 hours, can meet the requirements of industrialized large-scale online production.
• The Laser Cleaning Machine is subjected to strict tests and continuous 24-hour laser beam output before leaving the factory to ensure 100% machine stability.

Details Images

Laser source

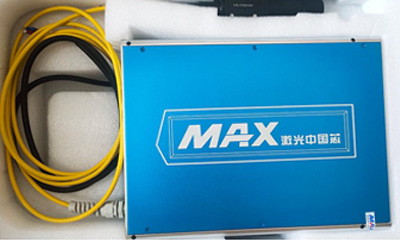

Using well-known brands of fiber lasers such as Raycus, MAX, and IPG, the performance is stable and the photoelectric conversion efficiency is high. There is no need to maintain the laser and beam transmission system, which can save a lot of maintenance costs and time.

Vision System

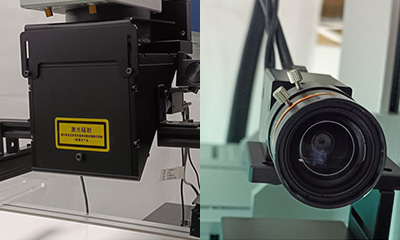

Camera: A high-resolution camera can capture images of the marked object in real time to ensure accurate positioning. Image processing algorithm: The internal image processing software can analyze and process images in real time to identify specific marking locations or defects.

High quality galvanometer

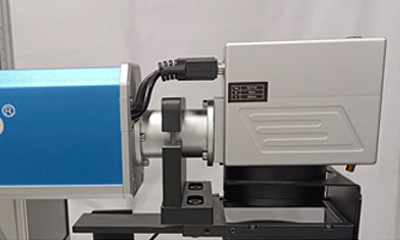

The high-speed digital galvanometer scanning head has good running stability and high positioning accuracy, which can realize high-speed marking and high precision.

F-theta lens

Intelligent F-theta lens, the fiber laser beam is focused to the surface of the workpiece through the lens, and the energy is sufficient, high light transmittance, and good marking effect.

Built-in air cooling

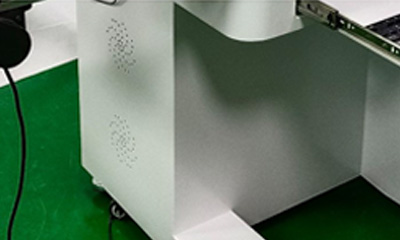

With built-in air cooling design, the heat dissipation performance is better, can effectively extend the service life of optical components.

Marking software

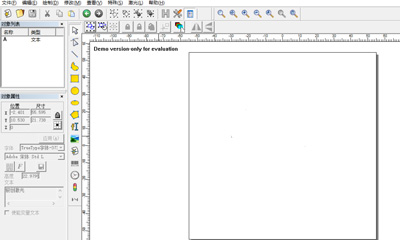

User interface: The software interface is user-friendly and easy to use, supporting functions such as graphic design, text input, and QR code generation. Compatibility: Supports multiple file formats, such as DXF, AI, PLT, etc., for easy design import.

Mechanical structure

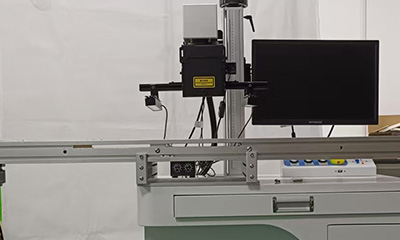

XY axis motion system: High-precision transmission system ensures accurate movement of the marking head. Stable base: Designed with a stable base to reduce the impact of vibration on marking quality.

Safety protection

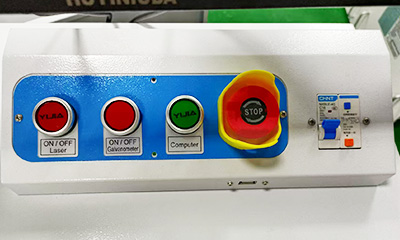

The equipment is equipped with an emergency stop button to ensure that the power supply can be quickly cut off in the event of an abnormality. The laser protection cover can be customized according to needs to ensure the safety of operators during use.

Product Advantages

CCD vision automatic laser engraving machine has become an indispensable and important equipment in modern manufacturing industry due to its high efficiency, precision and flexibility.

• High-precision recognition: The CCD vision system can capture the image of the workpiece in real time and accurately identify its position and shape, thereby ensuring high precision and consistency of laser engraving.
• Automated operation: Through visual recognition technology, the equipment can achieve fully automated processing, reduce the need for manual intervention, and improve work efficiency and production capacity.
• Flexible adaptability: It is suitable for processing workpieces of various shapes and materials, including irregular shapes and deformed objects, making the application range of the equipment wider.
• Real-time correction: The system can monitor the deviation in the engraving process in real time and automatically correct it to ensure the quality of the final product and reduce the scrap rate.
• Improve production efficiency: The combination of efficient automation and visual recognition technology can shorten the production cycle, which is particularly suitable for large-scale production and fast delivery.
• Simple operation: The user interface is friendly and simple to operate, which reduces the dependence on professional skills, training costs and usage thresholds.
• Reduce labor costs: Due to the high degree of automation, the dependence on labor is reduced, thereby reducing the overall labor cost and improving the economic benefits of the enterprise.

Product Specification

Application Materials and Samples

Application materials

Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials, such as ABS, Nylon, PES, PVC etc.

Application industry

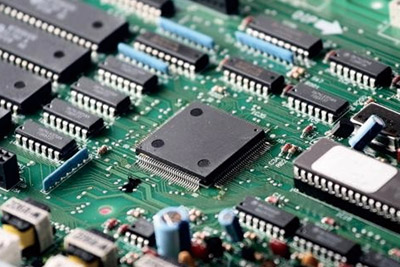

Widely used in integrated circuit chips, computer parts, industrial bearings, clocks and watches, electronic and communication products, aerospace devices, a variety of automotive parts, construction materials, home appliances, hardware tools, molds, wires and cables, food packaging, jewelry and many other fields.
