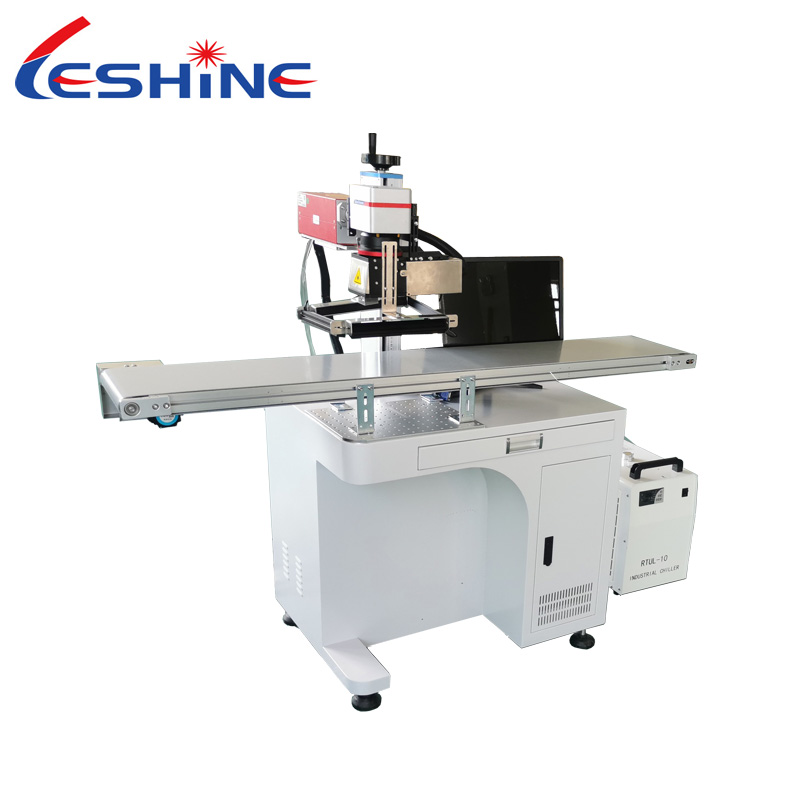

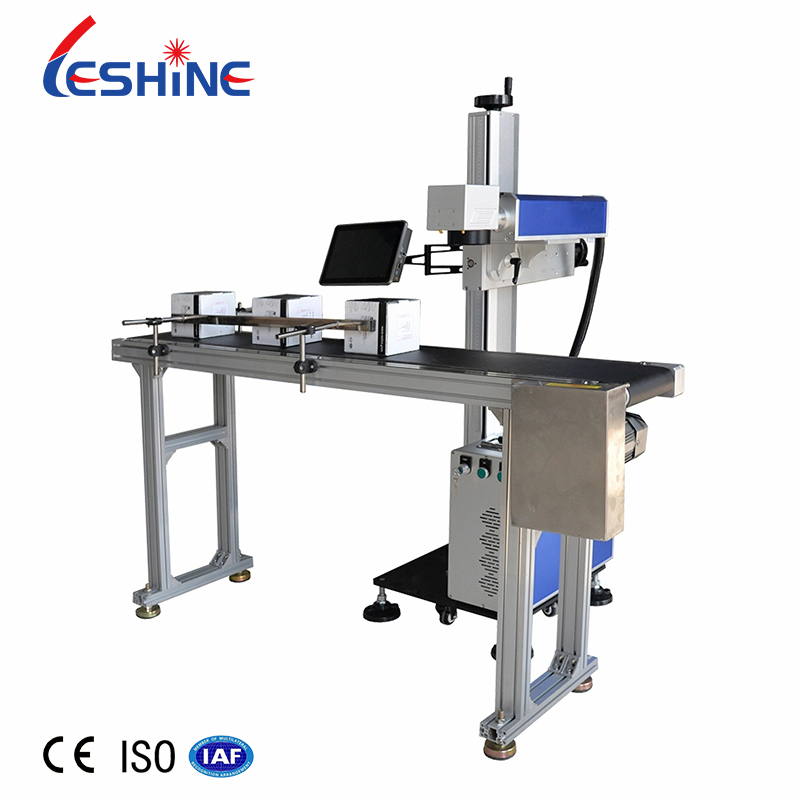

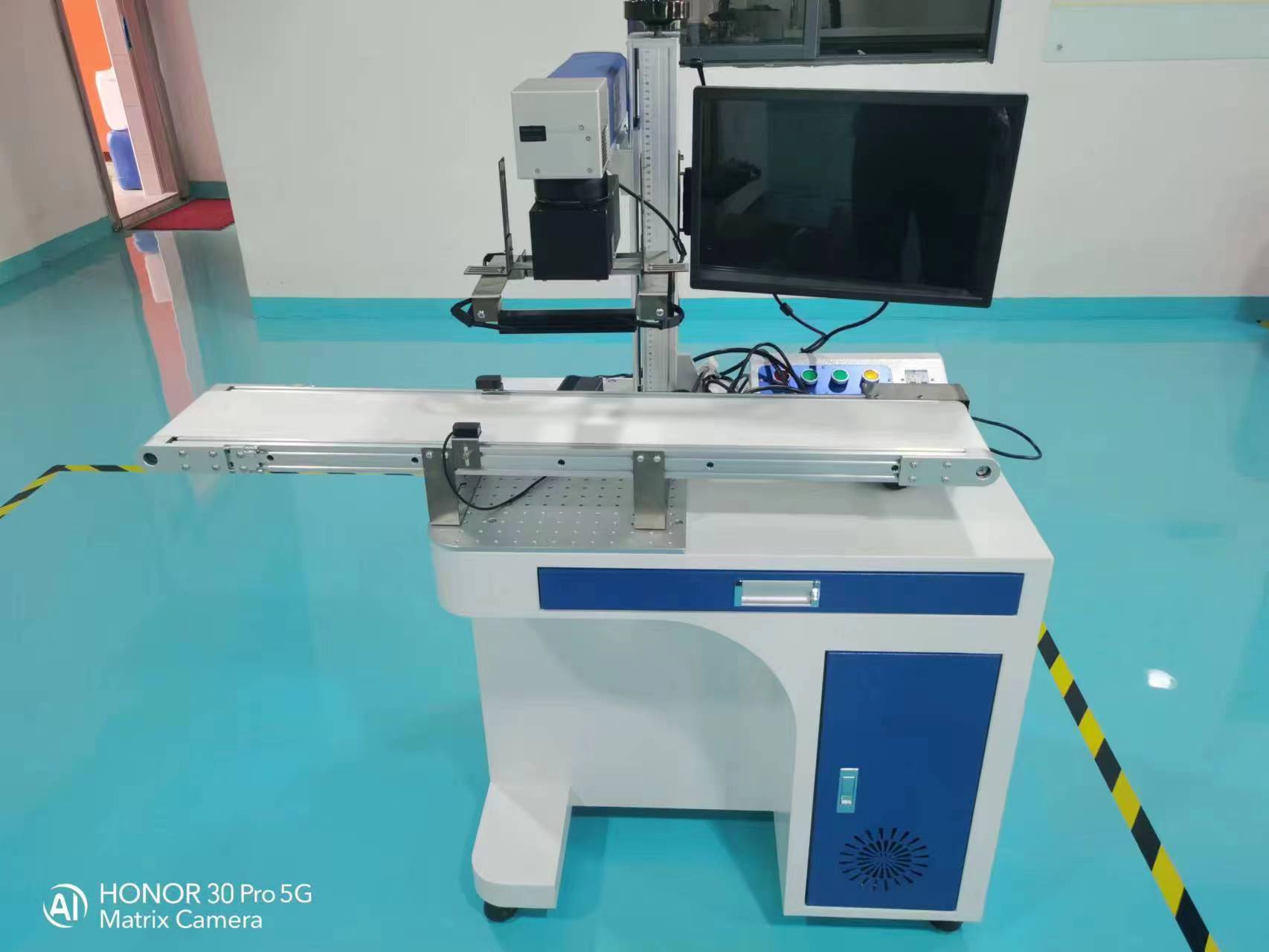

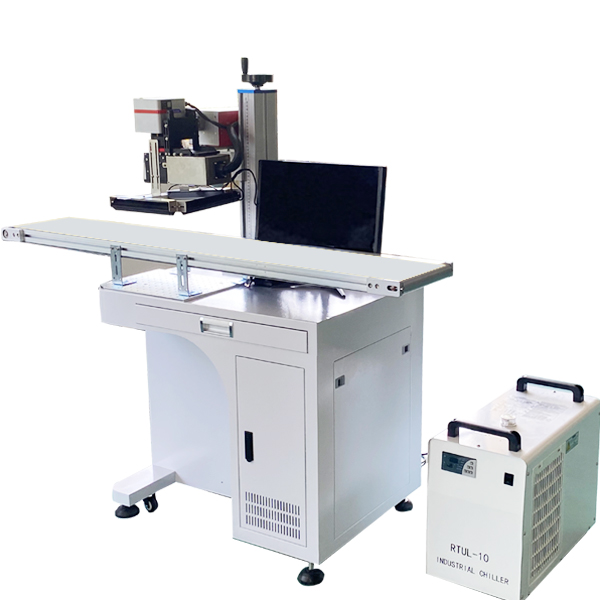

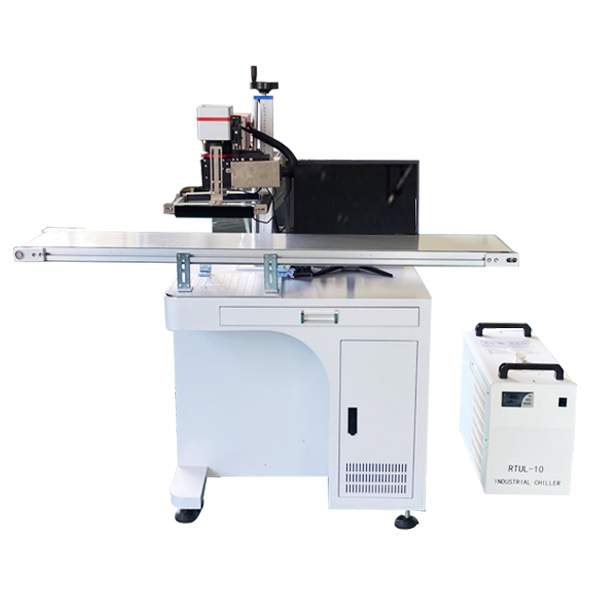

Camera CCD Visual Positioning Automatic Focus Vision System Fiber Laser Marking Machine
Camera CCD Visual Positioning Automatic Focus Vision System Fiber Laser Marking Machine
Camera CCD Visual Positioning Automatic Focus Vision System Fiber Laser Marking Machine
Camera CCD Visual Positioning Automatic Focus Vision System Fiber Laser Marking Machine
Camera CCD Visual Positioning Automatic Focus Vision System Fiber Laser Marking Machine
1 / 5
Camera CCD Visual Positioning Automatic Focus Vision System Fiber Laser Marking Machine
Camera CCD Visual Positioning Automatic Focus Vision System Fiber Laser Marking Machine
Camera CCD Visual Positioning Automatic Focus Vision System Fiber Laser Marking Machine
Camera CCD Visual Positioning Automatic Focus Vision System Fiber Laser Marking Machine
Camera CCD Visual Positioning Automatic Focus Vision System Fiber Laser Marking Machine

Camera CCD Visual Positioning Automatic Focus Vision System Fiber Laser Marking Machine

Send Inquiry

Product Description

Camera CCD Visual Positioning Automatic Focus Vision System Fiber Laser Marking Machine
Product Description
Item Name Visual Laser Marking Machine
Output Power 20W/30W/50W
Function Target tracking and positioning, Multi-target parallel tracking, Galvanometer distortion calibration, Laser focusing assistance, automatic fill light
Laser Fiber Laser (UV/CO2 optional)
Marking card signal interface Three I/O universal signal ports for marking start, marking in process, and marking completion
Positioning accuracy 0.05-0.15mm
Positioning speed <100ms
Field of view range 100*100mm
Camera data interface USB/gigabit ethernet port
working distance depending on the scenario of different specifications
software trigger support
Positioning mode Static/Dynamic

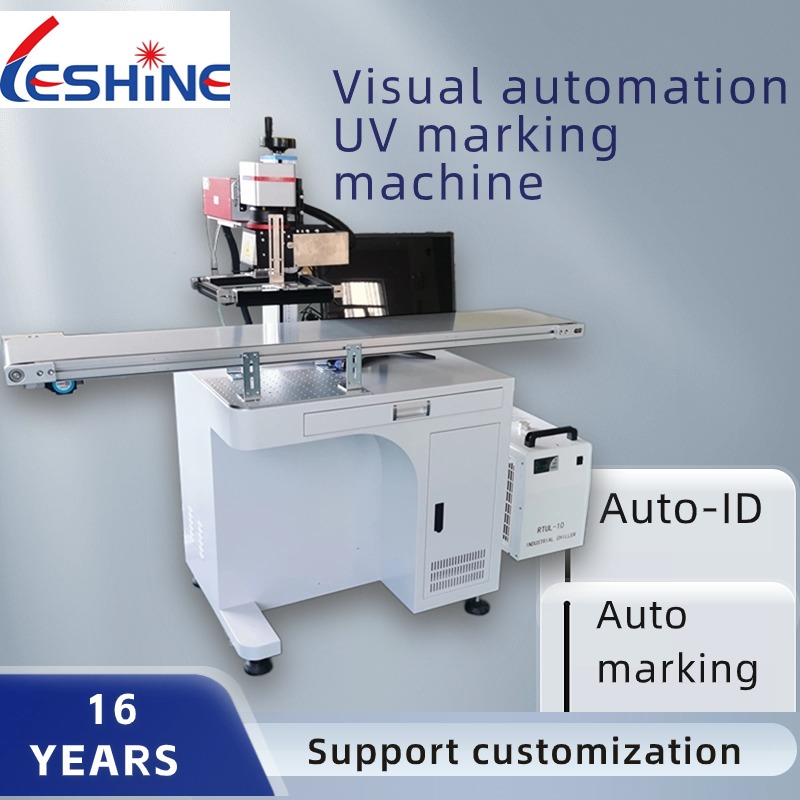

Visual Laser Marking Machine Overview
Details Images

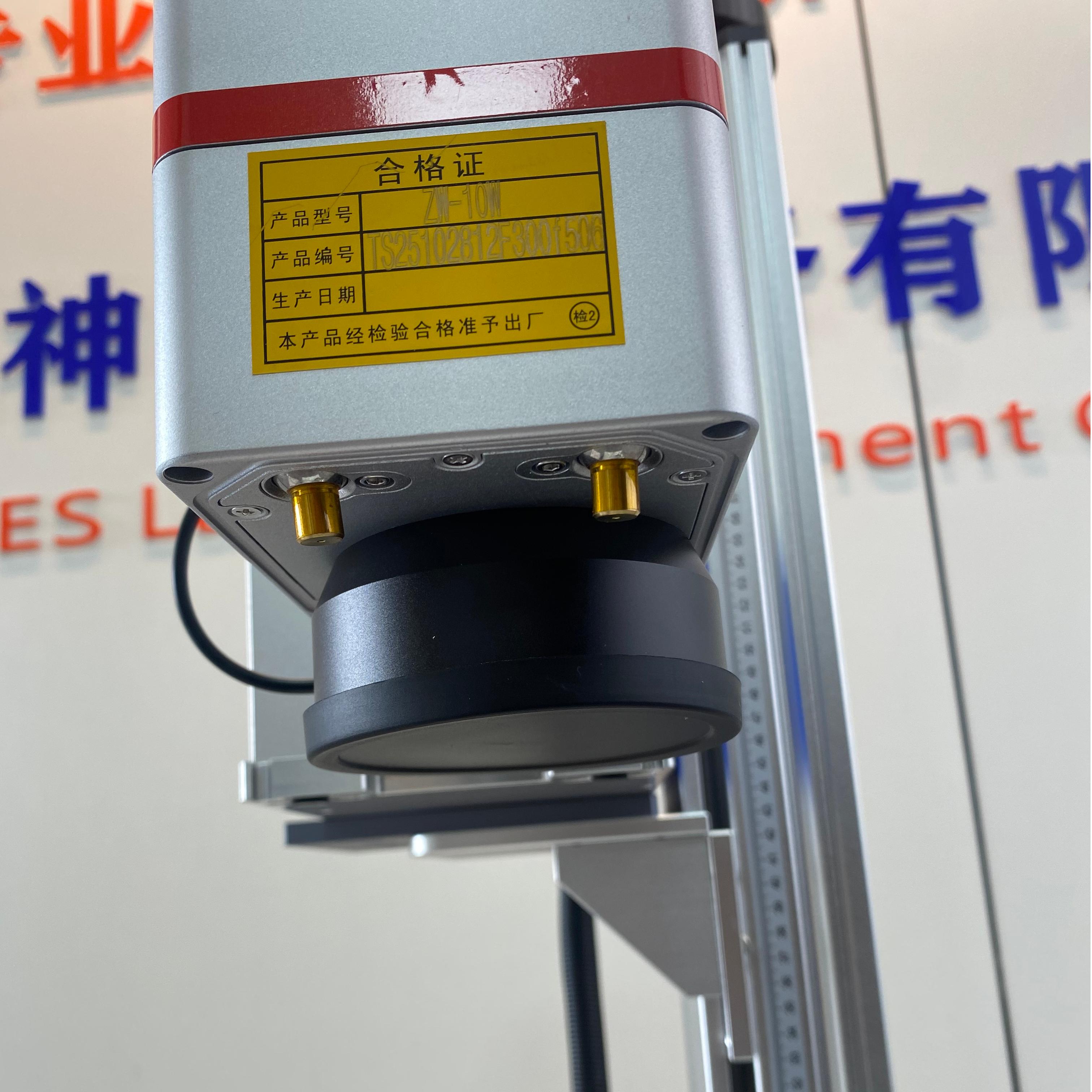

Details Image 1

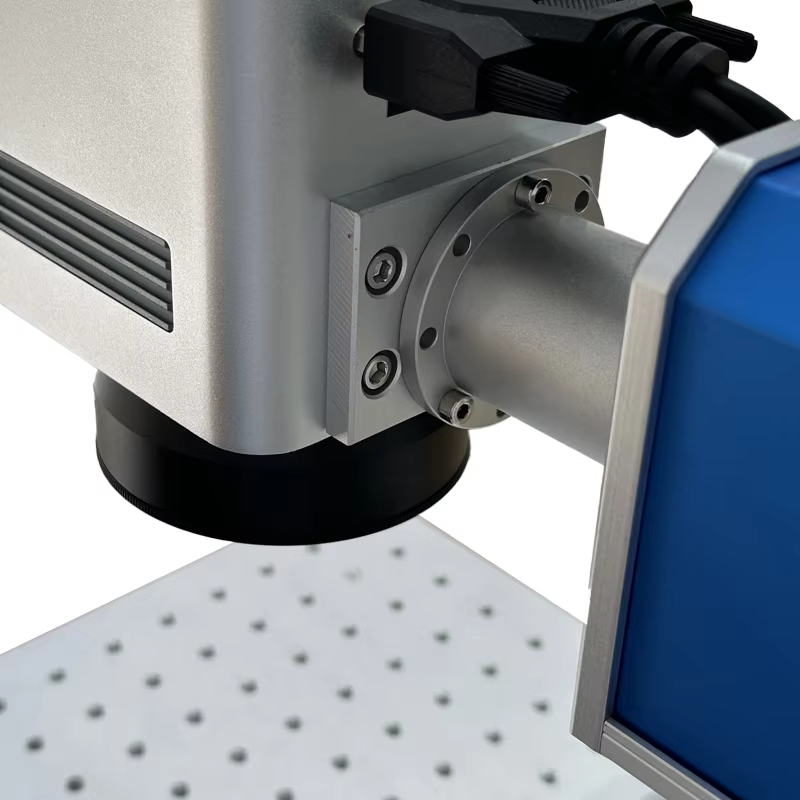

Details Image 2

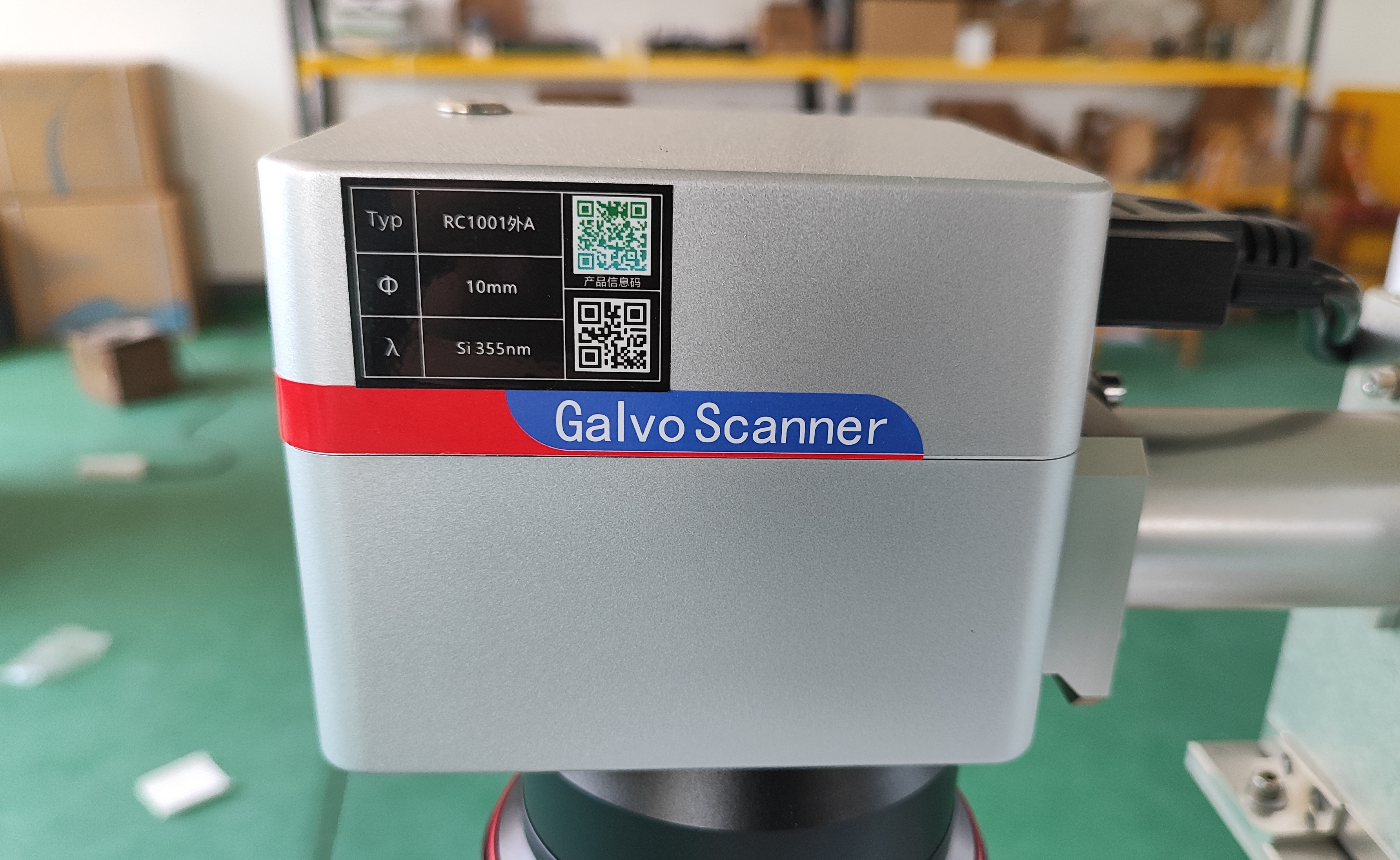

Details Image 3

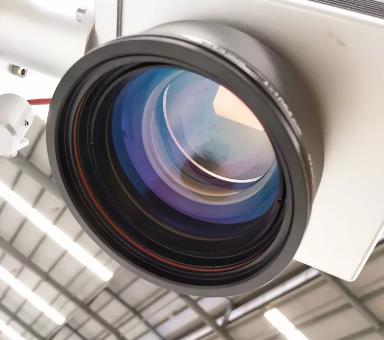

Details Image 4

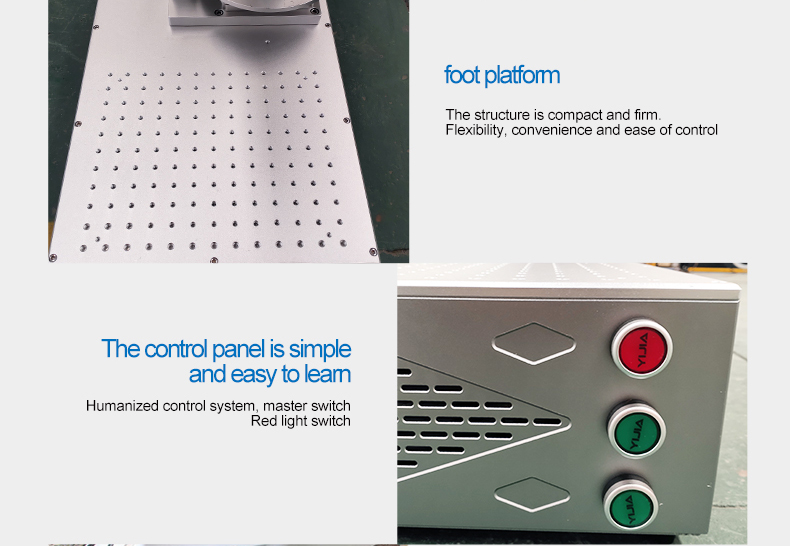

Details Image 5
Details Image 6

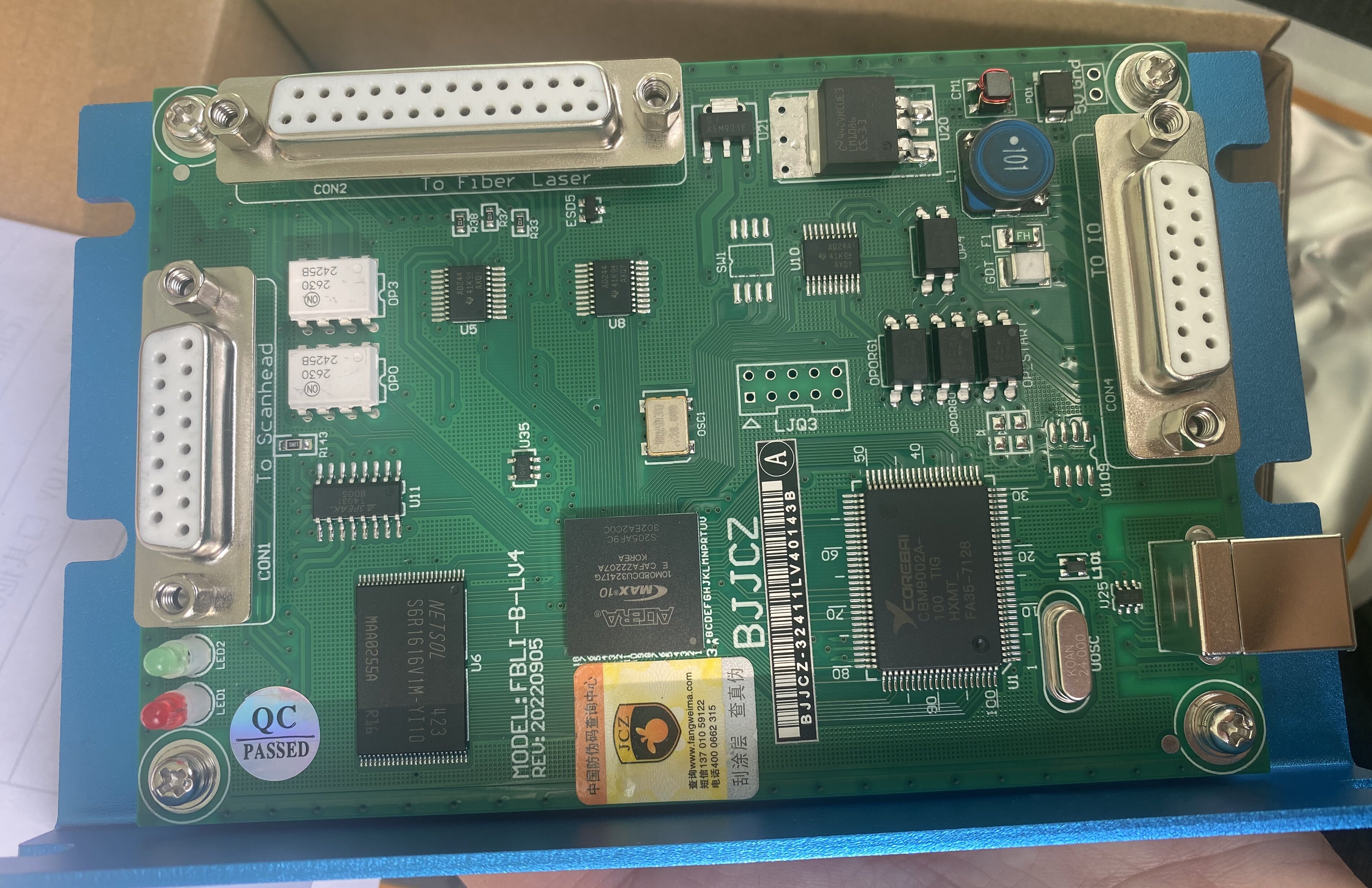

Details Image 7

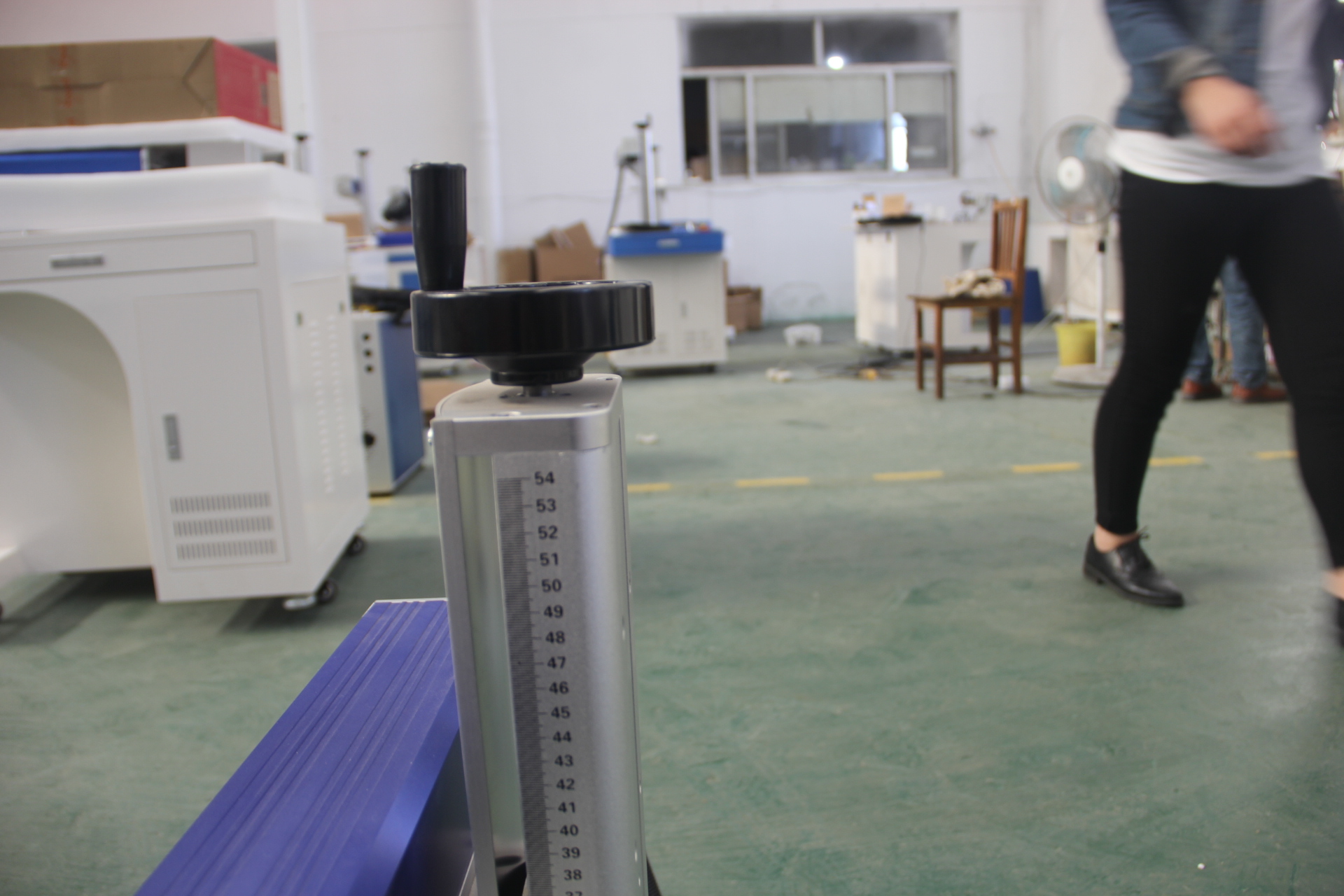

Details Image 8

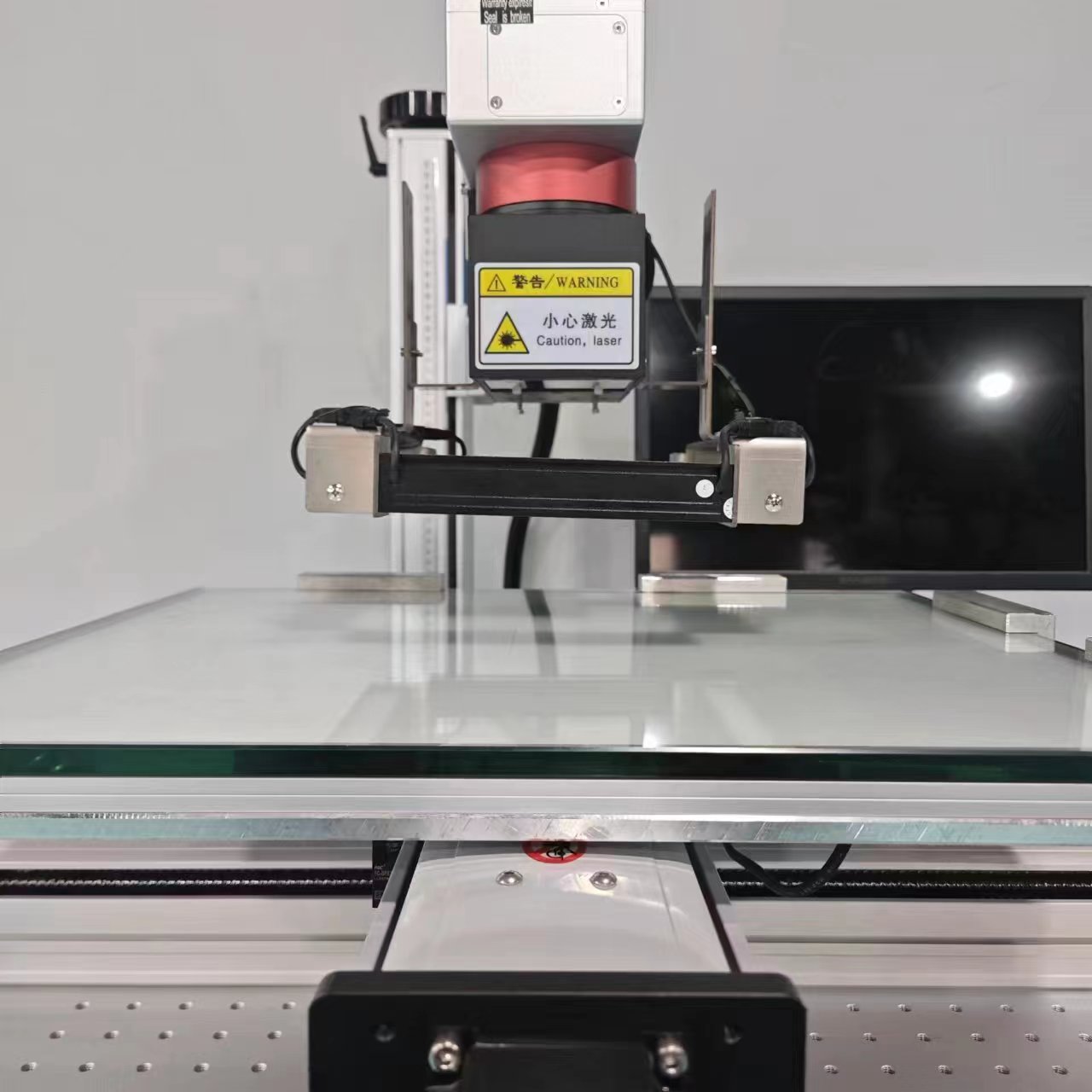

Details Image 9

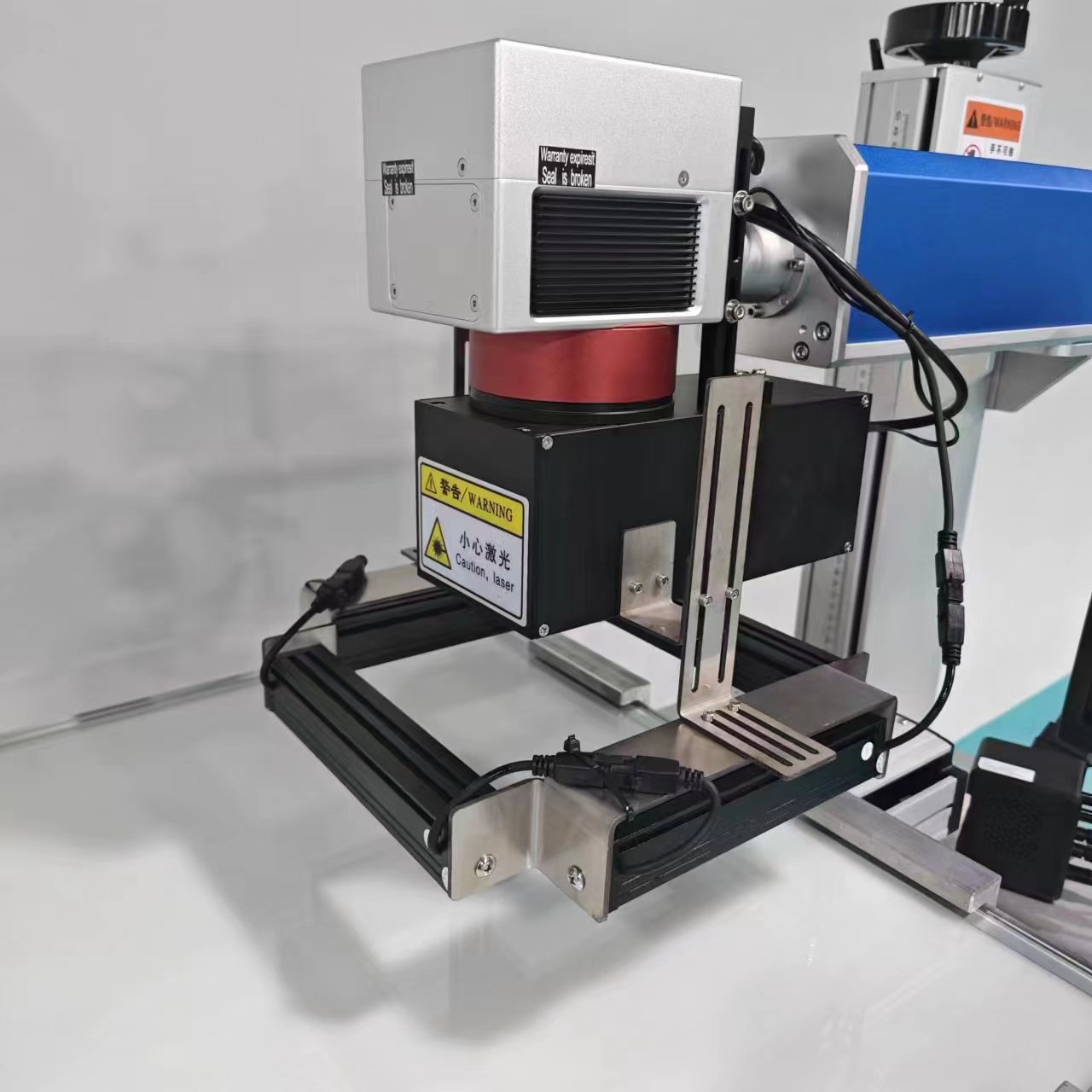

Details Image 10
Customizable machine configurations:
  • 1. Split type, desktop type and closed type models are available for selection
  • 2. Computers and monitors can be purchased separately

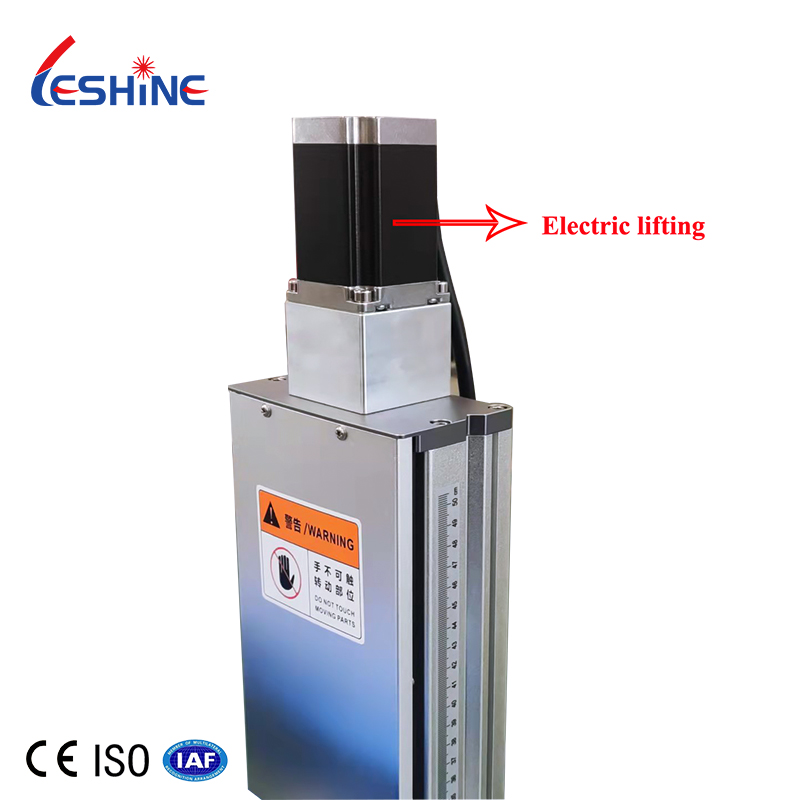

  • 3. Electric lifting (electric up and down) can be customized
  • 4. Auto-focusing and camera recognition can be customized

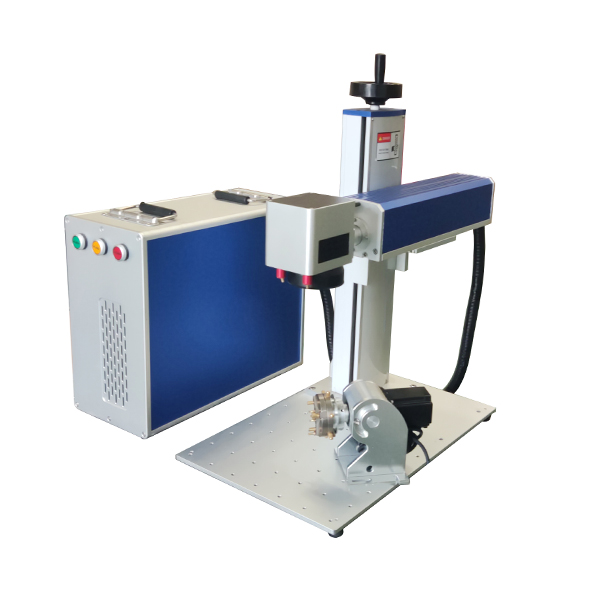

Config option 1

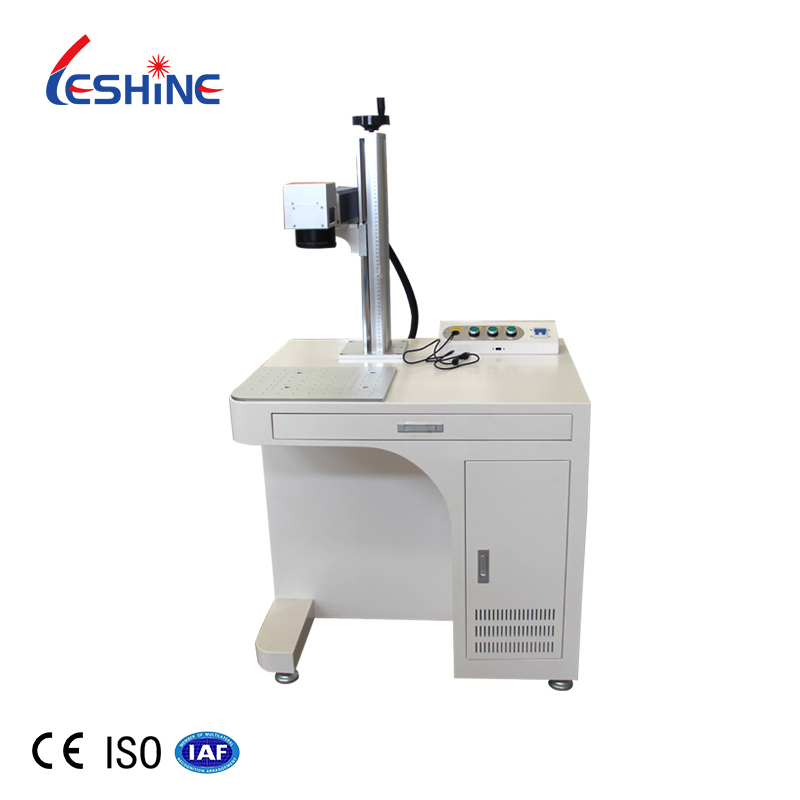

Config option 2

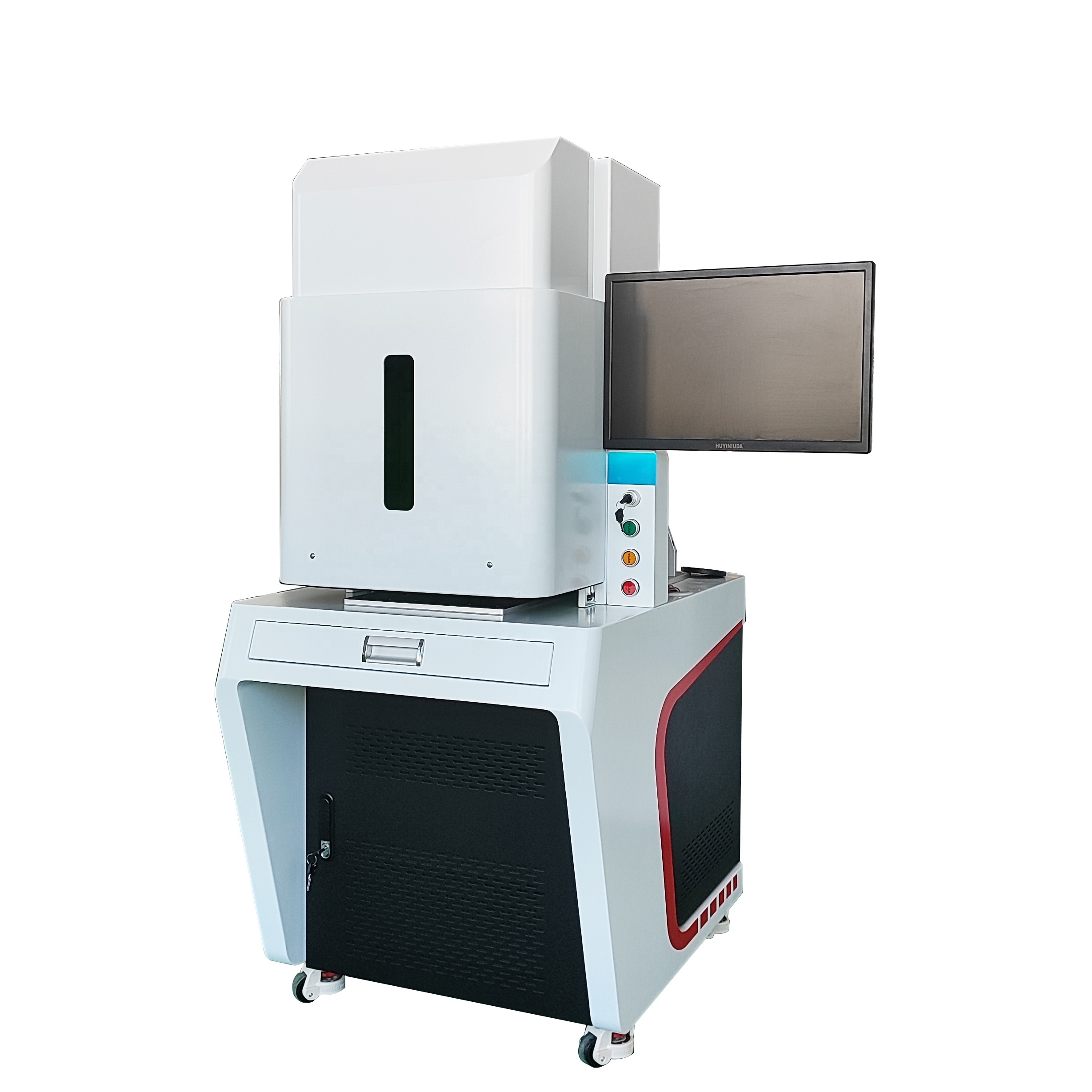

Config option 3

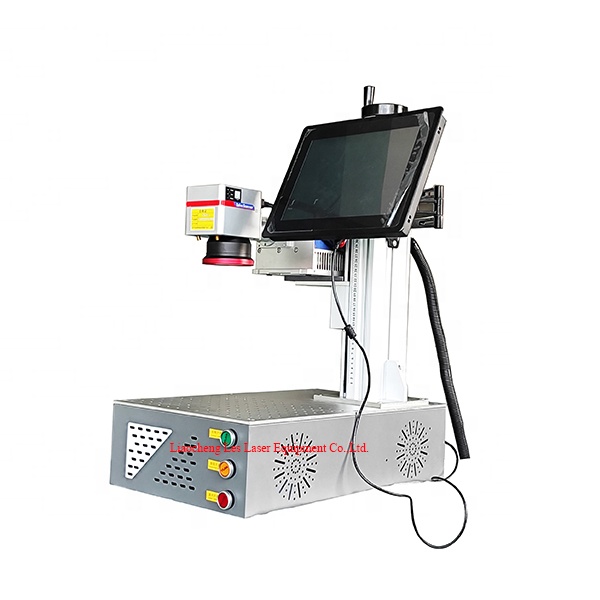

Config option 4

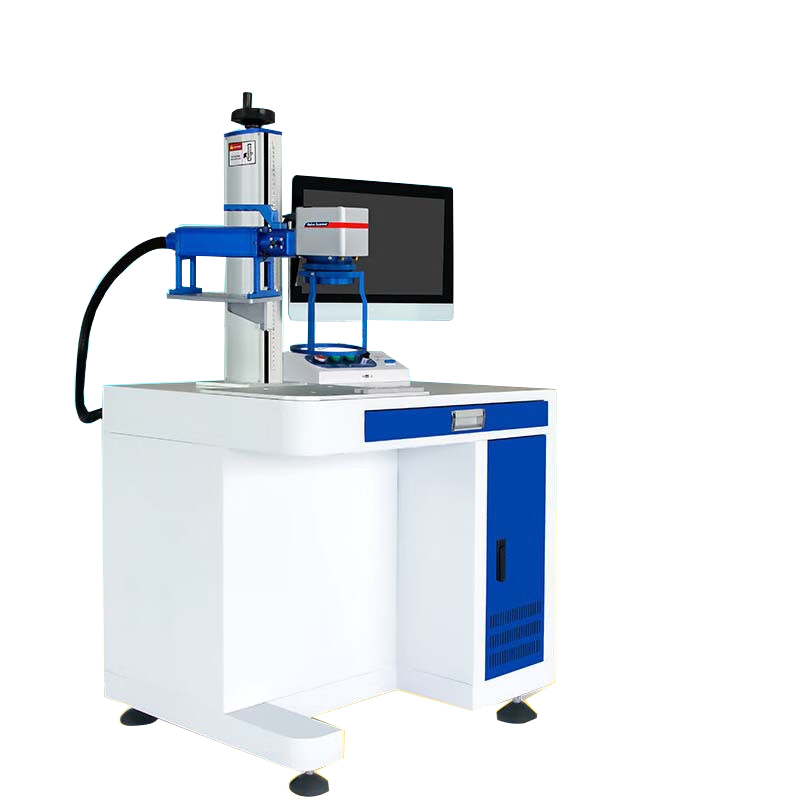

Config option 5

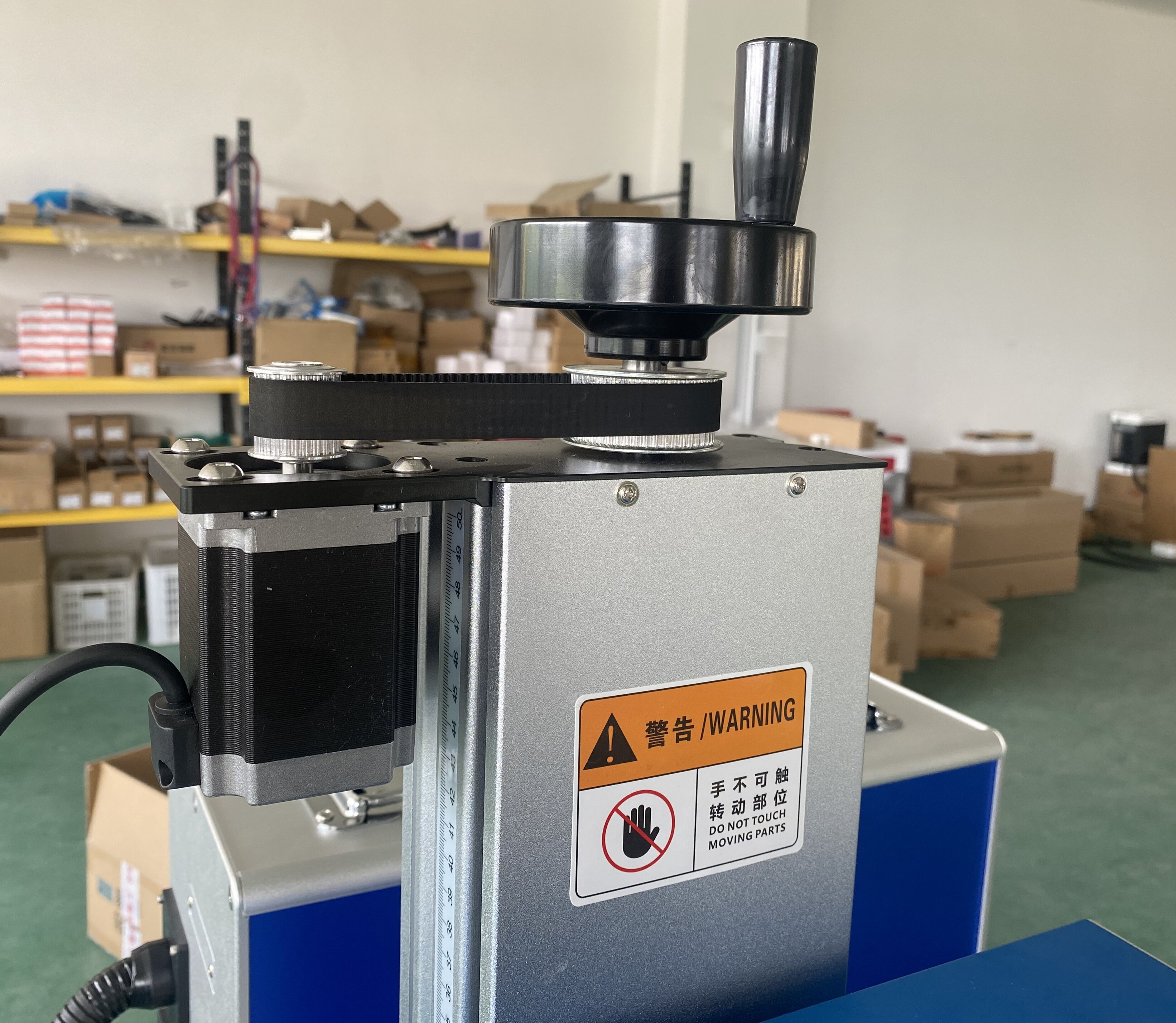

Config option 6
Config option 7

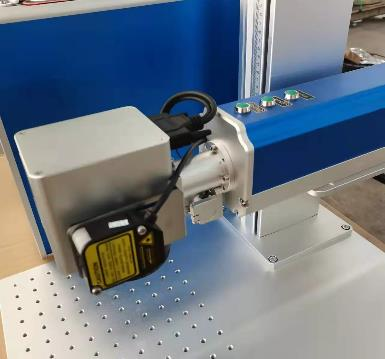

Auto-focusing and camera recognition
Auto-focusing and camera recognition can be customized

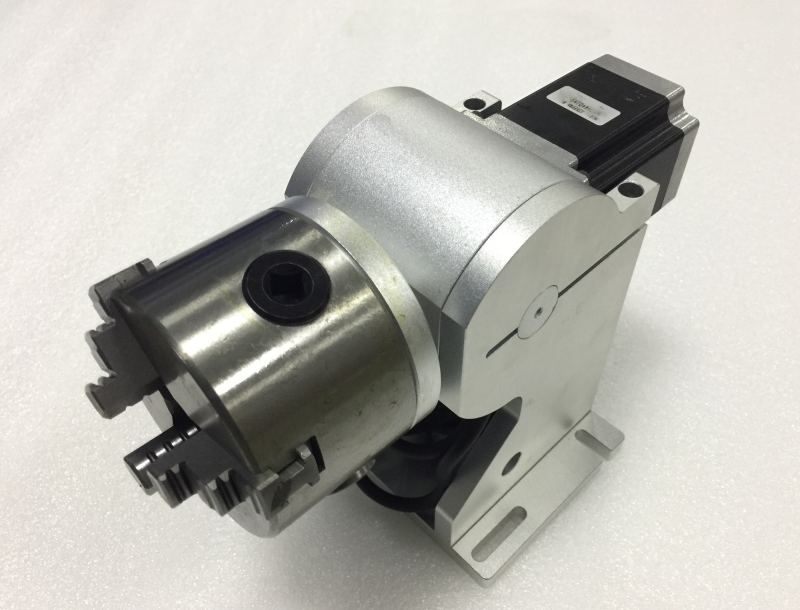

D80 / D100 rotary option
D80 /D100 rotary

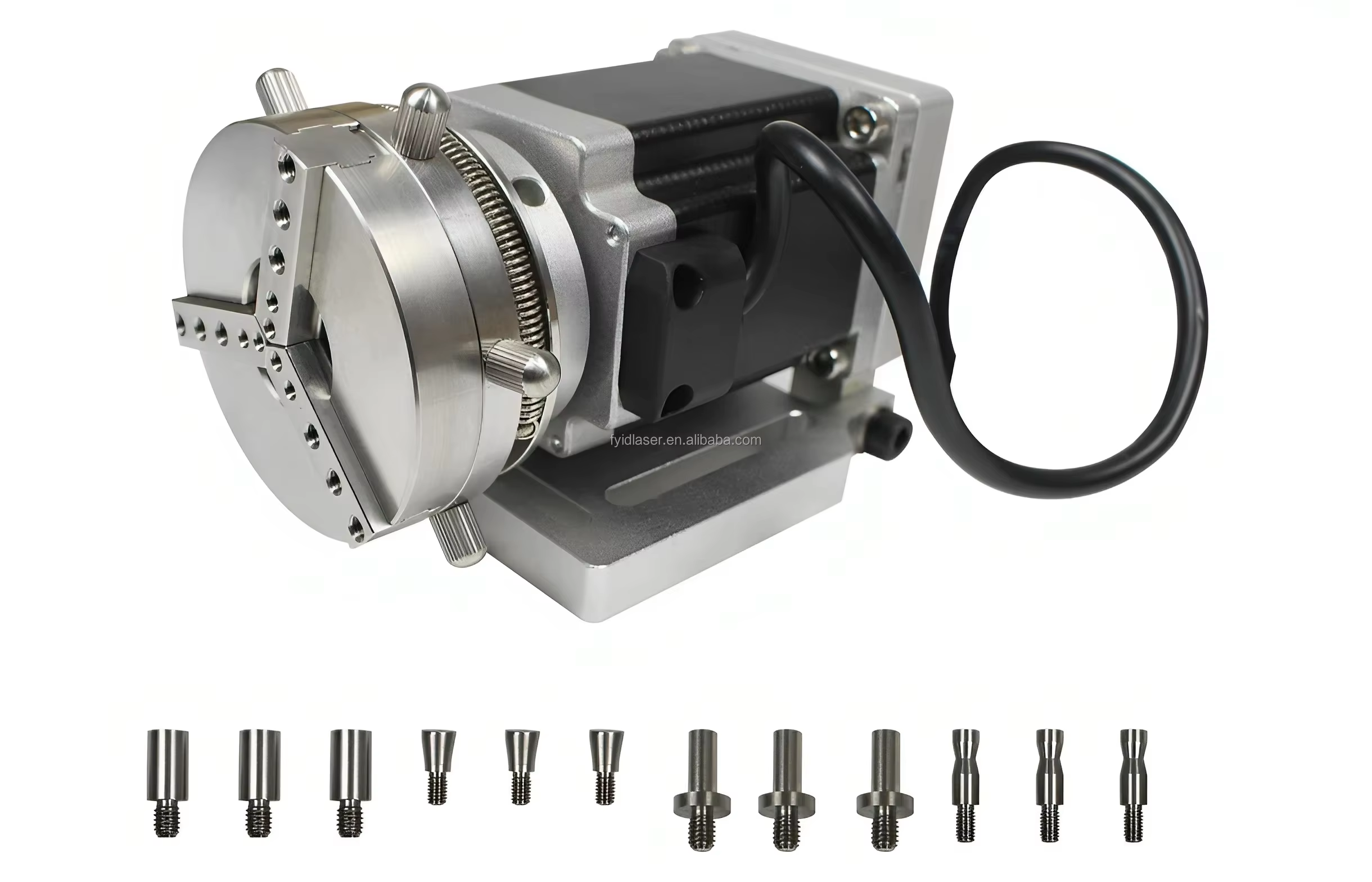

Rings Rotary option
Rings Rotary

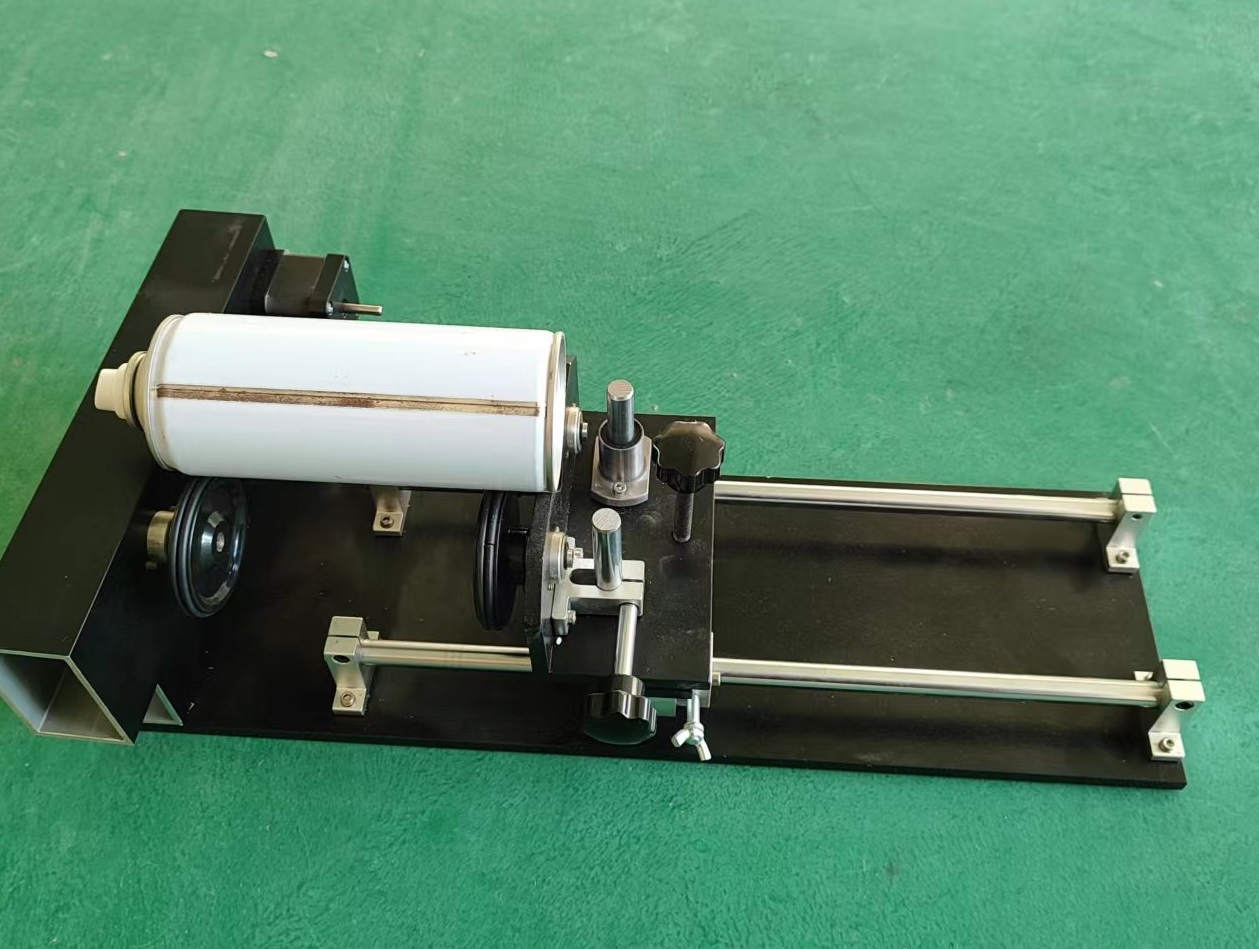

Chuck rotary options
Chuck rotary options
Samples
Sample Display 1
Sample Display 2
Packing & Shipping

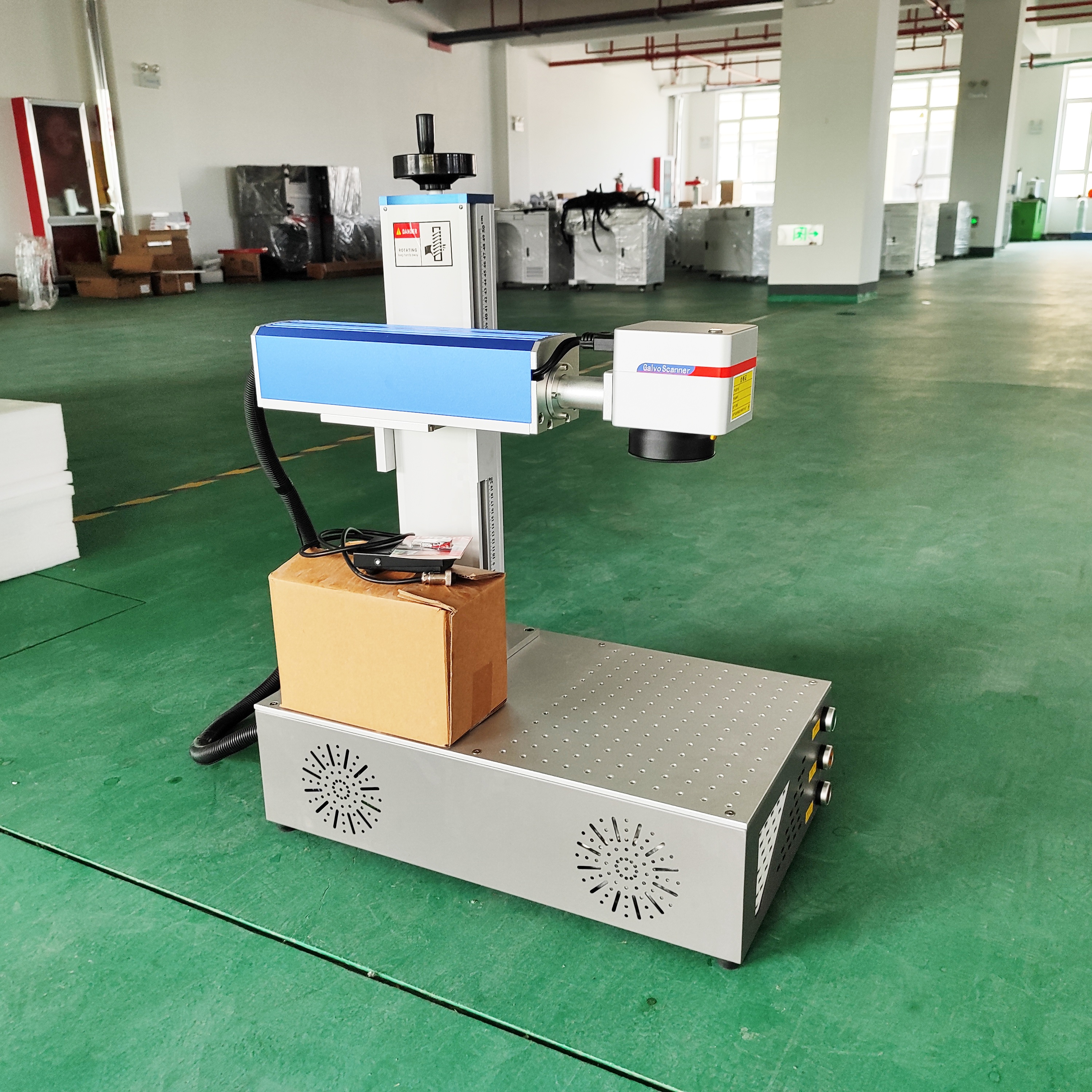

Packing details 1

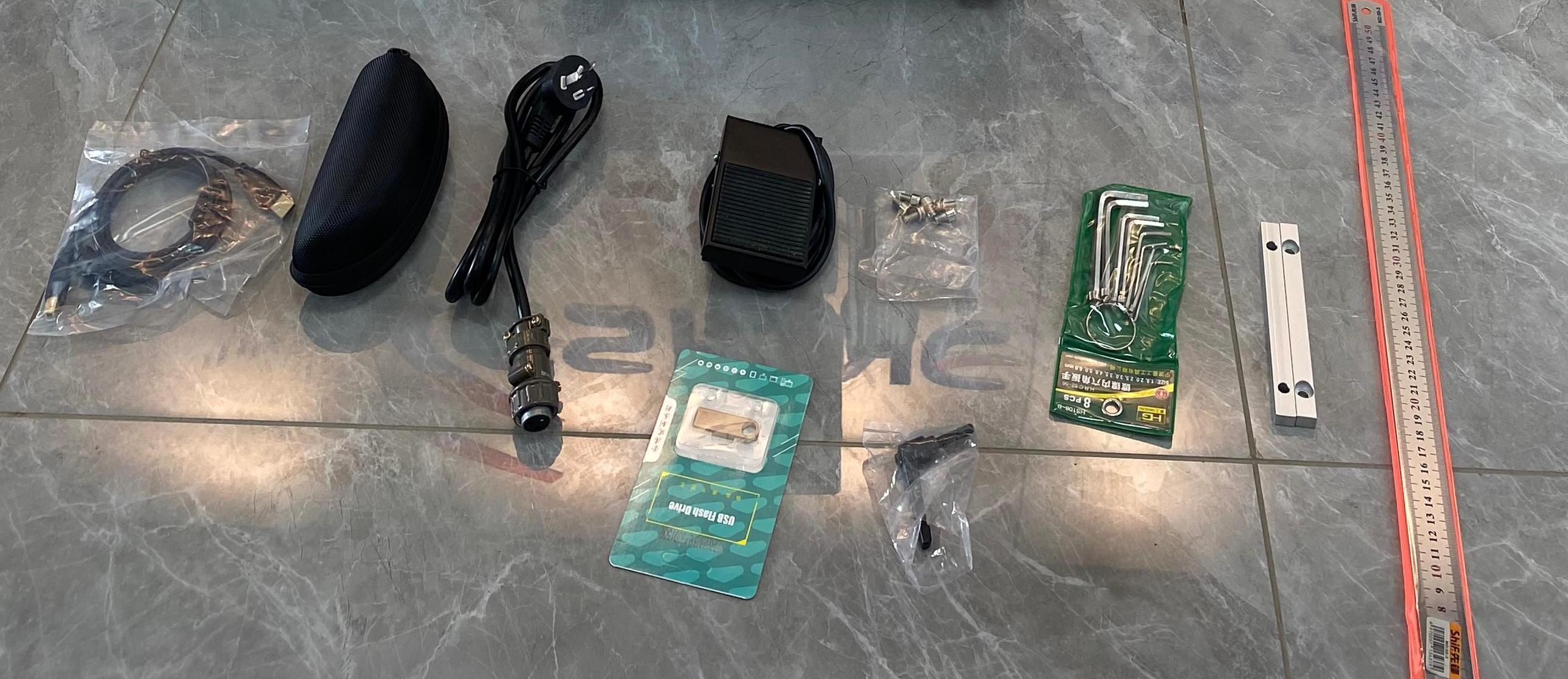

Packing details 2

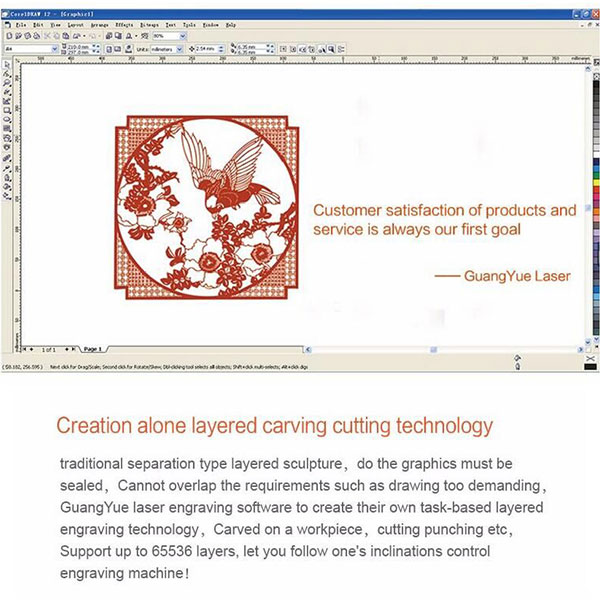

Packing details 3
Shipping presentation
Our Advantages
Advantage 1
Advantage 2
Frequently Asked Questions (FAQ)
What is the function of the CCD visual positioning system in laser marking?
The CCD camera visual positioning system automatically tracks and aligns target parts for marking. It supports multi-target parallel tracking and assists in auto-focusing and galvanometer distortion calibration, achieving high precision and saving fixture setup time.
What laser power options and laser sources are available?
The visual laser marking machine standard configuration offers 20W, 30W, and 50W output power options using a Fiber Laser source. UV or CO2 laser configurations are also optional to fit different material marking requirements.
What are the positioning speed and accuracy limits of the system?
The system delivers a positioning speed of less than 100ms and achieves a positioning accuracy of 0.05mm to 0.15mm, enabling fast and precise industrial-grade markings.
Can this machine be configured with dynamic positioning mode?
Yes. The visual positioning module supports both static and dynamic positioning modes, which can accommodate static manual feeds as well as dynamic production line moving parts.
What customizable options are available for purchase?
You can customize the structural design (split type, desktop type, or closed type), choose electric lifting (up and down controls), incorporate auto-focusing options, and add rotary fixtures (like the D80/D100 chuck rotary or ring rotary).
How does the machine interface with automation systems?
The marking card features three standard I/O universal ports for start marking, marking in process, and marking completion signals. This allows easy integration with external controllers and PLCs on automated production lines.

Related Products

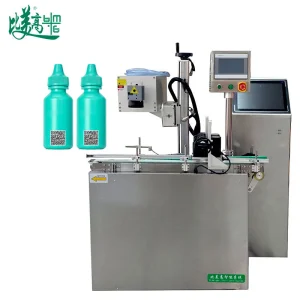

Servo Production Line Laser Marking Machine Plastic Bottles Anti-Counterfeit Traceable QR CodeProduct ID Reading DetectionCustom

Servo Production Line Laser Marking Machine Plastic Bottles Anti-Counterfeit Traceable QR CodeProduct ID Reading DetectionCustom
Vision Guided Fiber Laser Marker for Precision Metal Products

Vision Guided Fiber Laser Marker for Precision Metal Products

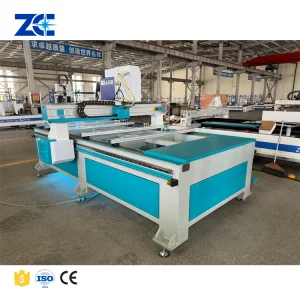

1325 Automatic CNC Laser Marking Machine Large Area LED Glass Mirrors Etching Sandblasting Engraving for Large Scale Projects

1325 Automatic CNC Laser Marking Machine Large Area LED Glass Mirrors Etching Sandblasting Engraving for Large Scale Projects

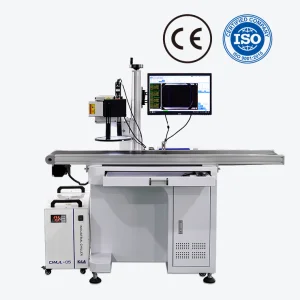

800x800mm UV Laser Engraving Marking Machine Automatic Alignment Vision System for Plastic Laminated Metal Marking CE ISO

800x800mm UV Laser Engraving Marking Machine Automatic Alignment Vision System for Plastic Laminated Metal Marking CE ISO
Automated Bottle Cap UV Laser Double Sided Marking Machine with Vision Inspection &amp; Anti-Counterfeiting Traceability System

Automated Bottle Cap UV Laser Double Sided Marking Machine with Vision Inspection &amp; Anti-Counterfeiting Traceability System

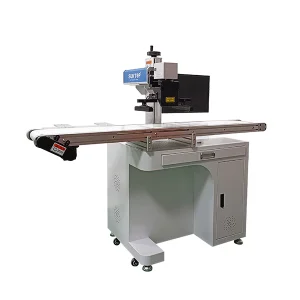

Ccd Vision Auto Laser Making Machine, 20W/30W/50W/70W/100W, Visual Positioning Laser Marking Machine

Ccd Vision Auto Laser Making Machine, 20W/30W/50W/70W/100W, Visual Positioning Laser Marking Machine
Winmey New Fiber Laser Vision Positioning Marking Machine 3-Month Warranty Made in China Metal Stainless Steel Plastic ABS

Winmey New Fiber Laser Vision Positioning Marking Machine 3-Month Warranty Made in China Metal Stainless Steel Plastic ABS

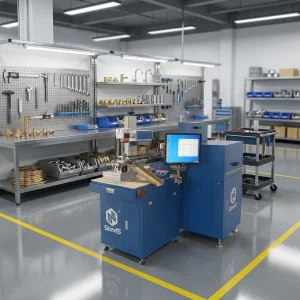

Smart Visual Alignment Auto Feeding 99% Pass Rate Fully Automatic CNC UV CO2 Laser Marking Machine Supports DXF/PLT/BMP/AI

Smart Visual Alignment Auto Feeding 99% Pass Rate Fully Automatic CNC UV CO2 Laser Marking Machine Supports DXF/PLT/BMP/AI
Fiber CCD Visual Laser Marking Machine Automatic Recognition Automatic Positioning Marking Position Engraving Production Line

Fiber CCD Visual Laser Marking Machine Automatic Recognition Automatic Positioning Marking Position Engraving Production Line

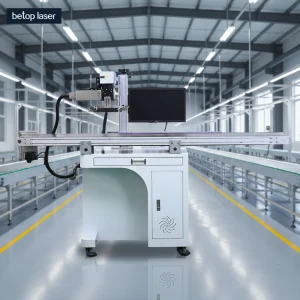

Camera CCD Visual Positioning Automatic Focus Vision System CO2 Laser Marking Machine with DXF Support
