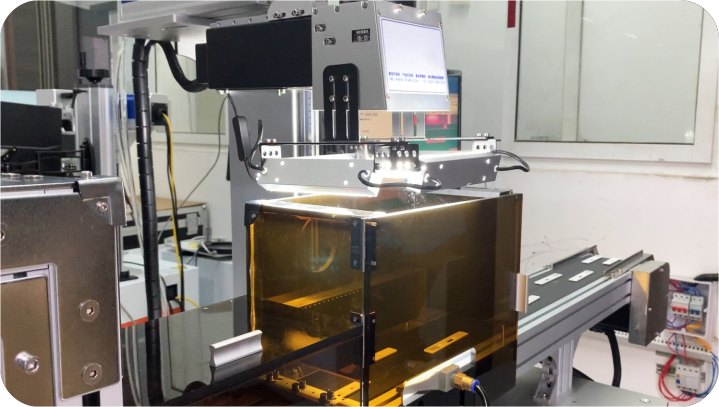

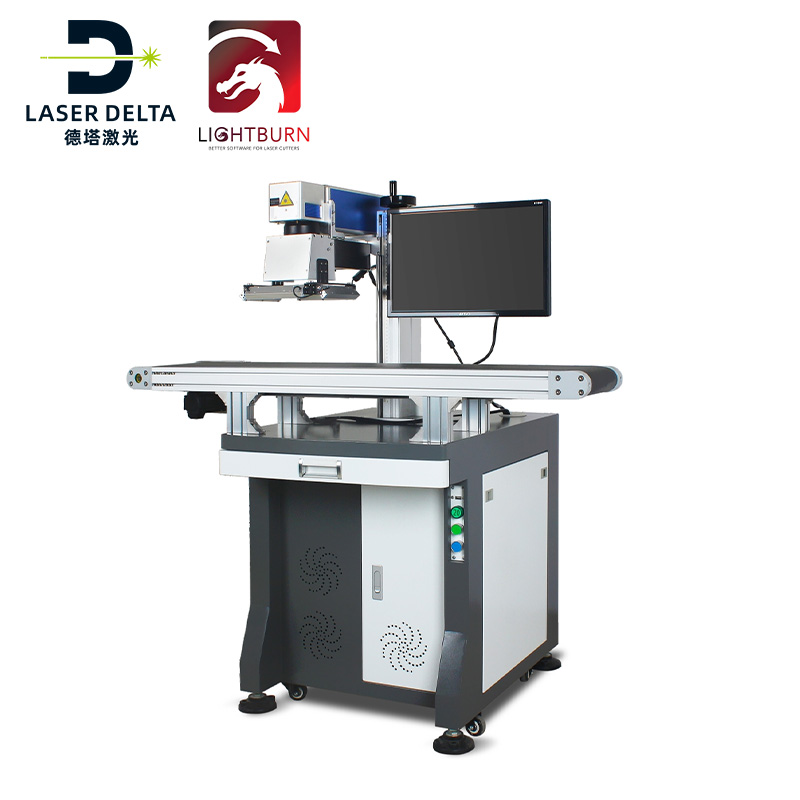

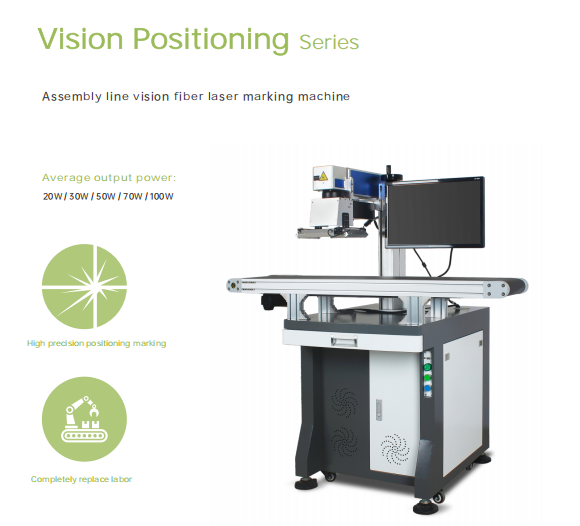

The CCD visual positioning fiber laser marking machine is an advanced automated marking system. This model is based on the standard 1064nm fiber laser marking machine, combined with a CCD high-precision module and MACS visual dynamic positioning system. It can collect the location information of products in real time, and achieve high-precision positioning and marking when materials are received at any angle, in any quantity, and at any location.
At the same time, it can be used with assembly lines, vibration plates, and XY-axis platform automation equipment to completely replace labor, improve production efficiency, and easily realize automated production lines that are compatible with multiple products, saving a lot of costs for the factory.

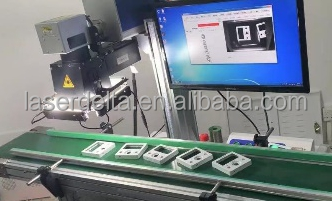

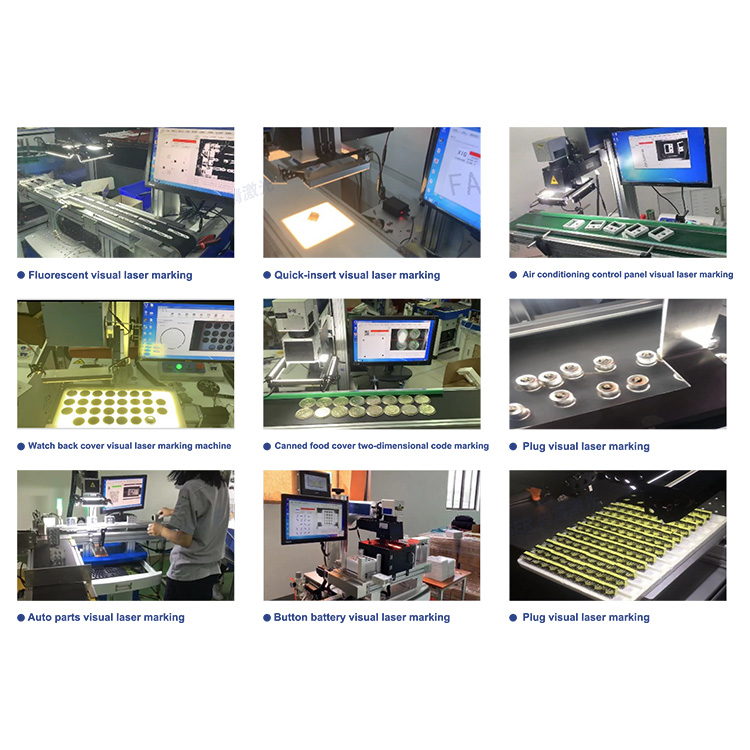

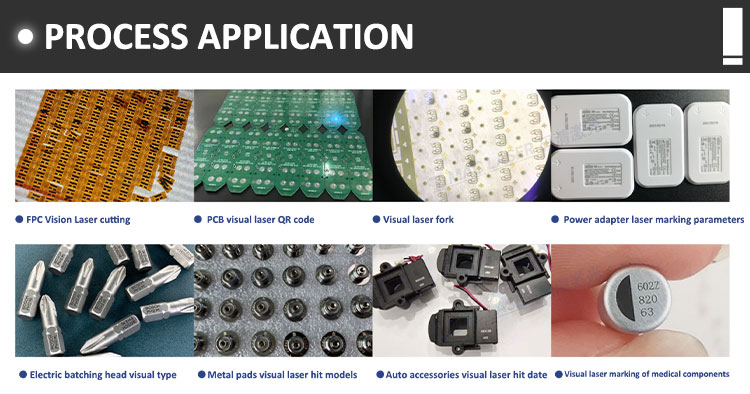

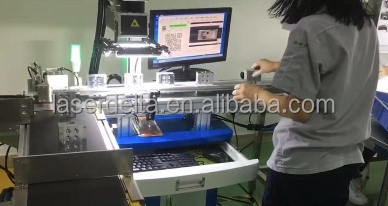

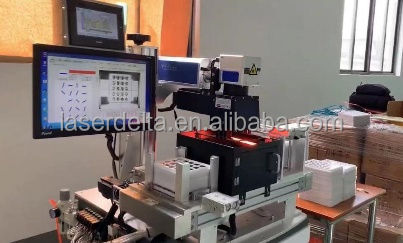

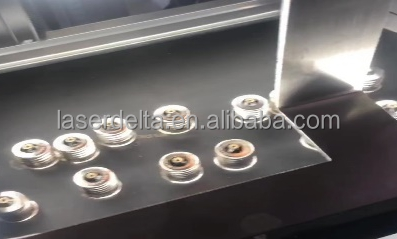

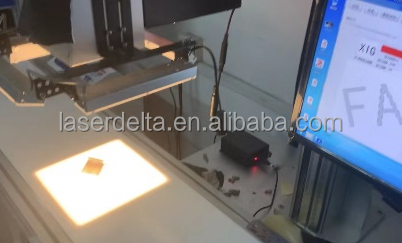

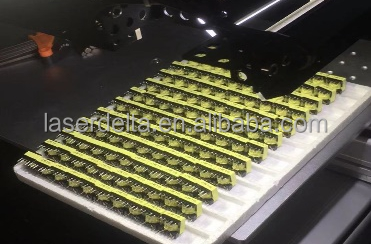

CCD visual positioning marking machines are used in a wide range of industries and are suitable for processing situations with heavy workloads, difficult positioning of feed materials, and diverse and complex workpieces such as IC chips, small screws, jewelry, capacitors, cards, etc.

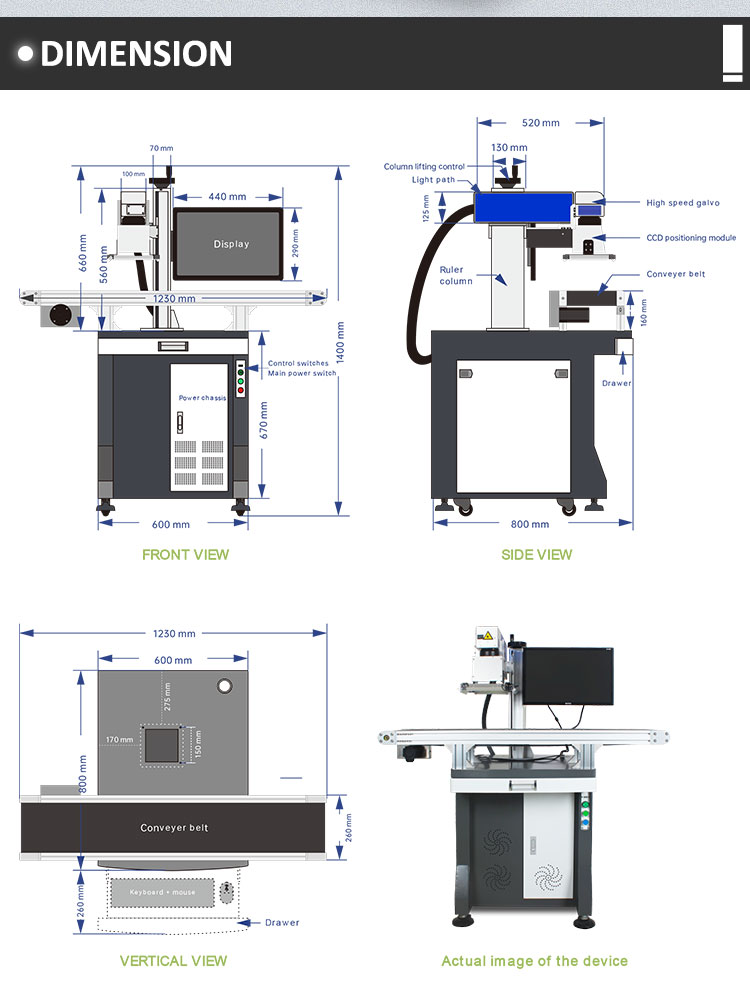

| Model Series | CCD vision positioning fiber laser marking machine | |
|---|---|---|
| Laser Parameters | Laser type | Fiber laser |
| Output Power | 20W / 30W / 50W / 70W / 100W | |
| Laser wavelength | 1064nm | |
| Beam quality M2 | <1.4 | |
| Pulse repetition frequency | 20-80kHz | |
| Output power stability | <5% | |
| Design lifetime | About 100,000 working hours (non-lifetime) | |
| Optical Characteristics | Indicates projection | Red light 655nm output <2.0mW |
| Marking range | 200 * 200mm | |
| Recognition angle | 360° | |
| Engraving depth | ≤1mm (depending on power and time) | |
| Engraving speed | ≤10000mm/s | |
| Repeat accuracy | ±0.002mm | |
| Minimum mark line width | 0.1mm | |
| Minimum character height | 0.15mm | |
Using industrial-grade lasers and high-speed digital galvanometers, the performance is stable;
Adopting a high-precision visual positioning system, the position is accurate and the response speed is fast, without the need for tooling and fixtures;
Any quantity of products at any angle can be accurately marked to the designated position;
The self-developed MACS machine vision software is simple to operate, rich in functions, and easy to maintain;

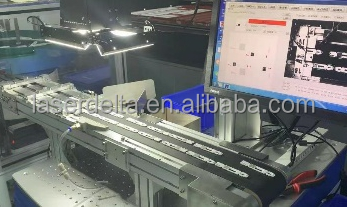

Dedicated precision synchronous conveyor belt supports step mode and photoelectric induction mode, which can be switched on demand;
It can be used with assembly lines or other automatic loading and unloading mechanisms to save manpower and achieve unmanned automatic marking.

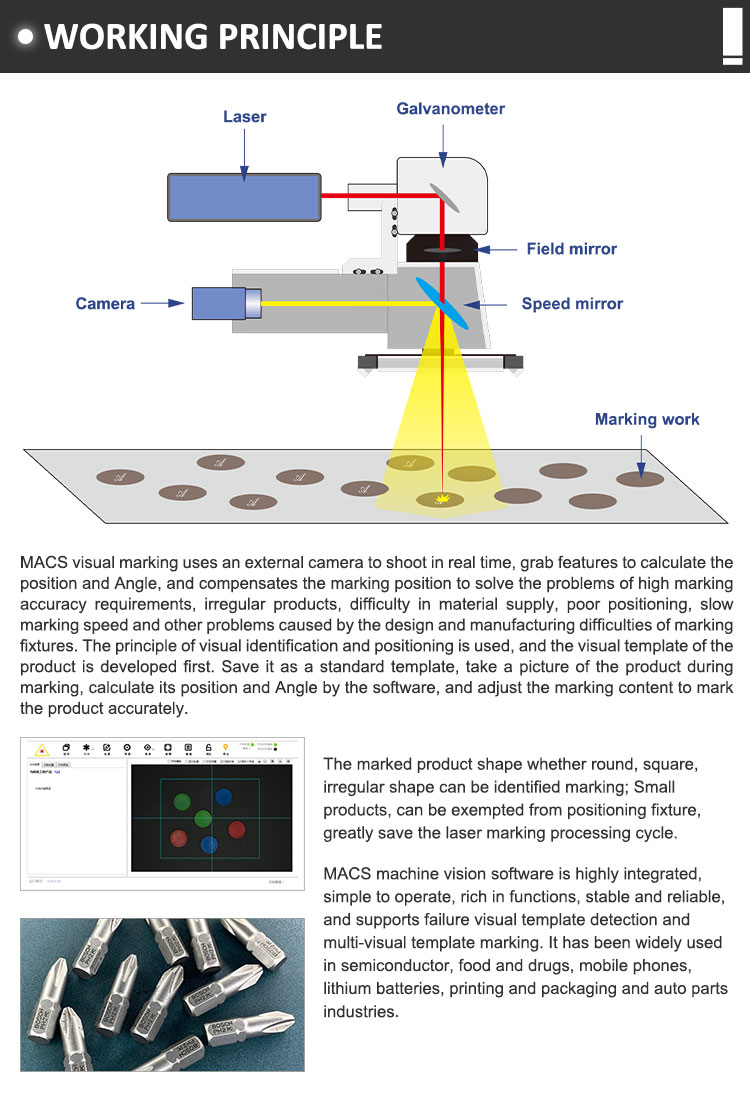

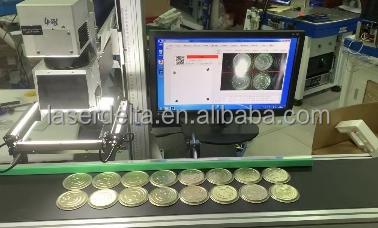

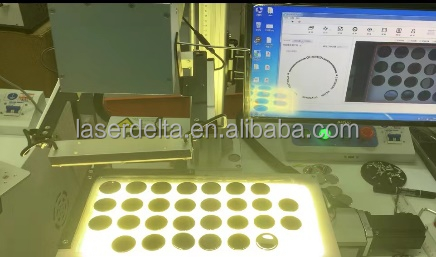

The integrated CCD camera captures images of workpieces dynamically. Utilizing MACS software, it recalculates target coordinates instantly, allowing precise marking even if components are placed at offset angles or irregular coordinates.
Yes. The dynamic visual positioning system recognizes multiple parts within the marking range at once, allowing rapid and continuous batch engraving regardless of individual orientation.
No, custom physical fixtures are not required. Since the camera dynamic tracking identifies components automatically at a 360° recognition angle, you can switch workpieces without modifying physical tooling.
Absolutely. The machine natively supports integration with XY-axis platform setups, vibration plates, and features a precision synchronous conveyor belt with step and photoelectric induction modes for automation.
The high-performance industrial-grade fiber laser unit has a design lifetime of approximately 100,000 working hours under normal operating conditions.
