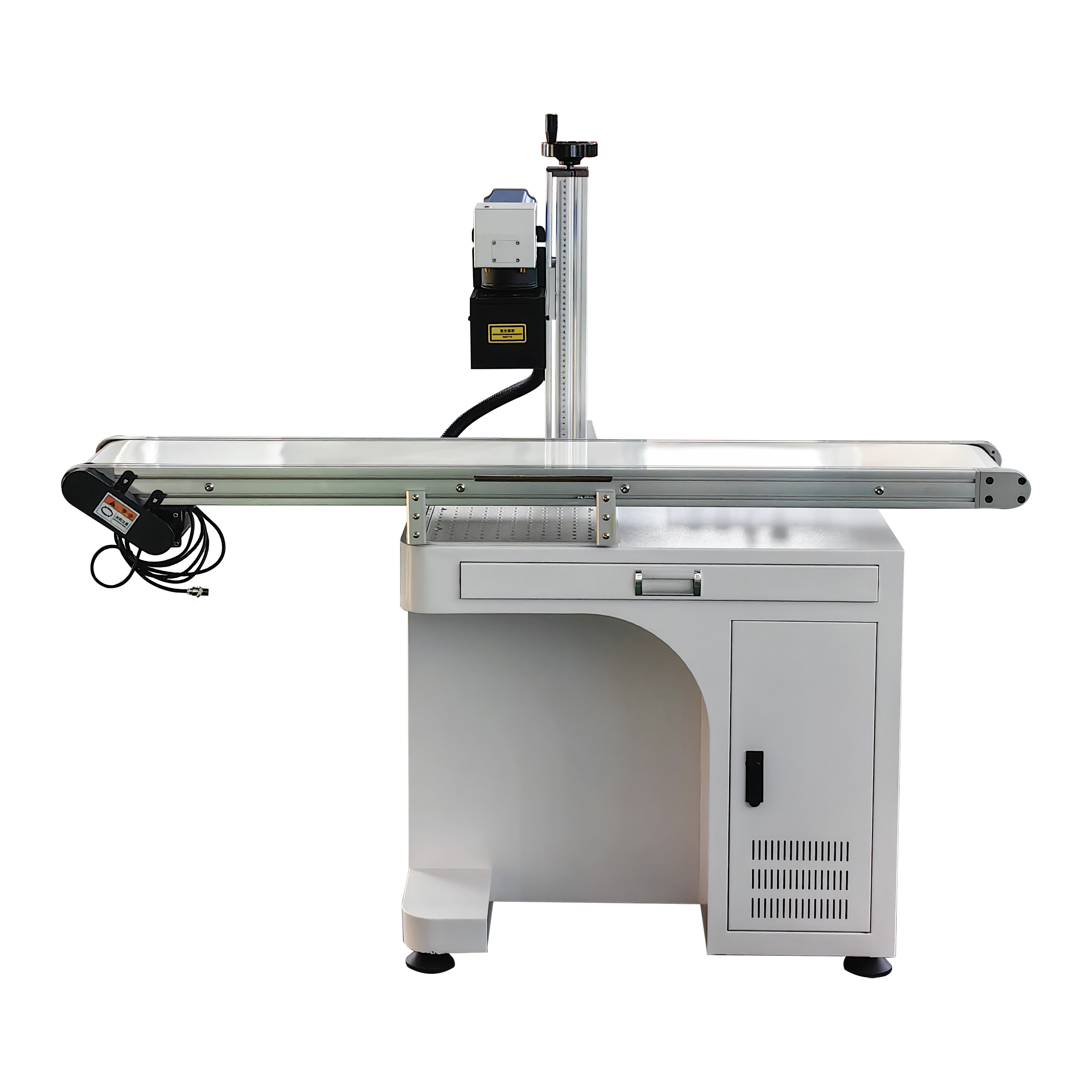

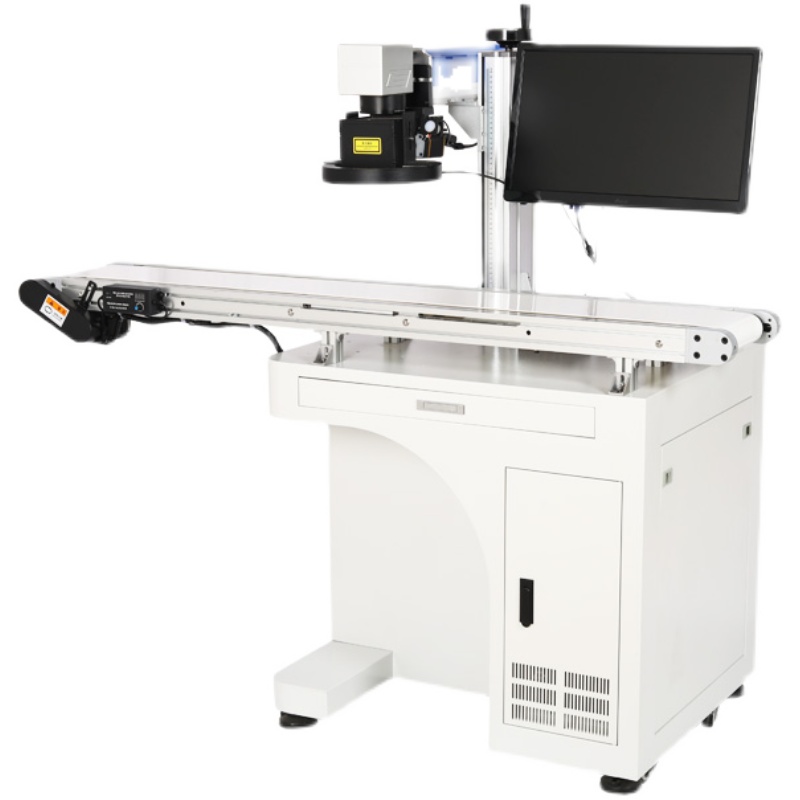

Precision Vision Positioning Automatic for Metal Stainless Steel Aluminum Fiber Laser Marking Machine
Precision Vision Positioning Automatic for Metal Stainless Steel Aluminum Fiber Laser Marking Machine
Precision Vision Positioning Automatic for Metal Stainless Steel Aluminum Fiber Laser Marking Machine
Precision Vision Positioning Automatic for Metal Stainless Steel Aluminum Fiber Laser Marking Machine
Precision Vision Positioning Automatic for Metal Stainless Steel Aluminum Fiber Laser Marking Machine
1 / 5
Precision Vision Positioning Automatic for Metal Stainless Steel Aluminum Fiber Laser Marking Machine
Precision Vision Positioning Automatic for Metal Stainless Steel Aluminum Fiber Laser Marking Machine
Precision Vision Positioning Automatic for Metal Stainless Steel Aluminum Fiber Laser Marking Machine
Precision Vision Positioning Automatic for Metal Stainless Steel Aluminum Fiber Laser Marking Machine
Precision Vision Positioning Automatic for Metal Stainless Steel Aluminum Fiber Laser Marking Machine

Precision Vision Positioning Automatic for Metal Stainless Steel Aluminum Fiber Laser Marking Machine

Send Inquiry

Product Description

Product Description

CCD Camera Laser Marking Machine

  • Automatic Camera Identification: Precise positioning up to 0.05mm.
  • Accurate Calculation: Engineered for minimal deviation and high consistency.
  • Conveyor Belt Integration: Seamlessly works with assembly lines to boost speed and output.
Application advantages of assembly line visual laser marking machine:
It is suitable for occasions with large workload, difficult feeding positioning, simplified procedures, diverse workpieces and complex curved surfaces. It is widely used in various industries.

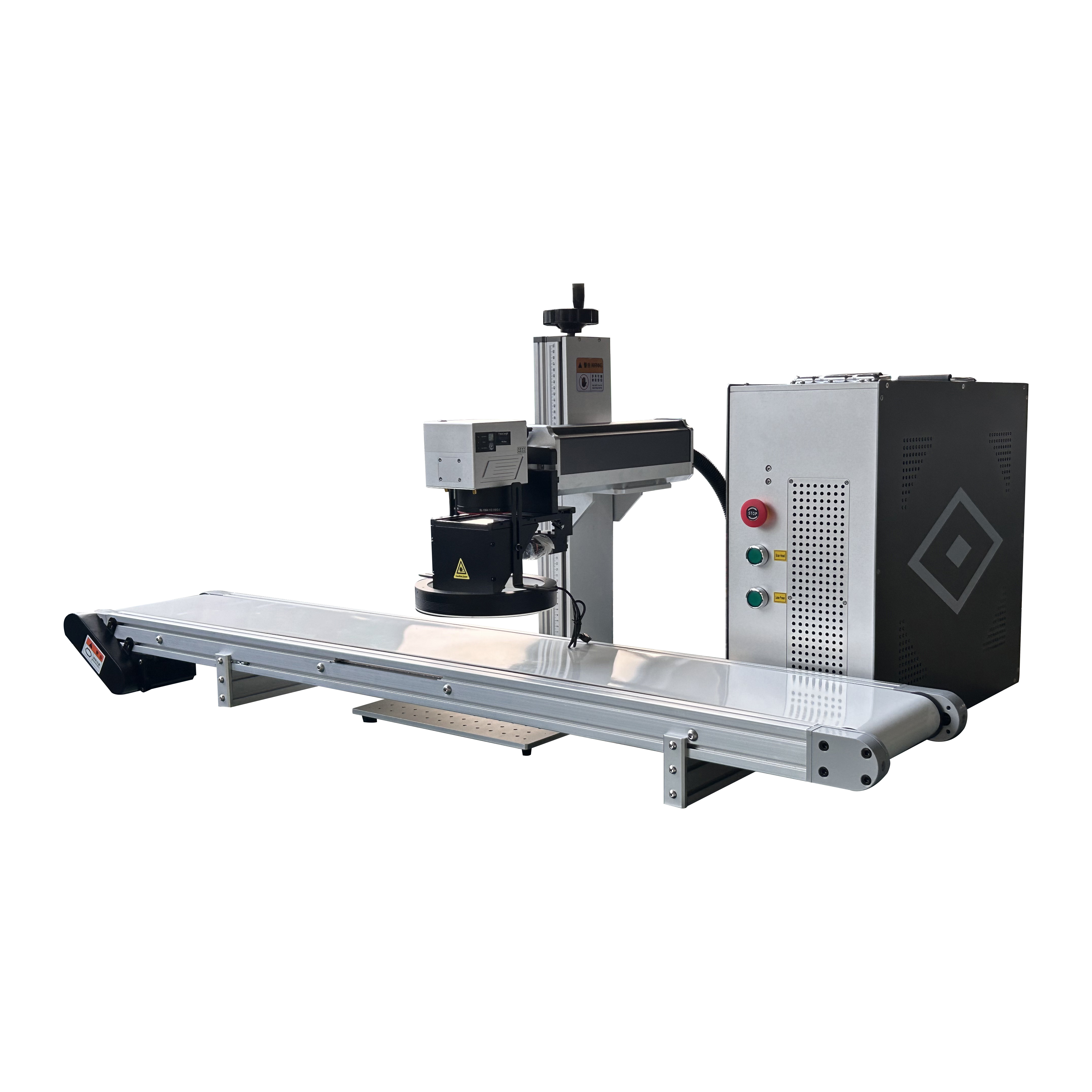

CCD Laser Marking Machine Setup

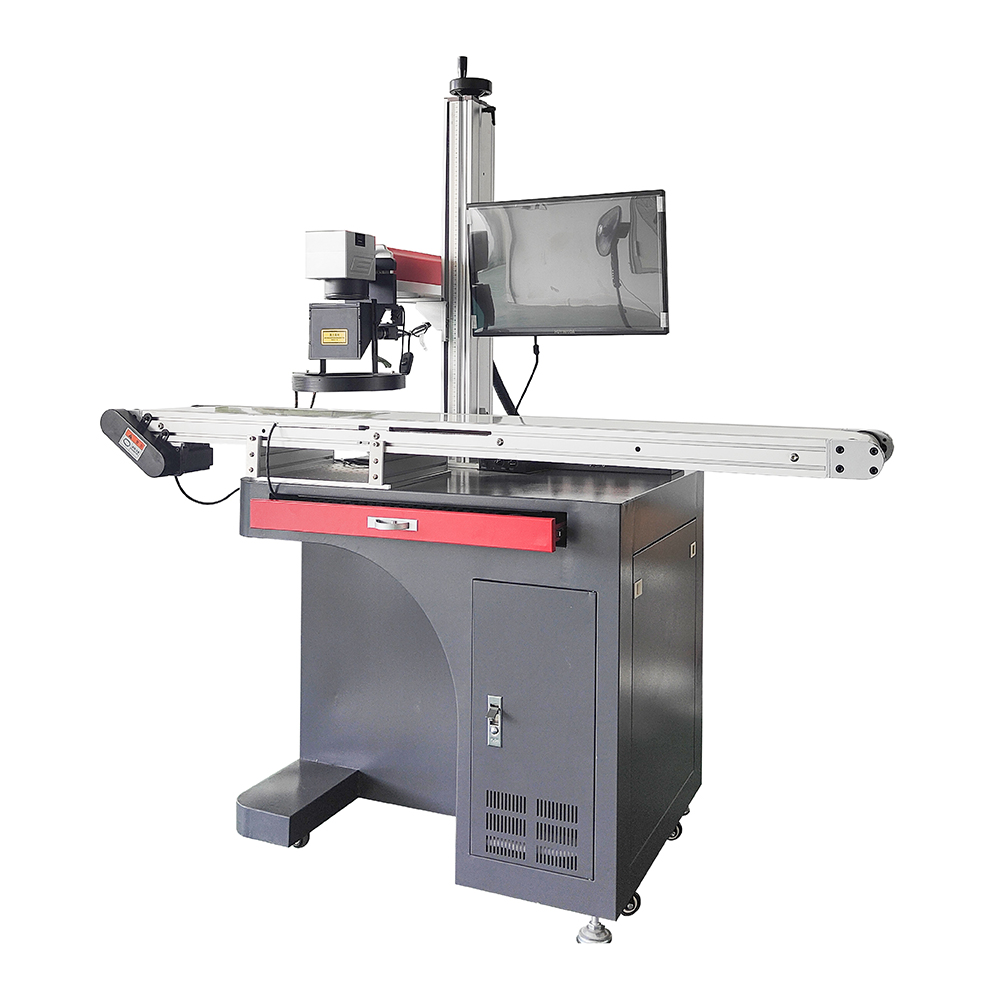

Visual Laser Marking System
Machine Technical Specification
Parameter Specification Details
Model RF-F-50W / 60W / 100W
Laser Type Fiber laser
Laser Source RAYCUS or JPT
Lens F-Theta lens (100x100mm)
Working Speed 7000mm/s
Working Depth 0.01 - 1mm
Control Software EZCAD 2 and camera software
Control Program Windows
Standard Marking Area 100x100mm
Optional Marking Area 150x150mm or 175x175mm
Spot Size 27.5μm (with 100x100mm marking area)
Graphic Format Supported JPG, BMP, DXF, PLT, AI
Working Voltage AC100~240V, 50~60HZ
Cooling Type Air cooling
Power Consumption < 800W

Additional Configuration Details

  • Camera System: High-definition 5 million pixels or 13 million pixels.

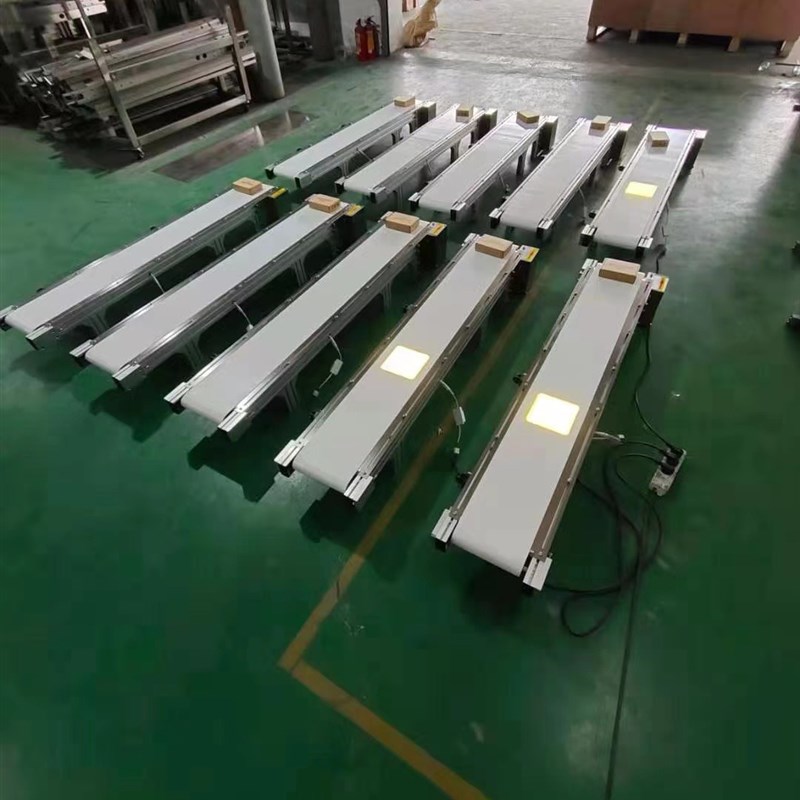

  • Conveyor Belt: Custom lengths available at 1000mm, 1200mm, or 1500mm.

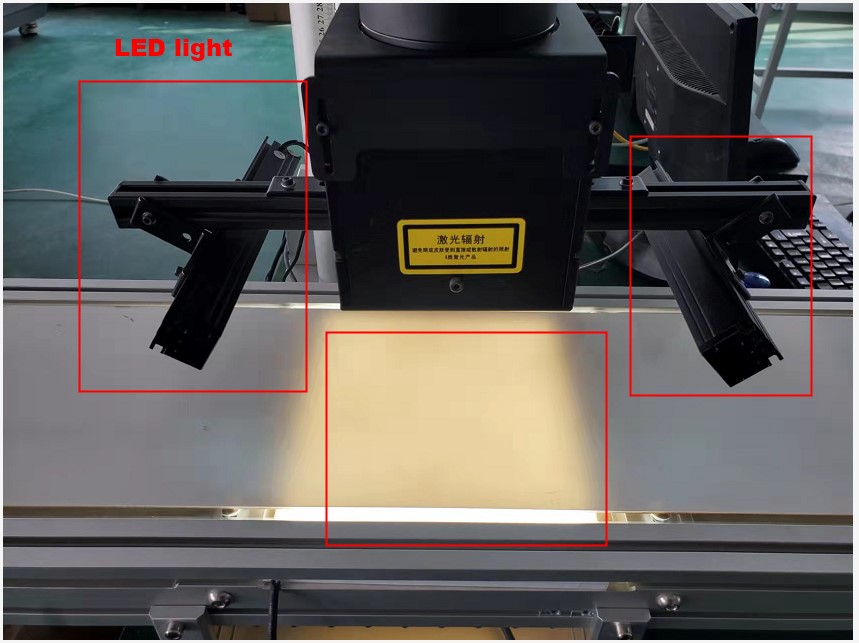

  • Auxiliary LED Lights: Strip Light or Ring Light configuration.

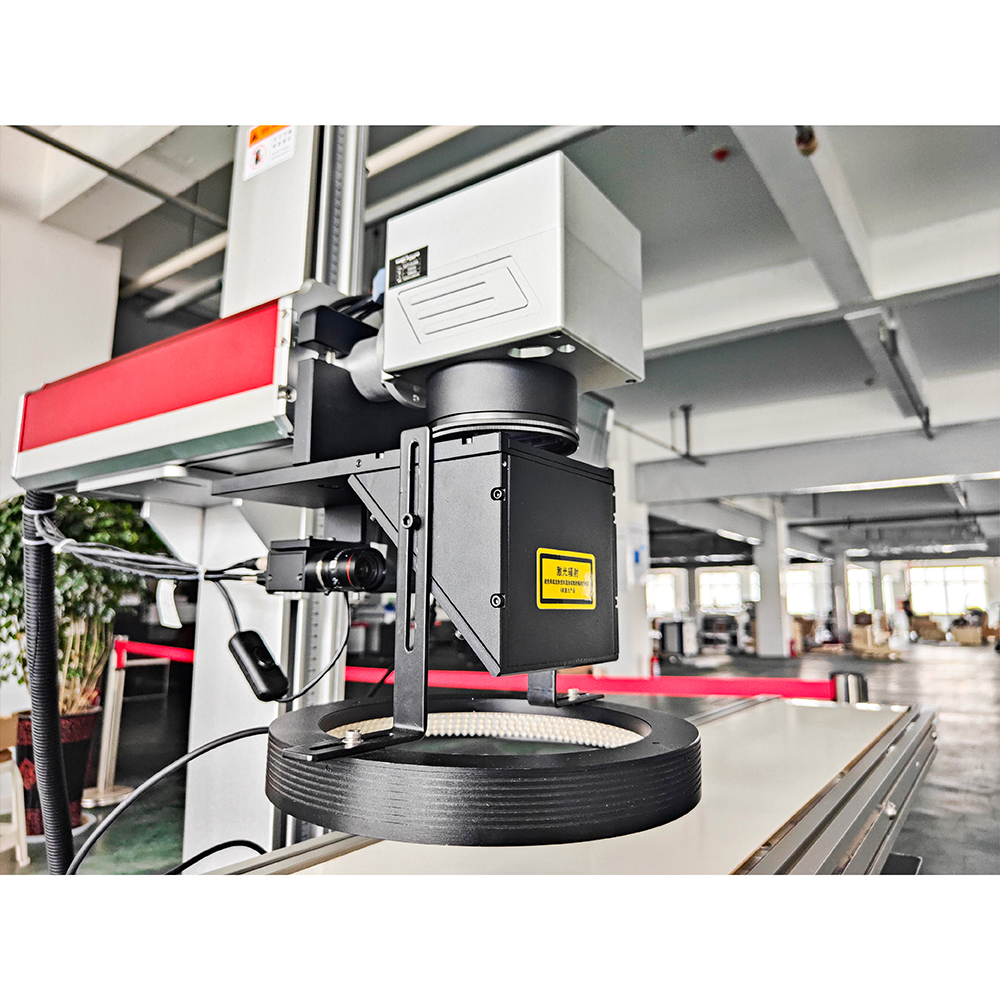

Conveyor Belt Laser Layout

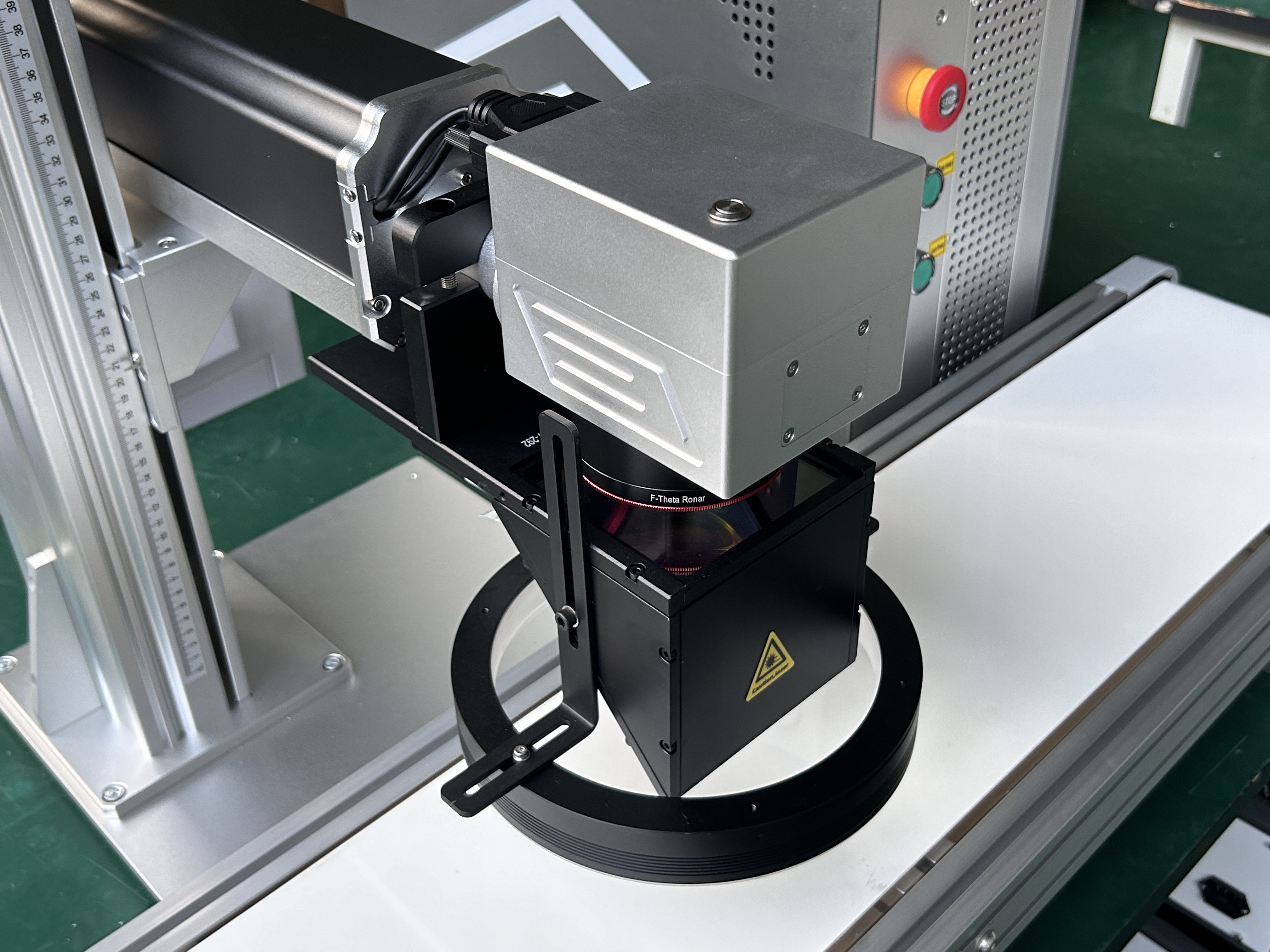

CCD Camera Positioning Mechanism
Industrial Laser Cabinet Structure
Visual Positioning Software Interface
Machine Features

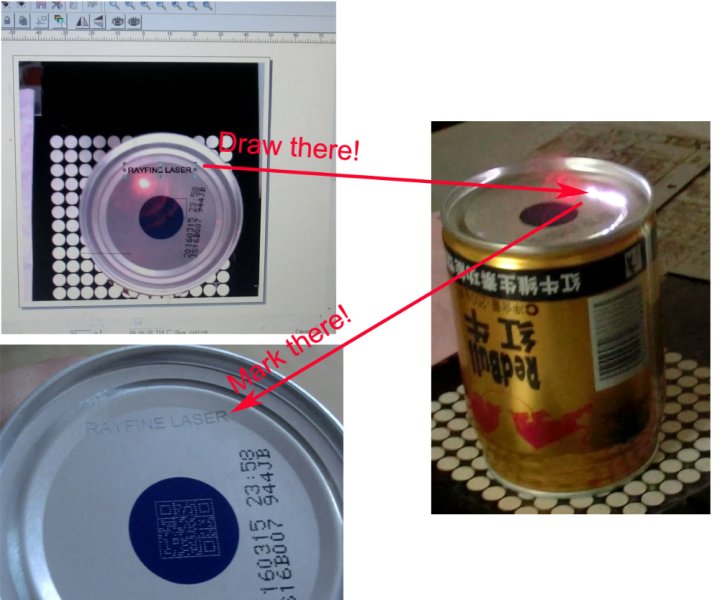

Principle of CCD visual laser marking machine:

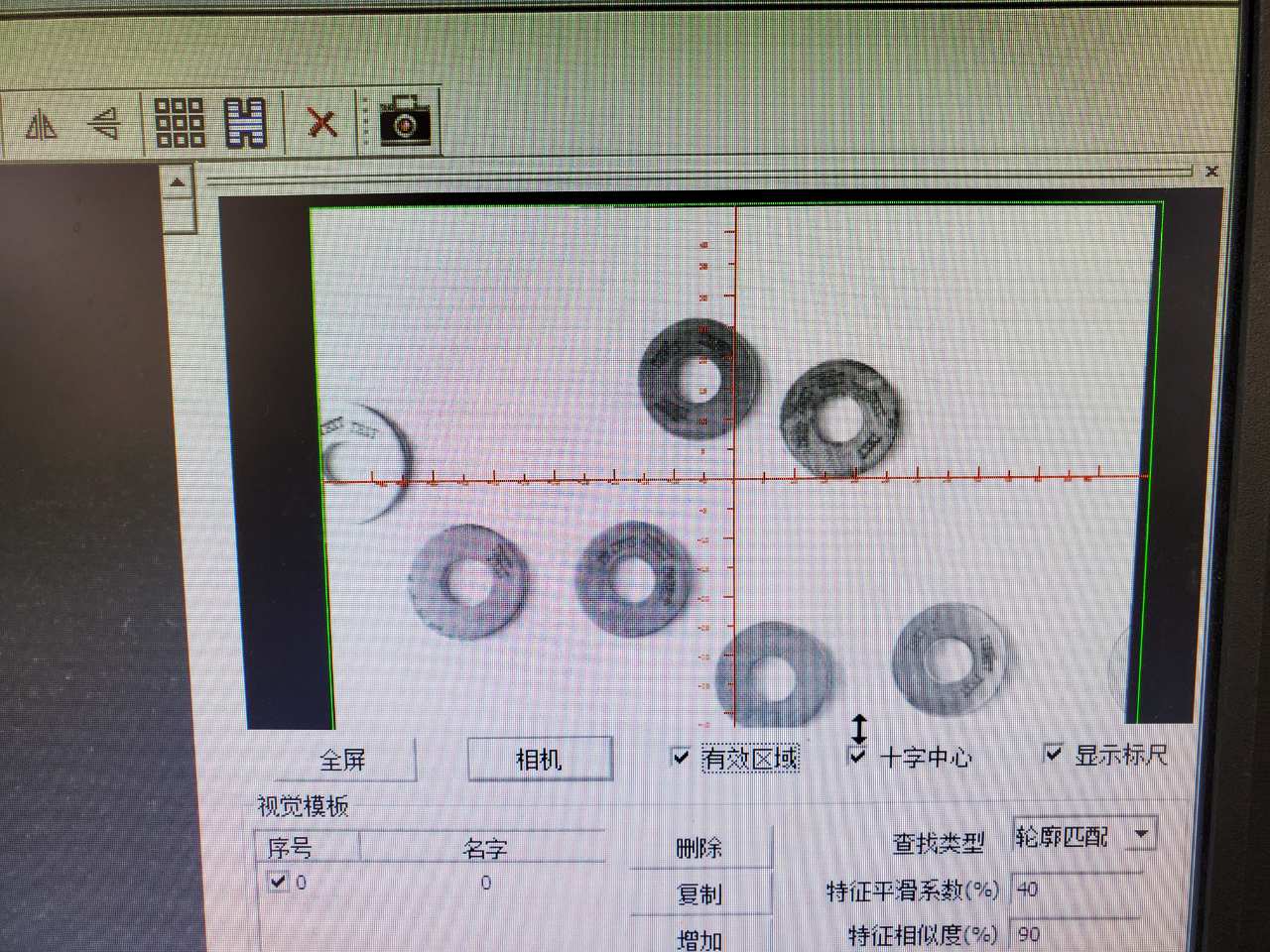

First, make a template for the product and save it as a standard template. Then the ultra-high-definition scanning camera takes pictures of the product during processing. By computer comparison and position positioning, the product can be processed accurately after adjustment.

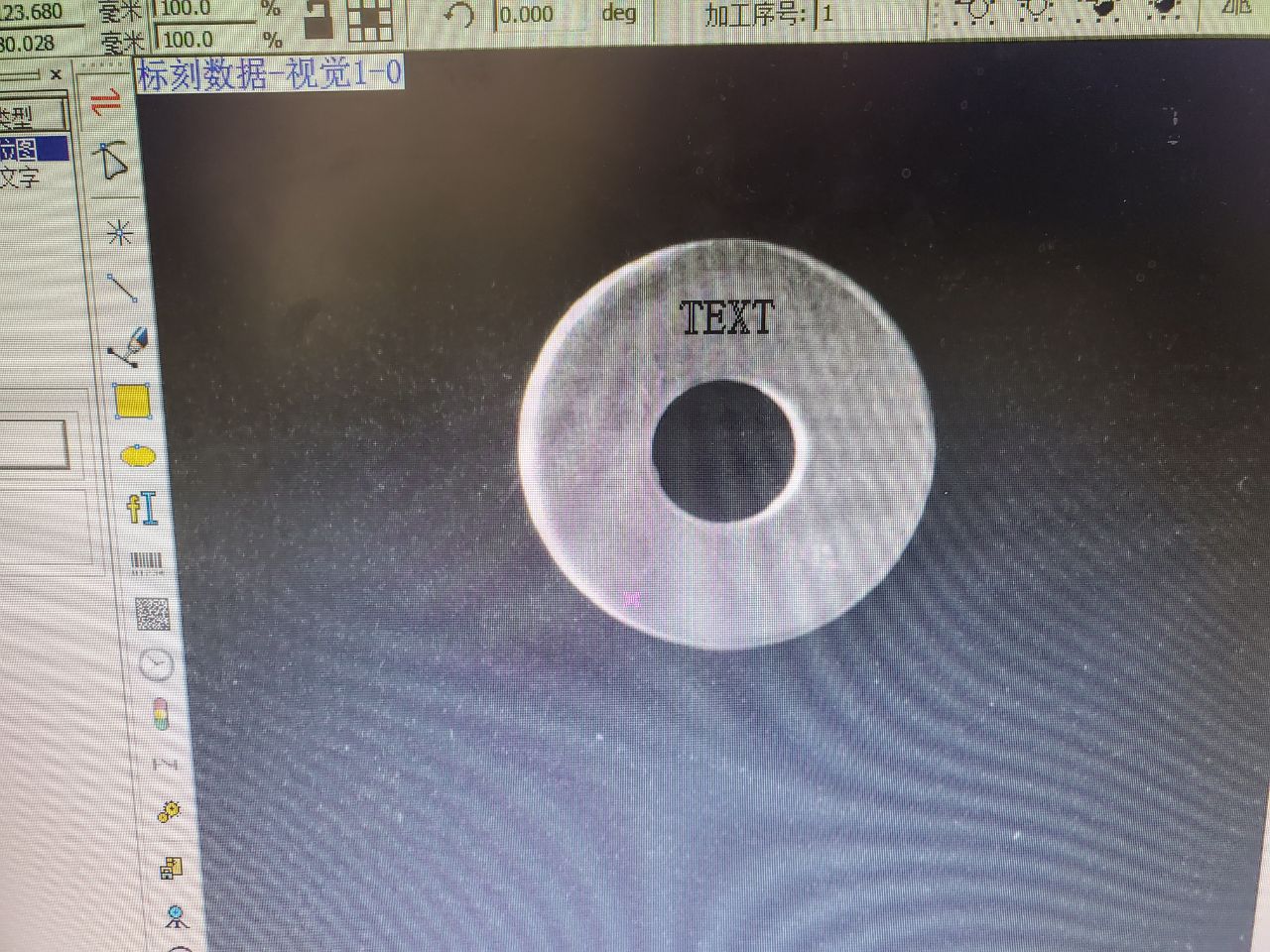

Camera Scanning Demonstration
Precision Fiber Laser Path
Detailed Images

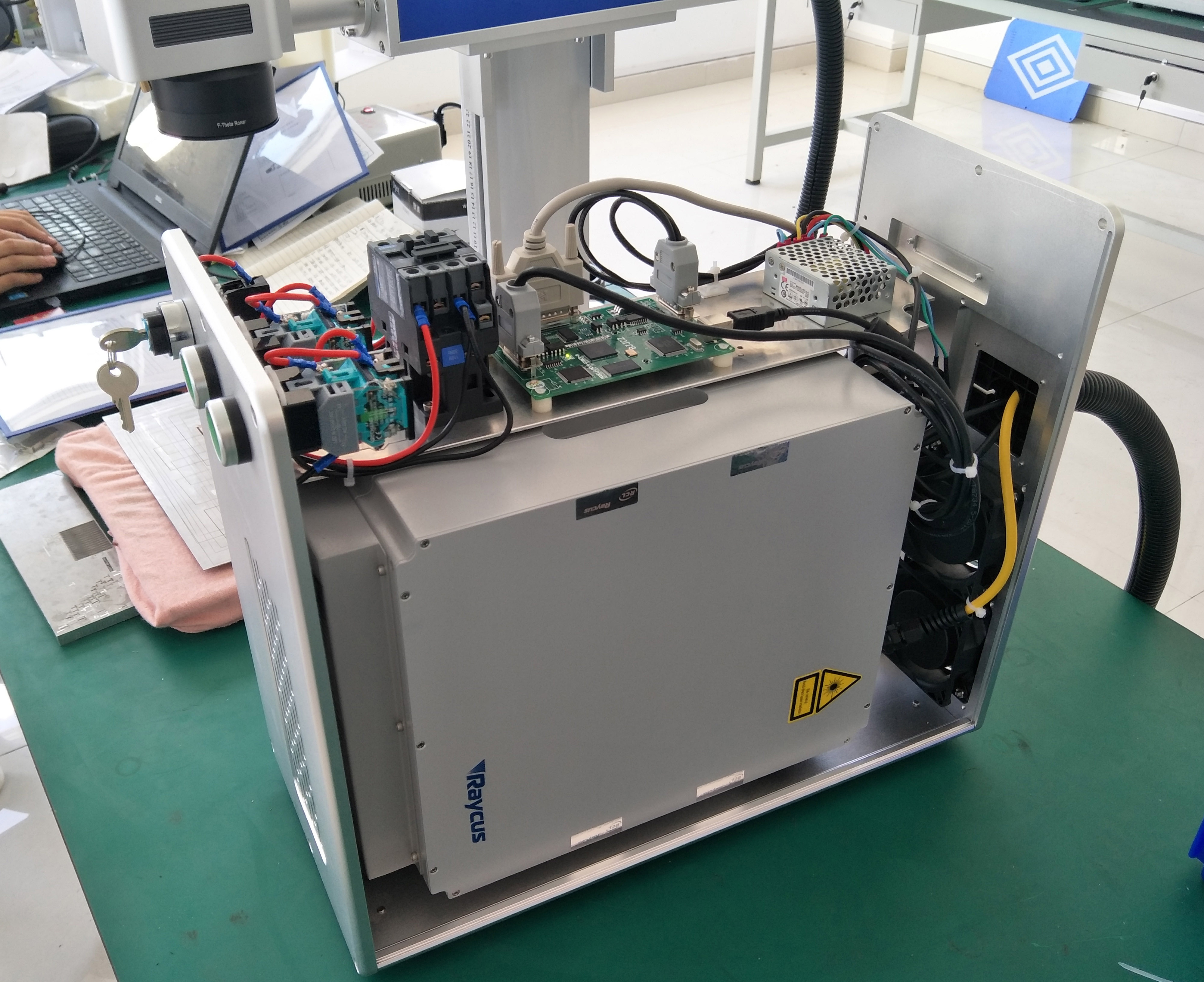

Fiber Laser Source

Fiber Laser Source

The Raycus / JPT brand laser source has a normal working life of 80,000 hours. The industry's best quality fiber optic manufacturer, microfiber beam 0.01mm; the laser's overall 2-year warranty.

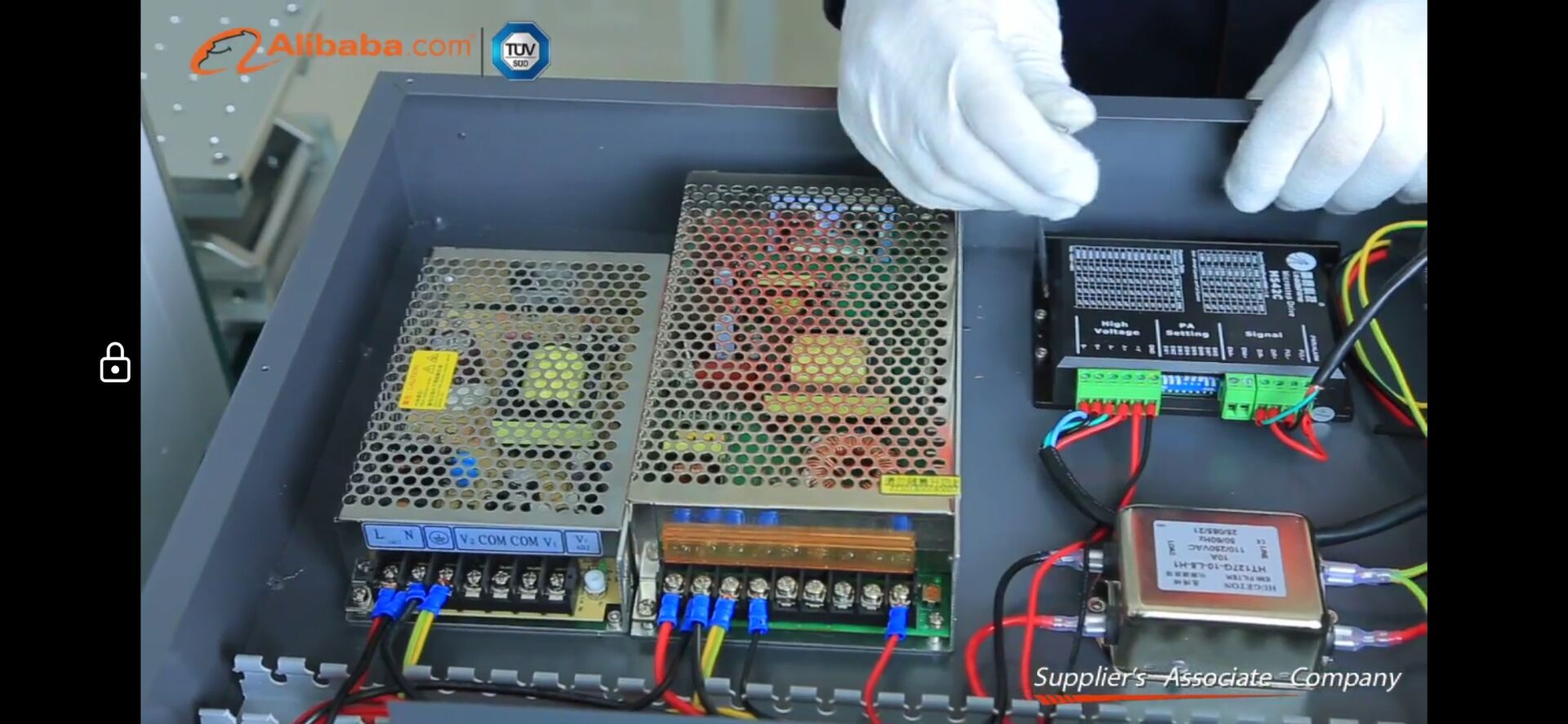

Electrical Components

Higher Quality Electrical Components

The power switch, filter, AC contactor, and electrical components inside the machine have passed European CE, TUV, CCC, American UL, SA and various international certifications. So as to ensure the life and safe use of the machine.

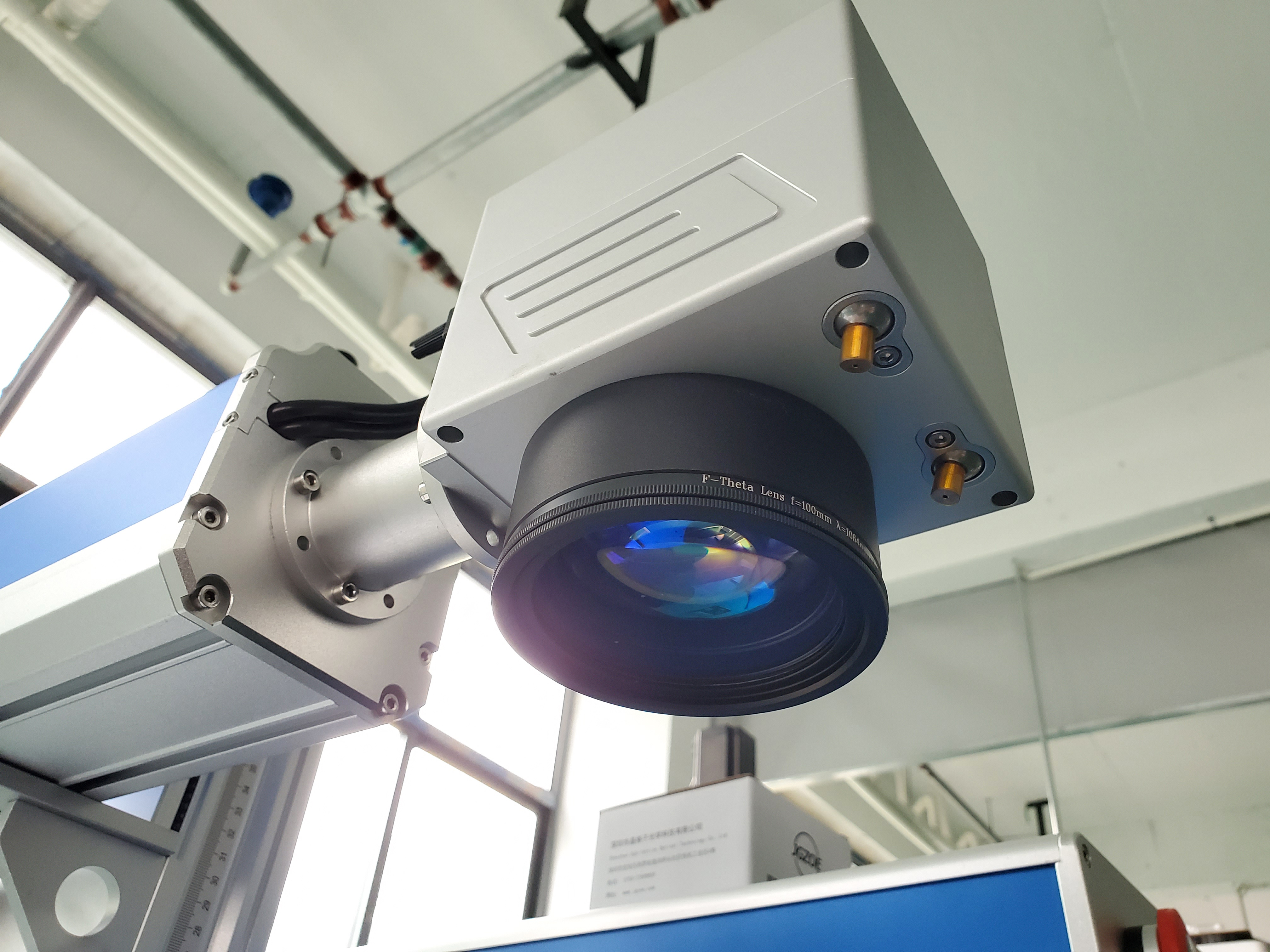

SINO-GALVO Scan Head

SINO-GALVO Head

High precision and Speed. High quality laser scanning system makes the marking speed up to 8000mm/s.

Marking Samples

Compatible Marking & Engraving Materials

  • Metals: Gold, silver, copper, iron, aluminum, titanium, zinc, steel, etc.
  • Plastics: PC, PVC, PE, HDPE, ABS, PPR, PET, etc.
  • Others: Oil paint surface, coating surface, plastic film, packaging materials, etc.

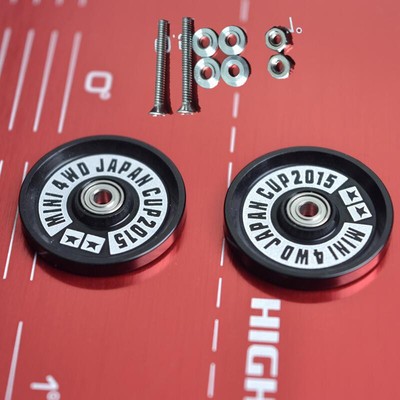

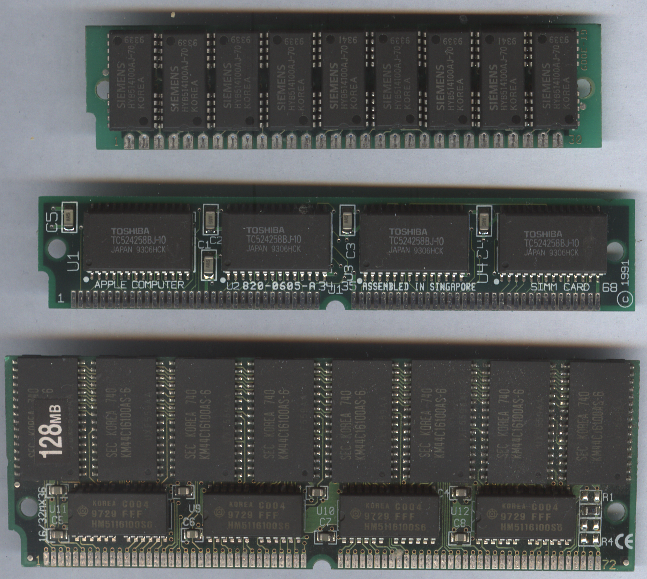

Metal Engraving Sample

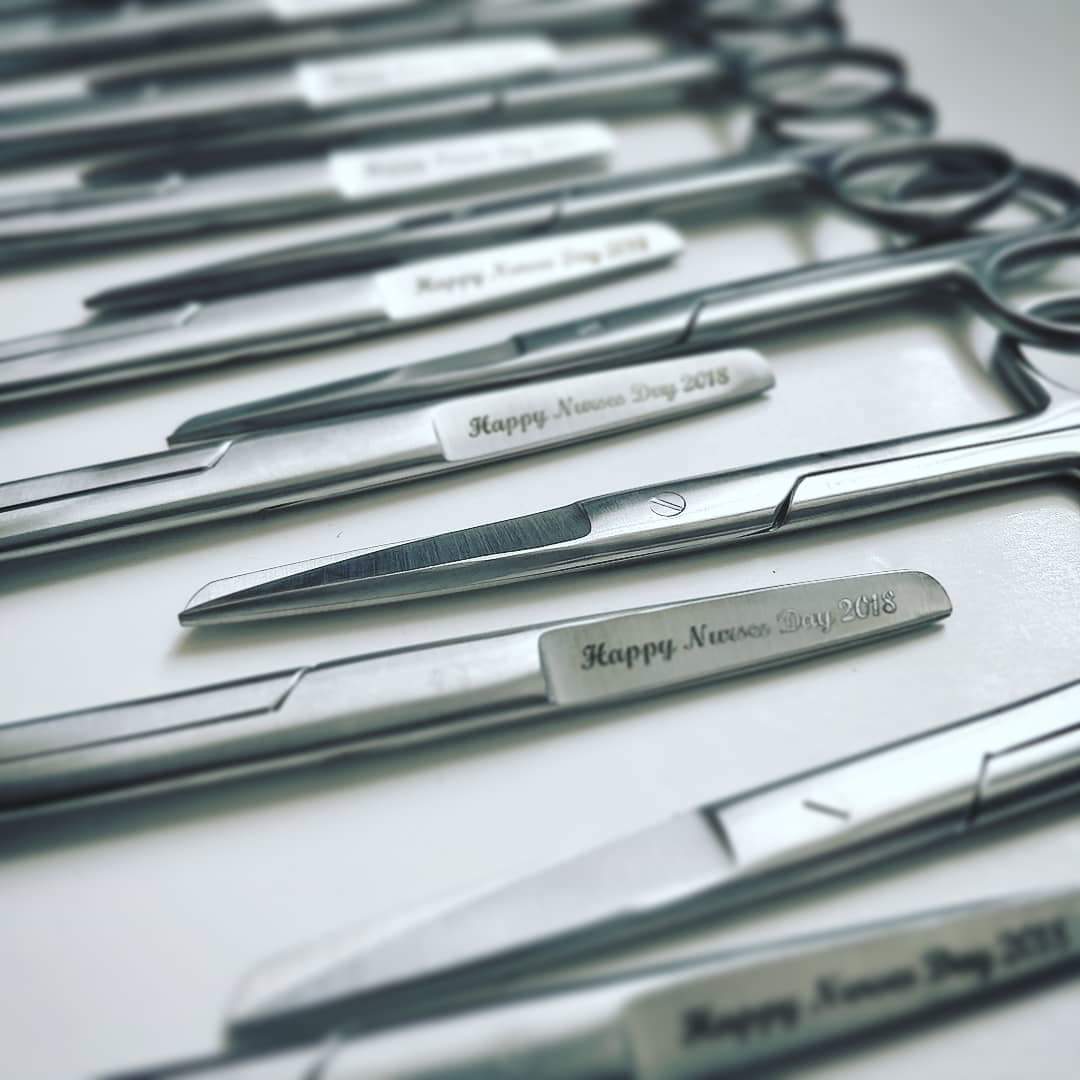

Plastic Marking Sample

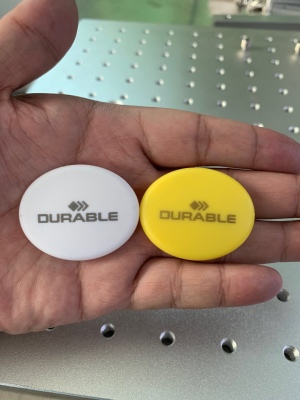

Electronic Component Marking

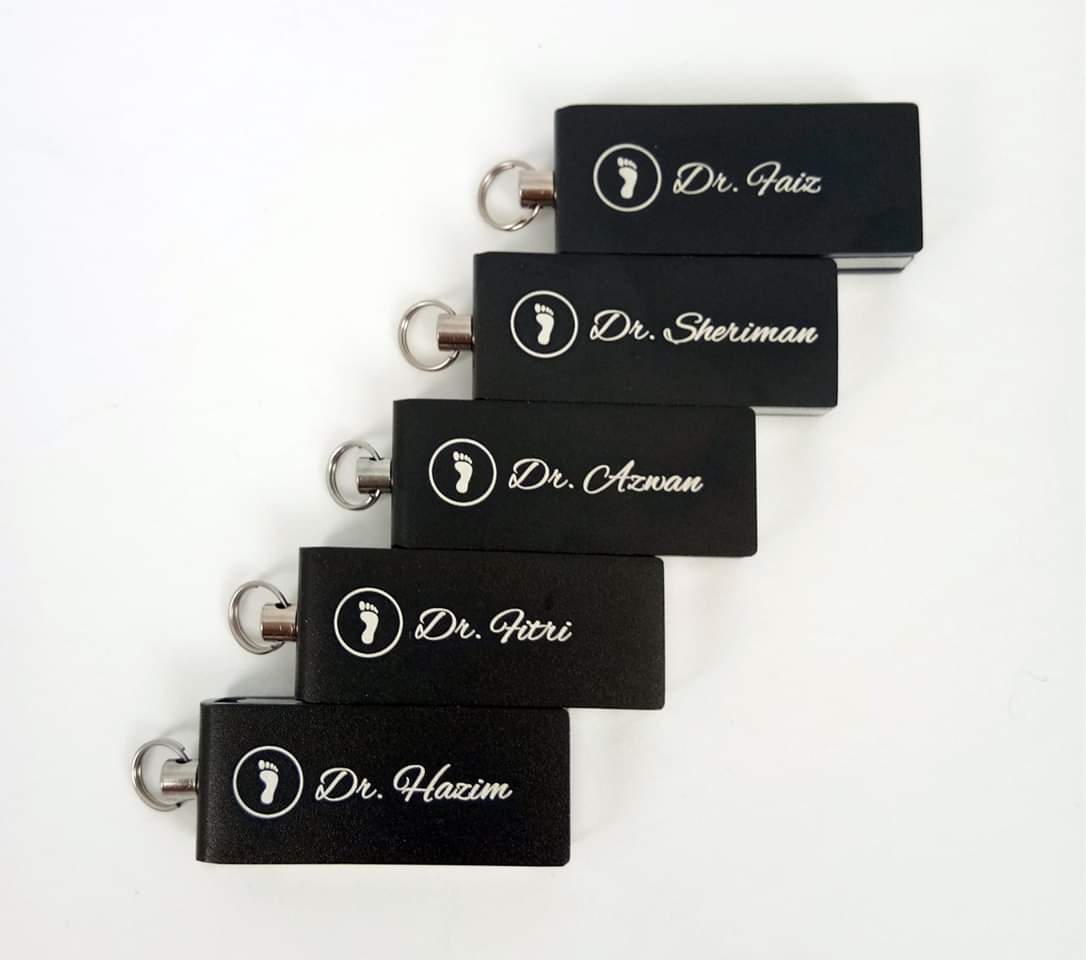

Precision Laser Etching

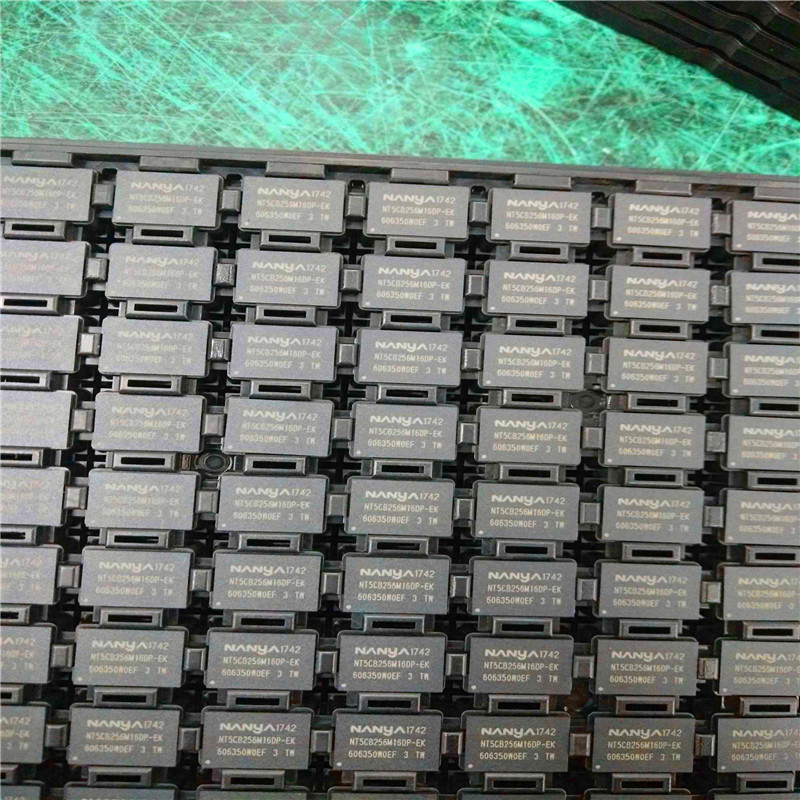

Laser Engraving Pattern
IC Chip Laser Identification

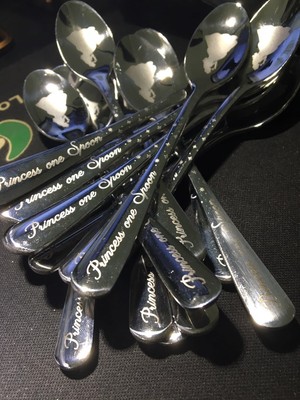

Conveyor Marking Output
Our Service
We provide free teaching and can communicate with my after-sales technician.
Technical Support and Training
Frequently Asked Questions (FAQ)
Q1: How does the CCD camera positioning system work?
A: The system utilizes an ultra-high-definition camera to scan the workpieces on the processing platform. It compares the captured image against a predefined standard template. After calculating any orientation or position deviations, the control software auto-adjusts the laser trajectory to guarantee precise marking up to 0.05mm.
Q2: What is the lifespan of the laser source?
A: Our systems integrate either Raycus or JPT fiber laser sources. These industrial-grade components offer a reliable working lifespan of approximately 80,000 hours, backed by a comprehensive 2-year warranty.
Q3: Can the machine mark workpieces on a moving conveyor belt?
A: Yes. The CCD visual system is designed to work in synergy with custom-length conveyor belts. It enables dynamic visual recognition, automatic alignment, and high-speed marking of various components on the go, significantly improving production efficiency.
Q4: What materials can the fiber laser engrave?
A: This machine works exceptionally well on metals including gold, silver, copper, iron, aluminum, titanium, and steel. It is also compatible with a wide range of plastics such as PC, PVC, PE, HDPE, ABS, PPR, PET, and various painted/coated layers.
Q5: Which control software and file formats are supported?
A: The machine runs on EZCAD 2 software combined with specialized camera positioning software, fully compatible with Windows operating systems. It natively supports popular graphic and vector formats including JPG, BMP, DXF, PLT, and AI.
Q6: What kind of post-purchase support and training do you offer?
A: We offer comprehensive, free operational training. Additionally, you will have direct communication access to our after-sales technical support team to assist with machine setup, software operations, and technical troubleshooting.
