Simple system operation with no need for complex drawing
Easy to get started for new operators

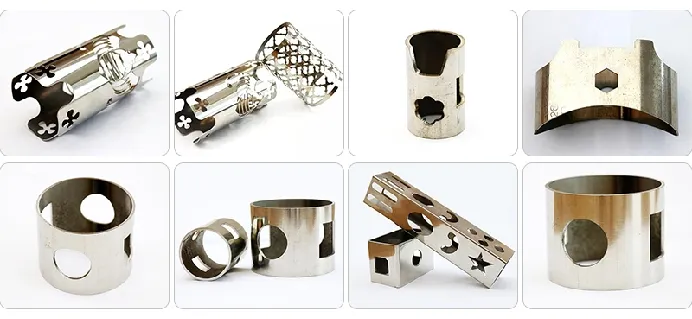

Supports multiple hole type cutting options
Fast loading and unloading functionality
Compact equipment footprint saves valuable workshop space
Functional Description

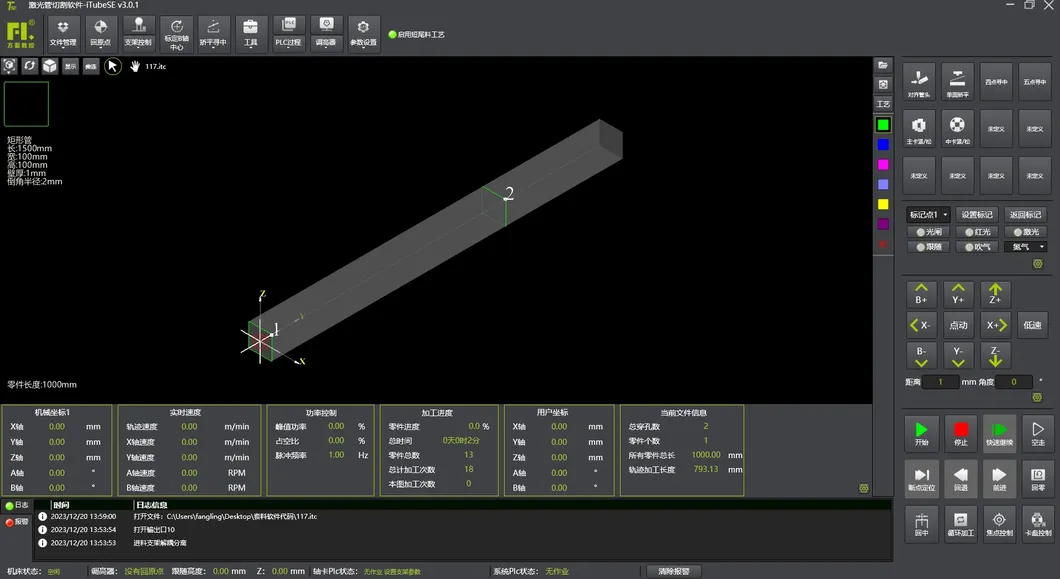

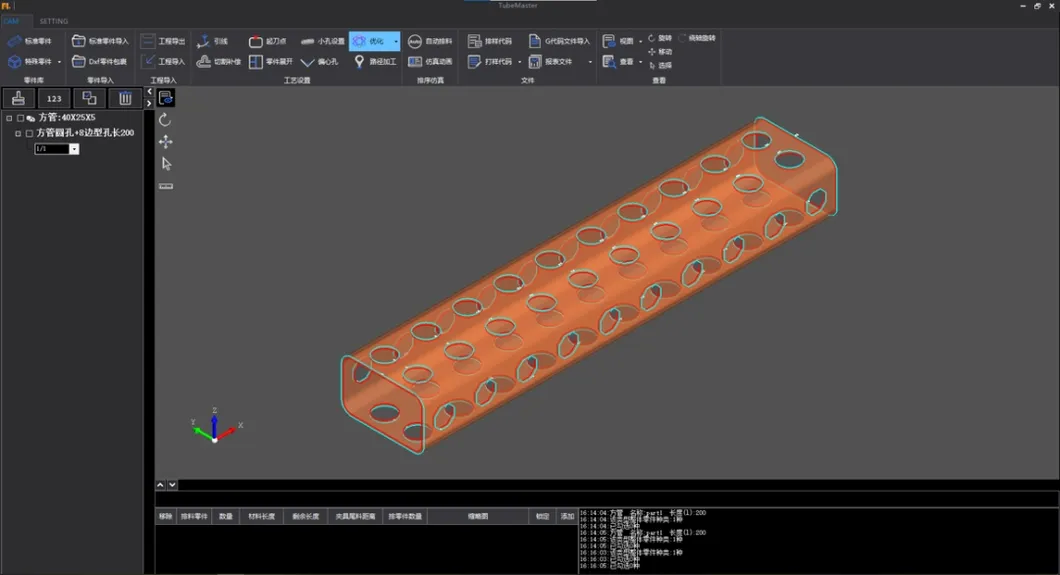

Control System: Equipped with professional control cutting software, it realizes seamless equipment linkage to complete various cutting processes. This dedicated system is mature and powerful, providing built-in solutions for common daily production challenges. It features smooth trajectory movement, high precision, a short tail material process, height adjuster avoidance, bracket follow-up, and automatic loading and unloading.

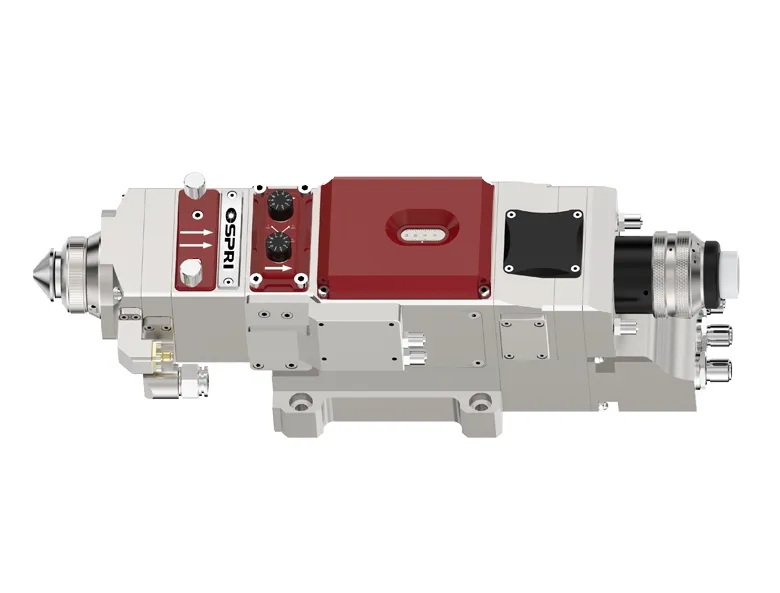

Cutting Head Introduction
Integrated application of 3D air passage & unique cooling system.
Exclusive overall cooling structure ("core cold" technology) with 3D airflow design to protect the nozzle and ceramic ring, extending continuous operation times.
Fully enclosed light path (IP5 dustproof rating) protecting lenses from dust, using high-molecular-weight materials to absorb stray light and manage temperature.
Lightweight and efficient compact structure reduces mechanical demands on the machine tool.
Three-dimensional nozzle provides precise and efficient irregular cutting.
Optimized 3D airflow delivers neat, smooth cuts; integrated QR code system navigation assists technicians.
Excellent performance cutting high-reflection materials such as brass, aluminum, stainless steel, and galvanized plates.
Air (≥1.5MPa, compressor & dryer self-provided) / Oxygen
Body Frame
Pipe rail frame structure
Process Flow
Manual feeding - Auto fixing - Auto rotation - Auto cutting - Output
Frequently Asked Questions
What types of materials and pipe shapes can the machine cut?
The machine is designed to cut metals including carbon steel, brass, aluminum, stainless steel, and galvanized plates. It handles round pipes (diameters from φ10mm to φ160mm) and square pipes (dimensions from 10*10mm to 160*160mm).
What are the maximum thickness and length limits for workpieces?
The system supports pipe lengths up to 6000mm. The maximum cutting thickness is up to 4mm, which varies depending on the specific power and configuration of the laser generator.
How does the cooling system protect the cutting head?
The machine features an exclusive "core cold" overall cooling structure with a 3D air passage design. This effectively cools the nozzle and ceramic ring, shielding them from excess heat and significantly extending continuous working hours.
What kind of control system does the equipment use?
It utilizes the mature Weihong control system paired with specialized square control cutting software. This enables automatic fixing, automatic rotation, short tail material processing, height adjuster avoidance, and smooth trajectory control.
What gas source is required for operation?
The machine requires either Air (pressure ≥ 1.5MPa, supported by a user-provided air compressor and dryer) or Oxygen as the auxiliary cutting gas.
Does the cutting head system prevent dust contamination?
Yes, the light path features a fully enclosed structure with a dustproof rating of IP5. This setup ensures that optical lenses remain clean and protected from dust contamination during cutting procedures.
