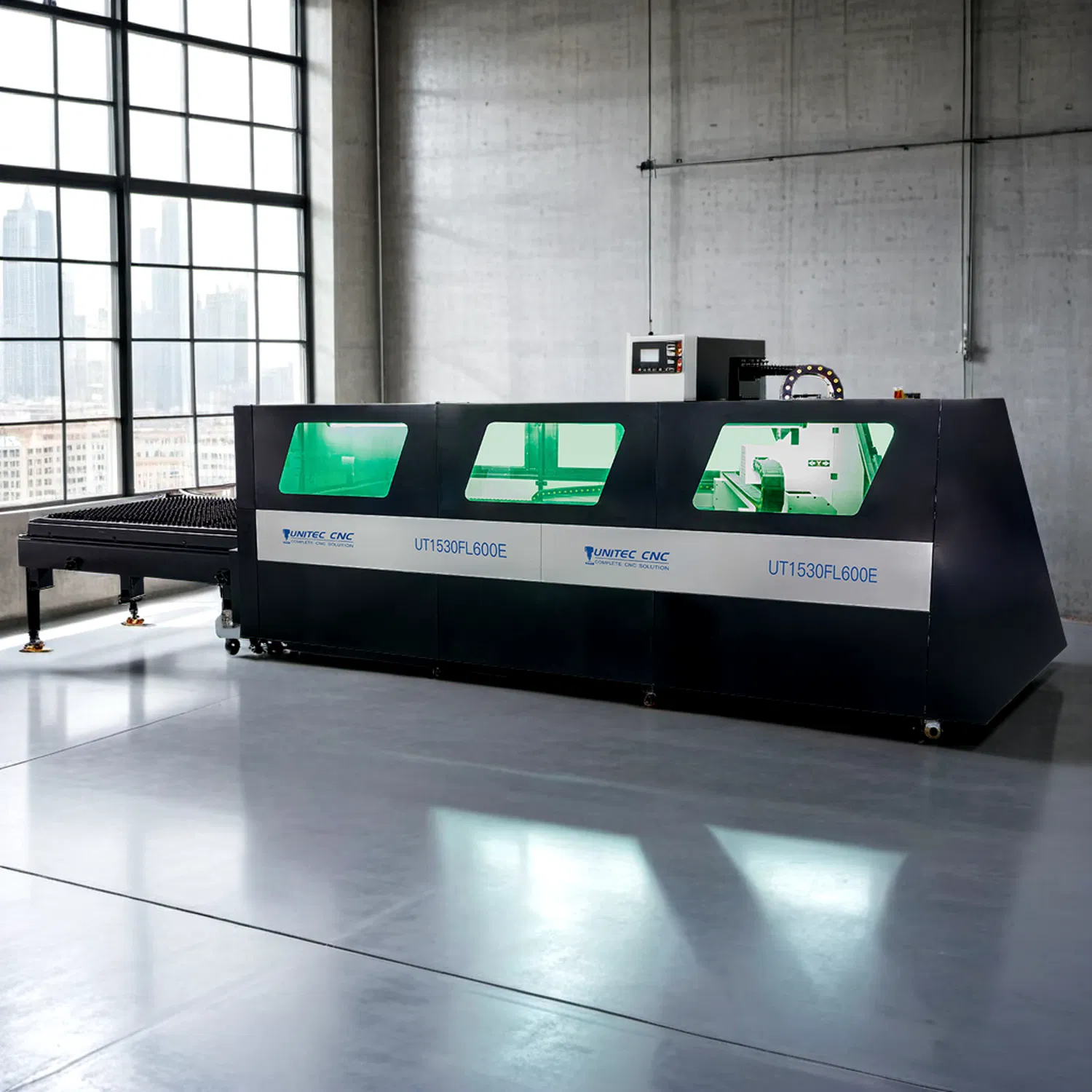

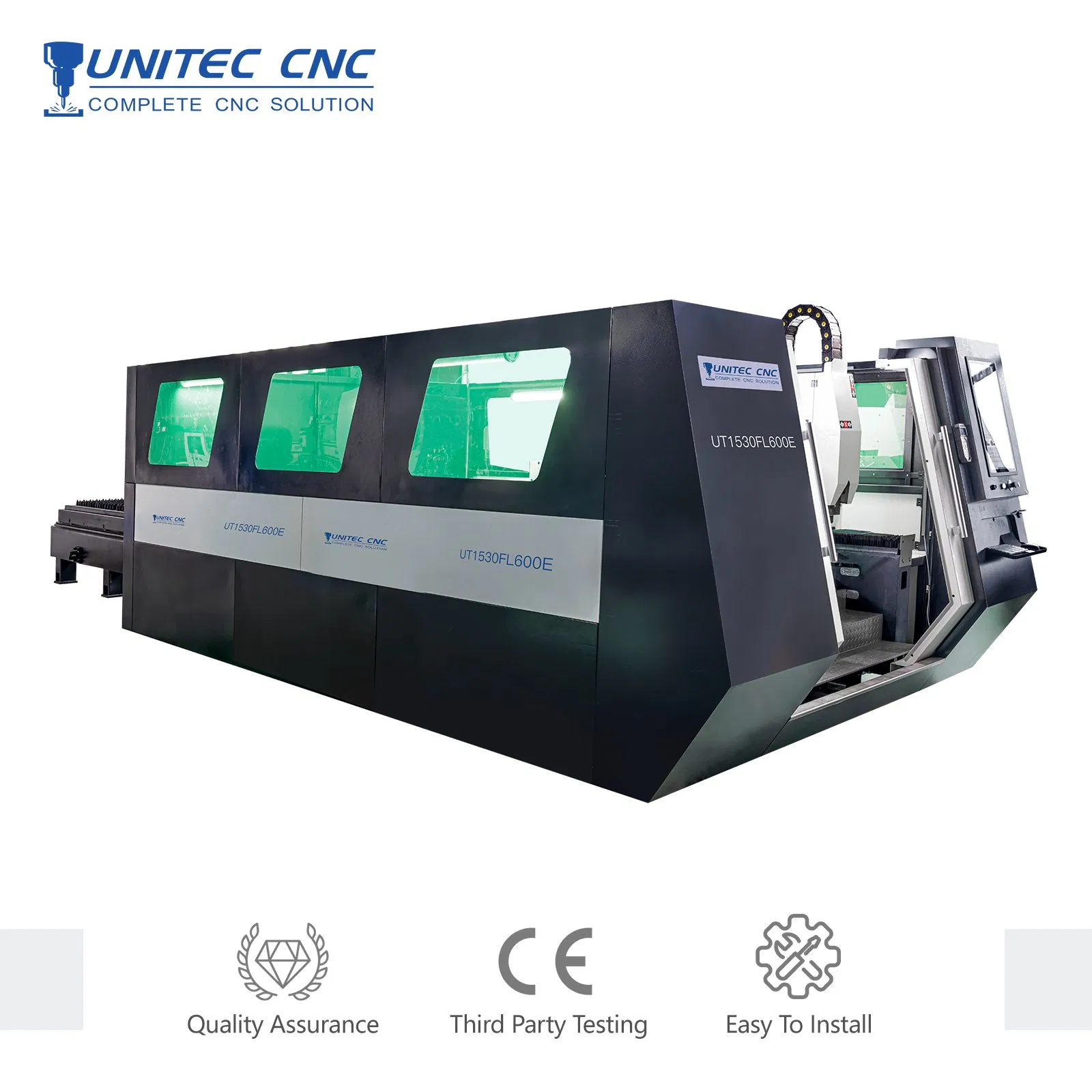

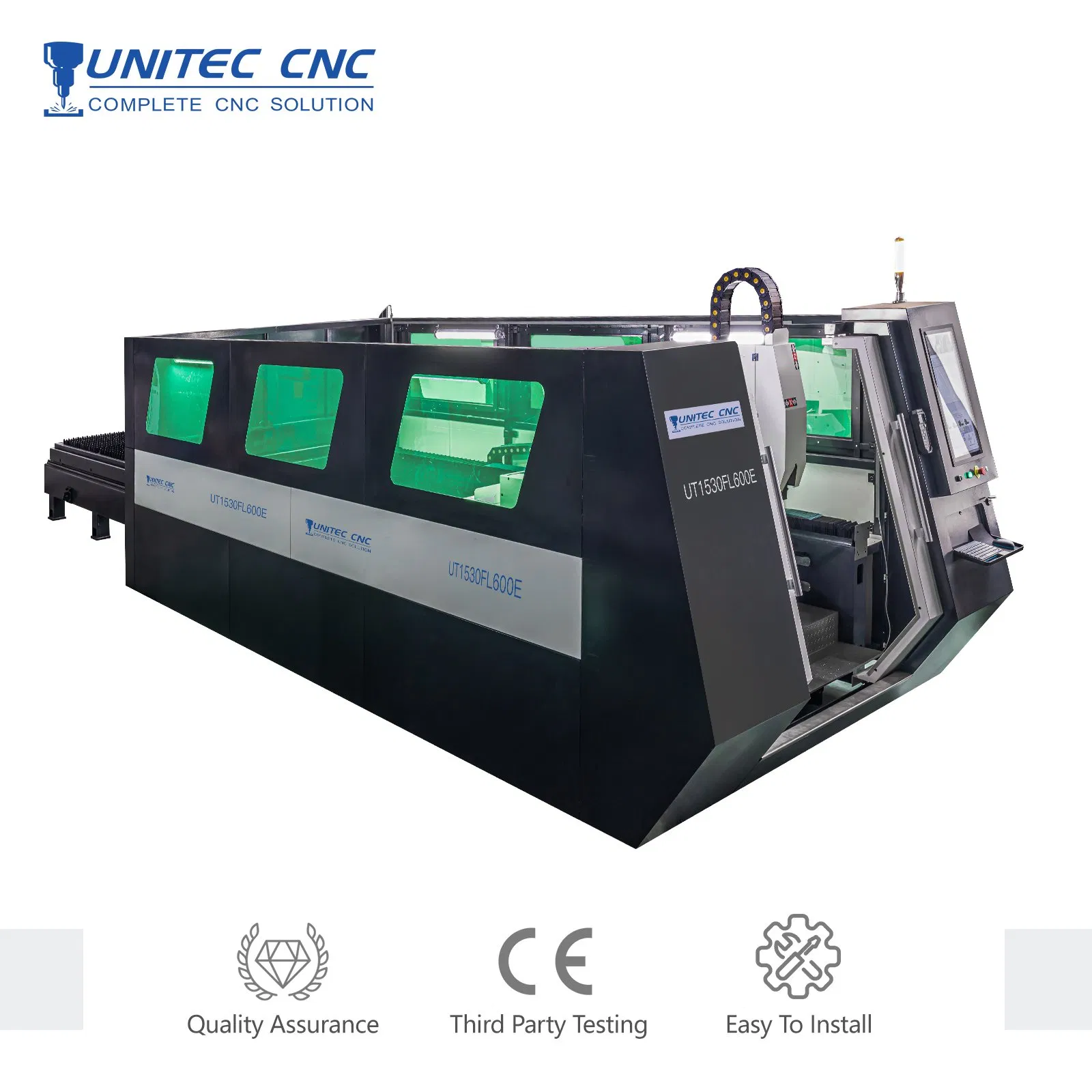

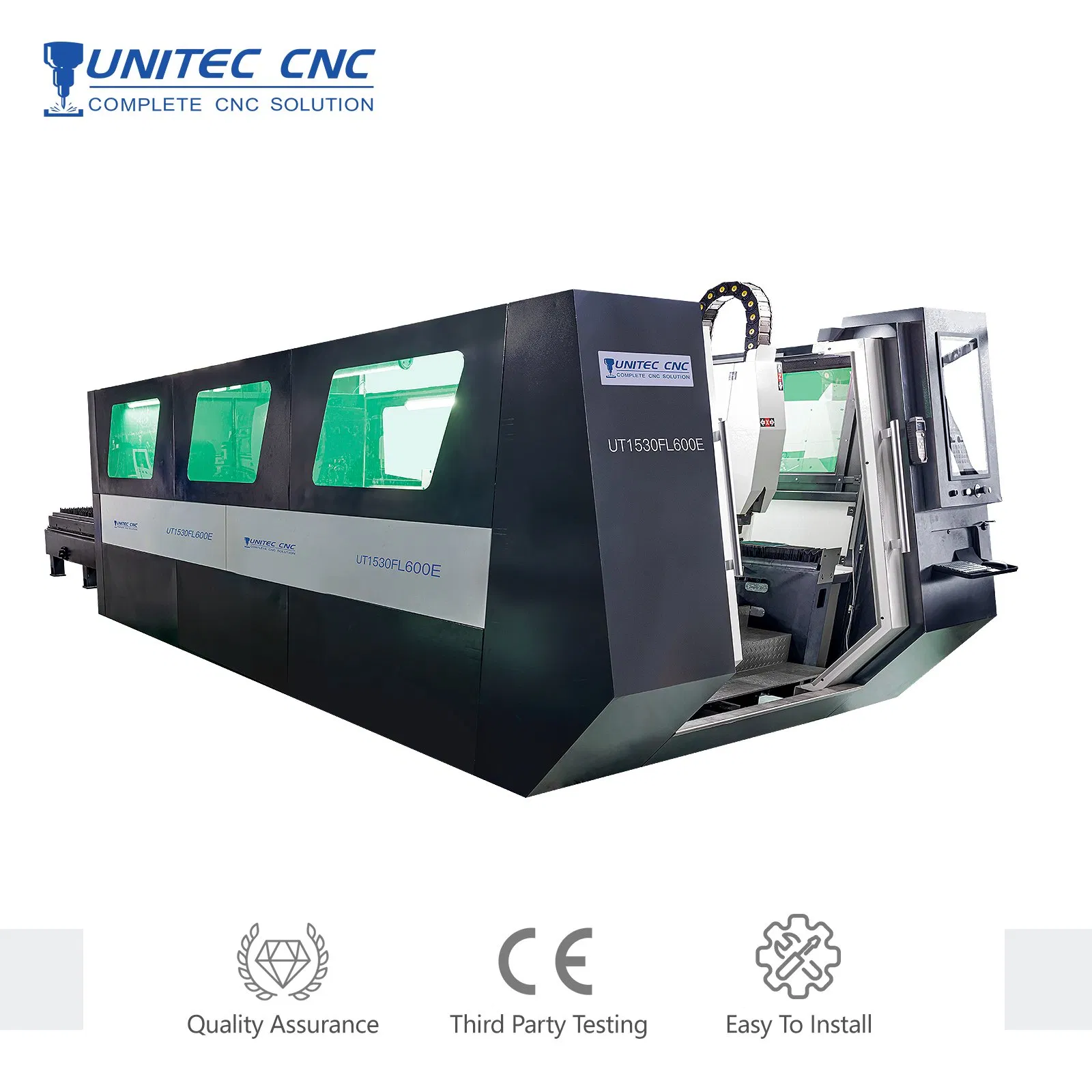

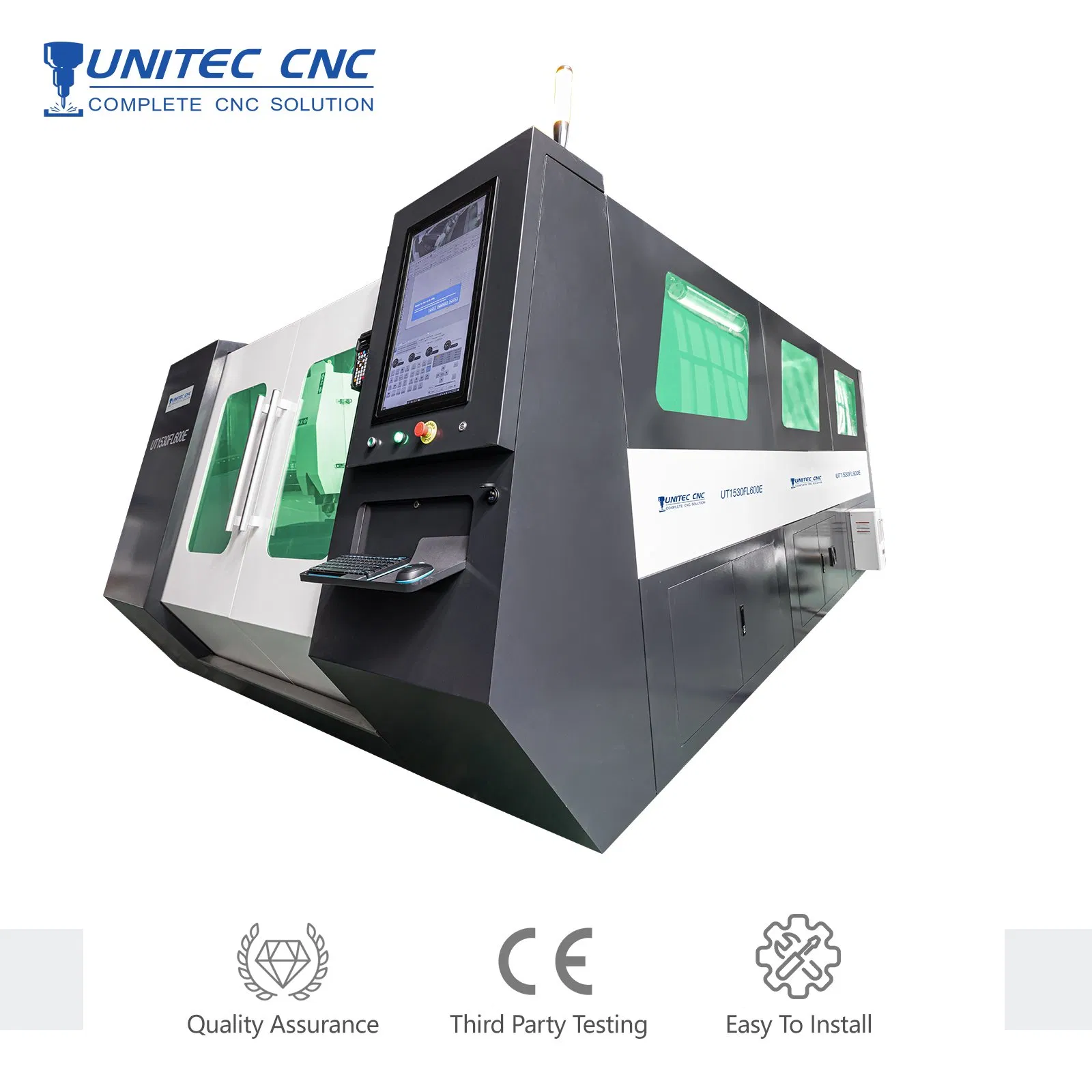

Applicable Industry: Our Advanced 1500W Fiber Laser Cutter is expertly designed for sheet metal processing, advertising production, kitchenware manufacturing, duct manufacturing, automobile, and shipbuilding industries.
Applicable Materials: Seamlessly handles a broad spectrum of materials including cold-rolled and galvanized sheets, carbon steel, stainless steel, aluminum, and copper sheets.
| Specification Item | Details |
|---|---|
| Working size | 2000*6000mm |
| Table Type | Single Table |
| Machine size | 3100*8500*2400 mm |
| System | Ncstudio with Original HP PC and original WIN10 |

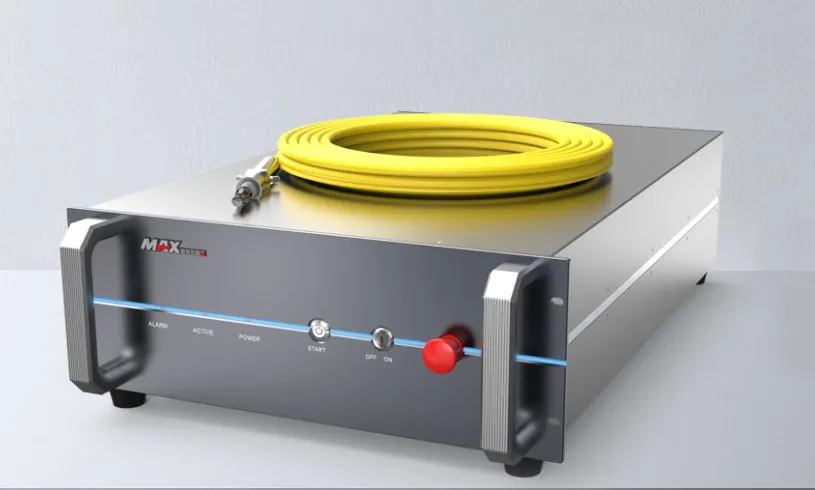

| Laser power | Max 6000W MFSC-6000C |
| Transmission system | Taiwan brand rack and pinion |

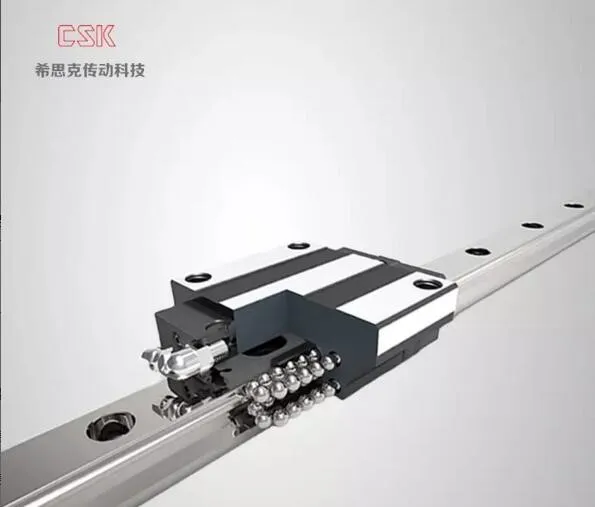

| Guide rail | Taiwan brand CSK |
| Laser Head | Raytools BM06G with auto focus |
| Air control | SMC, Japan |
| Electric parts | CHNT made in China |
| Working voltage | AC 380V, 50-60HZ, 3 phases |
| Cooling system | Teyu Water Chiller CWFL-6000ENS04 |

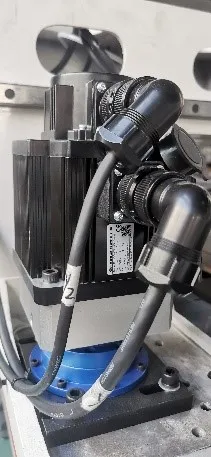

| Servo Motor model | Ncstudio Absolute Value AC Servo Motor and driver 1500W |
| Max Travel Speed | 80m per min |
| Laser type | Fiber laser |
| Laser wavelength | 1070nm |
| X/Y/Z axis stoke | 1500 / 3000 / 300mm |
| X/Y axis positioning accuracy | ±0.05mm/m |
| X/Y axis re-position accuracy | ±0.03mm/m |

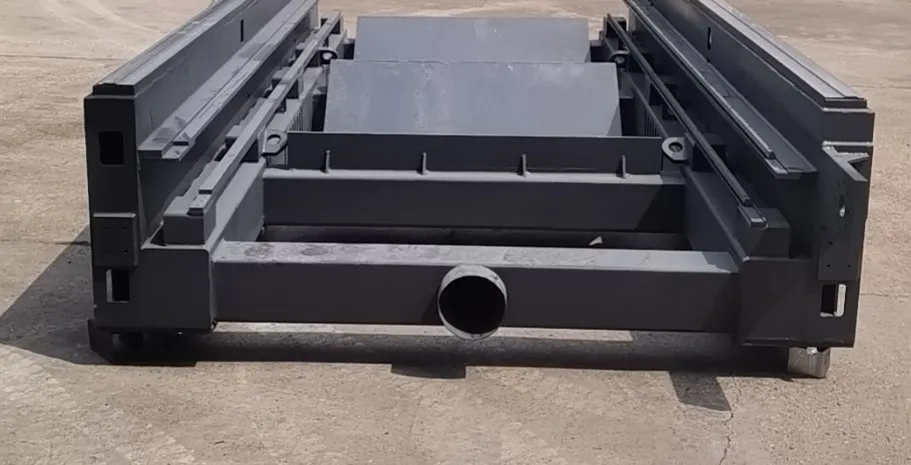

| Machine bed | Plate and tube welding |
| Working table max. loading | 1500kgs |
| Material | Thickness (mm) | Speed (mm/min) | Power (W) | Gas | Pressure (Bar) | Nozzle (mm) | Focus (mm) | Cut Height (mm) |
|---|---|---|---|---|---|---|---|---|
| Carbon | 1 | 60-80 | 6000 | N₂/Air | 10 | 2.0 S | 0 | 0.6 |
| 2 | 40-45 | 12 | 2.0S | -0.5 | 0.5 | |||
| 3 | 23-28 | 14 | 3.0S | -1.5 | 0.5 | |||
| 4 | 15-20 | 14 | 3.0S | -3 | 0.5 | |||
| 5 | 10-13 | 16 | 3.5S | -3.5 | 0.5 | |||
| 6 | 7-9 | 18 | 3.5S | -4 | 0.5 | |||
| Carbon (O₂) | 3 | 3.6-4.5 | 3000 | O₂ | 0.6 | 1.0 D | +6.5 | 0.6 |
| 4 | 3.2-3.5 | 3000 | 0.6 | 1.0 D | +6.5 | 0.6 | ||
| 5 | 2.6-3.2 | 3500 | 0.6 | 1.0 D | +6 | 0.6 | ||
| 6 | 2.5-2.8 | 4000 | 0.6 | 1.0 D | +6 | 0.6 | ||
| Steel | 1 | 60-80 | 6000 | N₂ | 10 | 2.0 S | 0 | 0.6 |
| 2 | 30-35 | 12 | 2.0 S | 0 | 0.5 | |||
| 3 | 20-24 | 12 | 3.0 S | -0.5 | 0.5 | |||
| 4 | 13-16 | 12 | 3.0 S | -1 | 0.5 | |||
| 5 | 9-12 | 14 | 3.0S | -1.5 | 0.5 | |||
| Aluminum | 1 | 60-80 | 6000 | N₂ | 10 | 2.0 S | 0 | 0.6 |
| 2 | 30-45 | 10 | 2.0 S | -0.5 | 0.5 | |||
| 3 | 20-28 | 14 | 3.0S | -1 | 0.5 | |||
| 4 | 12-15 | 14 | 3.0 S | -1.5 | 0.5 | |||
| 5 | 6-8 | 15 | 3.0S | -2 | 0.5 | |||
| Brass | 1 | 40-50 | 6000 | N₂ | 10 | 2.0S | 0 | 0.6 |
| 2 | 20-25 | 12 | 2.0S | -0.5 | 0.5 | |||
| 3 | 8.0-10 | 12 | 3.0 S | -1 | 0.5 | |||
| 4 | 6.5-7.5 | 14 | 3.0S | -1.5 | 0.5 | |||
| Copper | 1 | 30-35 | 6000 | O₂ | 10 | 3.0S | -1 | 0.5 |
| 2 | 12-15 | 10 | 3.0S | -1 | 0.5 | |||
| 3 | 7.0-9.0 | 12 | 3.0S | -2 | 0.5 |

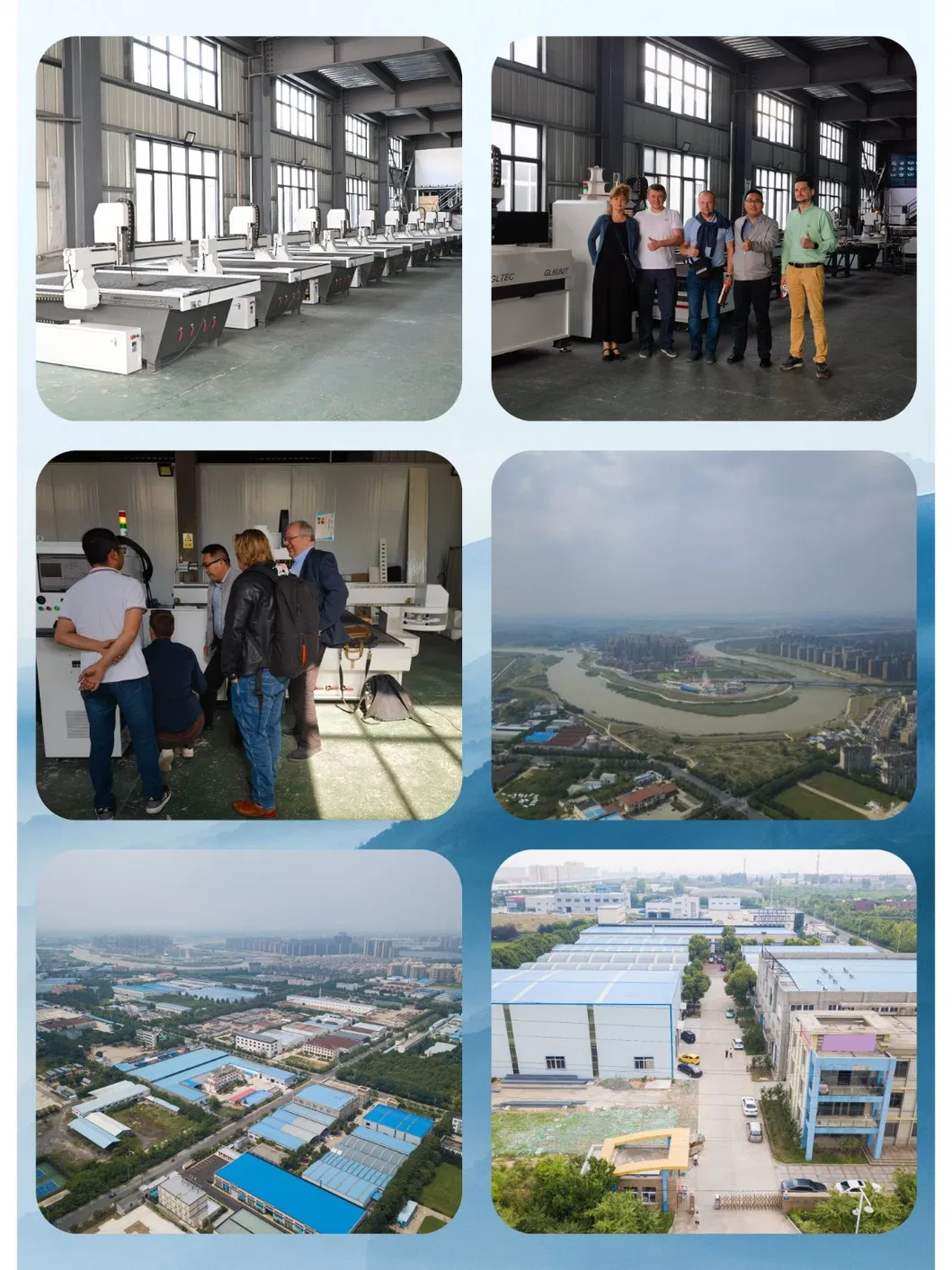

Our manufacturing facility is a dynamic and innovative manufacturer at the forefront of CNC Technology. Established in 2008, with a vision to provide cutting solutions and services, we have been making significant strides in the markets of signmaking, metal working, woodworking, automotive interior, and packaging. We provide a wide range of products, such as CNC Router machines, CO2 Laser Cutting Machines, Fiber Laser Cutting machines, and Digital Cutting Machines. Our facility is staffed by a team of highly talented and dedicated professionals who are passionate about technology and committed to excellence.
Our company is proud to have a highly skilled talent team. The members of this team are all experts in their respective fields, with rich professional knowledge and practical experience. They are dedicated to innovation and continuous improvement, constantly striving to develop new technologies and products to meet the diverse needs of customers. With their outstanding technical capabilities and creative thinking, we are able to maintain a competitive edge in the market and provide high-quality products and services.
With rapid development, we established strong relationships with famous global suppliers, including Italian spindles, Japanese and Taiwanese servo motors, high-grade controllers, and linear guides. They work with our teams tightly to guarantee the quality of our machines.
The company also provides comprehensive technical support and consulting services. Whether it's troubleshooting issues, providing training, or offering strategic advice on technology implementation, our experts are always ready to assist.
Under the guarantee of excellent quality, timely and efficient service, we established a wide and systematic sales network worldwide. Our products are exported to more than 100 countries and regions around the world, including Japan, South Korea, the United Kingdom, Sweden, the United States, Norway, Finland, Germany, and others.
