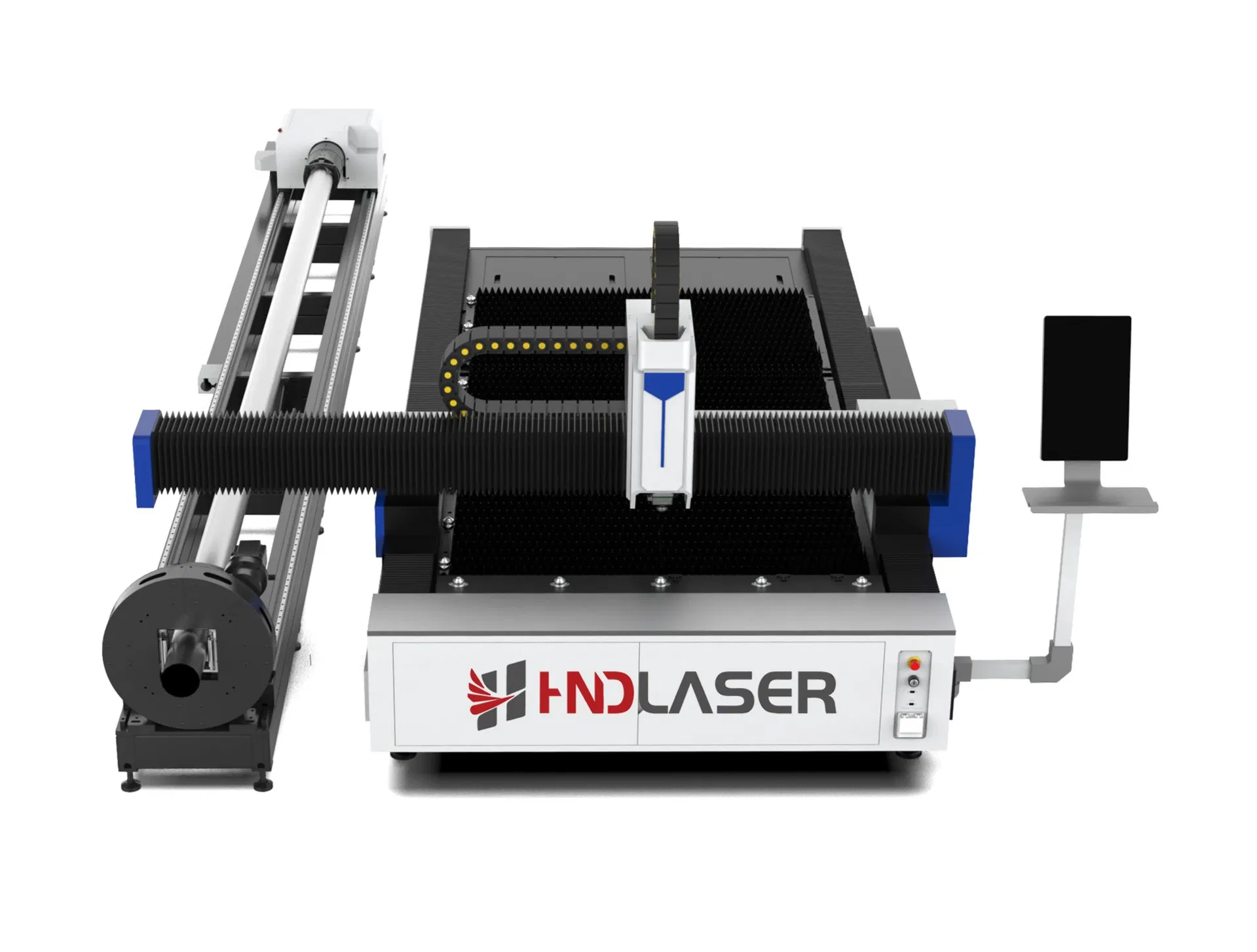

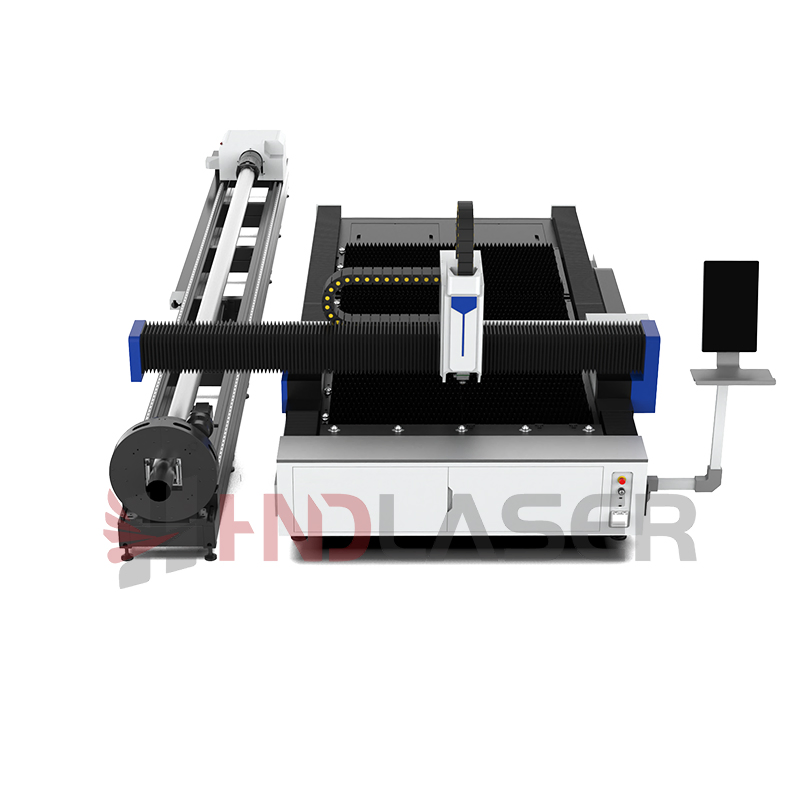

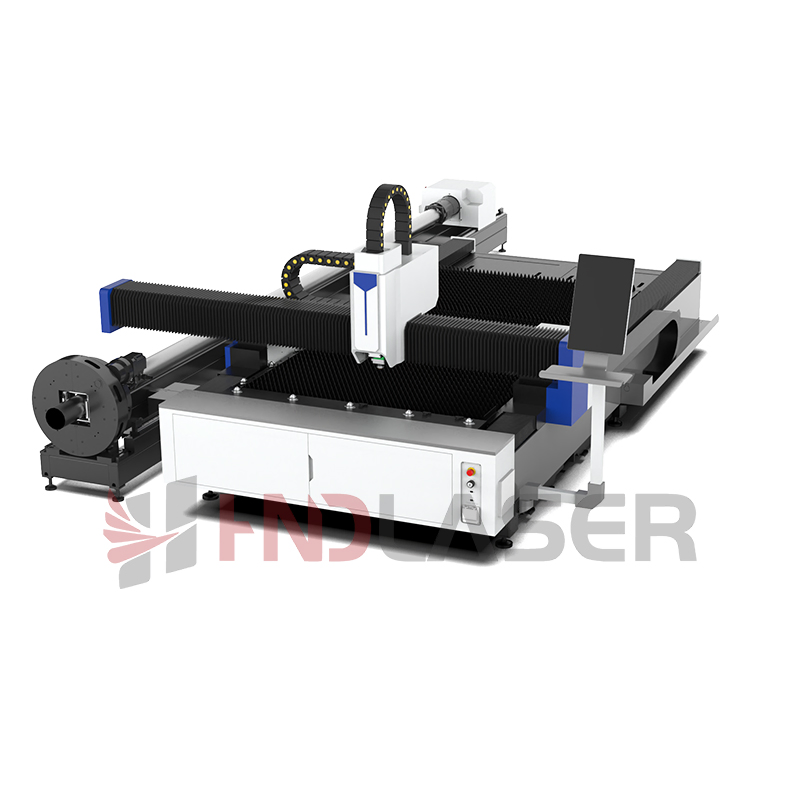

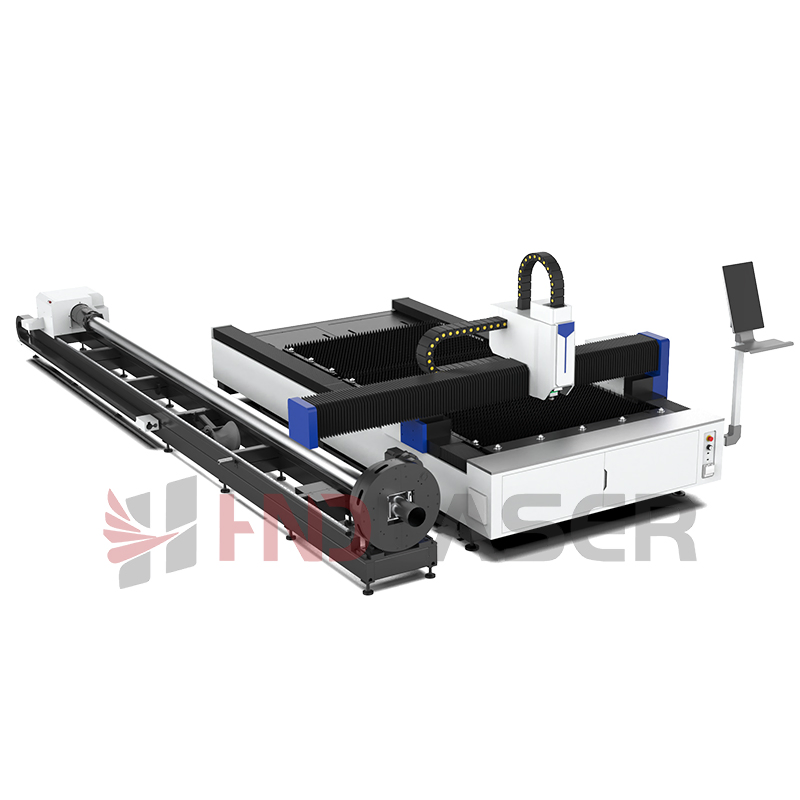

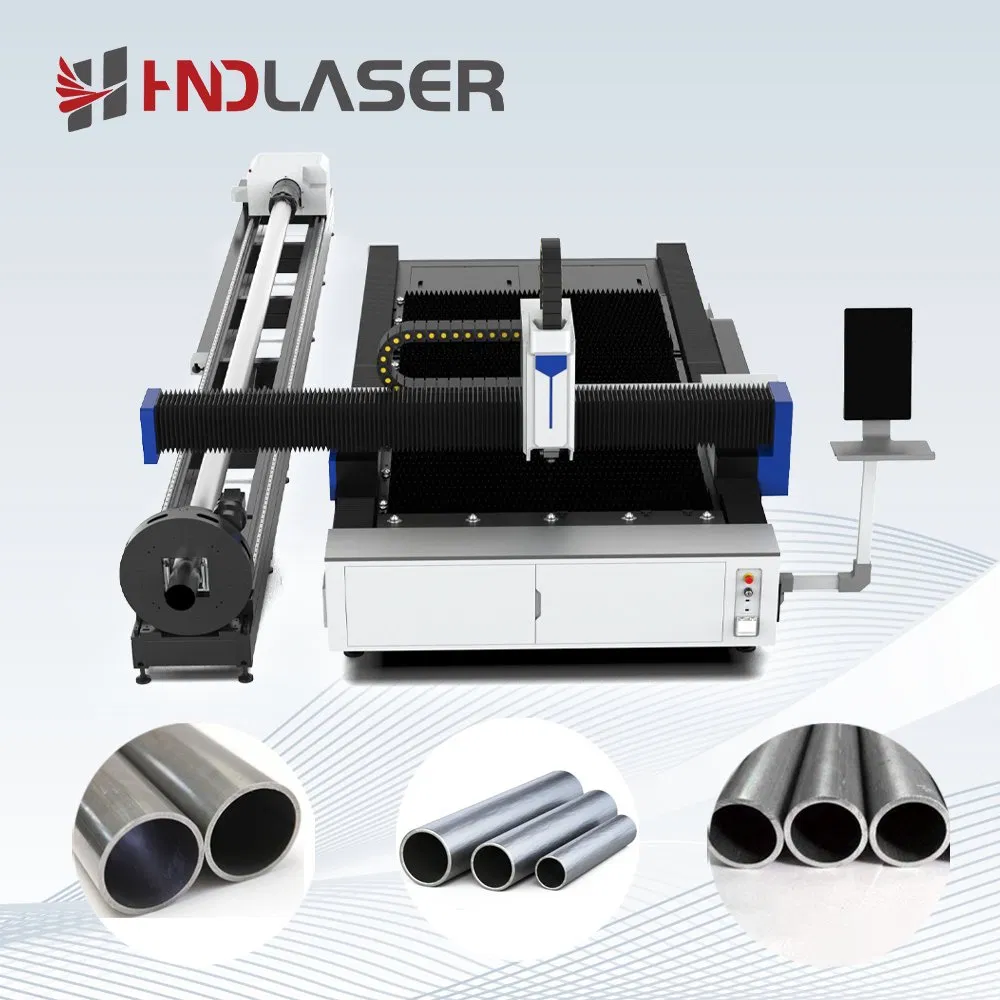

The integrated laser cutting machine is designed for versatile processing of both sheet metal and various pipe materials, making it ideal for a wide range of industrial applications including sheet metal fabrication, advertising signage, kitchen and bathroom equipment manufacturing, engineering machinery, shipbuilding, aerospace, and automotive parts production.
It features easy installation, quick commissioning, and high-performance output, supported by complete solution offerings. With stable and reliable operation, simple deployment, enhanced production safety, and rich functionality, this machine delivers exceptional performance to meet diverse manufacturing needs.
| No. | Model Parameter | DF3015T Details |
|---|---|---|
| 1 | Maximum processing range | 3050*1530mm |
| 2 | X-axis travel | 1500mm |
| 3 | Y-axis travel | 3000mm |
| 4 | Z-axis travel | 80-120mm |
| 5 | X/Y axis positioning accuracy | ±0.05mm |
| 6 | X/Y axis repeat positioning accuracy | ±0.03mm |
| 7 | X/Y axis maximum moving speed | 80m/min |
| 8 | Rotating axis chuck Round tube | Round tube φ15-230mm, Square tube 15*15-230*230mm |
| 9 | Rotating axis length | 6M |
| 10 | Chuck Type | Fully pneumatic self-centering chuck |
| 11 | W axis rotation angle | Unlimited n*360 |
| 12 | W axis maximum speed | 60 rpm |
| 13 | WY axis maximum moving speed | 50m/min |

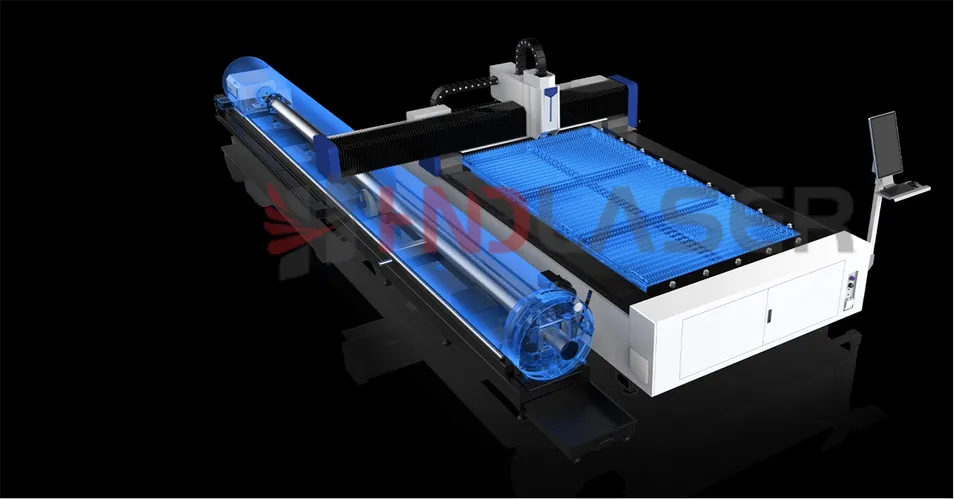

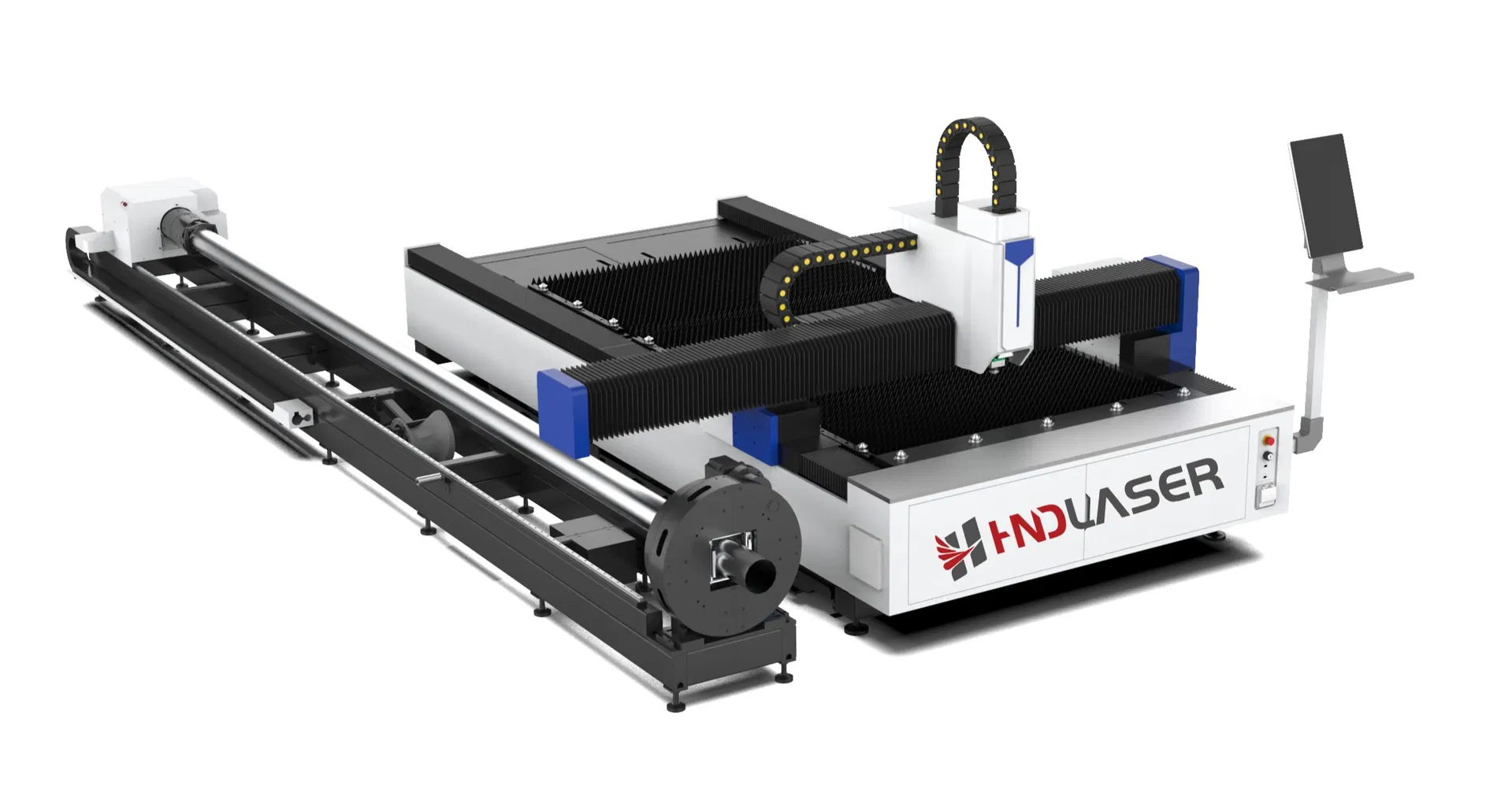

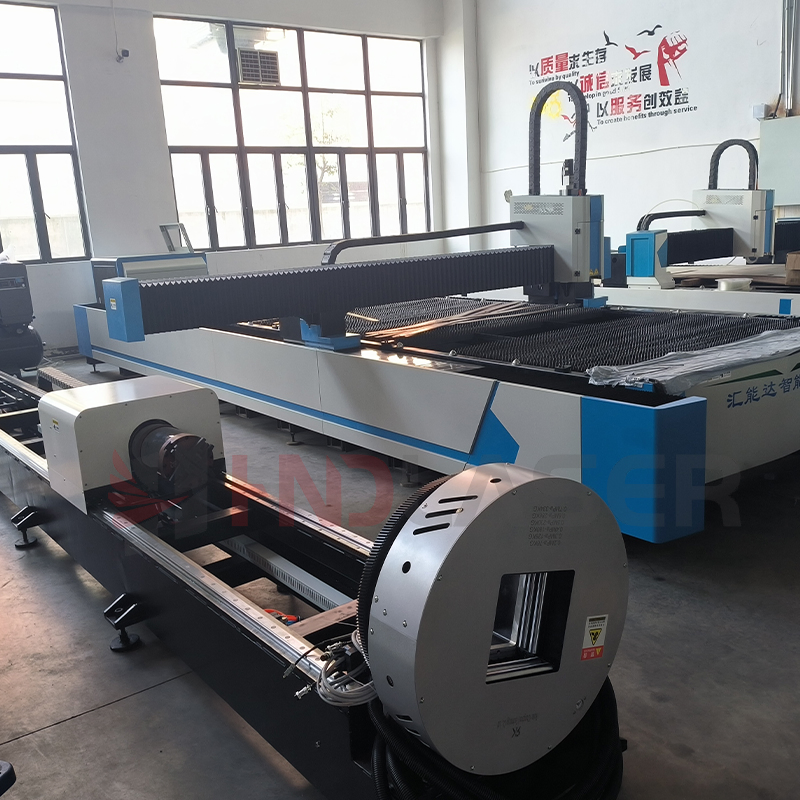

Fully enclosed protection design prevents laser from harming personnel; integrated plate and tube design, dual-purpose machine, can meet more cutting conditions, with high cost performance.

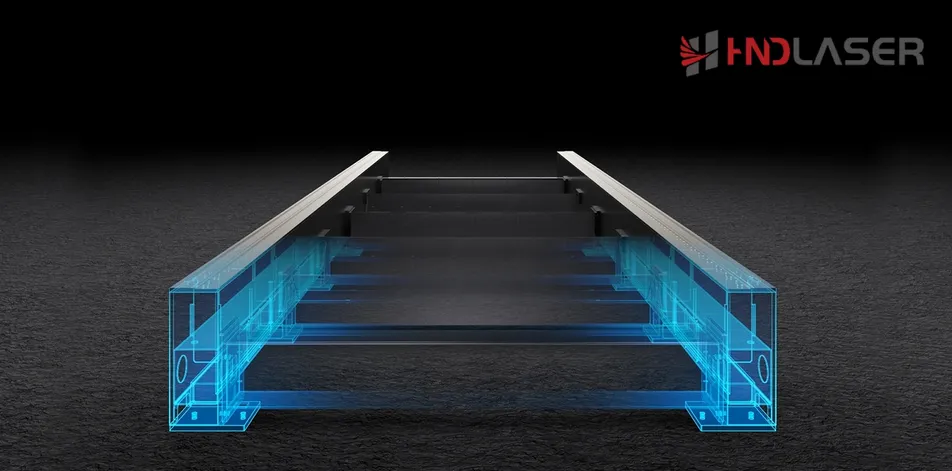

In response to the needs of efficient processing, the self-developed plug-in double keel design will not deform during long-term cutting, ensuring stable operation of the equipment.

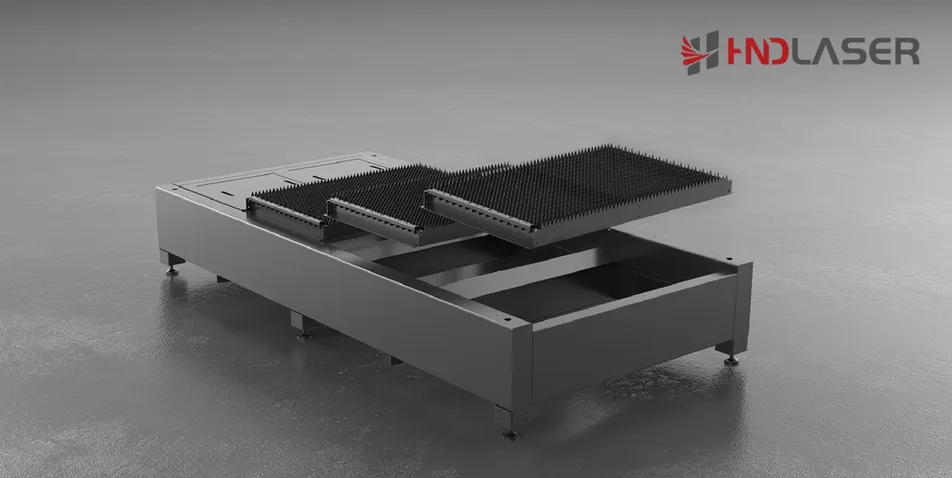

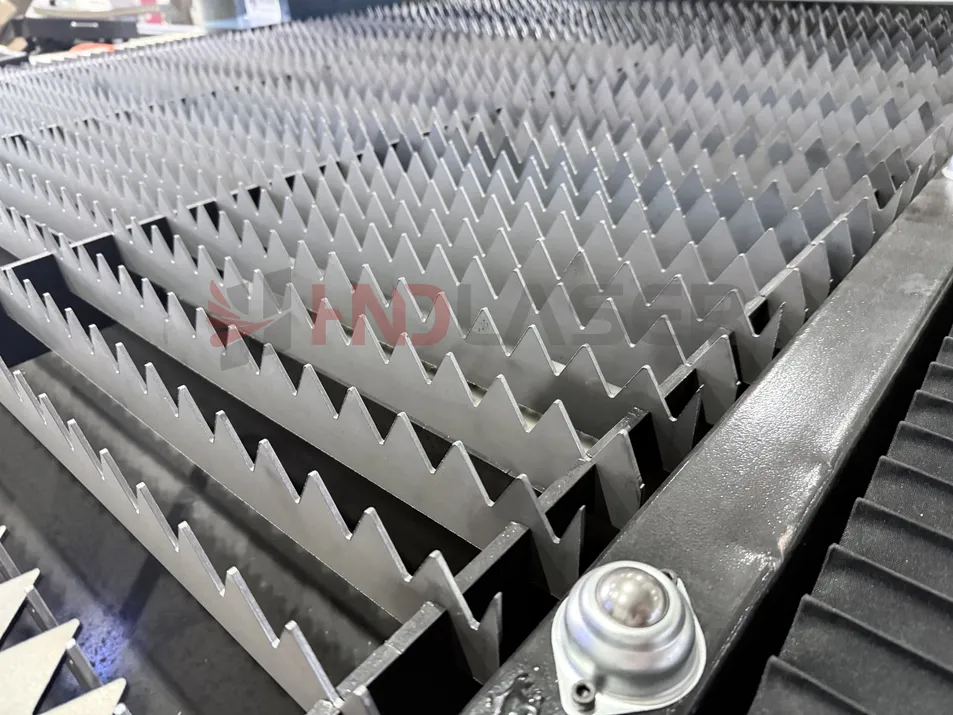

The workbench is of assembled modular design, with a stable table structure, strong load-bearing capacity, and easy disassembly, replacement and maintenance.
One-touch clamping, automatic centering; pneumatic clamping, adjustable clamping force; can cut angle steel and channel steel.

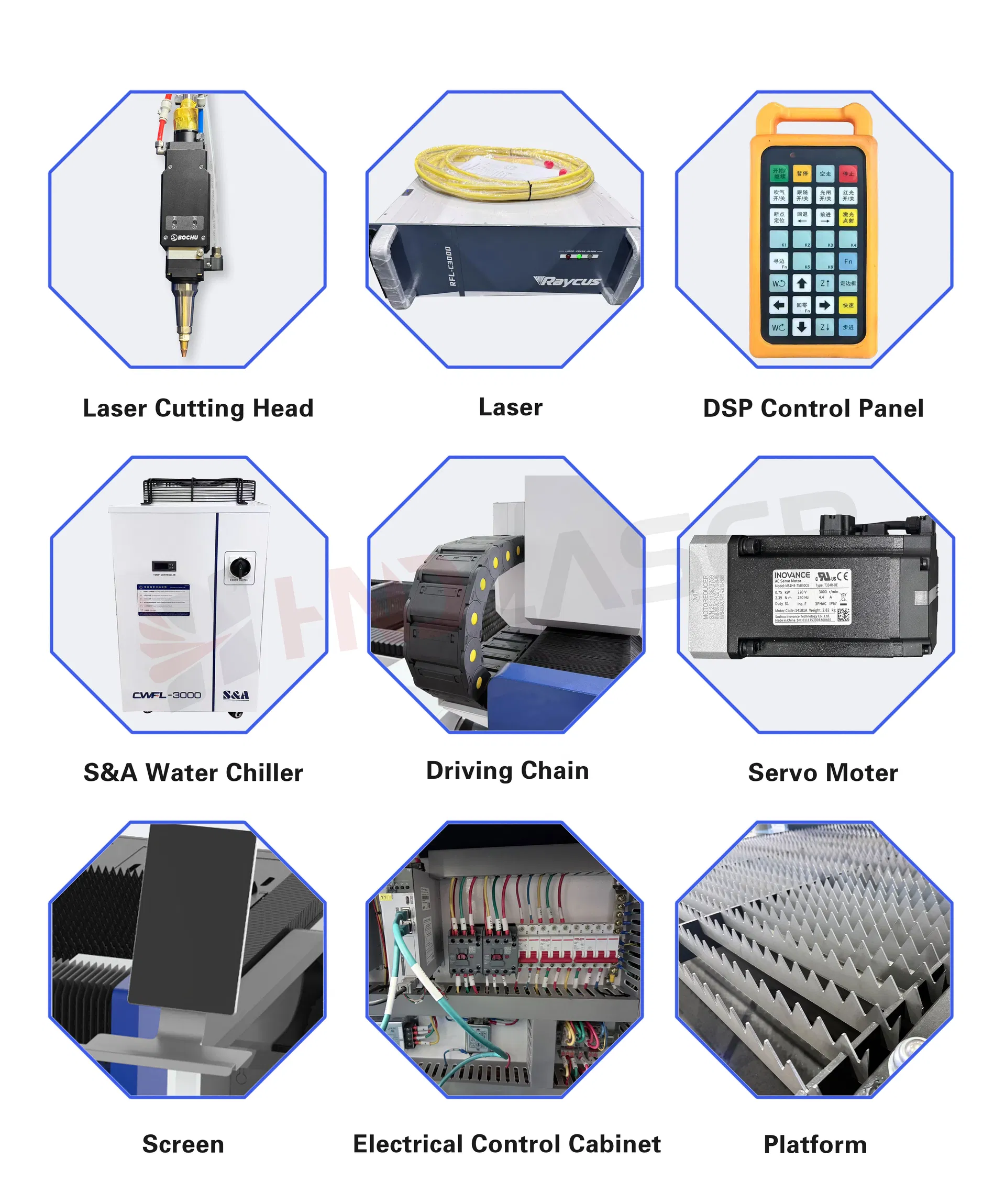

Since the laser beam is invisible, a red light pointer is used to enable accurate beam path pre-view and precise positioning before cutting.
Simulates the laser cutting path in advance to verify the cutting trajectory, ensuring accurate starting position and reducing material waste.
Automatically adjusts the focus between the laser head and the metal sheet in real time, ensuring consistent cutting accuracy and superior cut quality.
All optical components, including mirrors and lenses, are cooled by a water circulation system that effectively dissipates heat during operation. This extends component lifespan and reduces long-term maintenance costs.
Because the laser beam is invisible, the integrated red light pointer visually indicates the exact beam position, significantly improving cutting precision and alignment.
With a single press, the automatic lubrication system oils the machine's transmission components, providing maintenance-free operation for 2–3 months.
Sheet Metal Laser Cutting

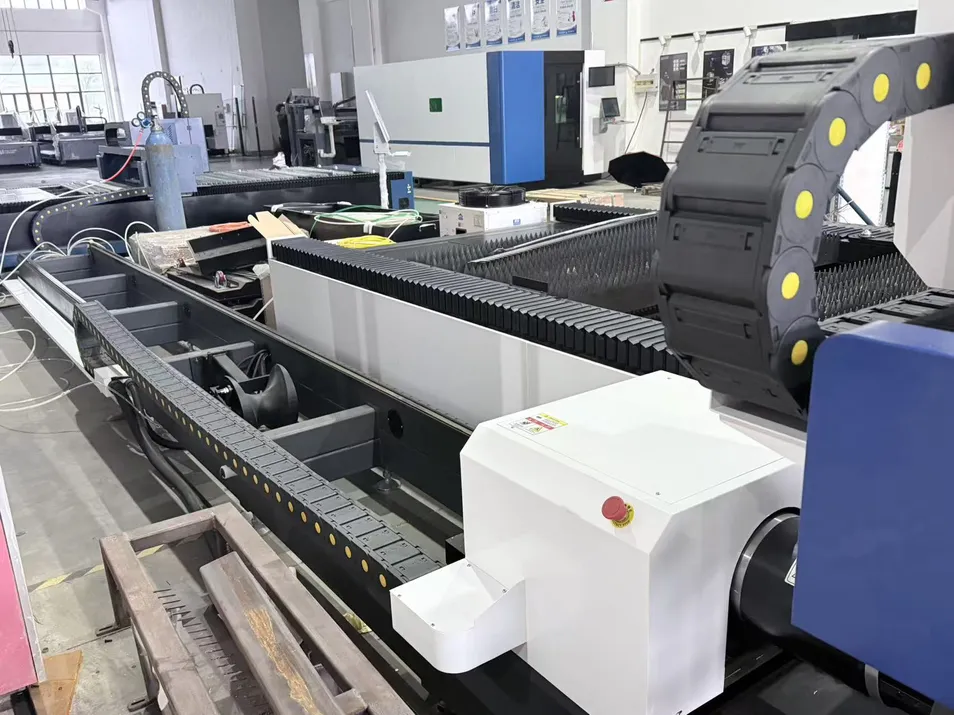

Tube Pipe Laser Cutting

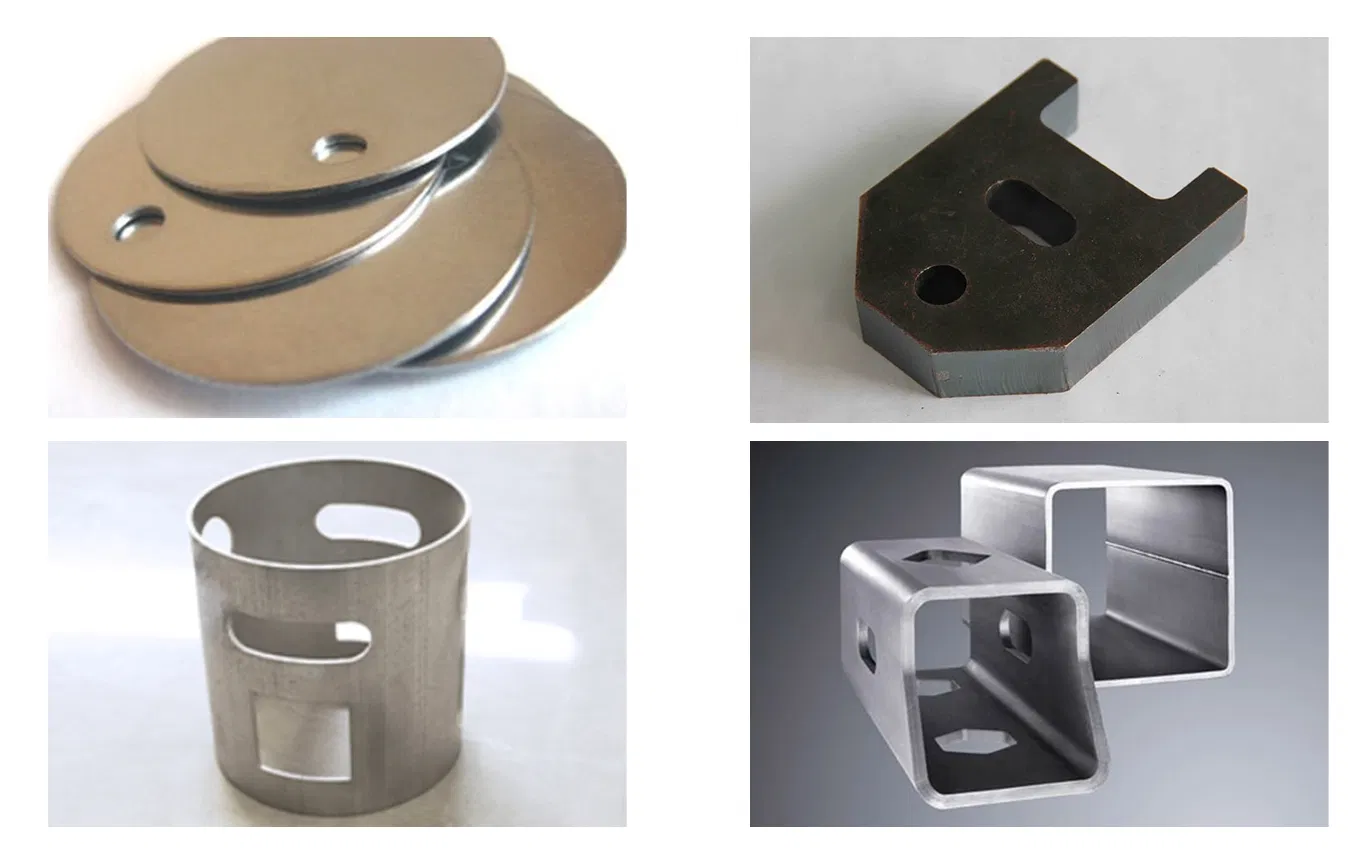

The machine excels across a wide range of industries, including metal fabrication, electronics, electrical appliances, agricultural machinery, metal parts manufacturing, and furniture production. It handles a broad spectrum of materials—including carbon steel, stainless steel, iron, aluminum, brass, copper, mild steel, and galvanized steel tubes—making it suitable for both sheet metal and tubular material processing.

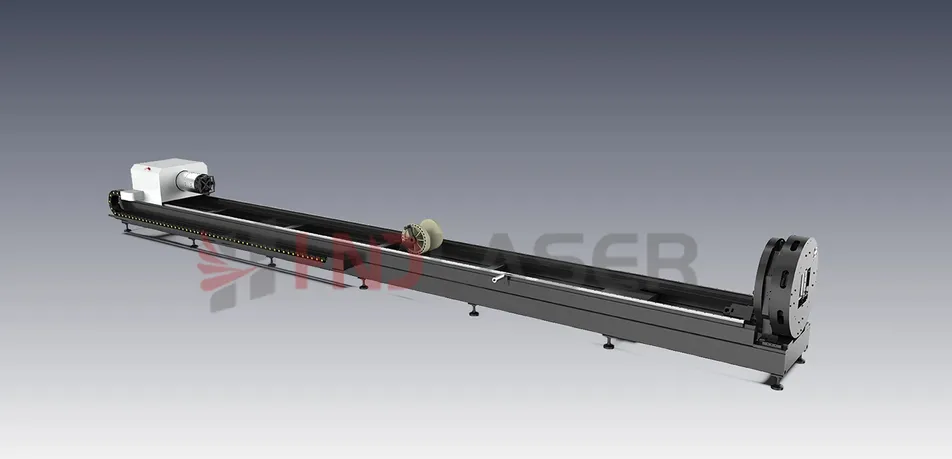

The rotary axis supports a maximum cutting length of 6000 mm. It features an automatic pneumatic clamping system on both sides, enabling self-centering adjustment. The diagonal adjustable range is 20–230 mm. Equipped with an intelligent tube support design, it effectively prevents deformation during long tube cutting processes.
| Material properties | Maximum thickness (mm) | Quality cutting thickness (mm) |
|---|---|---|
| Carbon steel | 20 | 16 |
| Stainless steel | 12 | 8 |
| Aluminum | 10 | 6 |
| Brass | 6 | 4 |
