(Can be customized to your needs)

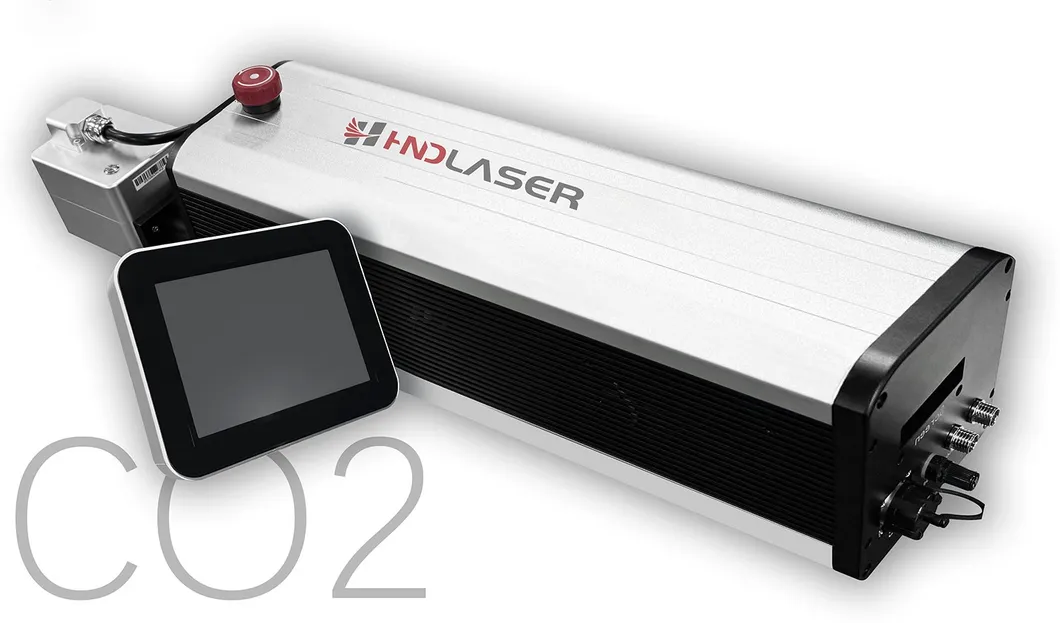

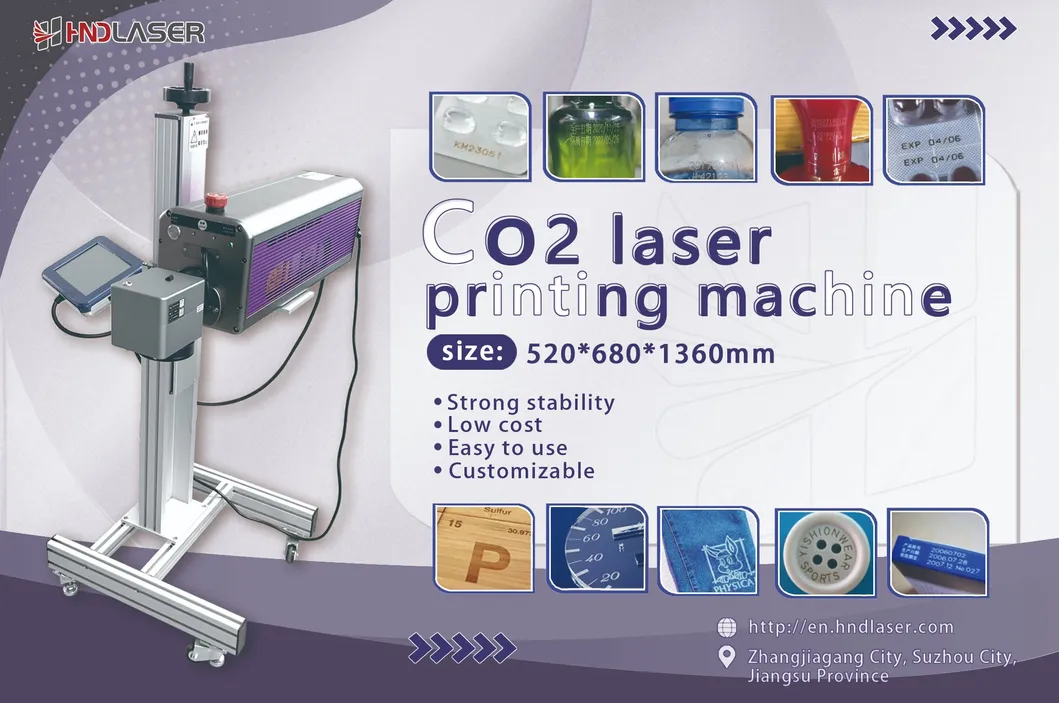

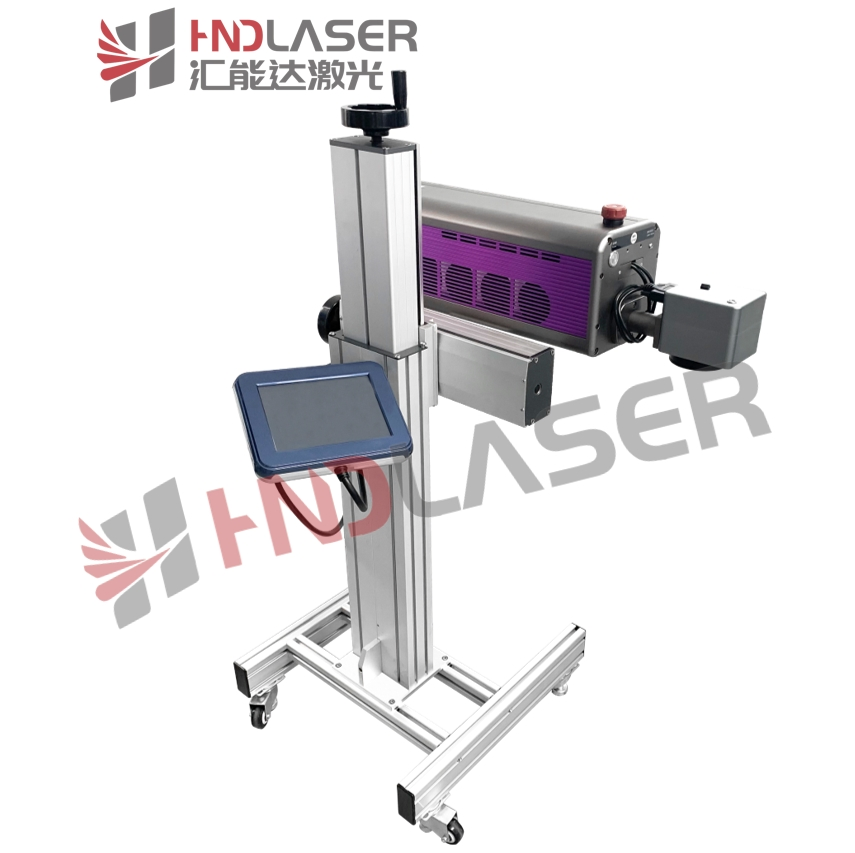

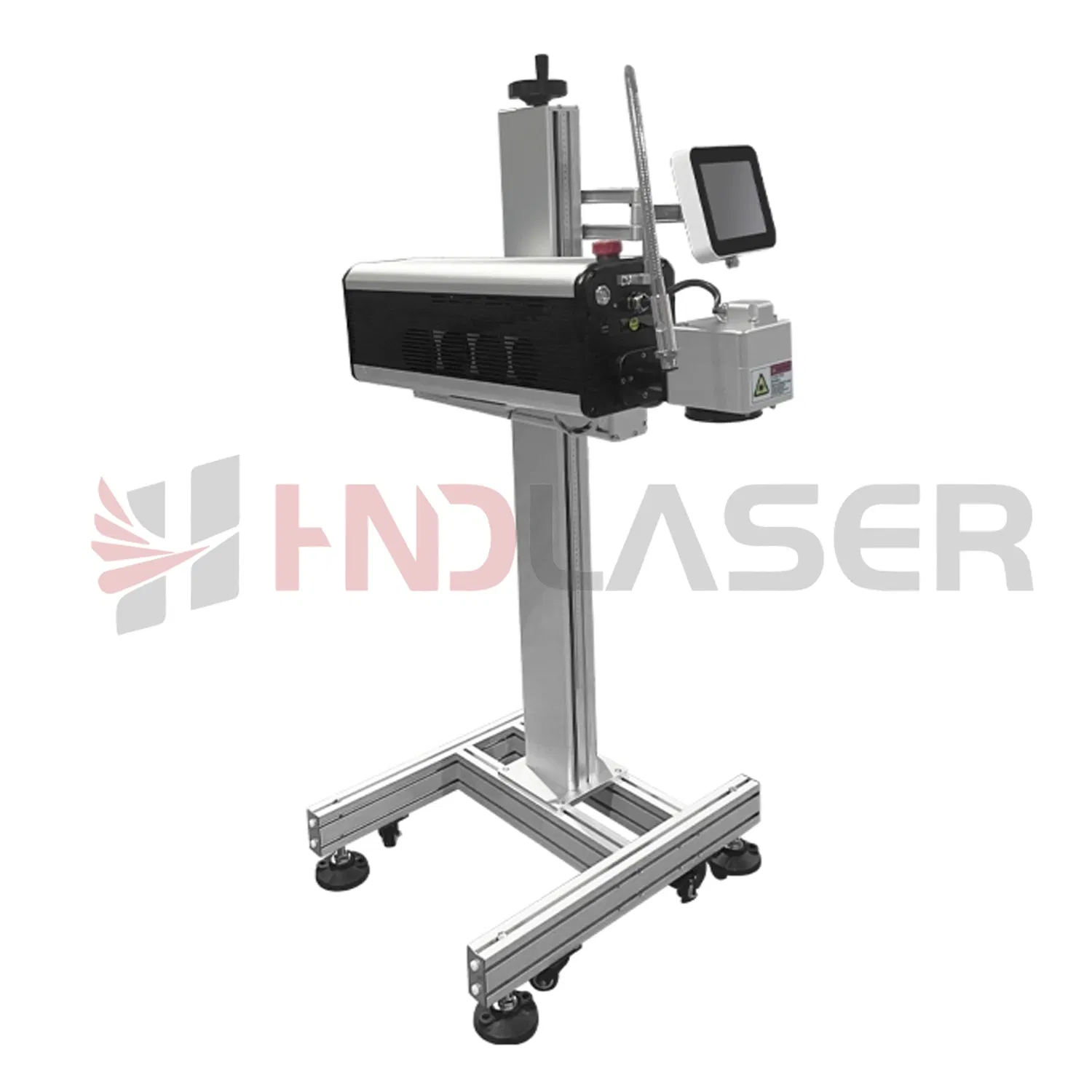

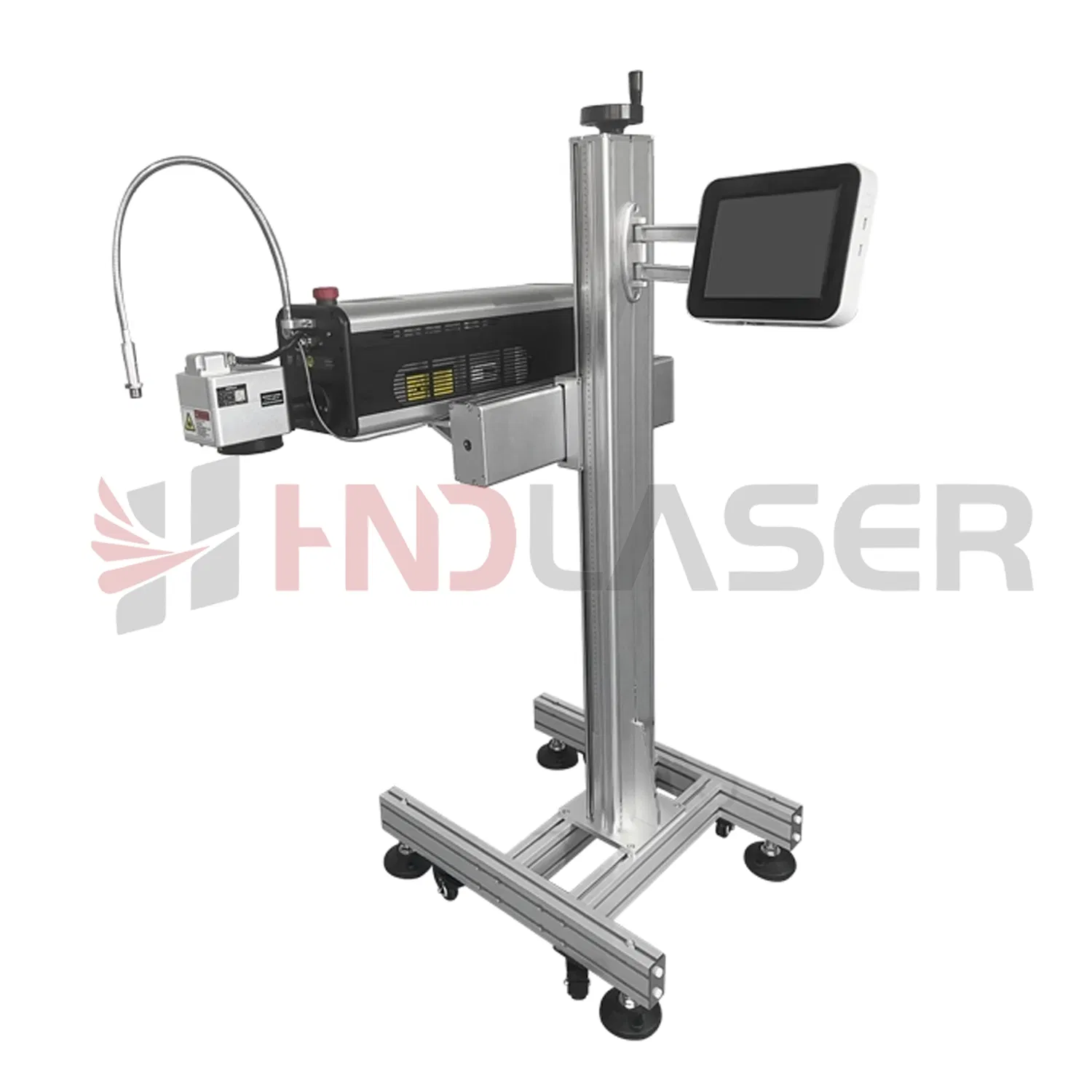

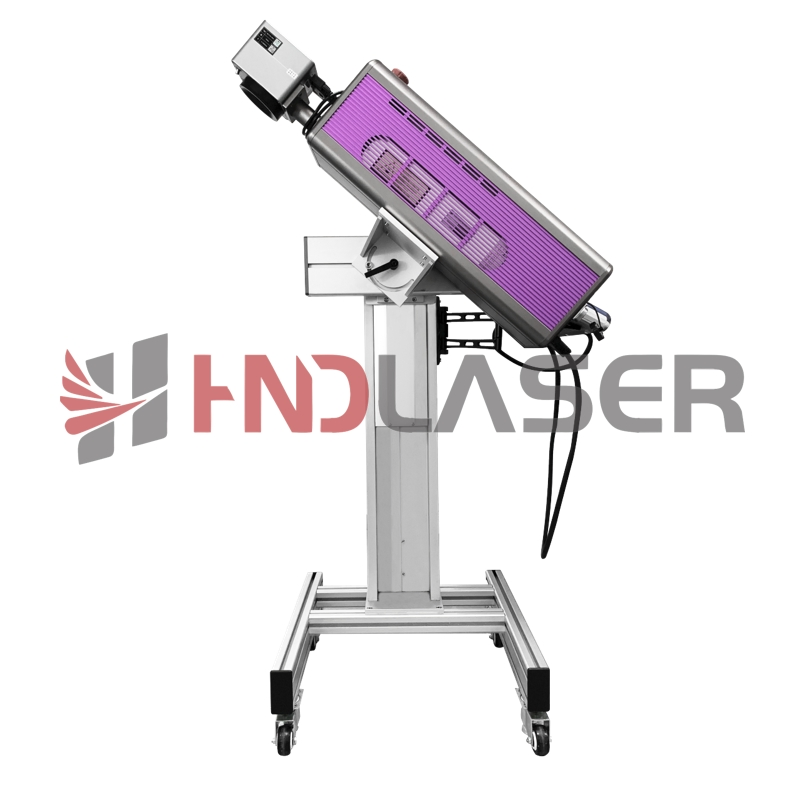

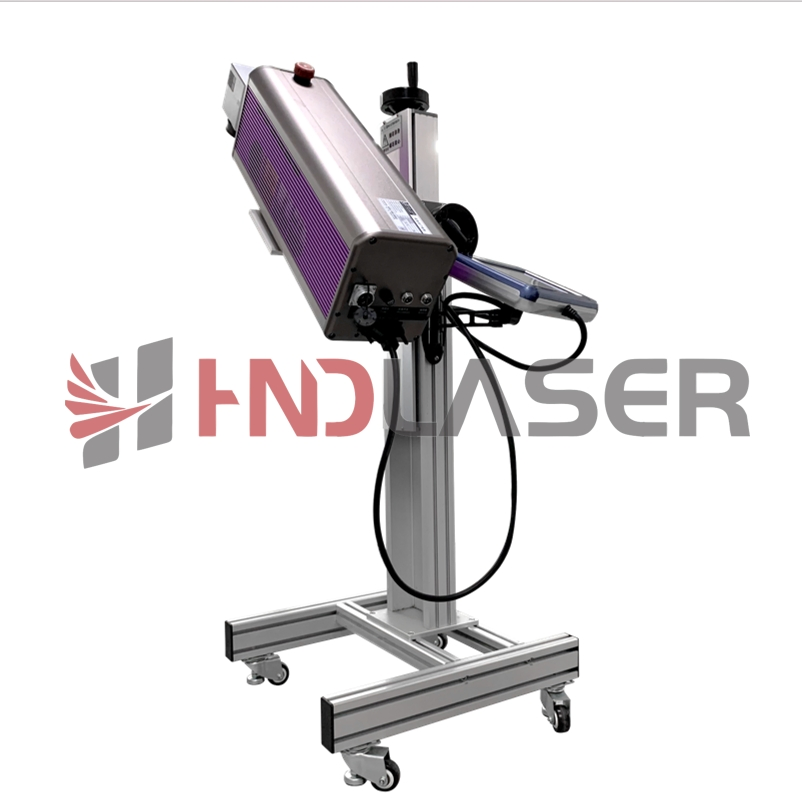

Upgrading a static laser marking machine to a flying marking machine (Laser coding machine) does place higher demands on the equipment. This upgrade not only needs to consider the durability and reliability of the equipment, but also needs to ensure that it can work stably under various environmental conditions.
All these test the supplier's design and manufacturing level. Only suppliers with strong technical strength and rich experience can provide reliable flying laser marking solutions.
Empower your creativity and productivity by configuring your own computers. Select high-performance PCs or laptops to perfectly match and optimize the laser equipment performance to suit your specific requirements.
With a cutting-edge 3D galvanometer, enjoy enhanced computing capabilities powered by advanced CPUs and GPUs. This ensures efficient management of intricate 3D graphics and models, delivering superior marking quality.
| NO. | Project | Parameter |
|---|---|---|
| 1 | Model number | HC20XX-B |
| 2 | Laser power | 40W/50W/60W/100W (optional) |
| 3 | Laser level | Class IV (IEC 60825-1) |
| 4 | Laser type | Sealed CO2 laser (RF tube) |
| 5 | Wavelength | 10.6/10.2/9.3μm |
| 6 | Marking field | 110*110mm-300*300mm (optional) |
| 7 | Marking depth | >0.4mm |
| 8 | Marking speed | ≤10000mm/s(optional) |
| 9 | Marking line width | >0.4mm |
| 10 | Min character size | 0.5mm |
| 11 | Repeat accuracy | 0.01mm |
| 12 | Cooling method | Air-cooled |
| 13 | Laser source expected life | >50,000 hours |
| 14 | Standard user interface | PC/Laptop |
| 15 | Consumables | No |
| 16 | Temperature | 0-45ºC |
| 17 | Power consumption | 700 W |
| 18 | Electrical requirement | L/N/PE 100 - 240 VAC, 50/60 Hz |
Compact yet powerful, specifically tailored for offices and studios. Seamlessly handles diverse small-batch and custom marking tasks with ease.
Maximizes space and cost-effectiveness. Swiftly adapts to various marking demands, supporting agile production and rapid prototyping.
A crucial tool in research and education, facilitating lab projects, student experiments, demonstrations, and training courses.

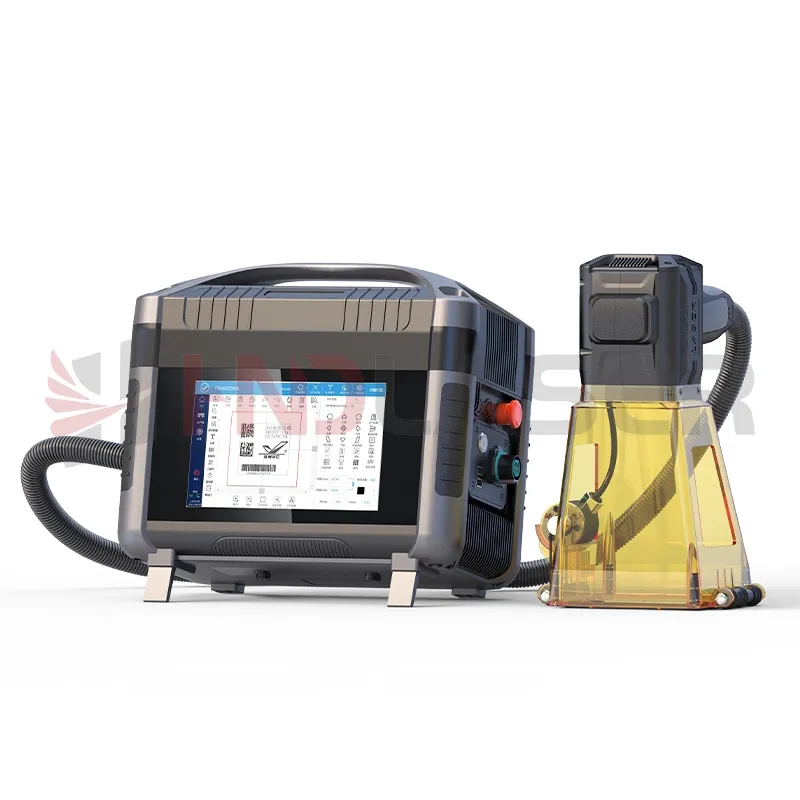

Compatible with mobile power solutions, perfect for in-field tasks from pickup trucks, vans, and remote sites.

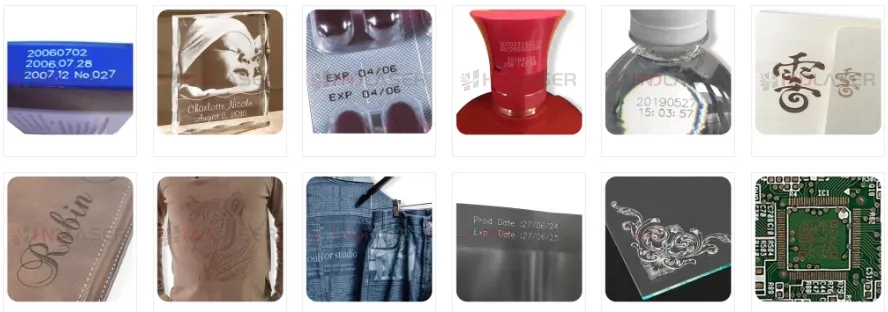

| Materials Group | Specific Material | Reaction | Materials Group | Specific Material | Reaction |
|---|---|---|---|---|---|
| Metal | Stainless steel | - | Plastic | PE | √ |
| Aluminum | - | PP | √ | ||
| Anodized aluminum | √ | PVC | √√ | ||
| Brass | - | PPR | √ | ||
| Coated metal | √ | ABS | √ | ||
| Copper | - | PET | √√ | ||
| Gold, silver, nickel, platinum | - | Nylon | √ | ||
| Carbon steel | - | MPP | √ | ||
| Titanium | - | PC | √ | ||
| Ceramics | Ceramic | √ | Films & Foils | Aluminized foil | √√ |
| Rubber | Natural rubber | √√ | Polyethylene terephthalate (PET) | √√ | |
| Synthetic rubber | √√ | Oriented polypropylene (OPP) | √√ |
√√ Exceptional Reaction √ Admirable Reaction - Unsatisfactory Reaction
Proudly certified by a renowned third-party organization, our machines are backed by a dependable warranty service. Should you need any assistance or support, our dedicated team is always at your beck and call.
During the warranty period, if any major parts (excluding consumables) develop issues, they will be replaced or repaired at no additional cost.
We accept a variety of payment methods including TT, Western Union, Paypal, LC, and Cash, among others.
Certainly, we supply the original documents. Following shipment, you will receive the CE document, packing list, commercial invoice, and sales contract for an effortless customs clearance process.
We offer a comprehensive user manual, enriched with illustrations and a USB disk for step-by-step learning. Furthermore, any machine updates will be provided monthly for your continued convenience.
You are welcome to send us a sample, which we will test for you at no charge.
Our expert team will respond to your inquiry within an impressive 12-hour window.
