Laser marking machine is a type of marking machine that uses a laser beam to mark various surfaces of different materials. The effect of marking is to expose deep substances through the evaporation of surface materials, thereby engraving exquisite patterns, trademarks, and text.

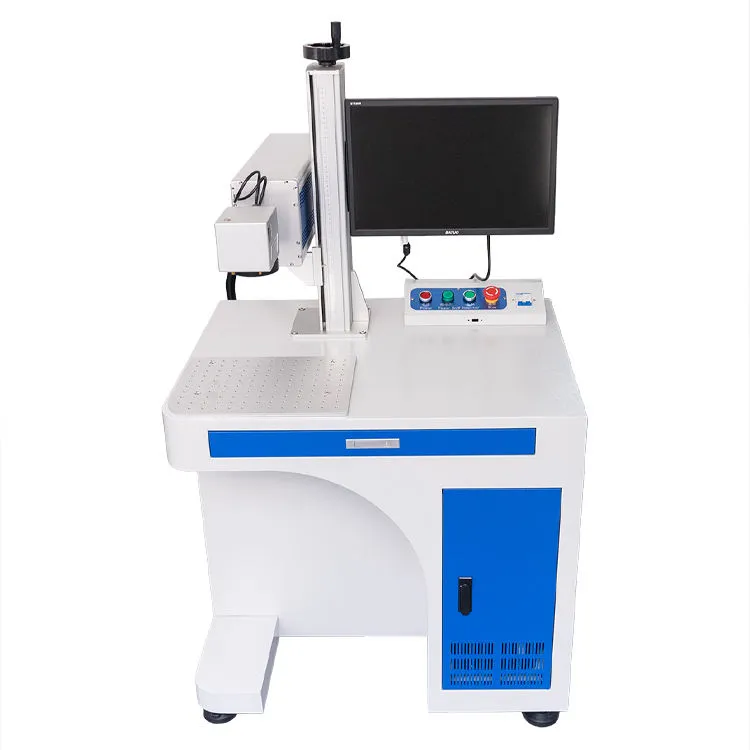

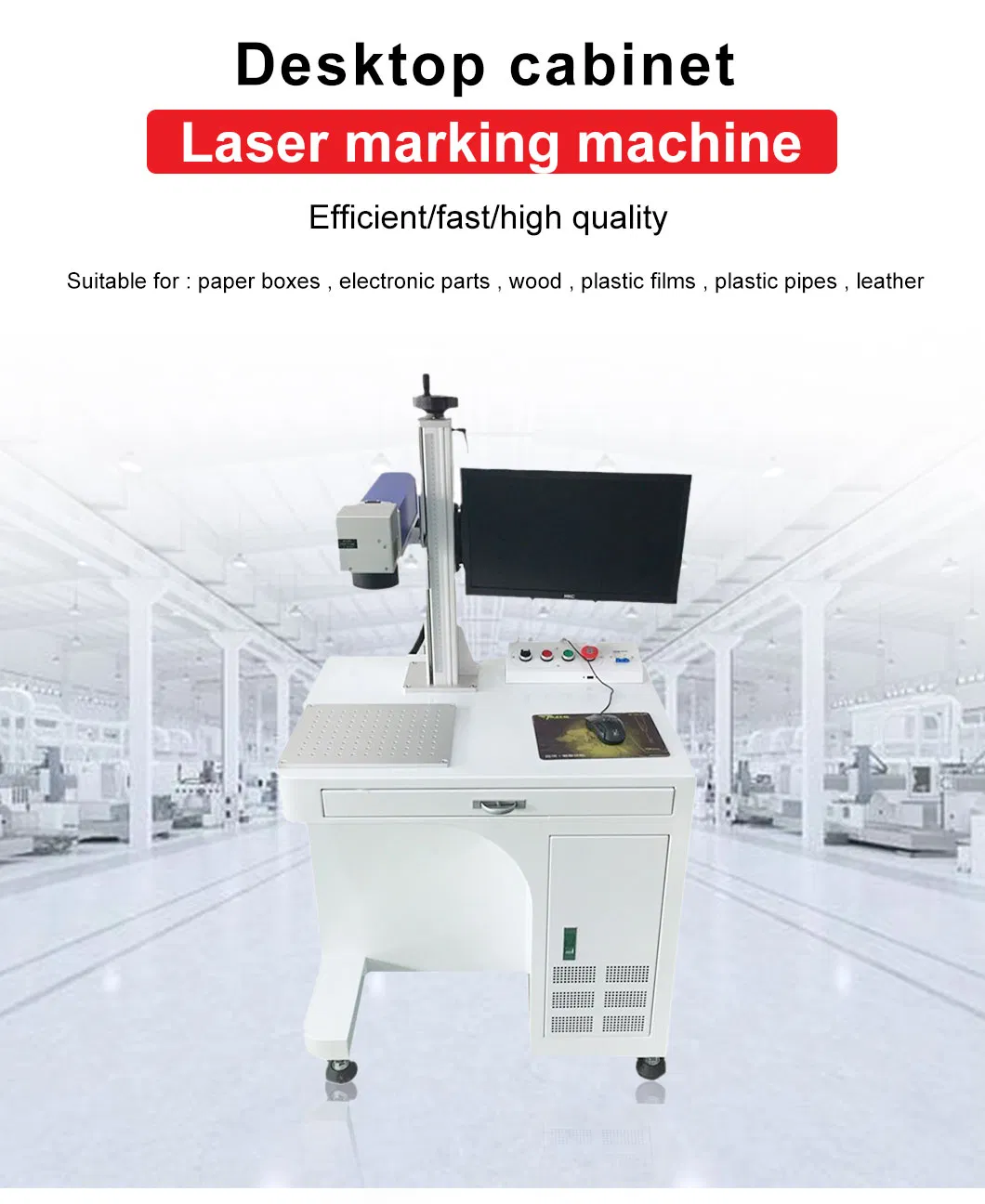

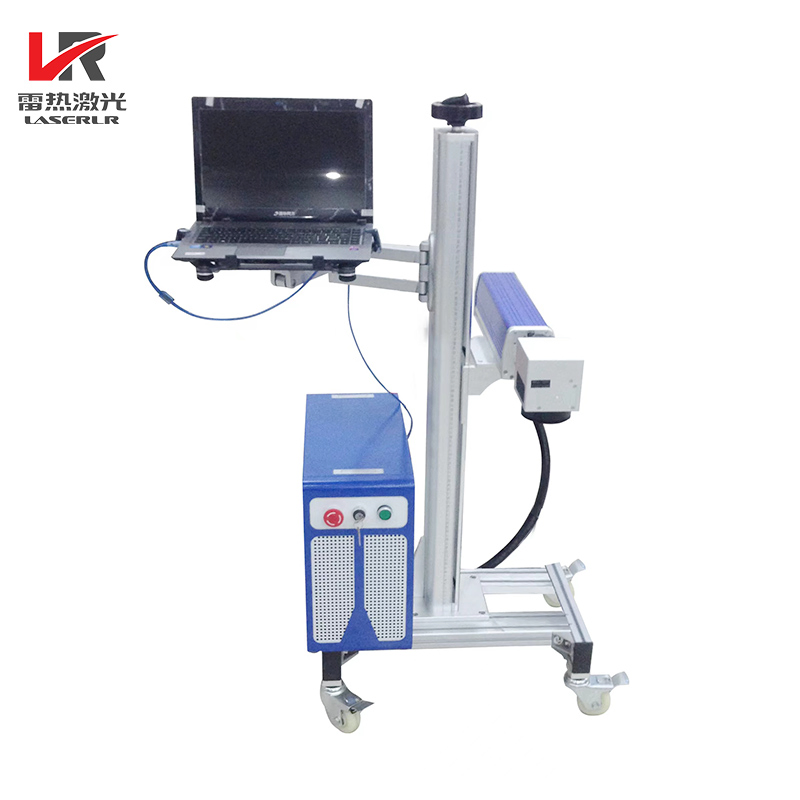

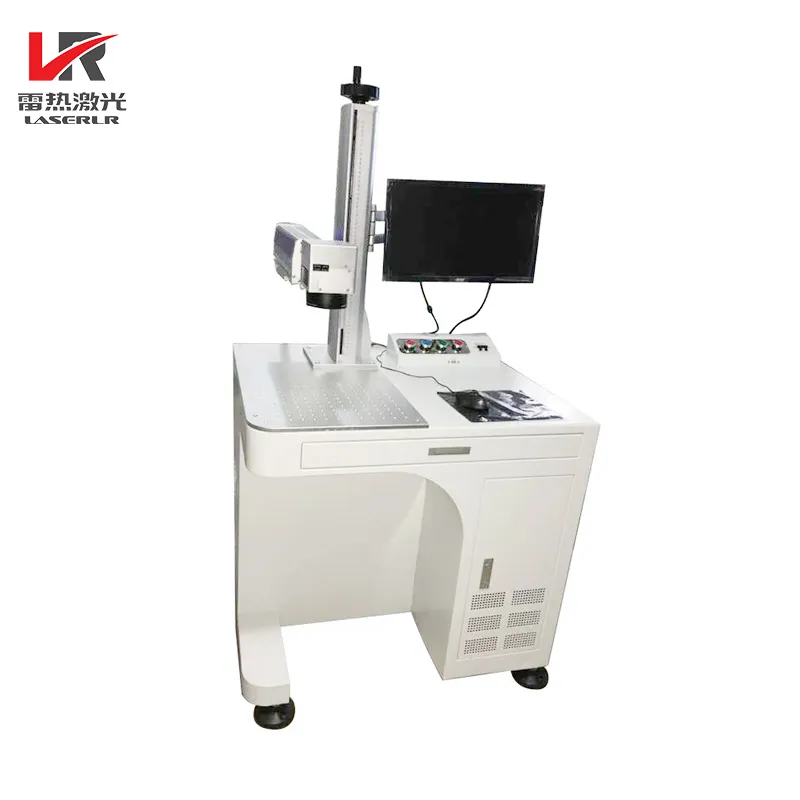

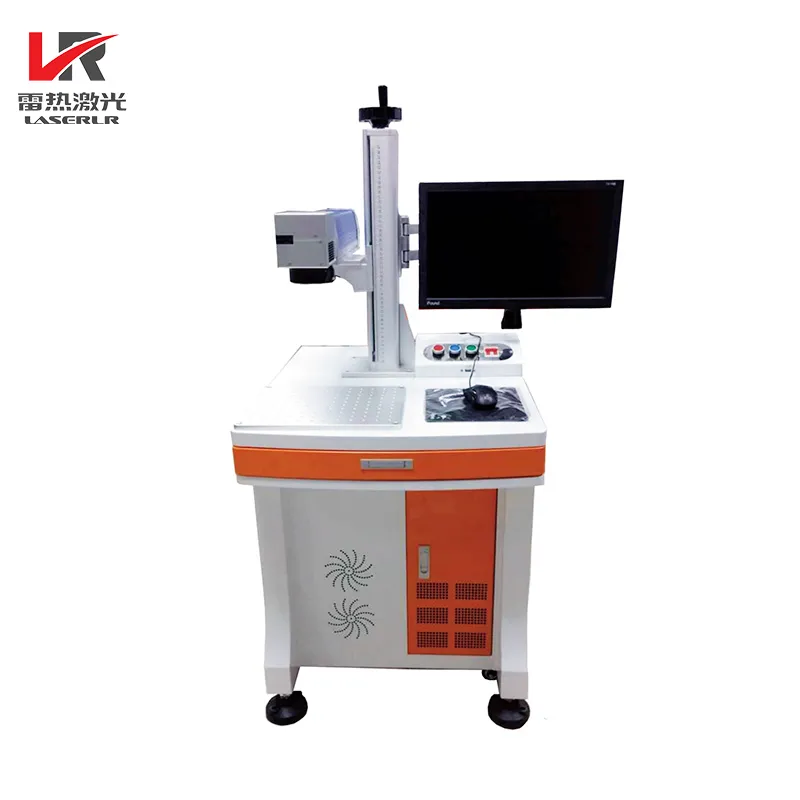

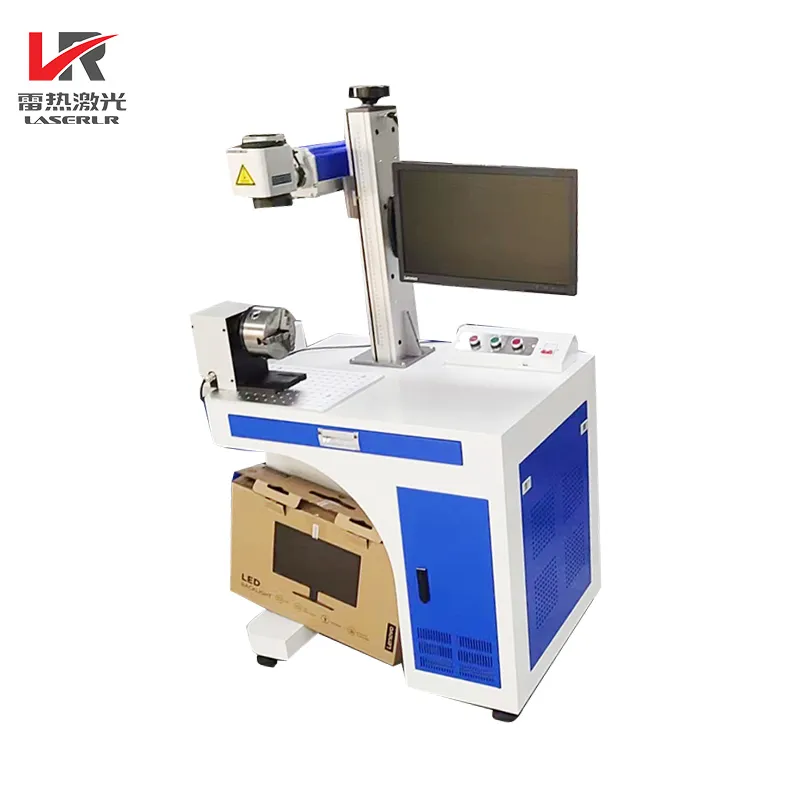

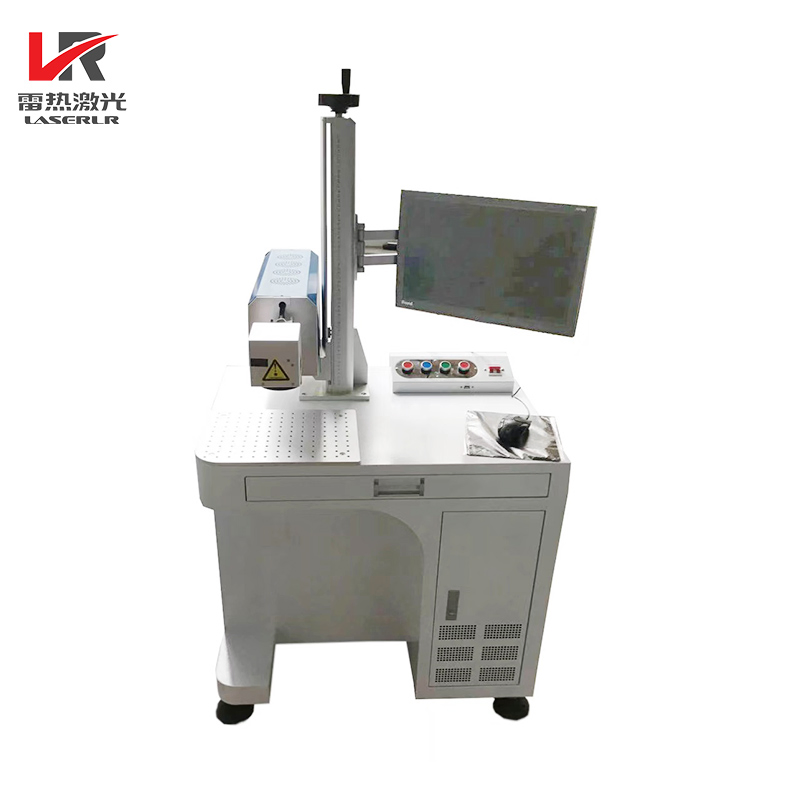

Fiber laser marking machine is a marking equipment used for marking on metal and partially non-metal surfaces, widely used in fields that require high levels of precision, smoothness, and accuracy (electronic components, integrated circuits, electrical appliances, mobile communication, hardware products, tool accessories, precision instruments, glasses, clocks, jewelry, automotive parts, building materials, PVC pipes, etc.)
| Power | 20W,30W,50W,60W |
| Wave length | 1064m |
| Beam Quality | M2<1.3 |
| Output Power | 10%-100% |
| Output Frequency | 20KHz-100KHz |
| Power Stability(8h) | <±1%rms |
| Focus Spot Diameter | <0.01mm |
| Engraving Depth | 0.5mm~2.5mm |
| Engraving Speed | 7000mm/second |
| Minimum Line Width | 0.12mm |
| Minimum Character | 0.1mm |
| Repeated Accuracy | ±0.003 |
| Cooling Model | Air Cooling |
| Environment Temperature | 10°C~35°C |
| Environment Humidity | 20%-80% |
| Power Requirement | 220V/Single Phase/50Hz<4A |
| Life of Laser Module | 100000Hrs |
| Host Size | 800mmx600mmx1400mm |

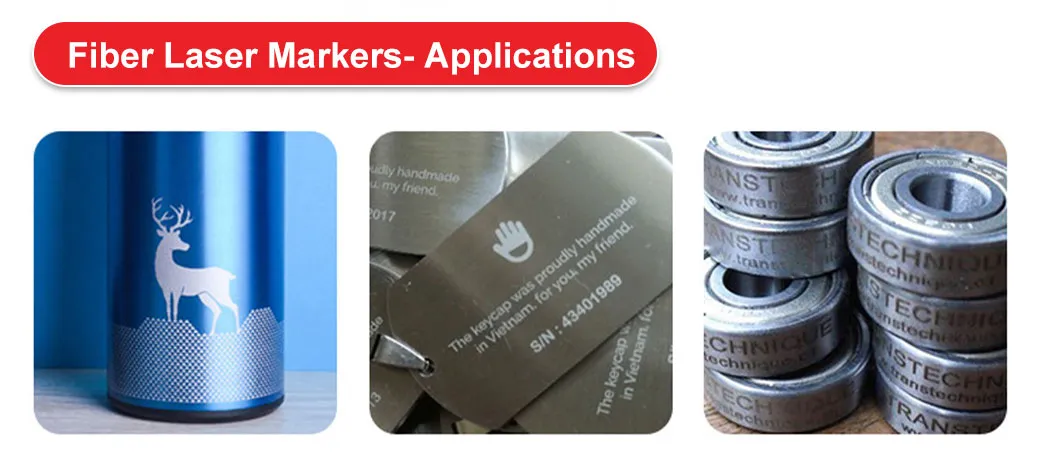

Fiber laser suitable materials:
Metal: Stainless steel, carbon steel, aluminum oxide, aluminum alloy, aluminum, copper, iron gold, silver, hard alloy and other metal materials can all be surface engraved. Plastic: hard plastic, PVC material, etc.
Industry: nameplates, hardware/plastic accessories, jewelry, metal spray painted plastic coated glazed ceramics, purple clay teapots, painted paper boxes, melamine wood boards, mirror paint layers, graphene, chip lettering, cans, milk powder buckets, etc.

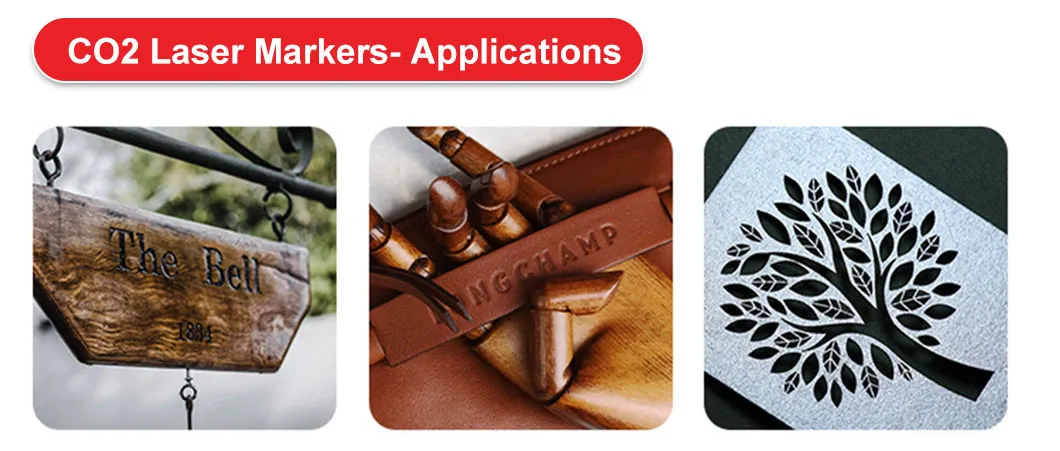

CO2 Laser suitable materials:
Non metallic materials: wood, bamboo, cork, paper, plastic materials such as PE/ABS/PVC, leather, rubber, acrylic, fabric, etc.
Industry: Gift box packaging, yoga mats, handicrafts, furniture, board, wood, leather processing.
Materials suitable for UV laser:
Glass: Surface and internal carving of glass and crystal products. Widely applicable to surfaces of plastics, wood, leather, acrylic, nano metals, fabrics, ceramics, purple clay, and coated films (subject to actual effect)
Industry: Mobile phone screens, LCD screens, optical components, automotive glass, hardware, glasses and watches, PVC, precision electronics, instruments, PCB boards and control panels, nameplates, etc., suitable for surface treatment such as marking and engraving of high flame retardant materials.
