Kinray Laser
1 / 5
| Model NO. | LM-30 |
| Laser Visibility | Visible |
| Applicable Material | Metal |
| Cooling System | Air Cooling |
| Technical Class | Continuous Wave Laser |
| Laser Wavelength | Fiber Laser |
| Laser Classification | Solid Laser |

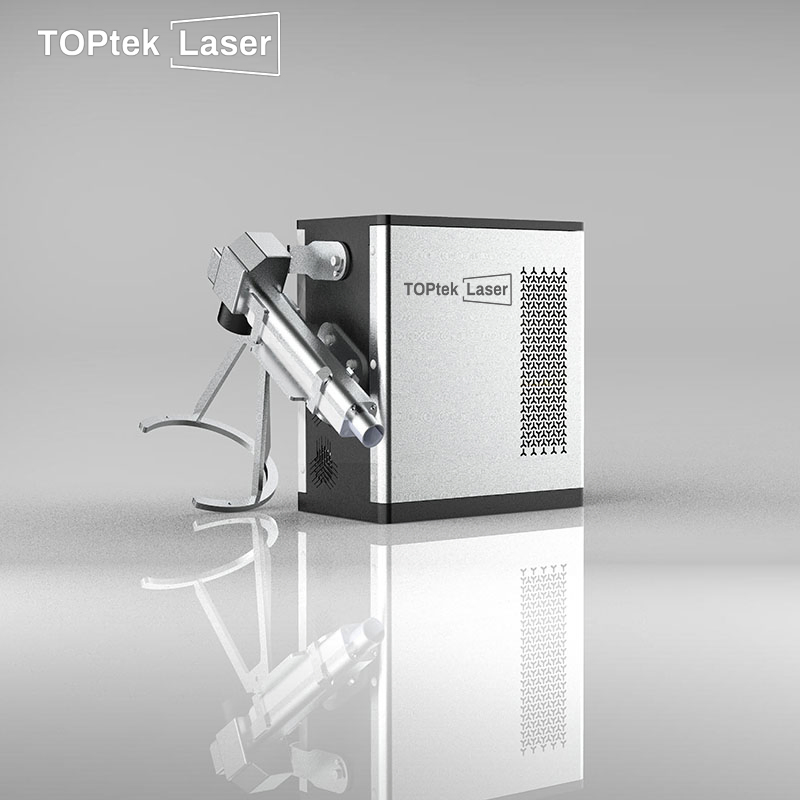

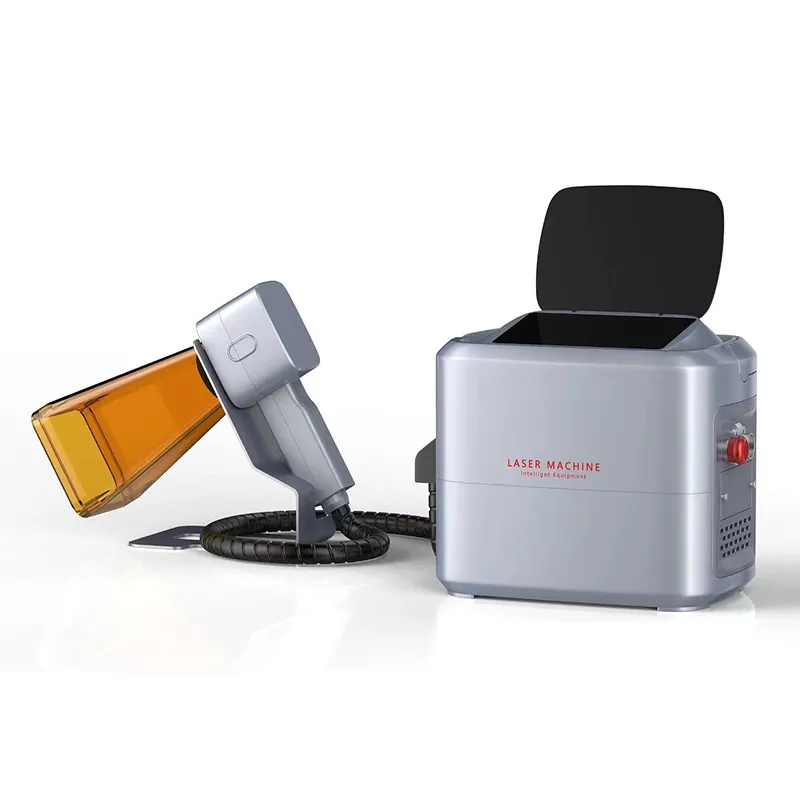

| Type | Optical Fiber Laser Marking Machine |
| Marking Method | Scanning Marking |
| Model | Lm-20/Lm-30/Lm-50 |
| Laser Source Power | 20/30/50/100W |
| Laser Wave Length | 1064nm |
| Impulse | 20kHz-100kHz |
| Marking Size | 100mm*100mm |
| Min.Line Width | 0.001mm |
| Repeat Precision | ±0.001mm |
| Total Power | ≤500W |
| Marking Depth | ≤0.2mm |
| Voltage | AC*220V/50Hz |
| Control System | Windows |

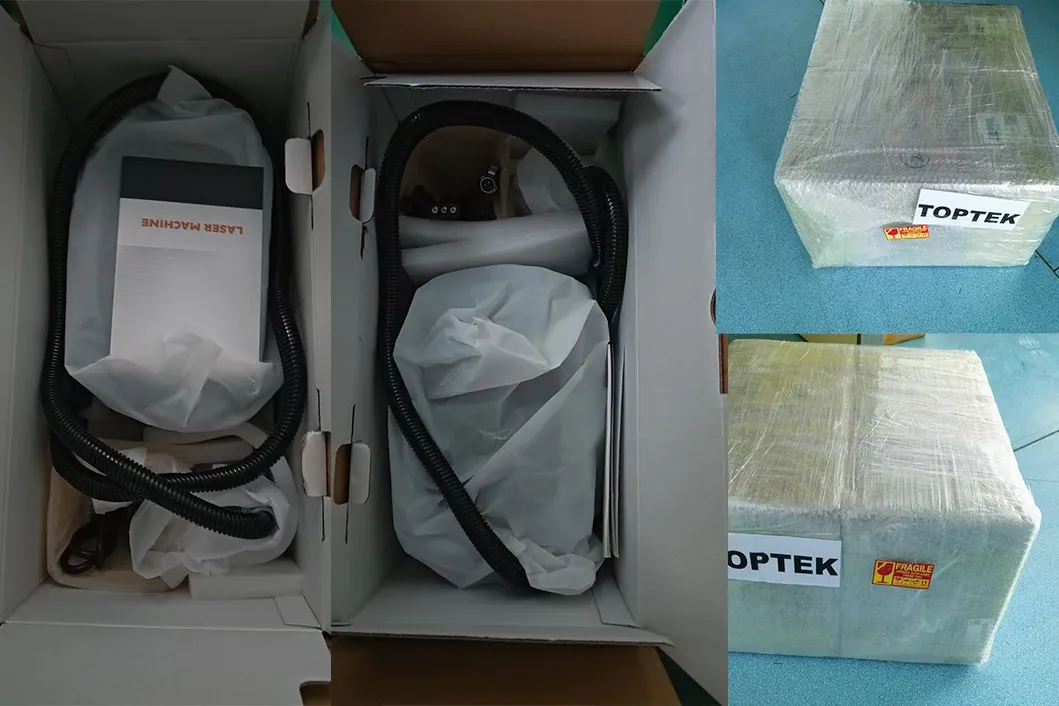

| Transport Package | Wooden Box |
| Specification | 300*220*380 |
| Origin | China |
| HS Code | 845611 |
| Production Capacity | 100/Week/PC |
| Package Size | 60.00cm * 35.00cm * 60.00cm |
| Package Gross Weight | 60.000kg |

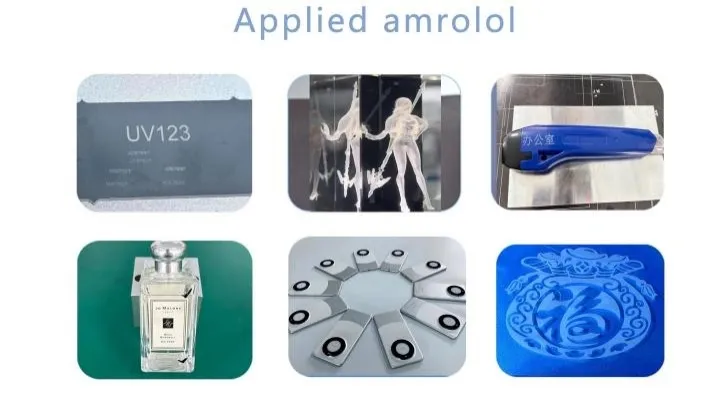

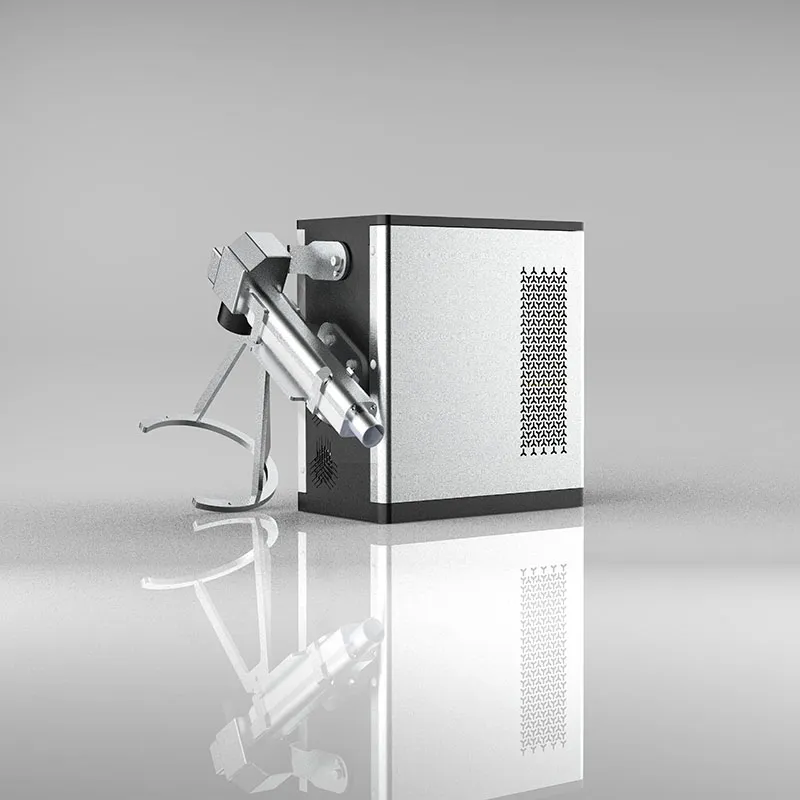

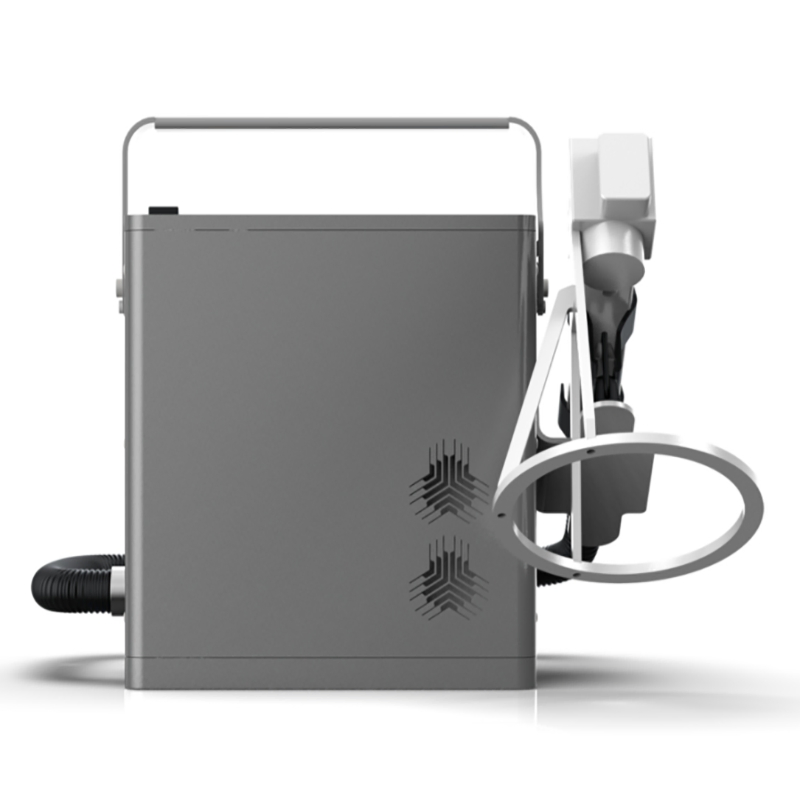

The fiber laser is specially used for marking, deep engraving, cutting stainless steel, carbon steel, gold, silver, copper, galvanized sheet and other metallic materials. Some non-metallic materials such as ABS, PVC, and other hard plastics can also be marked on the surface.
| Laser Marking Machine Technical Specifications | |
|---|---|
| Model | LM-20/LM-30/LM-50 |
| Laser source Power | 20/30/50/100W |
| Laser wavelength | 1064nm |
| Impulse | 20KHz-100KHz |
| Marking size | 100mm*100mm |
| Min.line width | 0.001mm |
| Repeat precision | ±0.001mm |
| Total power | ≤500W |
| Marking depth | ≤0.2mm |
| Max.Character | 0.15mm |
| Working speed | ≤7000mm/s |
| Voltage | AC*220V/50HZ |
| Optical system size | 500mm |
| Control system | Windows |
| Cooling system | Air-cooling |
| No. | Spare parts | Brand | Model |
|---|---|---|---|
| 1 | Laser source | Max | PW-20W/30W/50W |
| 2 | Control system | China Beijing BJJCZ | USB card |
| 3 | Optical galvanometer | Sino China | Size:110mm*110mm |
| 4 | F-theta lens | Nanjing Wavelength | SL-1064 |
| 5 | Software | BJJCZ | EzCAD2.0 |
| 6 | Electrics | Made in China | SJ-EC |
| 7 | Optical holder | Made in China | customized |
| 8 | Power | Taiwan Mean Well | RS-15-5V / RS-350-24V |

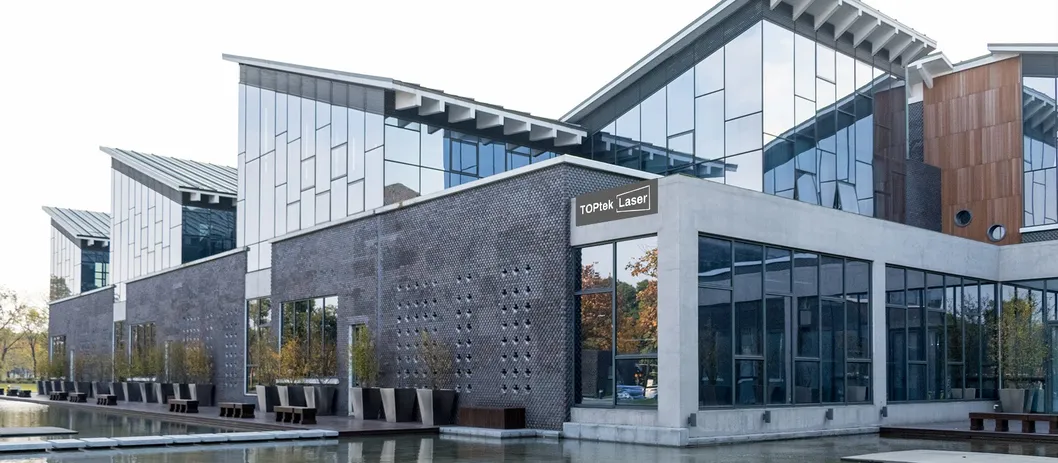

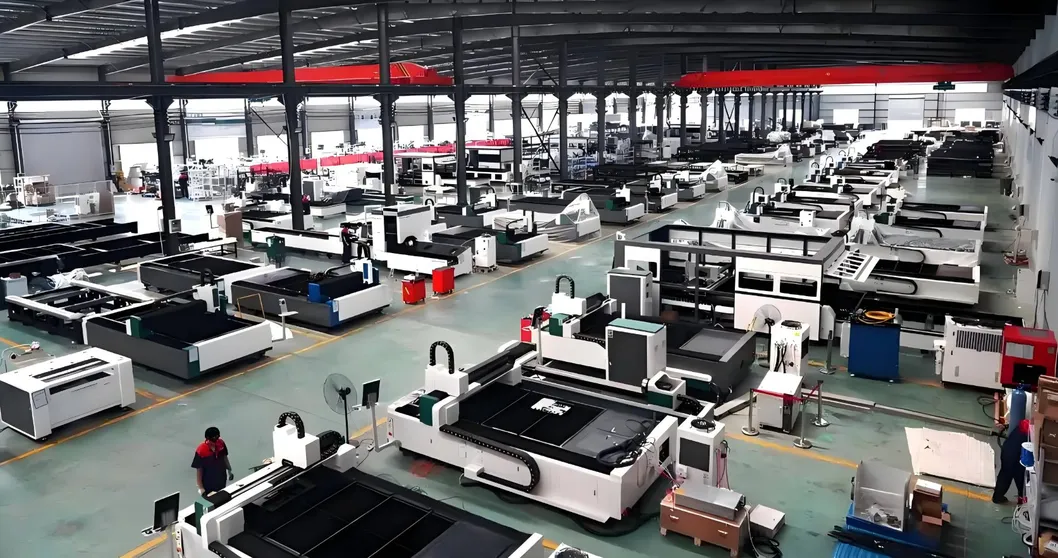

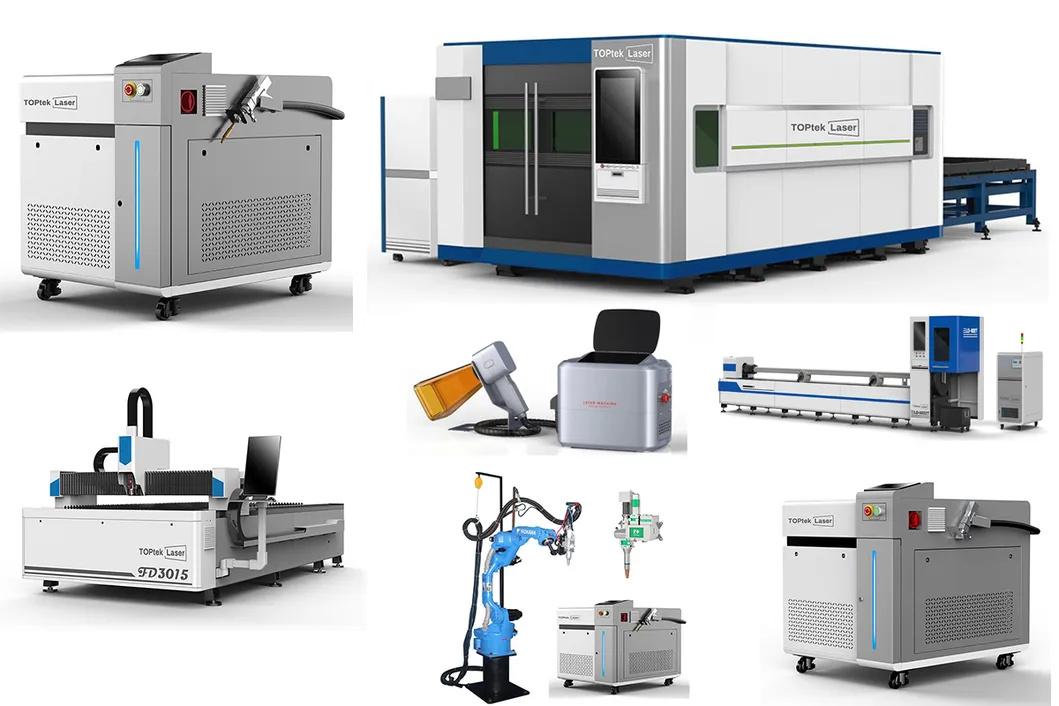

We are an innovative high-tech manufacturer specializing in Intelligent Laser Solutions (Laser automatic production line, Laser welding, Laser cutting, Laser cleaning, 3D Automation welding, Robot Automation station, Laser marking).
Our mission is to provide Reliable Industrial Solutions to make your production smarter, faster and more cost-efficient with minimum human labor required.
After 10+ years of development, we are supporting 10,000+ global partners in customization, marketing, and local service to enhance their international competitiveness.
