Basic Specifications
Model NO.
spilt laser marking machine
Laser Visibility
Invisible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Laser Source
20/30/50/60/100W
Laser Lifetime
>100,000 Hours
Contents
Text, Code, Number, Graphic...
Advantage
All-in -One Design, No Extra Cables
Focus System
Two Red Light with Outline Indication
Marking Scope
100*100-300*300mm/600*600mm(Optional)
Transport Package
Wooden Box
Specification
700*350*500mm
Production Capacity
30000/Y
Packaging & Delivery
Package Size
600.00cm * 500.00cm * 900.00cm
Package Gross Weight
40.000kg
Product Description

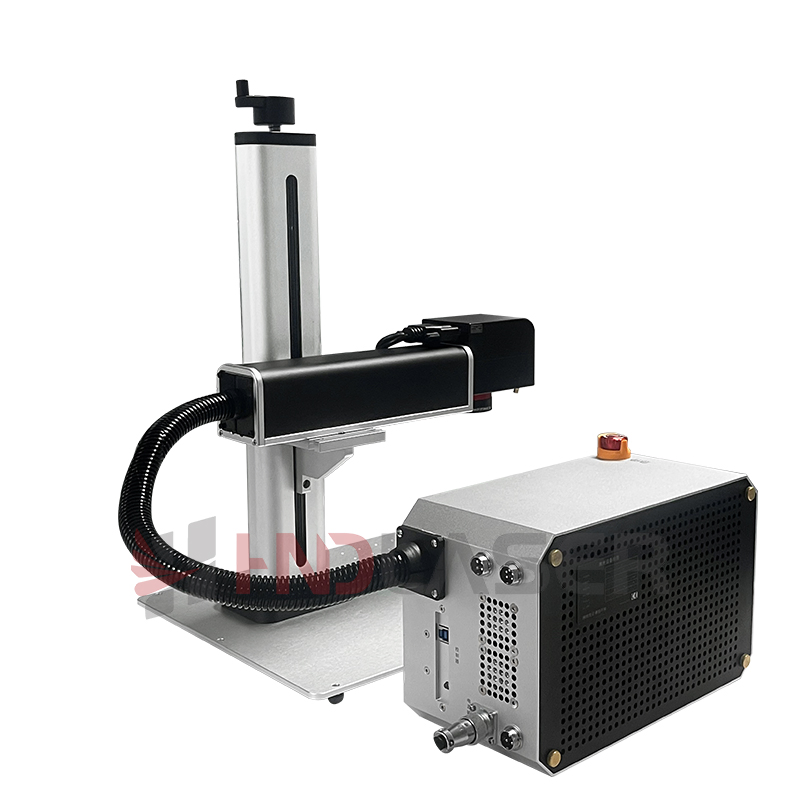

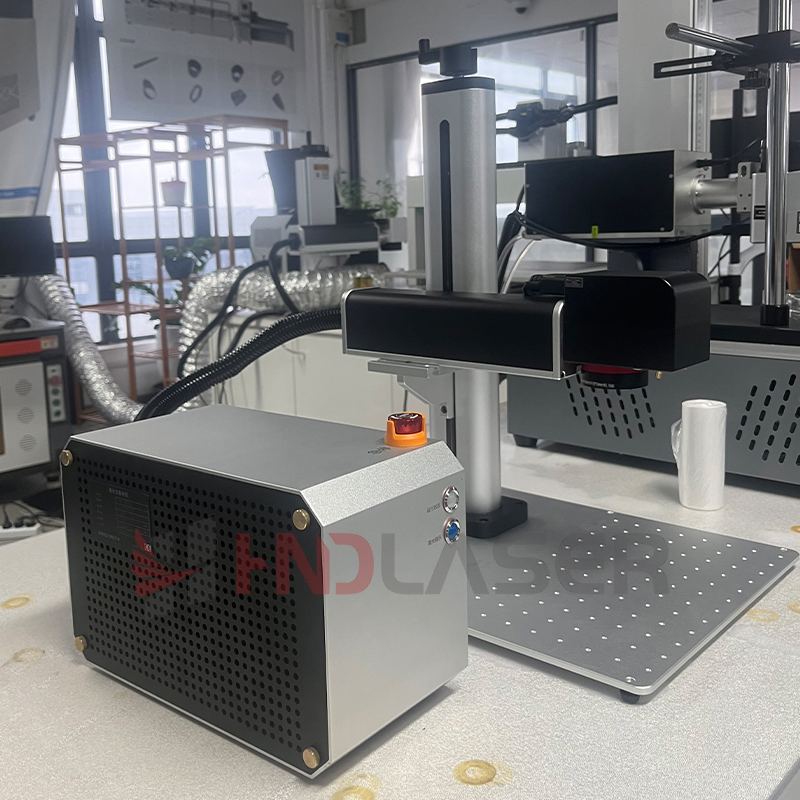

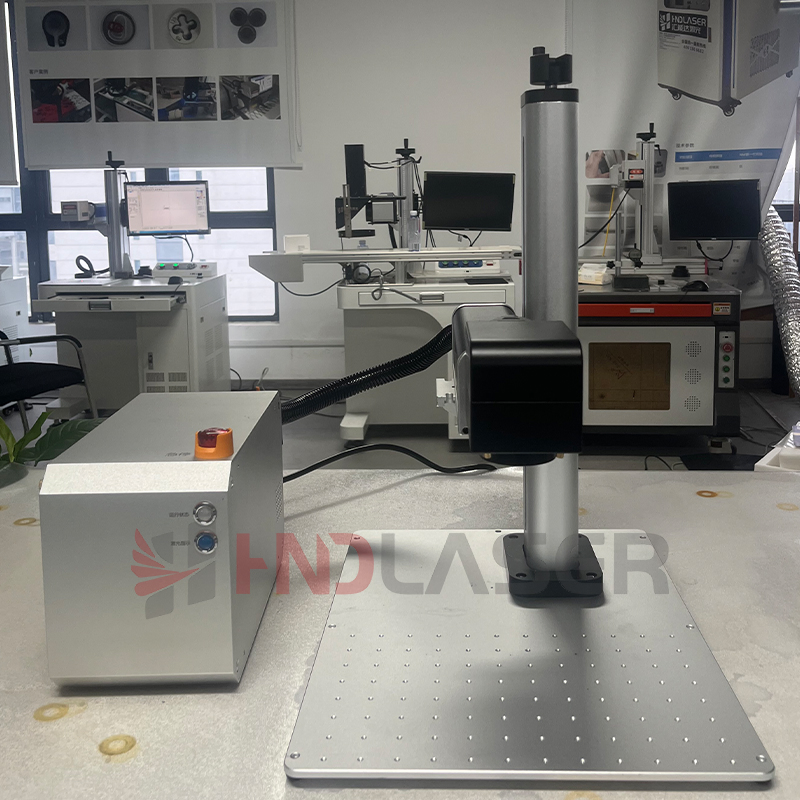

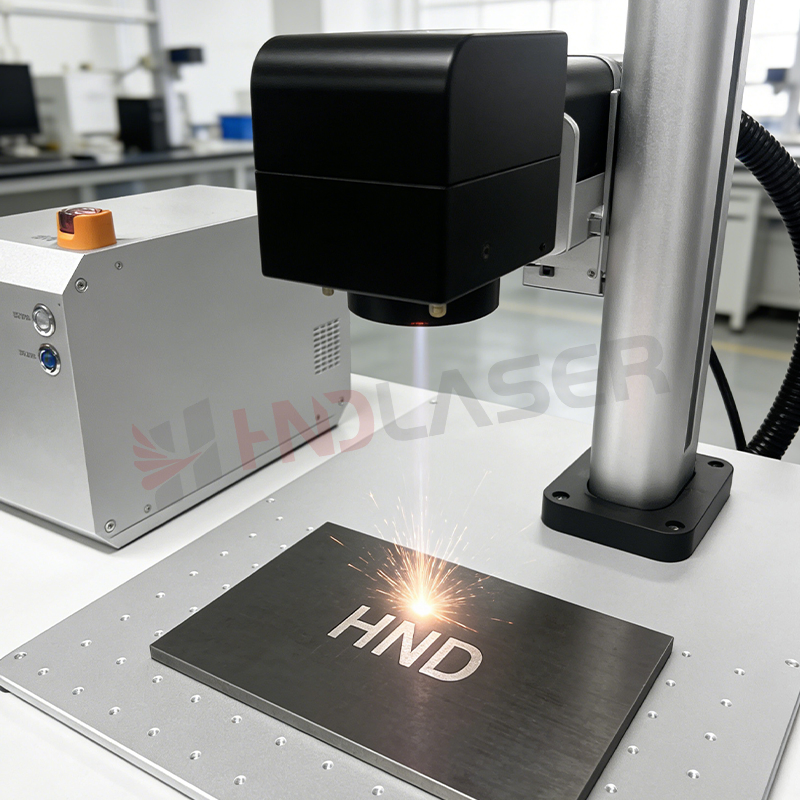

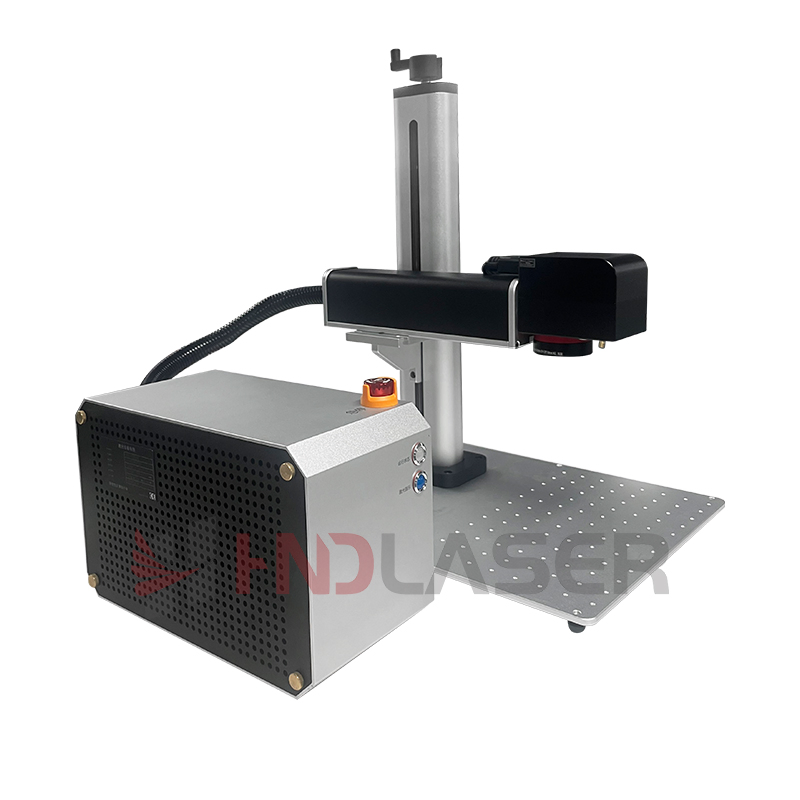

The desktop split fiber laser marking machine series is designed for small and medium factories, production lines, brands, and custom workshops. It offers 20W/30W/50W power options, a compact split structure, and easy portability, making it suitable for permanent, high-contrast marking on metals and selected plastics. The machine uses a reliable pulsed fiber laser and high-speed galvo scanner to quickly mark QR codes, barcodes, logos, serial numbers, dates, nameplates, and fine graphics with clear, durable results.
| NO. |
Project |
Parameter |
| 1 |
Model number |
HF10XX-A |
| 2 |
Laser power |
30W/50W/100W/200W (Optional) |
| 3 |
Laser level |
Class IV (IEC 60825-1) |
| 4 |
Laser type |
Pulse Fiber Laser |
| 5 |
Wavelength |
1064nm |
| 6 |
Marking field |
100*100-300*300mm/600*600mm (optional) |
| 7 |
Marking depth |
≤0.01mm |
| 8 |
Marking speed |
≤10000mm/s(optional) |
| 9 |
Marking line width |
0.01-0.2mm |
| 10 |
Min character size |
0.015mm |
| 11 |
Repeat accuracy |
0.01mm |
| 12 |
Cooling method |
Air-cooled |
| 13 |
Laser source expected life |
>100,000 hours |
| 14 |
Standard user interface |
PC/Laptop |
| 15 |
Consumables |
No |
| 16 |
Temperature |
0-45ºC |
| 17 |
Power consumption |
700 W |
| 18 |
Electrical requirement |
L/N/PE 100 - 240 VAC, 50/60 Hz |
This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.
| Materials |
Reaction |
Materials |
Reaction |
| Metal |
Stainless steel |
√√ |
Plastic |
PE |
√ |
| Aluminum |
√√ |
PP |
- |
| Anodized aluminum |
√√ |
PVC |
√√ |
| Brass |
√√ |
PPR |
√ |
| Coated metal |
√√ |
ABS |
√ |
| Copper |
√ |
PET |
- |
| Gold, silver, nickel, platinum |
√ |
Nylon |
√ |
| Carbon steel |
√√ |
MPP |
- |
| Titanium |
√√ |
PC |
- |
| Ceramics |
Ceramic |
√ |
Electrical & Medical Ceramic |
Electrical and medical ceramic |
√ |
Product Media & Gallery
Frequently Asked Questions
What materials can this fiber laser marking machine engrave?
This machine is designed for marking various metals (including stainless steel, aluminum, brass, copper, carbon steel, and titanium) and selected plastics (such as PE, PVC, PPR, ABS, and nylon), as well as ceramics.
What is the estimated service life of the laser source?
The expected laser source lifetime is over 100,000 hours, ensuring reliable and long-lasting production performance.

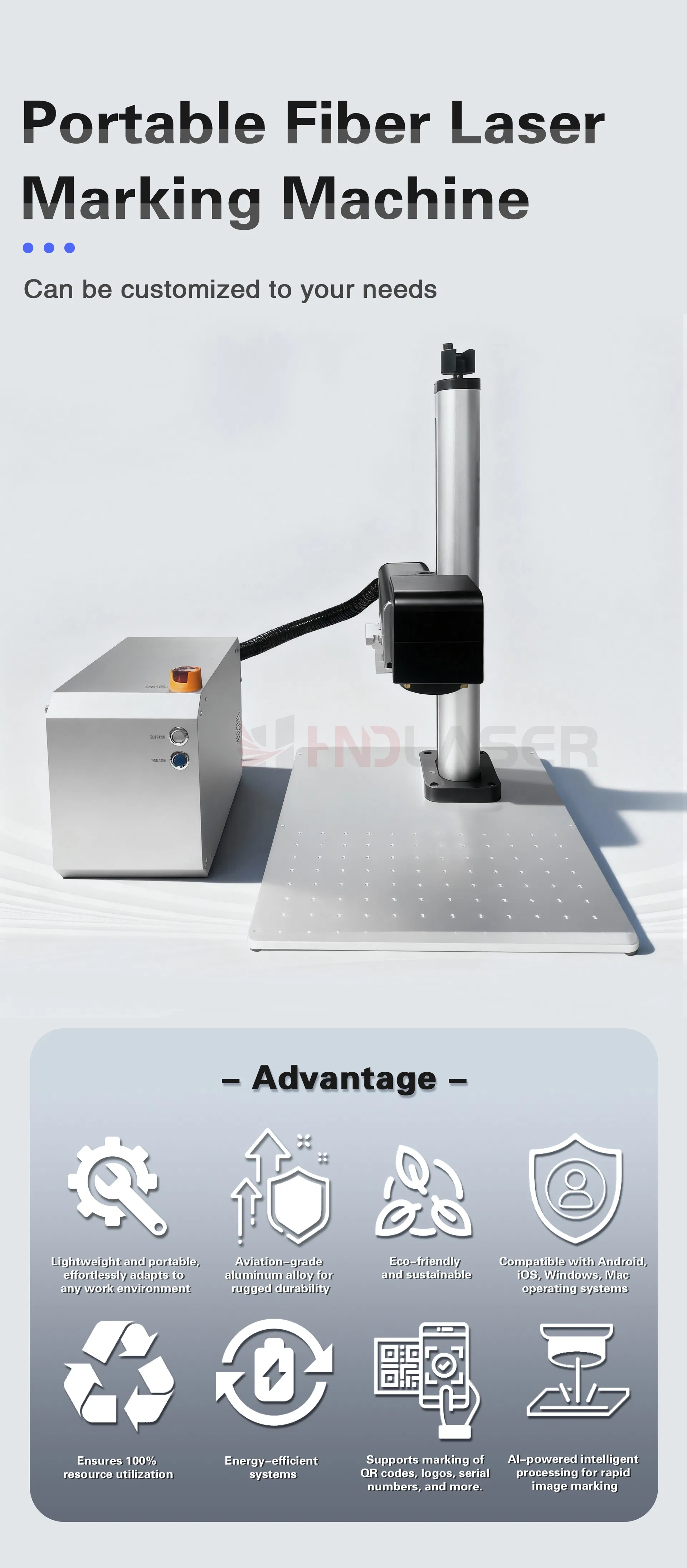

What are the main advantages of the desktop split design?
The split design offers a compact structure and easy portability. The all-in-one configuration removes the need for extra external cabling, making it convenient for small and medium factories or custom workshops.
What types of contents can be marked using this system?
The laser marking machine supports scanning and printing of texts, barcodes, QR codes, serial numbers, dates, fine custom graphics, and nameplates.
Does the machine require water cooling or specific consumables?
No. The system uses an integrated air-cooling mechanism and operates without any consumables, significantly reducing maintenance overheads.
What are the power and electrical supply requirements?
The machine operates on electrical requirements of L/N/PE 100 - 240 VAC, 50/60 Hz with a total power consumption of 700W.
