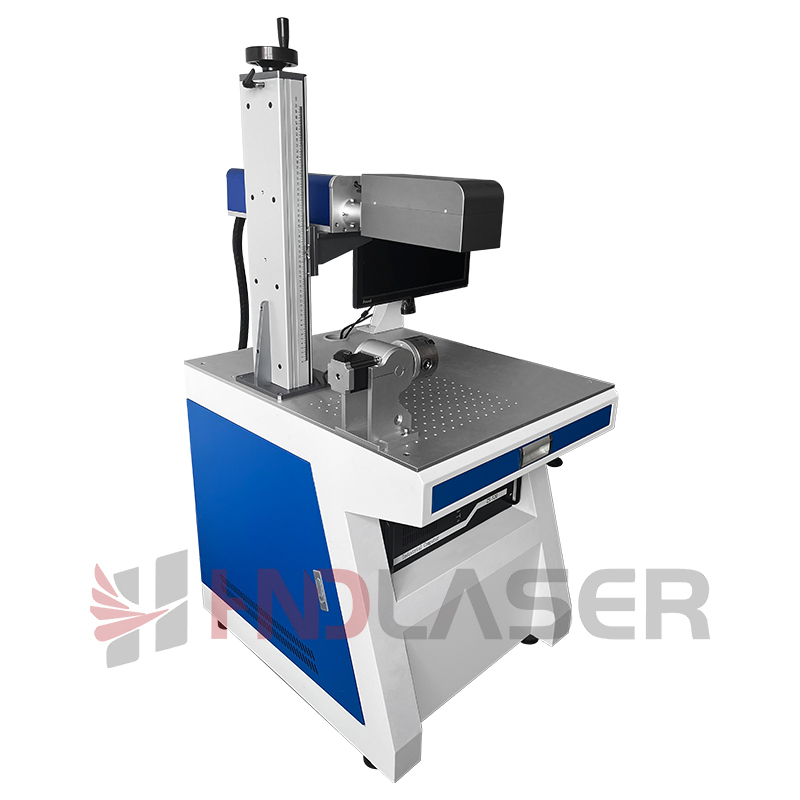

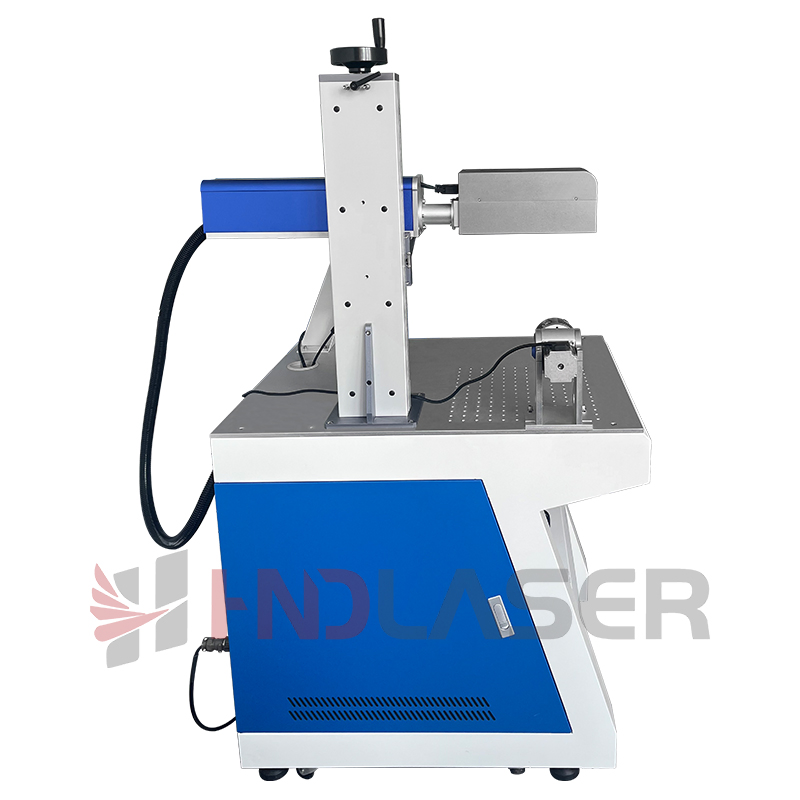

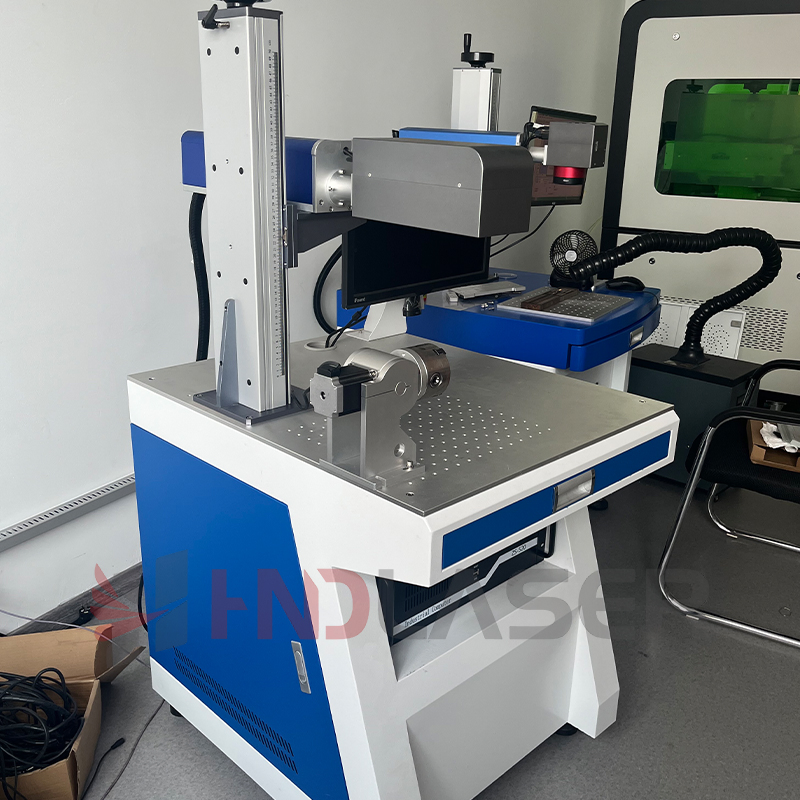

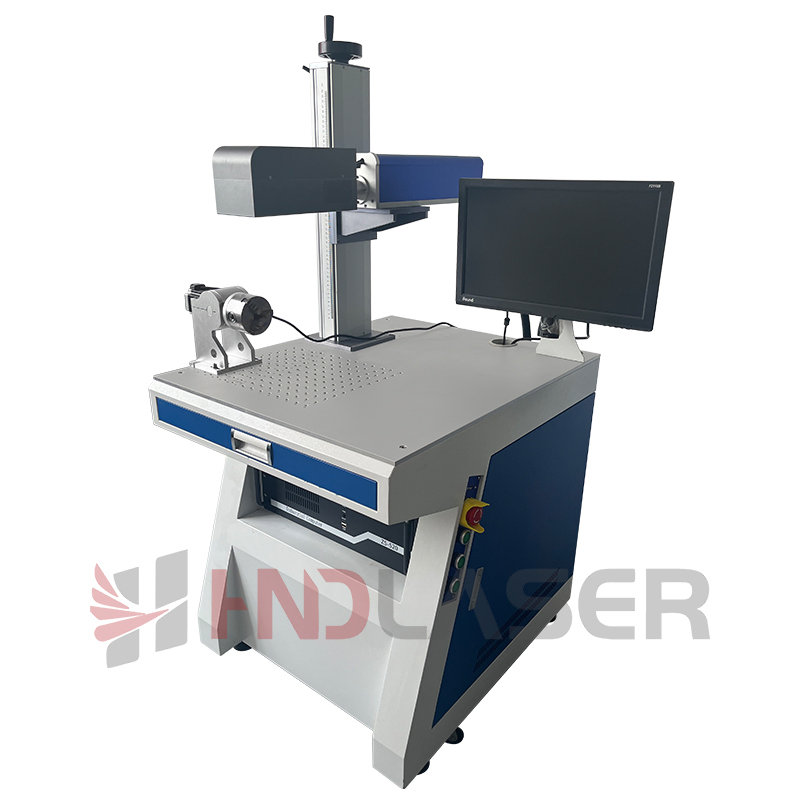

3D Galvo Portable CNC Engraver Marker 30W 50W 60W 100W Fiber Laser Galvo Marking Metal Gold Glass Stone Plastic Mopa Engraving Scribing Coding Machine Price

1 / 5

3D Galvo Portable CNC Engraver Marker 30W 50W 60W 100W Fiber Laser Galvo Marking Metal Gold Glass Stone Plastic Mopa Engraving Scribing Coding Machine Price

Customization:	Available
After-sales Service:	Support Online
Warranty:	2 Years

Send Inquiry

Product Description

Basic Info.

Model NO. HF10XX-3D

Laser Visibility Invisible

Applicable Material Metal

Cooling System Air Cooling

Technical Class Pulse Laser

Laser Wavelength Fiber Laser

Laser Classification Solid Laser

Type Optical Fiber Laser Marking Machine

Marking Method Scanning Marking

Net Weight 90kg

Gross Weight 120kg

Laser Source 30/50/60/100W

Laser Raycus/Jpt/Max/Ipg

Galvanometer Sino Galvo

Voltage 220V

Frequency 50/60Hz

Transport Package Wooden Box

Specification 950*850*1500mm

Origin China

HS Code 8456110090

Production Capacity 30000/Y

Packaging & Delivery

Package Size 95.00cm * 85.00cm * 150.00cm

Package Gross Weight 120.000kg

Product Description

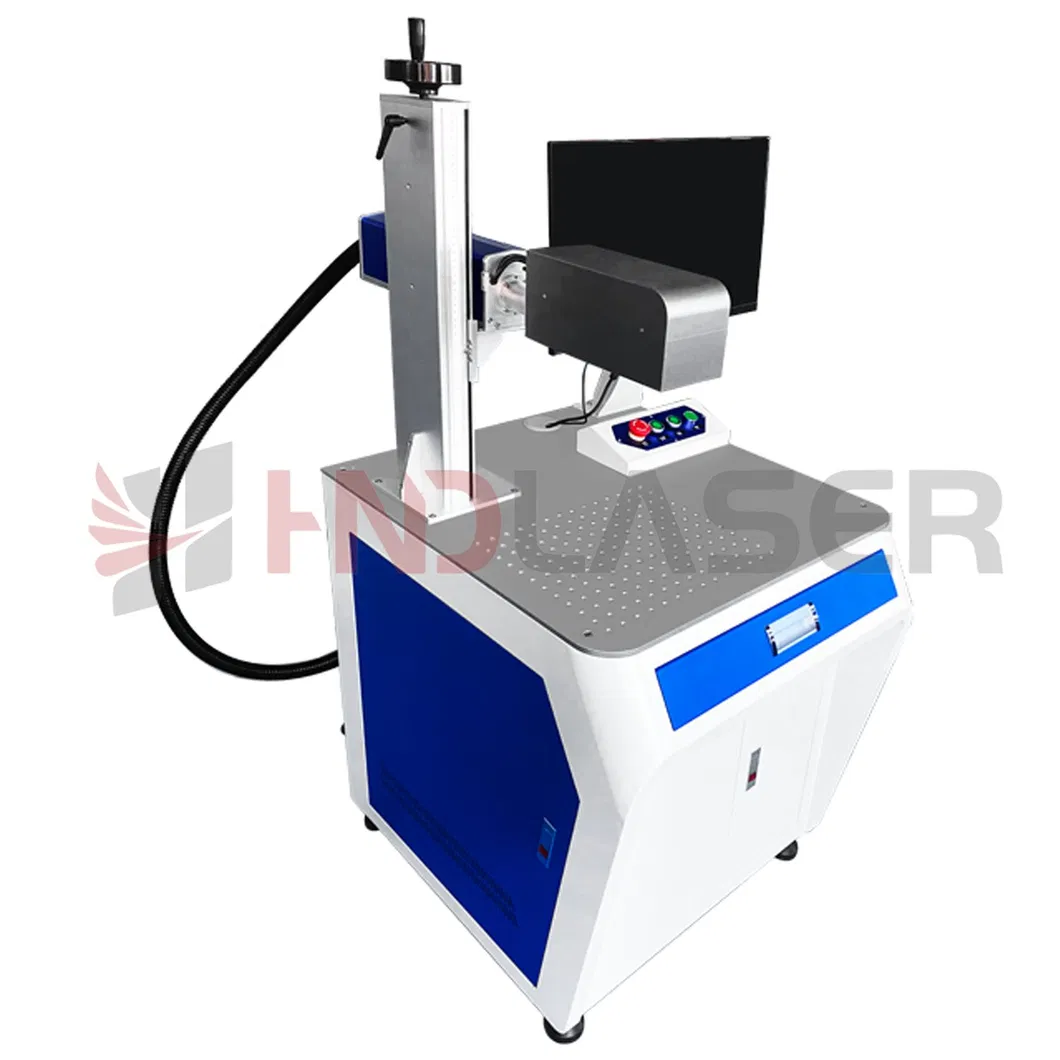

3D Dynamic Fiber Laser Marking Machine High Precision

(Can be customized to your needs)

3D dynamic laser engraving technology:

High-precision, high-speed dynamic autofocus galvanometer

Auto Focus: The Z-axis of the galvanometer system automatically adjusts the focus, dynamically adjusting the laser focus position in response to changes in the height of an object's surface, ensuring that each marking point is in the optimal focus position. This auto-focus function ensures high quality marking results, and consistent and accurate marking regardless of changes in surface height.
High-speed scanning: The high-speed galvanometer allows for rapid movement of the laser beam, dramatically increasing marking speeds and making it suitable for mass production needs. High-speed scanning not only improves productivity, but also reduces waiting time and meets high throughput requirements.
High Accuracy: The precise control of the galvanometer system enables micron-level marking accuracy.

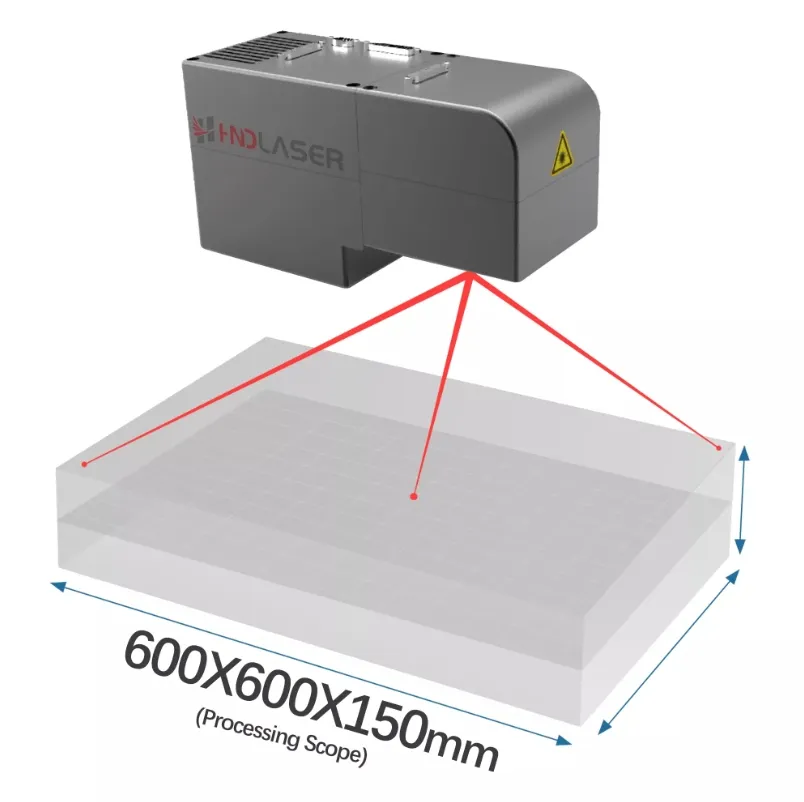

Efficient 3D Marking Software:

Complex Graphics Processing: 3D marking software can process complex three-dimensional graphic data, generate accurate marking paths, and support multi-level and multi-dimensional marking effects.
Automatic compensation: The software can automatically compensate the laser marking path according to the three-dimensional shape of the object surface to ensure consistent and accurate marking results.
Flexibility and compatibility: 3D marking software is usually highly flexible and compatible with different types of galvanometer systems and lasers, adapting to a wide range of application requirements.

NO.	Project	Parameter
1	Model number	HF10XX-3D
2	Laser power	30W/50W/100W/200W (Optional)
3	Laser level	Class IV (IEC 60825-1)
4	Laser type	Pulse Fiber Laser
5	Wavelength	1064nm
6	Marking field	100/150/200/300/400/500/600 (optional)
7	Max. Marking depth	20-200mm
8	Marking speed	≤10000mm/s(optional)
9	Marking line width	0.01-0.2mm
10	Min character size	0.015mm
11	Repeat accuracy	0.01mm
12	Cooling method	Air-cooled/Water-cooled
13	Laser source expected life	>100,000 hours
14	Standard user interface	PC/Touch panel
15	Consumables	No
16	Temperature	0-45ºC
17	Power consumption	1000 W
18	Electrical requirement	L/N/PE 100 - 240 VAC, 50/60 Hz

The Magic Behind 3D Laser Marking

At the core of this technology is the laser itself. A 3D laser marking machine uses a focused laser beam controlled by advanced software to engrave intricate designs with unmatched precision. The laser adjusts its focus dynamically to account for the 3D features of the object, ensuring clarity and consistency even on complex surfaces.

How Does It Work?

Digital Design Creation: The process starts with a digital design, which is uploaded to the machine's software.
Laser Execution: The machine translates the design into precise instructions for the laser, adjusting its focus and intensity to accommodate the 3D surface.
Perfect Results: The laser marks the object with sharp, detailed engravings that can range from simple text to complex artistic patterns.

The result is precision and customization at an unprecedented level. Whether you need to mark logos, serial numbers, or intricate patterns, 3D laser marking offers the perfect solution for any design challenge.

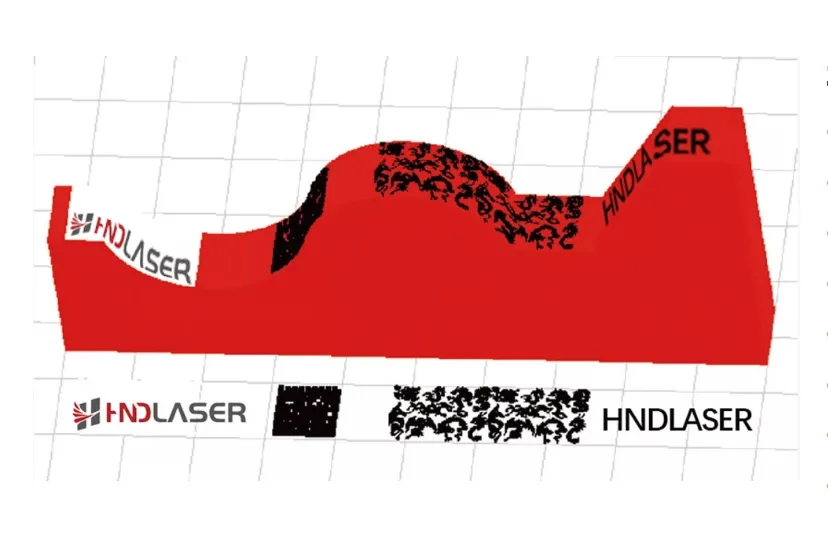

3D engraving functions

Large-format marking
Assembly line marking
Visual positioning marking
Projection positioning marking

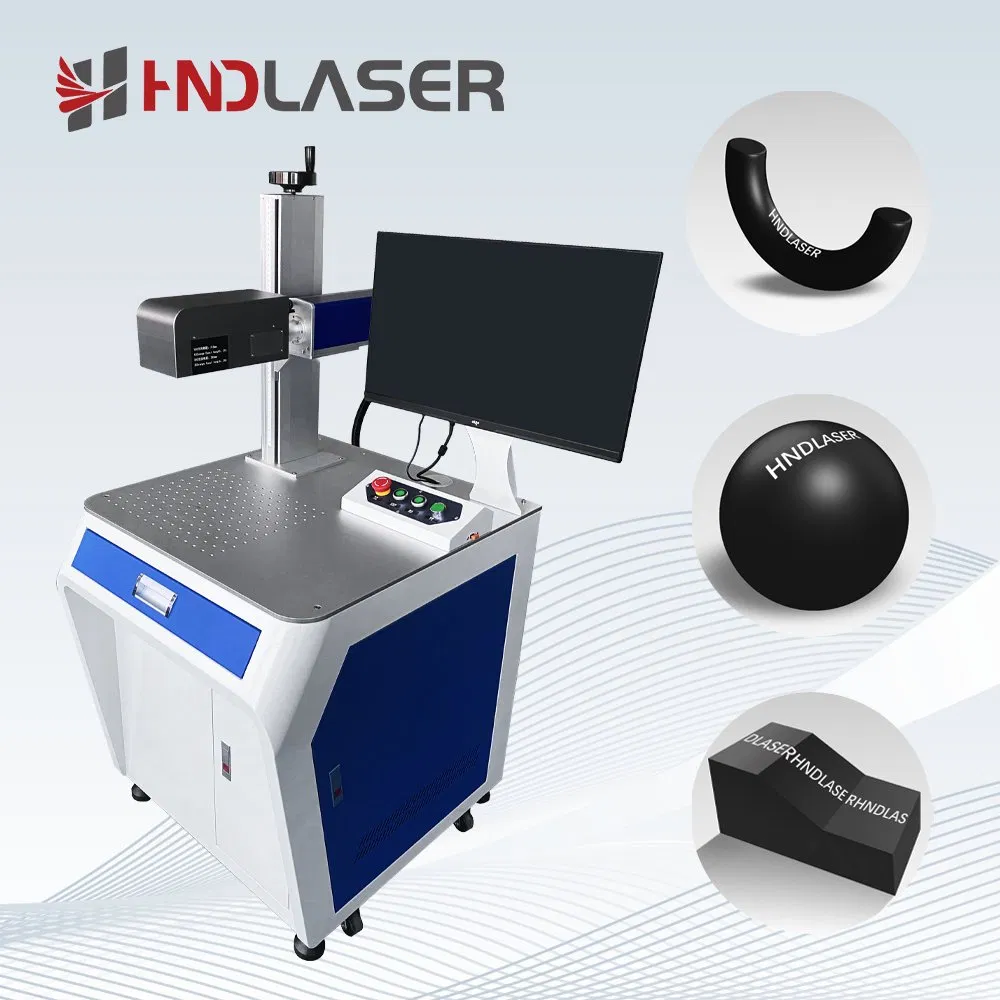

Curved surface marking
Curved surface rotation marking
Relief, 360° engraving
Function customization

Materials		Reaction	Materials		Reaction
Metal	Stainless steel	√√	Plastic	PE	√
	Aluminum	√√		PP	-
	Anodized aluminum	√√		PVC	√√
	Brass	√√		PPR	√
	Coated metal	√√		ABS	√
	Copper	√		PET	-
	Gold, silver, nickel, platinum	√		Nylon	√
	Carbon steel	√√		MPP	-
	Titanium	√√		PC	-
Ceramics	Ceramic	√	Electrical and medical ceramic	Electrical and medical ceramic	√

Exceptional Reaction: √√ | Admirable Reaction: √ | Unsatisfactory Reaction: -

Benefits of Using a 3D Laser Marking Machine

1. Enhanced Designs

With the ability to mark intricate designs on various surfaces, 3D laser marking machines empower users to explore limitless creative possibilities.

2. Cost-Effective

The efficiency of 3D fiber laser marking machines reduces labor costs and increases production speed, providing a significant return on investment.

3. Sustainability

Laser marking is eco-friendly, as it eliminates the need for consumables like inks or chemicals, aligning with sustainable business practices.

4. Quality Assurance

The precision and consistency of 3D laser marking enhance product value, ensuring every piece meets the highest standards.

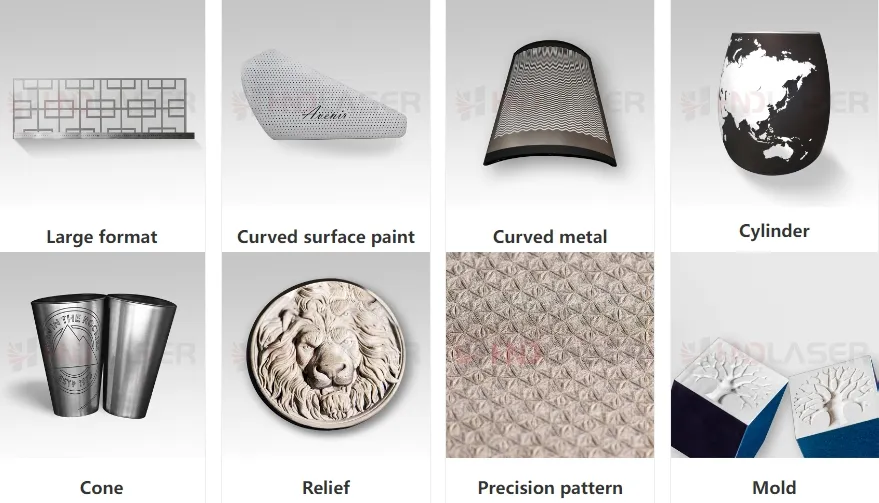

Application

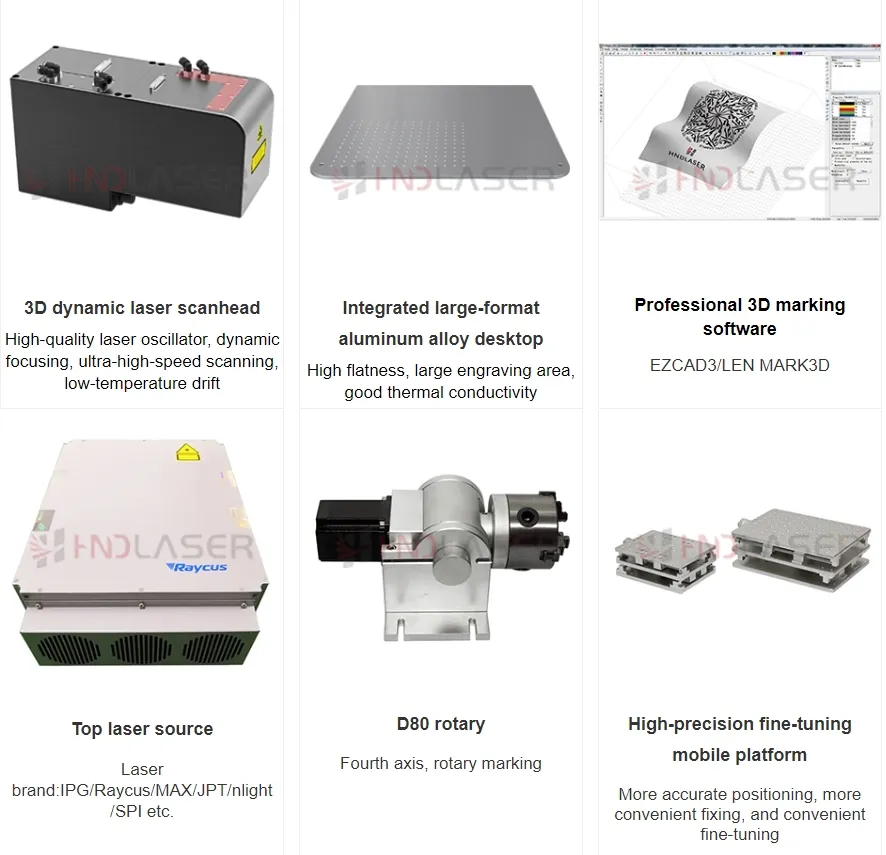

Advantages & Accessories

Advantages

Non-consumable

Eradicate consumable replacement expenses
Reliant solely on electrical power
A one-time robust investment
Maintenance-free operation

Eco-friendly environment

Ink-free technology
Solvent-free process
Odorless operation
Non-toxic and safe
Non-corrosive materials

Energy-efficient system

Minimally wasteful
Guaranteeing 100% resource utilization
Zero emissions produced

Permanent and durable markings

Precisely controlled indentation depth
Resistant to oxidation effects
No color degradation
Enhancing traceability
Assured safety and reliability

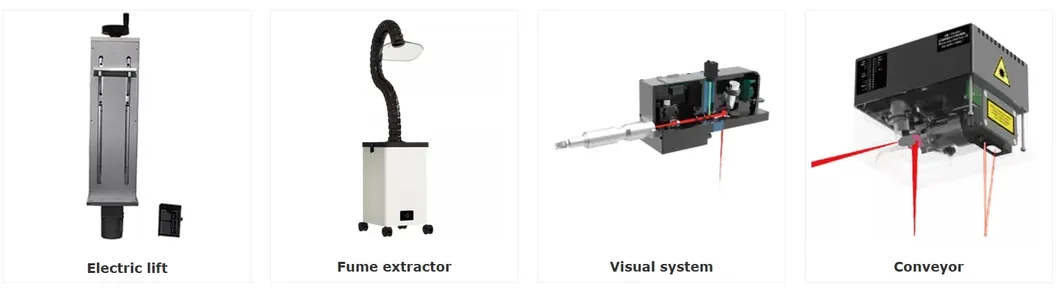

Optional Accessories

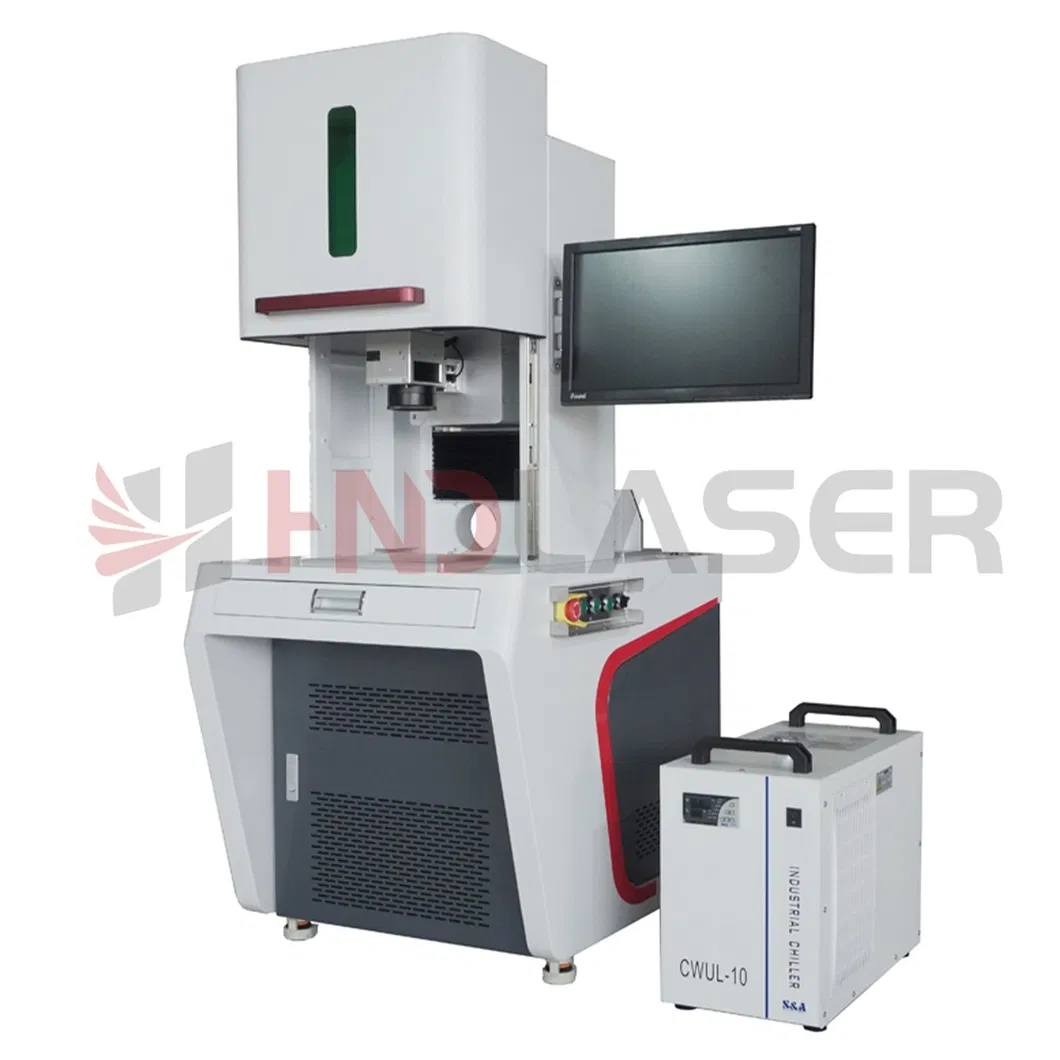

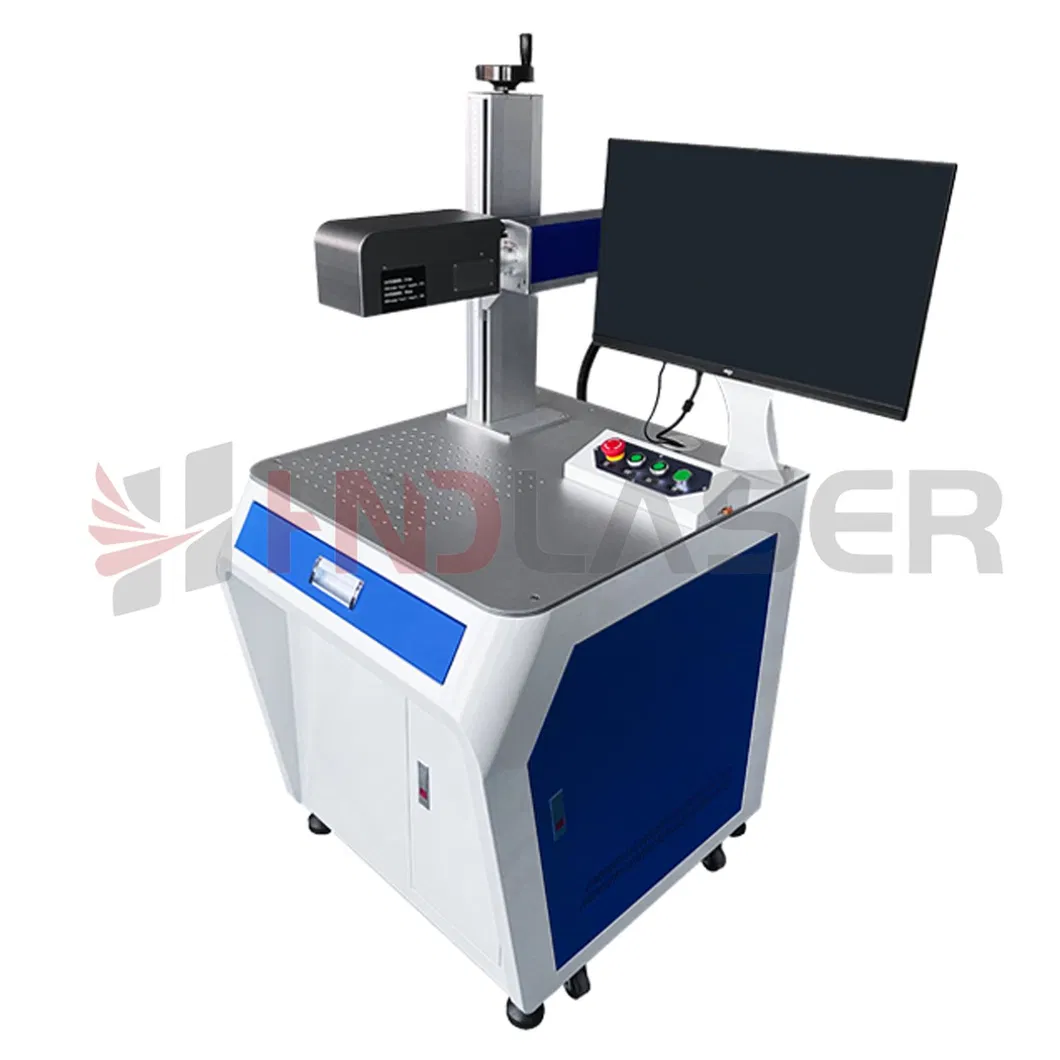

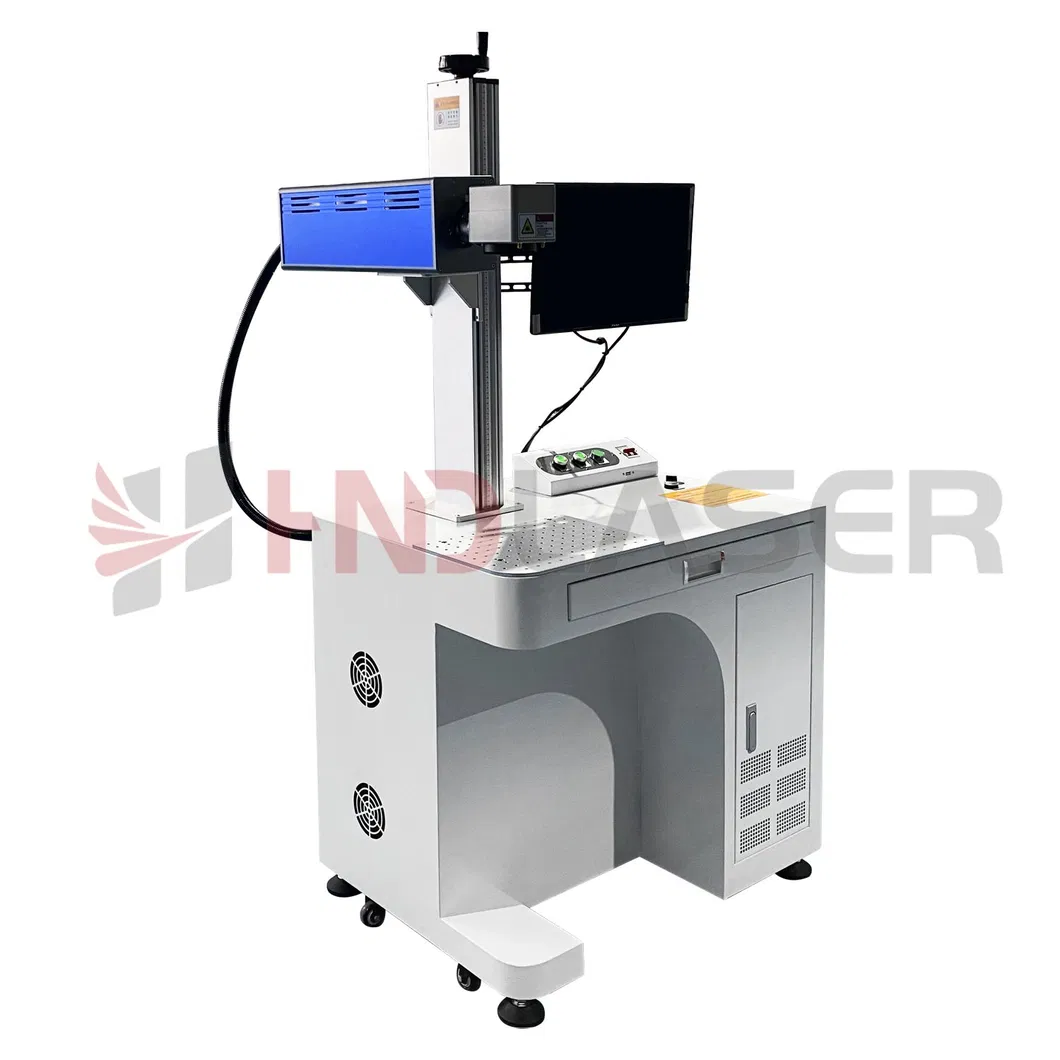

Related Type

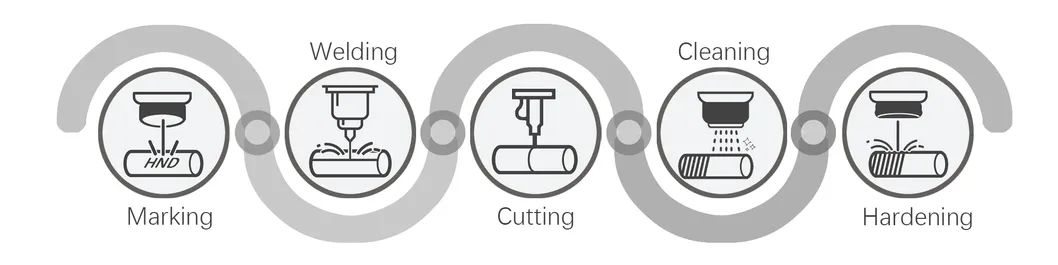

Focus Areas

Exhibitions and Fairs

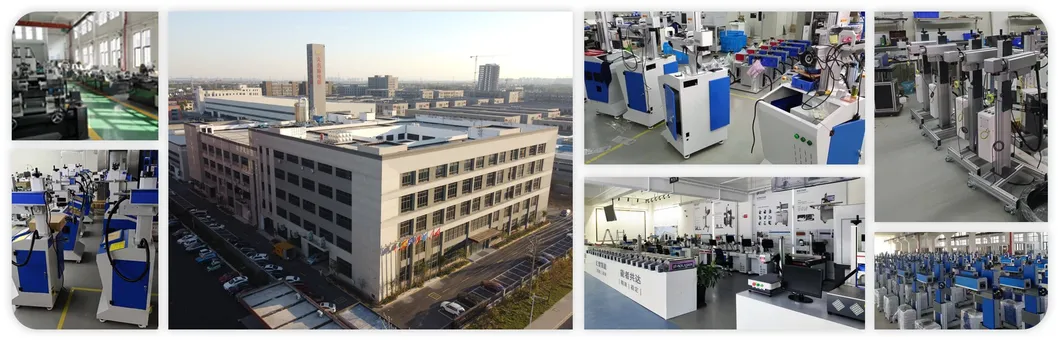

Plants and Teams

Certification Display

Certified by a leading third-party organization, our machines come with a reliable warranty service. If you ever require assistance or support, we are perpetually at your service.

Frequently Asked Questions

Q1: What is the warranty period like?

A1: During the warranty period, should any main parts (excluding consumables) encounter issues, they will be replaced or repaired at no additional cost to you.

Q2: What payment terms do you accept?

A2: We accept various payment methods including TT, Western Union, Paypal, LC, and Cash, among others.

Q3: Do you provide CE documents and other clearance documents?

A3: Indeed, we provide the original documents. Post-shipment, you will receive the CE document, packing list, commercial invoice, and sales contract for seamless customs clearance.

Q4: If I am unfamiliar with the product usage upon receipt or encounter issues, how should I proceed?

A4: We offer a comprehensive user manual, complete with illustrations and a USB disk for step-by-step learning. Additionally, any updates to the machine will be provided monthly for your ongoing convenience.

Q5: How can I obtain a sample to verify the results?

A5: You are invited to send us a sample, which we will test for you at no charge.

Q6: When will I receive a quote?

A6: Our professional team will respond to your inquiry within an impressive 12-hour timeframe.
