The Fiber Laser Marking Machine adopts international most advanced technology and the laser source is fiber with advanced technology, lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance. The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam. This is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.

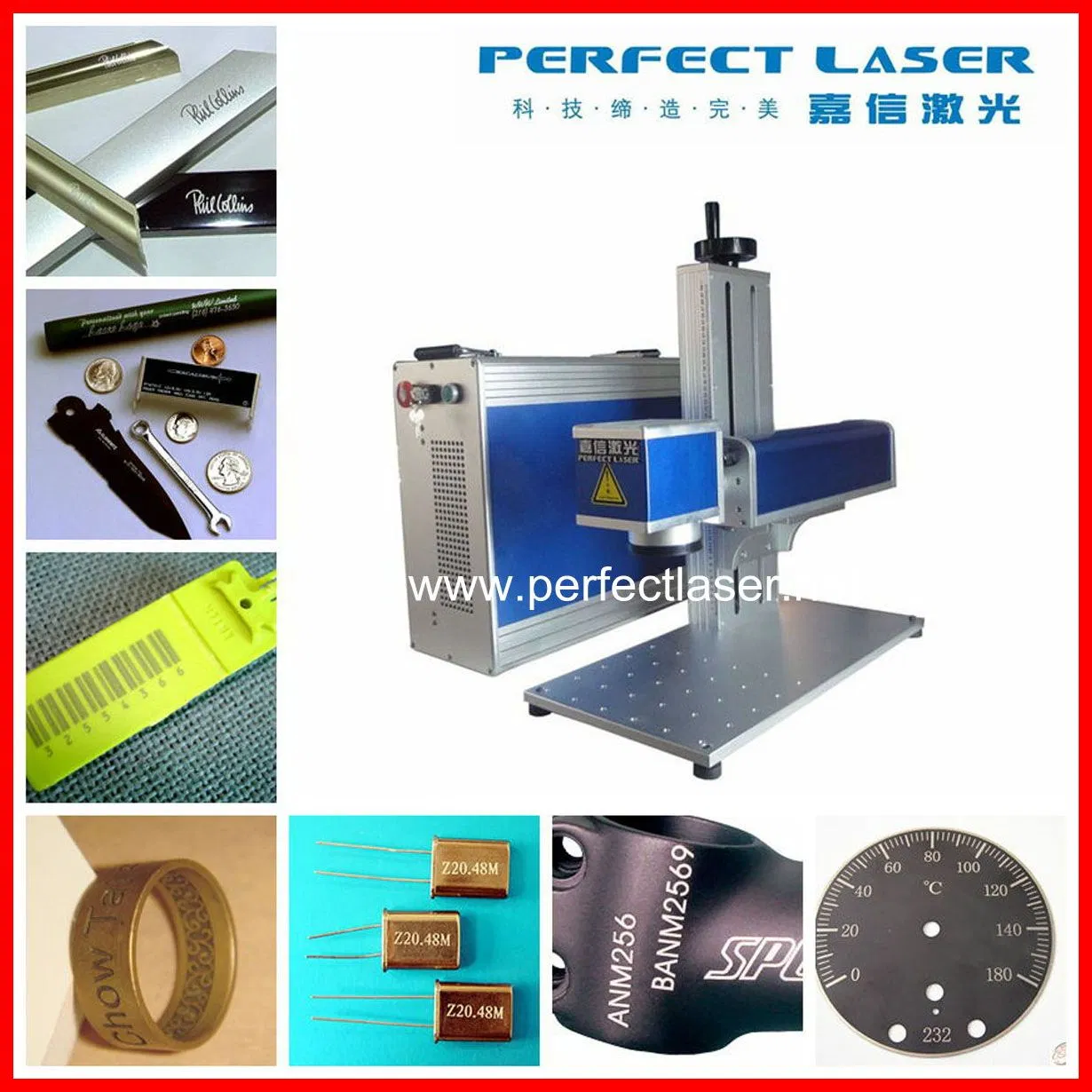

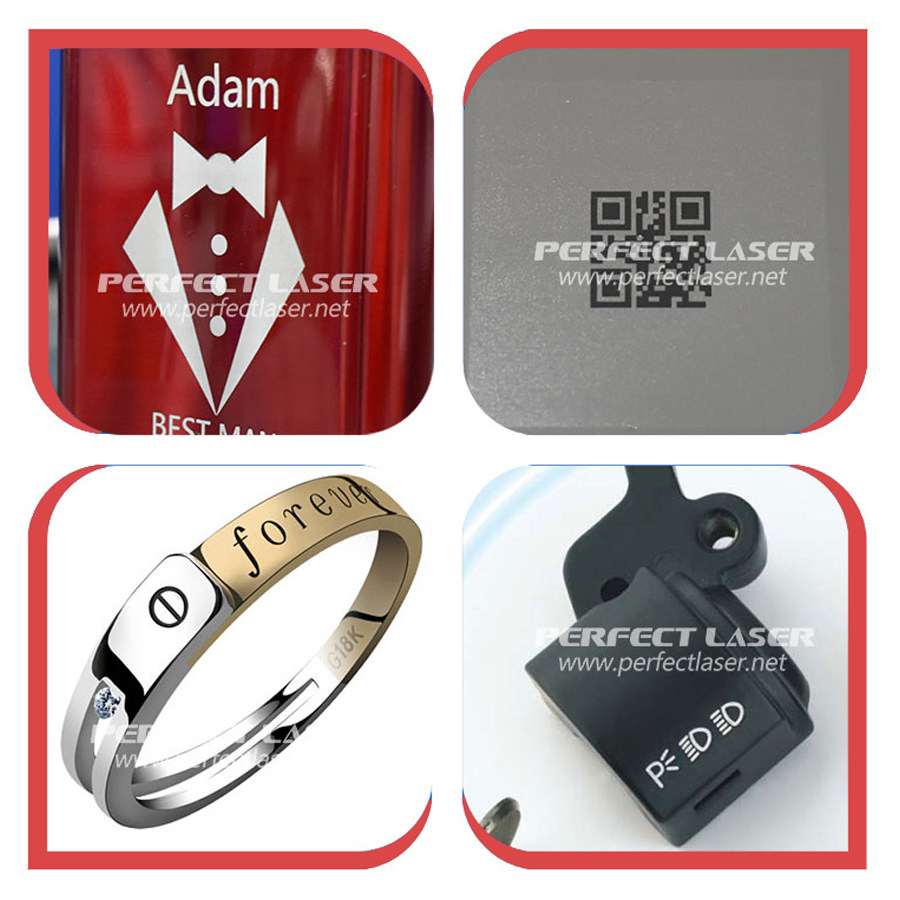

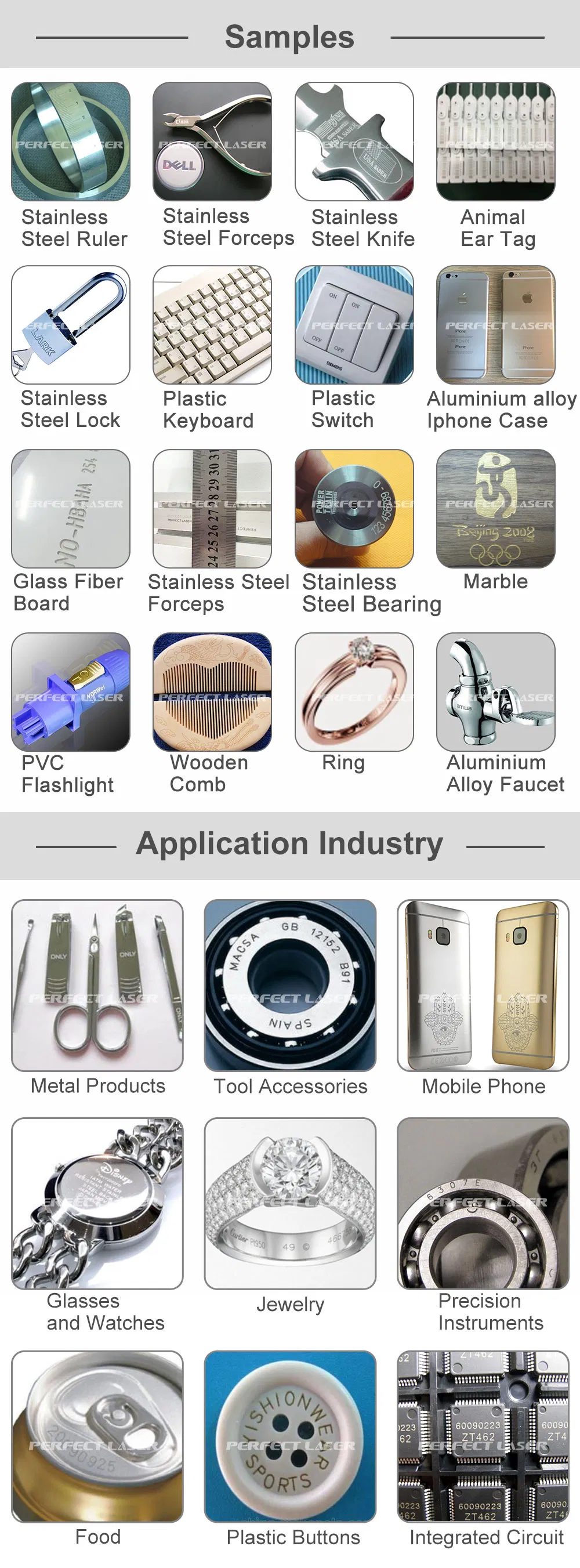

Application materials: The Fiber Laser Marking Machine is widely for stainless steel marking, carbon steel marking, iron marking, aluminum marking, copper marking, brass marking, anodized and coated materials marking, etc., and non-metallic such as nylon marking, ABS/PVC/PC board marking, hard plastics marking, rubber marking, resin marking, ceramic marking etc. In the industries of electronic and communication products, IC products, electric lines, cable computer components and electric appliance.
| Product Feature | Specification Details |
|---|---|

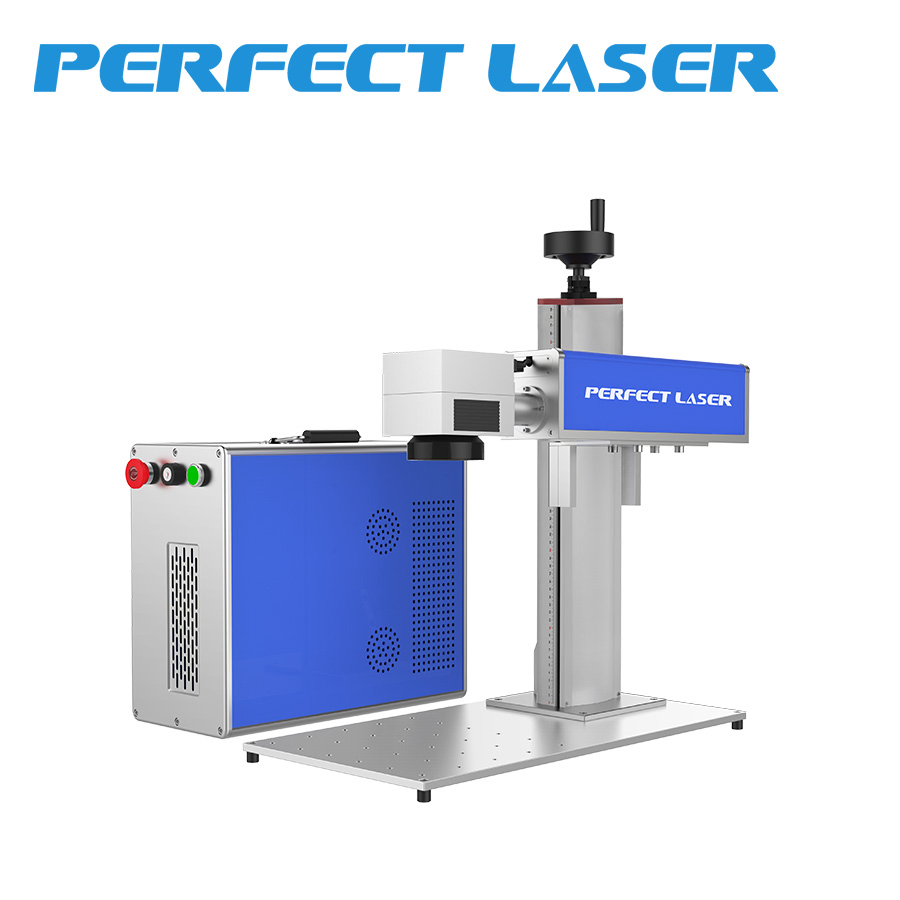

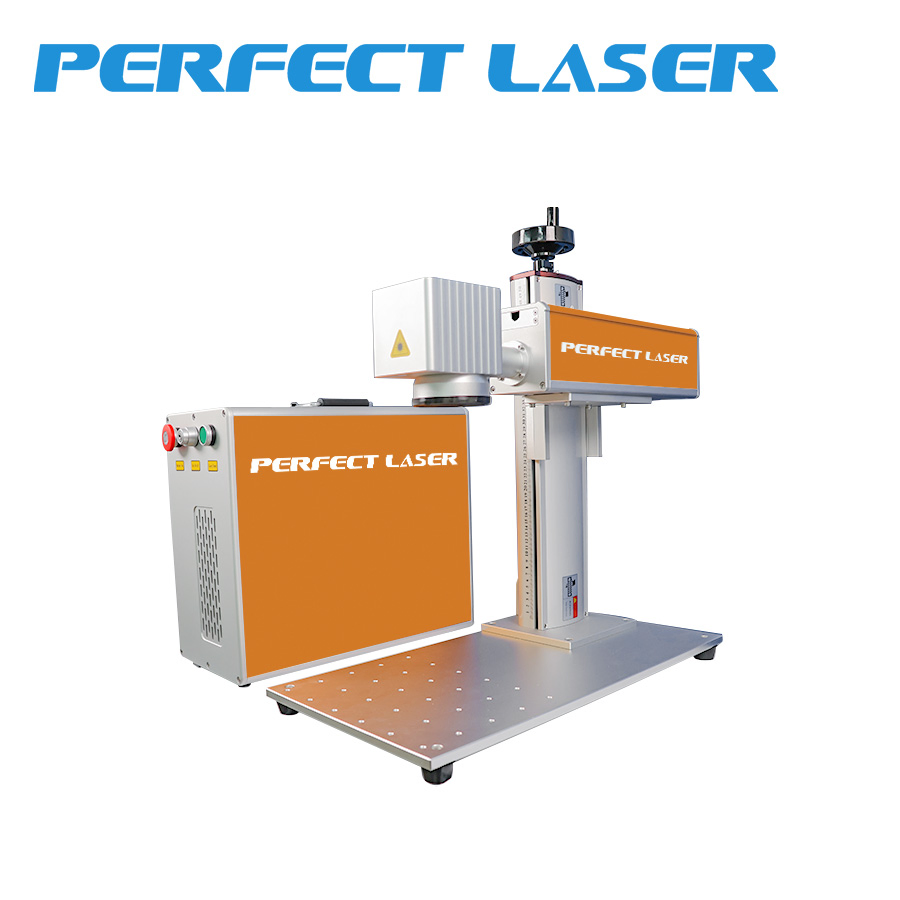

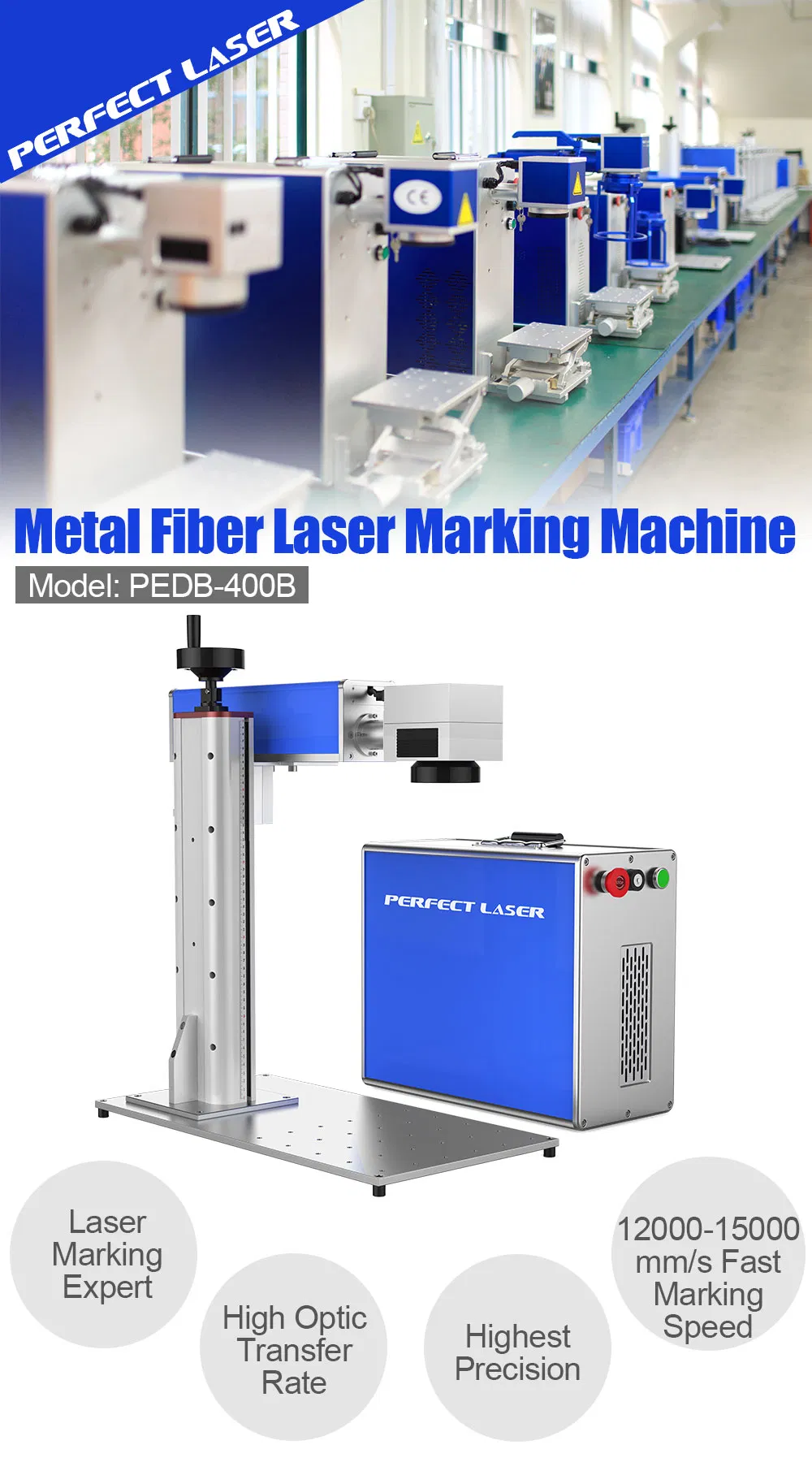

| Product Name | Desktop Fiber Laser Marking Machine |
| Model No. | PEDB-400B |
| Computer | Not includes PC |
| Laser Source | |
| IPG Series / Alternative Options | Pulsed, High Energy Ytterbium Fiber Lasers |
| Mode of operation | Pulsed |
| Polarization | Random |
| Standard output power |
20W - 50W For PEDB-400A / 400B / 400C 20W - 100W For PEDB-400D |
| Central emission wavelength | 1060-1070 nm, Q-switched operation Output power adjustment range 10%-100% |
| Emission Bandwidth(FWHM) | <10 nm |
| Long-term average power instability | <5% |
| Pulse width, (FWHM) | 100 ns |
| Laser switching ON time | 180 μsec |
| Laser switching OFF time | 180 μsec |
| Pulse Repetition Rate* kHz | 20-80 kHz |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Typical beam quality, M2 | <1.8 |
| Output fiber delivery length | 3m |
| Operating voltage | 220V |
| Max. Power consumption | 600W |
| Net Dimensions | 80*38*72cm |
| Net Weight | 53 kgs |
| Gross Weight | 70 kgs |
| Laser System | |
| Scanning Speed | 0-10000mm/s |
| Marking Speed | 0-7000mm/s |
| Marking size | 110mm×110mm (F-theta 160) |
| Spot size | ≤ 40 micron (F-theta 160) |
| Cooling unit | Air cooled |
| Pilot laser | 650nm diode laser, visible red light for marking guide |
| Continuous working time | ≥16h |
| Humidity | 45~85% (no condensation) |
| Operating temperature | 0~40ºC |
| Control units | Laser Mark (English Version) |
Quality Guarantee & After-Sales Services:
The quality guarantee period is 36 months from the date the product reaches its destination. Except for accidental or artificial damage, we are responsible for offering fittings free of charge during the warranty period. However, the original damaged parts must be returned by courier prior to sending the replacement units. After the warranty period expires, parts required for repair or replacement will be charged at standard rates.

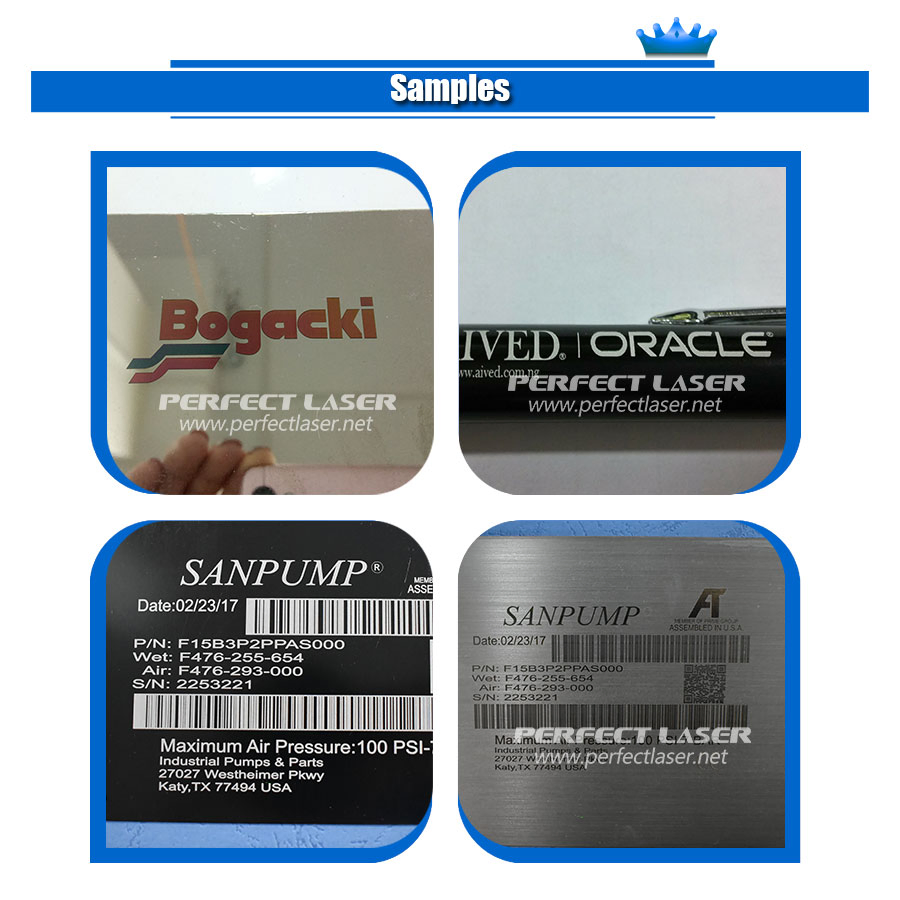

It can process a wide variety of metals including stainless steel, carbon steel, iron, aluminum, copper, brass, and anodized/coated metals. It is also compatible with non-metallic materials such as nylon, ABS/PVC/PC boards, hard plastics, rubber, resin, and ceramics.
The fiber laser module utilizes highly advanced technology, offering a system lifespan of up to 100,000 hours. Under standard operating conditions, this translates to roughly 8-10 years of use without requiring major source changes.
No, this fiber laser marking machine is designed to run without regular consumables. Once set up, it requires minimal ongoing maintenance, which helps lower your overall long-term operational costs.
The machine is highly energy efficient. Its maximum power consumption is 600W, averaging only about 0.5 kW per hour under typical operating conditions.
We supply detailed instructional materials in English covering installation, operation, and maintenance. We also offer free on-site training at our factory, as well as a 36-month quality guarantee with active troubleshooting assistance.
