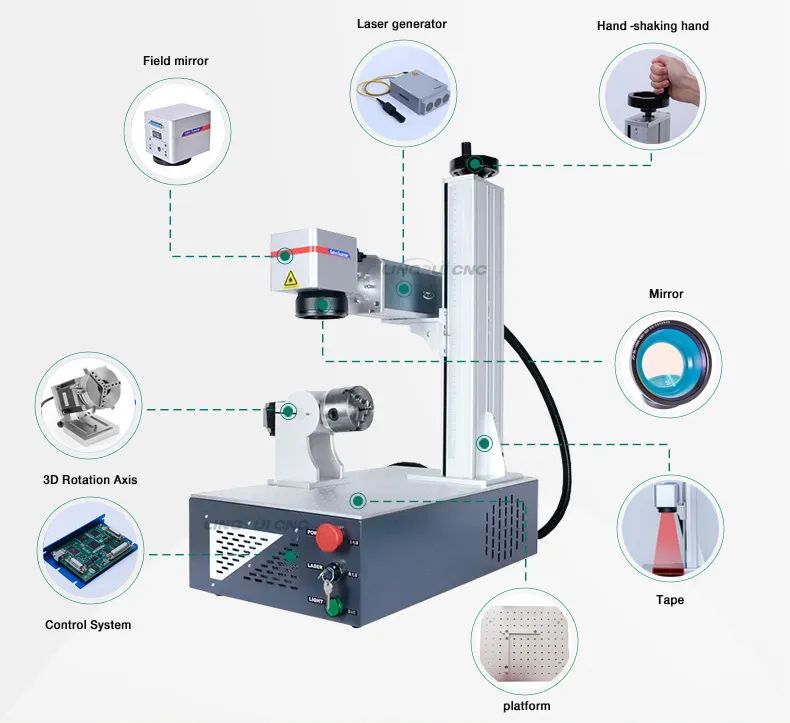

Features a high-speed Sino-Galvo scanning mirror with zero drift, compact volume, minimal temperature drift, and swift operations. Offers high photoelectric conversion rates, stable performance, quick response, and a long service life.
Provides accurate focusing and quick localization. Highly optimized design ensuring radiation limits are met, offering excellent light transmittance, high temperature resistance, and stable usage over extended periods.

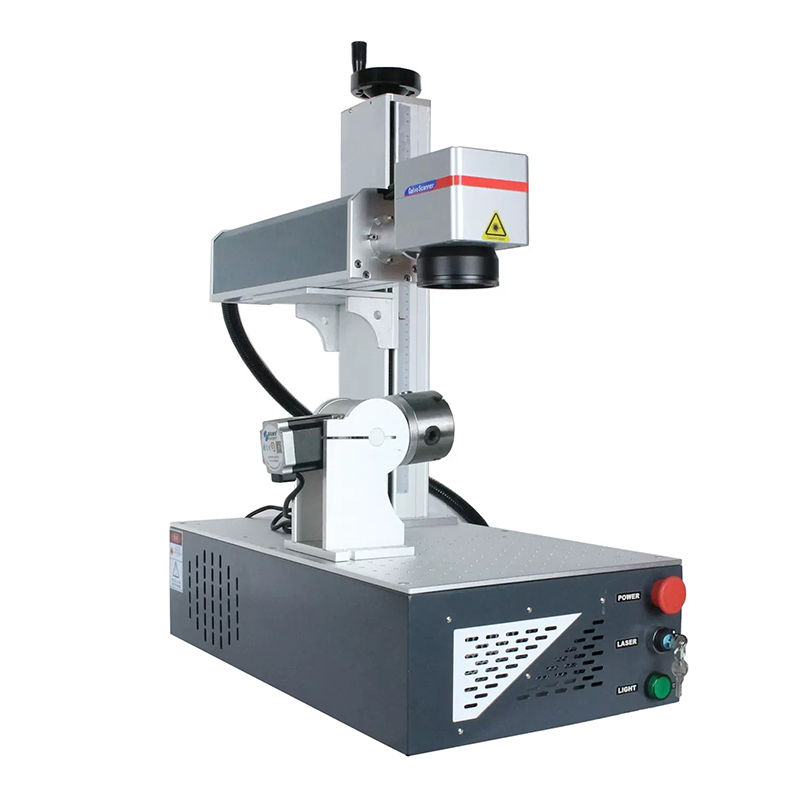

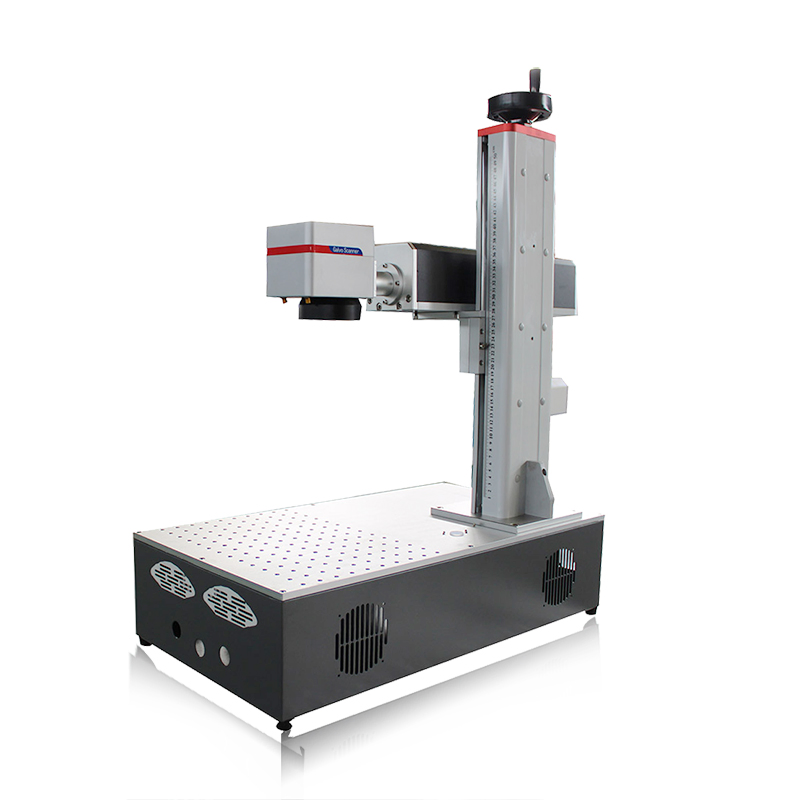

Equipped with a manual adjustment handle coordinated with linear guide systems, enabling easy focal length adjustment matching the exact height of the target workpiece.
High single pulse energy coupled with excellent beam stability and high peak power. Significantly more cost-effective and stable compared to traditional laser sources.
Standard dual red light configuration allows visual projection of the preview box and outer contour, ensuring users achieve accurate workpiece alignment prior to starting.

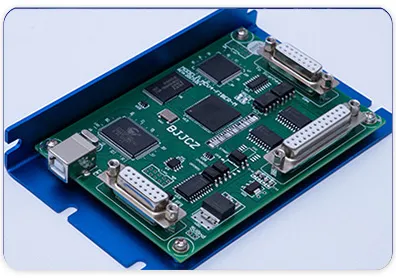

Driven by specialized JCZ software supporting diverse vector and image formats. Fully compatible with Win7, Win8, and Win10 operating systems (both 32 and 64-bit).
| Parameter Item | Specifications & Capabilities |
|---|---|
| Model | LR-11-DF |
| Laser Power | 20W / 30W / 50W / 100W / 200W / 300W |
| Laser Wavelength | 1064nm |
| Fiber Cable Length | 3m |
| Pulse Width | 20ns |
| Repetition Frequency Range | 1 - 600kHz |
| M2 Beam Quality | <1.8 |
| Max. Single Pulse Energy | 1.25mJ |
| Output Power Stability | <5% |
| Output Beam Diameter | 7±0.5mm |
| Power Range | 0 - 100% |
| Marking Range Options | 110*110mm / 200*200mm / 300*300mm |
| Minimum Line Width | 0.01mm |
| Minimum Character Size | 0.1mm |
| Marking Speed | ≤7000mm/s |
| Marking Depth | Dependent on material properties |
| Repeatability Accuracy | ±0.001mm |
| Marking Formats | Graphics, text, barcodes, QR codes, automatic date, batch & serial numbers |
| Graphic Formats Supported | AI, PLT, DXF, DST, SVG, NC, BMP, JPG, JPEG, GIF, TGA, PNG, TIFF |
| Working Voltage | 220V±10% (50Hz) or 110V±10% (60Hz) / Customized |
| Unit Power Consumption | <0.5kw |
| Working Environment | Clean and dust-free / low-dust environments |
| Humidity Conditions | 5% - 75% relative humidity (free of condensed water), 0 - 40°C |
| Laser Lifetime | >100,000 hours |
| Net Weight | 75kgs |
| Packing Size | 850*650*1450mm |
Three-Year Warranty: We offer a robust three-year warranty policy for the entire machine. During the warranty period, any components damaged due to manufacturing flaws will be replaced free of charge.
Lifetime Maintenance: Benefit from lifetime maintenance support and free software updates. In-person technical support is available globally as required. Comprehensive instructional videos are provided prior to shipment.
Responsive Support: 24/7 online technical support. Troubleshooting starts within 10 minutes of fault report registration, with clear diagnoses provided within 60 minutes via direct communication channels.

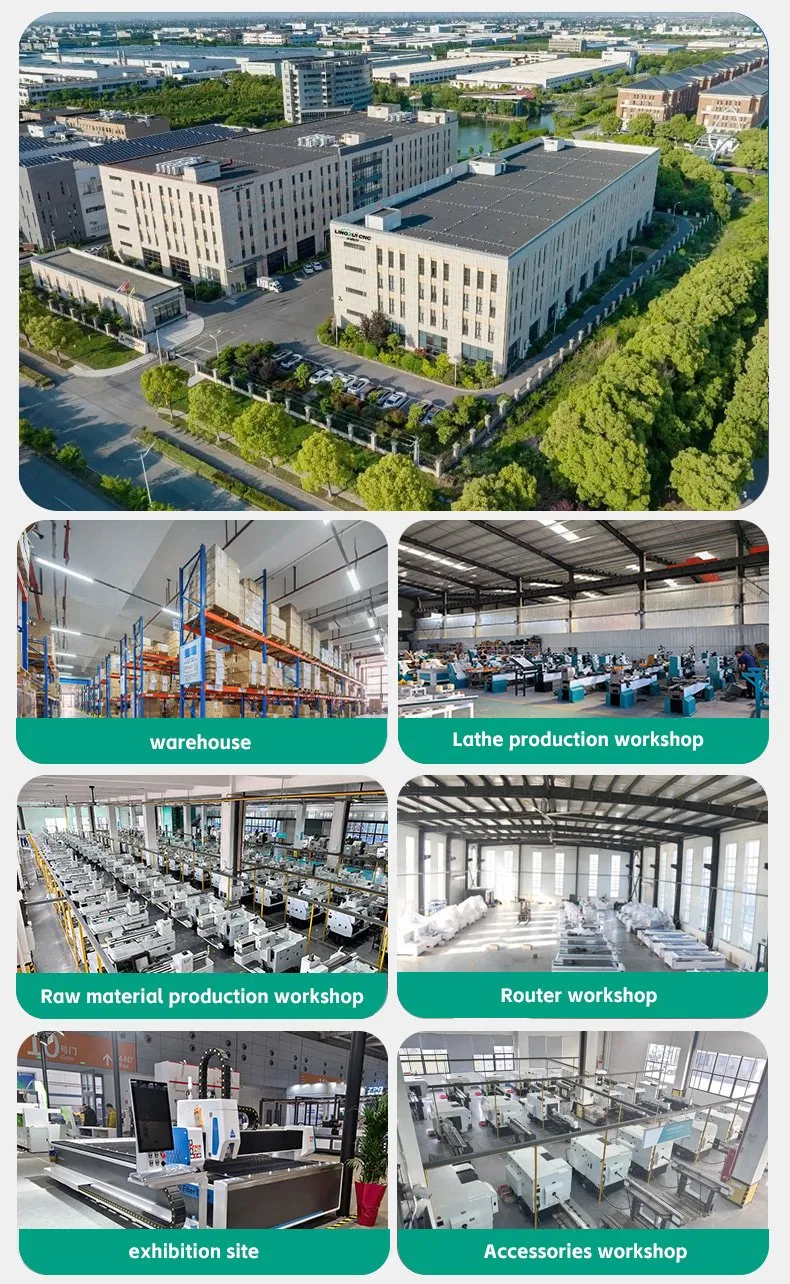

We are a dedicated factory equipped with our own export license, allowing direct global trade operations.
Yes, we support complete OEM configuration services and have partnered with numerous global trading entities for years.
We have over 17 years of after-sales engineering experience. We respond to machine operation queries within 10 minutes and aim to provide solutions within 2 hours. The machine carries a comprehensive 3-year warranty.
Simply share your target materials, processing dimensions, and functional requests. We will recommend the ideal laser configuration based on our long-standing industrial experience.
Yes. All machinery undergoes complete debugging and setup before dispatch, allowing immediate plug-and-play use. We supply detailed operation manuals and video guides to assist user operations.
Yes. Customizations matching specific industrial workflows, power choices, and working dimensions are fully supported by our professional engineering team.
