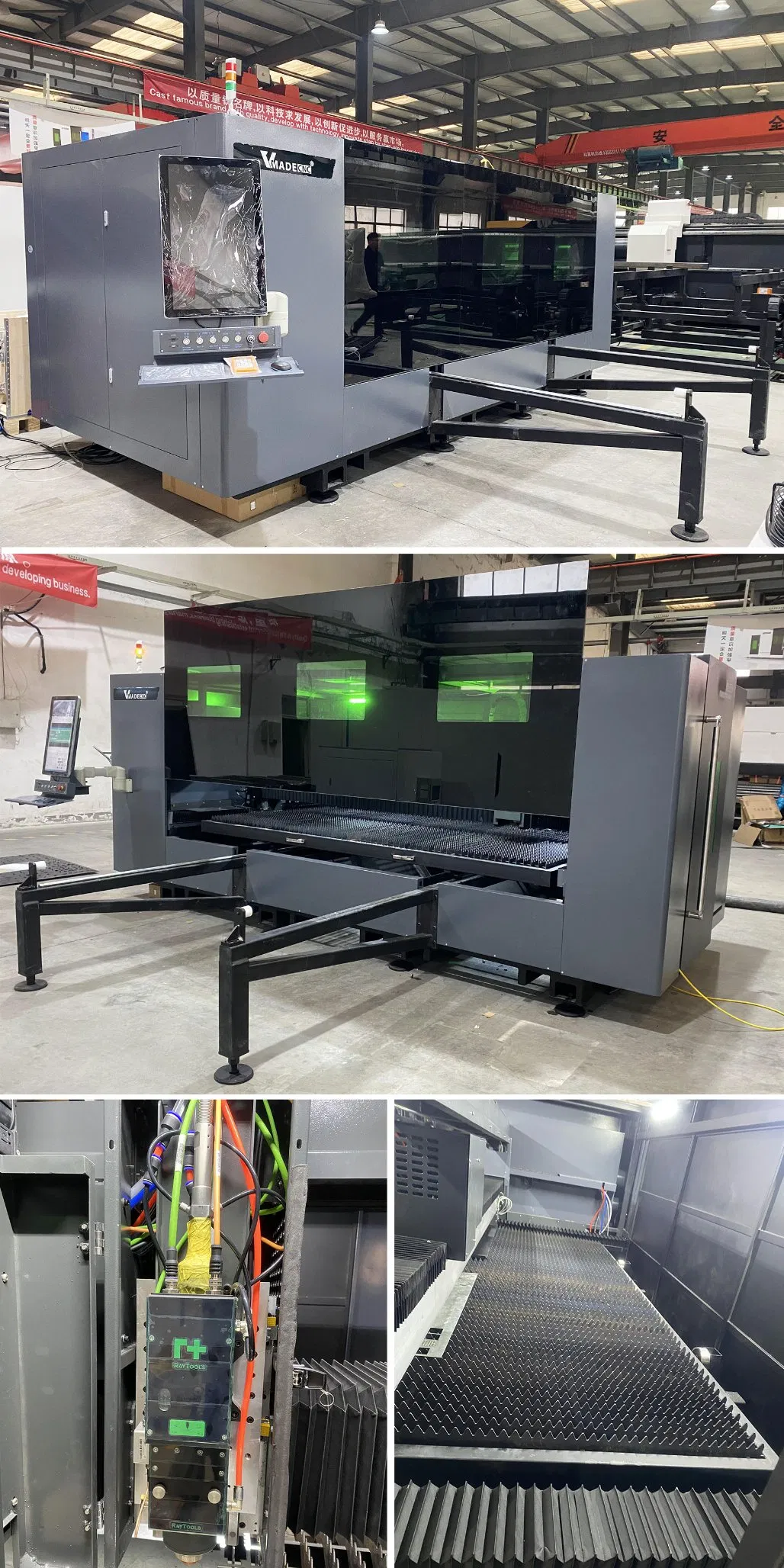

China Factory Full Cover Enclosed Sheets Plates Engraving Equipment Aluminum Plates CNC Router Metal Fiber Laser Cutting Machine

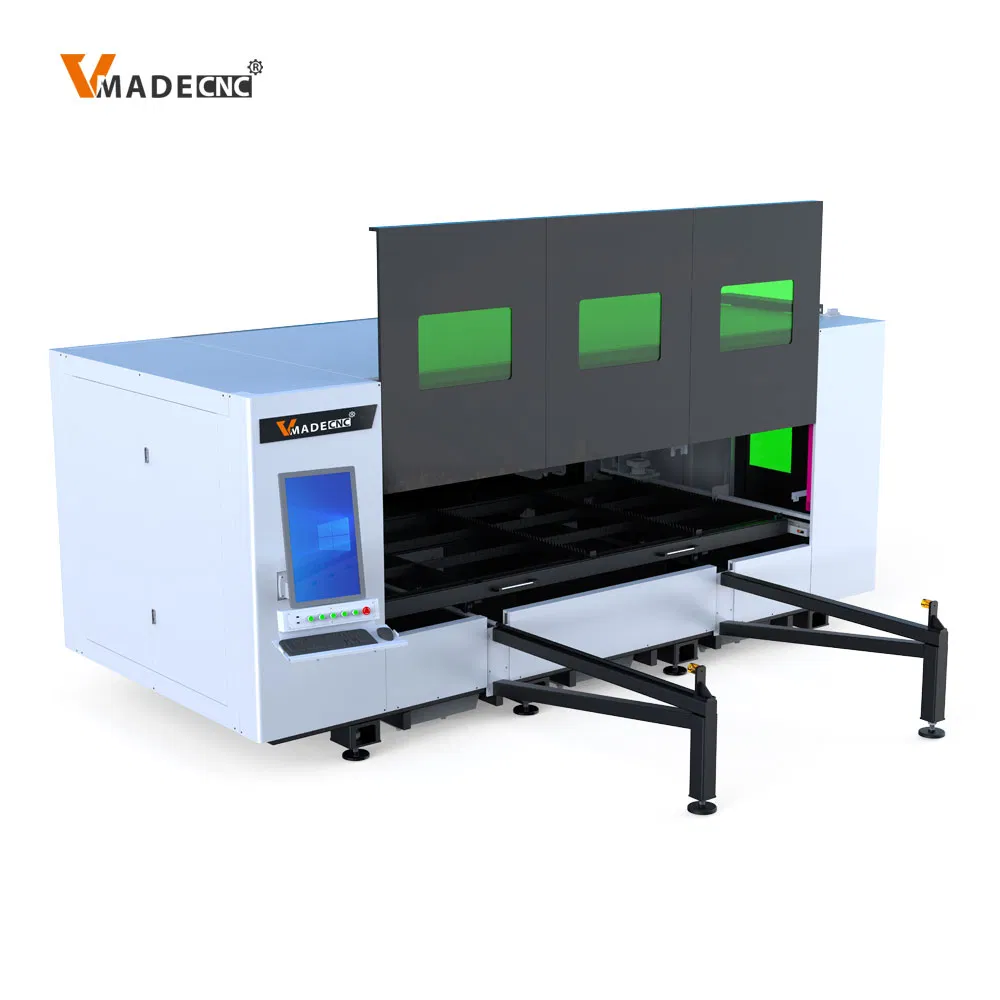

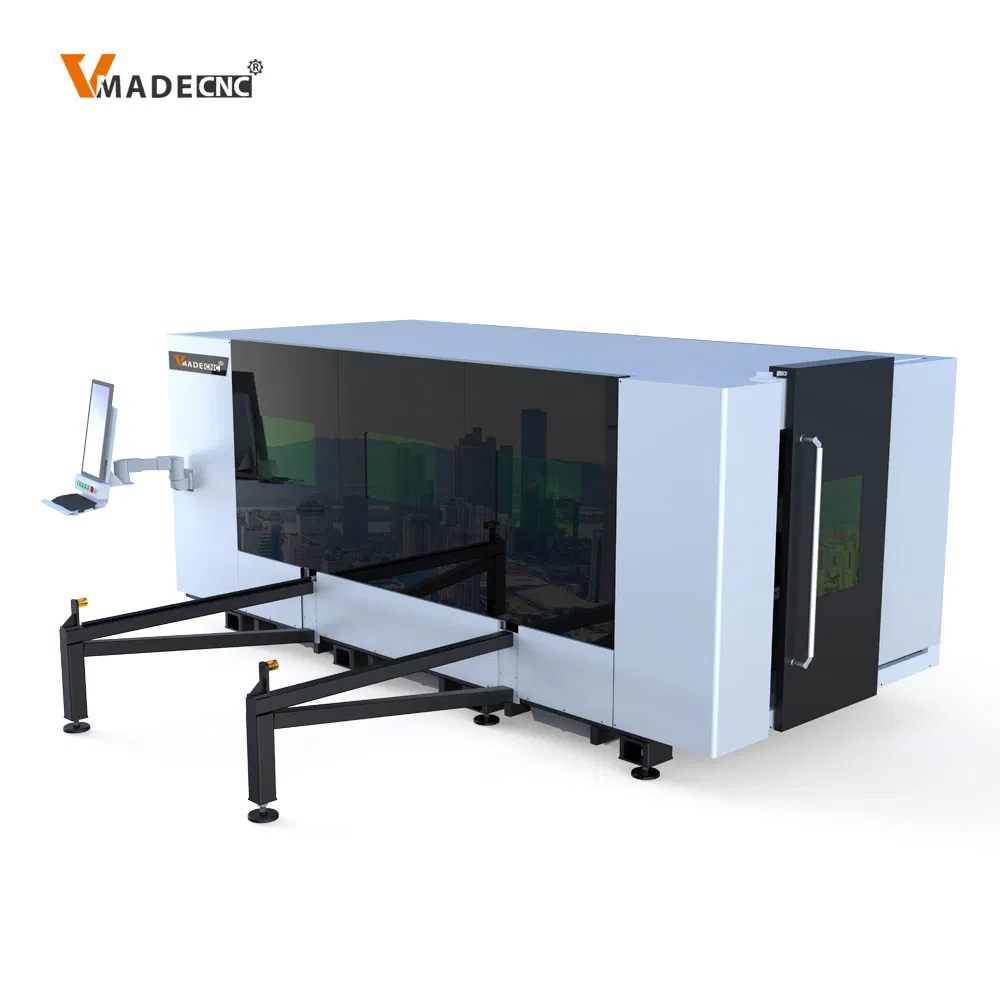

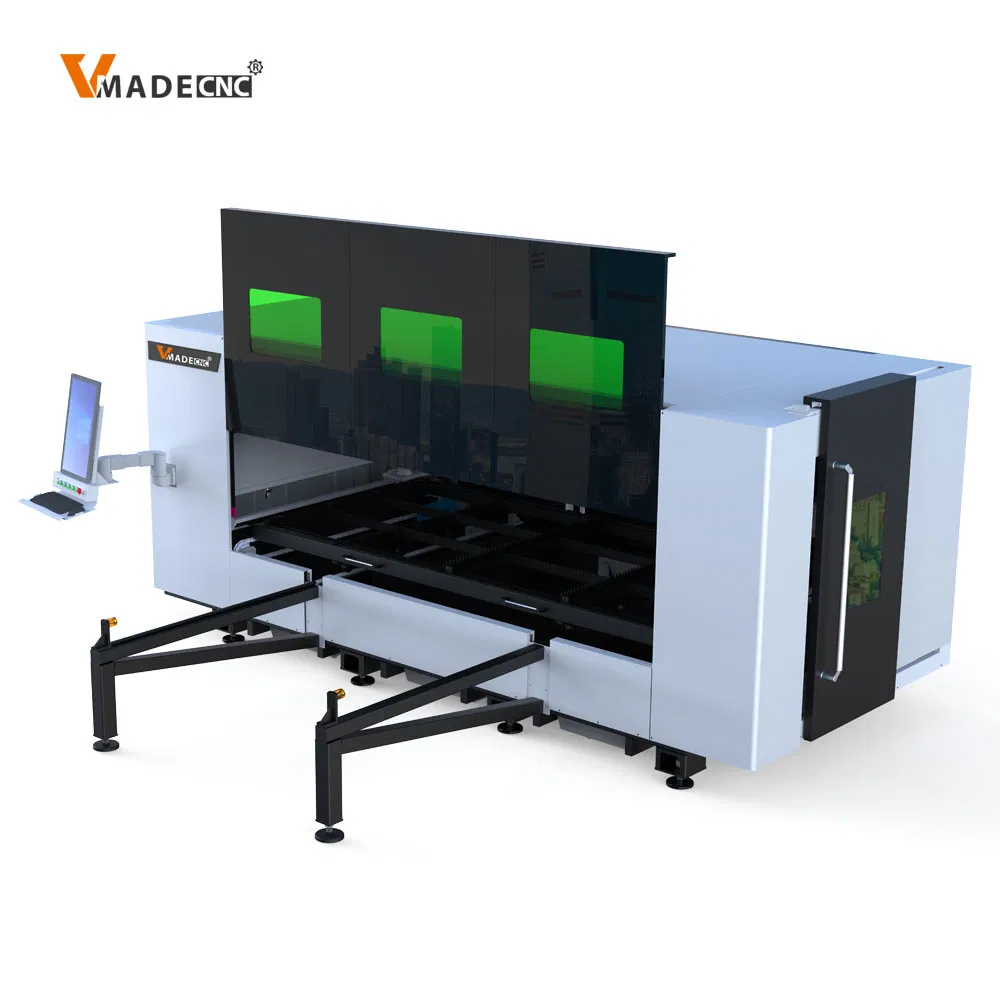

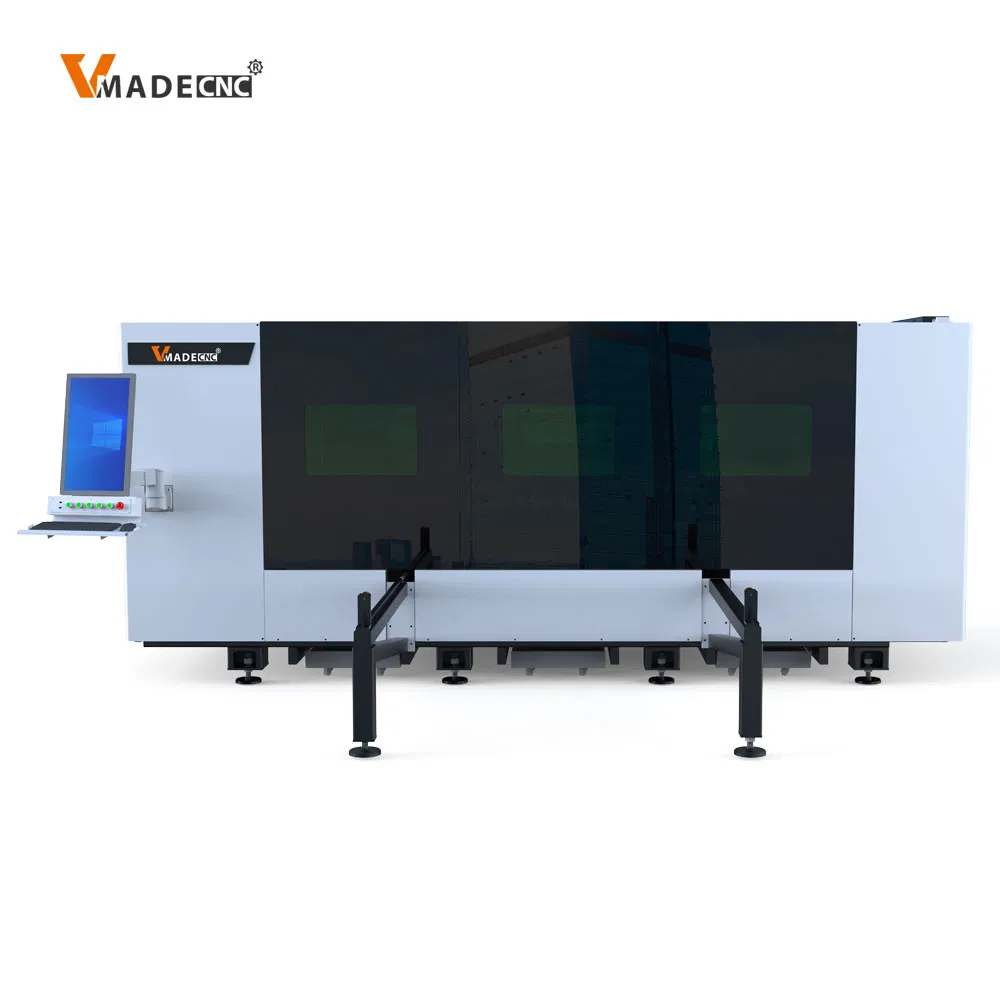

The VLF1530PS fiber laser cutting machine accommodates up to 6000W of laser power, serving as an exceptional option for cutting various material thicknesses. Widely utilized in agricultural machinery, textile machinery, food processing equipment, and construction machinery manufacturing, this system is optimized for high-power processing. It is highly suitable for cutting stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plated zinc plates, copper, and other metals.

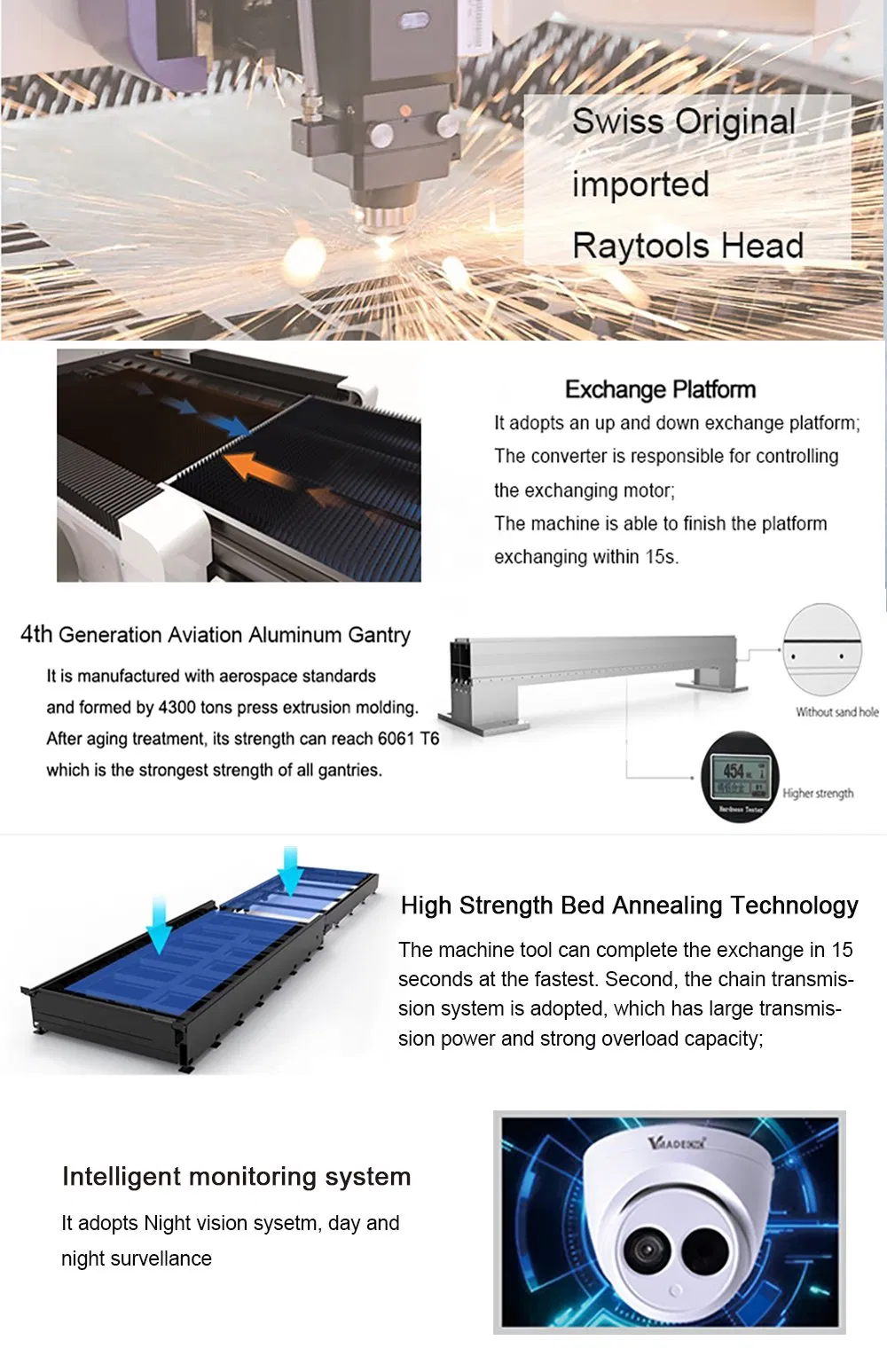

Aviation Aluminum Beam
Manufactured to aerospace standards with excellent toughness, light weight, corrosion resistance, and low density to significantly enhance processing speeds.
Segmented Welded Bed
Rectangular tube welded structure offering high tensile strength and unmatched stability, engineered to prevent deformation throughout 20 years of active operation.
Auto Focus Cutting Head
Fully automated focus configuration eliminates the need for manual operations, facilitating simple, rapid auto-focus settings.
Independent Control Cabinet
Dust-proof casing featuring automatic constant temperature regulation to keep sensitive electronic parts functioning optimally.
Detailed System Design
1

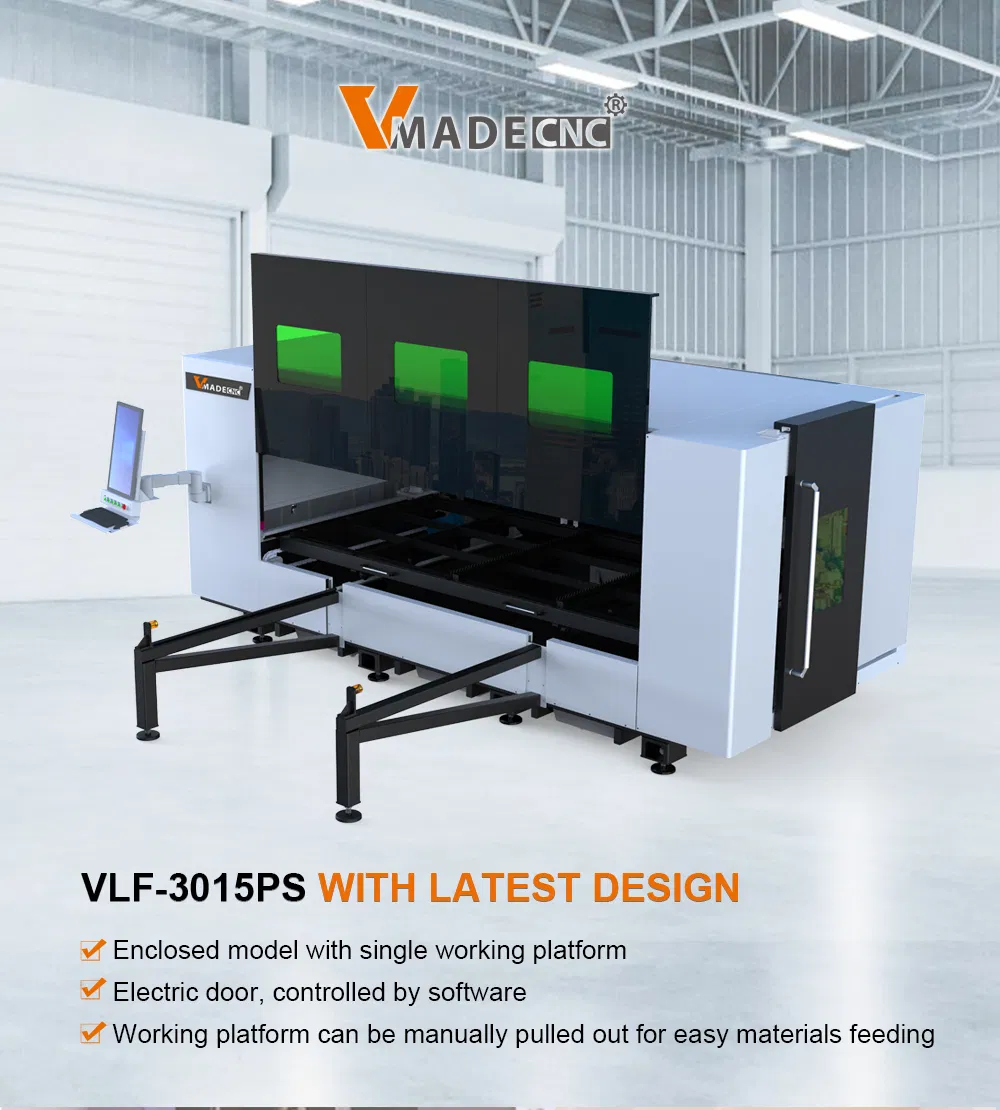

Inward-opening side sliding doors optimize space efficiency, making the machine suitable for structures with lower ceiling clearance.
2
User-friendly operating screen shaft design simplifies parameter debugging. The configuration software optimizes cutting paths automatically and supports formats such as DXF and Gerber.
3
Upper air shower structure generates downward air pressure to suppress dust accumulation over moving parts.
4
Premium marble platform suppresses vibration errors during linear motor movements. The structure resists thermal deformation under ambient temperature fluctuations.
5
Double-layer sealed guide rail structure shields the linear motor and guide rails from ambient dust intrusion.
6
Optimized laser control processes enable cutting performance that rivals imported systems.
Technical Parameters
Parameter
Specification Details
Machine Model
VLF1530PS
Laser Power Options
1000W / 1500W / 2000W / 3000W / 6000W
Dimensions
5150 * 2825 * 2125 mm
Working Area
1500 mm x 3000 mm
Repeated Positioning Accuracy
±0.02 mm
Max. Running Speed
120 m/min
Max. Acceleration
1.0 G
Transmission Mode
Double Rack Gear Transmission
Specified Voltage & Frequency
380V / 50Hz / 60Hz / 60A

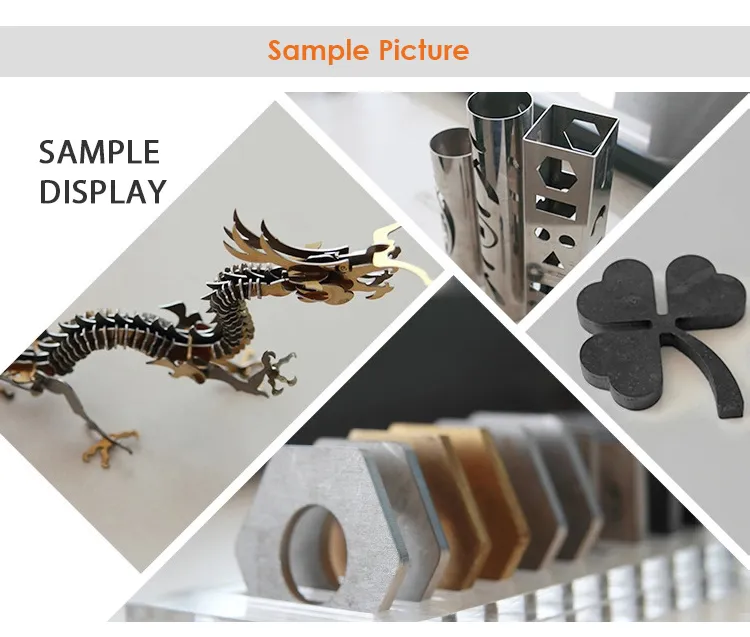

Cutting Samples Display
Professional After-Sales Commitments
Professional Technical Training
We provide a professional technical team to deliver door-to-door or online training guidance, ensuring users are proficient in operating the equipment in a short time.
Global Technical Assistance
Customer support services operate 16 hours a day online to quickly solve problems for users worldwide, escalating issues directly to technical and production departments.
Regular Quality Surveys
Our service department systematically contacts clients to assess equipment performance and overall satisfaction, utilizing this feedback to drive continuous upgrades.
Three-Year Warranty Program
A comprehensive three-year warranty covers the machine structure (excluding optical devices and consumable parts). Control software upgrades are provided free of charge.
Frequently Asked Questions
Q1: What is a fiber laser and what materials can it cut?
A fiber laser is a unique solid-state laser pumped optically, typically using diode lasers. It cuts metals efficiently, including Stainless Steel, Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, and Copper. It is not suitable for non-metal materials.
Q2: Which fiber laser sources are compatible with the machine?
The machine integrates seamlessly with leading fiber laser sources, including IPG, Raycus, and Maxphotonics.
Q3: What are the primary advantages of this fiber laser system?
Key benefits include high beam quality, highly energy-efficient operation with low power consumption, dynamic and reliable build, maintenance-free operations (no mirrors or lenses to align), multilingual system interface, and a 3-year warranty protection plan.

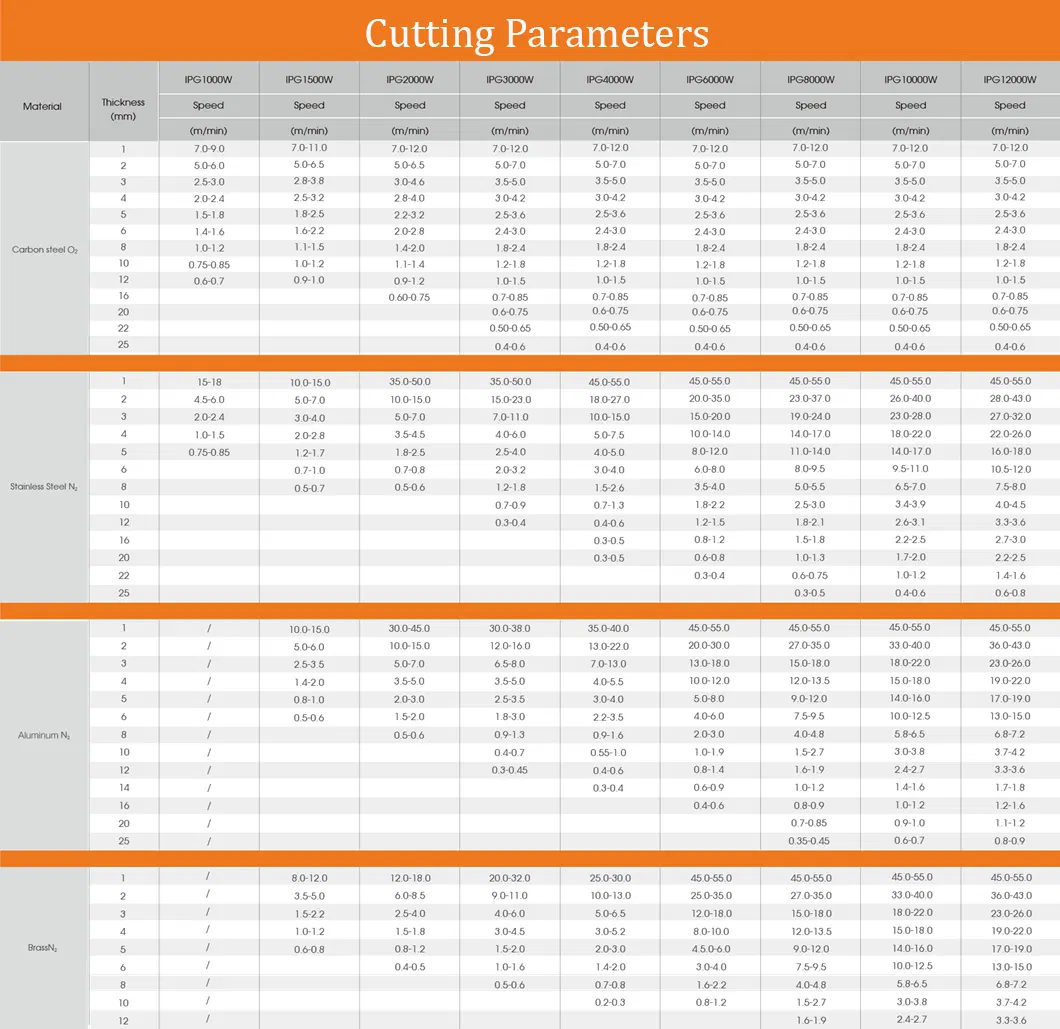

Q4: What is the maximum metal cutting thickness capability?
Cutting thickness scales with laser power:
1000W: Up to 5mm Stainless Steel, 12mm Carbon Steel.
2000W: Up to 10mm Stainless Steel, 18mm Carbon Steel.
3000W: Up to 10mm Stainless Steel, 20mm Carbon Steel, 10mm Aluminum, 7mm Brass, 4mm Copper.
4000W: Up to 12mm Stainless Steel, 22mm Carbon Steel, 10mm Aluminum, 10mm Brass, 6mm Copper.
Q5: Can it cut highly reflective metals like Aluminum and Copper?
Yes, fiber laser systems configured with 1KW (1000W) source power or above are specifically qualified to process high-reflection metals including Aluminum, Brass, and Copper.
Q6: What is the purpose of the auto-focus system?
The auto-focus cutting head adjusts dynamically to different sheet thicknesses without manual intervention, simplifying the cutting process, reducing human errors, and ensuring higher processing precision.
