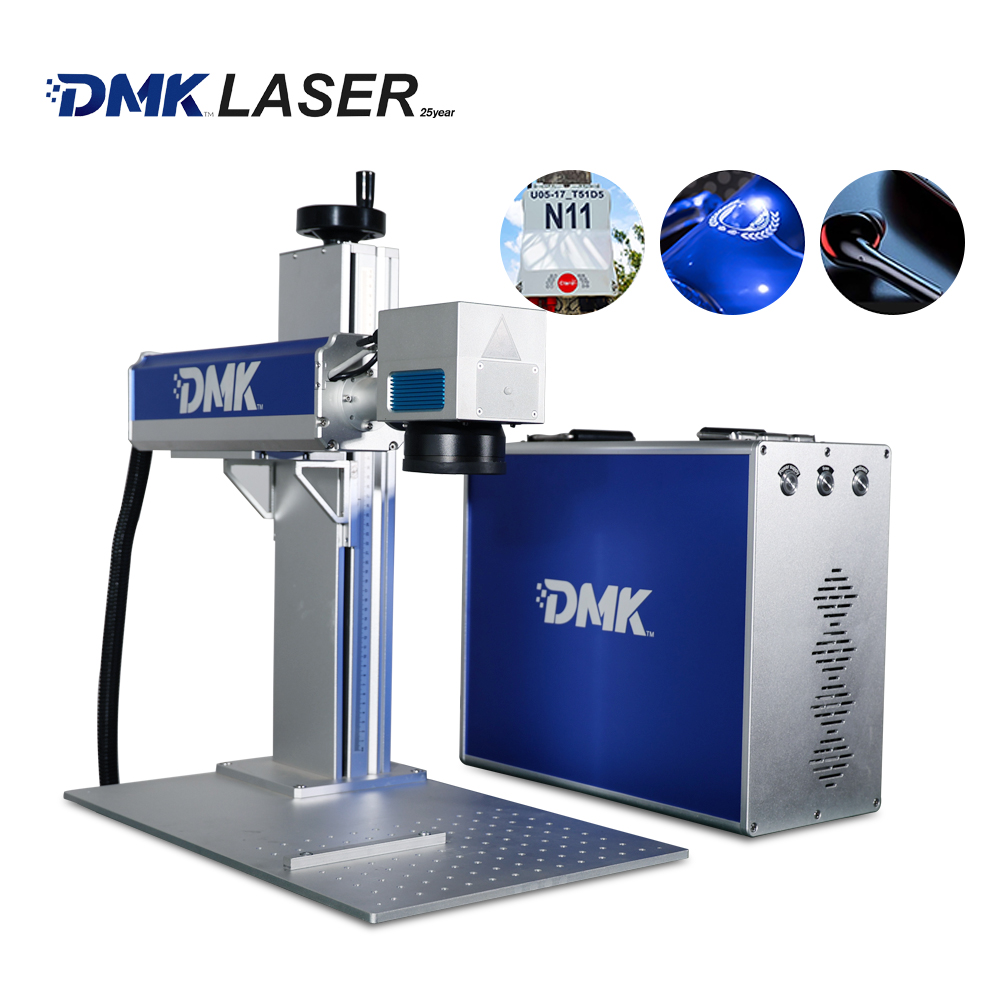

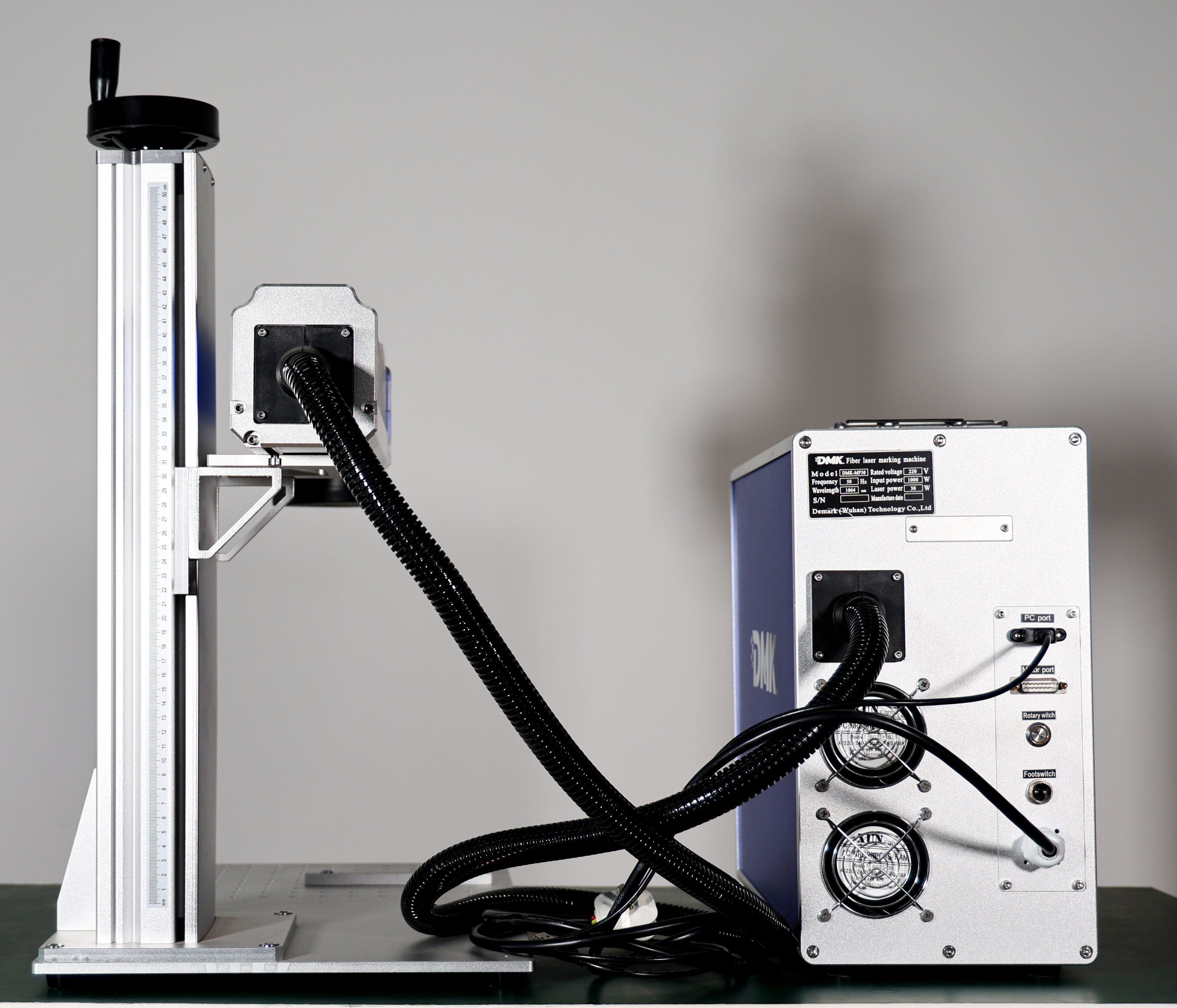

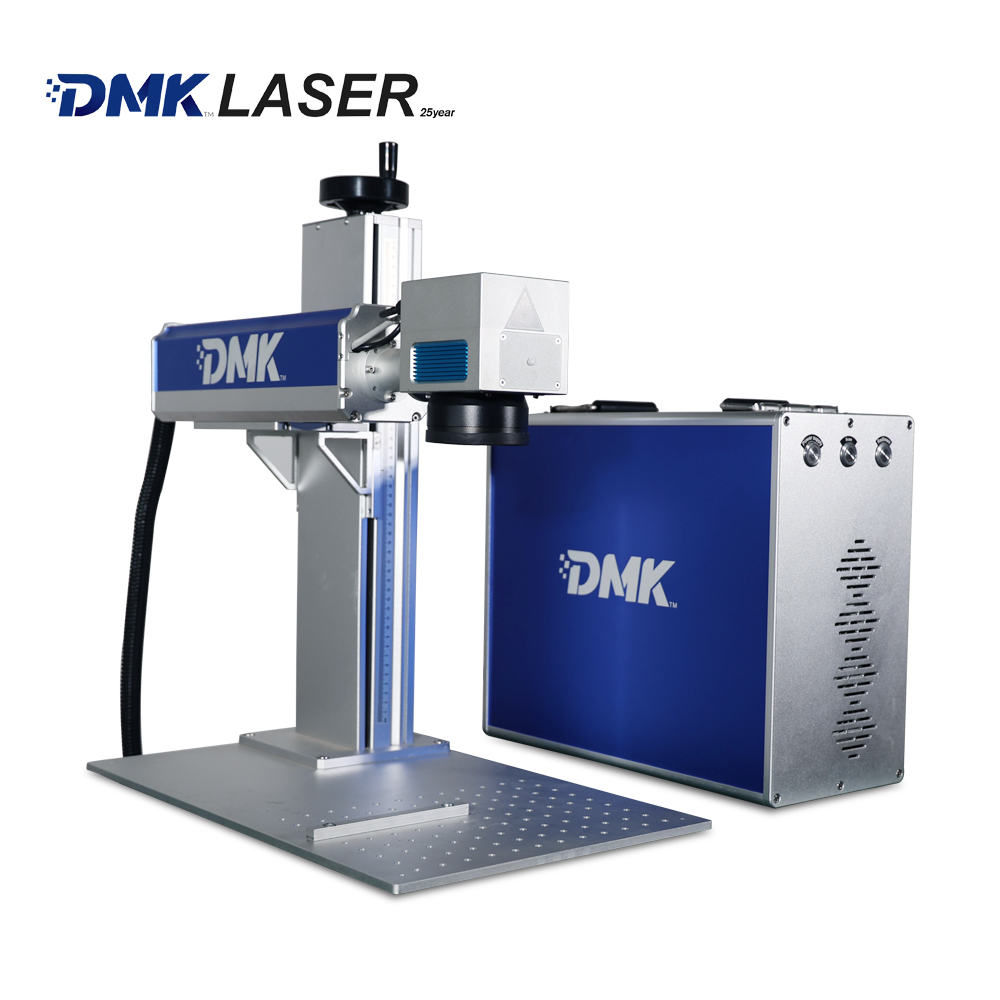

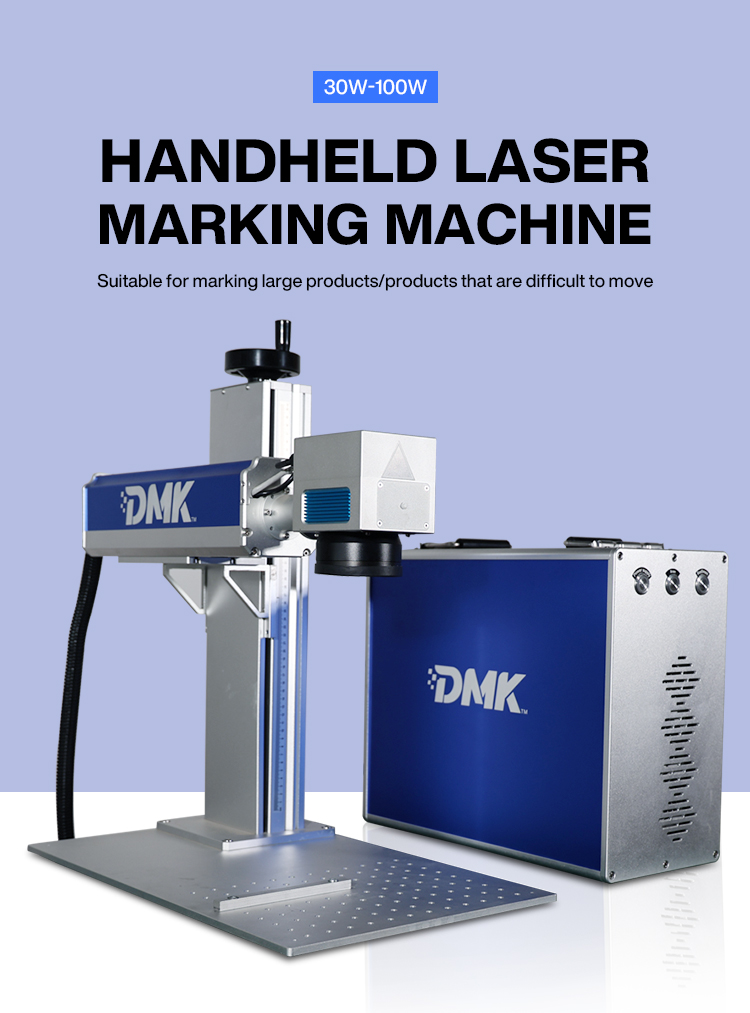

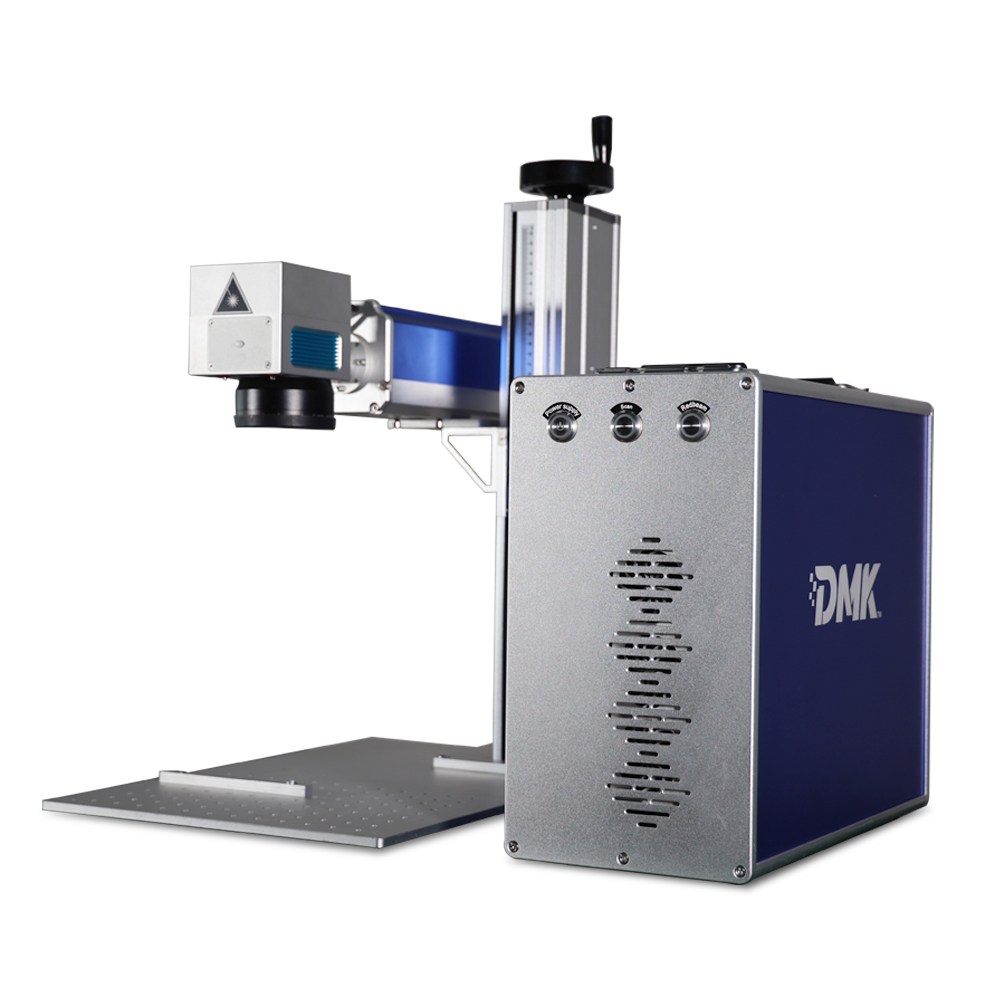

This machine is a new generation of fiber laser marking machine system successfully developed using advanced laser technology in the world.

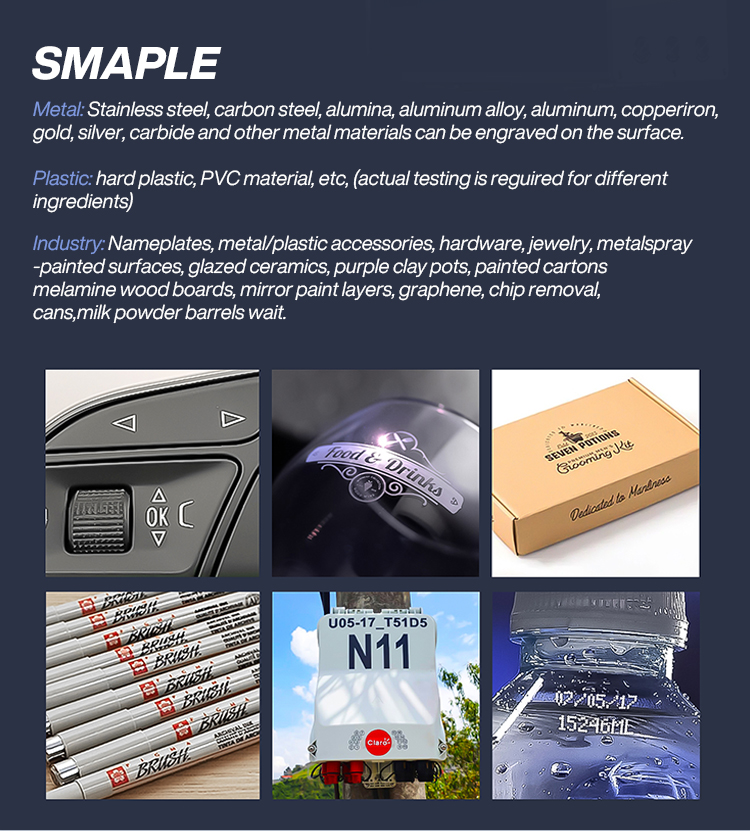

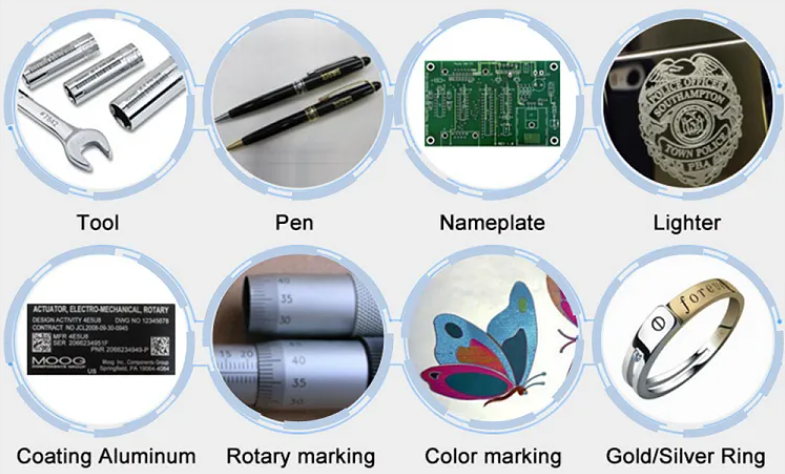

Fiber laser marking machine has high photoelectric conversion efficiency and adopts air-cooled cooling method. The whole machine is small in size, good in output beam quality, high in reliability, and maintenance-free. It is widely used in marking metals, plastics, ceramics and various handicrafts.
| Laser Power | 20W / 30W / 50W / 100W |
| Laser Wavelength | 1064nm |
| Q-frequency | 20KHz ~ 80KHz |
| Divergence | 0.3mard |
| Marking Range | 10*10mm to 300*300mm |
| Minimum Line Width | 0.02mm |
| Minimum Character | 0.15mm |
| Marking Depth | 0 ~ 0.5mm |
| Engraving Line Speed | ≤7000mm/s |
| Repeatability Accuracy | ±0.001mm |
| Beam Quality | M2: 1.2 ~ 1.8 |

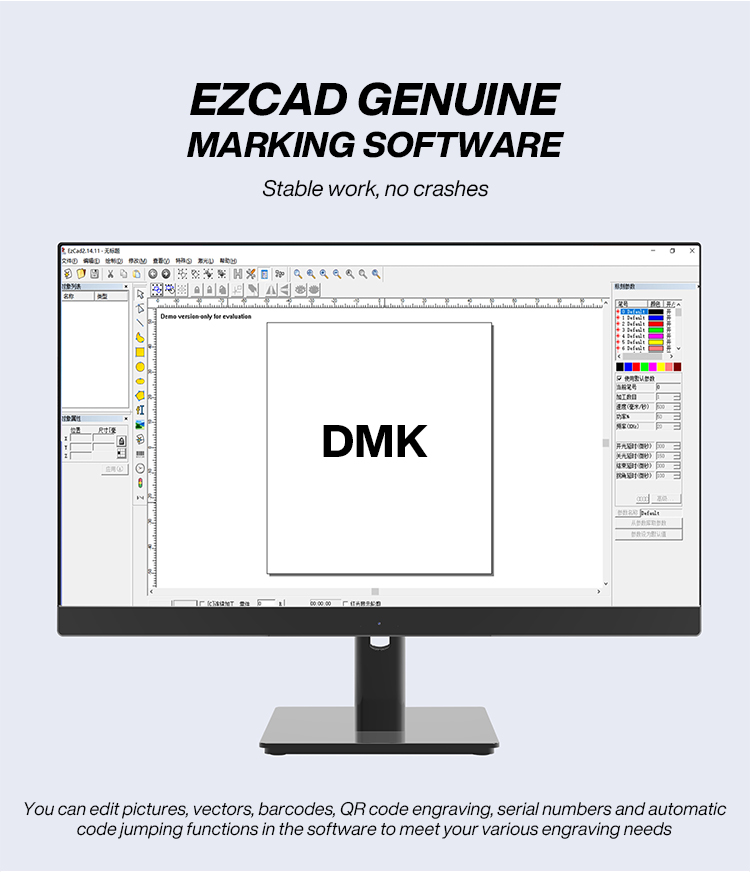

| Marking Format | Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date, Batch number, Serial number, Frequency, etc. |
| Graphic Format Supported | bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc. |
| Working Voltage | 110V/220V±10% / 50Hz / 4A |
| Unit Power | <0.5kw |
| Use of the Environment | Clean and Dust Free or Dust less |
| Working Condition: Humidity | 5% - 75%, Free of Condensed Water |

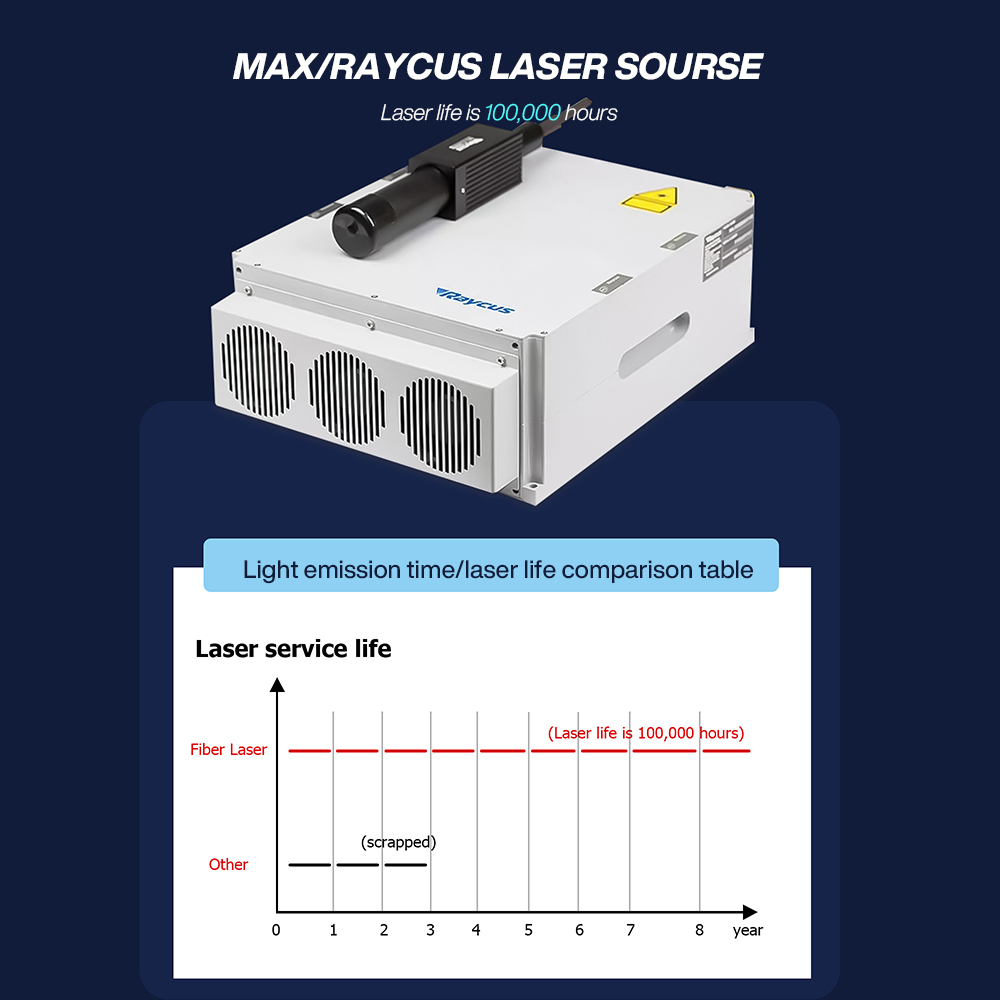

| Laser Module Life | >100000 hours |
