Perfect Laser 20w 30w 50w Fiber Laser Engraving Engraver Marker Marking Machine With Jewelry Gold/Silver/Brass/Steel Iron Metal

1 / 5

Perfect Laser 20w 30w 50w Fiber Laser Engraving Engraver Marker Marking Machine With Jewelry Gold/Silver/Brass/Steel Iron Metal

Send Inquiry

Product Description

20w 30w 50w Fiber Laser Engraving Engraver Marker Marking Machine With Jewelry Gold/Silver/Brass/Steel Iron Metal

Product Description

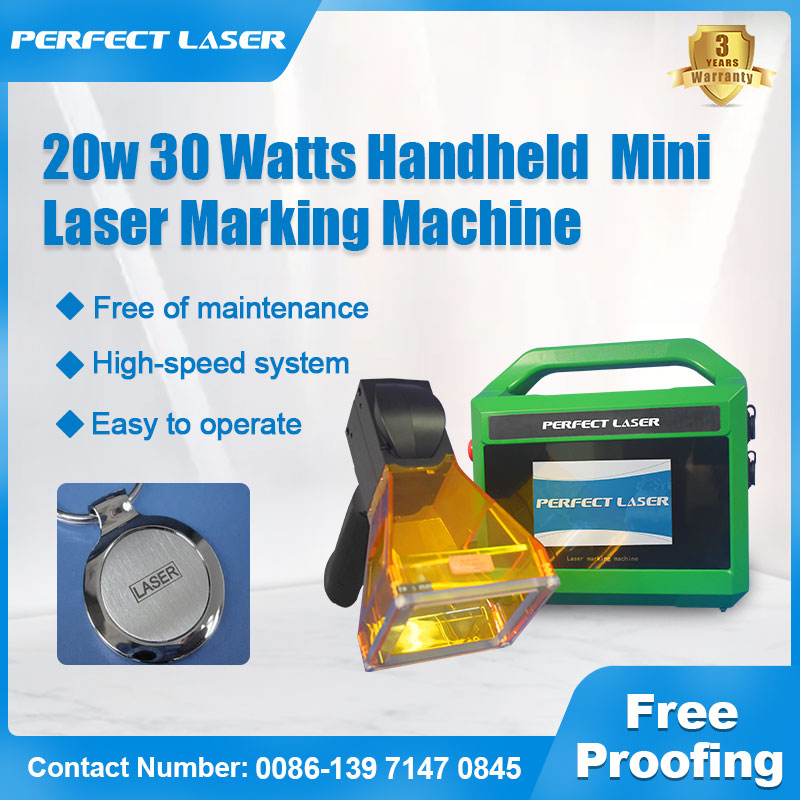

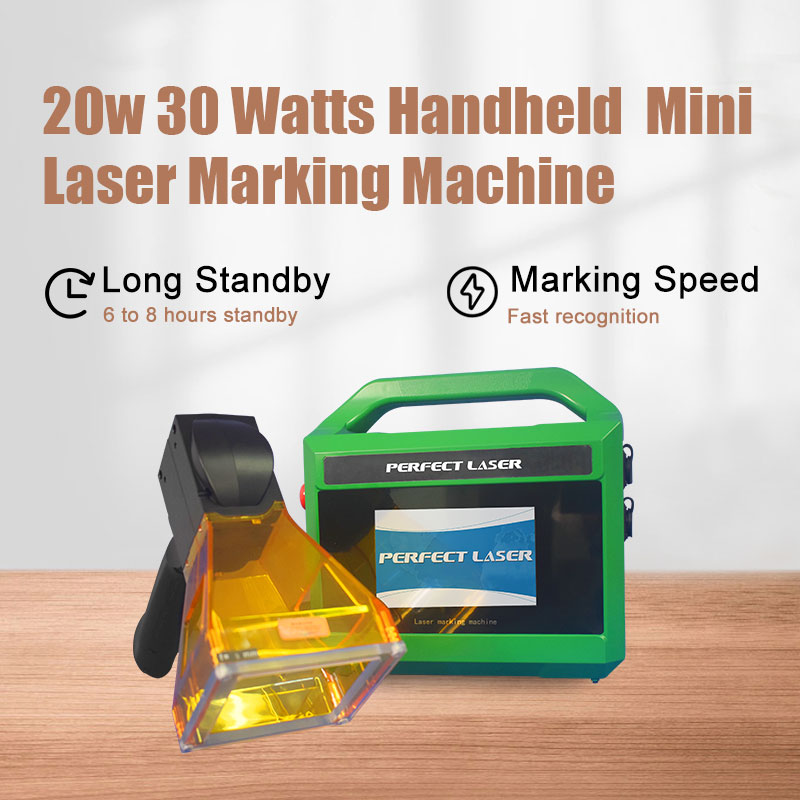

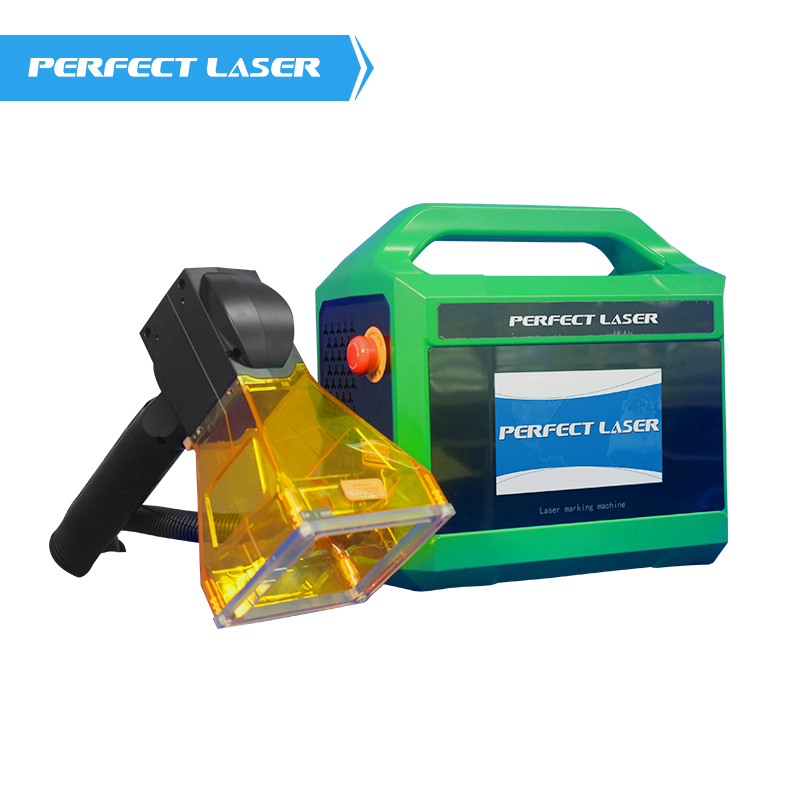

The new generation of portable handheld laser marking machine is more timely and efficient in trouble-shooting and problem processing. Using programmable devices and high-speed and high-precision DA integrated circuits, the laser processing and positioning are accurate and fast.

All-optical coupling isolation technology is applied in this portable laser marking machine. The whole system has low power consumption, good stability and strong performance. This mini laser marking machine is specially designed for marking on many kinds of metal products and some hard plastic products.

Machine Features

Laser ring engraving machine can work continuously for 24 hours without consumables. More than 10,000 hours service time can meet long-term and stable work requirements. The laser ring engraving machine's laser beam is stable.
Gold laser marking machine equipped with special rotary system to support mark on ring. You can finish marking inside or outside to keep your perpetual signs.

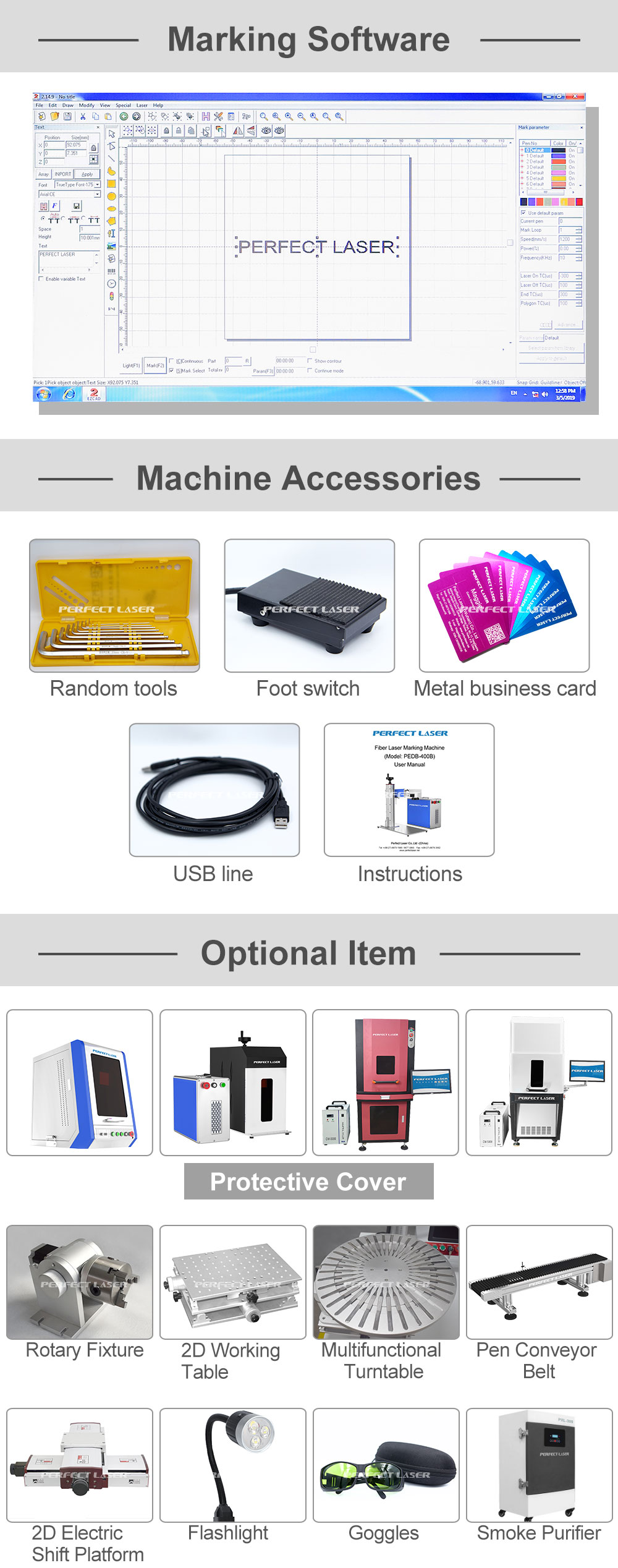

Laser ring engraving machine powerful software compatible with Coreldraw, AutoCAD, Photoshop and other software files which can support PLT, PCX, DXF, BMP, etc., can use SHX, TTF font directly.
The gold laser marking machine structure has been greatly improved: the optical system adopts a fully sealed structure with a red light preview function, a more beautiful appearance and a more convenient operation.

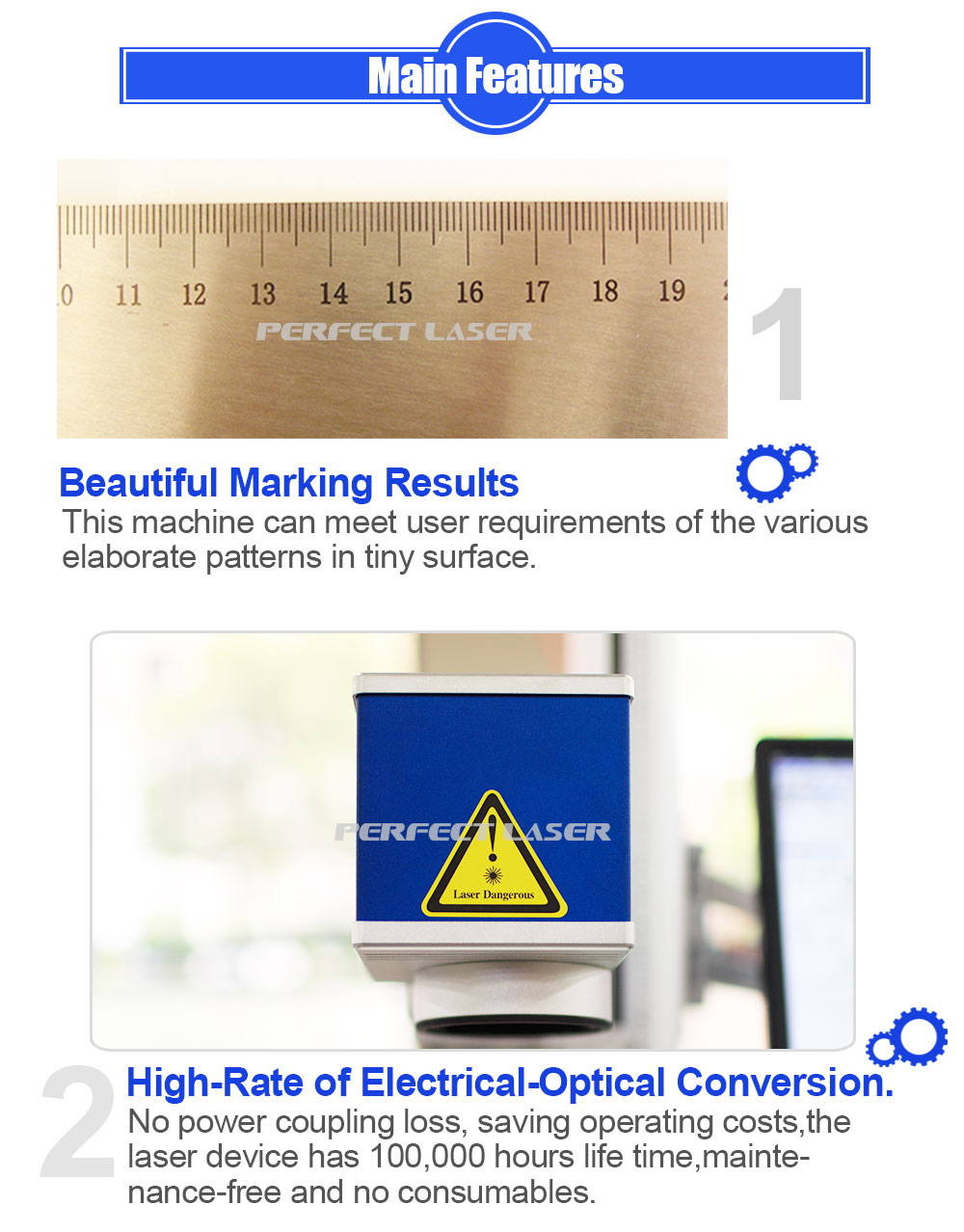

The photoelectric conversion efficiency is high, the beam quality is good, the lines are fine, the spot is small, and the laser has long service life, the laser ring engraving is specially suitable for jewelry marking.
The laser ring engraving is equipped with the latest precision constant temperature chiller, low operating noise, high temperature adjustment accuracy, and provides a reliable guarantee for the continuous operation of the machine for a long time.
Jewellery laser marking machine high-speed scanning galvanometer, suitable for industrial mass production. No mechanical stress, small thermal stress, no damage to the processed material, no deformation to maintain your best jewelry effect.

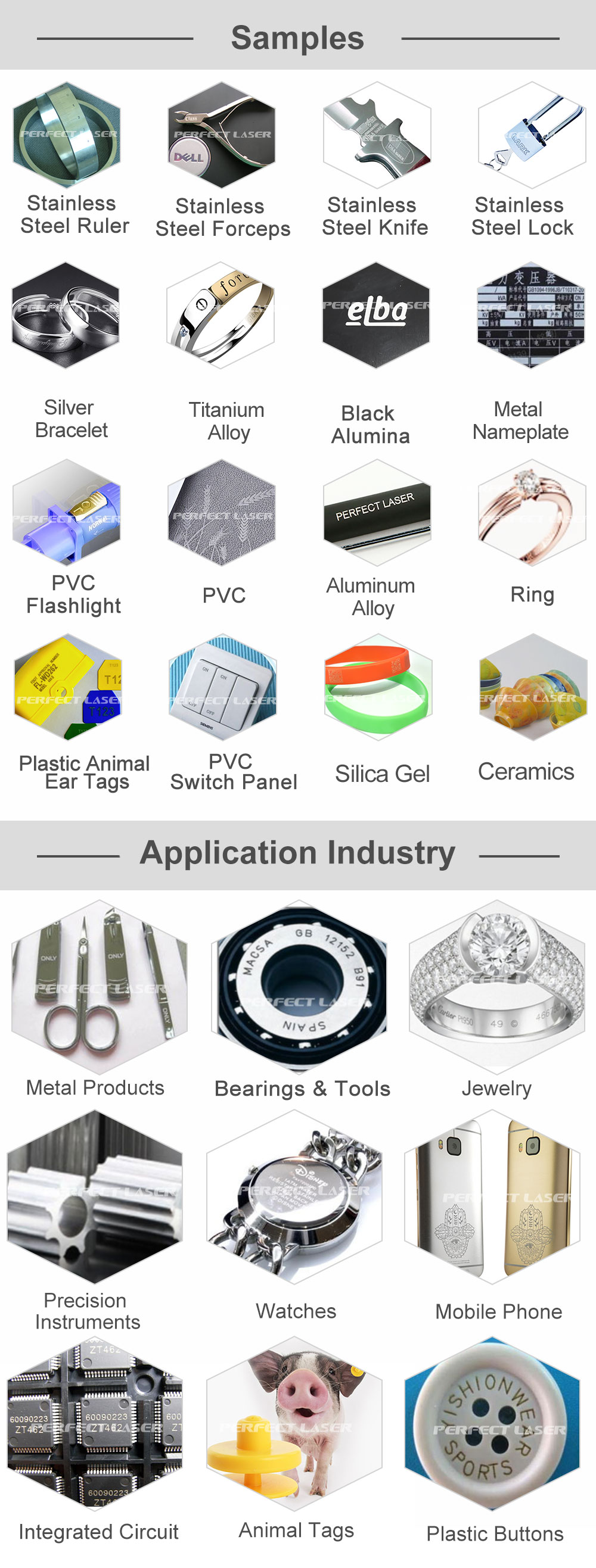

Application

Application of Fiber Laser Engraving Machine:
This jewelry Fiber laser engraving machine is mainly applied to the higher engraving precision such as jewelry, mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eye glasses and clocks, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

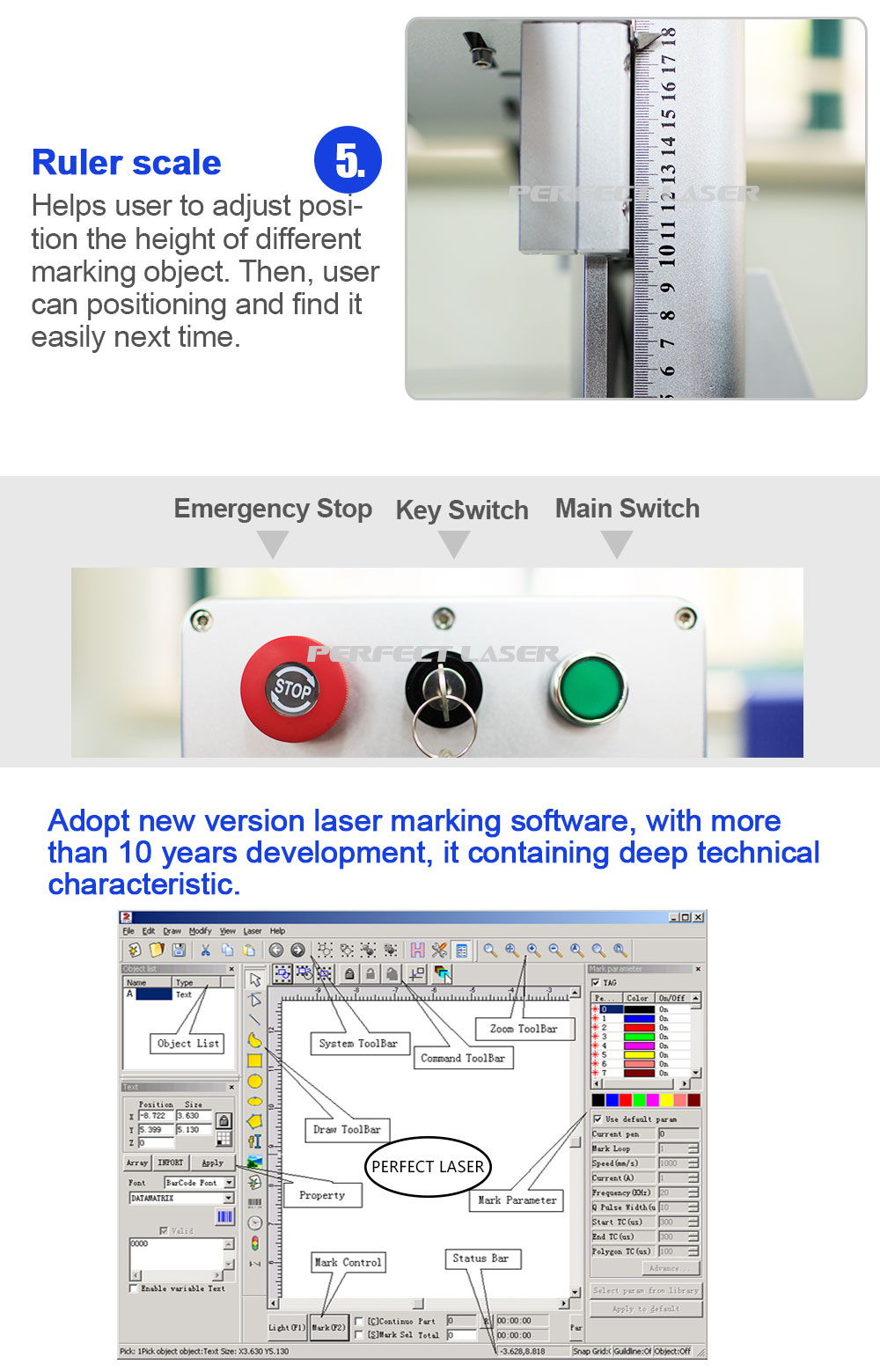

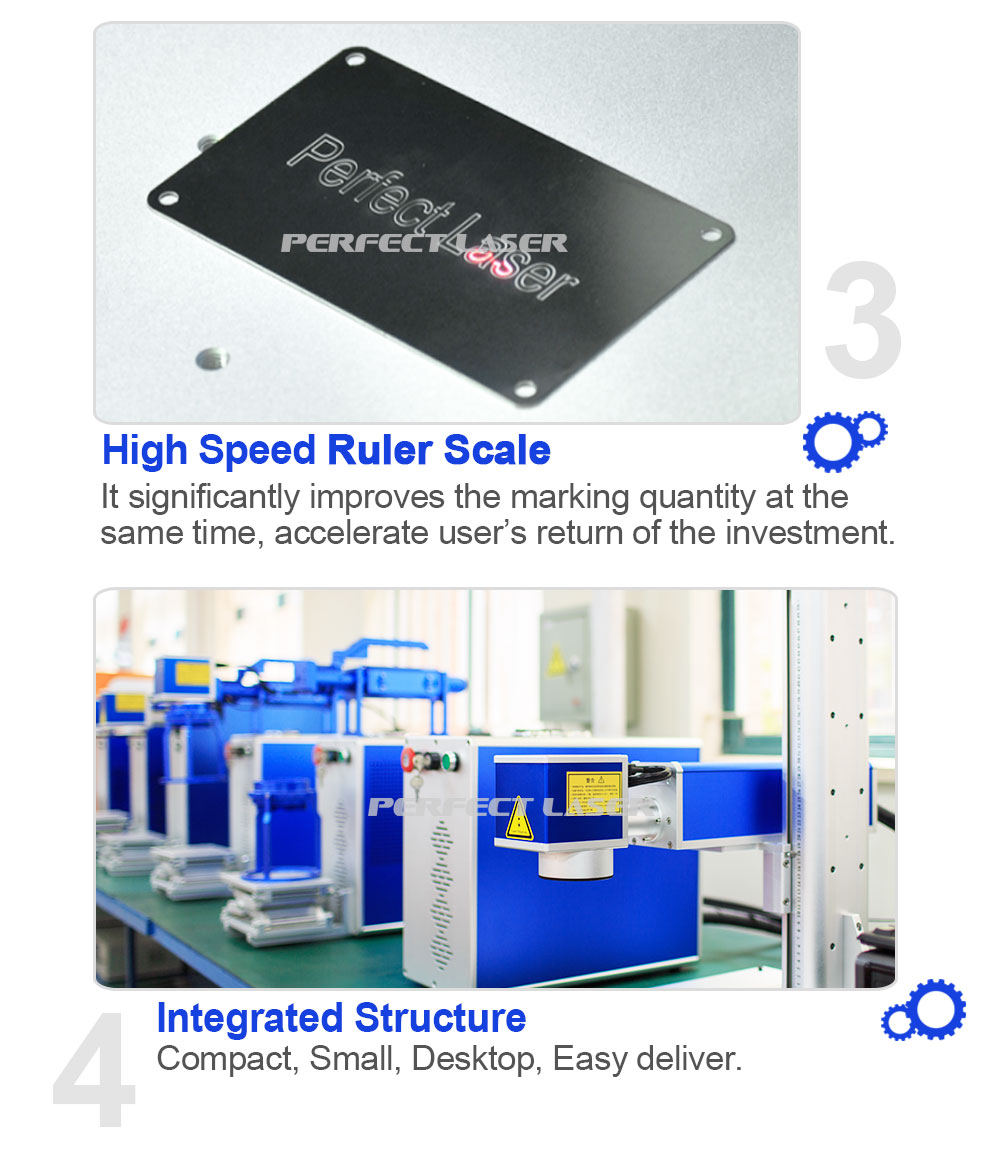

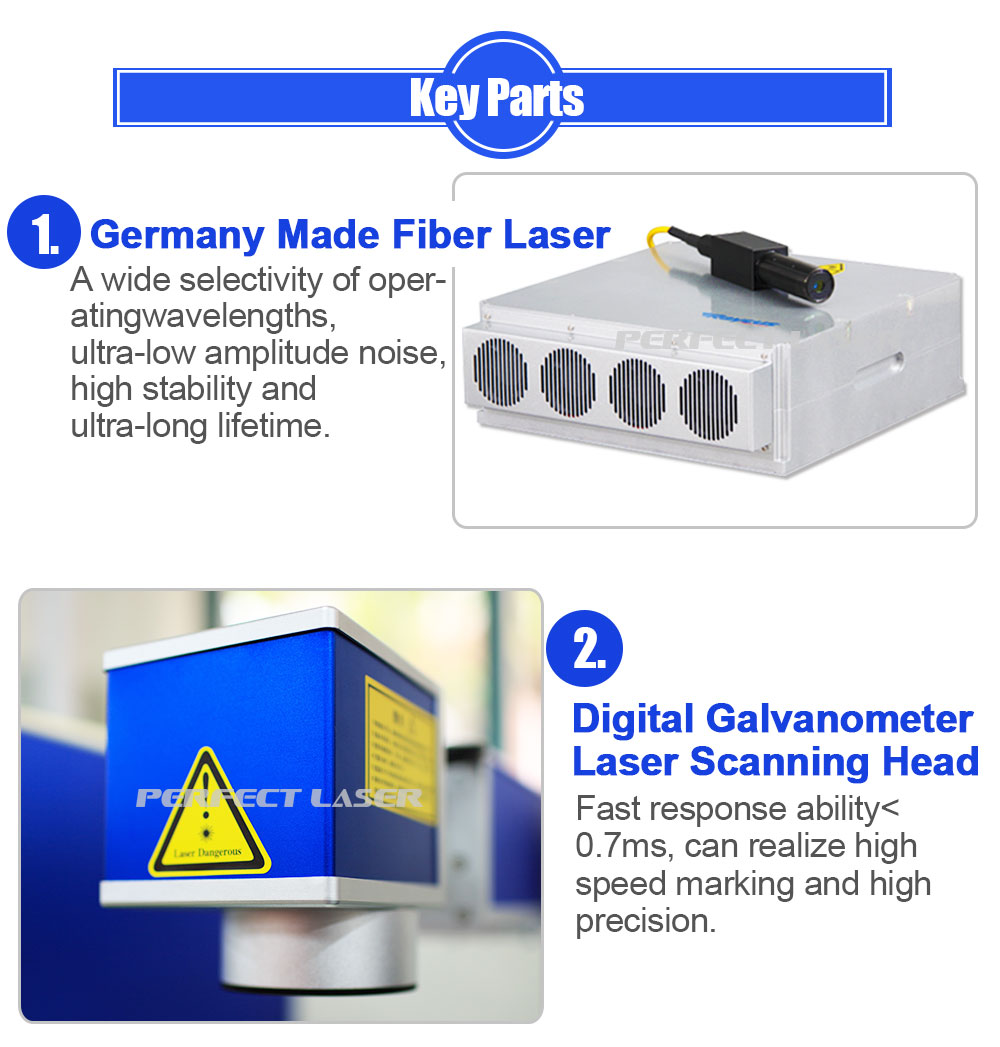

Machine Details

Specification

Model No	PEDB-400A	PEDB-400B	PEDB-400C	PEDB-400D
Type	Portable	Desktop	Colorful	Standby
Computer	Not includes PC			Includes PC
Laser Source
IPG Series	Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation	Pulsed
Polarization	random
Nominal average output power	10W - 30W For PEDB-400A /400B /400C 10W - 50W For PEDB-400D
Central emission wavelength	1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth (FWHM)	<10 nm
Long-term average power instability	<5%
Pulse width, (FWHM)	100 ns
Laser switching ON time	180 μsec
Laser switching OFF time	180 μsec
Pulse Repetition Rate* kHz	20-80 kHz
Energy per pulse (PRR = 20 kHz)	0.95 mJ
Typical beam quality, M2	<1.8
Output fiber delivery length	3m
Operating voltage	220V
Max. Power consumption	600W
Net Dimensions	702050cm	803872cm	702050cm	14362101cm
Net Weight	44 kgs	53 kgs	44 kgs	130 kgs
Gross Weight	60 kgs	70 kgs	60 kgs	200 kgs
Laser system
Scanning Speed	0-7000mm/s
Marking Speed	0-5000mm/s
Marking size	110mm×110mm (F-theta 160), 175mmx175mm/300mmx300mm optional
Spot size	≤ 40 micron (F-theta 160)
Cooling unit	Air cooled

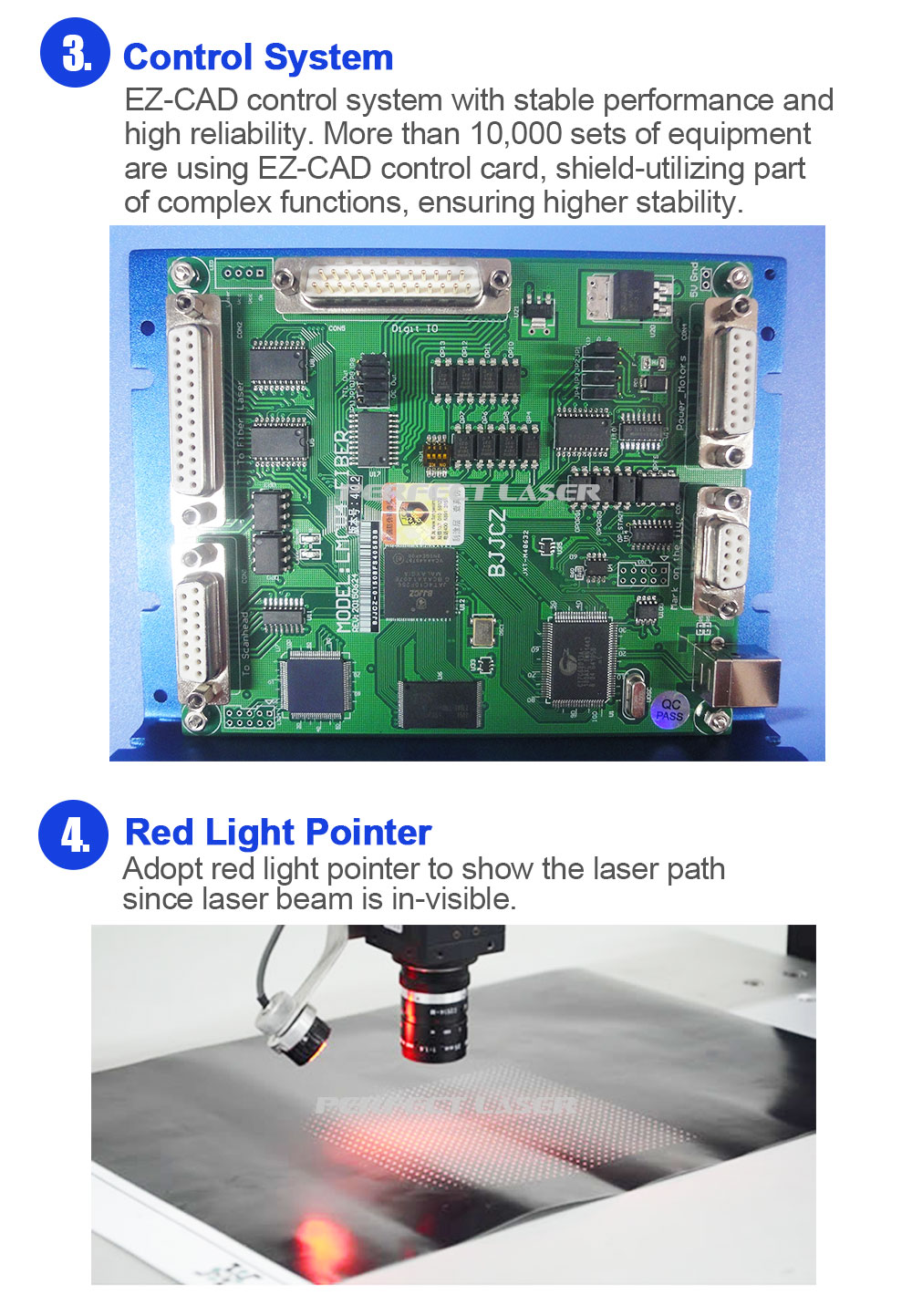

Pilot laser	650nm diode laser, visible red light for marking guide
Continuous working time	≥16h
Humidity	45% ~ 85% (no condensation)
Operating temperature	0~40℃
Control units	Laser Mark (English Version)

Related Products

Marketing Campaign

Frequently Asked Questions (FAQ)

What materials can this fiber laser marking machine engrave?

This fiber laser marking machine is specially designed to engrave various metals, such as gold, silver, brass, stainless steel, iron, and some hard plastics. It is perfect for jewelry making and industrial component identification.

Does this machine support ring or curved surface marking?

Yes, it comes equipped with a special rotary system that supports precise marking on both the inside and outside of rings and other cylindrical or curved jewelry items.

What is the lifespan of the laser source?

The high-quality fiber laser source has a long service life, typically exceeding 10,000 hours of stable performance, allowing for continuous 24-hour operation.

What design software is compatible with this laser engraver?

The machine control system features powerful software that is fully compatible with popular formats like PLT, PCX, DXF, and BMP. You can import design files directly from AutoCAD, CorelDraw, and Photoshop.

Are there any consumables required for operation?

No, fiber laser marking technology does not require any inks, solvents, or other consumable parts, making it highly cost-effective and environmentally friendly.

How is the cooling system managed?

This fiber laser marking machine is equipped with an integrated air cooling system or a high-precision constant temperature chiller to maintain safe operating temperatures during long-term production.
